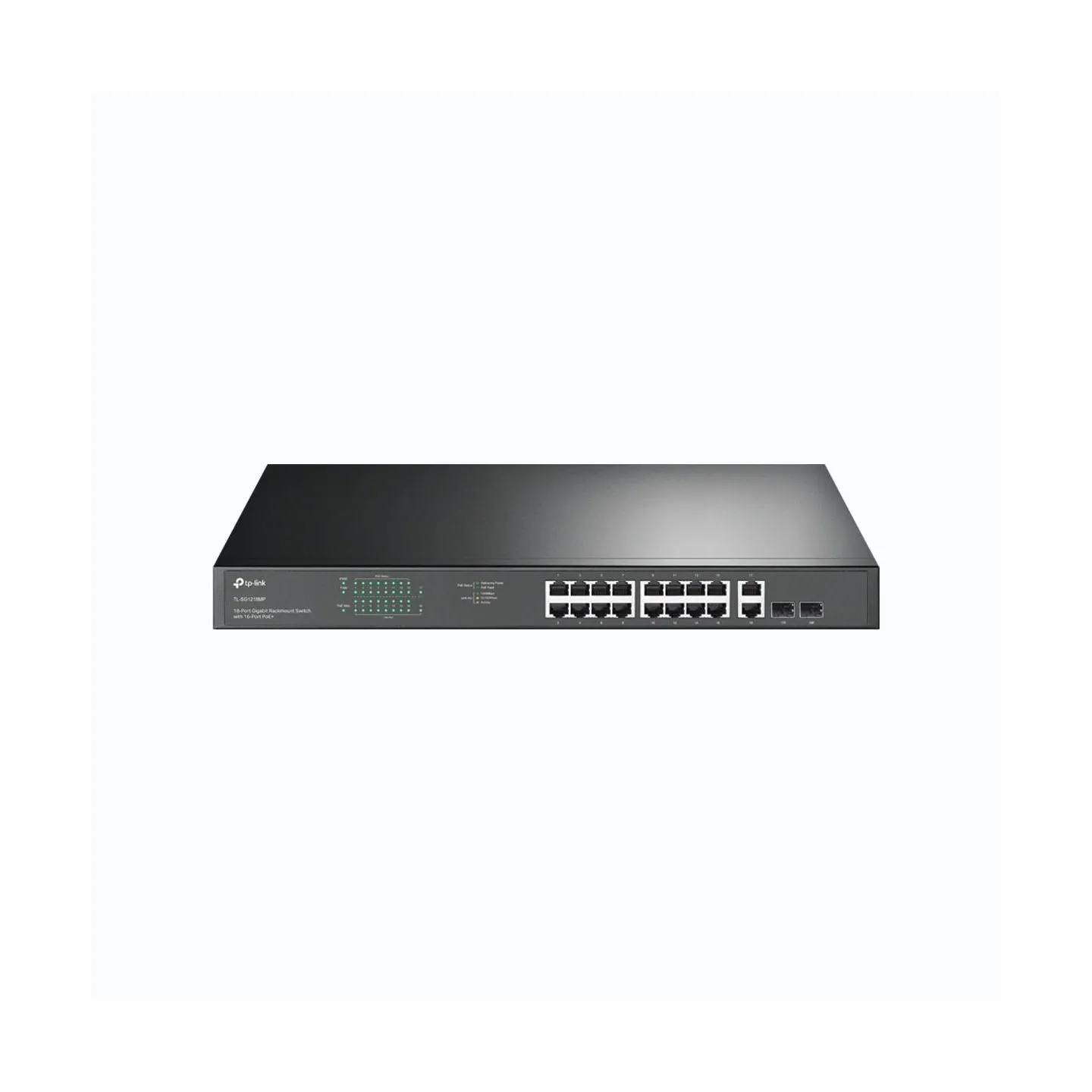

    Tp-Link Switch|TP-LINK|TL-SG1218MP|Desktop/pedestal|Rack|16x10Base-T / 100Base-TX / 1000Base-T|PoE+ ports 16|250 Watts|TL-SG1218

Tp-Link Switch|TP-LINK|TL-SG1218MP|Desktop/pedestal|Rack|16x10Base-T / 100Base-TX / 1000Base-T|PoE+ ports 16|250 Watts|TL-SG1218

€228.76
Tax included
Quantity
Add to wishlist
Last items in stock

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

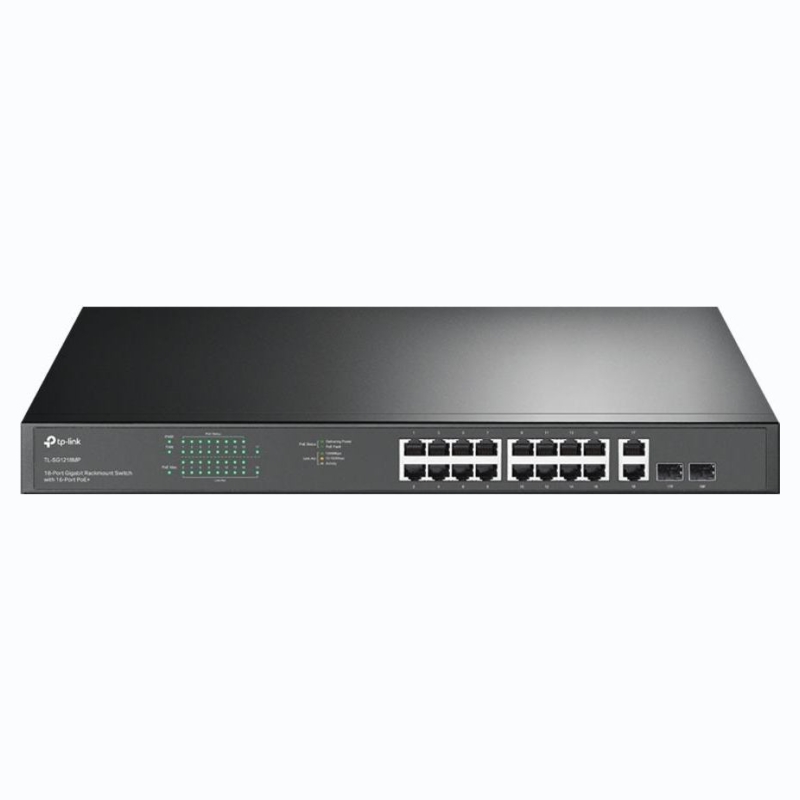

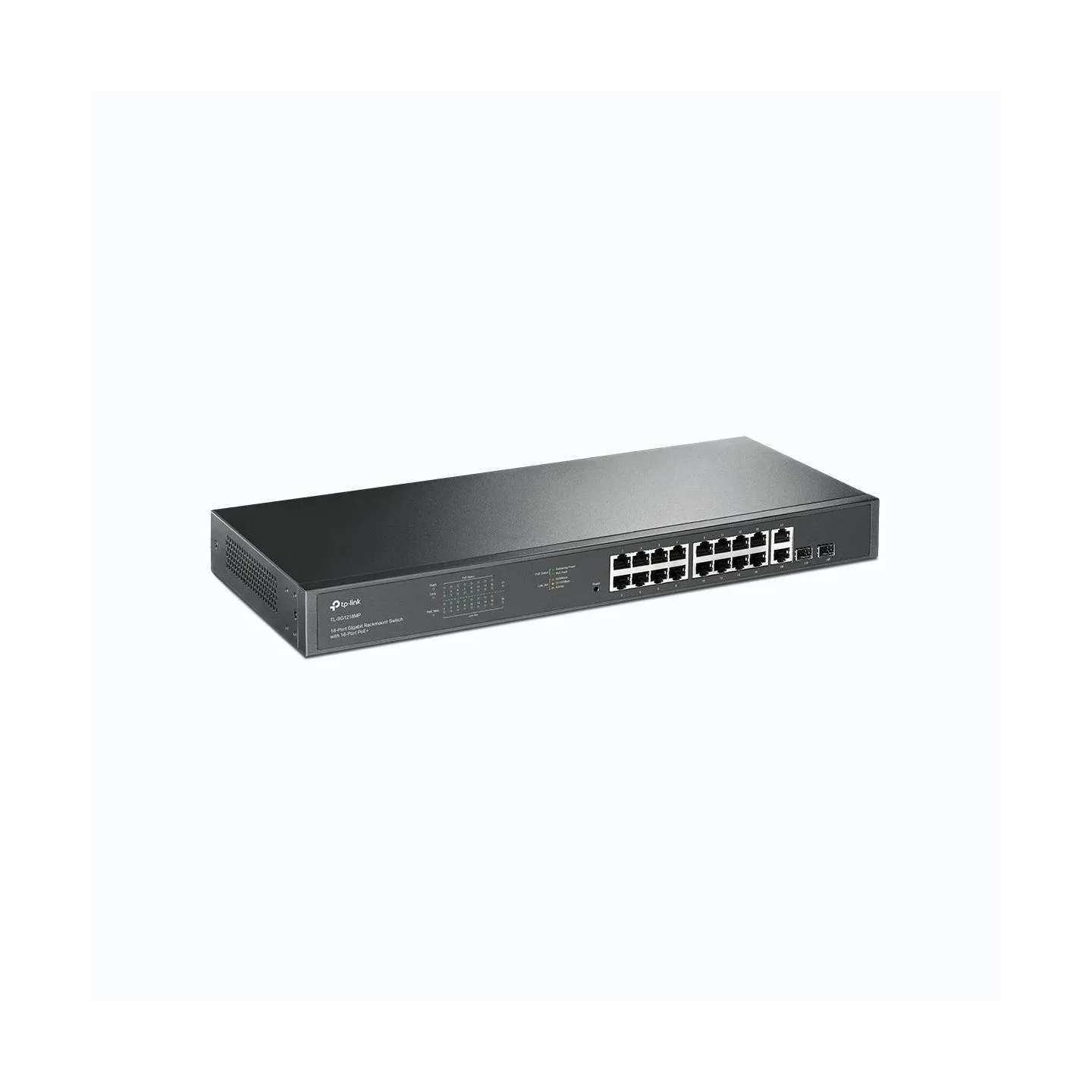

Professional High Power 18-Port Gigabit Rackmount Switch with 16-Port PoE+
Plug and Play, Multi-Purpose PoE Switch with Powerful Performance

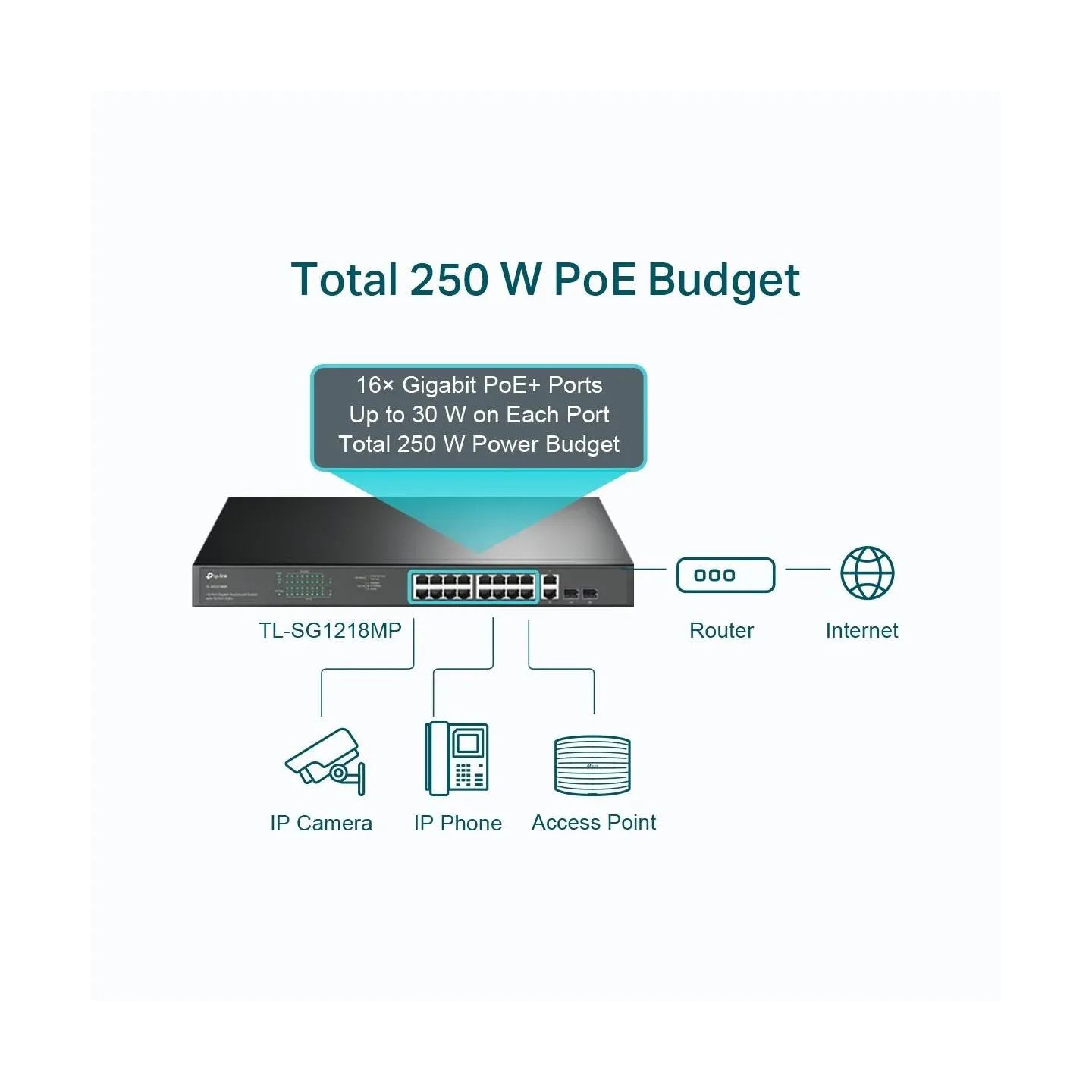

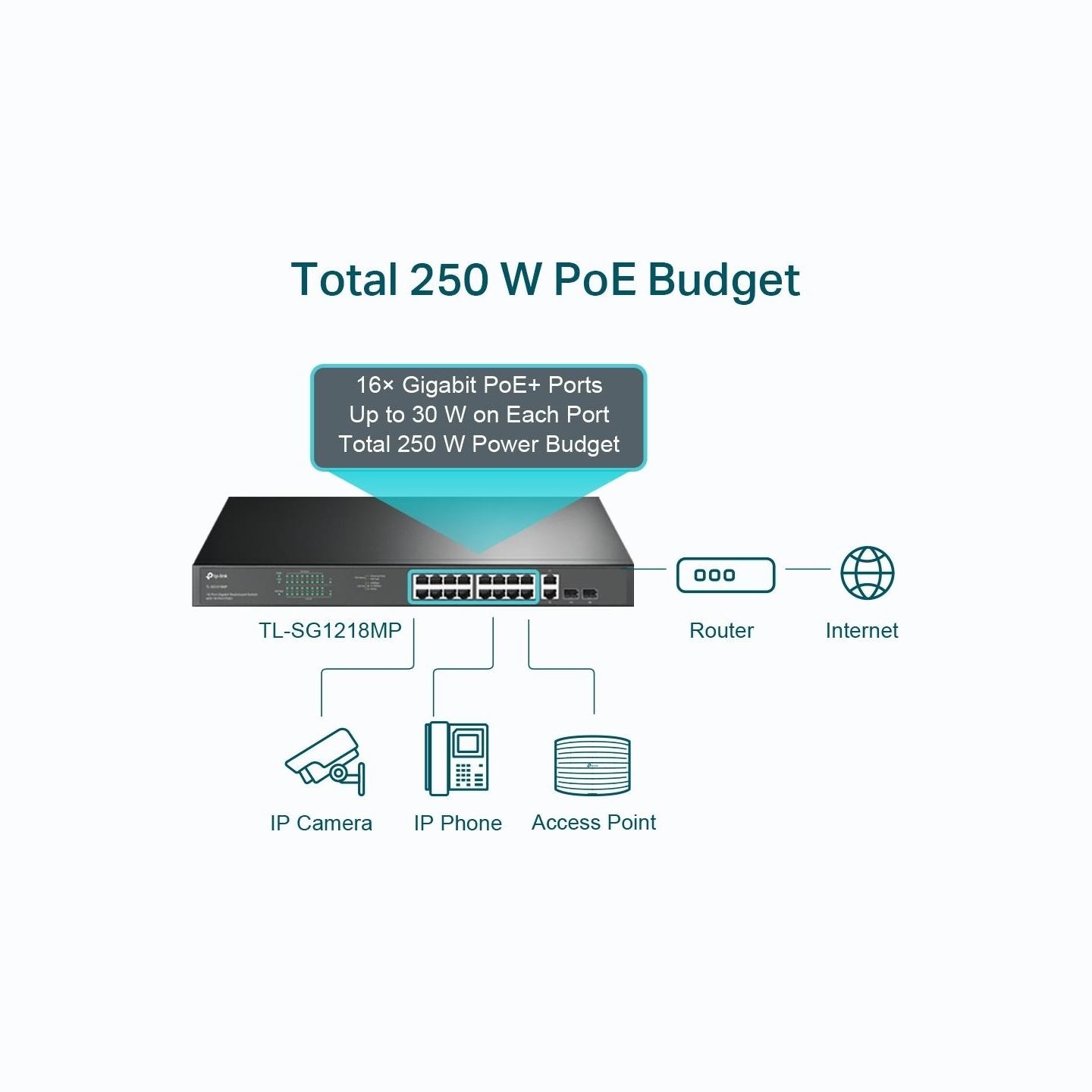

Dedicated 16-Port PoE+ Switch (250 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 16× gigabit PoE+ ports makes it suitable for a wide range of applications, from surveillance to networking in offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

QoS for a Lag-Free Experience
Ensures smooth traffic for latency sensitive applications, such as voice and video, by designating the priority of traffic based on Quality of Service (QoS).

Intelligent Power Management to Prevent Power Overload
When your total power consumption exceeds 250 W, Intelligent Power Management automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

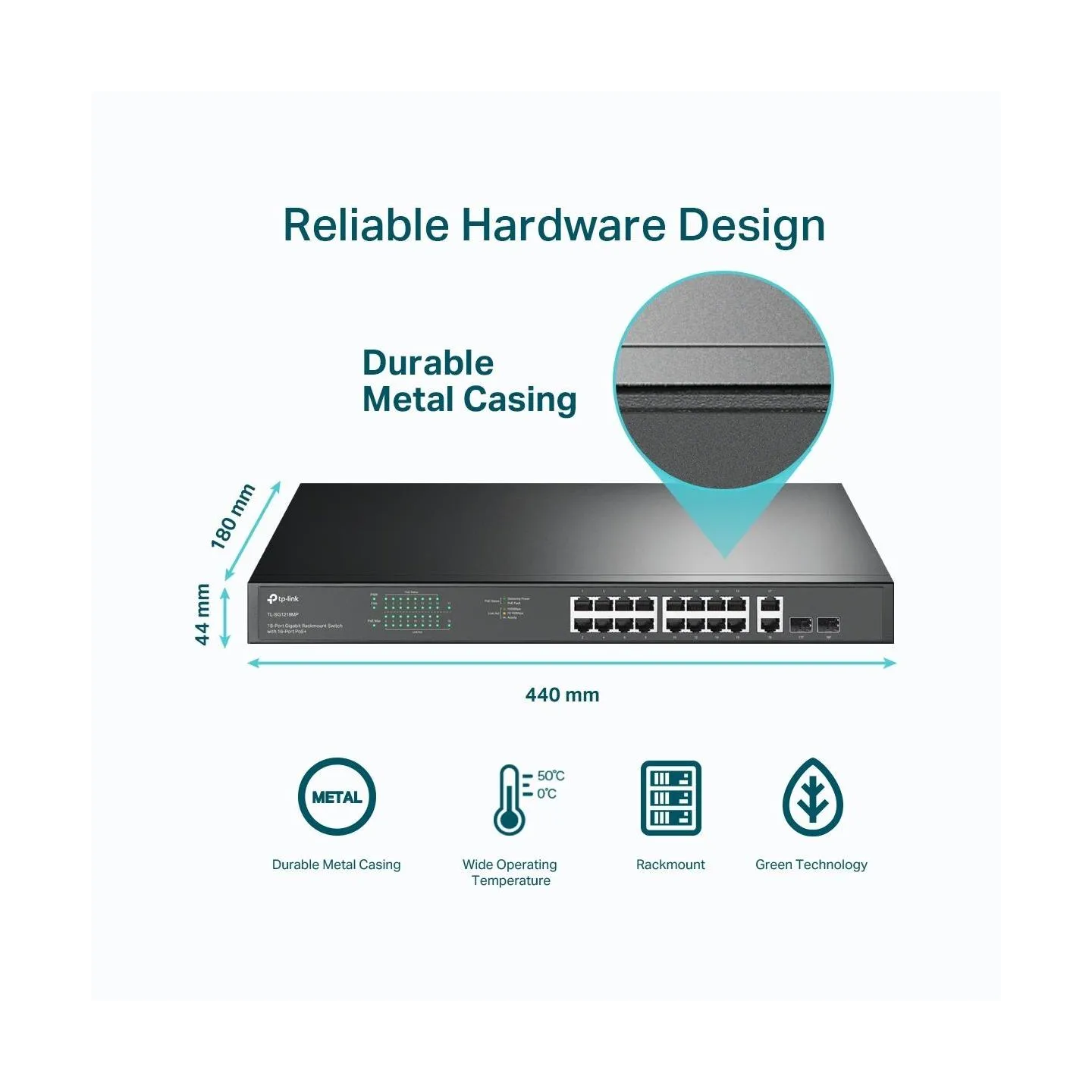

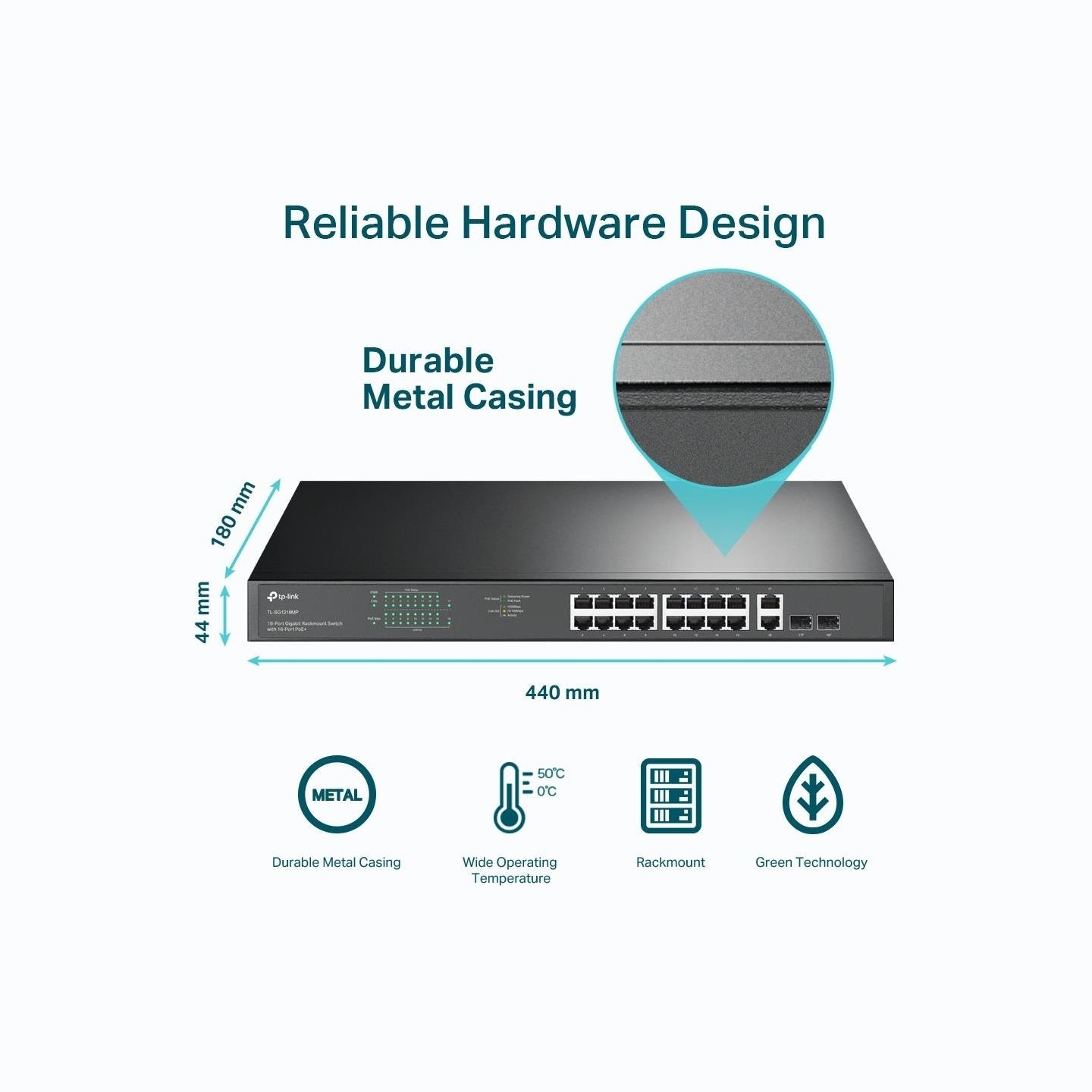

Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability.

Multiple Application Scenarios
The TL-SG1218MP is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.

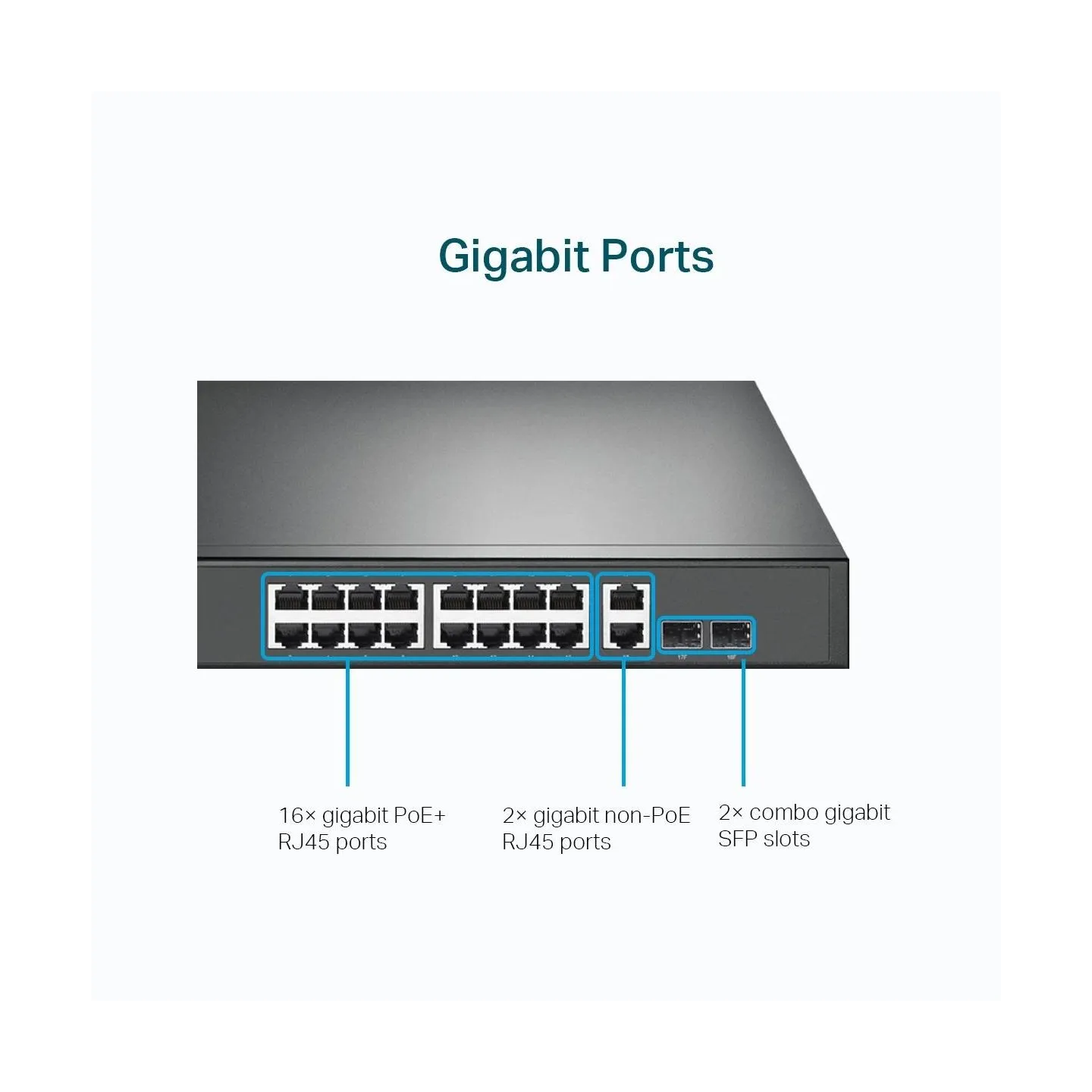

  • 16× gigabit PoE+ RJ45 ports, 2× gigabit non-PoE RJ45 ports, and 2× combo gigabit SFP slots
  • High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports*
  • Working with IEEE 802.3af/at compliant PDs

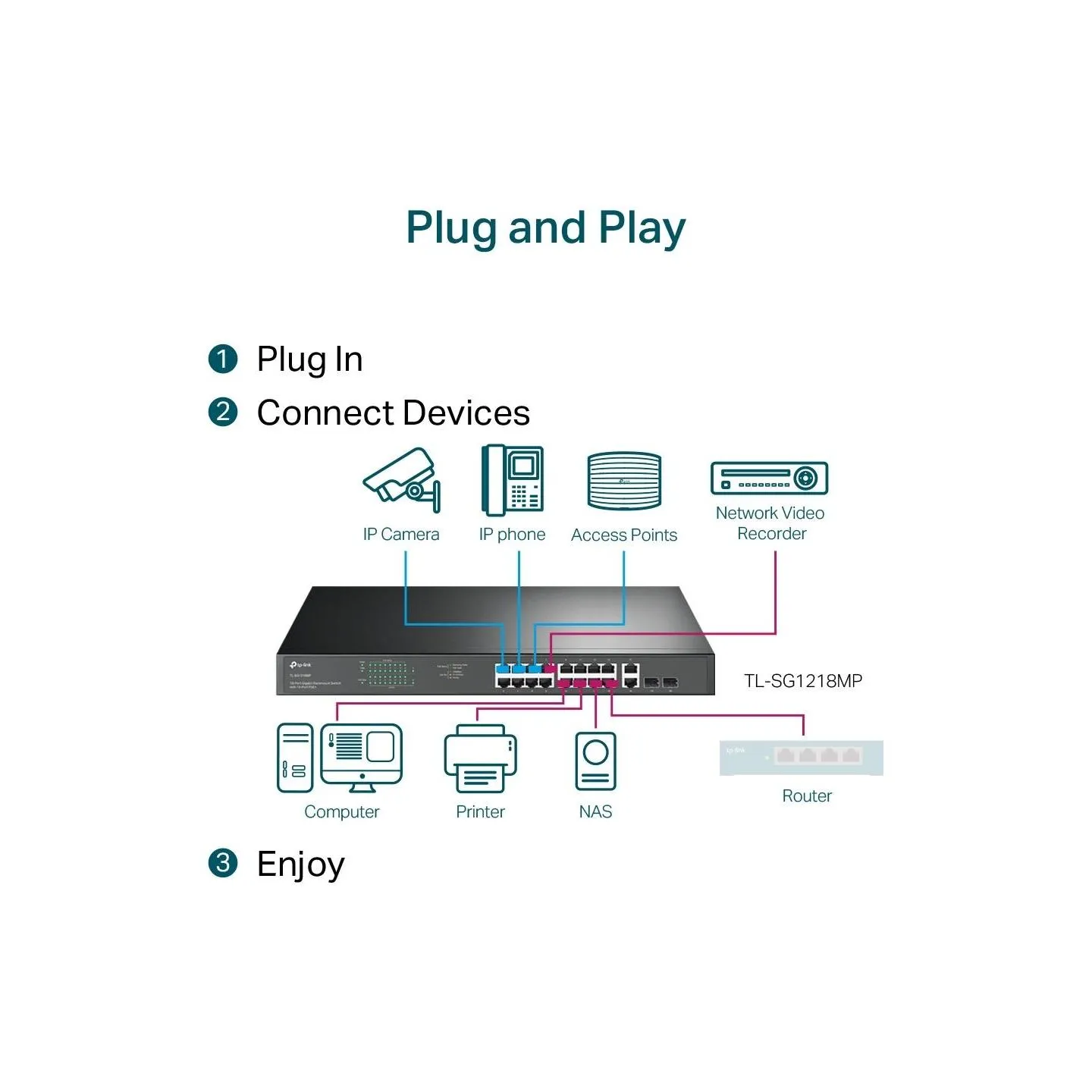

  • Plug and play, with no configuration and installation needed
  • 802.1p/DSCP QoS enable smooth latency-sensitive traffic
  • Durable metal casing and professional heat dissipation design ensure a wide operating temperature range (0–50 ℃)



Manufacturer Website:
https://www.tp-link.com/uk/business-networking/poe-switch/tl-sg1218mp/

Category Code
SWI
CnCode
85176200
Unit Box Height
0.25
Unit Box Length
0.53
Unit Box Width
0.08
Quality of Service (QoS) support
Yes
Switch type
Unmanaged
Traffic classification
Yes
Basic switching RJ-45 Ethernet ports quantity
18
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity
2
Gigabit Ethernet (copper) ports quantity
18
10G support
No
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Cable types supported
Cat3/Cat4/Cat5/Cat5e/Cat6
Ethernet LAN data rates
10,100,1000 Mbit/s
Flow control support
Yes
Full duplex
Yes
Half duplex
Yes
MAC address auto-aging supported
Yes
MAC address auto-learning supported
Yes
Networking standards
IEEE 802.1p/IEEE 802.1Q/IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x
Forwarding rate
26.78 Mpps
Jumbo frames
10000
Jumbo frames support
Yes
MAC address table
8000 entries
Packet buffer memory
4.1 MB
Switching capacity
36 Gbit/s
Form factor
1U
Housing material
Metal
LED indicators
Yes
Number of fans
2 fan(s)
Product colour
Black
Rack mounting
Yes
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Power consumption (max)
286.64 W
Power source
AC
Power supply included
Yes
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet plus (PoE+) ports quantity
16
Total Power over Ethernet (PoE) budget
250 W
Heat dissipation
977.44 BTU/h
Operating relative humidity (H-H)
10 - 90 %
Operating temperature (T-T)
0 - 50 °C
Storage relative humidity (H-H)
5 - 90 %
Storage temperature (T-T)
-40 - 70 °C
Depth
180 mm
Height
44 mm
Width
440 mm
Cables included
AC
Quick start guide
Yes
Package depth
528 mm
Package height
80 mm
Package weight
3050 g
Package width
250 mm
Certification
CE, FCC, RoHS
Harmonized System (HS) code
85176990
Model name
18-Port Gigabit Rackmount Switch with 16 PoE+
Units per Shipping Box
1
Unit Calculated Volume
0.0106 cubm
Unit Calculated Weight
3.03 kg
TL-SG1218MP
3 Items

Specific References

EAN13
6935364072155
MPN
TL-SG1218MP
