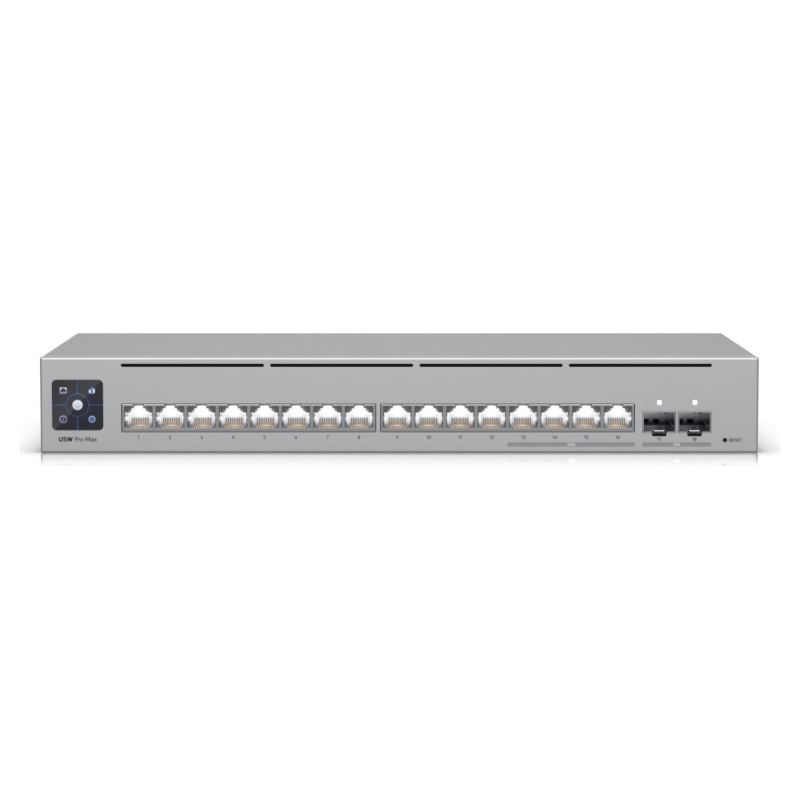

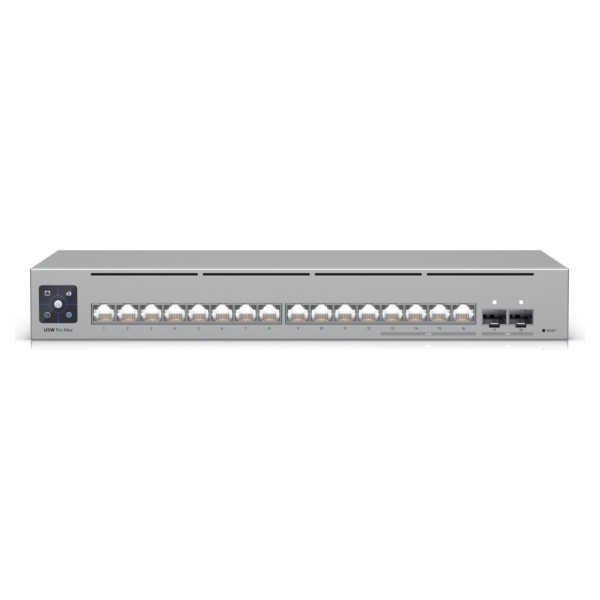

    Ubiquiti Switch|UBIQUITI|Pro Max 16|Type L3|USW-PRO-MAX-16

Ubiquiti Switch|UBIQUITI|Pro Max 16|Type L3|USW-PRO-MAX-16

€345.16
Tax included
Quantity
Add to wishlist

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

A 16-port, Layer 3 Etherlighting™ switch 2.5 GbE and versatile mounting options.

  • Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
  • (4) 2.5 GbE RJ45 ports
  • (12) GbE RJ45 ports
  • (2) 10G SFP+ ports
  • Versatile desktop, wall, and rack** mounting
  • Silent, fanless cooling system



Manufacturer Website:
https://eu.store.ui.com/eu/en/pro/products/usw-pro-max-16

Category Code
SWI
CnCode
85176200
Unit Box Height
0.245
Unit Box Length
0.51
Unit Box Width
0.11
Quality of Service (QoS) support
Yes
Switch layer
L3
2.5G Ethernet (copper) ports quantity
4
Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet (100/1000/2500)
Gigabit Ethernet (copper) ports quantity
12
Power connector
AC/DC
SFP+ module slots quantity
2
10G support
Yes
Broadcast storm control
Yes
Flow control support
Yes
IPv4 routes
512
Link aggregation
Yes
Networking standards
IEEE 802.1x
Number of VLANs
1000
Port mirroring
Yes
Rate limiting
Yes
Virtual LAN features
Voice VLAN
VLAN support
Yes
Forwarding rate
62 Mpps
Jumbo frames support
Yes
MAC address table
16000 entries
Packet buffer memory
1.5 MB
Static route
Yes
Switching capacity
84 Gbit/s
Throughput
42 Gbit/s
Access Control List (ACL)
Yes
Authentication type
IEEE 802.1x
DHCP features
DHCP guarding/DHCP relay/DHCP server/DHCP snooping
IGMP snooping
Yes
Loop protection
Yes
Display type
LCM
Form factor
1U
Housing material
SGCC
LED indicators
Link/Network/Speed/Status
Product colour
Grey
Rack mounting
Yes
Reset button
Yes
Stackable
Yes
Fanless
Yes
Input current
5 A
Input voltage
4.8 - 5.2 V
Power consumption (max)
25 W
Power supply included
Yes
Redundant power supply (RPS) support
Yes
Power over Ethernet (PoE)
No
Heat dissipation
85.3 BTU/h
Operating relative humidity (H-H)
10 - 90 %
Operating temperature (T-T)
-5 - 40 °C
Depth
160 mm
Height
43.7 mm
Weight
1950 g
Width
325.1 mm
Cables included
Power
Rack mount kit
Yes
Compliance certificates
CE/Federal Communications Commission (FCC)/Industry Canada (IC)/National Defense Authorization Act (NDAA)
Model
USW-Pro-Max-16
Model name
Pro Max 16
Units per Shipping Box
4
Unit Calculated Volume
0.0167344 cubm
Unit Calculated Weight
3.4625 kg
USW-PRO-MAX-16
4 Items

Specific References

EAN13
810084694565
MPN
USW-PRO-MAX-16
