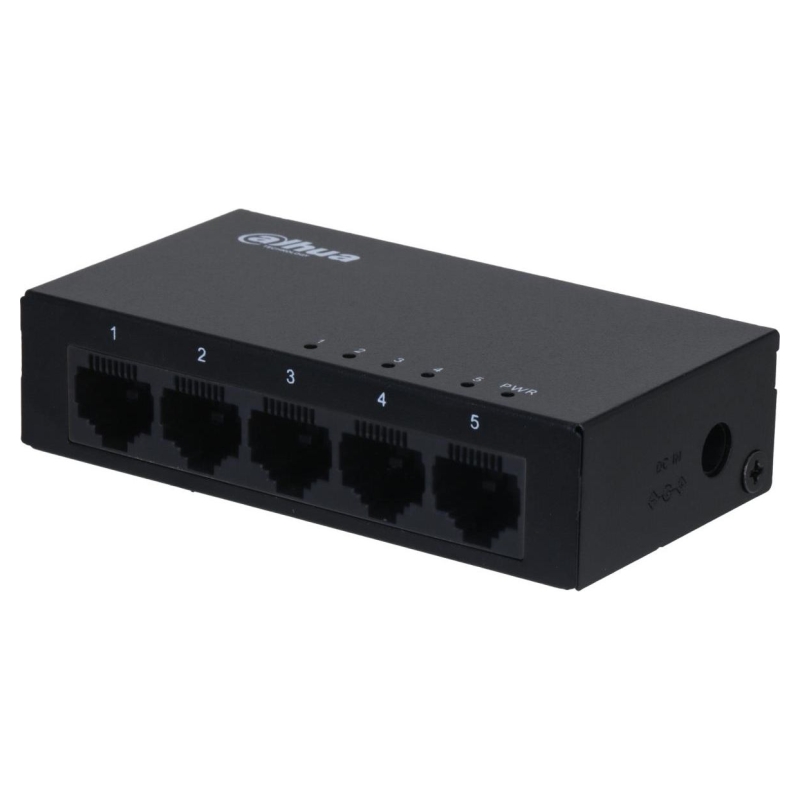

Dahua Switch|DAHUA|PFS3005-5GT-V2|Type L2|Desktop/pedestal|5x10Base-T / 100Base-TX / 1000Base-T|DH-PFS3005-5GT-V2
- Write a review
€15.05
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
The Device is a layer-2 commercial switch. It has a high-performance switching engine and a large buffer memory to ensure smooth video stream transmission. With a full-metal and fanless design, the Device
features great heat dissipation capability on the shell surface. The Device is an unmanaged switch, so it does not need to be configured through web interface, which simplifies installation
Robust Design
Built to last, the architecture of the switch makes it highly reliable, operating with high-efficiency non-stop.
Plug and Play
Hassle-free, it does not require any configuration. Simply use after it is powered on.
Optimized Performance All ports can transmit streams at high speeds without delay.
Easy Installation
Both desktop and wall mount installation are supported, making it suitable for a wide variety of scenarios.
- Supports five 10/100/1000 Mbps adaptive ports
- Small and light, it is easy to carry and has multiple chips embedded in it
- Easy to operate
Manufacturer Website:
https://www.dahuasecurity.com/products/All-Products/Transmission/Access-Switches/Metal/PFS3005-5GT
- Summary
- Dahua Technology Access 5-Port Unmanaged Gigabit Switch. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. DC input voltage: 5 V. Power connector: DC-in jack
- Category Code
- SWI
- CnCode
- 85176200
- Unit Box Height
- 0.065
- Unit Box Length
- 0.115
- Unit Box Width
- 0.095
- Switch layer
- L2
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity
- 5
- Power connector
- DC-in jack
- 10G support
- No
- Copper ethernet cabling technology
- 1000BASE-T/100BASE-T/10BASE-T
- Forwarding rate
- 7.44 Mpps
- MAC address table
- 2000 entries
- Packet buffer memory
- 1.5 MB
- Switching capacity
- 10 Gbit/s
- Housing material
- Metal
- LED indicators
- Yes
- Product colour
- Black
- Rack mounting
- No
- Mean time between failures (MTBF)
- 3184161.84 h
- DC input voltage
- 5 V
- Input current
- 1 A
- Power consumption (max)
- 1.5 W
- Power source
- DC
- Power supply included
- Yes
- Power over Ethernet (PoE)
- No
- Operating relative humidity (H-H)
- 5 - 95 %
- Operating temperature (T-T)
- 0 - 45 °C
- Storage relative humidity (H-H)
- 5 - 95 %
- Storage temperature (T-T)
- -40 - 70 °C
- Depth
- 87 mm
- Height
- 22 mm
- Weight
- 160 g
- Width
- 47 mm
- AC adapter included
- Yes
- Package depth
- 94 mm
- Package height
- 67 mm
- Package weight
- 280 g
- Package width
- 111 mm
- Sustainability compliance
- Yes
- Compliance certificates
- CE/Federal Communications Commission (FCC)
- Model name
- PFS3005-5GT-V2
- Units per Shipping Box
- 30
- Unit Calculated Volume
- 0.000864 cubm
- Unit Calculated Weight
- 0.23 kg
DH-PFS3005-5GT-V2
3 Items
Specific References
- EAN13
- 6923172582027
- MPN
- DH-PFS3005-5GT-V2
