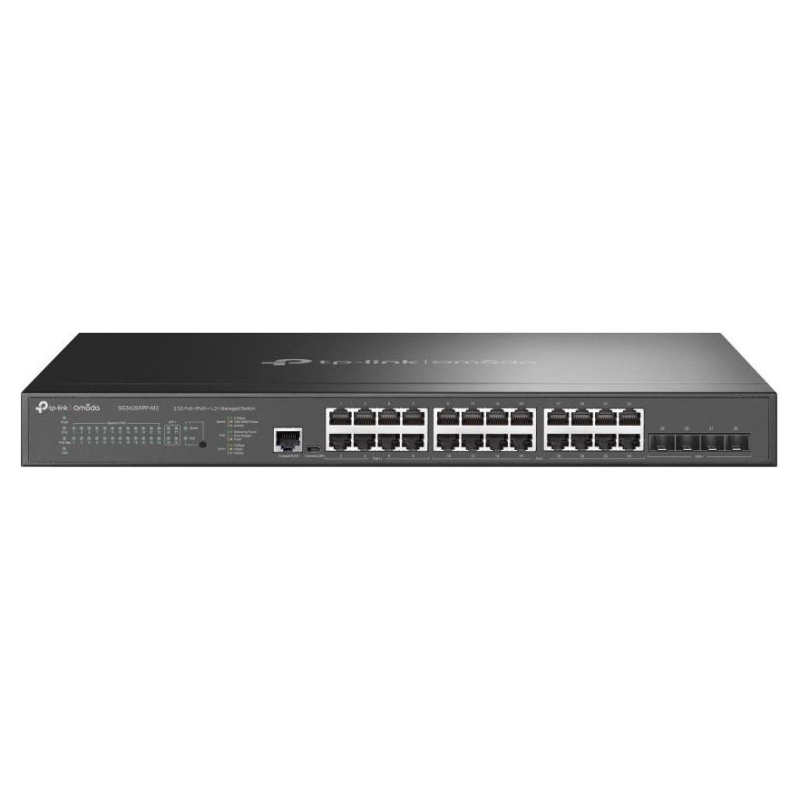

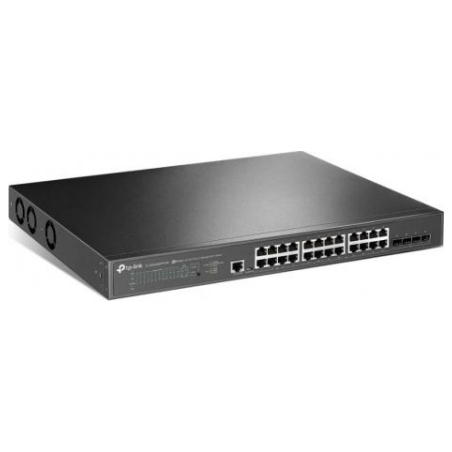

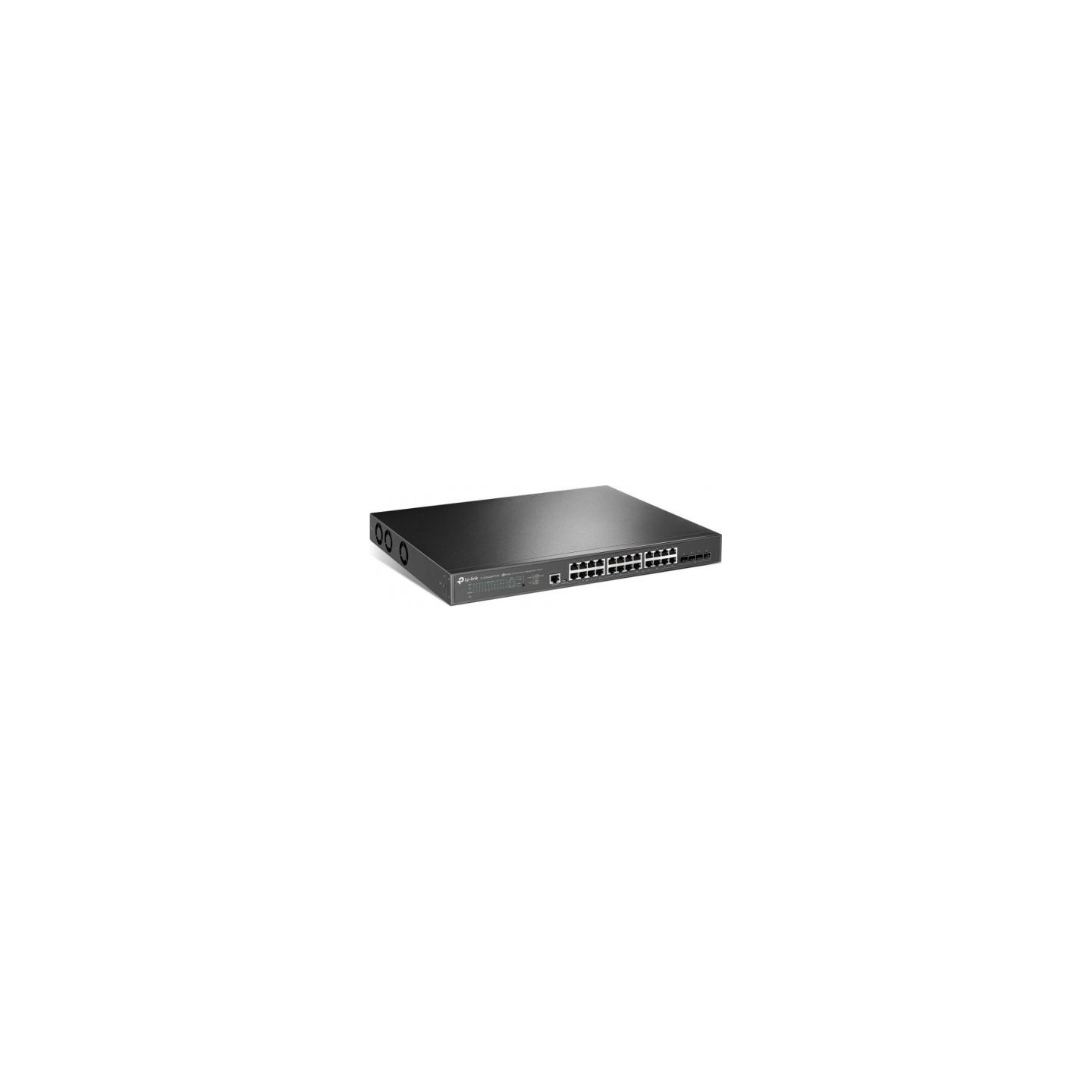

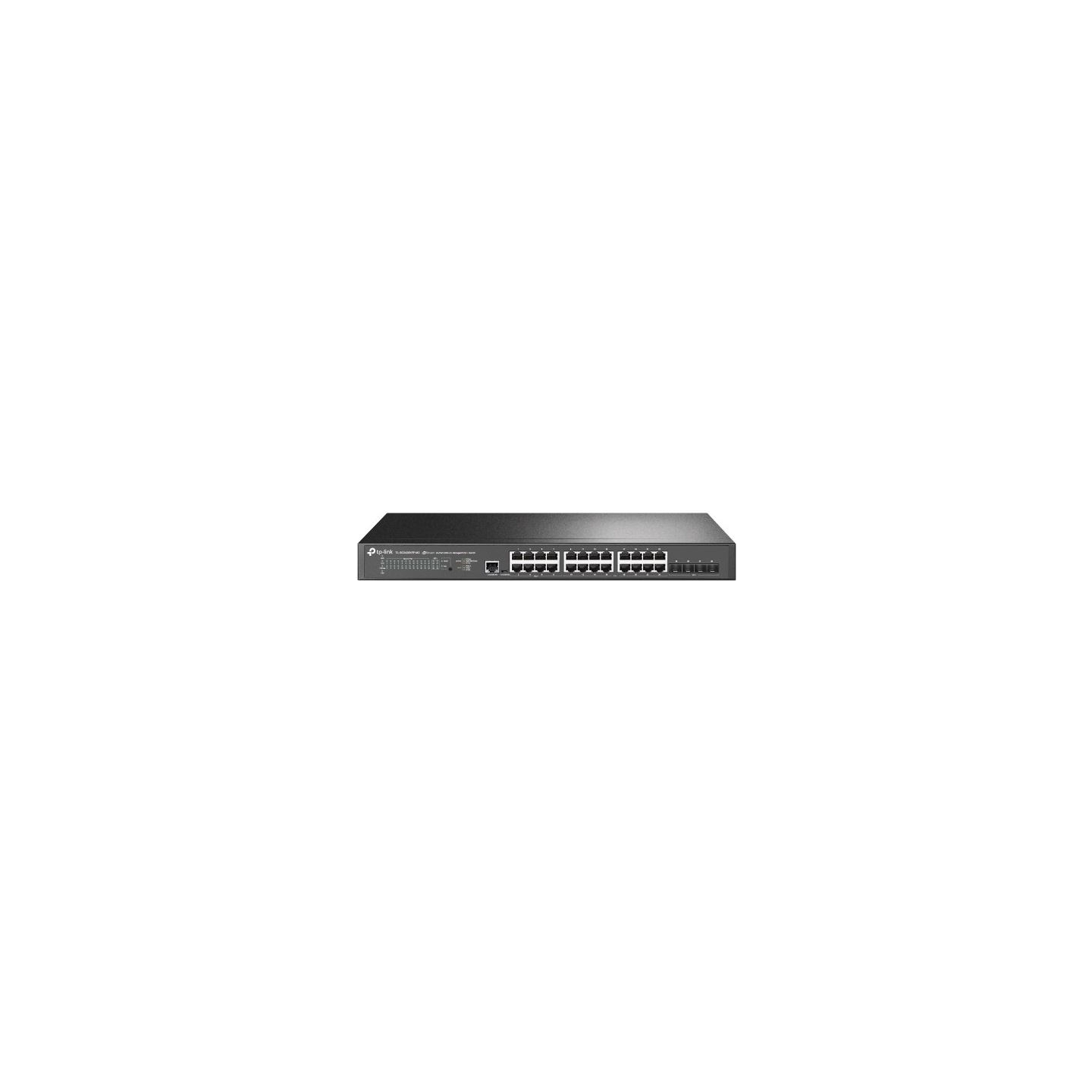

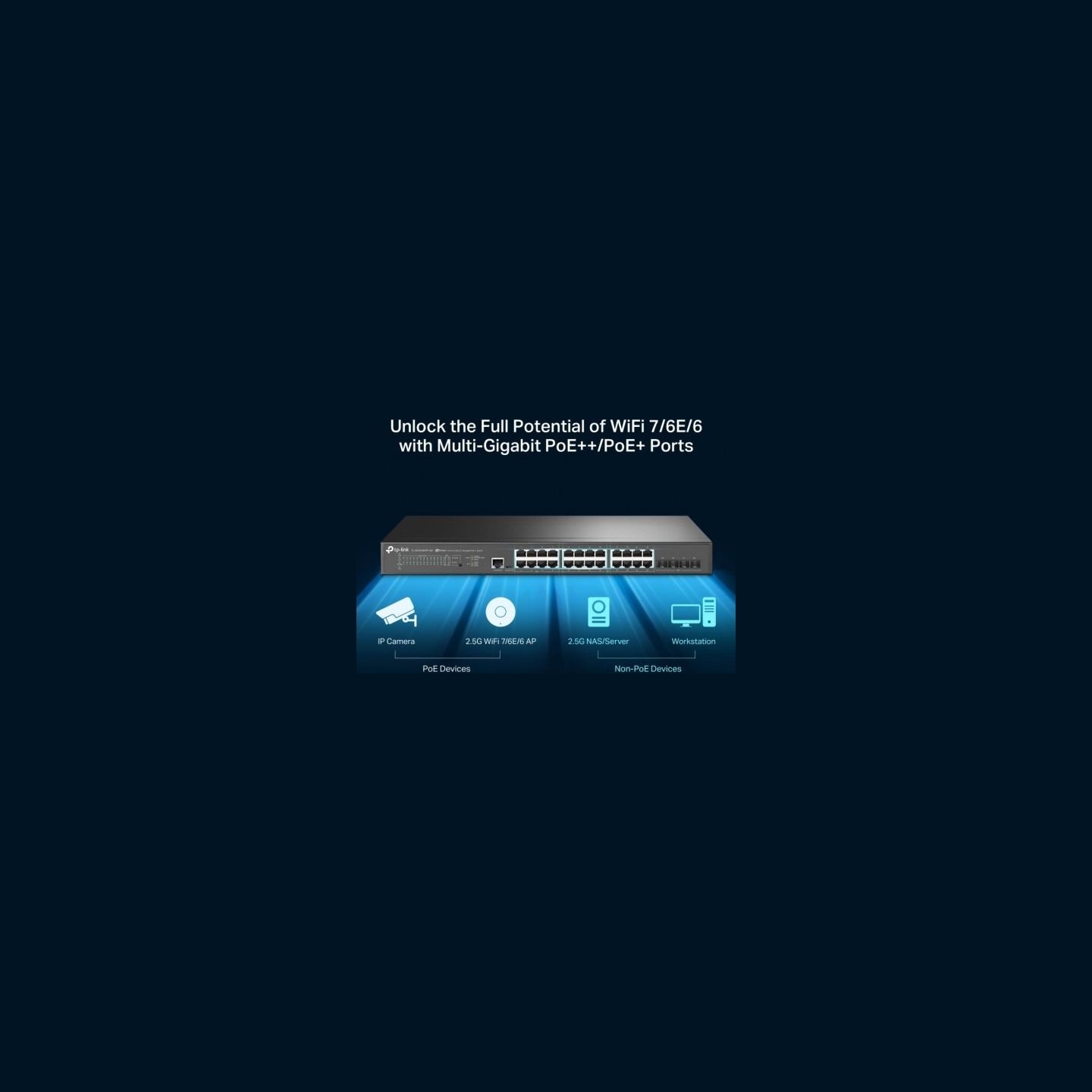

    Tp-Link Switch|TP-LINK|Omada|SG3428XPP-M2|Desktop/pedestal|Rack|24x2.5GbE|4xSFP+|1xConsole|1|PoE+ ports 16|500 Watts|SG3428XPP-M

Tp-Link Switch|TP-LINK|Omada|SG3428XPP-M2|Desktop/pedestal|Rack|24x2.5GbE|4xSFP+|1xConsole|1|PoE+ ports 16|500 Watts|SG3428XPP-M

€1,160.35
Tax included
Quantity
Add to wishlist
Last items in stock

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.

  • 8× 2.5G PoE++ ports (up to 60 W PoE out per port)**
  • 16× 2.5G PoE+ ports (up to 30 W PoE out per port)

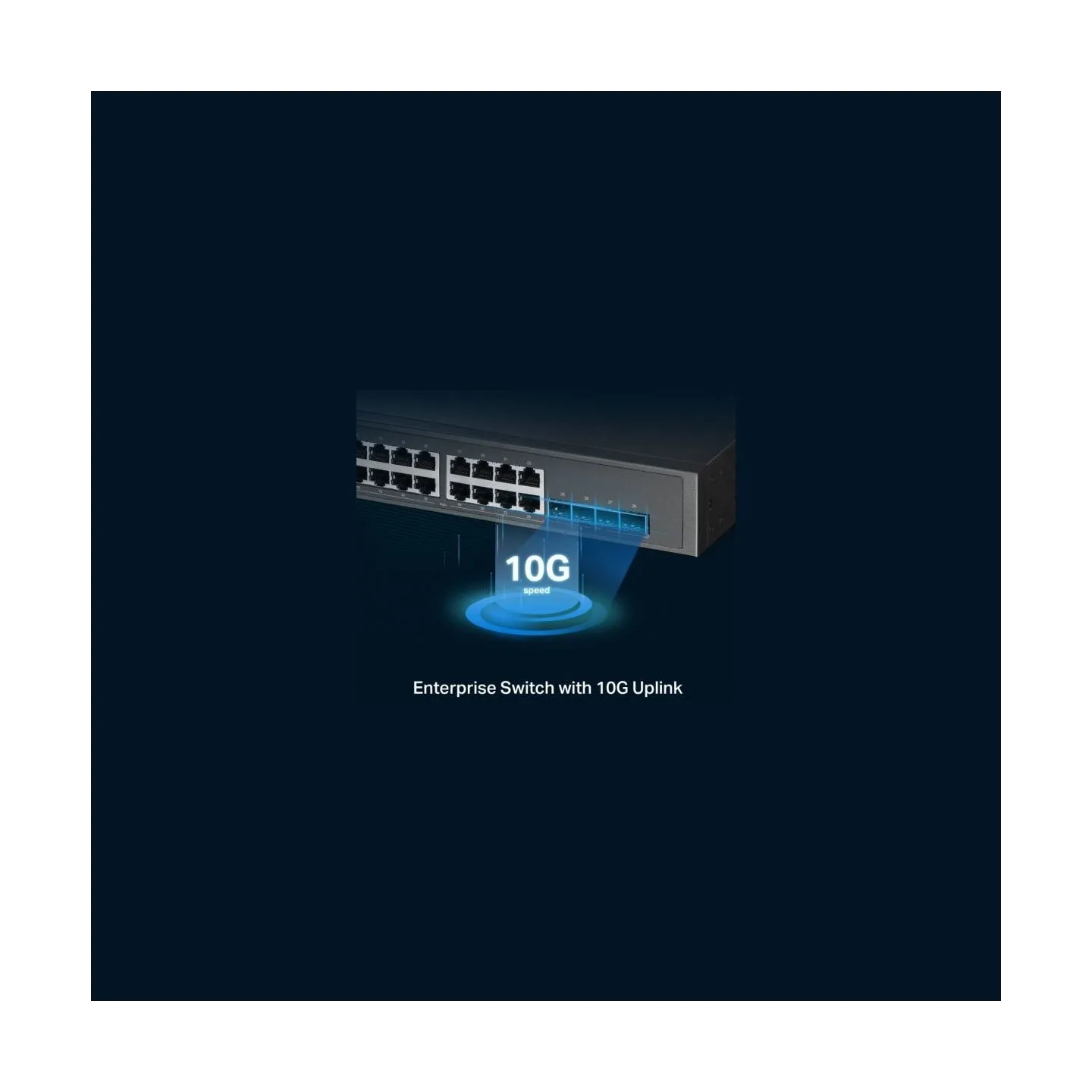

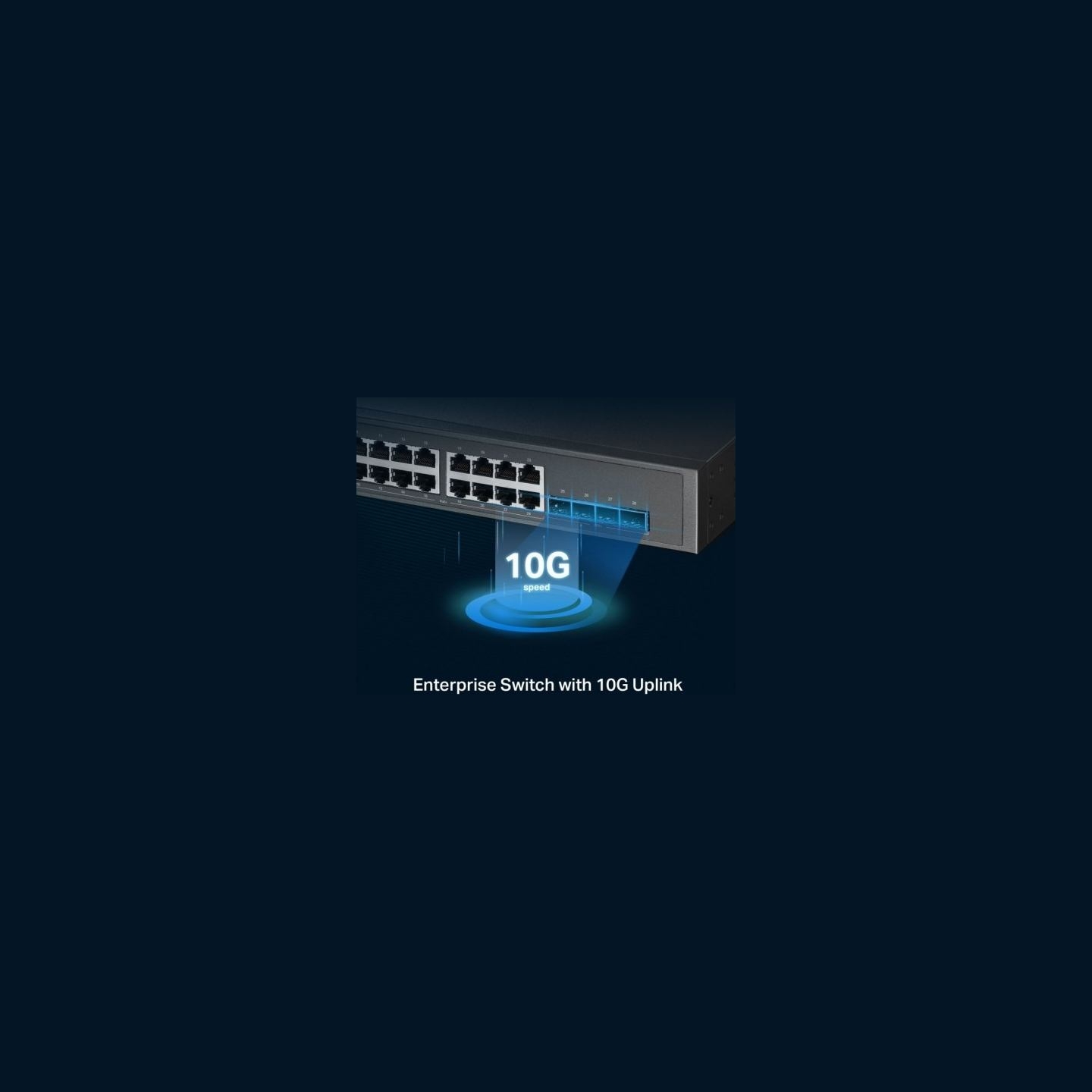

  • 4× 10G SFP+ slots
  • 500 W total PoE budget*
  • Centralized cloud management via the web or the Omada app†
  • Standalone management via web, CLI, SNMP, and RMON
  • Static Routing helps route internal traffic for higher efficiency
  • VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
  • ERPS supports rapid protection and recovery in a ring topology



Manufacturer Website:
https://www.tp-link.com/en/business-networking/omada-switch-l3-l2-managed/sg3428xpp-m2/#overview

Category Code
SWI
CnCode
85176200
Unit Box Height
0.101
Unit Box Length
0.53
Unit Box Width
0.44
ARP inspection
Yes
Cloud-managed
Yes
Configuring Location Settings (CLI)
Yes
MIB support
RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925
Quality of Service (QoS) support
Yes
Switch layer
L2+
Switch type
Managed
System event log
Yes
Web-based management
Yes
2.5G Ethernet (copper) ports quantity
24
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet (100/1000/2500)
Console port
RJ-45/Micro-USB
SFP+ module slots quantity
4
10G support
Yes
Broadcast storm control
Yes
Ethernet LAN data rates
10,100,1000,2500,10000 Mbit/s
Flow control support
Yes
Full duplex
Yes
Half duplex
Yes
Head-of-line (HOL) blocking
Yes
IPv4 routes
48
IPv6 routes
48
Link aggregation
Yes
Networking standards
IEEE 802.1ab/IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3ae/IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt/IEEE 802.3bz/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
Port mirroring
Yes
Rate limiting
Yes
Spanning tree protocol
Yes
Virtual LAN features
MAC address-based VLAN/Port-based VLAN/Protocol-based VLAN/Stacked VLAN/Tagged VLAN/Voice VLAN
VLAN support
Yes
Forwarding rate
148.8 Mpps
Jumbo frames
9000
Jumbo frames support
Yes
MAC address table
32000 entries
Number of IP interfaces
32
Number of queues
8
Number of static routes
48
Packet buffer memory
16 MB
Static route
Yes
Store-and-forward
Yes
Switching capacity
200 Gbit/s
Access Control List (ACL)
Yes
Authentication
Guest VLAN,MAC-based authentication,Port-based authentication
Authentication type
AAA,IEEE 802.1x,RADIUS,TACACS+
BPDU filtering/protection
Yes
DHCP features
DHCP client/DHCP relay/DHCP server/DHCP snooping/DHCPv6 client/DHCPv6 snooping
IGMP snooping
Yes
IP-MAC-Port binding
Yes
Loop protection
Yes
Password protection
Yes
Queue scheduling algorithms
SP/Weighted Round Robin (WRR)/WRR+SP
Security algorithms
HTTPS/SSH/SSH-2/SSL/TLS
SSH/SSL support
Yes
Static port security
Yes
Multicast Listener Discovery (MLD) snooping
MLD v1/v2
Multicast support
Yes
GARP VLAN Registration Protocol (GVRP)
Yes
IPv4 & IPv6 features
IPv4/IPv6 access-control list (ACL)/IPv6 ping/IPv6 portal/IPv6 tracert
Management protocols
SNMP V1/V2C/V3
Form factor
1U
LED indicators
Yes
Number of fans
3 fan(s)
Product colour
Black
Rack mounting
Yes
Redundant fans support
Yes
Flash memory
32 MB
Internal memory
256 MB
Memory type
DRAM
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Power consumption (max)
629.1 W
Power source
AC/PoE
Power supply included
Yes
Redundant power supply (RPS) support
Yes
Power over Ethernet (PoE)
Yes
Power over Ethernet 4PPoE (PoE++) ports quantity
8
Power over Ethernet plus (PoE+) ports quantity
16
Total Power over Ethernet (PoE) budget
500 W
Heat dissipation
2153.45 BTU/h
Operating relative humidity (H-H)
10 - 90 %
Operating temperature (T-T)
0 - 40 °C
Storage relative humidity (H-H)
5 - 90 %
Storage temperature (T-T)
-40 - 70 °C
Depth
330 mm
Height
44 mm
Width
440 mm
Cables included
AC
Quick start guide
Yes
Rack mount kit
Yes
Sustainability compliance
Yes
Compliance certificates
CE/Federal Communications Commission (FCC)/RoHS
Series
Omada
Model name
Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++
Units per Shipping Box
1
Unit Calculated Volume
0.02355 cubm
Unit Calculated Weight
6.2 kg
SG3428XPP-M2
2 Items

Specific References

EAN13
4897098689738
MPN
SG3428XPP-M2
