1 x M.2 connector (M2A_CPU), integrated with the processor, supporting Socket 3, M, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000-Phoenix 1 Series processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000-Phoenix 2 Series processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated with the processor, supporting Socket 3, M, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series processors support PCIe 4.0 SSDs x4/x2 AMD Ryzen 8000 Series-Phoenix 1 processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 processors support PCIe 4.0 x2 SSDs 1 M.2 connector (M2C_SB), integrated into the chipset, supporting Socket 3, M Key, Type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs 4 SATA 6 Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices *RAID 5 is only available on AMD Ryzen 9000 Series processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Graphics
Integrated graphics processor - AMD Radeon graphics supported 1 x DisplayPort, supporting a maximum resolution of 3840x2160 @ 144 Hz *Supports DisplayPort 1.4 and HDR. 1 x Front HDMI port, supporting a maximum resolution of 1920x1080 @ 30 Hz *Supports HDMI 1.4.
Sound card
Realtek audio codec High Definition Audio Support 2/4/5.1/7.1 audio channels * Audio jack functionality can be changed via audio software. To configure 7.1-channel audio, access the audio software's audio settings. S/PDIF Out Support
Network interface
Wi-Fi 802.11a/b/g/n/ac/ax/be
Network interface
1 x 10/100/1000/2500 Mbit/s
Network interface
Bluetooth
Network interface
Local Network Realtek 2.5GbE LAN Chip (2.5 Gb/s/1 Gb/s/100 Mb/s) Wireless Communication Module Realtek Wi-Fi 7 RTL8922AE Network Adapter 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.4 Supports the 11be 160MHz wireless standard
USB ports at back panel
12
USB ports on motherboard
7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
7
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
4
FireWire (IEEE 1394)
No
COM connector / port
No
LPT connector / port
No

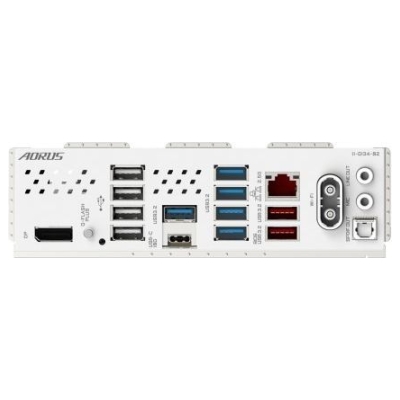

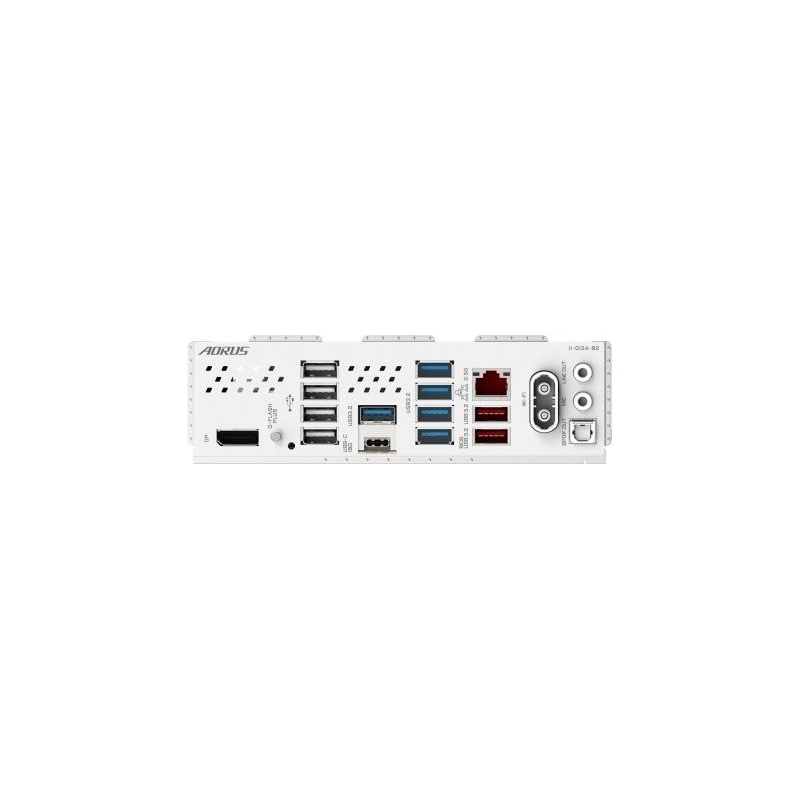

External connectors
1 x USB 3.2 Gen 2 Type-C
External connectors
1 x S/PDIF
External connectors
4 x USB 2.0
External connectors
1 x DisplayPort
External connectors
1 x Line Out
External connectors
1 x MIC
External connectors
1 x RJ-45
External connectors
1 x Q-Flash Plus button
External connectors
5 x USB 3.2 Gen 1 Type-A
External connectors
2 x USB 3.2 Gen 2 Type-A
External connectors
2 x SMA
Onboard connectors
1 x HDMI
Onboard connectors
1 x Reset jumper
Onboard connectors
1 x RGB LED strip header
Onboard connectors
1 x Reset button
Onboard connectors
1 x Clear CMOS jumper
Onboard connectors
1 x Front panel audio header
Onboard connectors
1 x 4pin 12V power
Onboard connectors
1 x 8pin 12V power
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
3 x M.2
Onboard connectors
4 x SATA III 6Gb/s
Onboard connectors
2 x USB 2.0/1.1 header
Onboard connectors
1 x USB 3.2 Gen 1 Type-A
Onboard connectors
1 x USB 3.2 Gen 2 Type-C
Onboard connectors
1 x Power button
Onboard connectors
1 x TPM header
Onboard connectors
1 x System panel header
Onboard connectors
3 x Addressable LED
Onboard connectors
1 x 4-pin water-pump-fan
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors
3 x 4pin Chassis fan
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
ATX
Dimensions
30.5 cm x 24.4 cm
Supported operating systems
Windows 11
Software
Norton Internet Security (OEM version) LAN bandwidth management software
