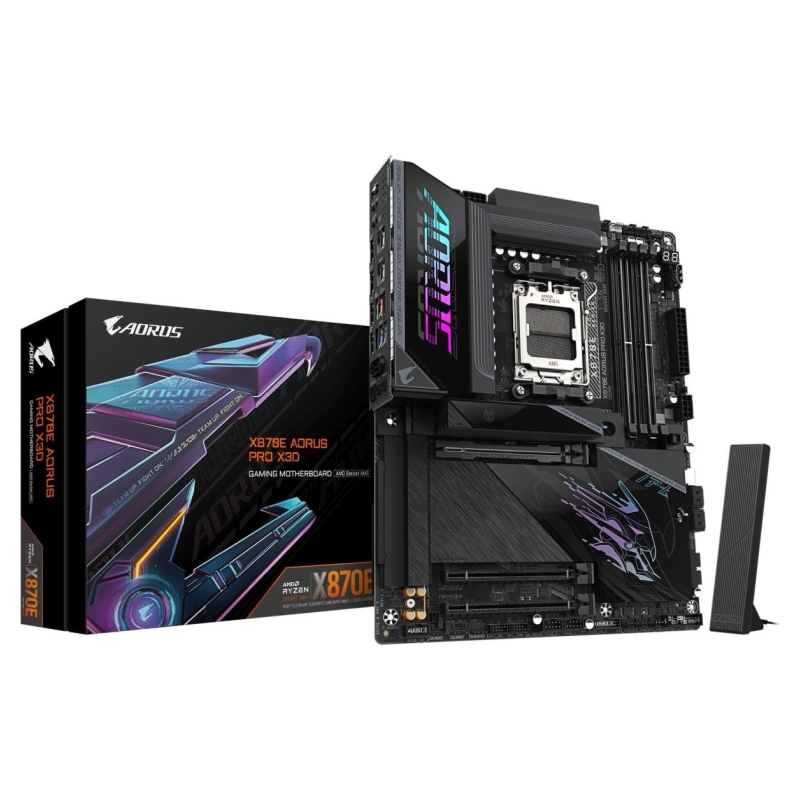

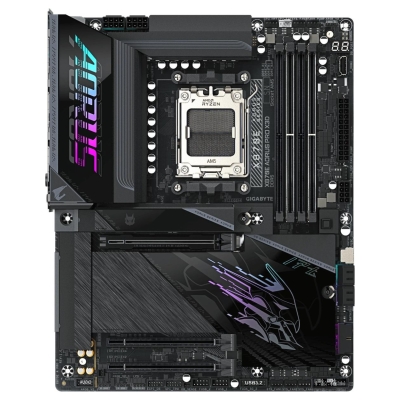

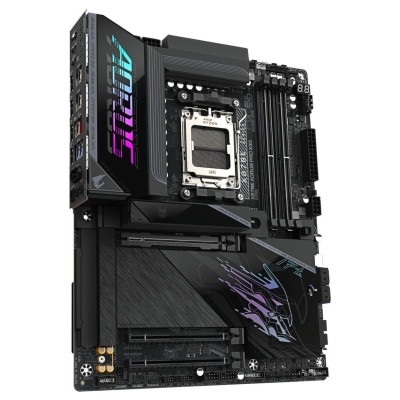

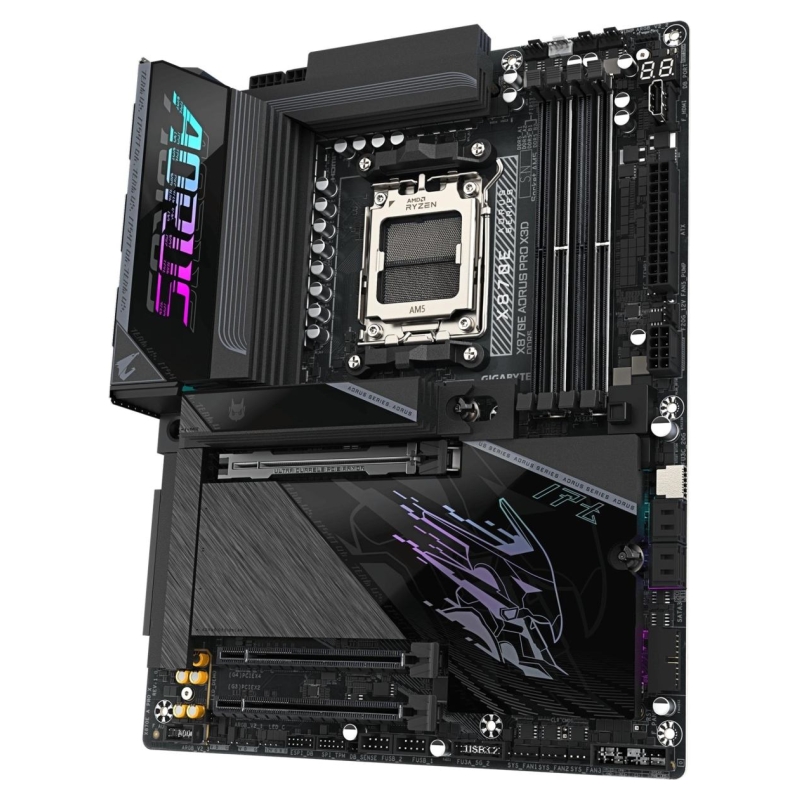

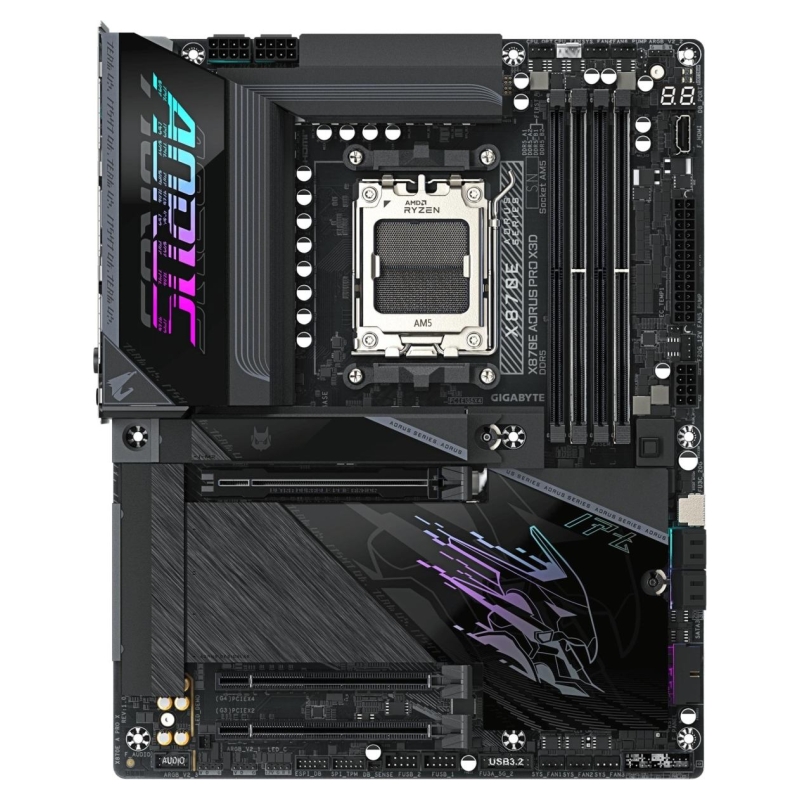

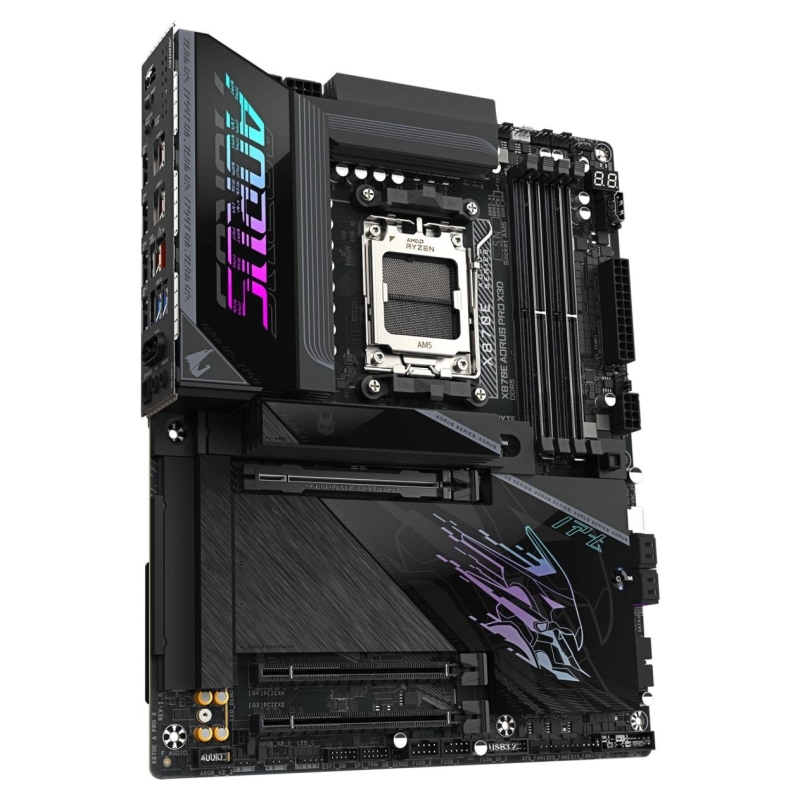

Gigabyte Motherboard X870E A PRO X AM5 4DDR5
- Write a review
€496.56
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
- SKU
- KBGBAAA8X870A10
- Barcode
- 4719331878603
- Model
- X870E AORUS PRO X3D
- CPU socket
- Socket AM5
- Processor family
- AMD Ryzen
- Integrated CPU
- No
- Chipset manufacturer
- AMD
- Chipset type
- AMD X870E
- Memory type
- DDR5
- Number of DDR5 slots
- 4
- Memory bus frequency
- 5200 MHz
- Memory bus frequency
- 6200 MHz
- Memory bus frequency
- 6800 MHz
- Memory bus frequency
- 8000 MHz
- Memory bus frequency
- 7600 MHz
- Memory bus frequency
- 4800 MHz
- Memory bus frequency
- 8400 MHz
- Memory bus frequency
- 7000 MHz
- Memory bus frequency
- 6400 MHz
- Memory bus frequency
- 6000 MHz
- Memory bus frequency
- 6600 MHz
- Memory bus frequency
- 7200 MHz
- Memory bus frequency
- 7800 MHz
- Memory bus frequency
- 8200 MHz
- Memory bus frequency
- 8600 MHz
- Memory bus frequency
- 8800 MHz
- Memory bus frequency
- 9000 MHz
- Memory bus frequency
- 5600 MHz
- Max memory size
- 256
- Expansion slots
- 1 x PCIe x 16
- Expansion slots
- 1 x PCIe 3.0 x 16
- Expansion slots
- 1 x PCIe 4.0 x 16
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs 2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
- Graphics
- Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller: 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz Integrated Graphics Processor with AMD Radeon Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
- Sound card
- Realtek ALC1220 CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
- Network interface
- Bluetooth
- Network interface
- Wi-Fi 802.11a/b/g/n/ac/ax/be
- Network interface
- 1 x 10/100/1000/2500/5000 Mbit/s
- Network interface
- LAN: Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module Qualcomm Wi-Fi 7 QCNCM865 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.4 Support for 11be 320MHz wireless standard
- USB ports at back panel
- 12
- USB ports on motherboard
- 9
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 7
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 7
- FireWire (IEEE 1394)
- No
- COM connector / port
- No
- LPT connector / port
- No

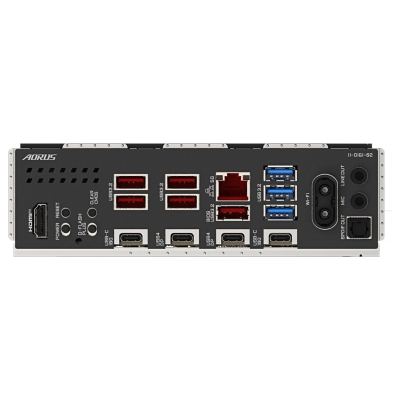

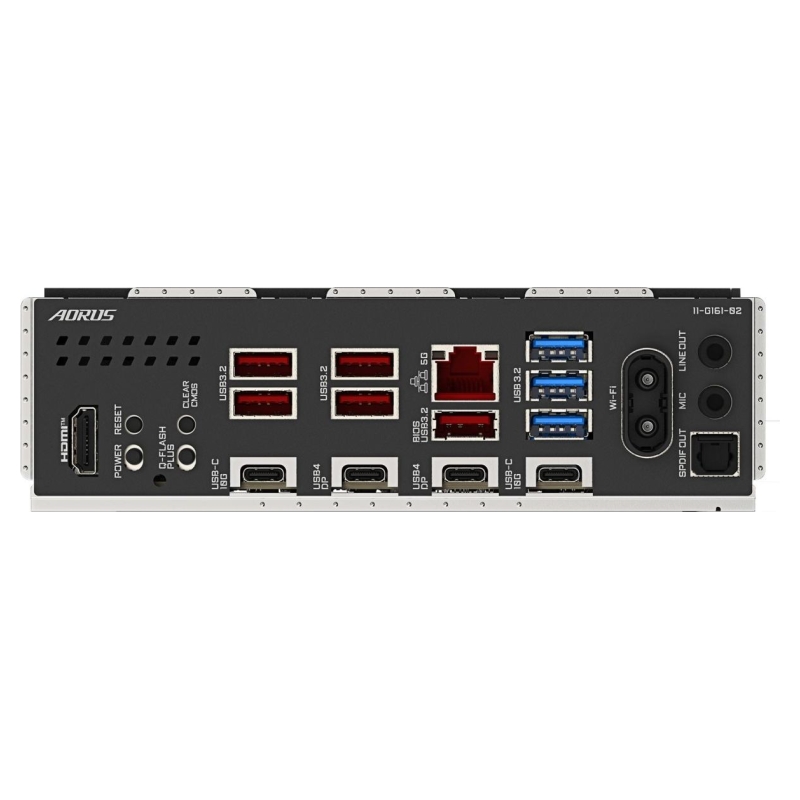

- External connectors
- 2 x USB4 Type-C
- External connectors

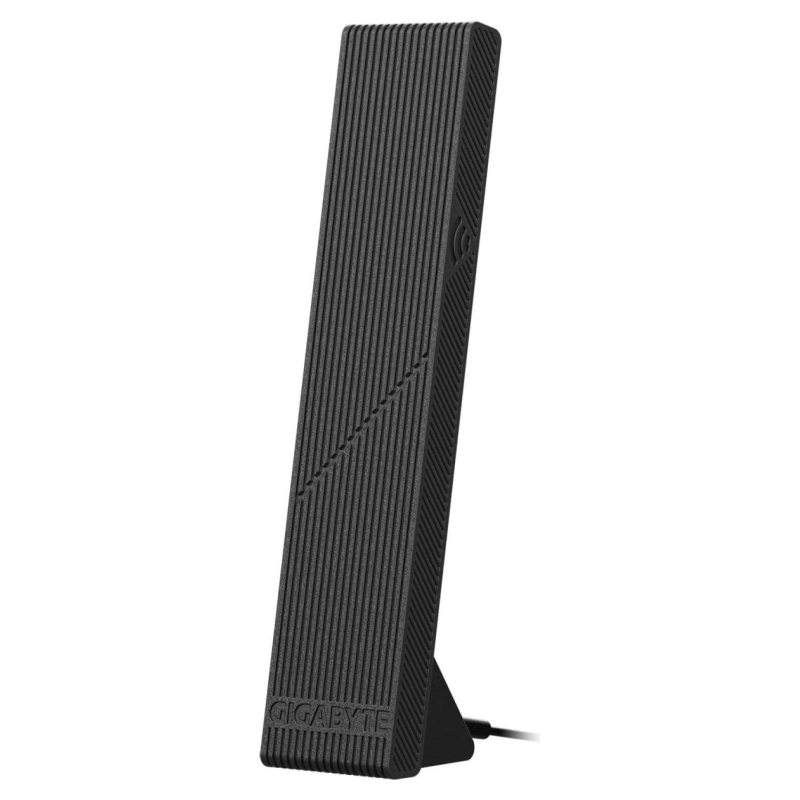

- 2 x Wi-Fi Module
- External connectors
- Power button
- External connectors
- 2 x USB 3.2 Gen 2 Type-C
- External connectors
- 1 x Line Out
- External connectors
- 1 x MIC
- External connectors
- 1 x S/PDIF
- External connectors
- 1 x Przycisk Clear CMOS
- External connectors
- 1 x Q-Flash Plus button
- External connectors
- 3 x USB 3.2 Gen 1 Type-A
- External connectors
- 5 x USB 3.2 Gen 2 Type-A
- External connectors
- Reset button
- External connectors
- 1 x HDMI
- External connectors
- 1 x RJ-45
- Onboard connectors
- 1 x Noise detection header
- Onboard connectors
- 2 x temperature sensor
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 4 x SATA III 6Gb/s
- Onboard connectors
- 1 x System panel header
- Onboard connectors
- 4 x USB 2.0/1.1
- Onboard connectors
- 1 x Clear CMOS jumper
- Onboard connectors
- 1 x 4pin CPU/Water Pump Fan Connector
- Onboard connectors
- 1 x RGB LED strip header
- Onboard connectors
- 3 x Addressable LED
- Onboard connectors
- 2 x 8pin 12V
- Onboard connectors
- 1 x USB 3.2 Gen 2x2 Type-C
- Onboard connectors
- 1 x Reset jumper
- Onboard connectors
- 4 x 4pin Chassis fan
- Onboard connectors
- 2 x 4pin case fan liquid cooling
- Onboard connectors
- 1 x 8-pin PCIe
- Onboard connectors
- 4 x M.2
- Onboard connectors
- 4 x USB 3.2 Gen 1 Type-A
- Onboard connectors
- 1 x HDMI
- BIOS
- 1 x 512 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Form factor
- ATX
- Dimensions
- 30.5 x 24.4 cm
- Supported operating systems
- Windows 11
- Software
- Norton Internet Security (OEM version)
- Designation
- CE+WEEE
X870E A PRO X
22 Items
Specific References
- EAN13
- 4719331878603
- MPN
- X870E A PRO X
