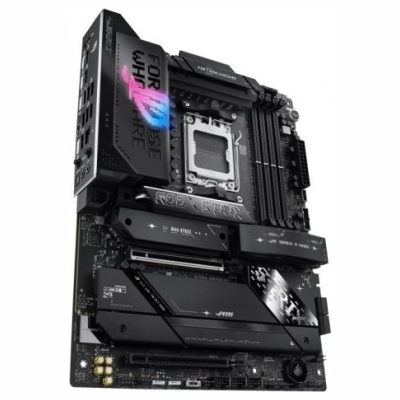

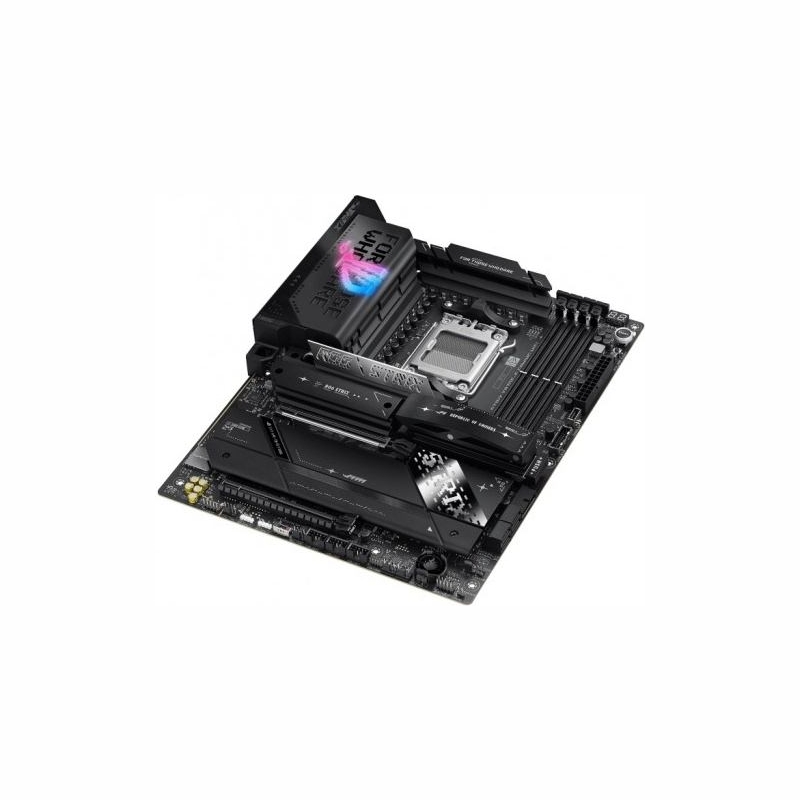

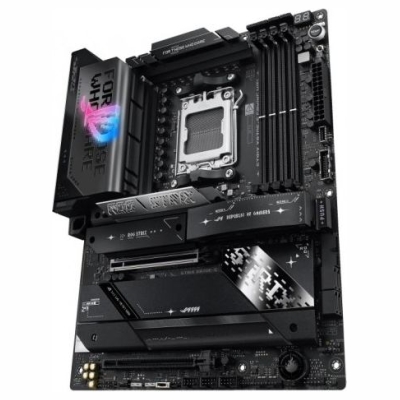

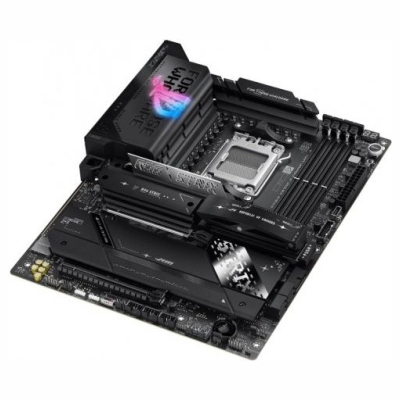

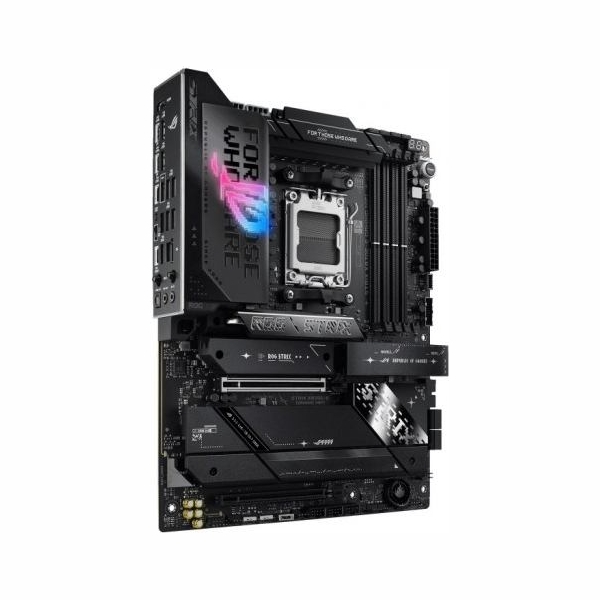

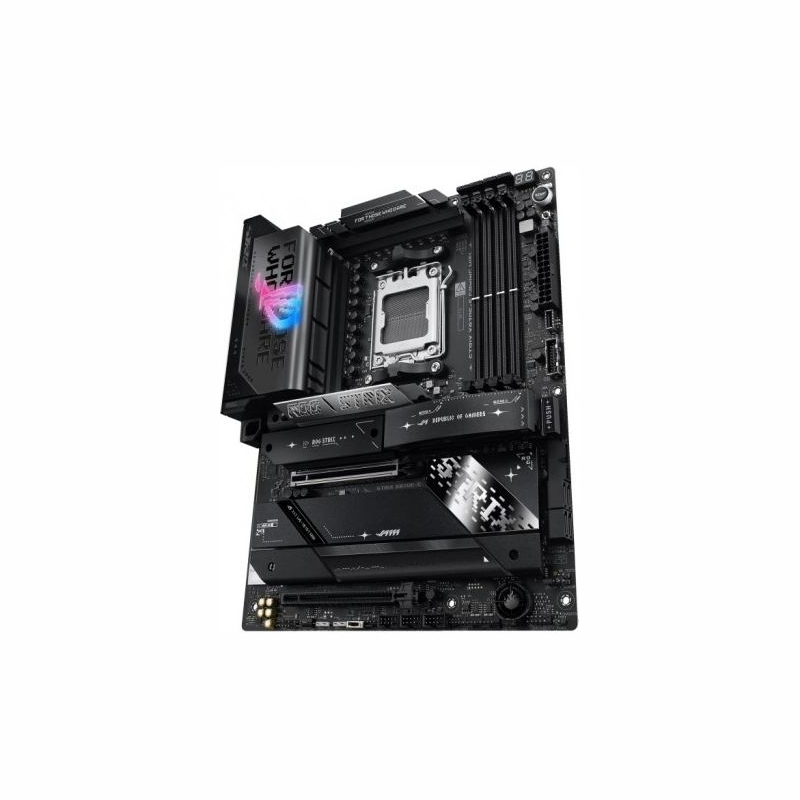

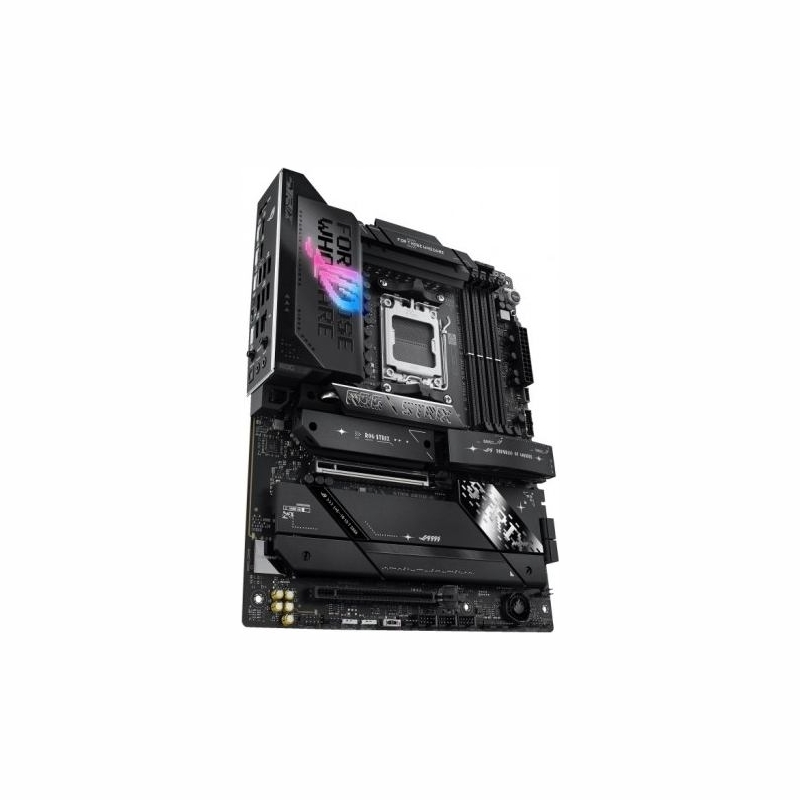

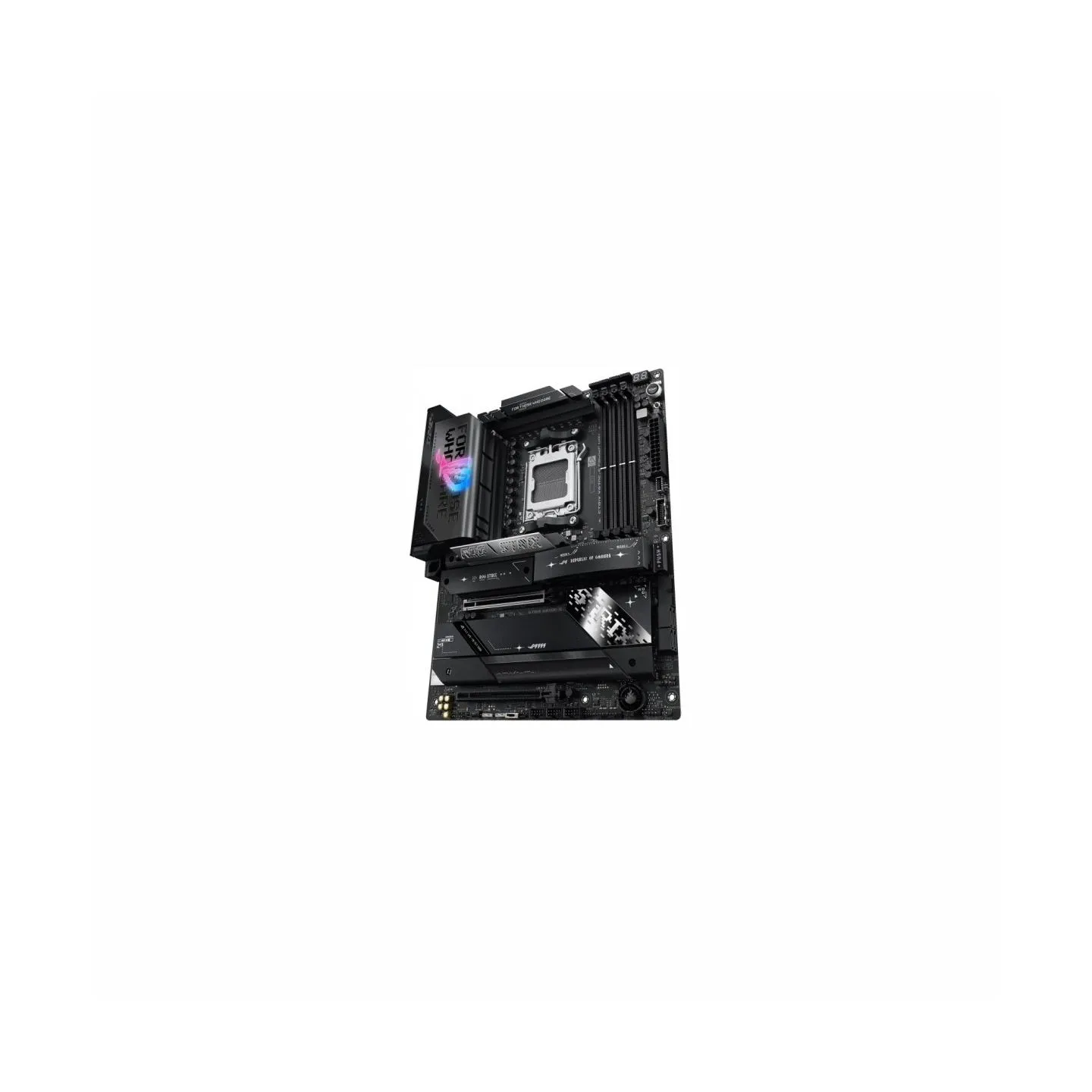

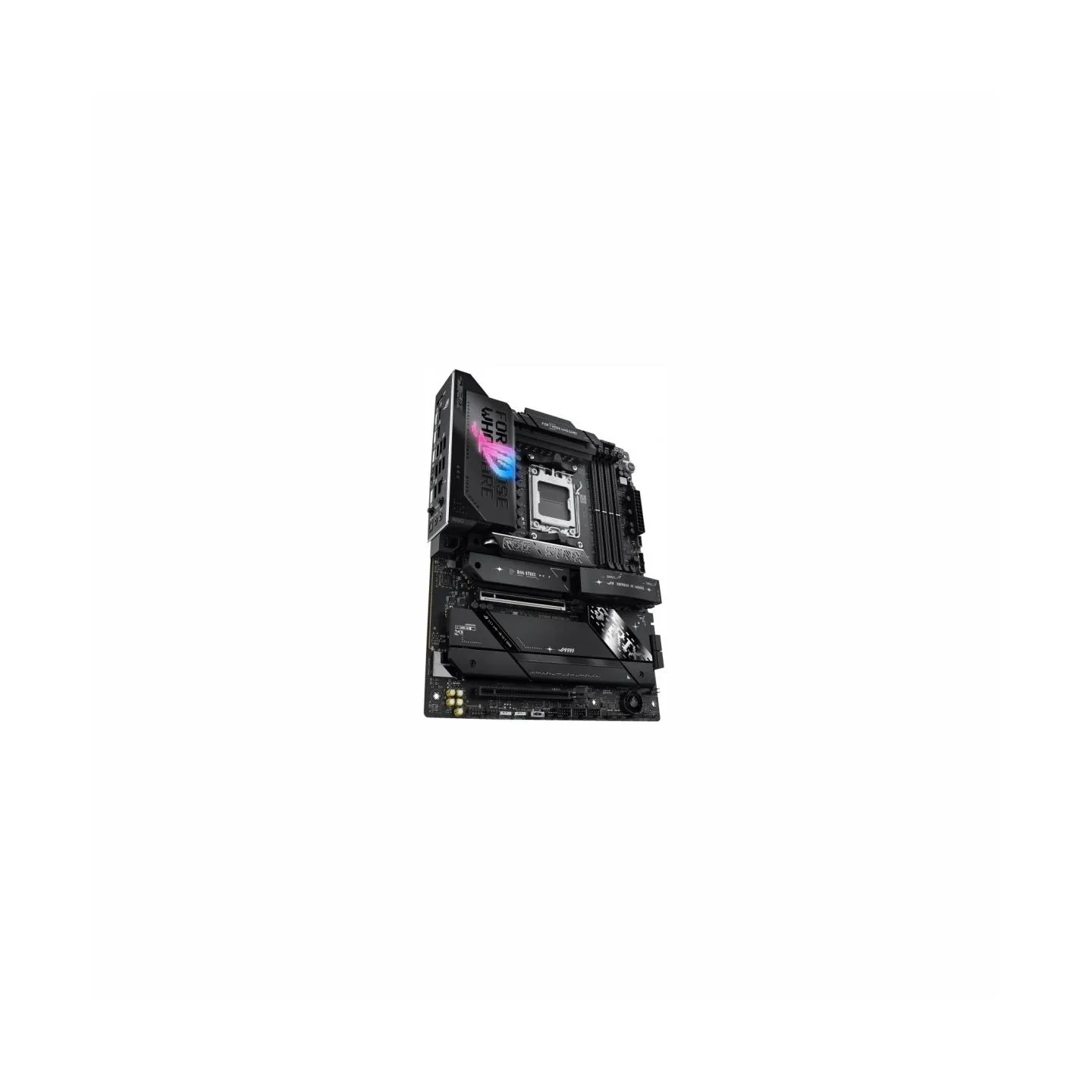

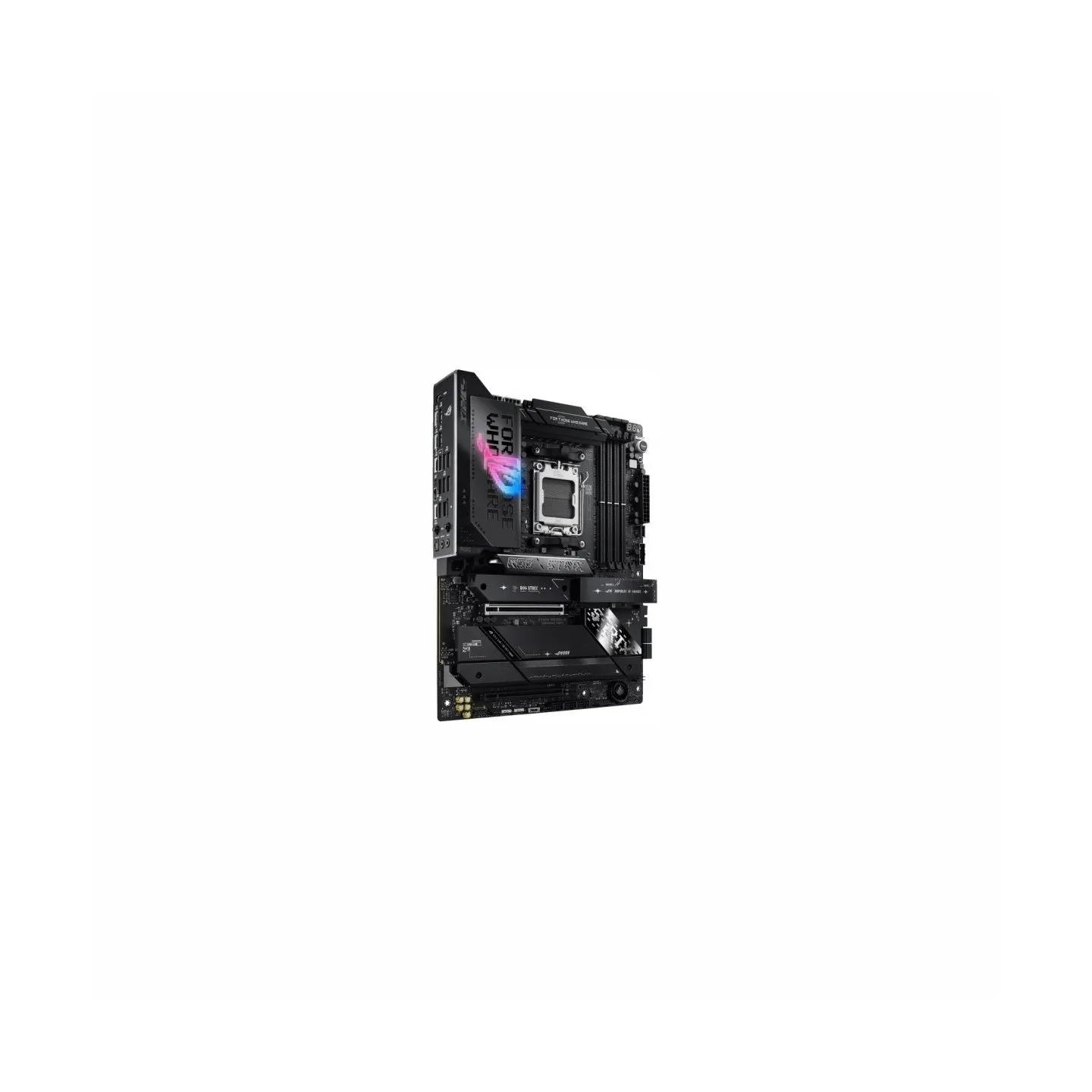

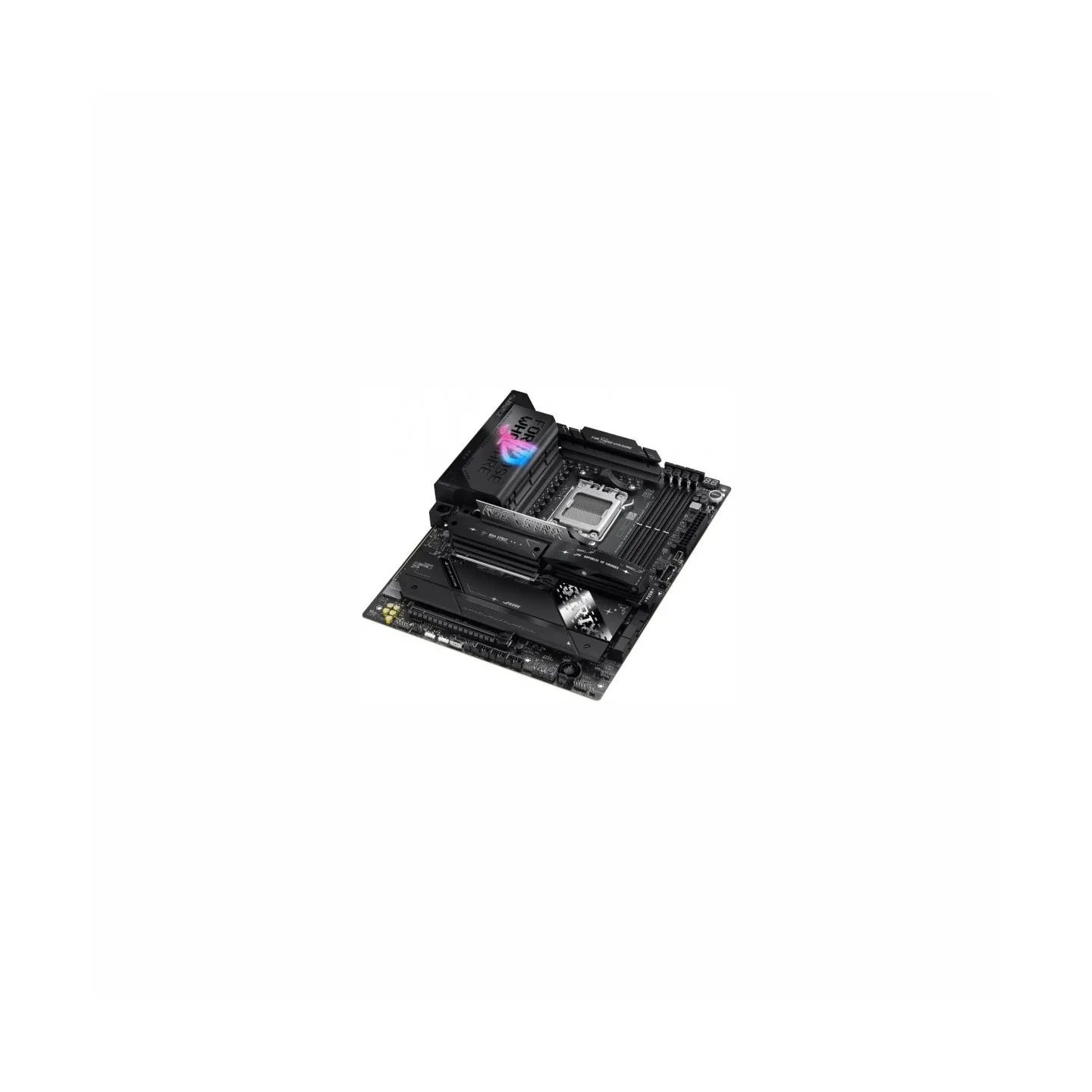

Asus ROG STRIX X870E-E GAMIN G WIFI DDR5 HDMI/USB-C
- Write a review
€707.60
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
- SKU
- KBASUAA8X870A06
- Barcode
- 4711387724163
- Model
- ROG Strix X870E-E Gaming
- CPU socket
- Socket AM5
- Processor family
- AMD Ryzen
- Integrated CPU
- No
- Chipset manufacturer
- AMD
- Chipset type
- AMD X870E
- Memory type
- DDR5
- Number of DDR5 slots
- 4
- Max memory size
- 192
- Expansion slots
- 1 x PCIe 4.0 x 16
- Expansion slots
- 1 x PCIe 5.0 x 16
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- Supports 5 M.2 slots and 4 SATA 6Gb/s ports in total*AMD Ryzen 9000, 8000 and 7000 series desktop processors M.2_1 (M-Key) socket, type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 (M-Key) socket, type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** M.2_3 (M-Key) socket, type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)** AMD X870E chipset M.2_4 (M-Key) socket, type 2280 (supports PCIe 4.0 x4 mode) M.2_5 (M-Key) Socket, Type 2280 (Supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports *AMD RAIDXpert2 technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. RAID 5 function is only supported by AMD Ryzen 9000 series processors.** M.2_2 and M.2_3 slots share bandwidth with PCIEX16(G5). When M.2_2 and M.2_3 slots are occupied by SSD devices, PCIEX16(G5) will only operate at x8 mode.
- Graphics
- 1 x HDMI port 2 x USB4 (40Gbps) ports support USB Type-C display output
- Sound card
- ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 Impedance sensing for front and rear headphone outputs Supports: jack detection, streaming, front panel microphone jack repurposing High-quality stereo playback output SNR 120 dB and recording input SNR 110 dB Supports up to 32-bit/384 kHz playback Audio features: Audio shielding Savitech SV3H712 amplifier Gold-plated audio jacks Rear optical S/PDIF output Premium audio capacitors Audio shield
- Network interface
- Bluetooth
- Network interface
- Wi-Fi 802.11a/b/g/n/ac/ax/be
- Network interface
- Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6 GHz frequency band Supports Wi-Fi 7 320 MHz band, up to 6.5 Gbps transfer speed. Bluetooth v5.4
- USB ports at back panel
- 13
- USB ports on motherboard
- 10
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 10
- FireWire (IEEE 1394)
- No
- COM connector / port
- No
- LPT connector / port
- No

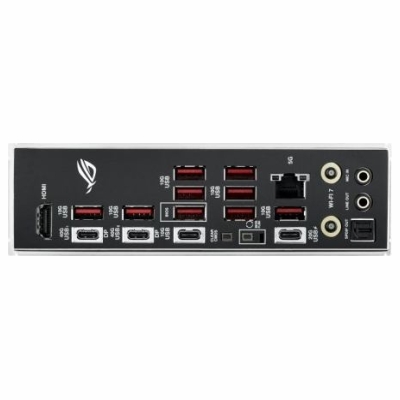

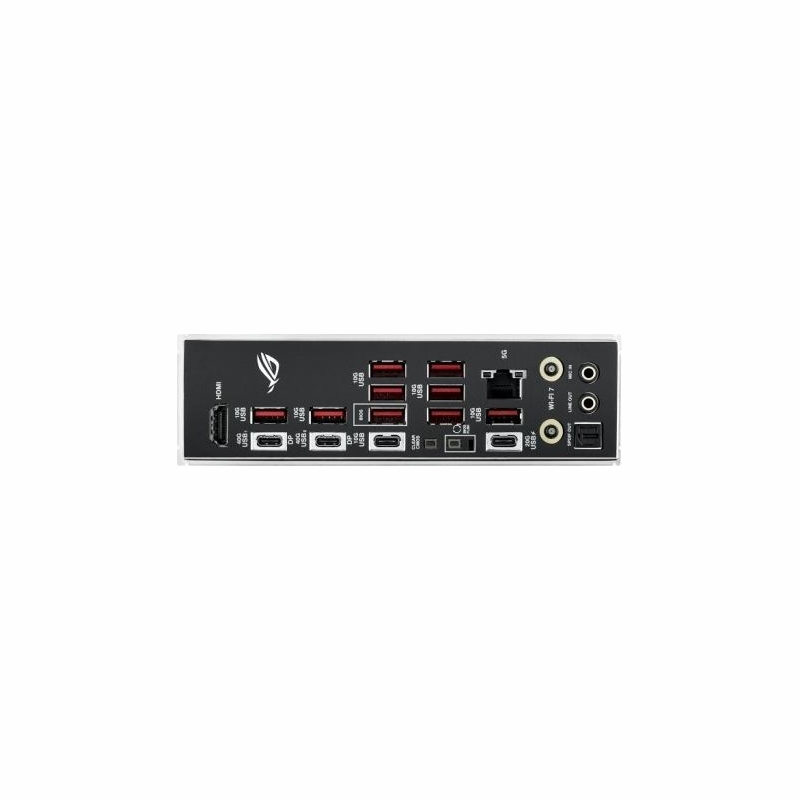

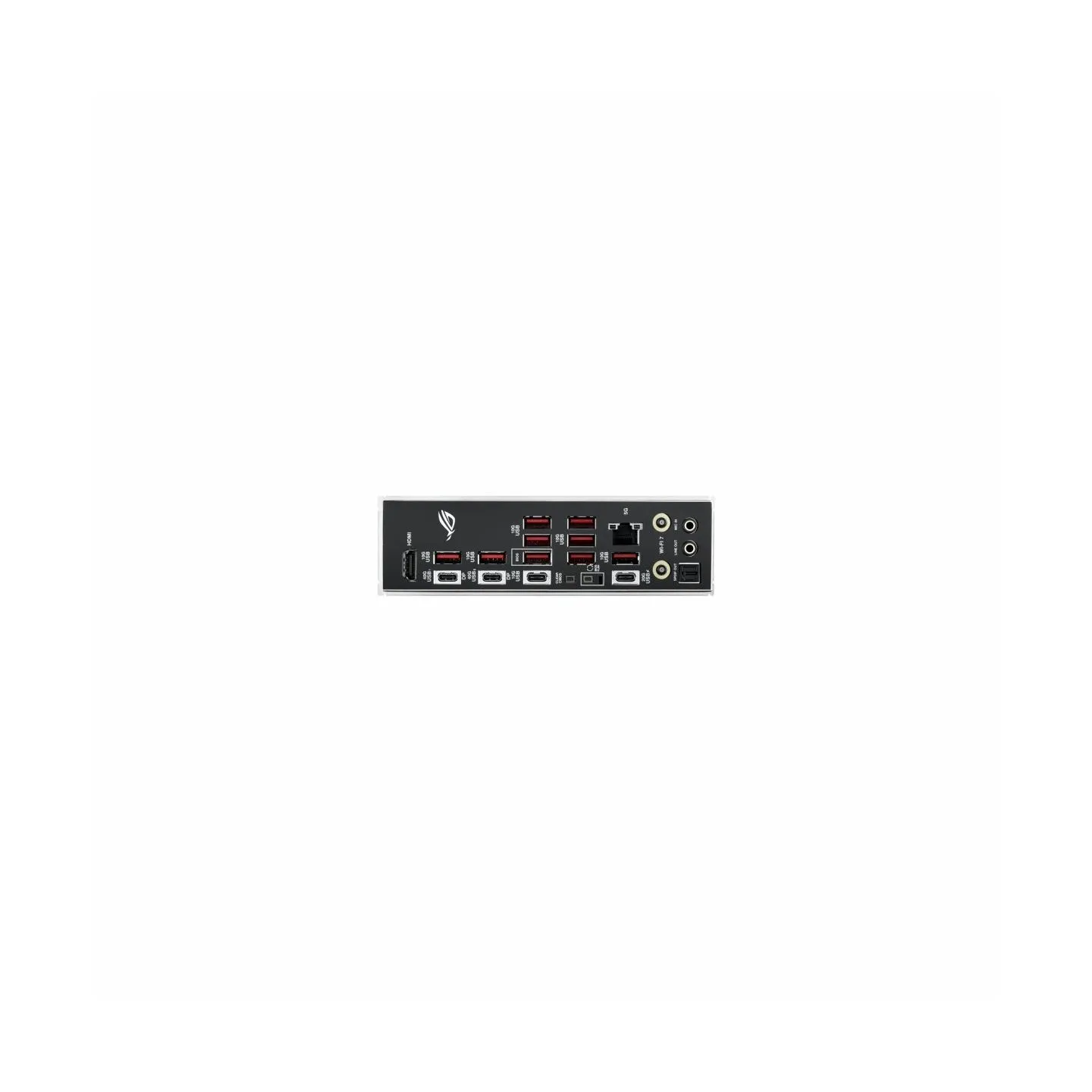

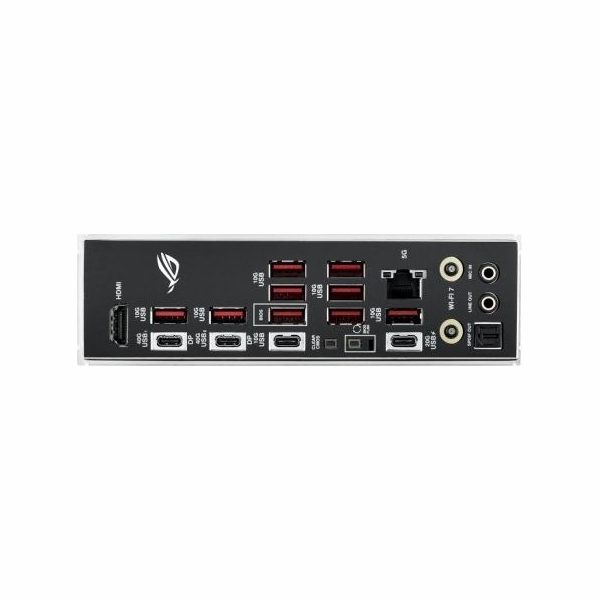

- External connectors
- 1 x MIC
- External connectors
- 2 x SMA
- External connectors
- 2 x USB4 Type-C
- External connectors
- 1 x S/PDIF
- External connectors
- 2 x USB 3.1 Type-C
- External connectors
- 1 x RJ-45
- External connectors
- 1 x HDMI
- External connectors
- 1 x Line Out
- External connectors
- 1 x Przycisk Clear CMOS
- External connectors
- 1 x Flash BIOS Button
- Onboard connectors
- 2 x USB 3.0 header
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 1 x 4pin wentylator OPT CPU
- Onboard connectors
- 2 x 8pin 12V
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 5 x M.2
- Onboard connectors
- 4 x SATA III 6Gb/s
- Onboard connectors
- 3 x USB 2.0/1.1 header
- Onboard connectors
- 1 x USB C
- Onboard connectors
- 1 x Front panel audio header
- BIOS
- 256 Mb Flash ROM, UEFI AMI BIOS
- Form factor
- ATX
- Dimensions
- 30.5 x 24.4 cm
- Accessories included
- Cables 2 x SATA 6Gb/s cables Additional cooling kit 1 x M.2 22110 thermal pad Other 1 x ASUS Wi-Fi movable antennas 1 x Cable ties 1 x M.2 Q-Latch pack 2 x M.2 Q-Slides 1 x ROG keychain 1 x ROG Strix stickers 5 x M.2 rubber bands Documentation 1 x Quick start guide
- Supported operating systems
- Windows 11
- Designation
- CE+WEEE
ROG STRIX X870E-E GAMING WIFI
14 Items
Specific References
- EAN13
- 4711387724163
- MPN
- ROG STRIX X870E-E GAMING WIFI
