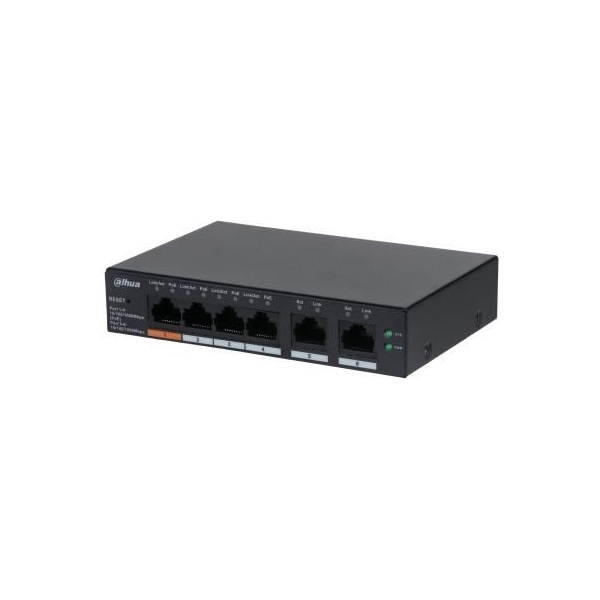

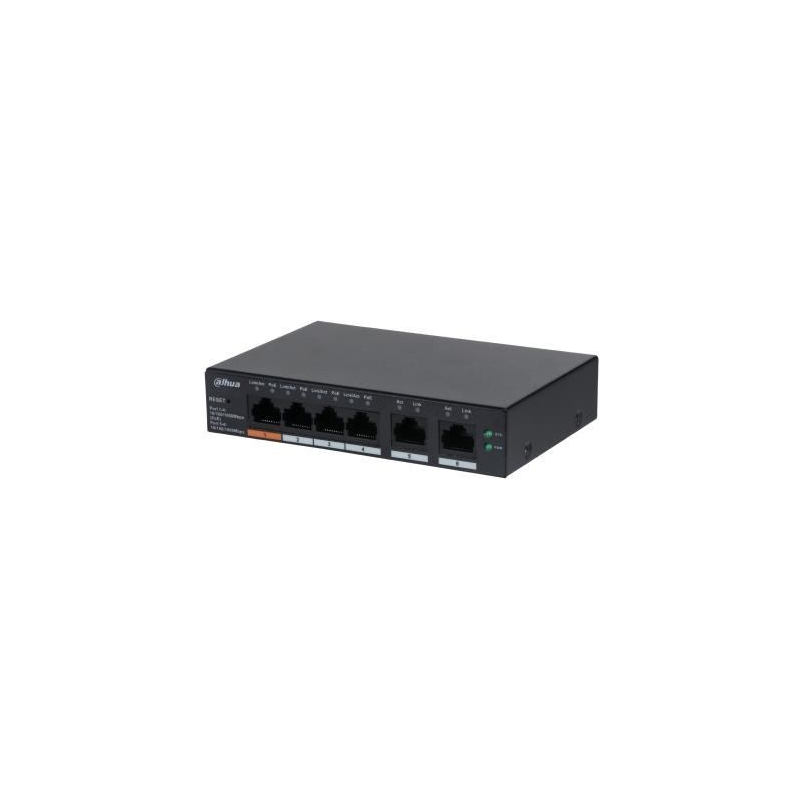

    Dahua Switch|DAHUA|CS4006-4GT-60|Type L2|Desktop/pedestal|PoE ports 4|60 Watts|DH-CS4006-4GT-60

Dahua Switch|DAHUA|CS4006-4GT-60|Type L2|Desktop/pedestal|PoE ports 4|60 Watts|DH-CS4006-4GT-60

€52.72
Tax included
Quantity
Add to wishlist

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

Highly intuitive, the Smart Managed Switch can manage local networks. With the DoLynk Care platform, it can also perform cloud management. The switch performs operation and maintenance using topology visualization on front-end, transmission and back-end storage devices that are in the security system and IT system. With its full metal design, the switch has great heat dissipation and can operate in temperatures ranging -10°C to 55°C. It offers EMC and has protection against overvoltage, overcurrent, static electricity, lightning strikes, pulses and other types of interference. For the PoE series Smart Managed Switch, power is supplied up to 250 meters away. The orange port supplies up to 60 W and the red port provides up to 90 W. Also, link aggregation and STP are available on select models to ensure
the network remains stable. The switch can be used in small and medium-sized businesses such as supermarkets, offices, restaurants, cafés and hotels.

  • Meets the requirements of IEEE802.3,IEEE802.3u,IEEE802.3x,IEEE802.3ab standards
  • Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE power supply standards
  • Manages PoE power consumption and PoE power on/off. Supports Intelligent PoE
  • A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof



Manufacturer Website:
https://www.dahuasecurity.com/products/All-Products/Transmission/Cloud-Managed-Switches/CS4006-4GT-60

Category Code
SWI
CnCode
85176200
Unit Box Height
0.085
Unit Box Length
0.115
Unit Box Width
0.2
Cloud-managed
Yes
Quality of Service (QoS) support
Yes
Switch layer
L2
Switch type
Managed
Web-based management
Yes
Basic switching RJ-45 Ethernet ports quantity
6
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
6
10G support
No
Copper ethernet cabling technology
1000BASE-T/100BASE-TX/10BASE-T
Ethernet LAN data rates
10,100,1000 Mbit/s
Flow control support
Yes
Full duplex
Yes
Link aggregation
Yes
Networking standards
IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u/IEEE 802.3x
Number of VLANs
32
Spanning tree protocol
Yes
Virtual LAN features
Port-based VLAN
VLAN support
Yes
Forwarding rate
8.93 Mpps
Jumbo frames
15000
Jumbo frames support
Yes
MAC address table
8000 entries
Switching capacity
12 Gbit/s
DHCP features
DHCP client
Housing material
Metal
LED indicators
Yes
Product colour
Black
Reset button
Yes
Wall mountable
Yes
DC input voltage
53 V
Input current
1.226 A
Power consumption (max)
65 W
Power source
DC
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
4
Operating relative humidity (H-H)
5 - 95 %
Operating temperature (T-T)
-10 - 55 °C
Storage relative humidity (H-H)
5 - 95 %
Storage temperature (T-T)
-40 - 70 °C
Depth
90 mm
Height
26 mm
Weight
290 g
Width
130 mm
Package depth
238 mm
Package height
76 mm
Package weight
940 g
Package width
265 mm
Model name
DH-CS4006-4GT-60
Units per Shipping Box
12
Unit Calculated Volume
0.002527 cubm
Unit Calculated Weight
0.783 kg
DH-CS4006-4GT-60
21 Items

Specific References

MPN
DH-CS4006-4GT-60
New
