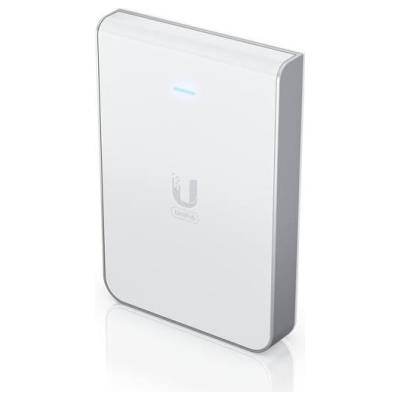

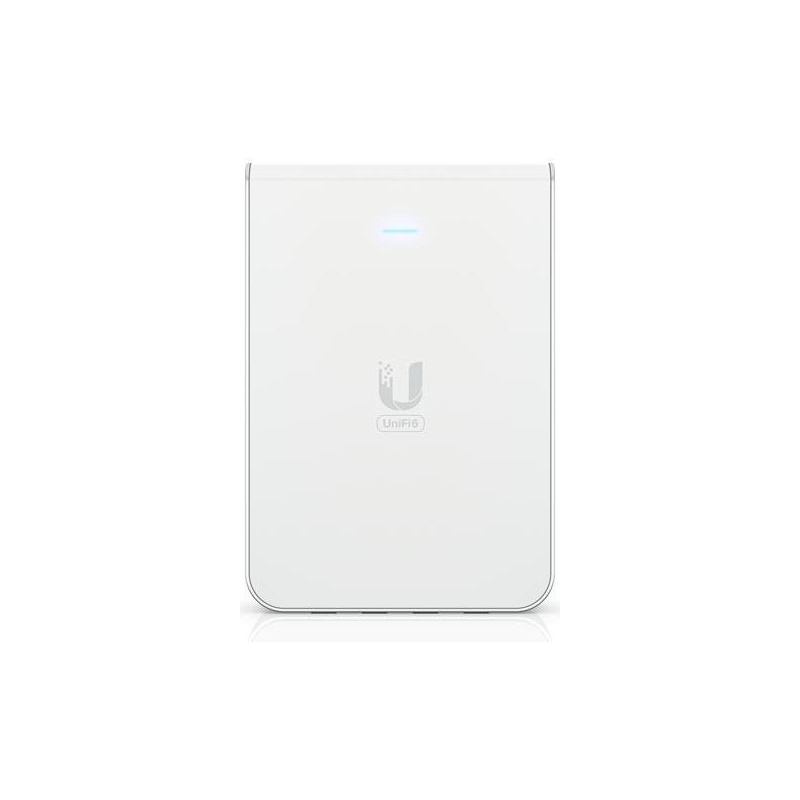

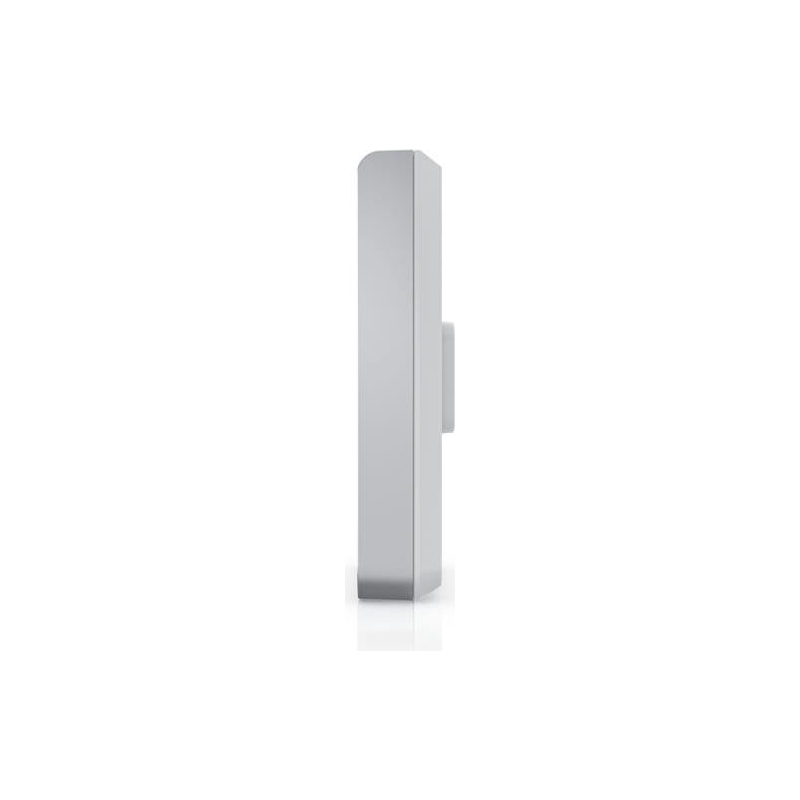

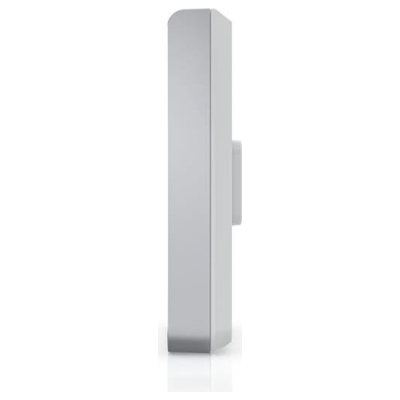

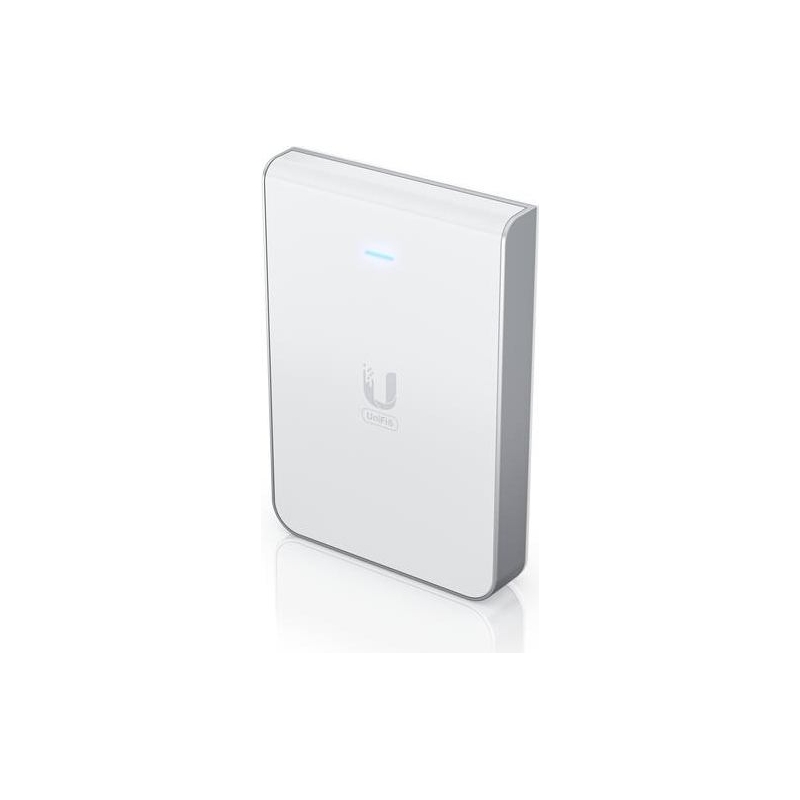

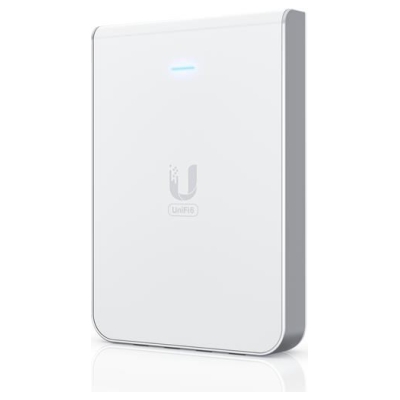

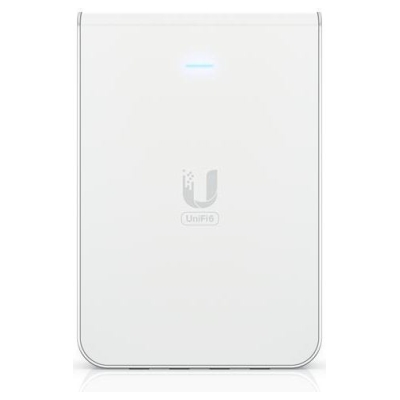

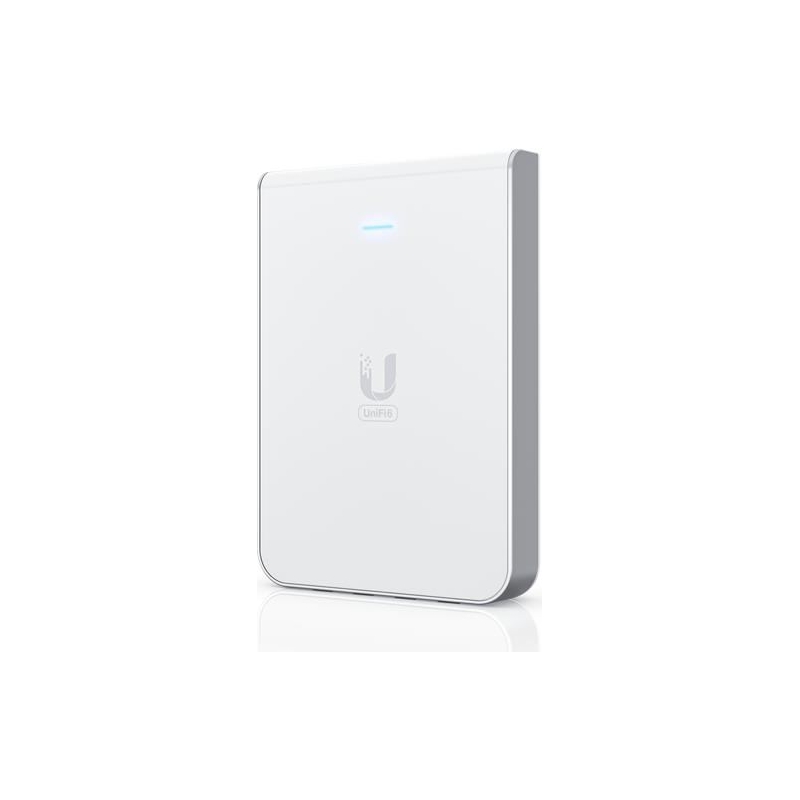

Ubiquiti Access Point U6 In-Wall WiFi 6

€225.29
Tax included
Quantity
Add to wishlist
Last items in stock

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

WRL ACCESS POINT/U6-IW UBIQUITI

  • WiFi 6 support (2.4/5 GHz bands)
  • 5.3 Gbps aggregate throughput rate

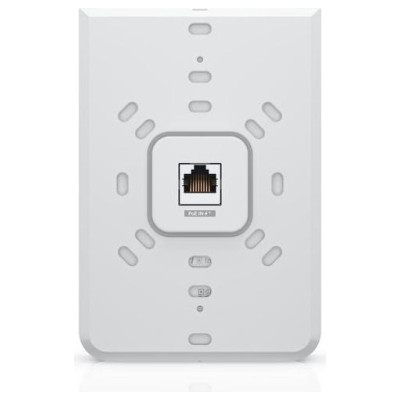

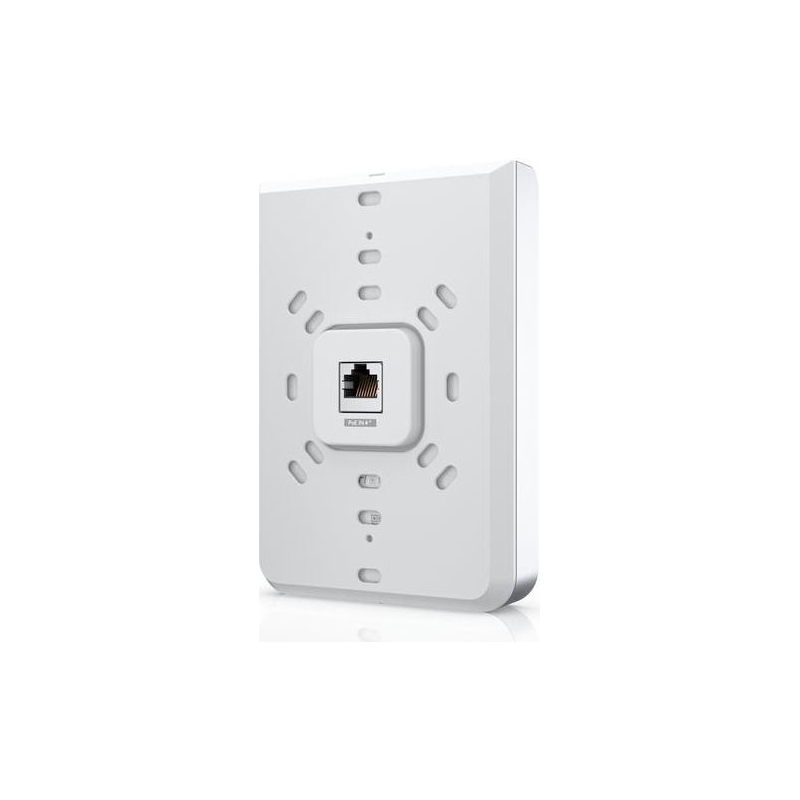

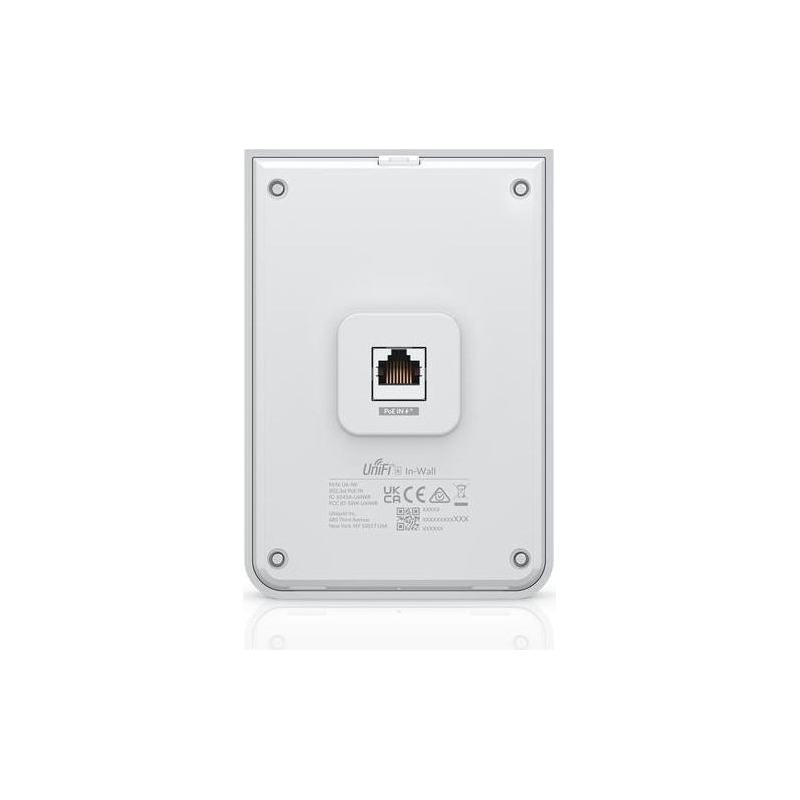

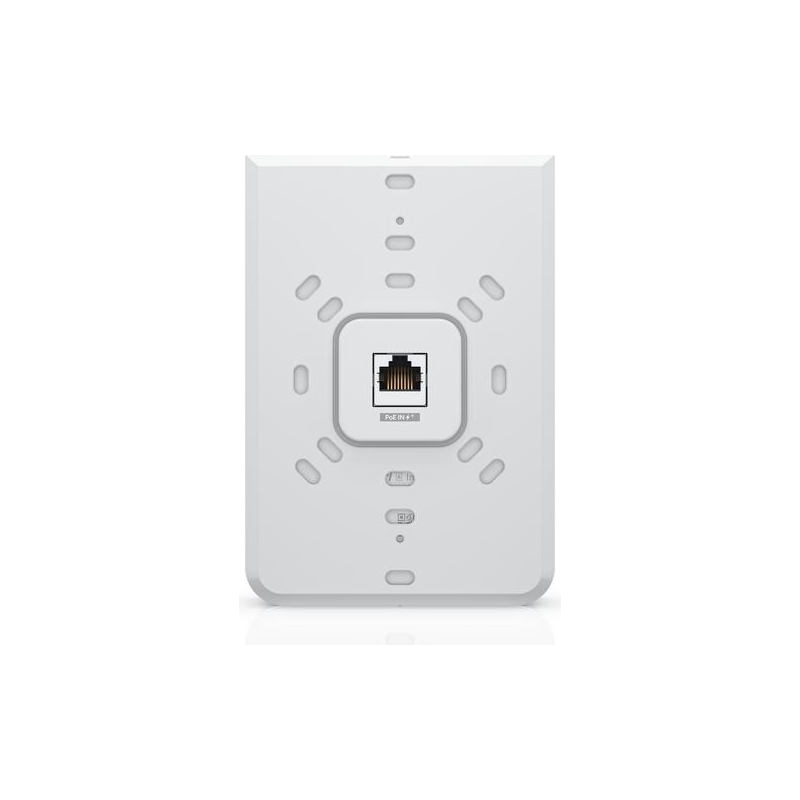

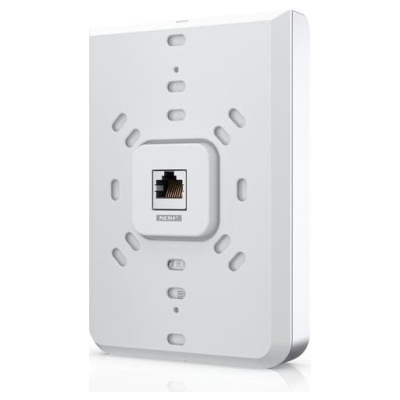

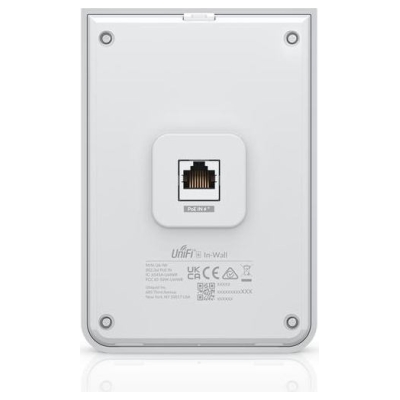

  • (1) GbE RJ45 port (PoE In)

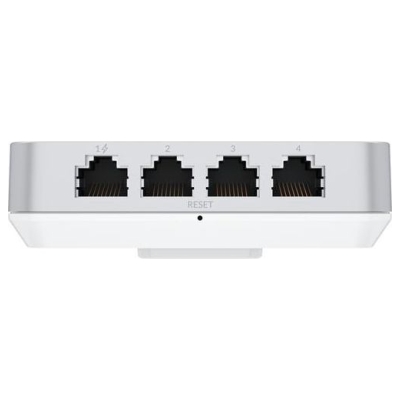

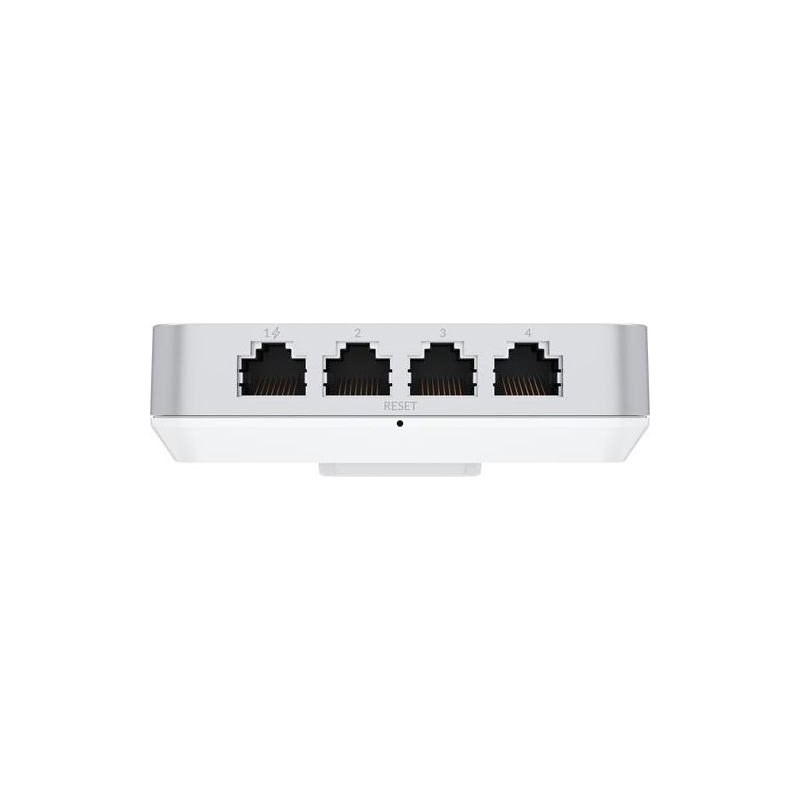

  • (4) GbE RJ45 ports, including one that supports PoE output



Manufacturer Website:
https://eu.store.ui.com/products/access-point-wifi-6-in-wall

Category Code
WAP
CnCode
85176200
Unit Box Height
0.046
Unit Box Length
0.165
Unit Box Width
0.12
2.4 GHz
Yes
5 GHz
Yes
6 GHz
No
Bluetooth
Yes
Dynamic Frequency Selection (DFS)
Yes
Maximum data transfer rate
4800 Mbit/s
Maximum data transfer rate (2.4 GHz)
573.5 Mbit/s
Maximum data transfer rate (5 GHz)
4800 Mbit/s
MIMO
Yes
MIMO type
Multi User MIMO
Networking standards
IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n
Quality of Service (QoS) support
Yes
VLAN support
Yes
Security algorithms
WPA/WPA2/WPA3/WPA-Enterprise/WPA-PSK
Supported network protocols
802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax, 802.1Q
Ethernet LAN (RJ-45) ports
5
Internal RJ-45 ports quantity
4
WAN connection
Ethernet (RJ-45)
DC voltage range
48 V
Input current
0.5 A
Power consumption (max)
15.4 W
Power consumption (typical)
13.5 W
Power over Ethernet (PoE)
Yes
Housing material
Aluminium,Plastic
LED indicators
Yes
Placement
Wall
Product colour
White
Reset button
Yes
Antenna gain level (max)
5.9 dBi
Antenna type
Internal
Certification
CE, FCC, IC
Depth
31.19 mm
Height
139.66 mm
Weight
460 g
Width
96 mm
Mounting kit
Yes
Quantity per pack
1 pc(s)
Operating relative humidity (H-H)
5 - 95 %
Operating temperature (T-T)
-30 - 60 °C
Model
U6-IW
Model name
Unifi 6 In-Wall
Units per Shipping Box
10
Unit Calculated Volume
0.003498 cubm
Unit Calculated Weight
0.725 kg
U6-IW
3 Items

Data sheet

Interface
Ethernet/Bluetooth
Antenna
Internal
Package type
Box
Networking features
Power over Ethernet (PoE)
2x2 MIMO
4x4 MIMO
Warranty Products Returnable
Yes
Warranty Term (month)
24
Warranty Validation Criteria
Serial Number
Warranty Term Notes
24 months - for EU
Pieces in pack
1
Box Length (mm)
527 mm
Box Width (mm)
290 mm
Box Height (mm)
231 mm
Retail Packaging Net Weight Carton
1 kg
Retail Packaging Net Weight Plastic
1 kg
Packs in Box
20
Data Link Protocol Supports
Gigabit Ethernet/Fast Ethernet/Ethernet
Wi-Fi
Device Location
External
Networking Compliant Standards
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.1Q(VLAN)
IEEE 802.11n
IEEE 802.11ac
IEEE 802.11ax
Certifications
CE, FCC, IC
LAN
4 (RJ-45)
WAN
1 (RJ-45)
Power Consumption Operational
13.5 W
Included Accessories
Documentation
Maximum Operating Ambient Temperature
60 °C
Maximum Operating Humidity
95 %
Minimum Operating Ambient Temperature
-30 °C
Minimum Operating Humidity
5 %
Built-in Devices
Reset Button
External Color
White/Blue
Local Area Network Architecture
10Base-T/100Base-TX/1000Base-T
Power over Ethernet
External
DC 44-57 V
Wi-Fi Band Frequency
2.4 GHz/5 GHz
Encryption Algorithm
WPA-PSK
WPA
WPA2
WPA3

Specific References

EAN13
810010073365
MPN
U6-IW
New
