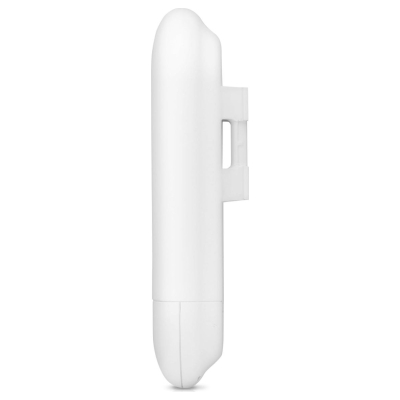

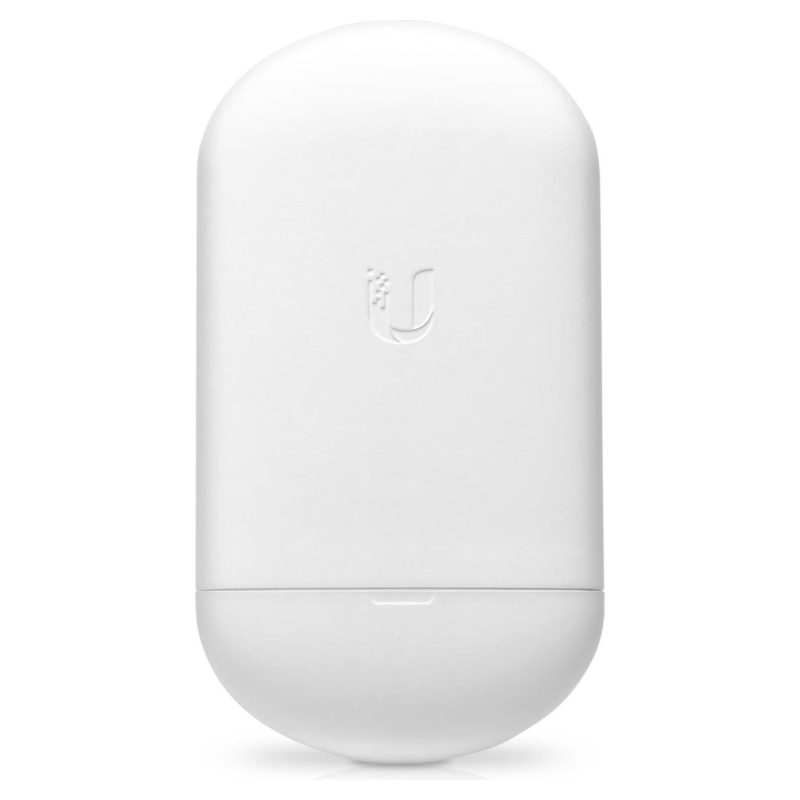

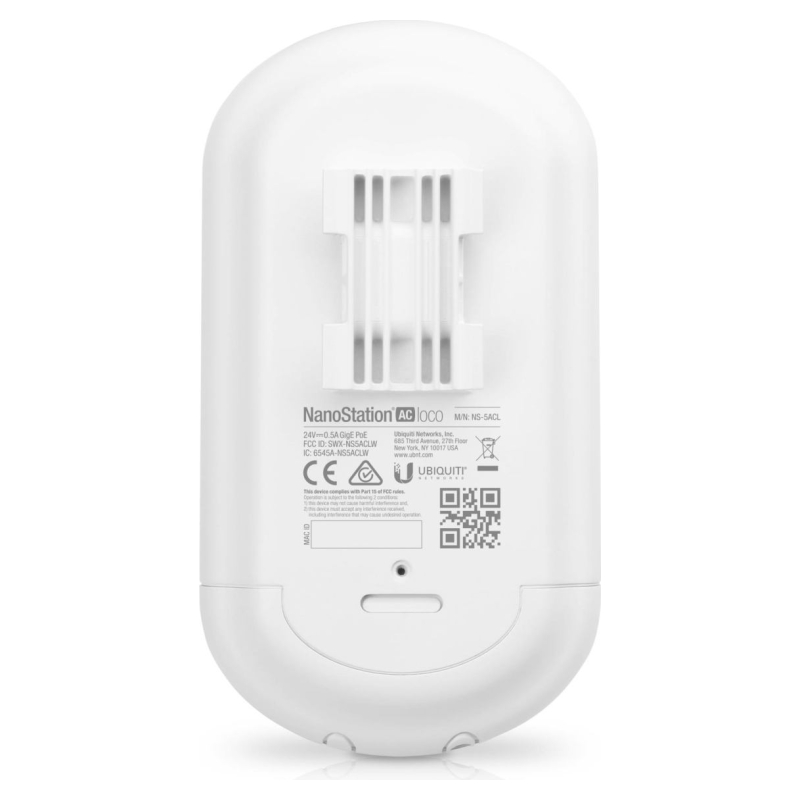

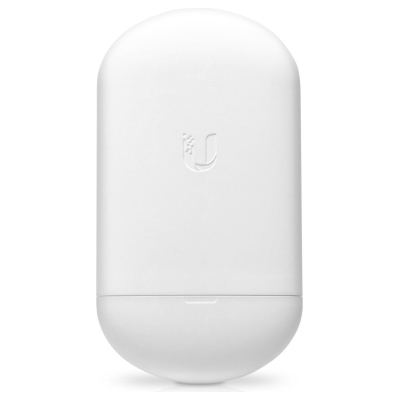

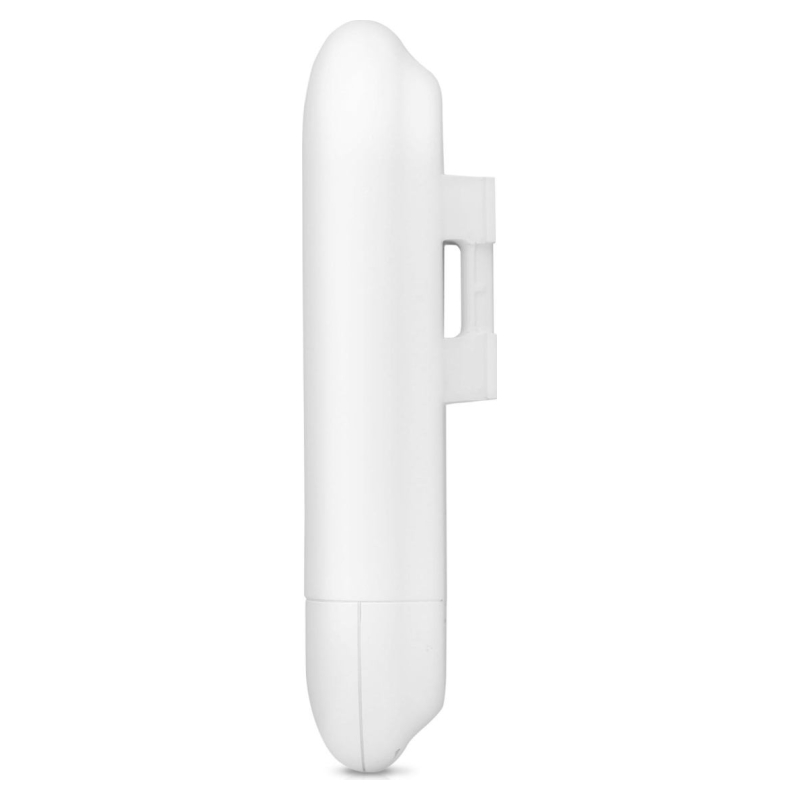

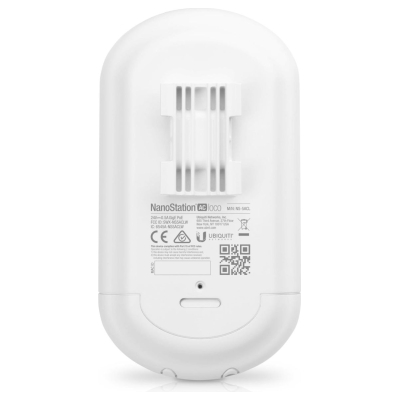

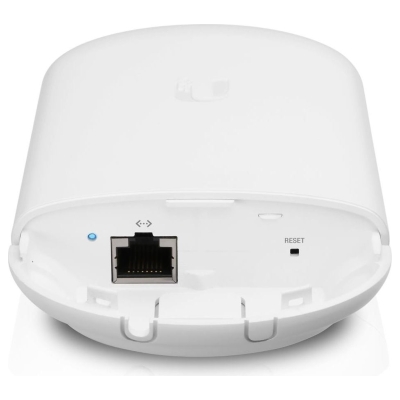

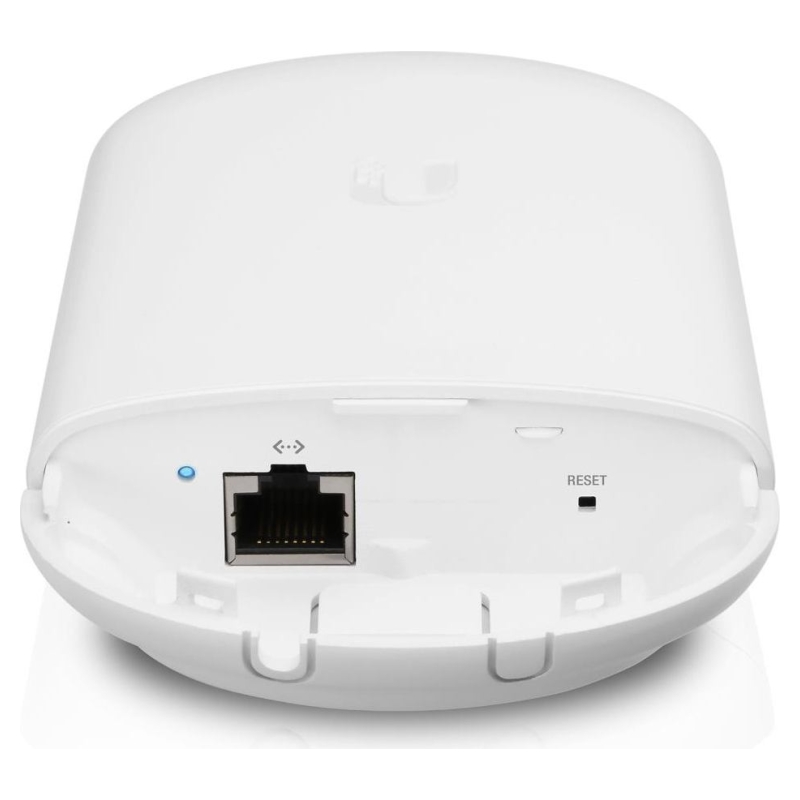

Ubiquiti Loco5AC NanoStation AC loco 5AC
- Write a review
€63.36
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
The indoor/outdoor NanoStation® AC and NanoStation AC loco are compact, high-performance CPEs featuring airMAX® AC technology and a dedicated Wi-Fi radio for management.
Sleek Industrial Design
The NanoStation AC and NanoStation AC loco represent the next evolution of the iconic CPE design that revolutionized the Wireless ISP industry.
Dual Ethernet Connectivity
The NanoStation AC provides a secondary Ethernet port with software-enabled PoE. Use this port to conveniently power an external device, such as a PoE security camera, for seamless IP video integration.
Management Wi-Fi Radio
Each NanoStation AC model integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Improved Surge Protection
The NanoStation AC and NanoStation AC loco feature enhanced protection against ESD events.
Now with airOS®8
airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
Manufacturer Website:
https://www.ubnt.com/airmax/nanostation-ac/
- Category Code
- WAP
- CnCode
- 85176200
- Unit Box Height
- 0.115
- Unit Box Length
- 0.2
- Unit Box Width
- 0.06
- 5 GHz
- Yes
- Ethernet LAN data rates
- 10/100/1000 Mbit/s
- Frequency band
- 5.150 - 5.250, 5.250 - 5.350, 5.470 - 5.725, 5.725 - 5.850 GHz
- Maximum data transfer rate
- 1000 Mbit/s
- Maximum outdoor range
- 10000 m
- Modulation
- 16-QAM/256-QAM/64-QAM/BPSK/QPSK
- Throughput data rate
- 450 Mbit/s
- Ethernet LAN (RJ-45) ports
- 1
- AC input voltage
- 24 V
- Input current
- 0.5 A
- Power over Ethernet (PoE)
- Yes
- LED indicators
- Network/Power/Signal strength
- Placement
- Ceiling
- Product colour
- White
- Antenna type
- Internal
- Built-in processor
- Yes
- Internal memory
- 64 MB
- Operating system installed
- AirOS
- Certification
- CE, FCC, IC
- Depth
- 77.5 mm
- Height
- 59.1 mm
- Weight
- 180 g
- Width
- 179 mm
- Operating relative humidity (H-H)
- 5 - 95 %
- Operating temperature (T-T)
- -40 - 70 °C
- Harmonized System (HS) code
- 85176990
- Model
- UBIQUITI airMAX NanoStation 5AC Loco
- Model name
- NanoStation 5AC Loco
- Units per Shipping Box
- 20
- Unit Calculated Volume
- 0.001666 cubm
- Unit Calculated Weight
- 0.4 kg
LOCO5AC
5 Items
Data sheet
- Interface
- Ethernet/Wi-Fi
- Antenna
- Internal
- RAM
- 64 MB DDR2 SDRAM
- Package type
- Box
- Networking features
- Power over Ethernet (PoE)
- Warranty Products Returnable
- Yes
- Warranty Term (month)
- 24
- Warranty Validation Criteria
- Serial Number
- Warranty Term Notes
- 24 months - for EU
- Pieces in pack
- 1
- Box Length (mm)
- 474 mm
- Box Width (mm)
- 298 mm
- Box Height (mm)
- 236 mm
- Retail Packaging Net Weight Carton
- 0.18 kg
- Retail Packaging Net Weight Plastic
- 0.18 kg
- Packs in Box
- 20
- CPU
- Atheros MIPS 74KC
- Internal Clock Rate
- 560 MHz
- Device Location
- External
- Certifications
- CE, FCC, IC
- Power Consumption Operational
- 7 W
- Maximum Operating Ambient Temperature
- 70 °C
- Maximum Operating Humidity
- 95 %
- Minimum Operating Ambient Temperature
- -40 °C
- Minimum Operating Humidity
- 5 %
- External Color
- White
- Local Area Network Architecture
- 10Base-T/100Base-TX/1000Base-T
- Number of Ports
- 1
- Amplification
- 13 dBi
- PoE Adapter
- External
Output: DC 24 V
Specific References
- EAN13
- 817882027250
- MPN
- LOCO5AC
