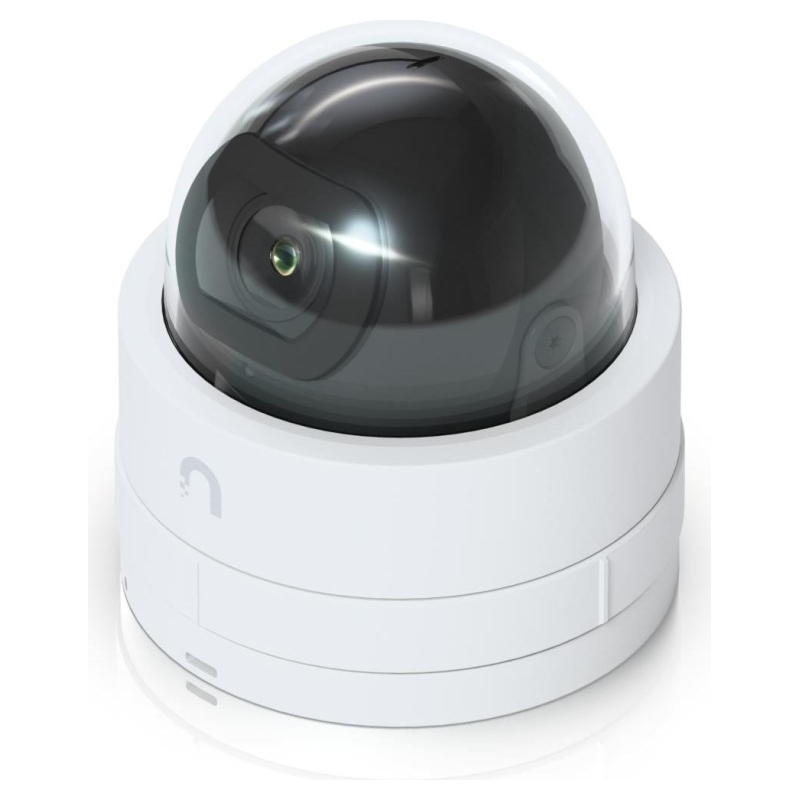

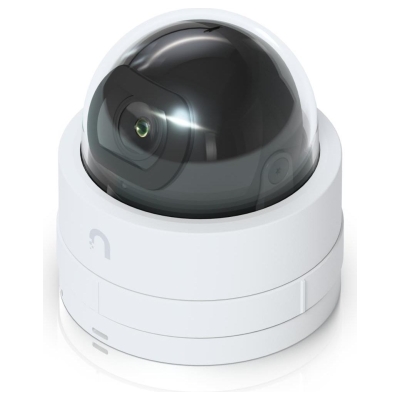

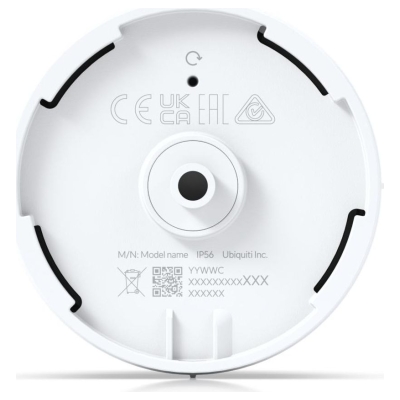

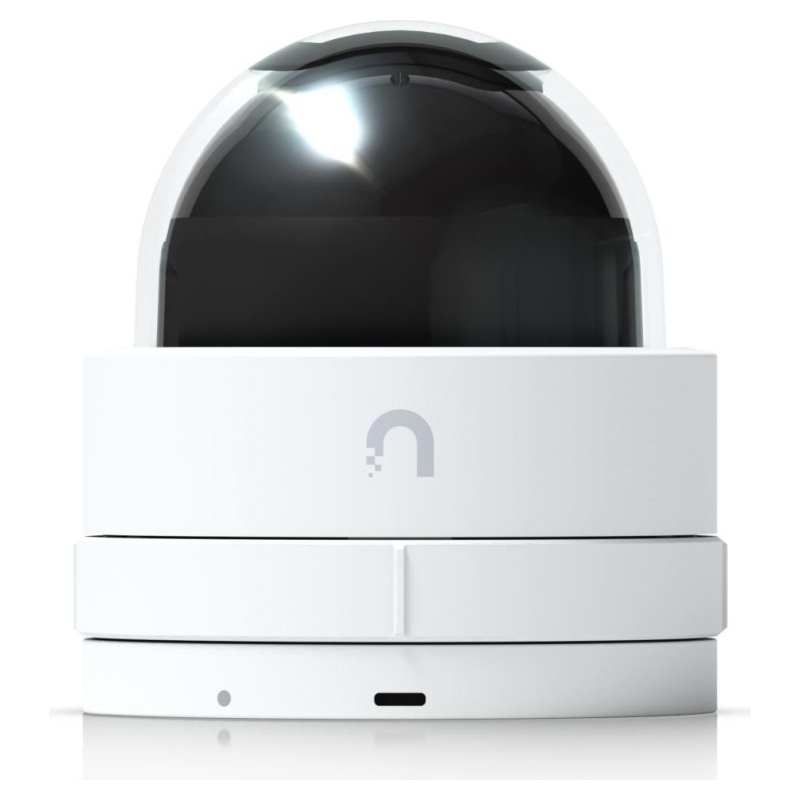

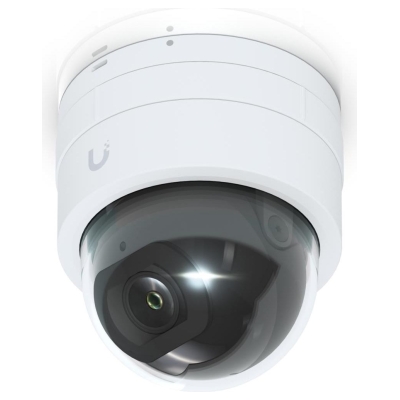

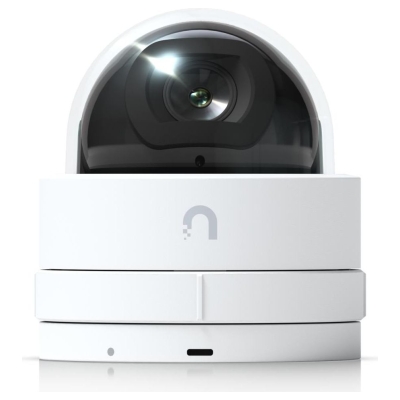

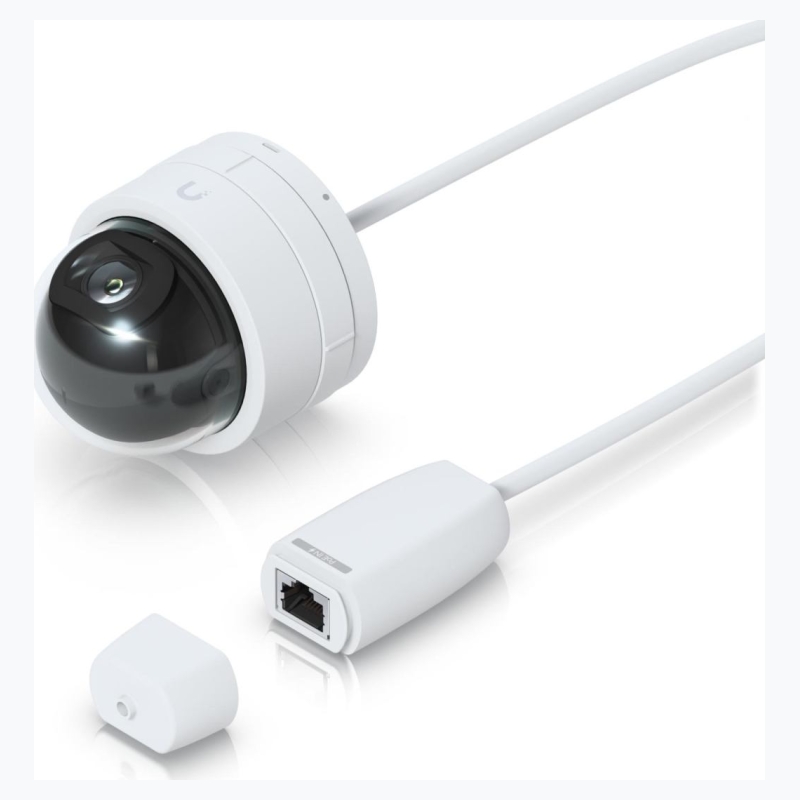

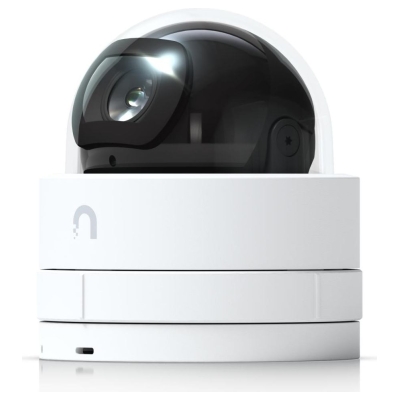

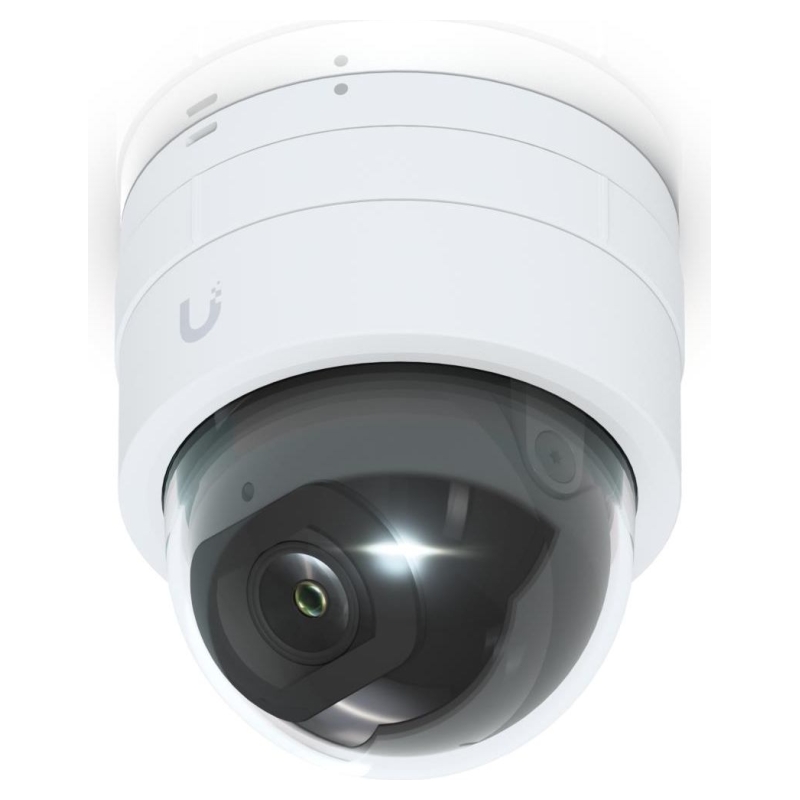

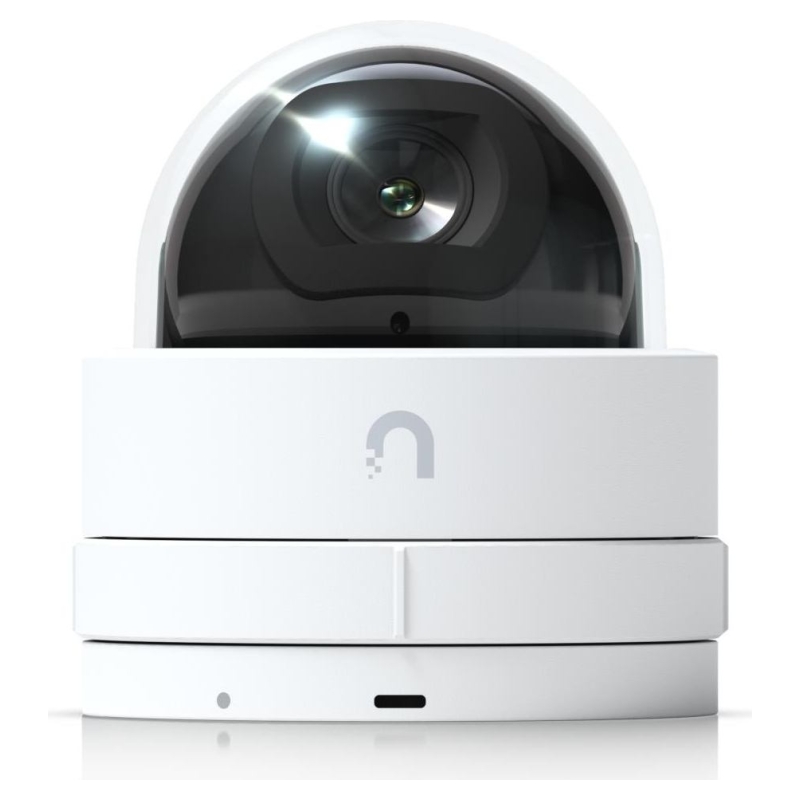

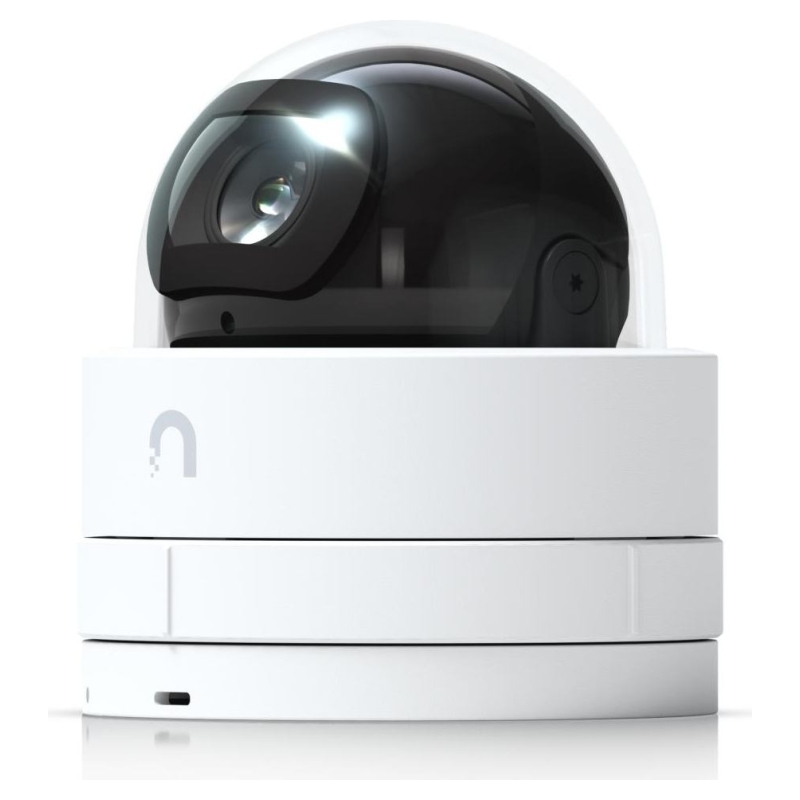

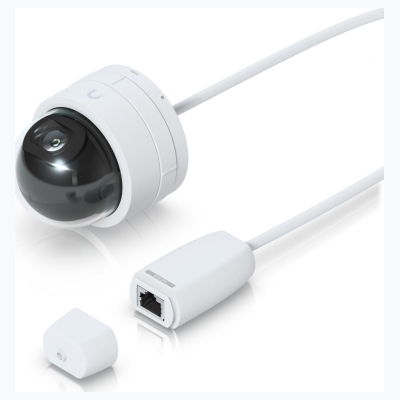

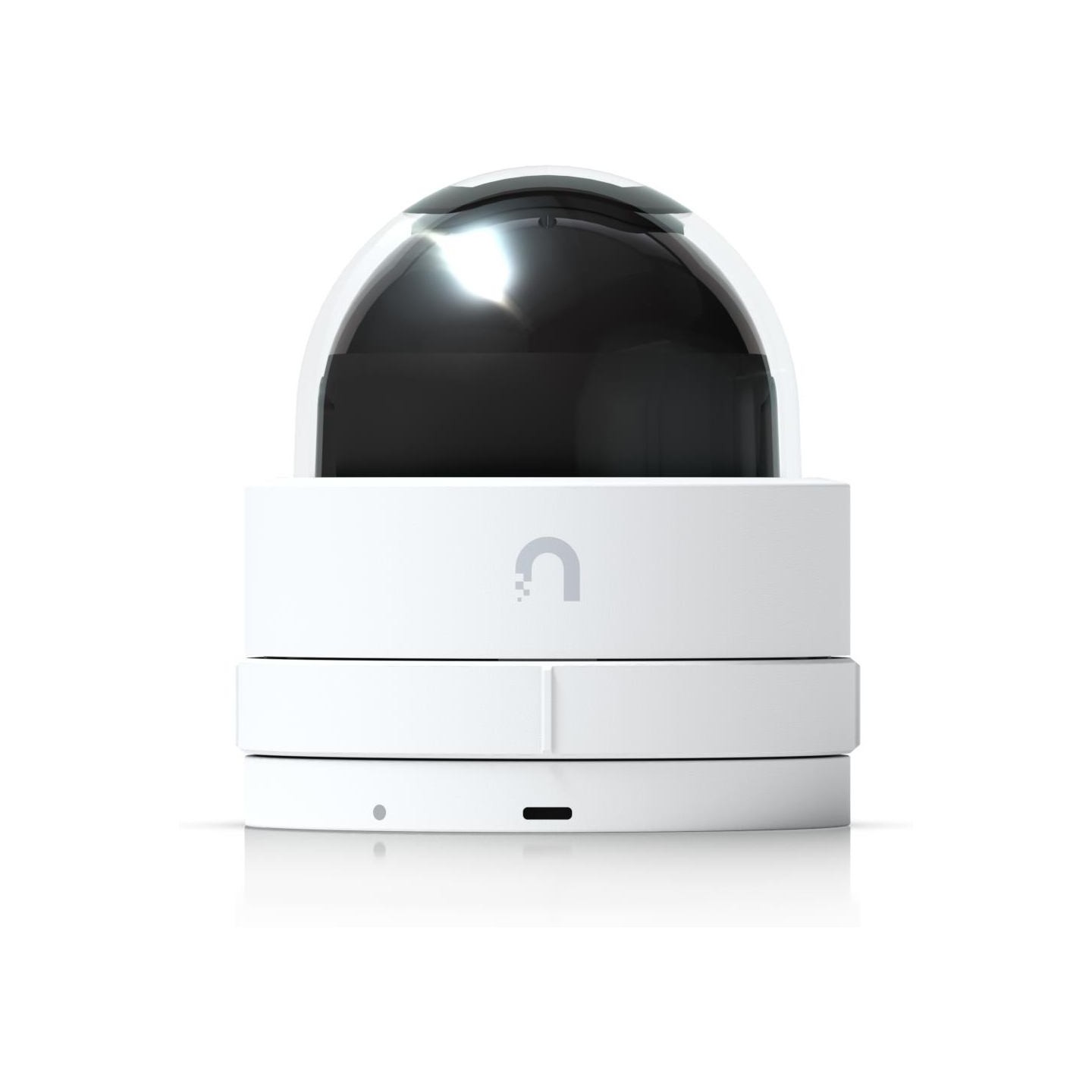

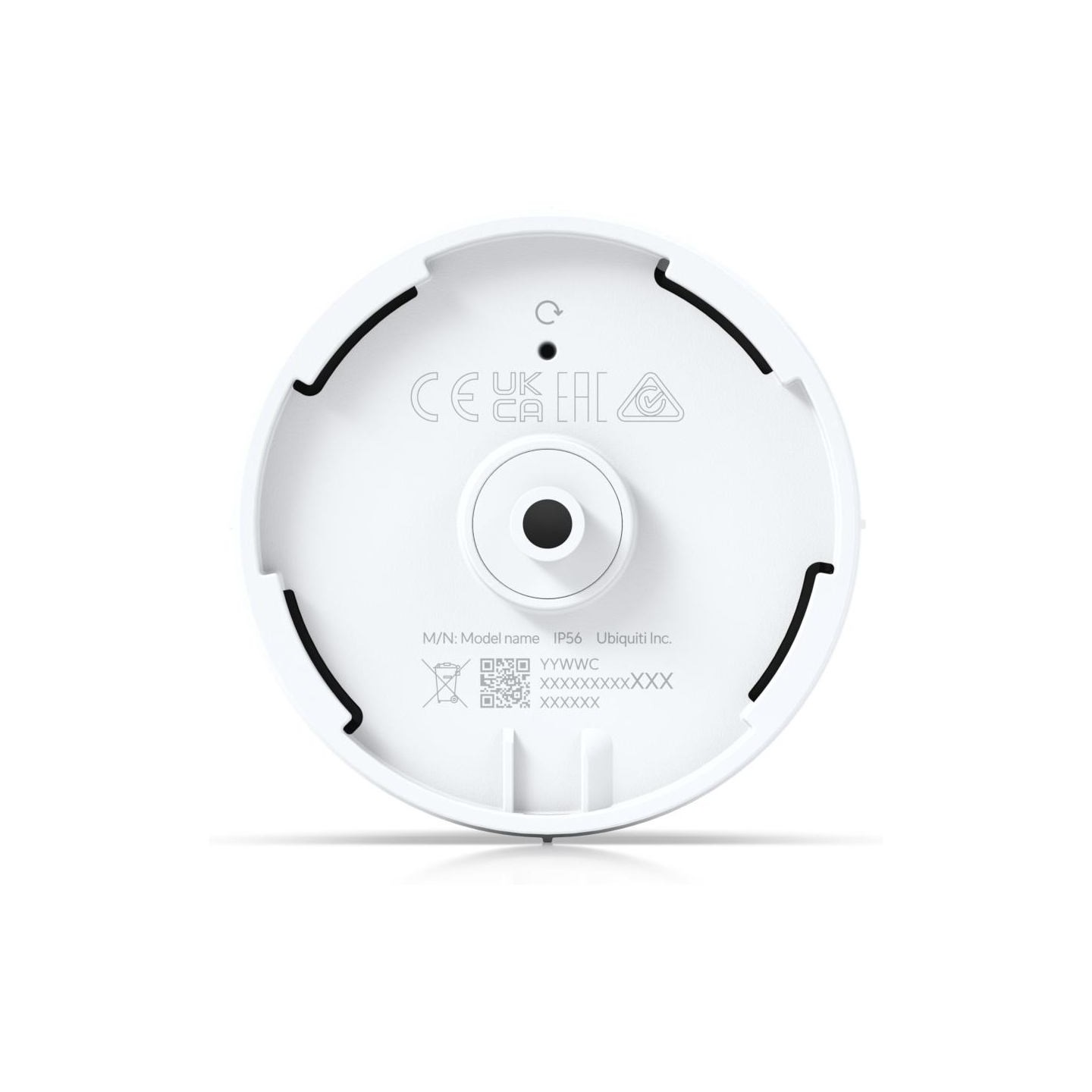

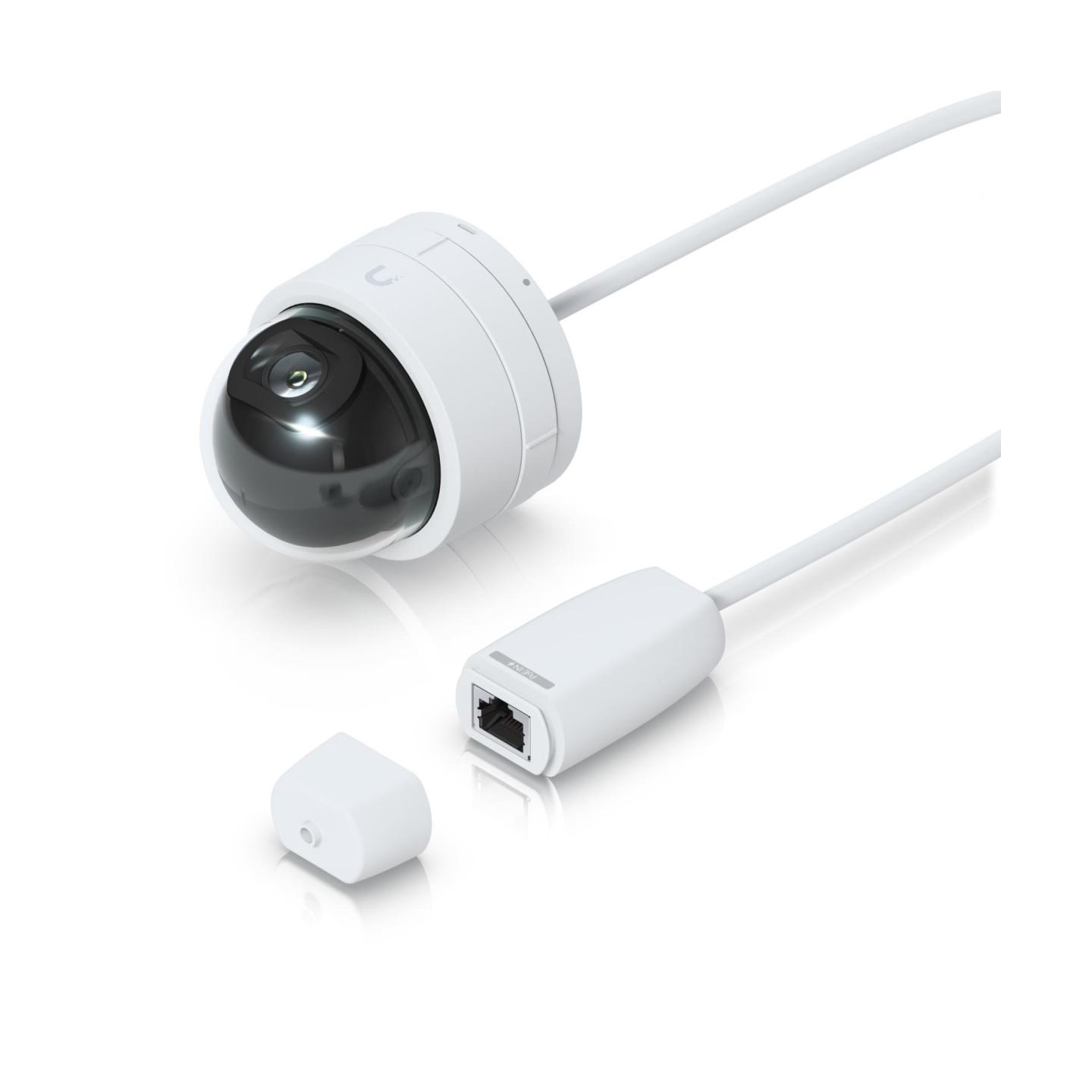

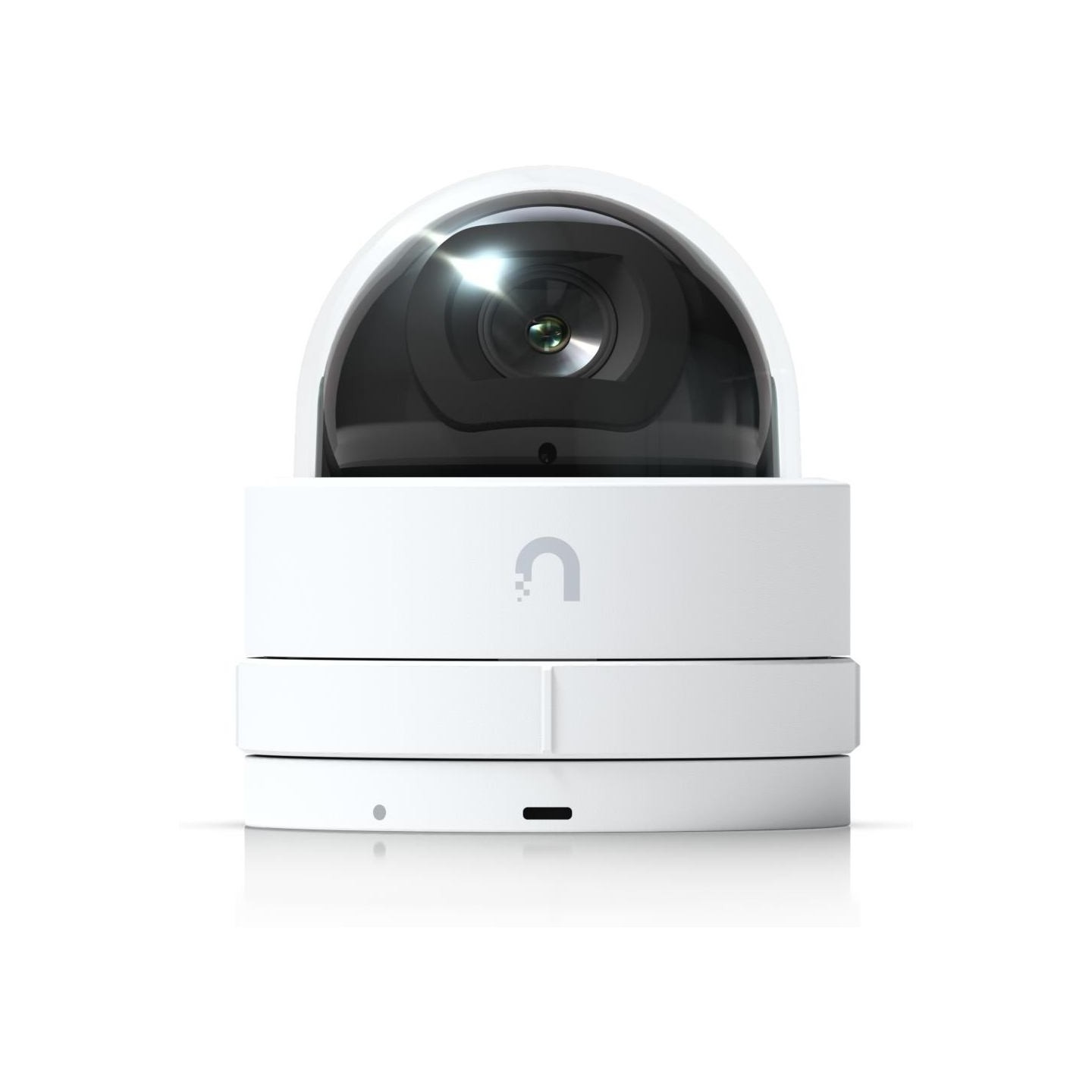

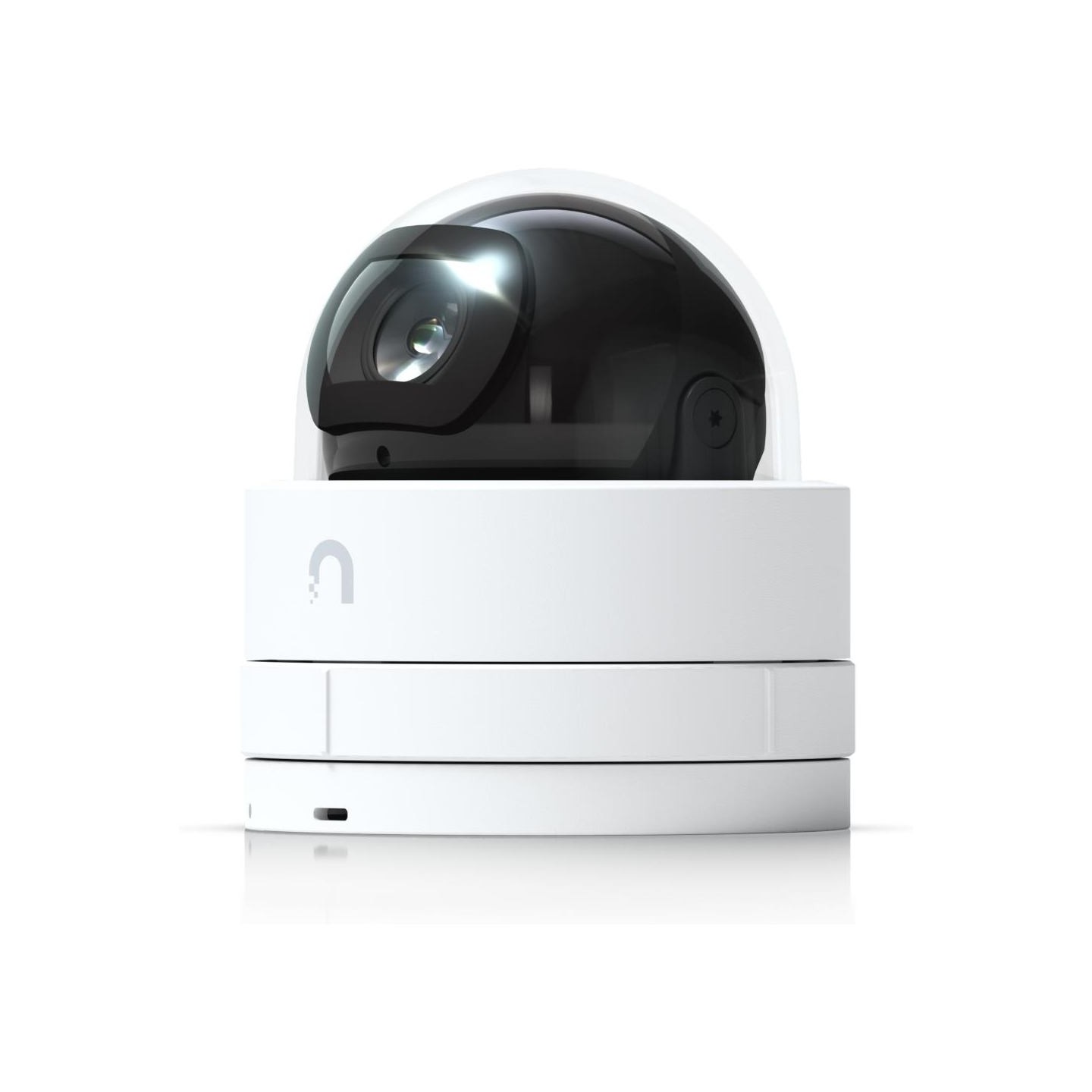

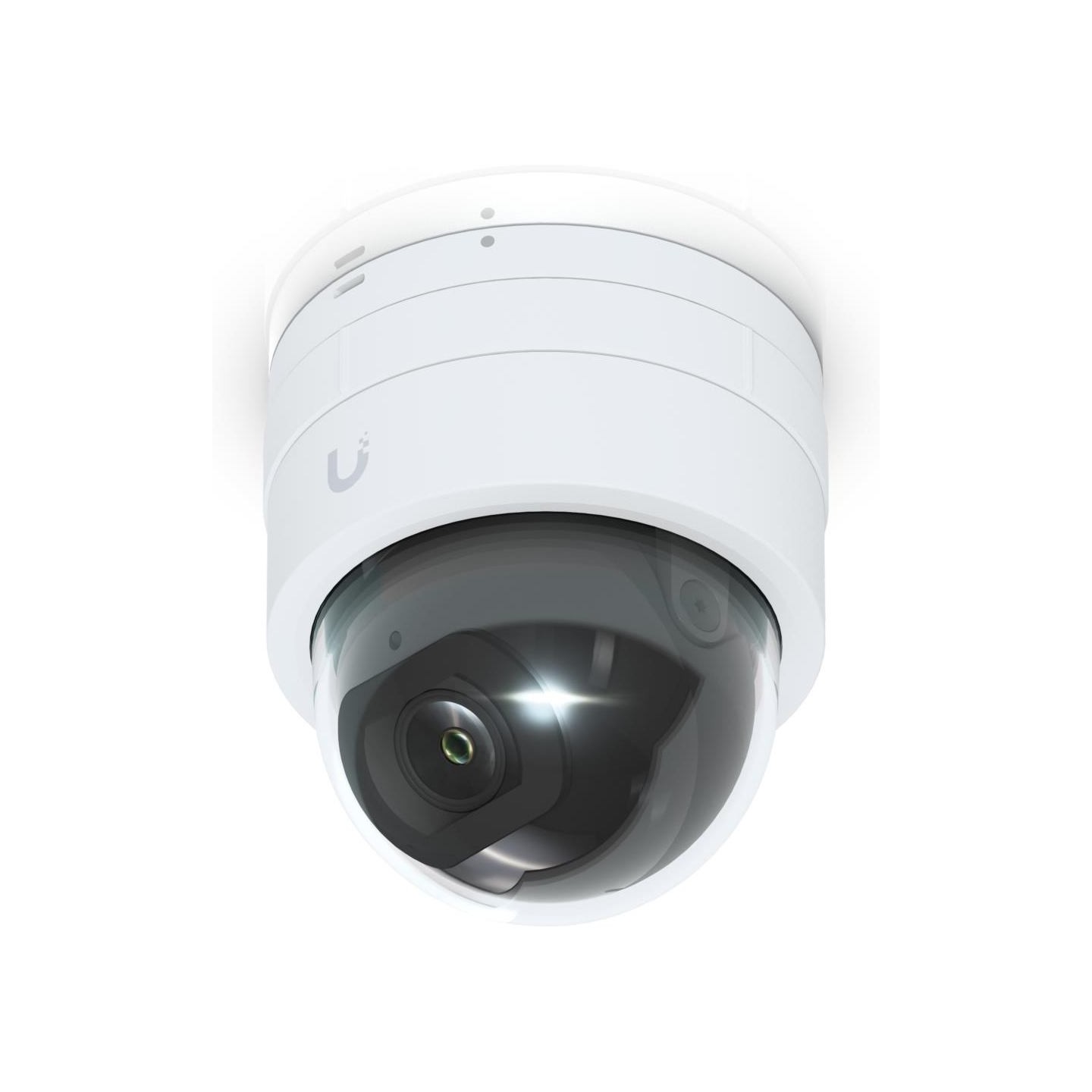

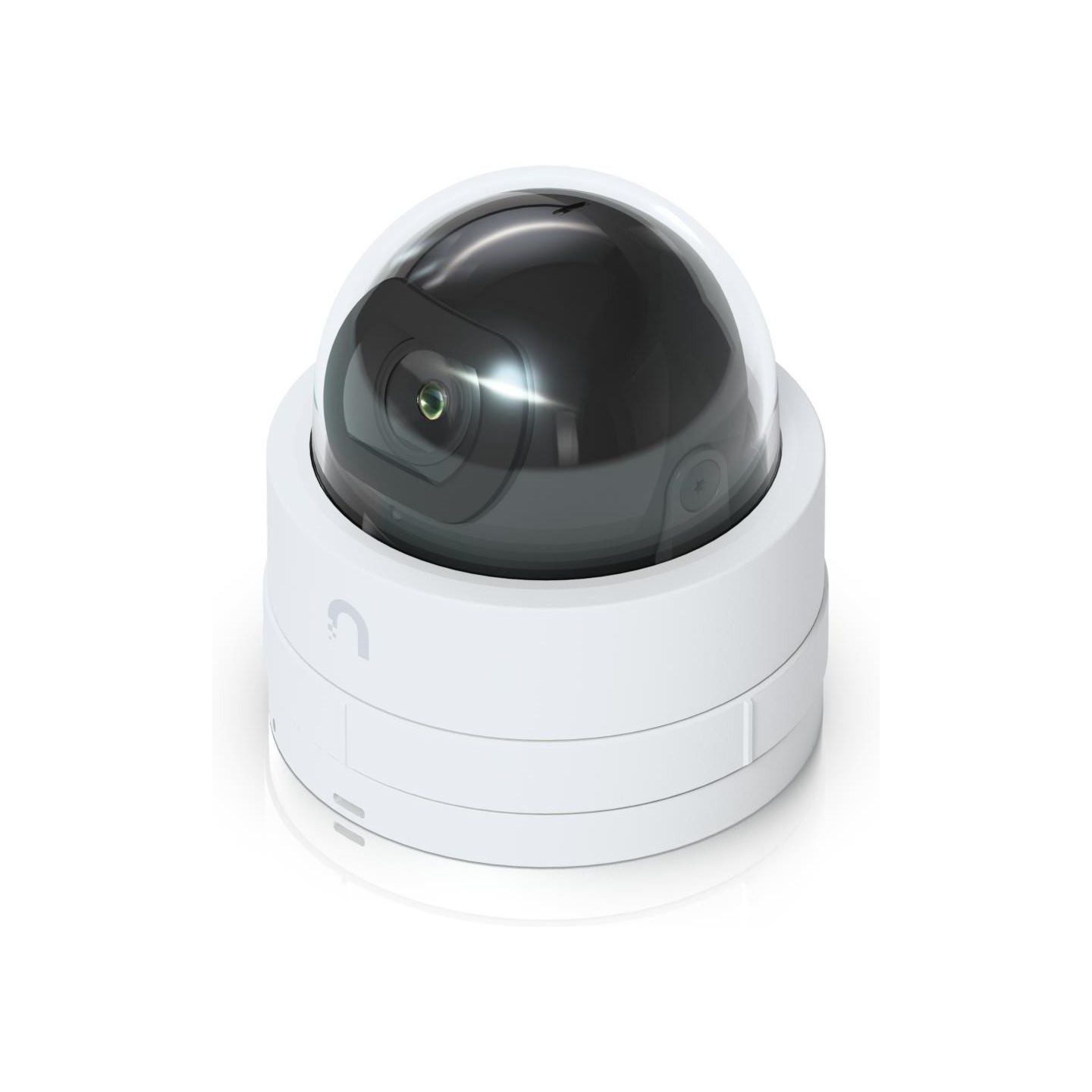

Ubiquiti UVC-G5-Dome-Ultra
- Write a review
€102.34
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
Ultra-compact and tamper-resistant 2K HD PoE camera with night vision designed for low-profile indoor security.
- 2K (4MP) video resolution
- Ultra-wide viewing angle (102.4°)
- 20 m (65 ft) IR night vision
- AI event detections
- Connect and power using PoE

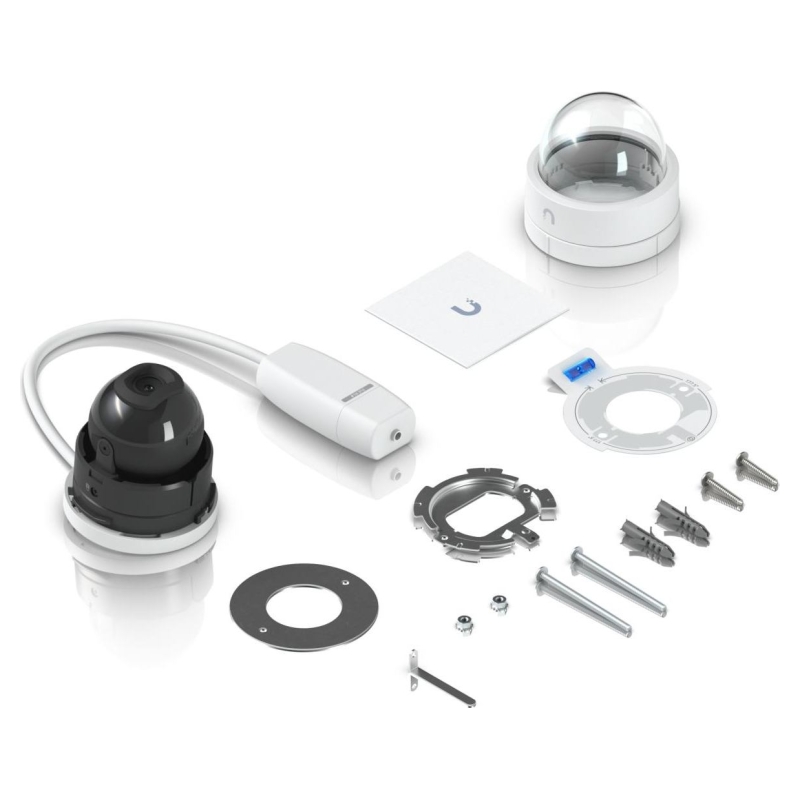

- Optional Flush Mount for in-ceiling installation
Manufacturer Website:
https://eu.store.ui.com/eu/en/pro/products/uvc-g5-dome-ultra
- Category Code
- FNC
- CnCode
- 85258900
- Unit Box Height
- 0.097
- Unit Box Length
- 0.141
- Unit Box Width
- 0.096
- Form factor
- Dome
- Housing material
- Aluminium/Polycarbonate (PC)/Stainless steel
- IK code
- IK06
- Mounting type
- Ceiling/wall
- Product colour
- White
- Protection features
- Vandal proof
- Built-in processor
- Yes
- Connectivity technology
- Wired
- Day/night mode
- Yes
- Infrared (IR) cut-off filter
- Yes
- Placement supported
- Indoor & outdoor
- Processor model
- ARM Cortex-A7
- Type
- IP security camera
- Lens viewing angle, diagonal
- 120.6 °
- Lens viewing angle, horizontal
- 102.4 °
- Lens viewing angle, vertical
- 54.9 °
- Number of sensors
- 1
- Optical sensor size
- 1/2.4 "
- Sensor type
- CMOS
- Number of lenses
- 1
- LED type
- IR
- Night vision
- Yes
- Night vision distance
- 20 m
- Frame rate
- 30 fps
- Image quality adjustment
- Brightness/Colour depth/Contrast/DNR/Sharpness
- Maximum resolution
- 2688 x 1512 pixels
- Noise reduction
- Yes
- Noise reduction technology
- 2D noise reduction,3D noise reduction
- Privacy masking
- Yes
- Text caption overlay
- Yes
- Total megapixels
- 4 MP
- Video formats supported
- H.264
- Bluetooth
- No
- Ethernet interface type
- Fast Ethernet
- Ethernet LAN
- Yes
- Wi-Fi
- No
- Built-in HDD
- No
- Ethernet LAN (RJ-45) ports
- 1
- Reset button
- Yes
- AC input voltage
- 37 - 57 V
- Power consumption (typical)
- 4.2 W
- Power source type
- PoE
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- -20 - 40 °C
- Diameter
- 63.6 mm
- Height
- 68.2 mm
- Weight
- 175 g
- Compliance certificates
- CE/Federal Communications Commission (FCC)
- Sustainability compliance
- Yes
- Cables included
- LAN (RJ-45)

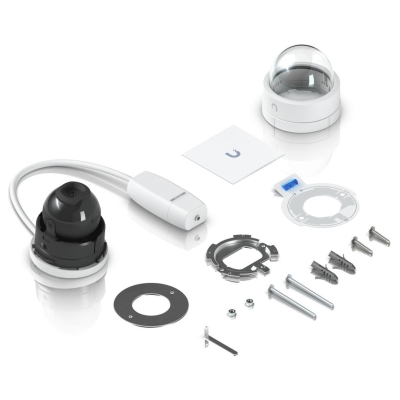

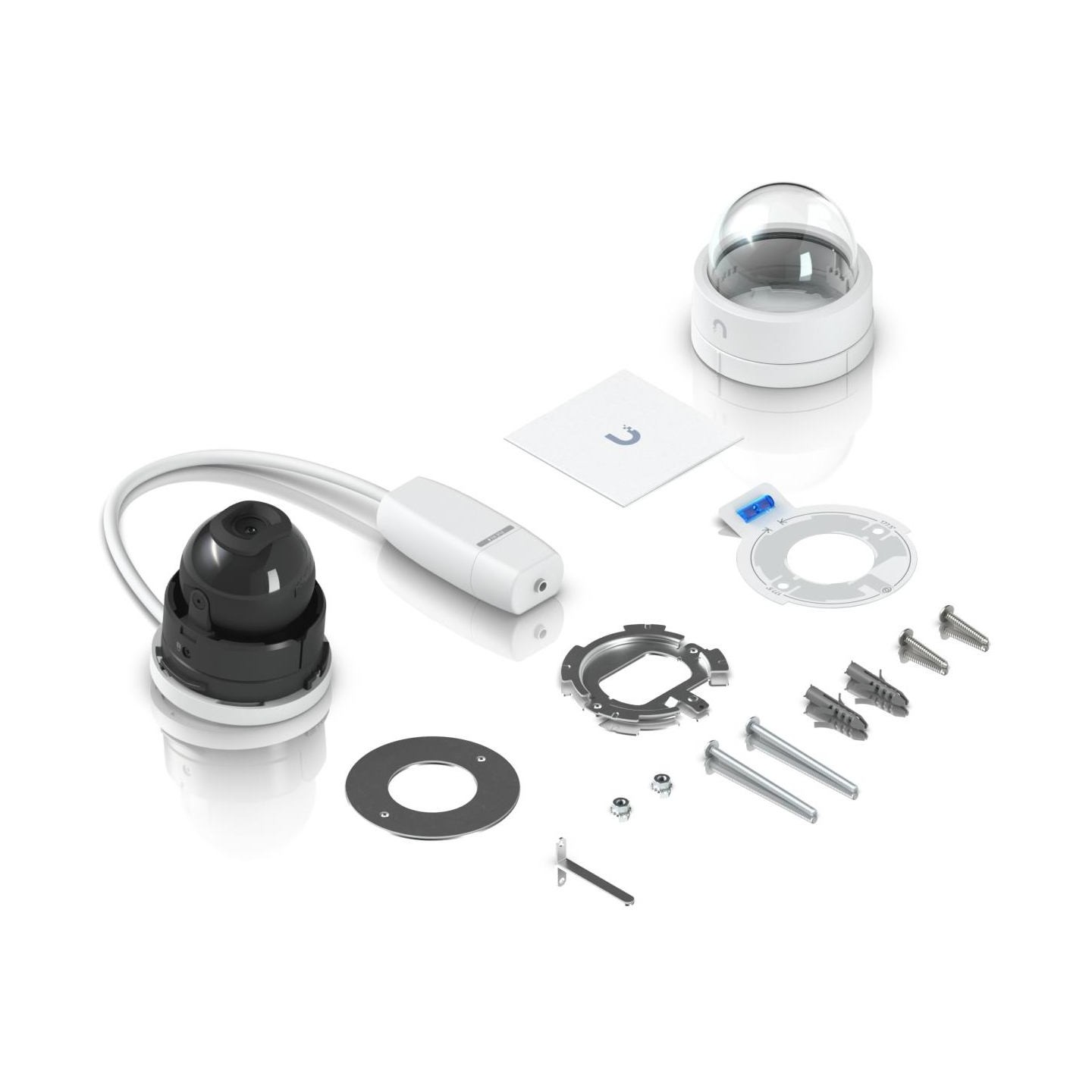

- Mounting kit
- Yes
- Number of cameras
- 1
- Screws included
- Yes
- Units per Shipping Box
- 18
- Unit Calculated Volume
- 0.001752 cubm
- Unit Calculated Weight
- 0.394 kg
UVC-G5-DOME-ULTRA
8 Items
Data sheet
- Interface
- Ethernet
- Camera type
- IP Camera
- Package type
- Retail
- Maximum video resolution
- 2688x1512
- Warranty Products Returnable
- Yes
- Warranty Term (month)
- 24
- Warranty Validation Criteria
- Serial Number
- Warranty Term Notes
- 24 months - for EU
- Pieces in pack
- 1
- Box Length (mm)
- 437 mm
- Box Width (mm)
- 302 mm
- Box Height (mm)
- 236 mm
- Retail Packaging Net Weight Carton
- 0 kg
- Retail Packaging Net Weight Plastic
- 0 kg
- Packs in Box
- 18
- Data Link Protocol Supports
- Fast Ethernet/Ethernet
- Certifications
- FCC, IC, CE
- LAN
- 1 (RJ-45)
- Included Accessories
- Quick Start Guide
- Maximum Operating Ambient Temperature
- 40 °C
- Minimum Operating Ambient Temperature
- -20 °C
- Built-in Devices
- LED Indicator
Reset Button - Power Device Location
- External
- Maximum Input Voltage
- 57 V
- Minimum Input Voltage
- 37 V
- Maximum Power Consumption
- 4.2 W
- Protection Standarts
- IK06
- Maximum Non-Operating Ambient Temperature
- 90 °C
- Minimum Non-Operating Ambient Temperature
- 10 °C
- Power Device Type
- Power over Ethernet
- Mounting Capability
- Desktop/Wallmount
- Sensor Resolution
- 4 Mpixel
- Maximum Frame Capture Rate
- 30 fps
- Diagonal Viewing Angle
- 120.6°
- Web Cam Features
- Power over Ethernet
IR Cut Filter
3D DNR
2D DNR - Image Sensor Technology
- 1/2.4" CMOS
- Horizontal Viewing Angle
- 102.4°
- Vertical Viewing Angle
- 54.9°
Specific References
- EAN13
- 810084694213
- MPN
- UVC-G5-DOME-ULTRA
