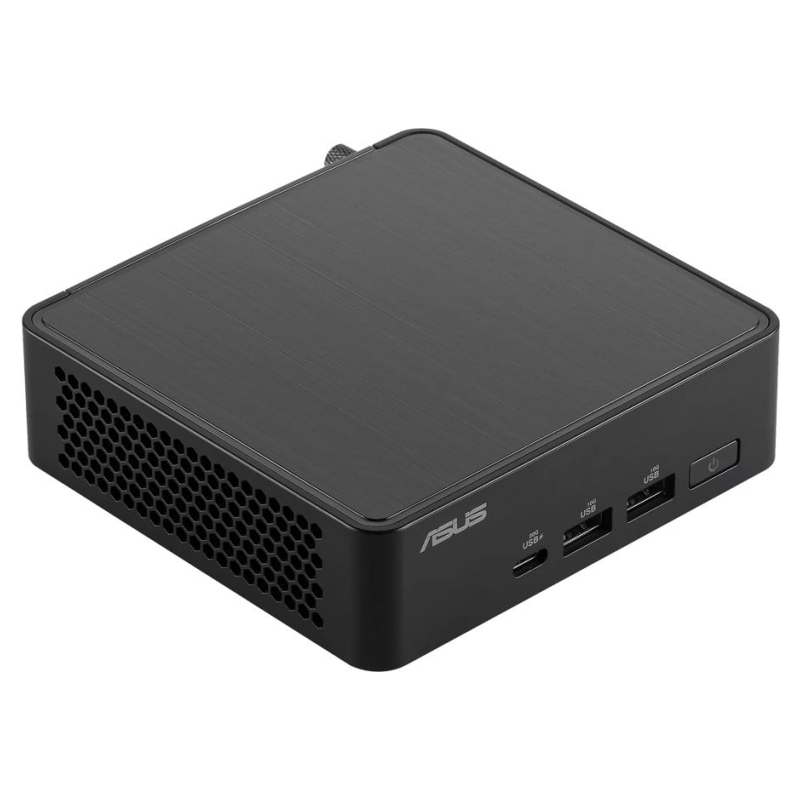

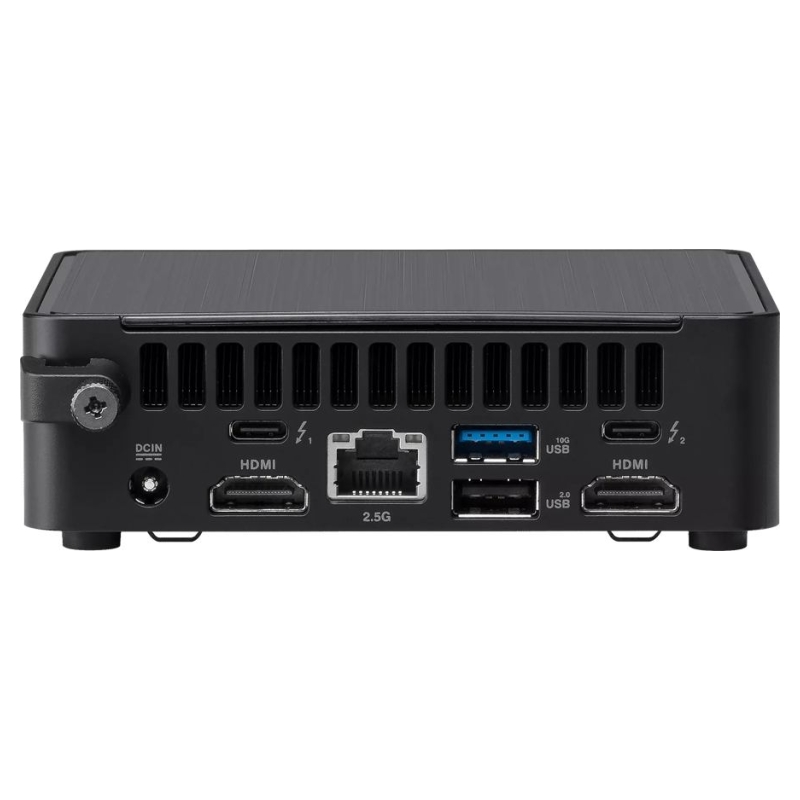

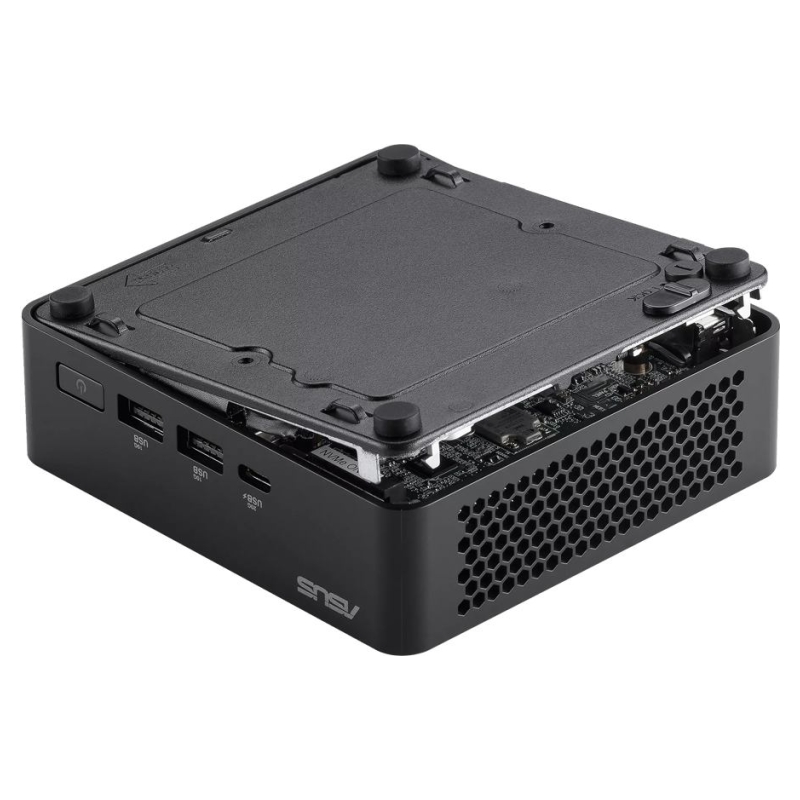

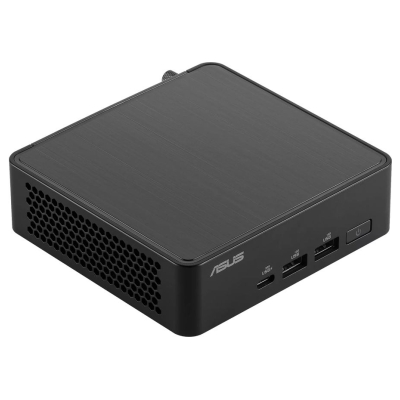

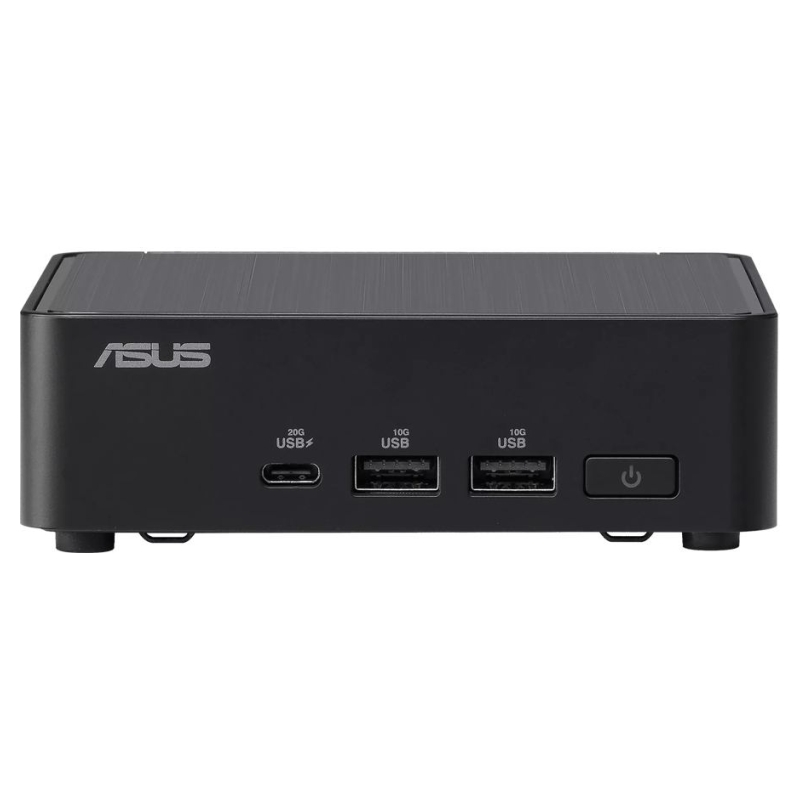

Asus NUC 14pro/RNUC14RVKU500002I/Intel Ultra 5 125H/Intel Arc graphics/4xUSB/M.2 22x80 NVMe; 22x42 NVMe/2,5Gbe LAN/2xHDMI/ 2x Th

Data sheet

series

NUC

Bluetooth

Bluetooth 5.3

Memory type

DDR5 SDRAM

Chipset

System on Chip (SoC)

Package type

Box

Wi-Fi

IEEE 802.11ax Wi-Fi 6E

HDMI

2 (HDMI (Type A))

Memory form factor

SODIMM 262-pin

Model

NUC 14 Pro

Warranty Products Returnable

Yes

Warranty Term (month)

36 month(s)

Warranty Validation Criteria

Serial Number

Pieces in pack

1

Retail Packaging Net Weight Carton

0.25 kg

Retail Packaging Net Weight Plastic

0 kg

Packs in Box

1

CPU

Intel® Core™ Ultra 5 Processor 125H

Data Link Protocol Supports

Gigabit Ethernet/Fast Ethernet/Ethernet
2.5 Gbps

LAN

1 (RJ-45)

Maximum Output Power

120 W

Cable Included

Power Cable (EU Plug)

CPU Core Quantity

14

Power Device Location

External

External Color

Black

In the Box

Warranty Card
Quick Start Guide

System Type

Personal Computer

Networking Form Factor

Integrated

Power Device Type

Power Adapter

Mounting Capability

Desktop

USB 2.0

1 (USB 2.0 (type A))

Threads Quantity

18

Performance-cores Quantity

4

Efficient-cores Quantity

8

CPU Cache Size

18 MB

CPU Socket Standard

Socket 2049

USB 3.2 Gen 2

3 (USB 3.2 (type A))

System Form Factor

Mini

CPU Installed Quantity

1

CPU Maximum Quantity Supports

1

Quantity of Mainboards Supported

1

Maximum Installable System Memory Storage Capacity

96 GB

Integrated

Storage Controller:
PCIe NVMe 4.0 x4 (2 x M.2)

Video Controller Form Factor

Integrated

Video Chipset

Intel Arc Graphics

Video Memory Type

Shared Video Memory

Audio Controller Form Factor

integrated

Plug-in-card

Wi-Fi Controller:
Intel Wi-Fi 6E AX211

USB 3.2 Gen 2 x2

1 (USB 3.2 (type C))

Thunderbolt 4

2 (USB Type C)

Specific References

EAN13

4711387492314

MPN

90AR0062-M00090
