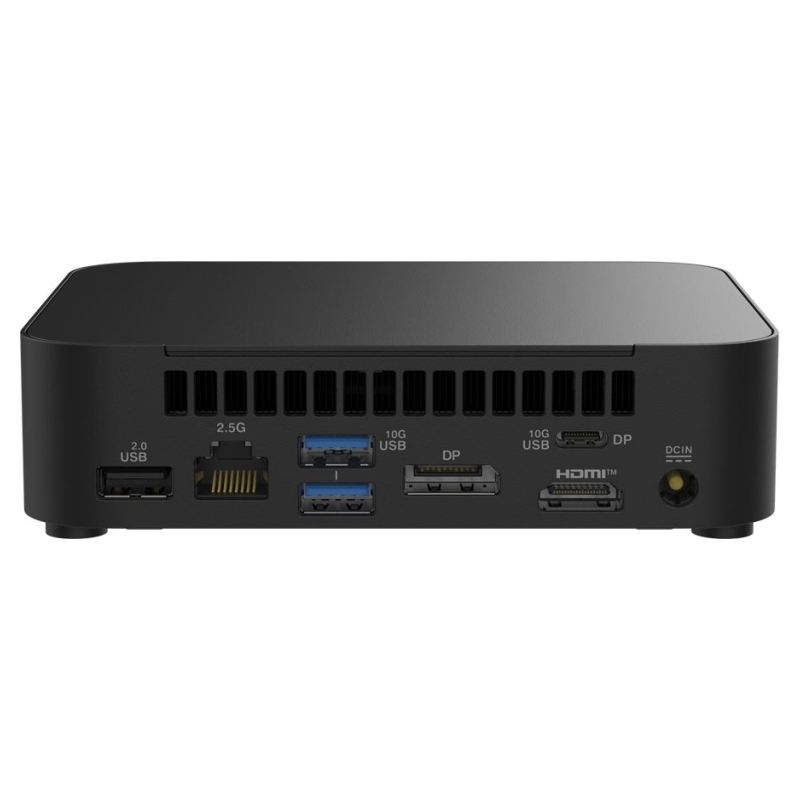

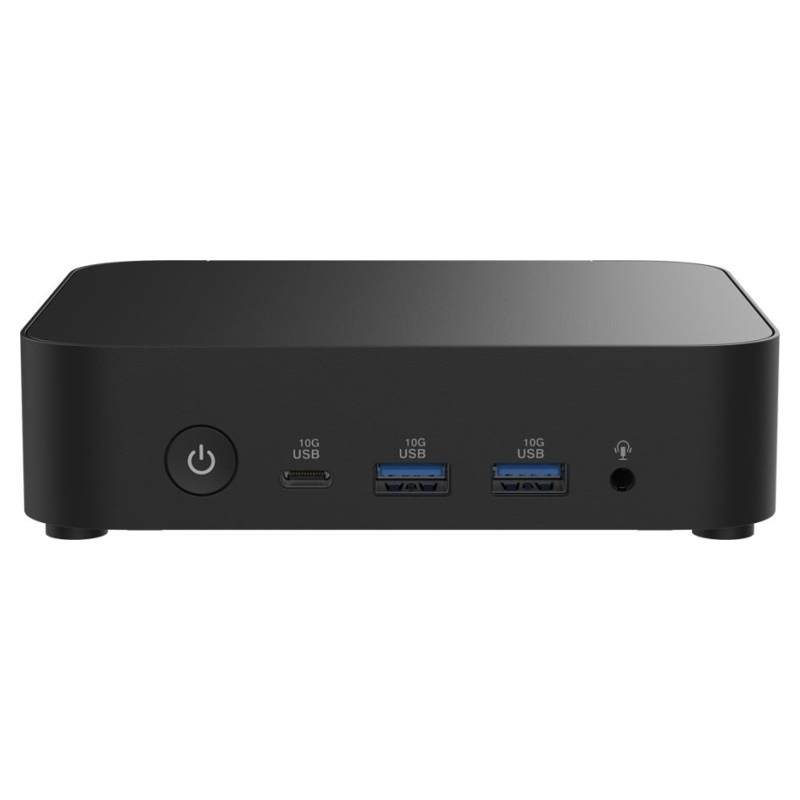

Asus NUC 14 Essential/RNUC14MNK2500002/N250 Processor/1xDDR5-4800 SO-DIMM/5xUSB Type-A/2xUSB Type-C/3.5mm jack/ M.2 22x80 NVMe a

Data sheet

series

NUC

Bluetooth

Bluetooth 5.3

Memory type

DDR5 SDRAM

Chipset

System on Chip (SoC)

Package type

Box

Wi-Fi

IEEE 802.11ax Wi-Fi 6E

HDMI

1 (HDMI (Type A))

Memory form factor

SODIMM 262-pin

Model

NUC 14 Essential

Warranty Products Returnable

Yes

Warranty Term (month)

36 month(s)

Warranty Validation Criteria

Serial Number

Pieces in pack

1

Box Length (mm)

583 mm

Box Width (mm)

307 mm

Box Height (mm)

252 mm

Packs in Box

5

CPU

Intel Processor N250

Data Link Protocol Supports

2.5 Gbps

LAN

1 (RJ-45)

Maximum Output Power

65 W

Cable Included

Power Cable (EU Plug)

CPU Core Quantity

4

Power Device Location

External

External Color

Black

In the Box

Warranty Card
Quick Start Guide

System Type

Personal Computer

Networking Form Factor

Integrated

DisplayPort

1

Power Device Type

Power Adapter

Mounting Capability

Desktop

USB 2.0

1 (USB 2.0 (type A))

Threads Quantity

4

CPU Cache Size

6 MB

CPU Socket Standard

Socket 1264

Headset Port

1 (3.5-mm minijack)

LAN Chipset

RTL8125BG-CG

USB 3.2 Gen 2

2 (USB 3.2 (type C)), 4 (USB 3.2 (type A))

System Form Factor

Mini

CPU Installed Quantity

1

CPU Maximum Quantity Supports

1

Quantity of Mainboards Supported

1

Integrated

Storage Controller:
PCIe 3.0 x4/SATA (M.2)

Video Controller Form Factor

Integrated

Video Chipset

Intel Graphics

Video Memory Type

Shared Video Memory

Audio Controller Form Factor

integrated

Audio Chipset

Realtek ALC3251

Name of OS

no OS

Memory Speed

4800MHz(PC5-38400)

Plug-in-card

Wi-Fi Controller:
Intel Wi-Fi 6E AX211

Specific References

EAN13

4711387779279

MPN

90AR00M2-M00030
