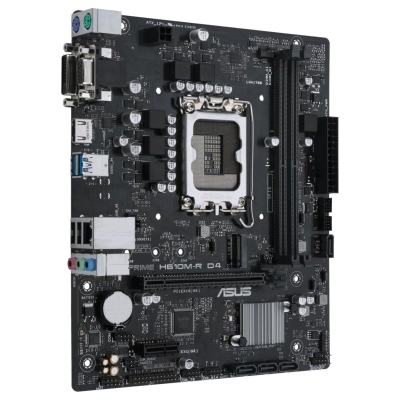

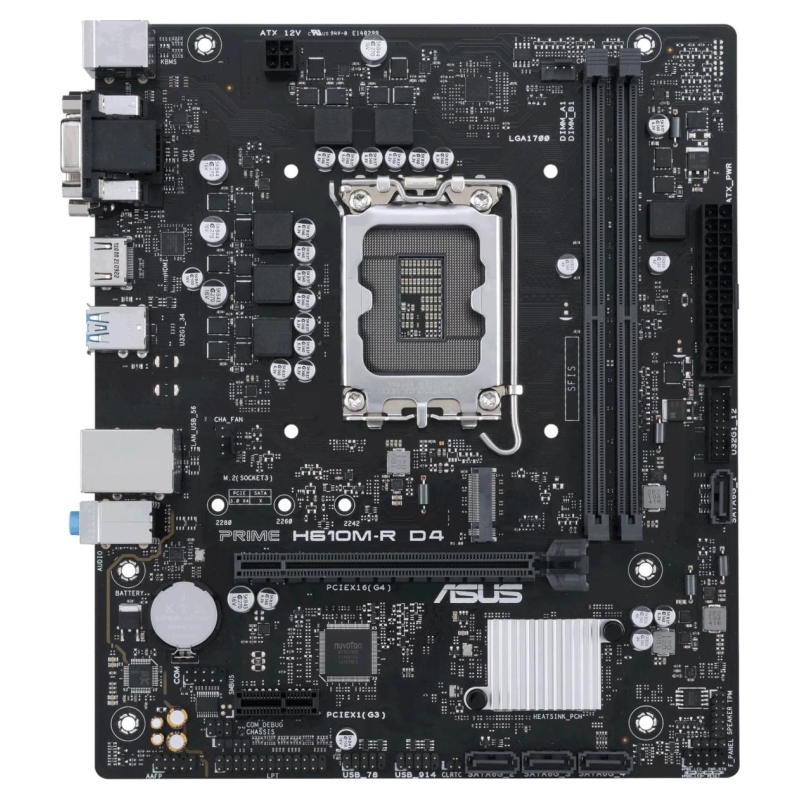

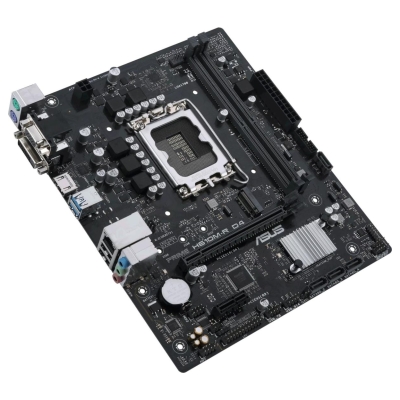

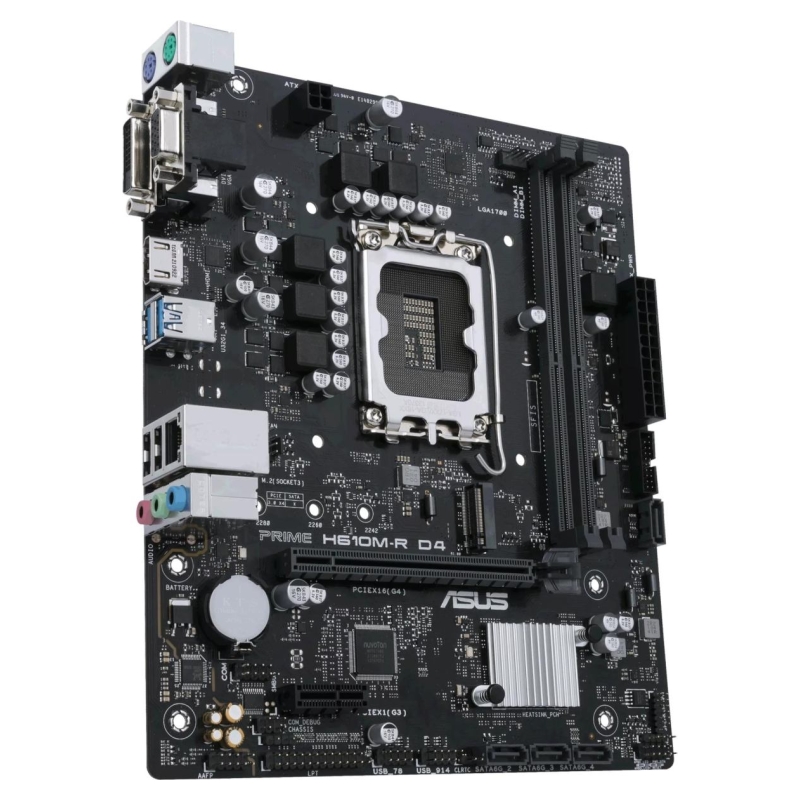

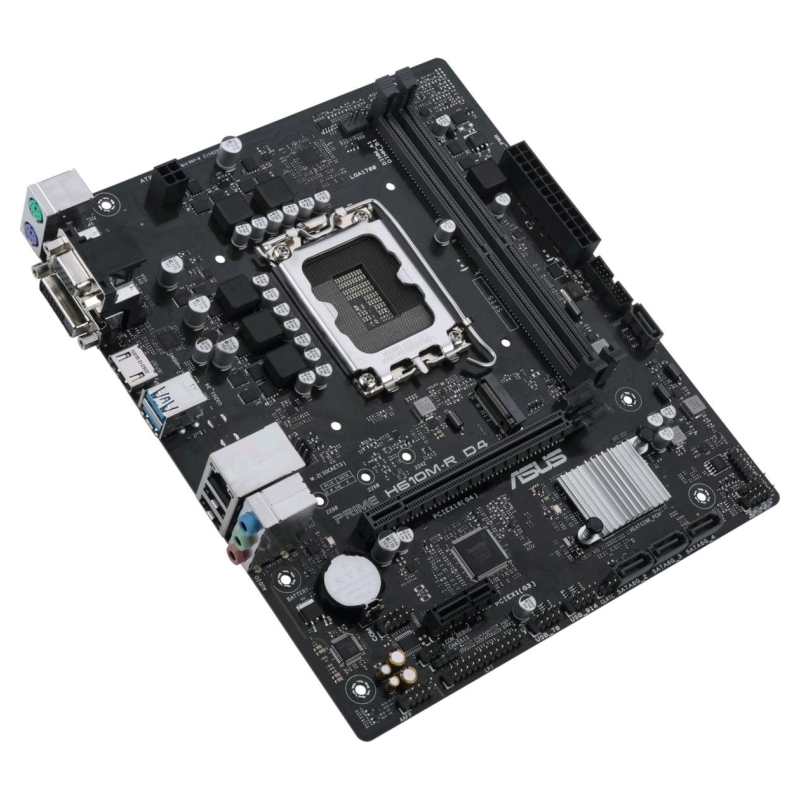

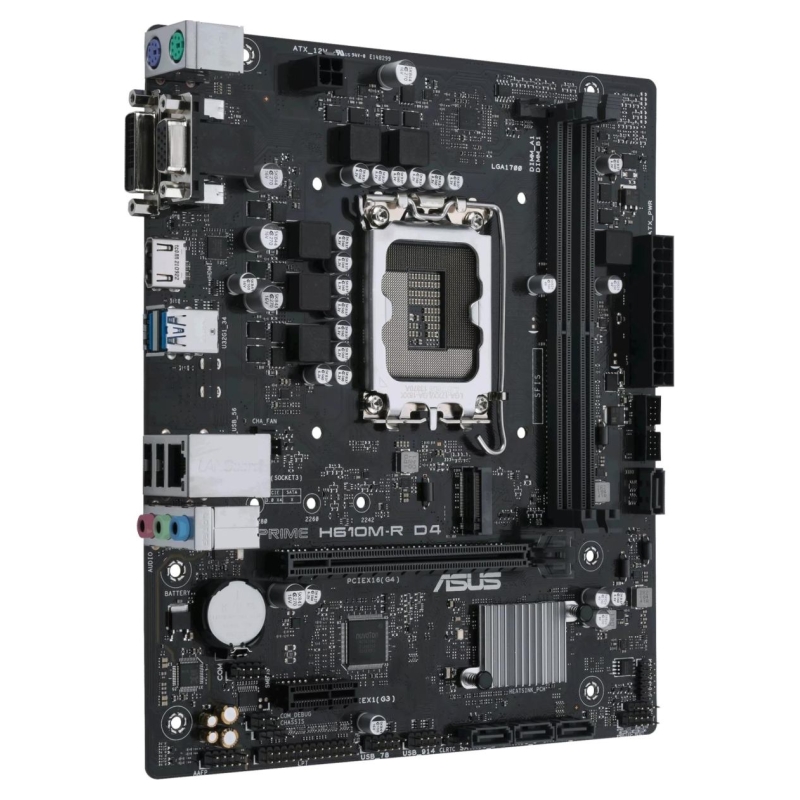

Asus Mainboard|ASUS|Intel H610|LGA1700|Micro-ATX|Memory DDR4|Memory slots 2|1xPCI-Express 1x|1xPCI-Express 16x|1xM.2|1x15pin D-s
- Write a review
€76.01
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
All-Around Energy Efficiency
The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
Precise Digital Power Control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
Advanced Tuning for Serious Tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.
Quick and Simple Setup
EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.
COOLING
Prime H610 series are engineered with an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
PERFORMANCE
Prime H610 series are built to handle the additional cores and increased bandwidth of 12th Generation Intel® processors. ASUS H610 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
Storage
M.2 slot (up to 32 Gbps)
Prime H610M-R D4 offers one M.2 slot that supports data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives.
Connectivity
PCIe® 4.0
Prime H610 motherboards are designed specifically for 12th Generation Intel® Core™ CPUs and offer PCIe® 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.
USB 3.2 Gen 1 Type-A
Numerous USB ports support high-end rigs loaded with peripherals, including rear-panel USB Type-A connectors with fast USB 3.2 Gen 1 connectivity for compatible cases.
Audio
Combined onboard features deliver elevated audio
Intelligent design and premium hardware create audio quality unlike anything you've ever experienced.
Audio Shielding
Separates analog/digital signal domains, significantly reducing multi-lateral interference.
Separate Layer for Left and Right Tracks
Ensures minimal crosstalk between audio paths.
Q-LED Core
The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.

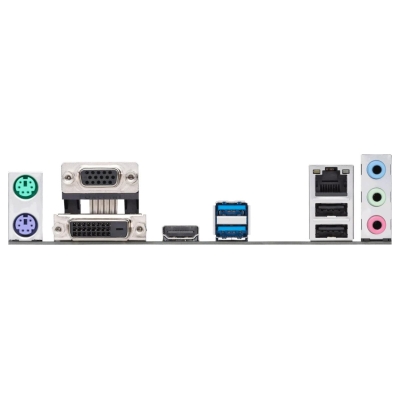

- Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors
- Comprehensive cooling: PCH heatsink
- Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1
- 5X Protection III: Multiple hardware safeguards for all-round protection
Manufacturer Website:
https://www.asus.com/me-en/Motherboards-Components/Motherboards/PRIME/PRIME-H610M-R-D4/
- Category Code
- MBI
- CnCode
- 84733020
- Unit Box Height
- 0.05
- Unit Box Length
- 0.23
- Unit Box Width
- 0.25
- Audio output channels
- 7.1 channels
- Component for
- PC
- Motherboard chipset
- Intel H610
- Motherboard chipset family
- Intel
- Motherboard form factor
- micro ATX
- Windows operating systems supported
- Windows 10 x64/Windows 11 x64
- Compatible processor series
- Intel Pentium G/Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9
- Processor manufacturer
- Intel
- Processor socket
- LGA 1700
- Supported processor sockets
- LGA 1700
- ECC сompatibility
- Non-ECC
- Maximum internal memory
- 64 GB
- Memory channels
- Dual-channel
- Memory slots type
- DIMM
- Number of memory slots
- 2
- Supported memory clock speeds
- 2133/2400/2666/2800/2933/3000/3200 MHz
- Supported memory types
- DDR4-SDRAM
- Unbuffered memory
- Yes
- Number of storage drives supported
- 5
- Supported storage drive interfaces
- M.2,SATA III
- Supported storage drive types
- HDD & SSD
- Maximum resolution
- 3840 x 2160 pixels
- Parallel processing technology support
- Not supported
- 12V power connector
- Yes
- ATX Power connector (24-pin)
- Yes
- Audio connector
- Yes
- Chassis intrusion connector
- Yes
- CPU fan connector
- Yes
- Front panel audio connector
- Yes
- Number of chassis fan connectors
- 1
- Number of COM connectors
- 1
- Number of SATA III connectors
- 4
- TPM connector
- Yes
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1

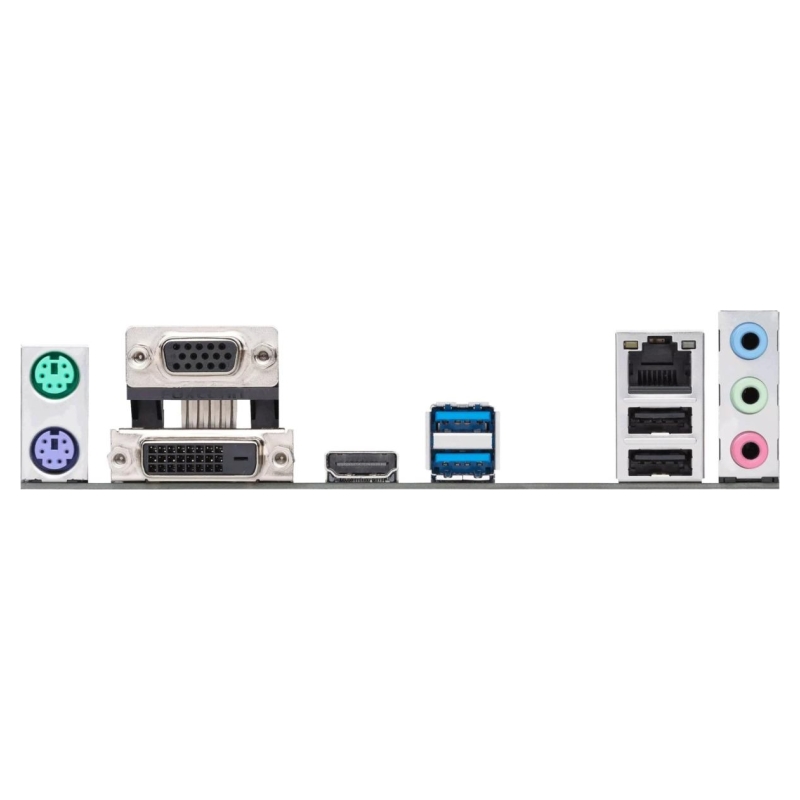

- DVI-D ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 1
- HDMI version
- 2.1
- Headphone outputs
- 3
- Microphone in
- Yes
- PS/2 ports quantity
- 2
- USB 2.0 ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- USB connector type
- USB Type-A
- VGA (D-Sub) ports quantity
- 1
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN
- Yes
- Wake-on-LAN ready
- Yes
- Wi-Fi
- No
- Number of M.2 (M) slots
- 1
- PCI Express x1 (Gen 3.x) slots
- 1
- PCI Express x16 (Gen 4.x) slots
- 1
- BIOS memory size
- 128 Mbit
- BIOS type
- UEFI AMI
- Clear CMOS jumper
- Yes
- Harmonized System (HS) code
- 84733020
- Depth
- 193 mm
- Height
- 51 mm
- Width
- 226 mm
- Cables included
- SATA
- Drivers included
- Yes
- Weight
- 842 g
- Model
- PRIME H610M-R D4-SI
- Units per Shipping Box
- 10
- Unit Calculated Volume
- 0.00365 cubm
- Unit Calculated Weight
- 0.86 kg
PRIMEH610M-RD4-SI
23 Items
Data sheet
- Windows operating systems supported
- Windows 10 x64/Windows 11 x64
- USB 2.0 ports quantity
- 2
- Audio output channels
- 7.1 channels
- Microphone in
- Yes
- Headphone outputs
- 3
- Wake-on-LAN ready
- Yes
- Number of storage drives supported
- 5
- Supported storage drive interfaces
- M.2,SATA III
- Ethernet LAN (RJ-45) ports
- 1
- Cables included
- SATA
- Component for
- PC
- Maximum resolution
- 3840 x 2160 pixels
- Ethernet LAN
- Yes
- Ethernet interface type
- Gigabit Ethernet
- VGA (D-Sub) ports quantity
- 1
- DVI-D ports quantity
- 1
- HDMI ports quantity
- 1
- Wi-Fi
- No
- Drivers included
- Yes
- USB connector type
- USB Type-A
- Compatible processor series
- Intel Pentium G/Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9
- Motherboard form factor
- Micro ATX
- Supported memory types
- DDR4-SDRAM
- Processor socket
- LGA 1700
- Supported processor sockets
- LGA 1700
- Maximum internal memory
- 64 GB
- Supported storage drive types
- HDD & SSD
- HDMI version
- 2.1
- Category Code
- MBI
- CnCode
- 84733020
- Units per Shipping Box
- 10
- Harmonized System (HS) code
- 84733020
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- Memory channels
- Dual-channel
- Processor manufacturer
- Intel
- Motherboard chipset
- Intel H610
- Motherboard chipset family
- Intel
- ECC сompatibility
- Non-ECC
- Memory slots type
- DIMM
- Number of memory slots
- 2
- Unbuffered memory
- Yes
- Parallel processing technology support
- Not supported
- 12V power connector
- Yes
- ATX Power connector (24-pin)
- Yes
- Chassis intrusion connector
- Yes
- CPU fan connector
- Yes
- Front panel audio connector
- Yes
- Number of chassis fan connectors
- 1
- Number of COM connectors
- 1
- Number of SATA III connectors
- 4
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- Number of M.2 (M) slots
- 1
- PCI Express x16 (Gen 4.x) slots
- 1
- BIOS memory size
- 128 Mbit
- BIOS type
- UEFI AMI
- Audio connector
- Yes
- TPM connector
- Yes
- PS/2 ports quantity
- 2
- PCI Express x1 (Gen 3.x) slots
- 1
- Clear CMOS jumper
- Yes
- Supported memory clock speeds
- 2133/2400/2666/2800/2933/3000/3200 MHz
Specific References
- EAN13
- 4711081758372
- MPN
- PRIMEH610M-RD4-SI
