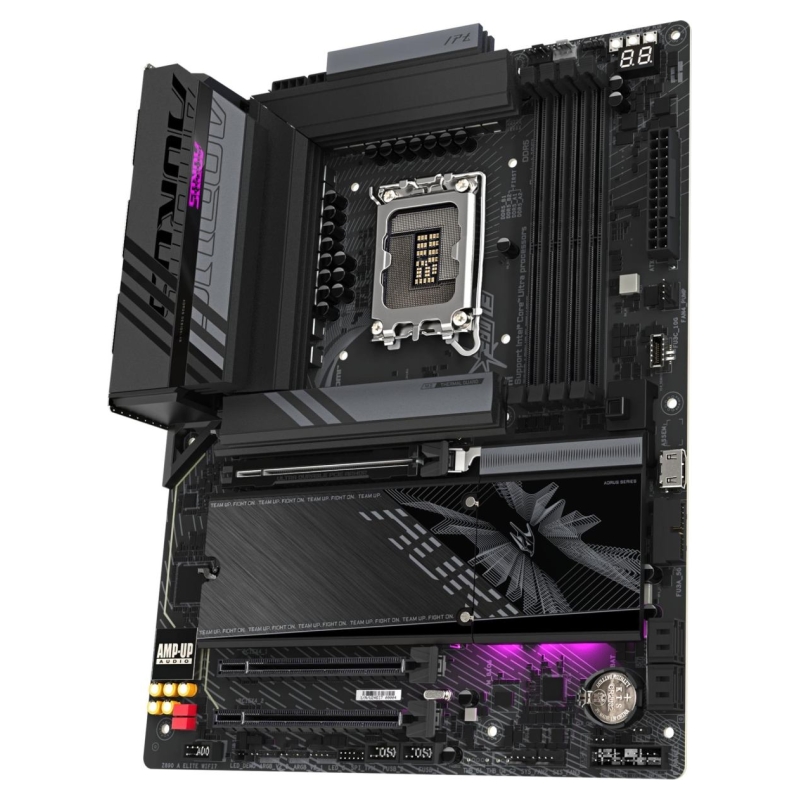

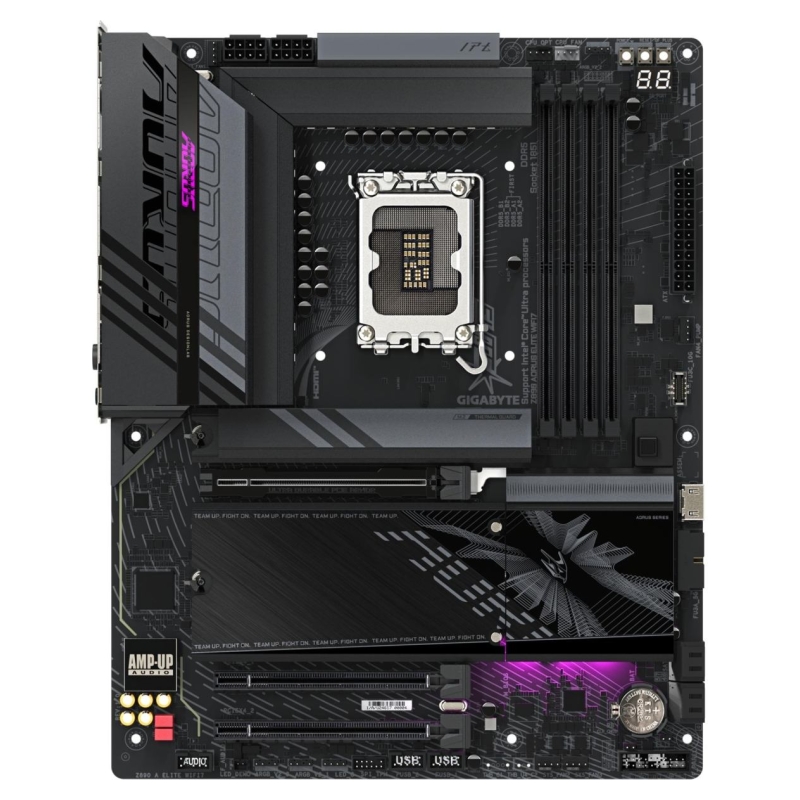

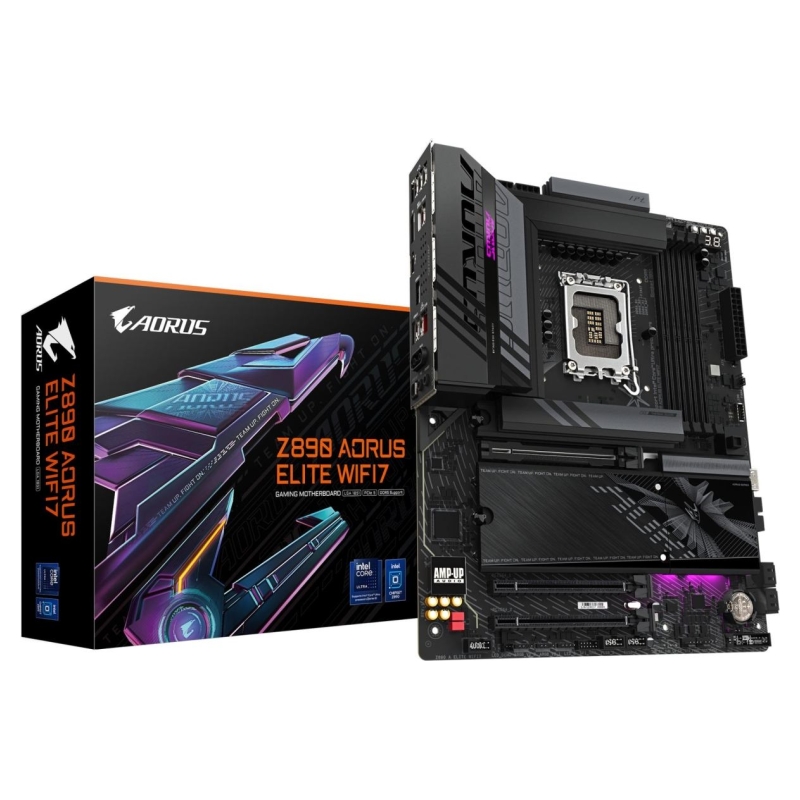

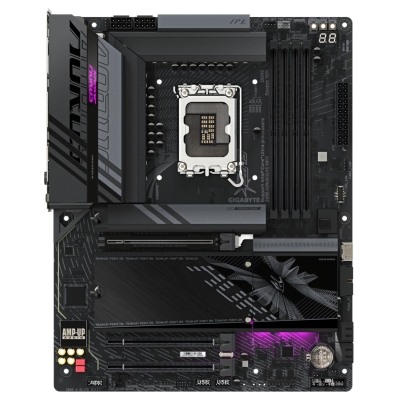

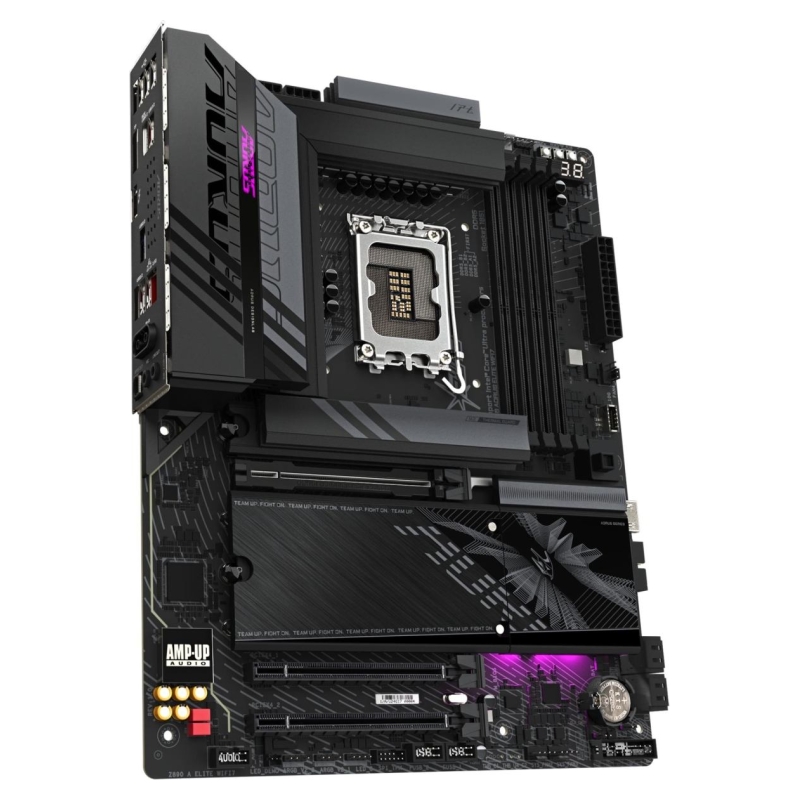

Gigabyte Mainboard|GIGABYTE|Intel Z890|LGA1851|ATX|Memory DDR5|Memory slots 4|Z890AELITEWIFI71.0
- Write a review
€321.23
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- Digital 16+1+2+1 Phases 80A SPS VRM with Tantalum Polymer Capacitor
- Reinforced PCIe UD Slot X PCIe 5.0 with PCIe EZ-Latch Plus Design
- PCIe M.2 design (Up to 25110) with M.2 EZ-Latch Plus & Thermal Guard
- Fully Covered MOSFET Heatsinks with heatpipe/M.2 EZ-Latch Click Design

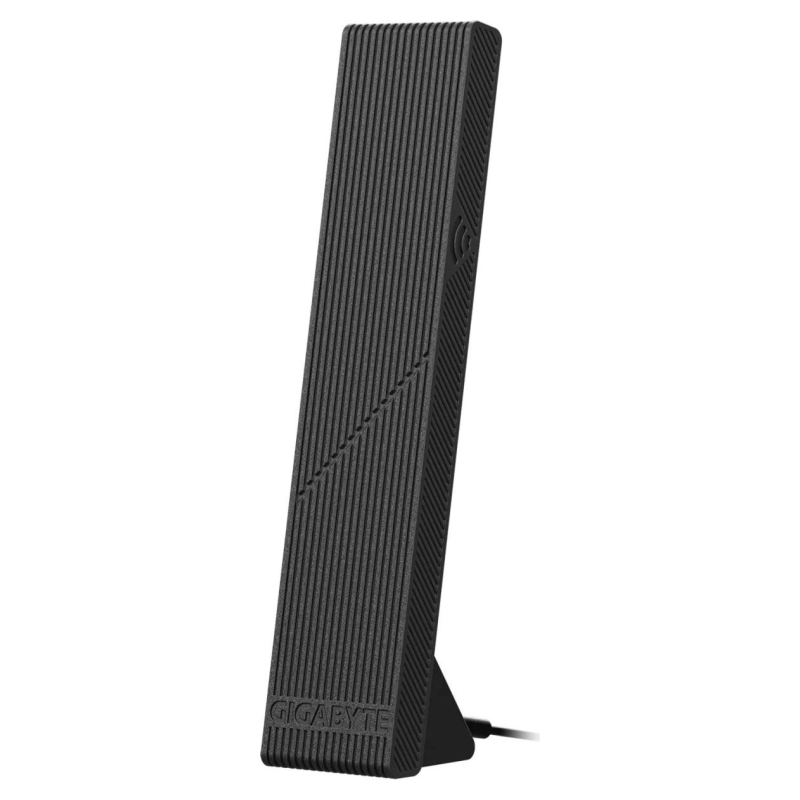

- 2x2 Wi-Fi 7 with WIFI EZ-Plug Design

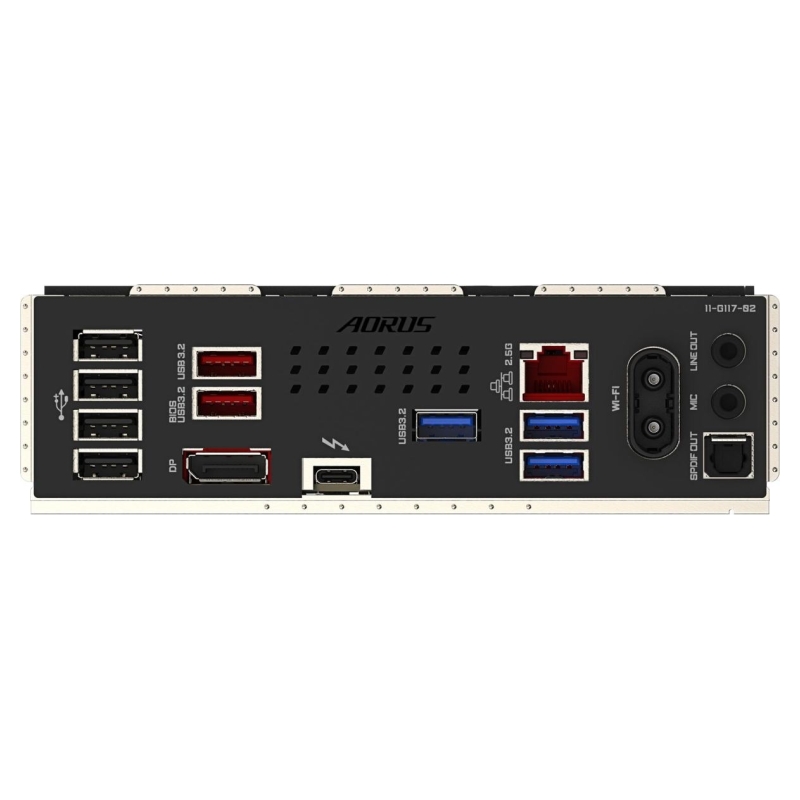

- 2.5GbE LAN, THUNDERBOLT 4 Type-C, USB 3.2 Gen2 Type-C
Manufacturer Website:
https://www.gigabyte.com/
- Category Code
- MBI
- CnCode
- 84733020
- Unit Box Height
- 0.08
- Unit Box Length
- 0.34
- Unit Box Width
- 0.27
- Audio chip
- Realtek ALC1220
- Audio output channels
- 7.1 channels
- Component for
- PC
- Motherboard chipset
- Intel Z890
- Motherboard chipset family
- Intel
- Motherboard form factor
- ATX
- PC health monitoring
- Fan/Temperature/Voltage
- Product colour
- Black
- Windows operating systems supported
- Windows 11 x64
- Compatible processor series
- Intel Core Ultra (Series 2)
- Maximum internal memory supported by processor
- 256 GB
- Processor manufacturer
- Intel
- Processor socket
- LGA 1851 (Socket V1)
- Supported processor sockets
- LGA 1851
- ECC сompatibility
- Non-ECC
- Maximum internal memory
- 256 GB
- Memory channels
- Dual-channel
- Memory slots type
- DIMM
- Number of memory slots
- 4
- Supported memory clock speed (max)
- 8800 MHz
- Supported memory clock speeds
- 5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200/8266/8400/8600/8800 MHz
- Supported memory module capacities
- 12GB/16GB/1GB/24GB/2GB/32GB/40GB/48GB/4GB/64GB/8GB
- Supported memory types
- DDR5-SDRAM
- Number of HDDs supported
- 8
- Number of storage drives supported
- 4
- RAID levels
- 0/1/10/5
- RAID support
- Yes
- Supported storage drive interfaces
- M.2,SATA III
- Supported storage drive types
- HDD & SSD
- DirectX version
- 12.0
- On-board graphics card
- No
- 12V power connector
- Yes
- ATX Power connector (24-pin)
- Yes
- EPS power connector (8-pin)
- Yes
- Number of EPS power connectors (8-pin)
- 1
- Number of SATA III connectors
- 4
- RGB LED pin header
- Yes
- Total number of SATA connectors
- 4
- TPM connector
- Yes
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
- DisplayPorts quantity
- 2
- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 1
- Microphone in
- Yes
- S/PDIF out port
- Yes
- Thunderbolt ports quantity
- 1
- USB 2.0 ports quantity
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 3
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 2
- Bluetooth
- Yes
- Bluetooth version
- 5.4
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Ethernet LAN
- Yes
- Top Wi-Fi standard
- Wi-Fi 7 (802.11be)
- Wi-Fi
- Yes
- Wi-Fi standards
- Wi-Fi 7 (802.11be)
- WLAN controller model
- MediaTek MT7925
- Number of M.2 (M) slots
- 4
- PCI Express x16 (Gen 4.x) slots
- 2
- PCI Express x16 (Gen 5.x) slots
- 1
- ACPI version
- 5.0
- BIOS memory size
- 256 Mbit
- BIOS type
- UEFI AMI
- Clear CMOS button
- Yes
- Clear CMOS jumper
- Yes
- Desktop Management Interface (DMI) version
- 2.7
- System Management BIOS (SMBIOS) version
- 2.7
- Battery technology
- Lithium-Manganese Dioxide (LiMnO2)
- Battery type
- CR2032
- Battery weight
- 3 g
- Country of origin
- China
- Lithium weight per battery
- 0.07 g
- Number of battery cells
- 1
- Package depth
- 270 mm
- Package height
- 80 mm
- Package weight
- 2500 g
- Package width
- 335 mm
- Products per shipping (inner) case
- 1 pc(s)
- Depth
- 244 mm
- Height
- 35 mm
- Width
- 305 mm
- Batteries included
- Yes
- Bundled software
- Norton® Internet Security (OEM version) LAN bandwidth management software
- Warranty period
- 3 year(s)
- Weight
- 2230 g
- Model
- Z890 A ELITE WIFI7
- Units per Shipping Box
- 6
- Unit Calculated Volume
- 0.0101 cubm
- Unit Calculated Weight
- 2.52 kg
Z890 A ELITE WIFI7 1.0
3 Items
Data sheet
- Batteries included
- yes
- Bluetooth
- Yes
- RAID levels
- 0/1/10/5
- Windows operating systems supported
- Windows 11 x64
- Battery technology
- Lithium-Manganese Dioxide (LiMnO2)
- USB 2.0 ports quantity
- 4
- Audio output channels
- 7.1 channels
- Microphone in
- Yes
- Number of storage drives supported
- 4
- Supported storage drive interfaces
- M.2,SATA III
- Ethernet LAN (RJ-45) ports
- 1
- Wi-Fi standards
- Wi-Fi 7 (802.11be)
- Bundled software
- Norton® Internet Security (OEM version)
LAN bandwidth management software - Battery type
- CR2032
- Country of origin
- China
- Component for
- PC
- Ethernet LAN
- Yes
- Ethernet interface type
- 2.5 Gigabit Ethernet
- DirectX version
- 12.0
- HDMI ports quantity
- 1
- RAID support
- Yes
- Wi-Fi
- Yes
- DisplayPorts quantity
- 2
- Bluetooth version
- 5.4
- Compatible processor series
- Intel Core Ultra (Series 2)
- Motherboard form factor
- ATX
- Supported memory types
- DDR5-SDRAM
- Processor socket
- LGA 1851 (Socket V1)
- EPS power connector (8-pin)
- Yes
- Supported processor sockets
- LGA 1851
- Number of battery cells
- 1
- Maximum internal memory
- 256 GB
- Thunderbolt ports quantity
- 1
- Supported storage drive types
- HDD & SSD
- Category Code
- MBI
- CnCode
- 84733020
- Units per Shipping Box
- 6
- Product colour
- Black
- Warranty period
- 3 year(s)
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 3
- Top Wi-Fi standard
- Wi-Fi 7 (802.11be)
- Battery weight
- 3 g
- Products per shipping (inner) case
- 1 pc(s)
- Memory channels
- Dual-channel
- Processor manufacturer
- Intel
- On-board graphics card
- No
- Motherboard chipset
- Intel Z890
- Motherboard chipset family
- Intel
- ECC сompatibility
- Non-ECC
- Memory slots type
- DIMM
- Number of memory slots
- 4
- Number of HDDs supported
- 8
- 12V power connector
- Yes
- ATX Power connector (24-pin)
- Yes
- Number of SATA III connectors
- 4
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
- S/PDIF out port
- Yes
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 2
- Number of M.2 (M) slots
- 4
- PCI Express x16 (Gen 4.x) slots
- 2
- PCI Express x16 (Gen 5.x) slots
- 1
- BIOS memory size
- 256 Mbit
- BIOS type
- UEFI AMI
- Audio chip
- Realtek ALC1220
- Supported memory clock speed (max)
- 8800 MHz
- RGB LED pin header
- Yes
- Maximum internal memory supported by processor
- 256 GB
- PC health monitoring
- Fan/Temperature/Voltage
- Number of EPS power connectors (8-pin)
- 1
- TPM connector
- Yes
- Clear CMOS jumper
- Yes
- Supported memory clock speeds
- 5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200/8266/8400/8600/8800 MHz
- Supported memory module capacities
- 12GB/16GB/1GB/24GB/2GB/32GB/40GB/48GB/4GB/64GB/8GB
- ACPI version
- 5.0
- Desktop Management Interface (DMI) version
- 2.7
- System Management BIOS (SMBIOS) version
- 2.7
- Lithium weight per battery
- 0.07 g
- Clear CMOS button
- Yes
- Total number of SATA connectors
- 4
- WLAN controller model
- MediaTek MT7925
Specific References
- EAN13
- 4719331864507
- MPN
- Z890 A ELITE WIFI7 1.0
