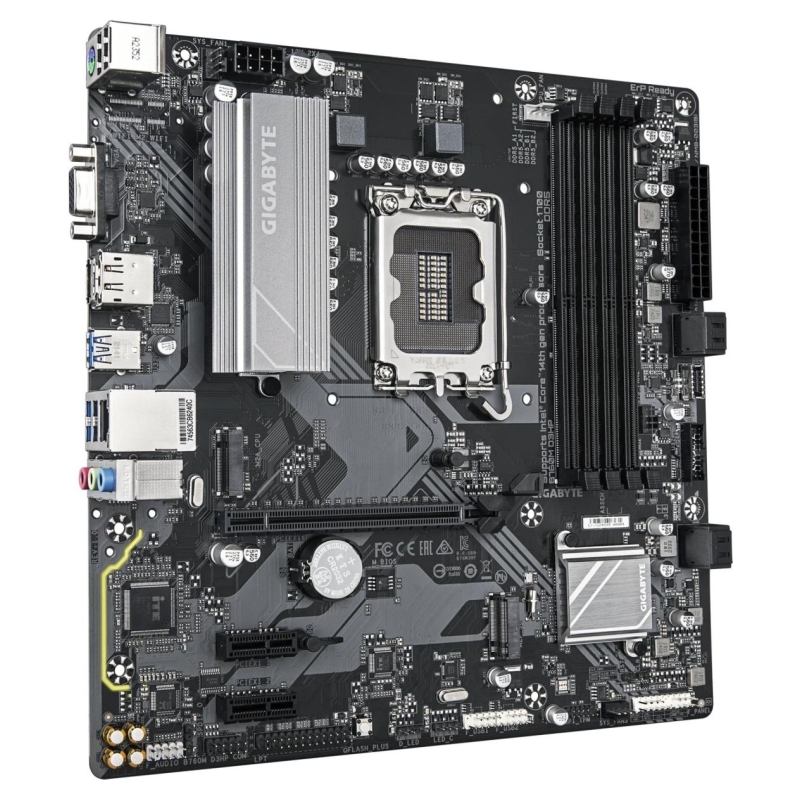

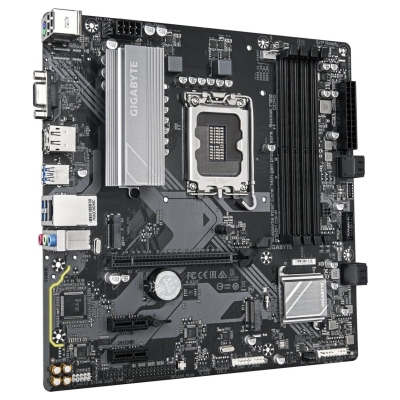

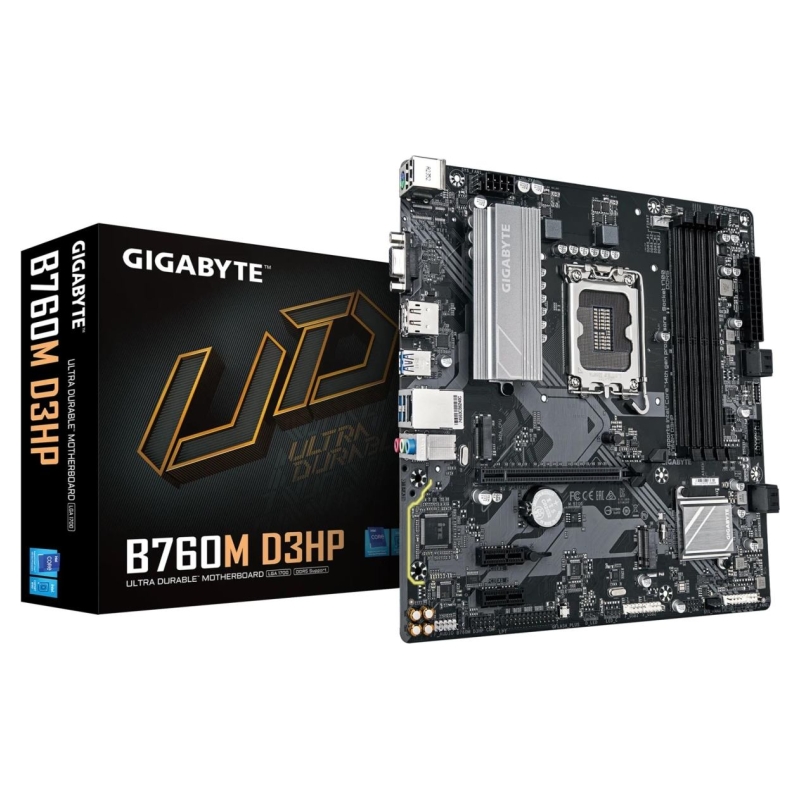

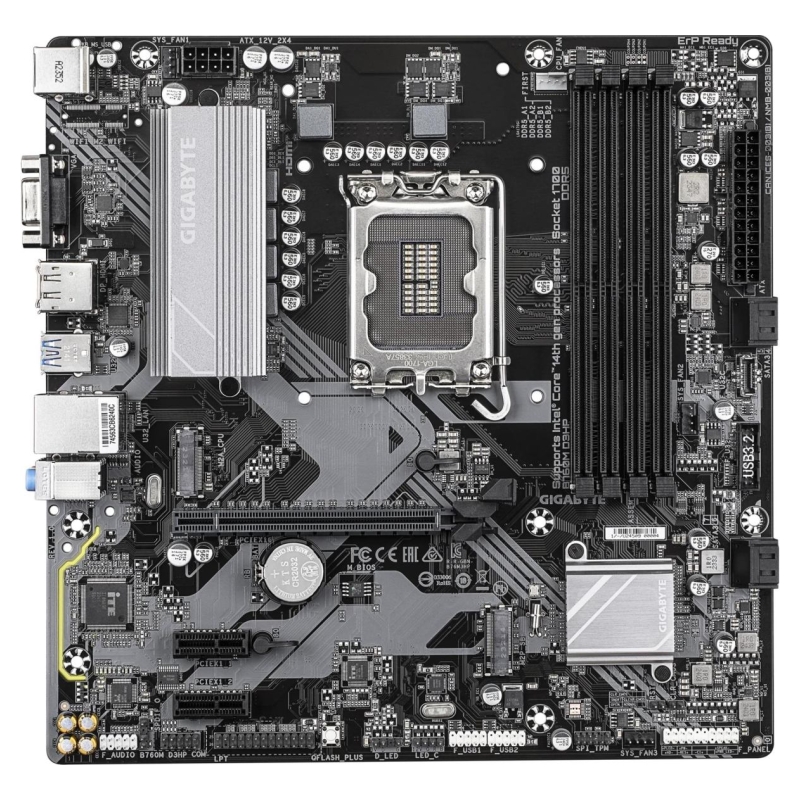

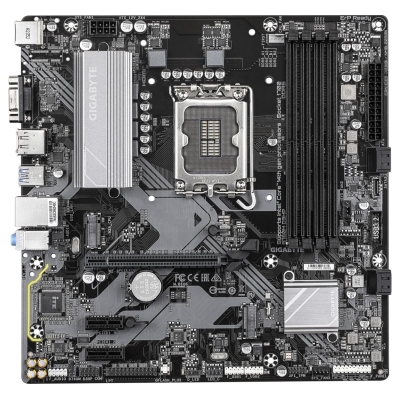

Gigabyte Mainboard|GIGABYTE|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 4|2xPCI-Express 3.0 1x|1xPCI-Express 4
- Write a review
€94.16
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- Supports Intel Core 14th/ 13th /12th processors
- Unparalleled Performance: Hybrid 4+1+1 Phases Digital VRM Solution
- Dual Channel DDR5: 4*DIMMs XMP Memory Module Support
- Next Generation Storage: 2*PCIe 4.0 x4 M.2 Connectors
- Fast Networks: GbE LAN

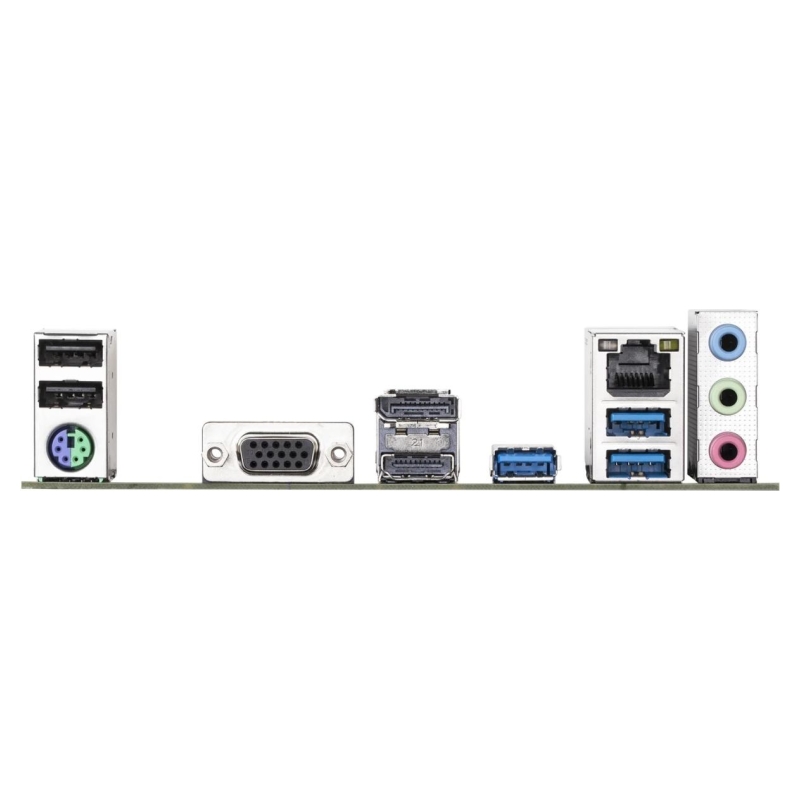

- Extended Connectivity: Front USB-C 5Gb/s, DP, HDMI, D-Sub
- Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
Manufacturer Website:
https://www.gigabyte.com/
- Category Code
- MBI
- CnCode
- 84733020
- Unit Box Height
- 0.055
- Unit Box Length
- 0.27
- Unit Box Width
- 0.27
- Audio output channels
- 7.1 channels
- Component for
- PC
- Motherboard chipset
- Intel B760 Express
- Motherboard chipset family
- Intel
- Motherboard form factor
- micro ATX
- PC health monitoring
- Fan/Temperature/Voltage/Water cooling
- Power source type
- ATX
- Product colour
- Brown
- Windows operating systems supported
- Windows 10/Windows 11
- Compatible processor series
- Intel Core/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen/Intel® Celeron®
- Processor manufacturer
- Intel
- Processor socket
- LGA 1700
- Supported processor sockets
- LGA 1700
- ECC сompatibility
- ECC & Non-ECC
- Maximum internal memory
- 256 GB
- Maximum internal memory per slot
- 64 GB
- Memory channels
- Dual-channel
- Memory slots type
- DIMM
- Number of memory slots
- 4
- Supported memory clock speed (max)
- 5600 MHz
- Supported memory clock speeds
- 4400/4800/5200/5600 MHz
- Supported memory types
- DDR5-SDRAM
- Unbuffered memory
- Yes
- Number of HDDs supported
- 4
- Number of storage drives supported
- 6
- RAID levels
- 0/1/10/5
- RAID support
- Yes
- Supported storage drive interfaces
- M.2,SATA III
- Supported storage drive types
- HDD & SSD
- DirectX version
- 12.0
- HDCP
- Yes
- Maximum resolution
- 4096 x 2304 pixels
- Parallel processing technology support
- Not supported
- 12V power connector
- Yes
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- EPS power connector (8-pin)
- Yes
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- Number of chassis fan connectors
- 3
- Number of CPU fan connectors
- 1
- Number of EPS power connectors (8-pin)
- 1
- Number of RGB LED pin headers
- 2
- Number of SATA III connectors
- 4
- Parallel connector
- Yes
- RGB LED pin header
- Yes
- S/PDIF out connector
- Yes
- Serial port headers
- 1
- TPM connector
- Yes
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- DisplayPort version
- 1.2
- DisplayPorts quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 1
- HDMI version
- 2.1
- Headphone outputs
- 1
- Line-in
- Yes
- Microphone in
- Yes
- PS/2 ports quantity
- 1
- USB 2.0 ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 3
- VGA (D-Sub) ports quantity
- 1
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN
- Yes
- LAN controller
- Realtek RTL8111H
- Wi-Fi
- No
- 1st M.2 highest PCI Express generation
- 4.0
- 1st M.2 largest key size
- 2280
- 2nd M.2 highest PCI Express generation
- 4.0
- 2nd M.2 largest key size
- 2280
- Number of M.2 (M) slots
- 2
- PCI Express x1 (Gen 3.x) slots
- 2
- PCI Express x16 (Gen 4.x) slots
- 1
- ACPI version
- 5.0
- BIOS memory size
- 128 Mbit
- BIOS type
- UEFI AMI
- Clear CMOS jumper
- Yes
- Desktop Management Interface (DMI) version
- 2.7
- System Management BIOS (SMBIOS) version
- 2.7
- Battery technology
- Lithium-Manganese Dioxide (LiMnO2)
- Battery type
- CR2032
- Battery weight
- 3 g
- Lithium weight per battery
- 0.07 g
- Number of battery cells
- 1
- Package depth
- 268 mm
- Package height
- 68 mm
- Package weight
- 1210 g
- Package width
- 270 mm
- Products per shipping (inner) case
- 1 pc(s)
- Depth
- 244 mm
- Height
- 35 mm
- Width
- 244 mm
- Batteries included
- Yes
- Bundled software
- Norton Internet Security
- Screws included
- Yes
- Warranty period
- 3 year(s)
- Weight
- 720 g
- Model
- B760M D3HP
- Units per Shipping Box
- 10
- Unit Calculated Volume
- 0.004783 cubm
- Unit Calculated Weight
- 0.985 kg
B760M D3HP 1.0
19 Items
Data sheet
- Batteries included
- yes
- RAID levels
- 0/1/10/5
- Windows operating systems supported
- Windows 10/Windows 11
- Battery technology
- Lithium-Manganese Dioxide (LiMnO2)
- USB 2.0 ports quantity
- 2
- Audio output channels
- 7.1 channels
- Microphone in
- Yes
- Headphone outputs
- 1
- Number of storage drives supported
- 6
- Supported storage drive interfaces
- M.2,SATA III
- Power source type
- ATX
- Ethernet LAN (RJ-45) ports
- 1
- Bundled software
- Norton Internet Security
- Battery type
- CR2032
- Component for
- PC
- Maximum resolution
- 4096 x 2304 pixels
- Ethernet LAN
- Yes
- Ethernet interface type
- Gigabit Ethernet
- VGA (D-Sub) ports quantity
- 1
- DirectX version
- 12.0
- HDMI ports quantity
- 1
- RAID support
- Yes
- Wi-Fi
- No
- DisplayPorts quantity
- 1
- HDCP
- Yes
- Compatible processor series
- Intel Core/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen/Intel® Celeron
- Motherboard form factor
- Micro ATX
- Supported memory types
- DDR5-SDRAM
- Processor socket
- LGA 1700
- EPS power connector (8-pin)
- Yes
- Supported processor sockets
- LGA 1700
- Number of battery cells
- 1
- Maximum internal memory
- 256 GB
- Supported storage drive types
- HDD & SSD
- HDMI version
- 2.1
- Category Code
- MBI
- CnCode
- 84733020
- Units per Shipping Box
- 10
- Product colour
- Brown
- Warranty period
- 3 year(s)
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 3
- DisplayPort version
- 1.2
- Screws included
- Yes
- LAN controller
- Realtek RTL8111H
- Line-in
- Yes
- Battery weight
- 3 g
- Products per shipping (inner) case
- 1 pc(s)
- Memory channels
- Dual-channel
- Processor manufacturer
- Intel
- Motherboard chipset
- Intel B760 Express
- Motherboard chipset family
- Intel
- ECC сompatibility
- ECC & Non-ECC
- Memory slots type
- DIMM
- Number of memory slots
- 4
- Unbuffered memory
- Yes
- Number of HDDs supported
- 4
- Parallel processing technology support
- Not supported
- 12V power connector
- Yes
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- Number of chassis fan connectors
- 3
- Number of SATA III connectors
- 4
- S/PDIF out connector
- Yes
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- 1st M.2 highest PCI Express generation
- 4.0
- 1st M.2 largest key size
- 2280
- 2nd M.2 highest PCI Express generation
- 4.0
- 2nd M.2 largest key size
- 2280
- Number of M.2 (M) slots
- 2
- PCI Express x16 (Gen 4.x) slots
- 1
- BIOS memory size
- 128 Mbit
- BIOS type
- UEFI AMI
- Supported memory clock speed (max)
- 5600 MHz
- RGB LED pin header
- Yes
- PC health monitoring
- Fan/Temperature/Voltage/Water cooling
- Number of CPU fan connectors
- 1
- Number of EPS power connectors (8-pin)
- 1
- TPM connector
- Yes
- PS/2 ports quantity
- 1
- PCI Express x1 (Gen 3.x) slots
- 2
- Clear CMOS jumper
- Yes
- Supported memory clock speeds
- 4400/4800/5200/5600 MHz
- ACPI version
- 5.0
- Desktop Management Interface (DMI) version
- 2.7
- System Management BIOS (SMBIOS) version
- 2.7
- Lithium weight per battery
- 0.07 g
- Serial port headers
- 1
- Maximum internal memory per slot
- 64 GB
- Number of RGB LED pin headers
- 2
- Parallel connector
- Yes
Specific References
- EAN13
- 4719331864347
- MPN
- B760M D3HP 1.0
