Asus Mainboard|ASUS|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 4|2xPCI-Express 4.0 16x|2xM.2|1xHDMI|2xDisplay

Asus Mainboard|ASUS|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 4|2xPCI-Express 4.0 16x|2xM.2|1xHDMI|2xDisplay

Write a review

€152.71

Tax included

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

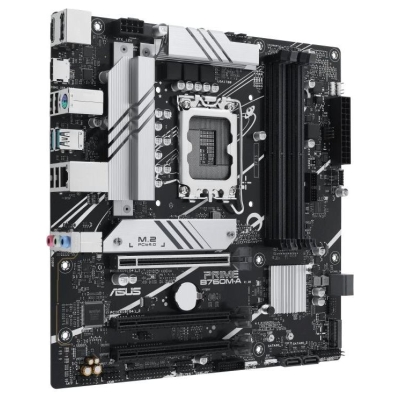

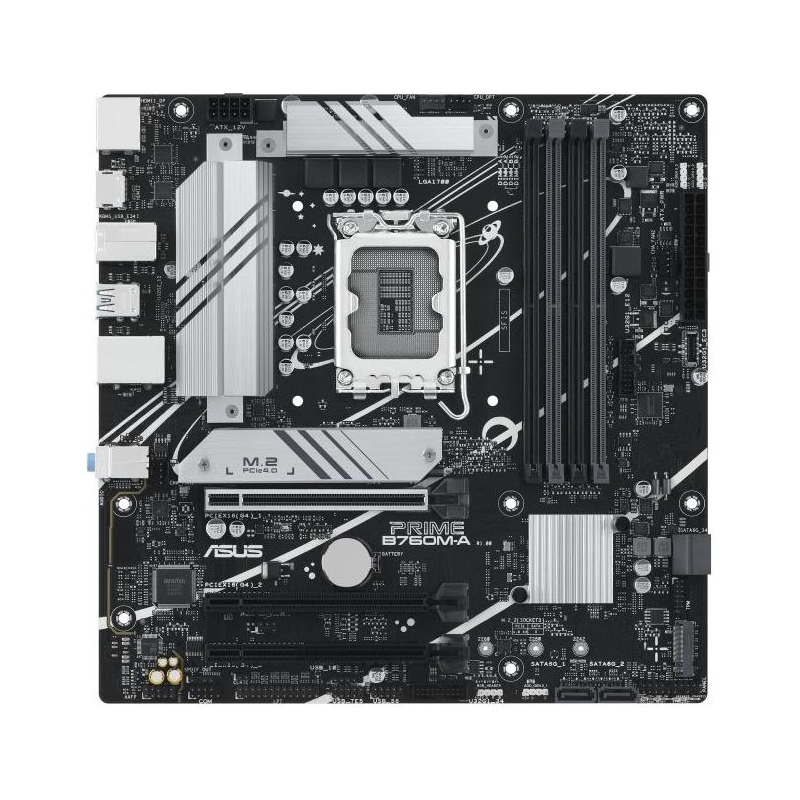

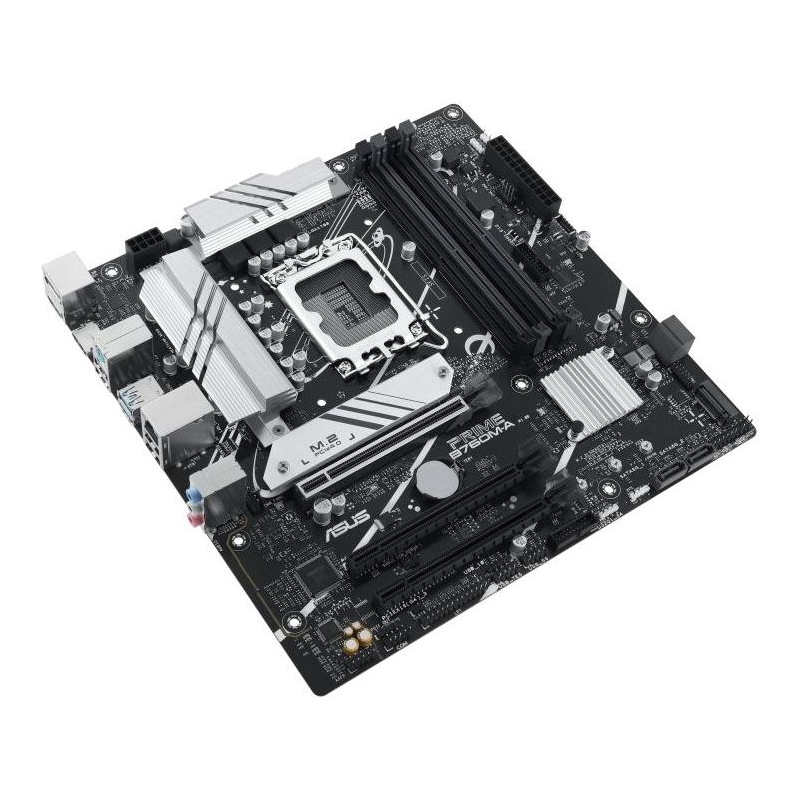

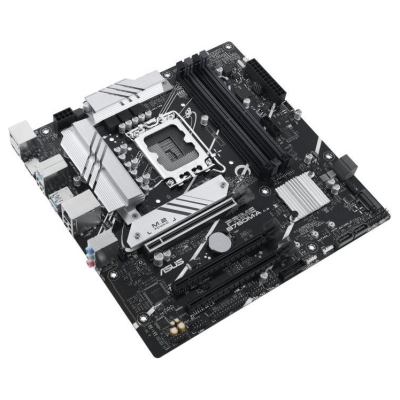

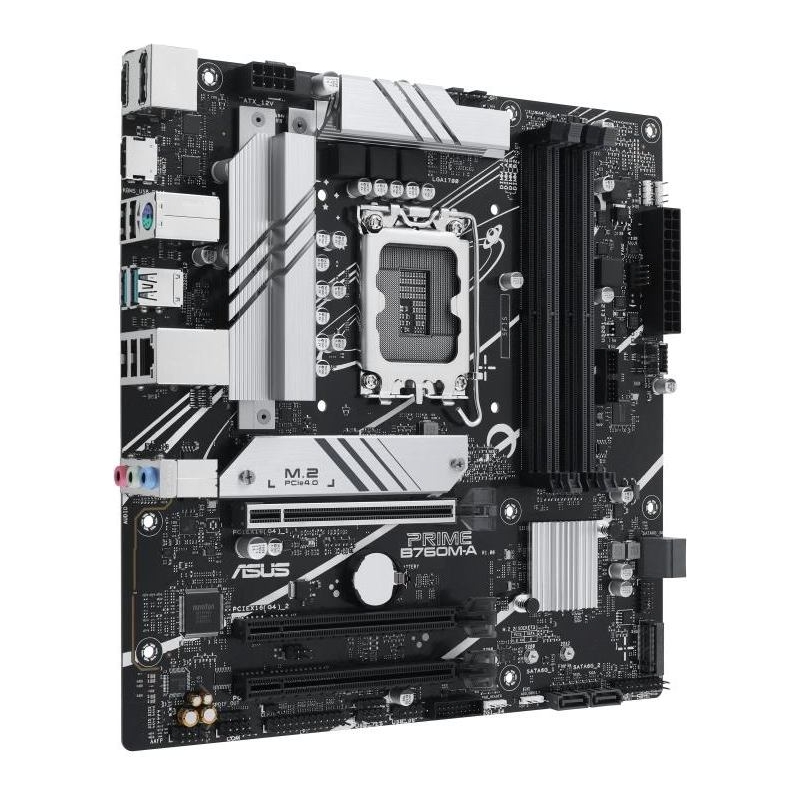

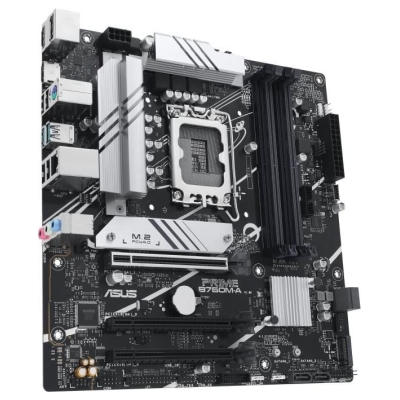

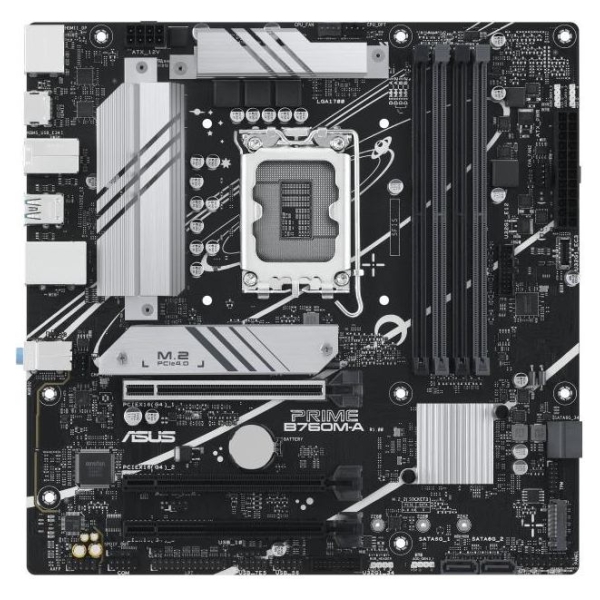

B760M-A-CSM
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.
* Lifecycle support, program offering and supply status may vary by region. Please consult your local sales representative for more information.

ASUS Control Center Express
ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.

Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®
Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
ASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protection

Manufacturer Website:
https://www.asus.com/motherboards-components/motherboards/prime/prime-b760m-a-csm/

Category Code: MBI
CnCode: 84733020
Unit Box Height: 0.053
Unit Box Length: 0.273
Unit Box Width: 0.264
Audio output channels: 7.1 channels
Component for: PC
Motherboard chipset: Intel B760
Motherboard chipset family: Intel
Motherboard form factor: micro ATX
Windows operating systems supported: Windows 10 x64/Windows 11
Compatible processor series: Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold
Processor manufacturer: Intel
Processor socket: LGA 1700
Supported processor sockets: LGA 1700
ECC сompatibility: Non-ECC
Maximum internal memory: 128 GB
Memory channels: Dual-channel
Memory slots type: DIMM
Number of memory slots: 4
Supported memory clock speed (max): 7200 MHz
Supported memory clock speeds: 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200 MHz
Supported memory types: DDR5-SDRAM
Unbuffered memory: Yes
Number of HDDs supported: 4
Number of storage drives supported: 6
Supported storage drive interfaces: M.2,SATA III
Supported storage drive types: HDD & SSD
Parallel processing technology support: Not supported
12V power connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
Front panel audio connector: Yes
Front panel connector: Yes
Number of chassis fan connectors: 2
Number of COM connectors: 1
Number of SATA III connectors: 4
RGB LED pin header: Yes
S/PDIF out connector: Yes
TPM connector: Yes
USB 2.0 connectors: 3
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 3

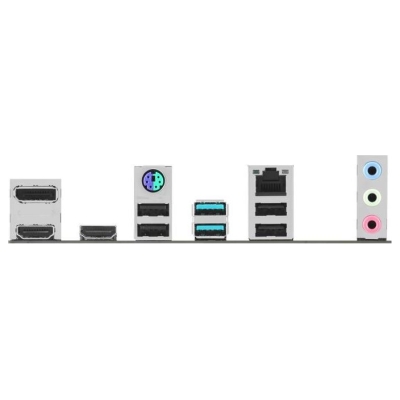

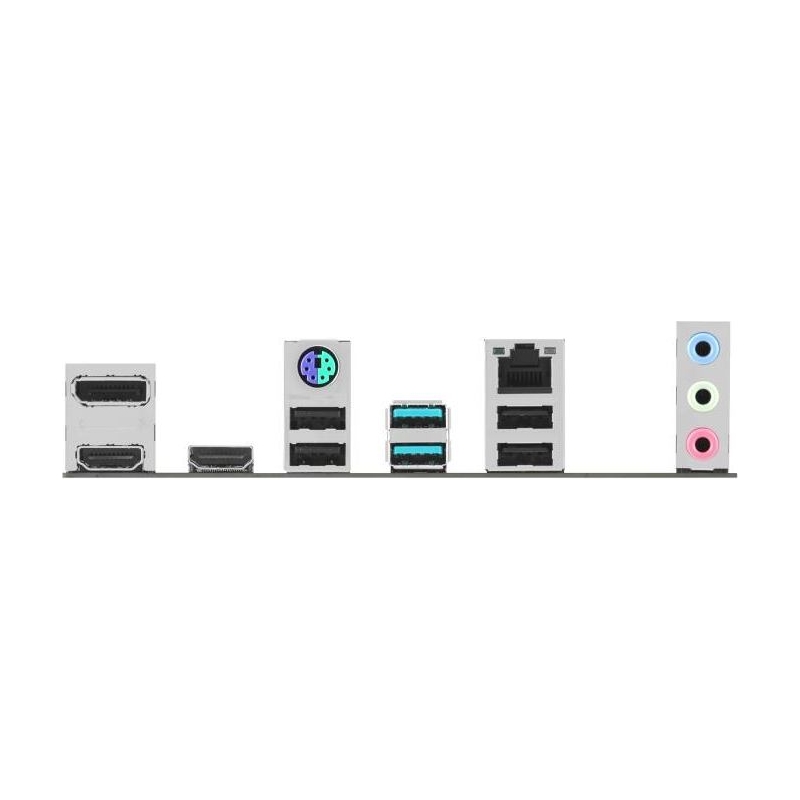

DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 2
Headphone outputs: 1
Line-in: Yes
Microphone in: Yes
PS/2 ports quantity: 1
USB 2.0 ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
WiFi-AP antenna jack: 1
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
Wi-Fi: Yes
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 4.x) slots: 3
BIOS memory size: 128 Mbit
BIOS type: UEFI AMI
Clear CMOS button: Yes
Package depth: 263 mm
Package height: 52 mm
Package weight: 1140 g
Package width: 270 mm
Depth: 244 mm
Height: 40 mm
Width: 244 mm

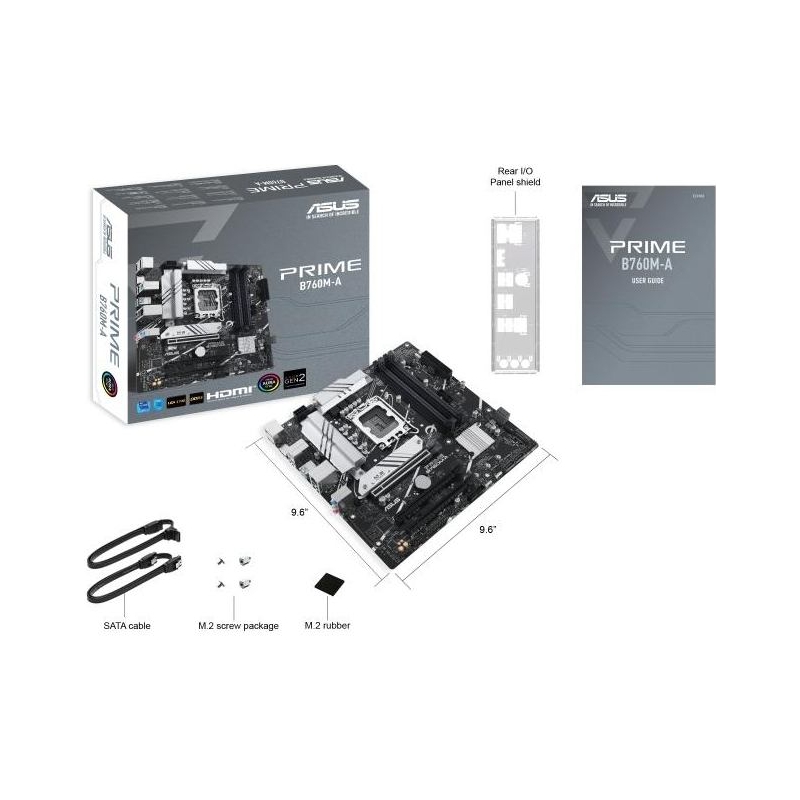

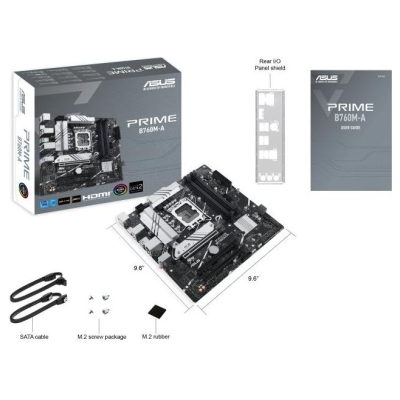

Cables included: SATA
Model: PRIME B760M-A-CSM
Units per Shipping Box: 10
Unit Calculated Volume: 0.004548 cubm
Unit Calculated Weight: 1.18 kg

Reference PRIME B760M-A-CSM

In stock 9 Items

Data sheet

Windows operating systems supported: Windows 10 x64/Windows 11
USB 2.0 ports quantity: 4
Audio output channels: 7.1 channels
Microphone in: Yes
Headphone outputs: 1
Number of storage drives supported: 6
Supported storage drive interfaces: M.2,SATA III
Ethernet LAN (RJ-45) ports: 1
Cables included: SATA
Component for: PC
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
HDMI ports quantity: 2
Wi-Fi: Yes
DisplayPorts quantity: 1
Compatible processor series: Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold
Motherboard form factor: Micro ATX
Supported memory types: DDR5-SDRAM
Processor socket: LGA 1700
EPS power connector (8-pin): Yes
Supported processor sockets: LGA 1700
Maximum internal memory: 128 GB
Supported storage drive types: HDD & SSD
Category Code: MBI
CnCode: 84733020
Units per Shipping Box: 10
Line-in: Yes
Memory channels: Dual-channel
Processor manufacturer: Intel
Motherboard chipset: Intel B760
Motherboard chipset family: Intel
ECC сompatibility: Non-ECC
Memory slots type: DIMM
Number of memory slots: 4
Unbuffered memory: Yes
Number of HDDs supported: 4
Parallel processing technology support: Not supported
12V power connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Front panel audio connector: Yes
Front panel connector: Yes
Number of chassis fan connectors: 2
Number of COM connectors: 1
Number of SATA III connectors: 4
S/PDIF out connector: Yes
USB 2.0 connectors: 3
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
WiFi-AP antenna jack: 1
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 4.x) slots: 3
BIOS memory size: 128 Mbit
BIOS type: UEFI AMI
Supported memory clock speed (max): 7200 MHz
RGB LED pin header: Yes
TPM connector: Yes
PS/2 ports quantity: 1
Supported memory clock speeds: 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200 MHz
Clear CMOS button: Yes

Specific References

EAN13: 4711387140710
MPN: PRIME B760M-A-CSM
