MSI Mainboard|MSI|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 4x |1xP
- Write a review
€174.26
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout

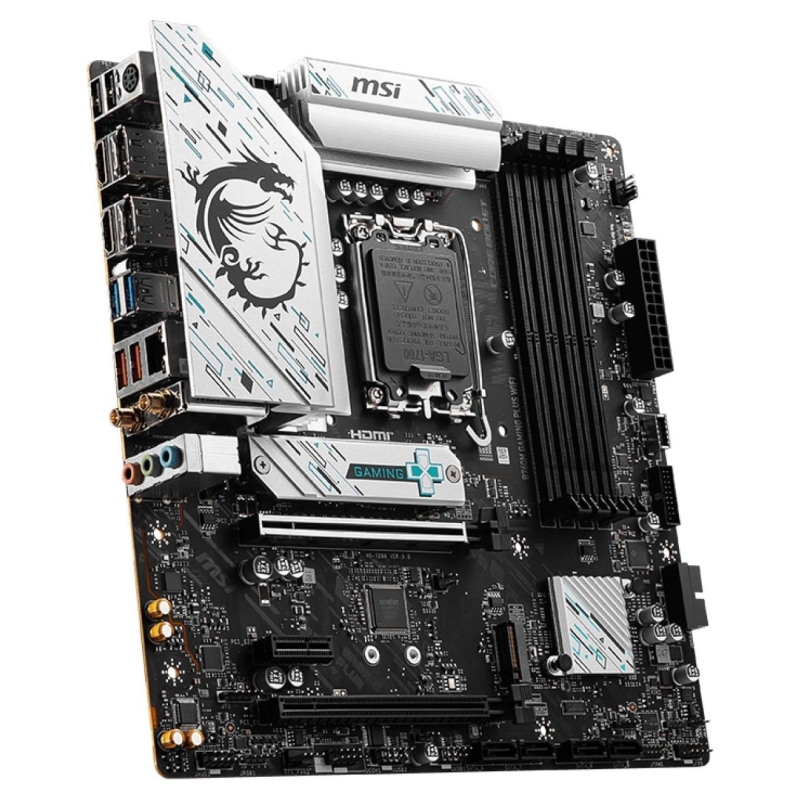

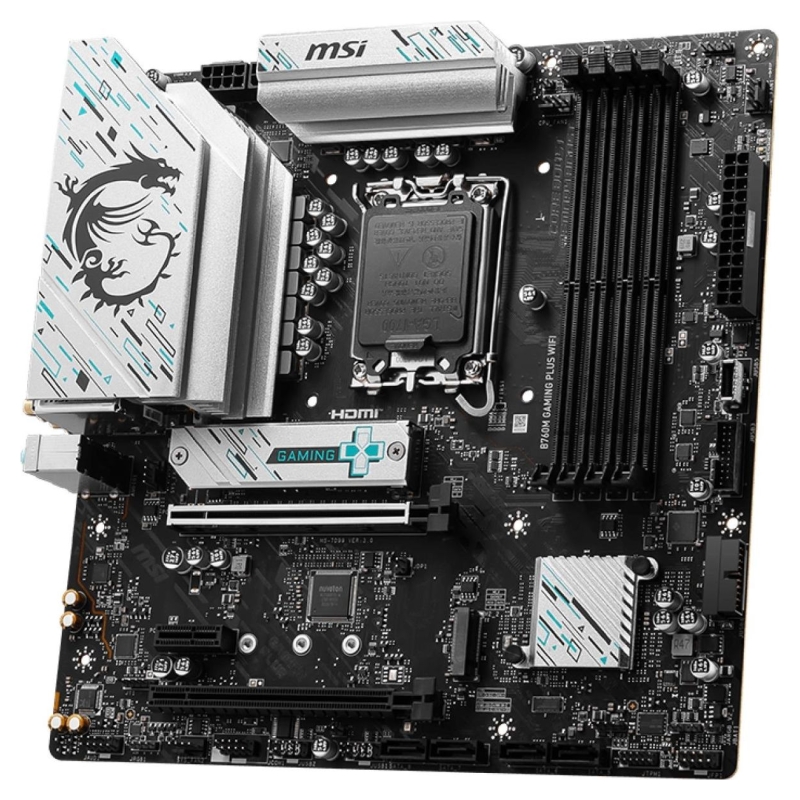

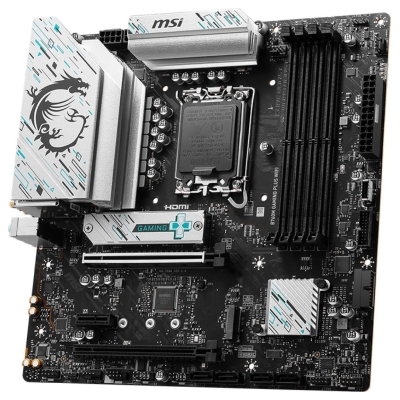

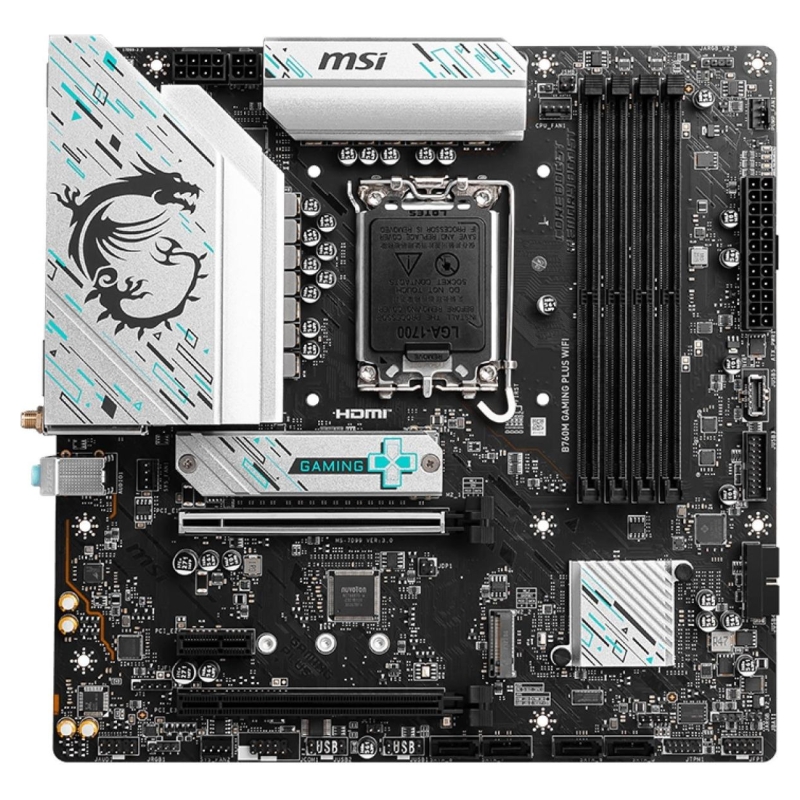

B760M GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want it all.
LIGHTNING GEN 4 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
- Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2 10G
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Manufacturer Website:
https://www.msi.com/Motherboard/B760M-GAMING-PLUS-WIFI/Overview
- Category Code
- MBI
- CnCode
- 84733020
- Unit Box Height
- 0.055
- Unit Box Length
- 0.3
- Unit Box Width
- 0.0275
- Audio chip
- Realtek ALC897
- Audio output channels
- 7.1 channels
- Component for
- PC
- Motherboard chipset
- Intel B760
- Motherboard chipset family
- Intel
- Motherboard form factor
- micro ATX
- Power source type
- ATX
- Windows operating systems supported
- Windows 10/Windows 11
- Compatible processor series
- Intel® Celeron®/Intel® Pentium® Gold
- Maximum number of SMP processors
- 1
- Processor manufacturer
- Intel
- Processor socket
- LGA 1700
- Supported processor sockets
- LGA 1700
- ECC сompatibility
- Non-ECC
- Maximum internal memory
- 192 GB
- Memory channels
- Dual-channel
- Memory slots type
- DIMM
- Number of memory slots
- 4
- Supported memory clock speed (max)
- 6800 MHz
- Supported memory clock speeds
- 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800 MHz
- Supported memory types
- DDR5-SDRAM
- RAID levels
- 0/1/10/5
- RAID support
- Yes
- Supported storage drive interfaces
- M.2,SATA III
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- Number of SATA III connectors
- 4
- RGB LED pin header
- Yes
- TPM connector
- Yes
- USB 2.0 connectors
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 4
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
- DisplayPort version
- 1.4
- DisplayPorts quantity
- 2

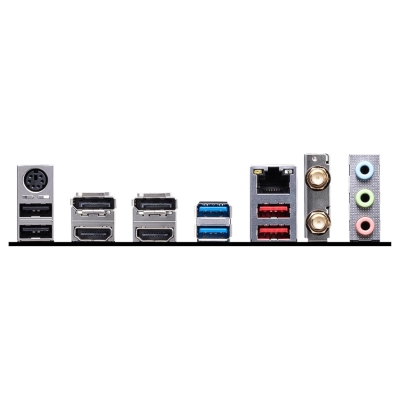

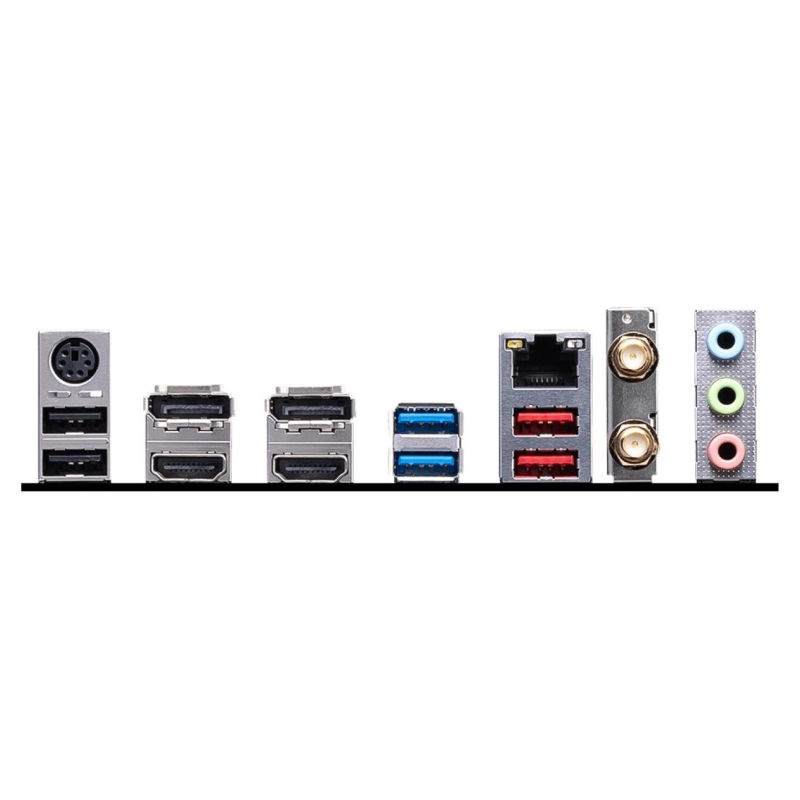

- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 2
- HDMI version
- 2.1
- USB 2.0 ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 2
- Bluetooth
- Yes
- Bluetooth version
- 5.3
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Ethernet LAN
- Yes
- Top Wi-Fi standard
- Wi-Fi 6E (802.11ax)
- Wi-Fi
- Yes
- Wi-Fi standards
- 802.11a/802.11ad/802.11b/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
- PCI Express x1 (Gen 3.x) slots
- 2
- ACPI version
- 6.4
- BIOS memory size
- 256 Mbit
- BIOS type
- UEFI AMI
- Clear CMOS jumper
- Yes
- System Management BIOS (SMBIOS) version
- 3.5
- Depth
- 243.84 mm
- Width
- 243.84 mm
- Model
- B760M GAMING PLUS WIFI
- Units per Shipping Box
- 10
- Unit Calculated Volume
- 0.005495 cubm
- Unit Calculated Weight
- 1.34 kg
B760MGAMINGPLUSWIFI
50 Items
Data sheet
- Bluetooth
- Yes
- RAID levels
- 0/1/10/5
- Windows operating systems supported
- Windows 10/Windows 11
- USB 2.0 ports quantity
- 2
- Audio output channels
- 7.1 channels
- Supported storage drive interfaces
- M.2,SATA III
- Power source type
- ATX
- Ethernet LAN (RJ-45) ports
- 1
- Wi-Fi standards
- 802.11a/802.11ad/802.11b/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
- Component for
- PC
- Ethernet LAN
- Yes
- Ethernet interface type
- 2.5 Gigabit Ethernet
- HDMI ports quantity
- 2
- RAID support
- Yes
- Wi-Fi
- Yes
- DisplayPorts quantity
- 2
- Bluetooth version
- 5.3
- Compatible processor series
- Intel® Celeron®/Intel® Pentium® Gold
- Motherboard form factor
- Micro ATX
- Supported memory types
- DDR5-SDRAM
- Processor socket
- LGA 1700
- Supported processor sockets
- LGA 1700
- Maximum internal memory
- 192 GB
- HDMI version
- 2.1
- Category Code
- MBI
- CnCode
- 84733020
- Units per Shipping Box
- 10
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- DisplayPort version
- 1.4
- Top Wi-Fi standard
- Wi-Fi 6E (802.11ax)
- Memory channels
- Dual-channel
- Processor manufacturer
- Intel
- Motherboard chipset
- Intel B760
- Motherboard chipset family
- Intel
- ECC сompatibility
- Non-ECC
- Memory slots type
- DIMM
- Number of memory slots
- 4
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- Number of SATA III connectors
- 4
- USB 2.0 connectors
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 4
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 2
- BIOS memory size
- 256 Mbit
- BIOS type
- UEFI AMI
- Audio chip
- Realtek ALC897
- Supported memory clock speed (max)
- 6800 MHz
- RGB LED pin header
- Yes
- TPM connector
- Yes
- PCI Express x1 (Gen 3.x) slots
- 2
- Clear CMOS jumper
- Yes
- Supported memory clock speeds
- 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800 MHz
- ACPI version
- 6.4
- System Management BIOS (SMBIOS) version
- 3.5
- Maximum number of SMP processors
- 1
Specific References
- EAN13
- 4711377154017
- MPN
- B760MGAMINGPLUSWIFI
