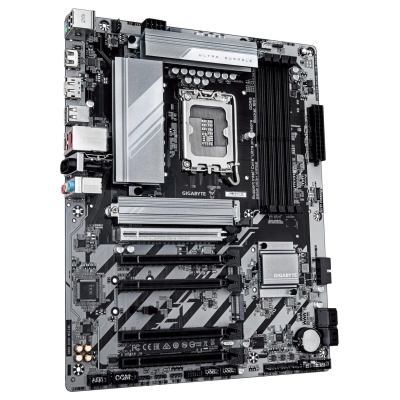

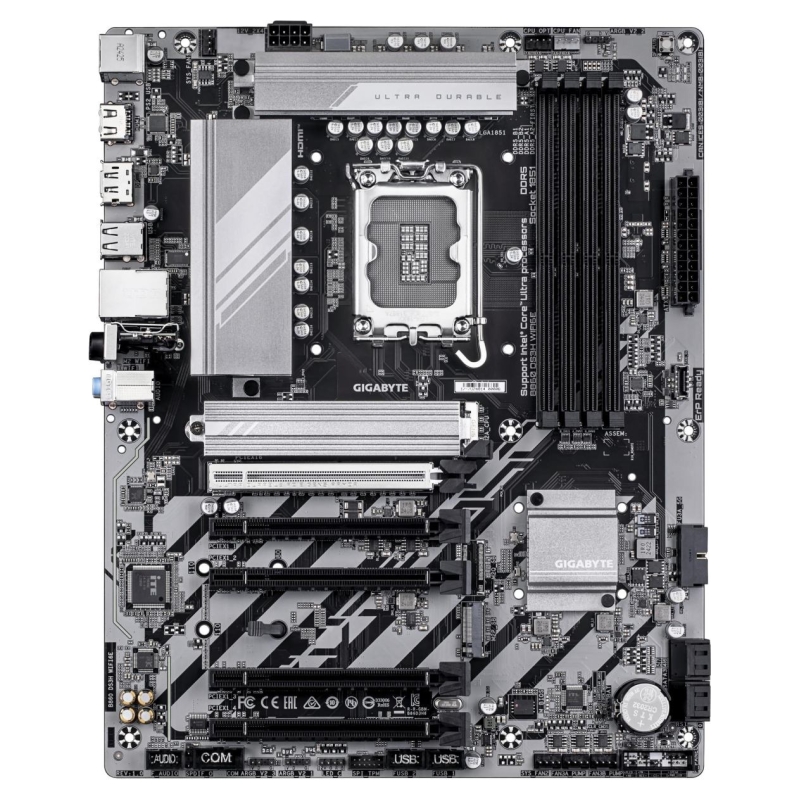

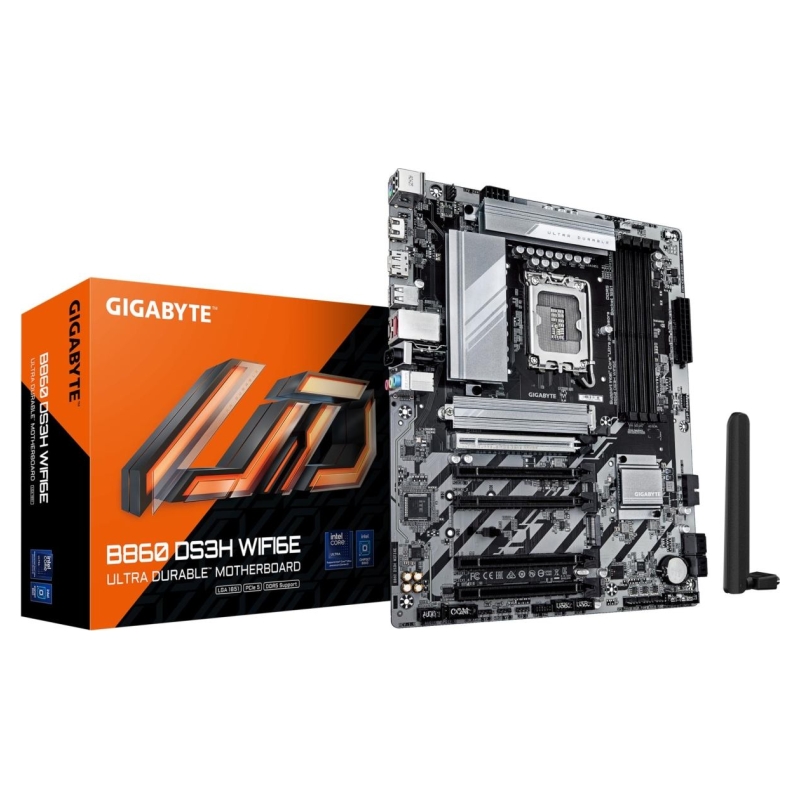

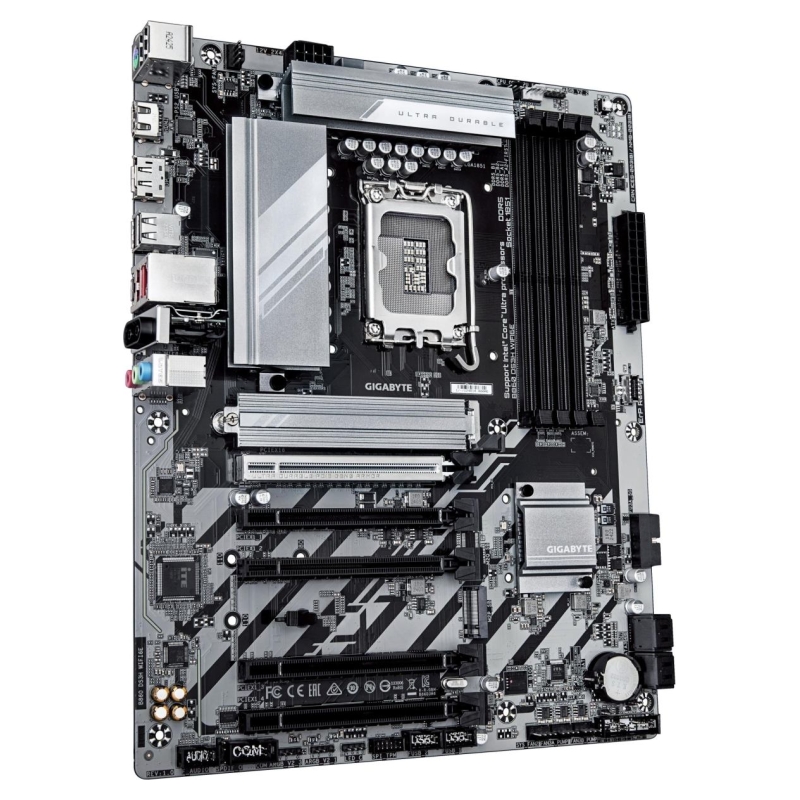

Gigabyte Mainboard|GIGABYTE|Intel B860 Express|LGA1851|ATX|Memory DDR5|5xPCI-Express 16x|2xM.2|1xHDMI|1xDisplayPort|1xAudio-In|1
- Write a review
€203.74
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- Hybrid 8+1+2+2 Phases 50A PPAK VRM
- Dual Channel DDR5：4*DIMMs
- PCIe 5.0 x16 with PCIE UD Slot & EZ-Latch
- M.2 Gen5 (Up to 25110) with EZ-Latch Plus
- MOSFET Heatsinks/M.2 Thermal Guard
- Realtek 2x2 Wi-Fi 6E with WIFI EZ-Plug
- 2.5GbE LAN, USB 3.2 Gen2x2 Type-C
- Q-Flash Plus
Manufacturer Website:
https://www.gigabyte.com/
- Category Code
- MBI
- CnCode
- 84733020
- Unit Box Height
- 0.275
- Unit Box Length
- 0.345
- Unit Box Width
- 0.085
- Audio chip
- Realtek ALC897
- Audio output channels
- 7.1 channels
- Component for
- PC
- Cooling type
- Passive
- Motherboard chipset
- Intel B860
- Motherboard chipset family
- Intel
- Motherboard form factor
- ATX
- PC health monitoring
- Fan/Temperature/Voltage/Water cooling
- Power source type
- ATX
- Windows operating systems supported
- Windows 10 x64/Windows 11 x64
- Compatible processor series
- Intel Core Ultra (Series 2)
- Processor manufacturer
- Intel
- Processor socket
- LGA 1851 (Socket V1)
- Supported processor sockets
- LGA 1851
- ECC сompatibility
- ECC & Non-ECC
- Maximum internal memory
- 256 GB
- Maximum internal memory per slot
- 64 GB
- Memory channels
- Dual-channel
- Memory slots type
- DIMM
- Number of memory slots
- 4
- Supported memory clock speed (max)
- 9066 MHz
- Supported memory clock speeds
- 5600/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200/8266/8400/8600/8800/9066 MHz
- Supported memory types
- DDR5-SDRAM
- Unbuffered memory
- Yes
- Number of HDDs supported
- 4
- Number of storage drives supported
- 6
- RAID levels
- 0/1/10/5
- RAID support
- Yes
- Supported storage drive interfaces
- M.2,SATA III
- Supported storage drive types
- HDD & SSD
- DirectX version
- 12.0
- HDCP
- Yes
- Maximum resolution
- 4096 x 2160 pixels
- Parallel processing technology support
- Not supported
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- EPS power connector (8-pin)
- Yes
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- Number of chassis fan connectors
- 4
- Number of CPU fan connectors
- 2
- Number of EPS power connectors (8-pin)
- 1
- Number of RGB LED pin headers
- 4
- Number of SATA III connectors
- 4
- Number of water pump connectors
- 3
- RGB LED pin header
- Yes
- S/PDIF out connector
- Yes
- Serial port headers
- 1
- TPM connector
- Yes
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- DisplayPort version
- 2.1
- DisplayPorts quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 1
- HDMI version
- 2.1
- Headphone outputs
- 1
- Line-in
- Yes
- Microphone in
- Yes
- PS/2 ports quantity
- 1
- USB 2.0 ports quantity
- 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 1
- USB 3.2 Gen 2x2 Type-C ports quantity
- 1
- WiFi-AP antenna jack
- 2
- Bluetooth
- Yes
- Bluetooth version
- 5.3
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Ethernet LAN
- Yes
- LAN controller
- Realtek RTL8125
- Top Wi-Fi standard
- Wi-Fi 6E (802.11ax)
- Wi-Fi
- Yes
- Wi-Fi standards
- 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
- WLAN controller model
- Intel Wi-Fi 6E AX211
- 1st M.2 highest PCI Express generation
- 5.0
- 1st M.2 largest key size
- 25110
- 2nd M.2 highest PCI Express generation
- 4.0
- 2nd M.2 largest key size
- 25110
- Number of M.2 (M) slots
- 2
- PCI Express x16 (Gen 4.x) slots
- 4
- PCI Express x16 (Gen 5.x) slots
- 1
- ACPI version
- 5.0
- BIOS memory size
- 256 Mbit
- BIOS type
- UEFI AMI
- Clear CMOS jumper
- Yes
- Desktop Management Interface (DMI) version
- 2.7
- System Management BIOS (SMBIOS) version
- 2.7
- Battery technology
- Lithium-Manganese Dioxide (LiMnO2)
- Battery type
- CR2032
- Battery weight
- 3 g
- Country of origin
- China
- Lithium weight per battery
- 0.07 g
- Number of battery cells
- 1
- Package depth
- 270 mm
- Package height
- 80 mm
- Package width
- 335 mm
- Products per shipping (inner) case
- 1 pc(s)
- Depth
- 244 mm
- Height
- 35 mm
- Width
- 305 mm
- Antenna included
- Yes
- Batteries included
- Yes
- Bundled software
- Norton Internet Security (OEM version) LAN bandwidth management software
- Screws included
- Yes
- Warranty period
- 3 year(s)
- Weight
- 2000 g
- Model
- B860 DS3H WIFI6E
- Units per Shipping Box
- 8
- Unit Calculated Volume
- 0.01042 cubm
- Unit Calculated Weight
- 1.63 kg
B860 DS3H WIFI6E 1.0
1 Item
Data sheet
- Batteries included
- yes
- Bluetooth
- Yes
- RAID levels
- 0/1/10/5
- Windows operating systems supported
- Windows 10 x64/Windows 11 x64
- Battery technology
- Lithium-Manganese Dioxide (LiMnO2)
- USB 2.0 ports quantity
- 4
- Audio output channels
- 7.1 channels
- Microphone in
- Yes
- Headphone outputs
- 1
- Number of storage drives supported
- 6
- Supported storage drive interfaces
- M.2,SATA III
- Power source type
- ATX
- Ethernet LAN (RJ-45) ports
- 1
- Wi-Fi standards
- 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
- Bundled software
- Norton Internet Security (OEM version)
LAN bandwidth management software - Battery type
- CR2032
- Cooling type
- Passive
- Country of origin
- China
- Component for
- PC
- Maximum resolution
- 4096 x 2160 pixels
- Ethernet LAN
- Yes
- Ethernet interface type
- 2.5 Gigabit Ethernet
- DirectX version
- 12.0
- HDMI ports quantity
- 1
- RAID support
- Yes
- Wi-Fi
- Yes
- DisplayPorts quantity
- 1
- HDCP
- Yes
- Bluetooth version
- 5.3
- Compatible processor series
- Intel Core Ultra (Series 2)
- Motherboard form factor
- ATX
- Supported memory types
- DDR5-SDRAM
- Processor socket
- LGA 1851 (Socket V1)
- EPS power connector (8-pin)
- Yes
- Supported processor sockets
- LGA 1851
- Number of battery cells
- 1
- Maximum internal memory
- 256 GB
- Supported storage drive types
- HDD & SSD
- HDMI version
- 2.1
- Category Code
- MBI
- CnCode
- 84733020
- Units per Shipping Box
- 8
- Warranty period
- 3 year(s)
- DisplayPort version
- 2.1
- Screws included
- Yes
- Top Wi-Fi standard
- Wi-Fi 6E (802.11ax)
- LAN controller
- Realtek RTL8125
- Line-in
- Yes
- Battery weight
- 3 g
- Products per shipping (inner) case
- 1 pc(s)
- Memory channels
- Dual-channel
- Processor manufacturer
- Intel
- Antenna included
- Yes
- Motherboard chipset
- Intel B860
- Motherboard chipset family
- Intel
- ECC сompatibility
- ECC & Non-ECC
- Memory slots type
- DIMM
- Number of memory slots
- 4
- Unbuffered memory
- Yes
- Number of HDDs supported
- 4
- Parallel processing technology support
- Not supported
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- Number of chassis fan connectors
- 4
- Number of SATA III connectors
- 4
- S/PDIF out connector
- Yes
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 1
- USB 3.2 Gen 2x2 Type-C ports quantity
- 1
- WiFi-AP antenna jack
- 2
- 1st M.2 highest PCI Express generation
- 5.0
- 1st M.2 largest key size
- 25110
- 2nd M.2 highest PCI Express generation
- 4.0
- 2nd M.2 largest key size
- 25110
- Number of M.2 (M) slots
- 2
- PCI Express x16 (Gen 4.x) slots
- 4
- PCI Express x16 (Gen 5.x) slots
- 1
- BIOS memory size
- 256 Mbit
- BIOS type
- UEFI AMI
- Audio chip
- Realtek ALC897
- Supported memory clock speed (max)
- 9066 MHz
- RGB LED pin header
- Yes
- PC health monitoring
- Fan/Temperature/Voltage/Water cooling
- Number of CPU fan connectors
- 2
- Number of EPS power connectors (8-pin)
- 1
- TPM connector
- Yes
- PS/2 ports quantity
- 1
- Clear CMOS jumper
- Yes
- Supported memory clock speeds
- 5600/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200/8266/8400/8600/8800/9066 MHz
- ACPI version
- 5.0
- Desktop Management Interface (DMI) version
- 2.7
- System Management BIOS (SMBIOS) version
- 2.7
- Lithium weight per battery
- 0.07 g
- Serial port headers
- 1
- Maximum internal memory per slot
- 64 GB
- Number of RGB LED pin headers
- 4
- WLAN controller model
- Intel Wi-Fi 6E AX211
- Number of water pump connectors
- 3
Specific References
- EAN13
- 4719331867515
- MPN
- B860 DS3H WIFI6E 1.0
