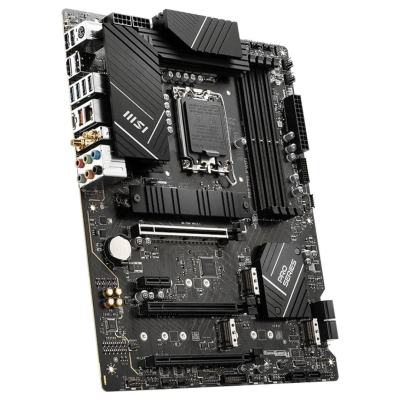

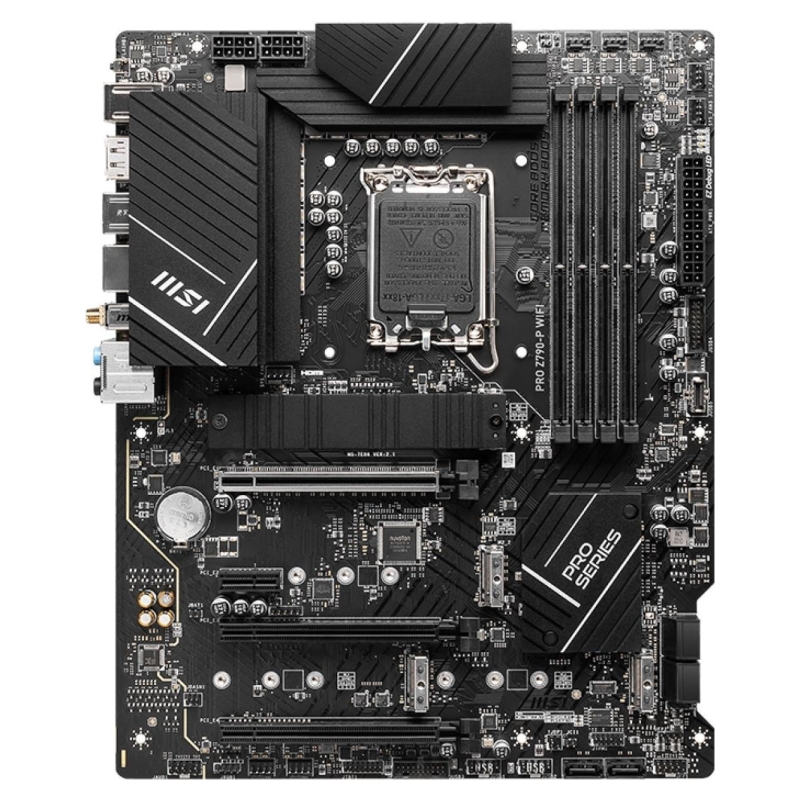

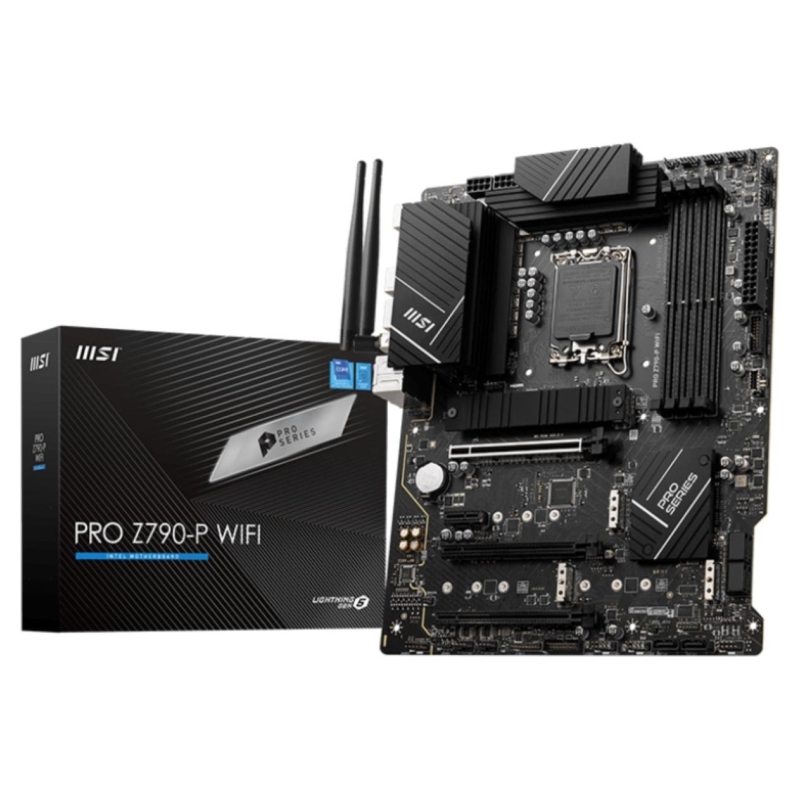

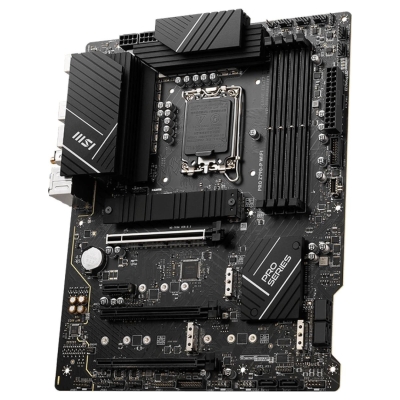

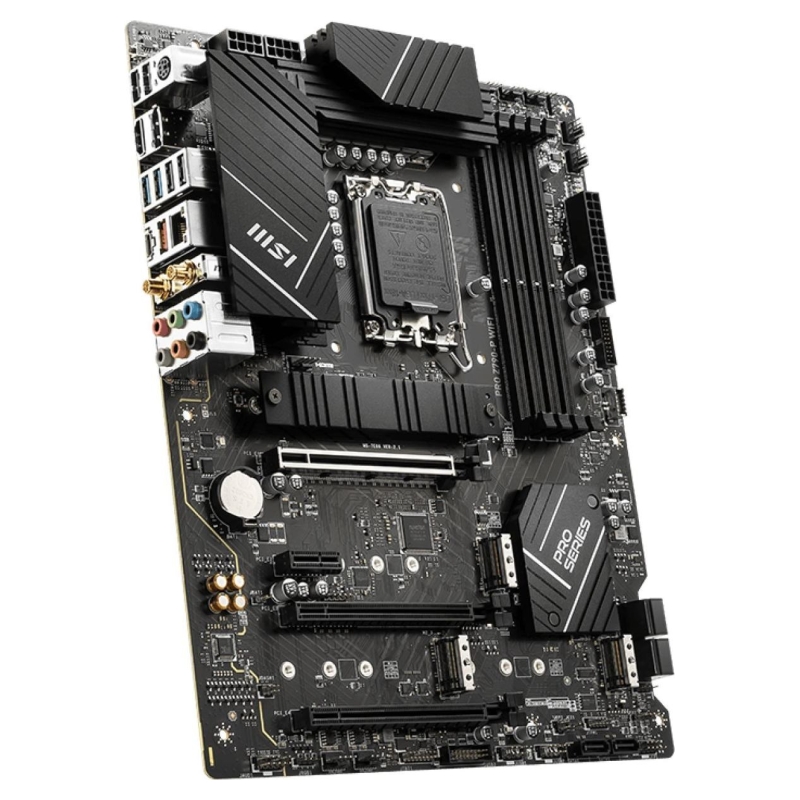

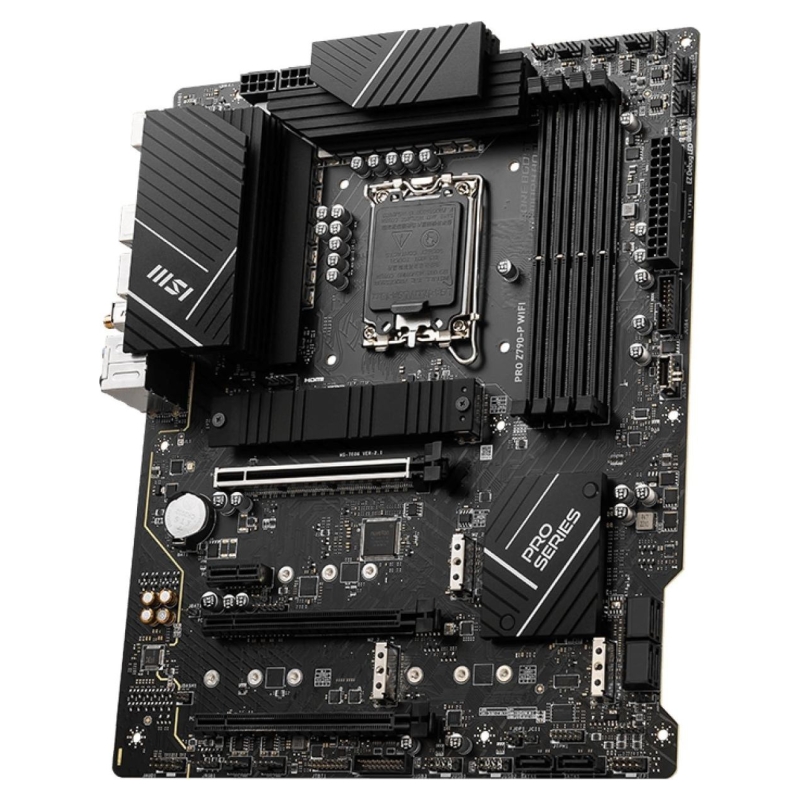

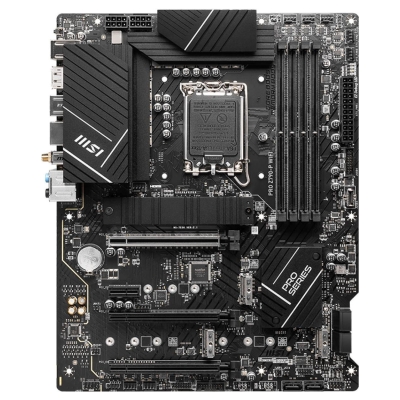

MSI Mainboard|MSI|Intel Z790|LGA1700|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 1x|3xPCI-Express 16x|4xM.2|1xHDMI|1xDisplayPor
- Write a review
€232.13
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
- Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5 7000+MHz (OC)
- Enhanced Power Design: 14+1+1 DRPS with 55A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
- Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Manufacturer Website:
https://www.msi.com/Motherboard/PRO-Z790-P-WIFI/Overview
- Category Code
- MBI
- CnCode
- 84733020
- Unit Box Height
- 0.068
- Unit Box Length
- 0.347
- Unit Box Width
- 0.27
- Audio chip
- Realtek ALC897
- Audio output channels
- 7.1 channels
- Component for
- PC
- Motherboard chipset
- Intel Z790
- Motherboard chipset family
- Intel
- Motherboard form factor
- ATX
- Product colour
- Black
- Windows operating systems supported
- Windows 10 x64/Windows 11 x64
- Compatible processor series
- Intel® Celeron®/Intel® Pentium® Gold
- Processor manufacturer
- Intel
- Processor socket
- LGA 1700
- Supported processor sockets
- LGA 1700
- ECC сompatibility
- Non-ECC
- Maximum internal memory
- 128 GB
- Number of memory slots
- 4
- Supported memory clock speed (max)
- 7000 MHz
- Supported memory clock speeds
- 4800/5000/5200/5400/5800/6000/6400/6600/6800/7000 MHz
- Supported memory types
- DDR5-SDRAM
- Internal storage capacity
- 10 GB
- RAID levels
- 0/1/10/5
- RAID support
- Yes
- Supported storage drive interfaces
- M.2,PCI Express
- Supported storage drive types
- HDD & SSD
- On-board graphics card
- No
- Parallel processing technology support
- Not supported
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- Number of SATA III connectors
- 6
- RGB LED pin header
- Yes
- TPM connector
- Yes
- USB 2.0 connectors
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 4
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
- DisplayPort version
- 1.4
- DisplayPorts quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 1
- HDMI version
- 2.1
- S/PDIF out port
- Yes
- USB 2.0 ports quantity
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- USB 3.2 Gen 2x2 Type-C ports quantity
- 1
- Bluetooth
- Yes
- Bluetooth version
- 5.3
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Ethernet LAN
- Yes
- Top Wi-Fi standard
- Wi-Fi 6 (802.11ax)
- Wi-Fi
- Yes
- Wi-Fi standards
- 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 6 (802.11ax)
- Number of M.2 (M) slots
- 4
- BIOS memory size
- 256 Mbit
- BIOS type
- UEFI AMI
- System Management BIOS (SMBIOS) version
- 3.5
- Depth
- 243.84 mm
- Width
- 304.8 mm
- Bundled software
- Drivers MSI Center Intel Extreme Tuning Utility CPU-Z MSI GAMING Norton 360 Deluxe AIDA64 Extreme - MSI Edition
- Cables included
- SATA
- Model
- PRO Z790-P WIFI
- Units per Shipping Box
- 10
- Unit Calculated Volume
- 0.007339 cubm
- Unit Calculated Weight
- 1.65 kg
PROZ790-PWIFI
50 Items
Data sheet
- Bluetooth
- Yes
- RAID levels
- 0/1/10/5
- Windows operating systems supported
- Windows 10 x64/Windows 11 x64
- USB 2.0 ports quantity
- 4
- Audio output channels
- 7.1 channels
- Supported storage drive interfaces
- M.2,PCI Express
- Ethernet LAN (RJ-45) ports
- 1
- Wi-Fi standards
- 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 6 (802.11ax)
- Bundled software
- Drivers
MSI Center
Intel Extreme Tuning Utility
CPU-Z MSI GAMING
Norton 360 Deluxe
AIDA64 Extreme - MSI Edition - Cables included
- SATA
- Component for
- PC
- Ethernet LAN
- Yes
- Ethernet interface type
- 2.5 Gigabit Ethernet
- HDMI ports quantity
- 1
- RAID support
- Yes
- Wi-Fi
- Yes
- DisplayPorts quantity
- 1
- Bluetooth version
- 5.3
- Compatible processor series
- Intel® Celeron®/Intel® Pentium® Gold
- Motherboard form factor
- ATX
- Supported memory types
- DDR5-SDRAM
- Processor socket
- LGA 1700
- Supported processor sockets
- LGA 1700
- Internal storage capacity
- 10 GB
- Maximum internal memory
- 128 GB
- Supported storage drive types
- HDD & SSD
- HDMI version
- 2.1
- Category Code
- MBI
- CnCode
- 84733020
- Units per Shipping Box
- 10
- Product colour
- Black
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- DisplayPort version
- 1.4
- Top Wi-Fi standard
- Wi-Fi 6 (802.11ax)
- Processor manufacturer
- Intel
- On-board graphics card
- No
- Motherboard chipset
- Intel Z790
- Motherboard chipset family
- Intel
- ECC сompatibility
- Non-ECC
- Number of memory slots
- 4
- Parallel processing technology support
- Not supported
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- Number of SATA III connectors
- 6
- USB 2.0 connectors
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 4
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
- S/PDIF out port
- Yes
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 1
- USB 3.2 Gen 2x2 Type-C ports quantity
- 1
- Number of M.2 (M) slots
- 4
- BIOS memory size
- 256 Mbit
- BIOS type
- UEFI AMI
- Audio chip
- Realtek ALC897
- Supported memory clock speed (max)
- 7000 MHz
- RGB LED pin header
- Yes
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- TPM connector
- Yes
- Supported memory clock speeds
- 4800/5000/5200/5400/5800/6000/6400/6600/6800/7000 MHz
- System Management BIOS (SMBIOS) version
- 3.5
Specific References
- EAN13
- 4711377015738
- MPN
- PROZ790-PWIFI
