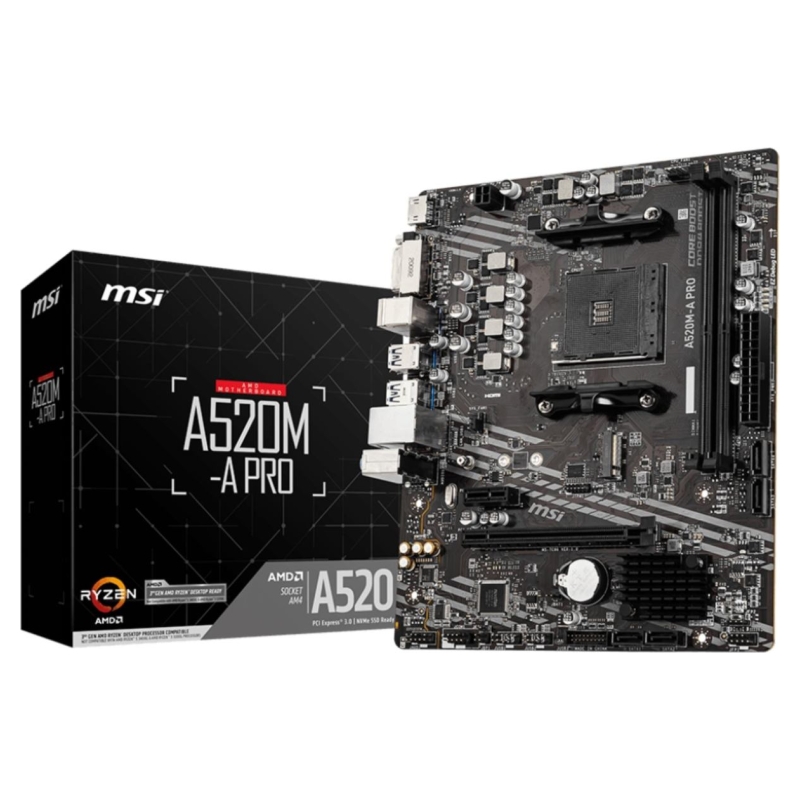

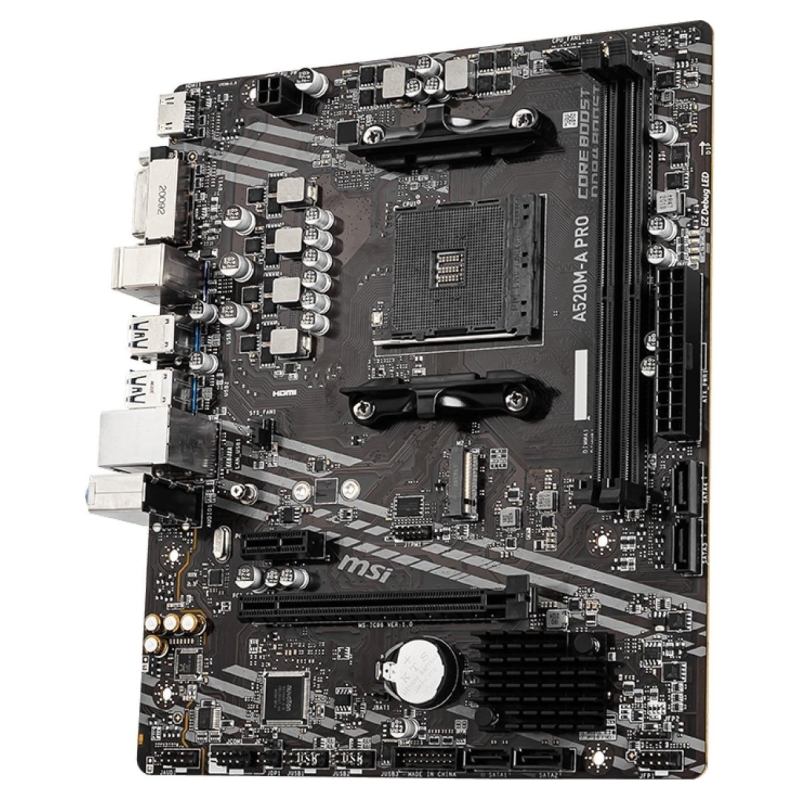

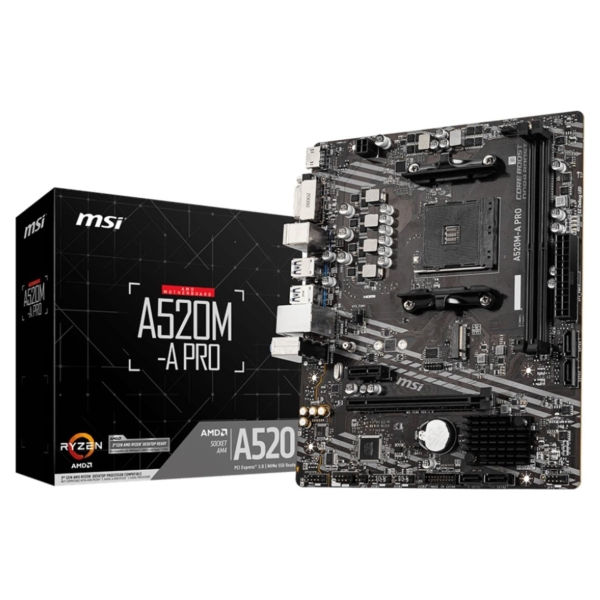

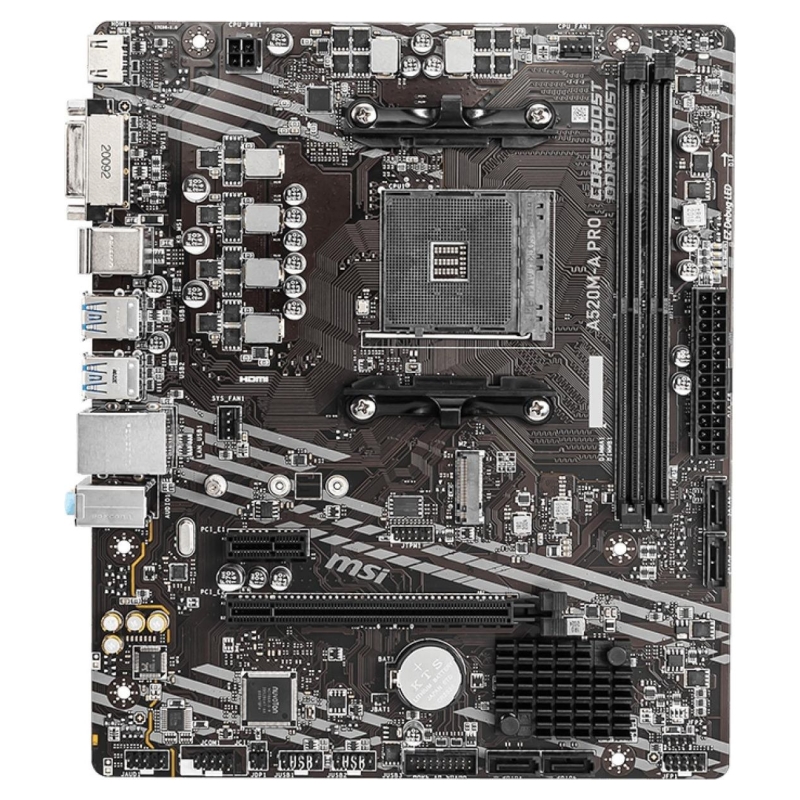

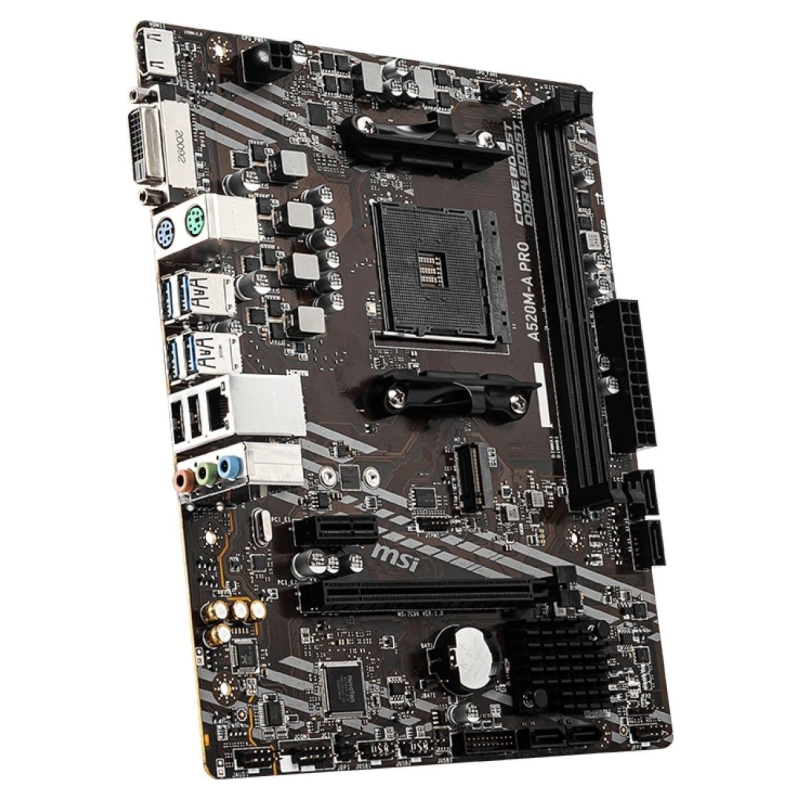

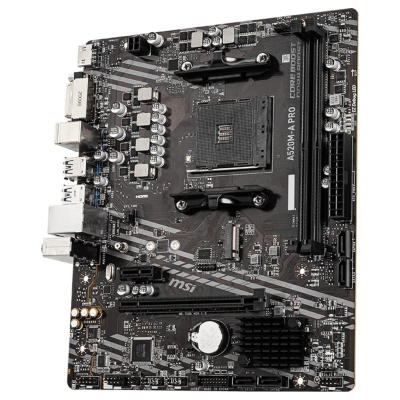

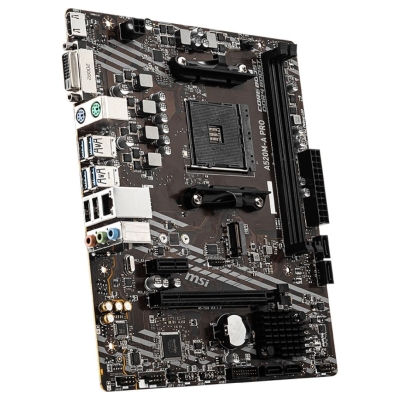

MSI Mainboard|MSI|AMD A520|SAM4|MicroATX|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xM.2|Memory DDR4|Memory slots 2|1xDVI|1xHDM
- Write a review
€71.23
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
FULLY FAN CONTROL
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
EZ DEBUG LED
Run into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get up and running again.
DOUBLE ESD PROTECTION
ULTIMATE MOTHERBOARD PROTECTION
Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.
FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.
USB 3.2 GEN 1
Transfer lots of data, music and movies over USB easier. USB 3.2 ports are ready in both front and rear IO, provides wide variety of options to connect your USB 3.2 devices.
PCB WITH 2OZ THICKENED COPPER
An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking.
A HUGE STEP OF DDR PERFORMANCE
MSI OC LAB does not merely work hard on extreme overclocking. Compared to A320 motherboard memory A-XMP profile, MSI does have great improvement on performance and efficiency for A520 motherboards. Easy to enable A-XMP profile with auto power settings to get the best memory speed and stability.
CORE BOOST
Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
- Support 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™ 4000 G-Series Desktop Processors
- Supports DDR4 Memory, up to 4600(OC) MHz
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
- Core Boost: With premium layout and digital power design to support more cores and provide better performance
- DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability
- 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability
- Audio Boost: Reward your ears with studio grade sound quality
- Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface
Manufacturer Website:
https://www.msi.com/Motherboard/A520M-A-PRO/Overview
- Category Code
- MBA
- CnCode
- 84733020
- Unit Box Height
- 0.06
- Unit Box Length
- 0.26
- Unit Box Width
- 0.26
- Audio chip
- Realtek ALC892
- Audio output channels
- 7.1 channels
- Component for
- PC
- Motherboard chipset
- AMD A520
- Motherboard chipset family
- AMD
- Motherboard form factor
- micro ATX
- Number of mounting holes
- 8
- Product colour
- Black
- Compatible processor series
- AMD Ryzen 3000 Series
- Maximum number of SMP processors
- 1
- Processor manufacturer
- AMD
- Processor socket
- Socket AM4
- ECC сompatibility
- ECC & Non-ECC
- Maximum internal memory
- 64 GB
- Memory channels
- Dual-channel
- Memory slots type
- DIMM
- Number of memory slots
- 2
- Supported memory clock speeds
- 1866/2133/2400/2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133/4266/4400/4600 MHz
- Supported memory types
- DDR4-SDRAM
- Unbuffered memory
- Yes
- Number of HDDs supported
- 5
- RAID levels
- 0/1/10
- RAID support
- Yes
- Supported storage drive interfaces
- PCI Express 3.0,SATA
- Supported storage drive types
- HDD & SSD
- Maximum resolution
- 4096 x 2160 pixels
- Number of displays supported
- 2
- On-board graphics card
- No
- ATX Power connector (24-pin)
- Yes
- Chassis intrusion connector
- Yes
- CPU fan connector
- Yes
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- Number of chassis fan connectors
- 2
- Number of SATA III connectors
- 4
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- DVI-D ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 1
- Headphone outputs
- 1
- Microphone in
- Yes
- USB 2.0 ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN
- Yes
- LAN controller
- Realtek RTL8111H
- Wi-Fi
- No
- Number of M.2 (M) slots
- 1
- PCI Express x1 (Gen 3.x) slots
- 1
- PCI Express x16 (Gen 3.x) slots
- 1
- Harmonized System (HS) code
- 84733020
- Depth
- 200 mm
- Height
- 60 mm
- Width
- 236 mm
- Weight
- 698 g
- Units per Shipping Box
- 20
- Unit Calculated Volume
- 0.004491 cubm
- Unit Calculated Weight
- 0.838 kg
A520M-APRO
13 Items
Data sheet
- RAID levels
- 0/1/10
- USB 2.0 ports quantity
- 2
- Audio output channels
- 7.1 channels
- Microphone in
- Yes
- Headphone outputs
- 1
- Supported storage drive interfaces
- PCI Express 3.0,SATA
- Ethernet LAN (RJ-45) ports
- 1
- Component for
- PC
- Maximum resolution
- 4096 x 2160 pixels
- Ethernet LAN
- Yes
- Ethernet interface type
- Gigabit Ethernet
- DVI-D ports quantity
- 1
- HDMI ports quantity
- 1
- RAID support
- Yes
- Wi-Fi
- No
- Compatible processor series
- AMD Ryzen 3000 Series
- Motherboard form factor
- Micro ATX
- Supported memory types
- DDR4-SDRAM
- Processor socket
- Socket AM4
- Maximum internal memory
- 64 GB
- Supported storage drive types
- HDD & SSD
- Category Code
- MBA
- CnCode
- 84733020
- Units per Shipping Box
- 20
- Product colour
- Black
- Harmonized System (HS) code
- 84733020
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- LAN controller
- Realtek RTL8111H
- Number of displays supported
- 2
- Memory channels
- Dual-channel
- Processor manufacturer
- AMD
- On-board graphics card
- No
- Motherboard chipset
- AMD A520
- Motherboard chipset family
- AMD
- ECC сompatibility
- ECC & Non-ECC
- Memory slots type
- DIMM
- Number of memory slots
- 2
- Unbuffered memory
- Yes
- Number of HDDs supported
- 5
- ATX Power connector (24-pin)
- Yes
- Chassis intrusion connector
- Yes
- CPU fan connector
- Yes
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- Number of chassis fan connectors
- 2
- Number of SATA III connectors
- 4
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- Number of M.2 (M) slots
- 1
- Audio chip
- Realtek ALC892
- PCI Express x1 (Gen 3.x) slots
- 1
- Supported memory clock speeds
- 1866/2133/2400/2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133/4266/4400/4600 MHz
- PCI Express x16 (Gen 3.x) slots
- 1
- Maximum number of SMP processors
- 1
- Number of mounting holes
- 8
Specific References
- EAN13
- 4719072749927
- MPN
- A520M-APRO
