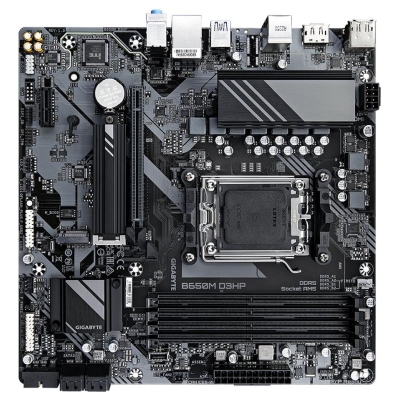

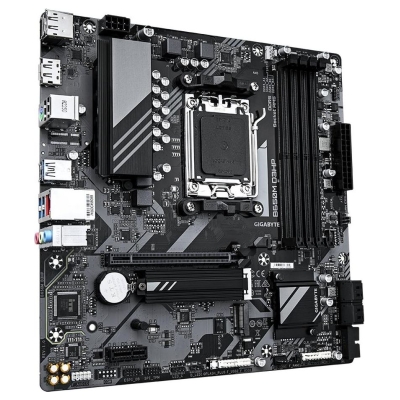

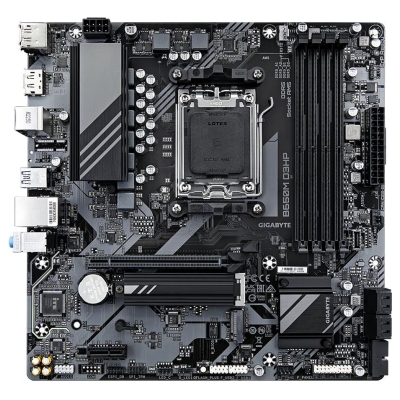

Gigabyte Mainboard|GIGABYTE|AMD B650|SAM5|Micro-ATX|Memory DDR5|Memory slots 4|B650MD3HP1.3
- Write a review
€132.51
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- AMD Socket AM5：Supports AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
- Unparalleled Performance：5+2+2 Phases Digital VRM Solution
- Dual Channel DDR5：4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
- SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
- EZ-Latch：PCIe x16 Slot with Quick Release Design
- Fast Networks：2.5GbE LAN
- Extended Connectivity：2*DP, HDMI
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Manufacturer Website:
https://www.gigabyte.com/
- Category Code
- MBA
- CnCode
- 84733020
- Unit Box Height
- 0.05
- Unit Box Length
- 0.27
- Unit Box Width
- 0.265
- Audio chip
- Realtek ALC897
- Audio output channels
- 7.1 channels
- Component for
- PC
- Motherboard chipset
- AMD B650
- Motherboard chipset family
- AMD
- Motherboard form factor
- micro ATX
- PC health monitoring
- Fan/Temperature/Voltage
- Power source type
- ATX
- Product colour
- Brown
- Windows operating systems supported
- Windows 10 x64/Windows 11 x64
- Compatible processor series
- AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
- Processor manufacturer
- AMD
- Processor socket
- Socket AM5
- Supported processor sockets
- Socket AM5
- ECC сompatibility
- Non-ECC
- Maximum internal memory
- 256 GB
- Maximum internal memory per slot
- 64 GB
- Memory channels
- Dual-channel
- Memory slots type
- DIMM
- Number of memory slots
- 4
- Supported memory clock speed (max)
- 7600 MHz
- Supported memory clock speeds
- 4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600 MHz
- Supported memory types
- DDR5-SDRAM
- Unbuffered memory
- Yes
- Number of HDDs supported
- 4
- Number of storage drives supported
- 6
- RAID levels
- 0/1/10
- RAID support
- Yes
- Supported storage drive interfaces
- M.2,SATA III
- Supported storage drive types
- HDD & SSD
- DirectX version
- 12.0
- Discrete graphics support
- Yes
- HDCP
- Yes
- Maximum resolution
- 4096 x 2160 pixels
- Parallel processing technology support
- Not supported
- 12V power connector
- Yes
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- EPS power connector (8-pin)
- Yes
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- Number of chassis fan connectors
- 2
- Number of CPU fan connectors
- 1
- Number of EPS power connectors (8-pin)
- 1
- Number of RGB LED pin headers
- 3
- Number of SATA III connectors
- 4
- RGB LED pin header
- Yes
- TPM connector
- Yes
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
- DisplayPort version
- 1.4
- DisplayPorts quantity
- 2
- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 1
- HDMI version
- 2.1
- Headphone outputs
- 1
- Line-in
- Yes
- Microphone in
- Yes
- PS/2 ports quantity
- 1
- USB 2.0 ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 3
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 1
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Ethernet LAN
- Yes
- LAN controller
- Realtek RTL8125
- Wi-Fi
- No
- 1st M.2 highest PCI Express generation
- 4.0
- 1st M.2 largest key size
- 2580
- 2nd M.2 highest PCI Express generation
- 4.0
- 2nd M.2 largest key size
- 22110
- Number of M.2 (M) slots
- 2
- PCI Express x1 (Gen 3.x) slots
- 1
- PCI Express x16 (Gen 4.x) slots
- 1
- ACPI version
- 5.0
- BIOS memory size
- 256 Mbit
- BIOS type
- UEFI AMI
- Clear CMOS jumper
- Yes
- Desktop Management Interface (DMI) version
- 2.7
- System Management BIOS (SMBIOS) version
- 2.7
- Battery technology
- Lithium-Manganese Dioxide (LiMnO2)
- Battery type
- CR2032
- Battery weight
- 3 g
- Country of origin
- China
- Lithium weight per battery
- 0.07 g
- Number of battery cells
- 1
- Package depth
- 265 mm
- Package height
- 54 mm
- Package weight
- 1020 g
- Package width
- 265 mm
- Products per shipping (inner) case
- 1 pc(s)
- Depth
- 244 mm
- Height
- 35 mm
- Width
- 244 mm
- Batteries included
- Yes
- Bundled software
- Norton® Internet Security (OEM version) LAN bandwidth management software
- Screws included
- Yes
- Warranty period
- 3 year(s)
- Model
- B650M D3HP (rev. 1.3)
- Units per Shipping Box
- 10
- Unit Calculated Volume
- 0.004669 cubm
- Unit Calculated Weight
- 1.06 kg
B650M D3HP 1.3
5 Items
Data sheet
- Batteries included
- yes
- RAID levels
- 0/1/10
- Windows operating systems supported
- Windows 10 x64/Windows 11 x64
- Battery technology
- Lithium-Manganese Dioxide (LiMnO2)
- USB 2.0 ports quantity
- 2
- Audio output channels
- 7.1 channels
- Microphone in
- Yes
- Headphone outputs
- 1
- Number of storage drives supported
- 6
- Supported storage drive interfaces
- M.2,SATA III
- Power source type
- ATX
- Ethernet LAN (RJ-45) ports
- 1
- Bundled software
- Norton® Internet Security (OEM version)
LAN bandwidth management software - Battery type
- CR2032
- Country of origin
- China
- Component for
- PC
- Maximum resolution
- 4096 x 2160 pixels
- Ethernet LAN
- Yes
- Ethernet interface type
- 2.5 Gigabit Ethernet
- DirectX version
- 12.0
- HDMI ports quantity
- 1
- RAID support
- Yes
- Wi-Fi
- No
- DisplayPorts quantity
- 2
- HDCP
- Yes
- Compatible processor series
- AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
- Motherboard form factor
- Micro ATX
- Supported memory types
- DDR5-SDRAM
- Processor socket
- Socket AM5
- EPS power connector (8-pin)
- Yes
- Supported processor sockets
- Socket AM5
- Number of battery cells
- 1
- Maximum internal memory
- 256 GB
- Supported storage drive types
- HDD & SSD
- HDMI version
- 2.1
- Category Code
- MBA
- CnCode
- 84733020
- Units per Shipping Box
- 10
- Product colour
- Brown
- Warranty period
- 3 year(s)
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 3
- DisplayPort version
- 1.4
- Screws included
- Yes
- LAN controller
- Realtek RTL8125
- Line-in
- Yes
- Battery weight
- 3 g
- Products per shipping (inner) case
- 1 pc(s)
- Memory channels
- Dual-channel
- Processor manufacturer
- AMD
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 1
- Motherboard chipset
- AMD B650
- Motherboard chipset family
- AMD
- ECC сompatibility
- Non-ECC
- Memory slots type
- DIMM
- Number of memory slots
- 4
- Unbuffered memory
- Yes
- Number of HDDs supported
- 4
- Parallel processing technology support
- Not supported
- 12V power connector
- Yes
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- Number of chassis fan connectors
- 2
- Number of SATA III connectors
- 4
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
- 1st M.2 highest PCI Express generation
- 4.0
- 1st M.2 largest key size
- 2580
- 2nd M.2 highest PCI Express generation
- 4.0
- 2nd M.2 largest key size
- 22110
- Number of M.2 (M) slots
- 2
- PCI Express x16 (Gen 4.x) slots
- 1
- BIOS memory size
- 256 Mbit
- BIOS type
- UEFI AMI
- Audio chip
- Realtek ALC897
- Supported memory clock speed (max)
- 7600 MHz
- RGB LED pin header
- Yes
- PC health monitoring
- Fan/Temperature/Voltage
- Number of CPU fan connectors
- 1
- Number of EPS power connectors (8-pin)
- 1
- TPM connector
- Yes
- PS/2 ports quantity
- 1
- PCI Express x1 (Gen 3.x) slots
- 1
- Clear CMOS jumper
- Yes
- Supported memory clock speeds
- 4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600 MHz
- ACPI version
- 5.0
- Desktop Management Interface (DMI) version
- 2.7
- System Management BIOS (SMBIOS) version
- 2.7
- Lithium weight per battery
- 0.07 g
- Discrete graphics support
- Yes
- Maximum internal memory per slot
- 64 GB
- Number of RGB LED pin headers
- 3
Specific References
- EAN13
- 4719331857851
- MPN
- B650M D3HP 1.3
