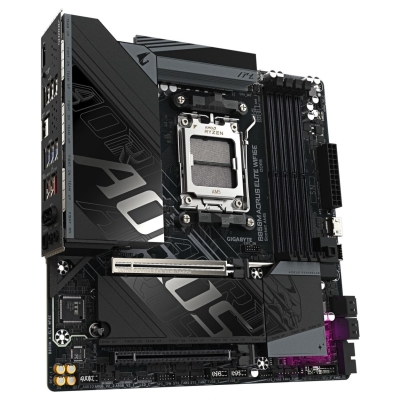

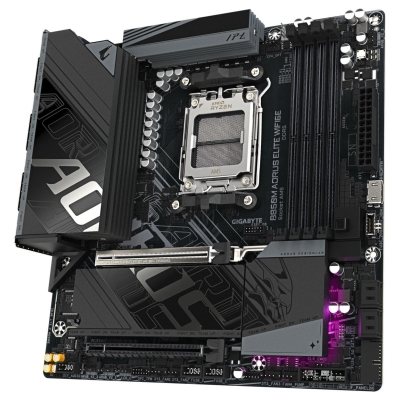

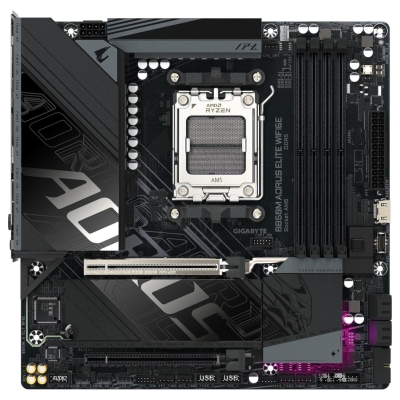

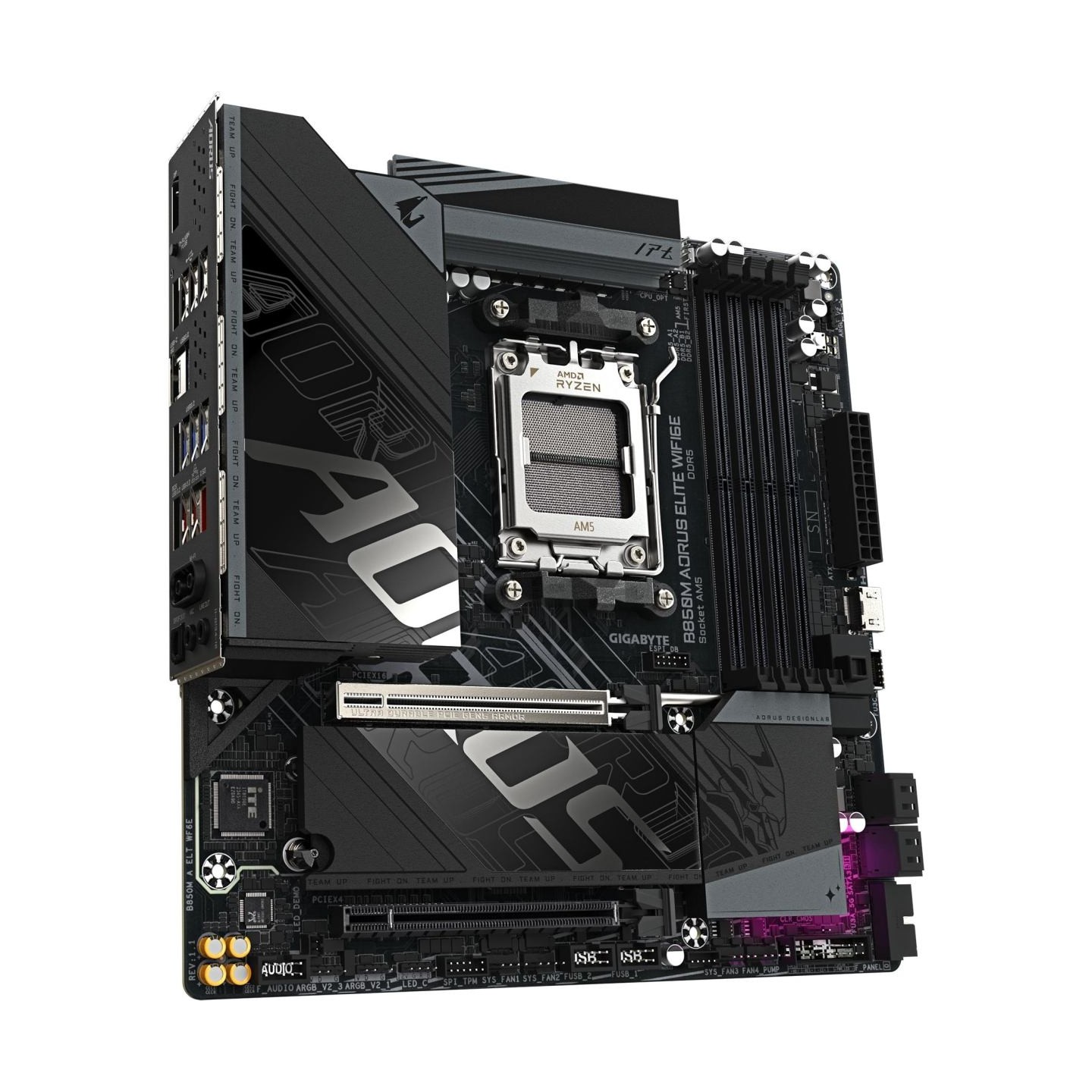

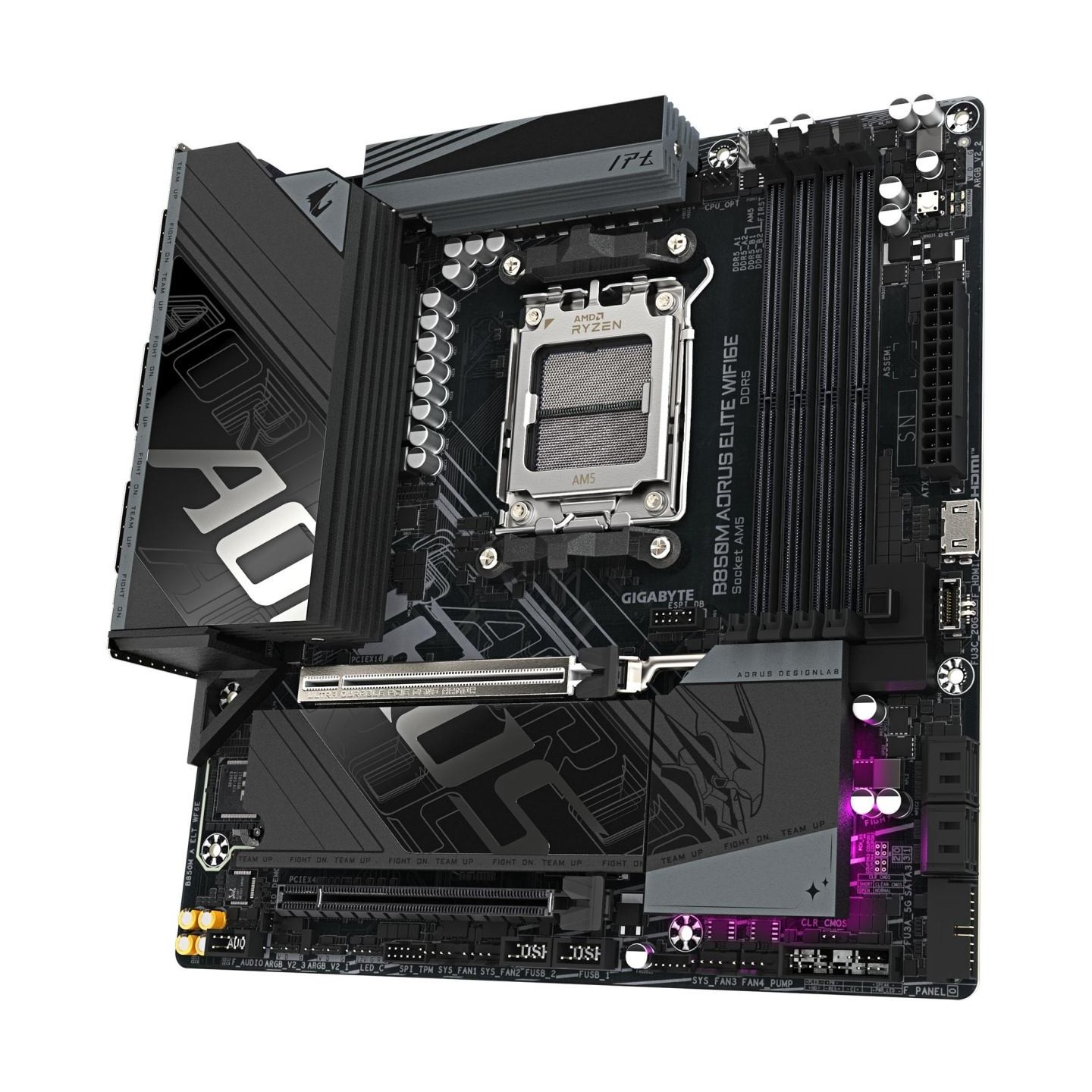

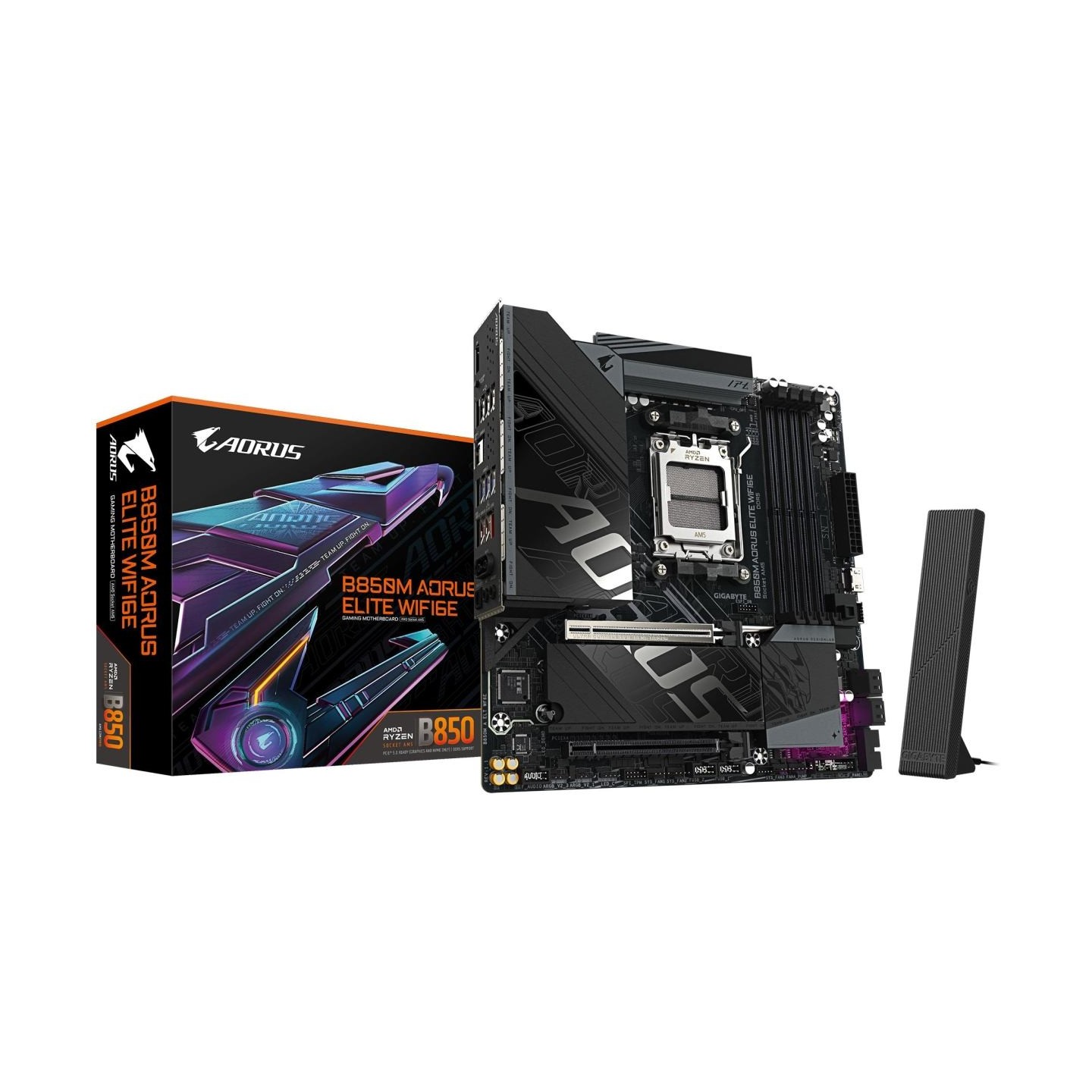

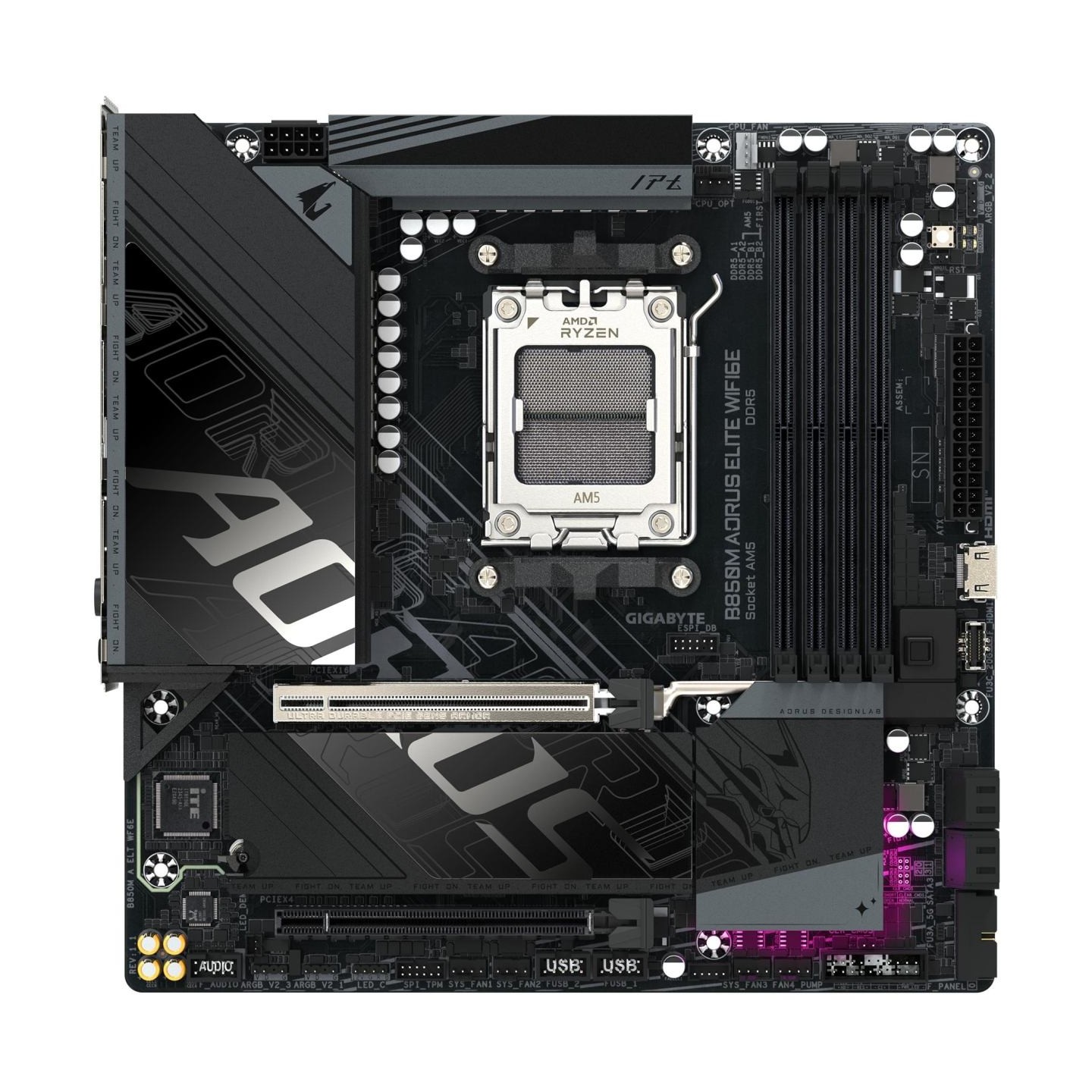

Gigabyte Mainboard|GIGABYTE|AMD B850|Socket AM5|micro ATX|RAM DDR5-SDRAM|4xSlots|Wi-Fi Yes|Bluetooth Yes|2xNumber of M.2 (M) slo
- Write a review
€247.00
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout

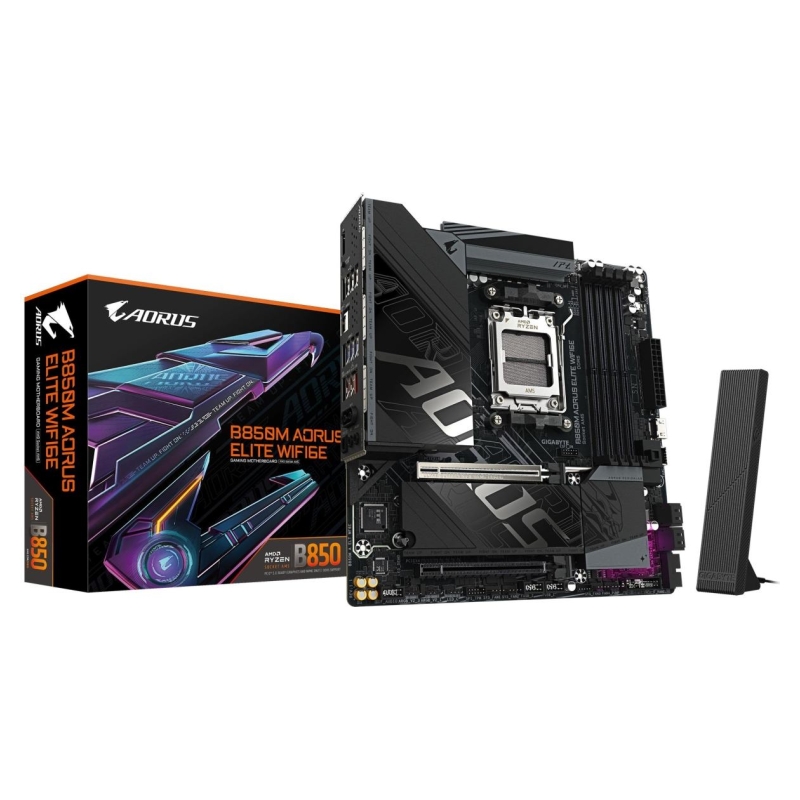

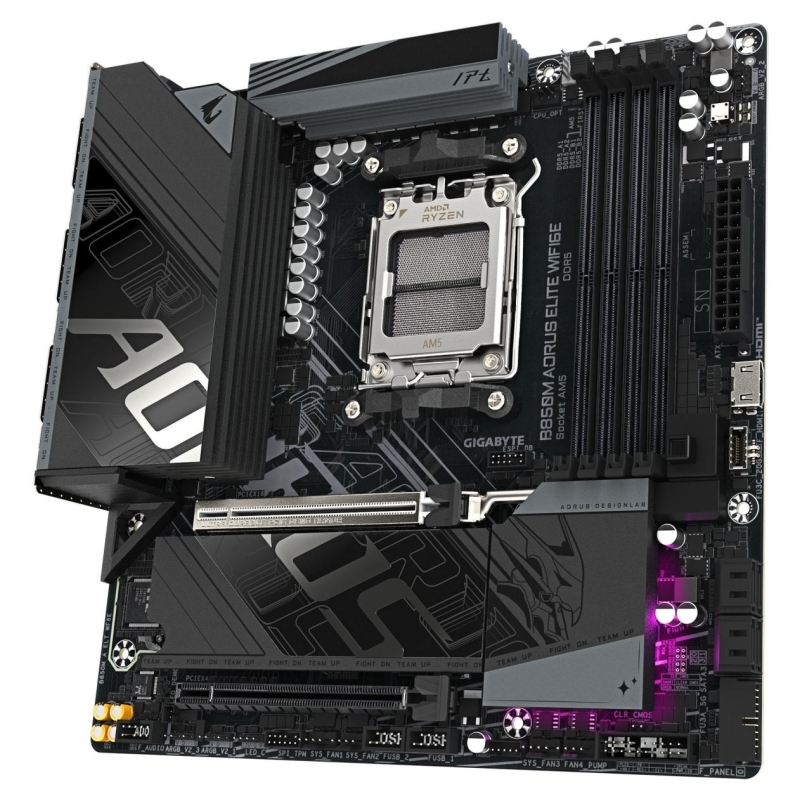

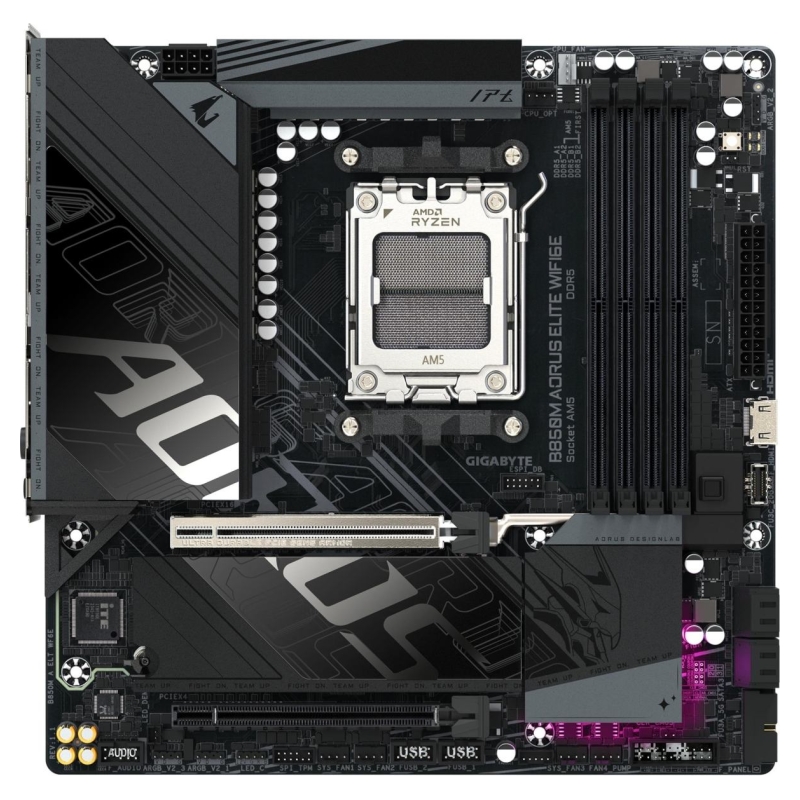

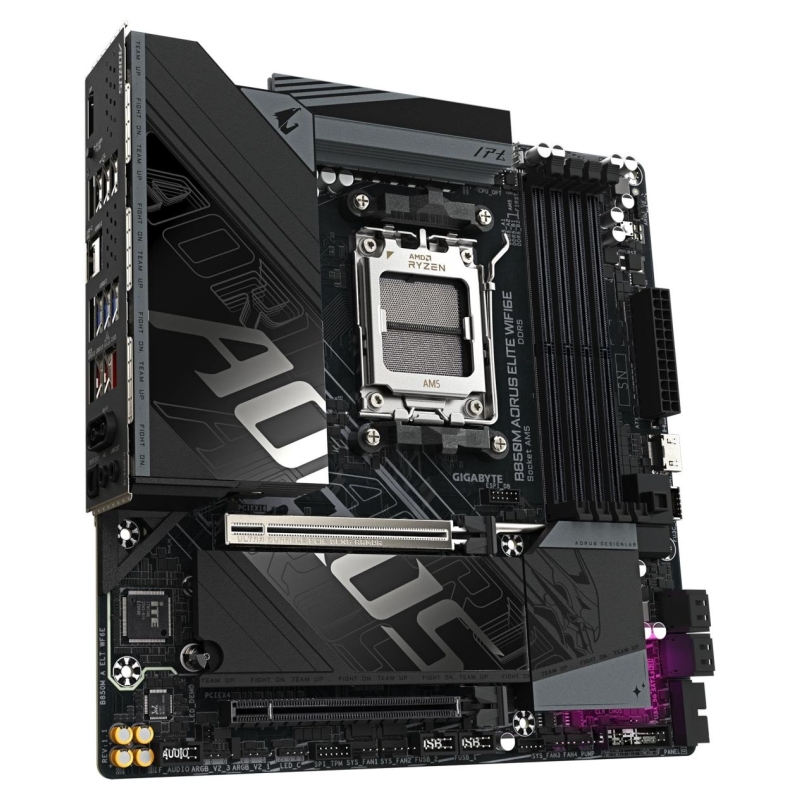

GIGABYTE B850M AORUS ELITE WIFI6E
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- X3D Turbo Mode : Unleash new era gaming performance
- DDR5 OC up to 8200MT/s
- AMD Socket AM5 : Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
- Digital twin 12+2+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with AMD EXPO Memory Module Support
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- Ultra-Fast Storage : 2*M.2 slots, including PCIe 5.0 x4
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
- Fast Networking : 2.5GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna

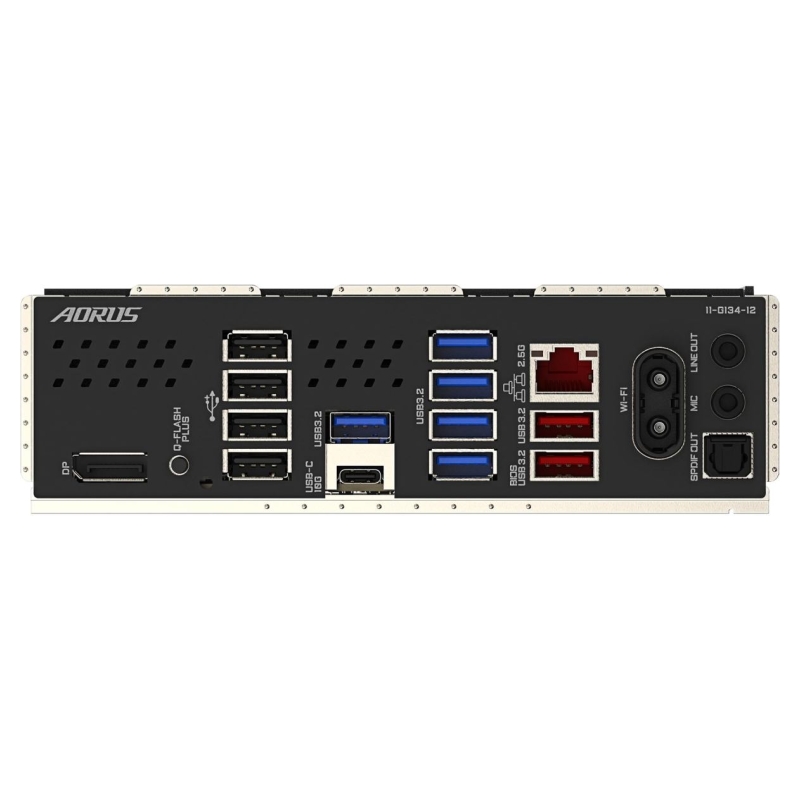

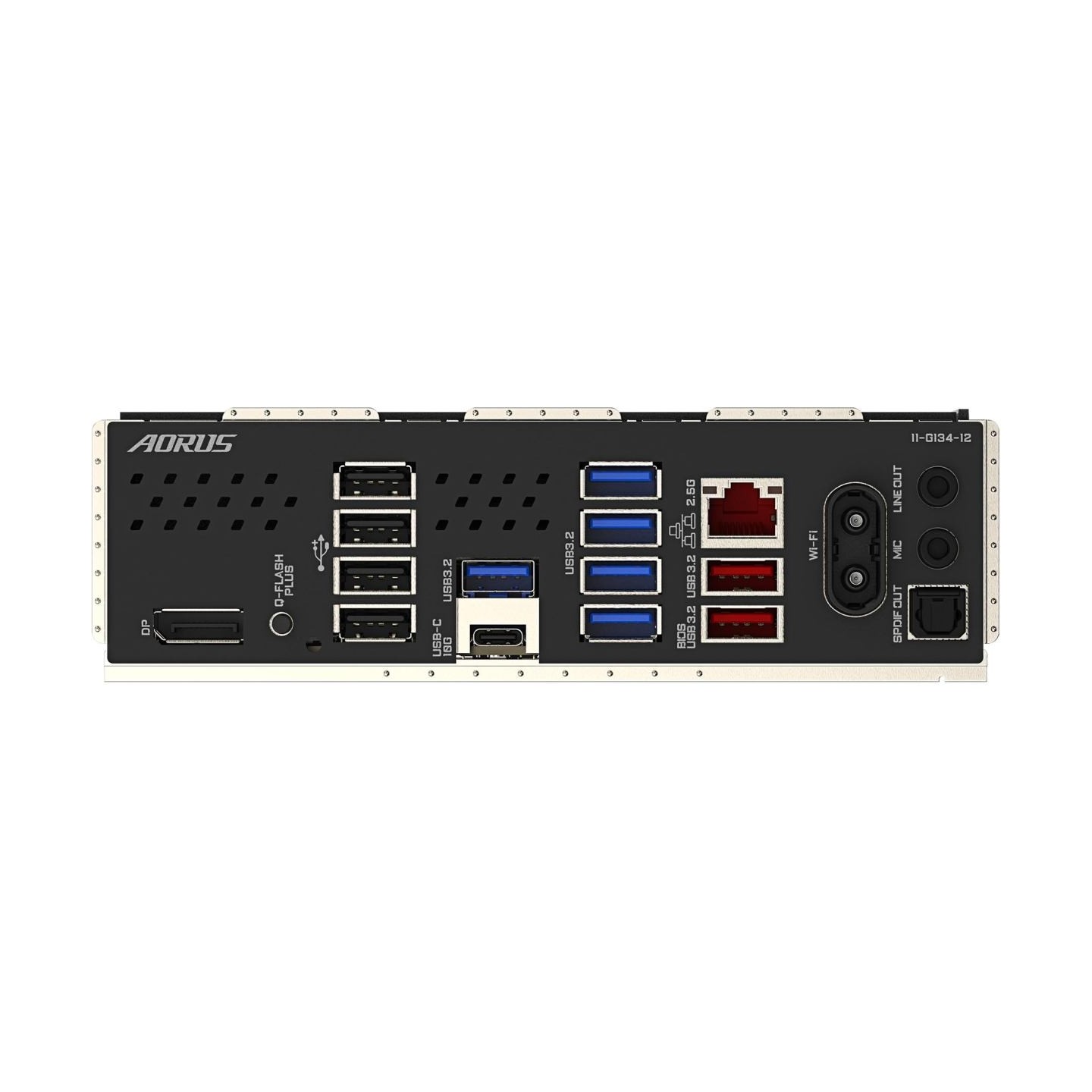

- Extended Connectivity : HDMI,Displayport
- PCIe UD Slot : PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
Manufacturer Website:
https://www.gigabyte.com/Motherboard/B850M-AORUS-ELITE-WIFI6E-rev-1x
- Category Code
- MBA
- CnCode
- 84733020
- Unit Box Height
- 0.07
- Unit Box Length
- 0.27
- Unit Box Width
- 0.27
- Audio chip
- Realtek ALC1220-VB
- Audio output channels
- 7.1 channels
- Component for
- PC
- Cooling type
- Passive
- Motherboard chipset
- AMD B850
- Motherboard chipset family
- AMD
- Motherboard form factor
- micro ATX
- PC health monitoring
- Fan/Temperature/Voltage/Water cooling
- Power source type
- ATX
- Product colour
- Black
- Windows operating systems supported
- Windows 10 x64/Windows 11 x64
- Compatible processor series
- AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
- Processor manufacturer
- AMD
- Processor socket
- Socket AM5
- Supported processor sockets
- Socket AM5
- ECC сompatibility
- Non-ECC
- Maximum internal memory
- 256 GB
- Maximum internal memory per slot
- 64 GB
- Memory channels
- Dual-channel
- Memory slots type
- DIMM
- Number of memory slots
- 4
- Supported memory clock speed (max)
- 8200 MHz
- Supported memory clock speeds
- 4400/4800/5200/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200 MHz
- Supported memory types
- DDR5-SDRAM
- Unbuffered memory
- Yes
- Number of HDDs supported
- 4
- Number of storage drives supported
- 6
- RAID levels
- 0/1/10
- RAID support
- Yes
- Supported storage drive interfaces
- M.2,PCI Express 4.0,PCI Express 5.0,SATA III
- Supported storage drive types
- HDD & SSD
- DirectX version
- 12.0
- Maximum resolution
- 3840 x 2160 pixels
- Parallel processing technology support
- Not supported
- 12V power connector
- Yes
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- EPS power connector (8-pin)
- Yes
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- Number of chassis fan connectors
- 4
- Number of CPU fan connectors
- 2
- Number of EPS power connectors (8-pin)
- 1
- Number of RGB LED pin headers
- 4
- Number of SATA III connectors
- 4
- Number of water pump connectors
- 2
- RGB LED pin header
- Yes
- TPM connector
- Yes
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- USB 3.2 Gen 2x2 connectors
- 1
- Digital audio optical out
- 1
- DisplayPort version
- 1.4
- DisplayPorts quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 1
- HDMI version
- 1.4
- Headphone outputs
- 1
- Line-in
- Yes
- S/PDIF out port
- Yes
- USB 2.0 ports quantity
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 5
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- WiFi-AP antenna jack
- 2
- Bluetooth
- Yes
- Bluetooth version
- 5.3
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Ethernet LAN
- Yes
- LAN controller
- Realtek RTL8125
- Top Wi-Fi standard
- Wi-Fi 6E (802.11ax)
- Wi-Fi
- Yes
- Wi-Fi standards
- 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
- WLAN controller model
- Realtek RTL8852CE
- 1st M.2 highest PCI Express generation
- 5.0
- 1st M.2 largest key size
- 25110
- 2nd M.2 highest PCI Express generation
- 4.0
- 2nd M.2 largest key size
- 22110
- Number of M.2 (M) slots
- 2
- PCI Express x16 (Gen 3.x) slots
- 1
- PCI Express x16 (Gen 5.x) slots
- 1
- ACPI version
- 5.0
- BIOS memory size
- 256 Mbit
- BIOS type
- UEFI AMI
- Clear CMOS jumper
- Yes
- Desktop Management Interface (DMI) version
- 2.7
- System Management BIOS (SMBIOS) version
- 2.7
- Battery technology
- Lithium-Manganese Dioxide (LiMnO2)
- Battery type
- CR2032
- Battery weight
- 3 g
- Lithium weight per battery
- 0.07 g
- Number of battery cells
- 1
- Package depth
- 268 mm
- Package height
- 68 mm
- Package weight
- 1972.5 g
- Package width
- 270 mm
- Products per shipping (inner) case
- 1 pc(s)
- Depth
- 244 mm
- Height
- 35 mm
- Width
- 244 mm
- Antenna included
- Yes
- Batteries included
- Yes
- Bundled software
- Norton® Internet Security (OEM version) LAN bandwidth management software
- Screws included
- Yes
- Warranty period
- 3 year(s)
- Weight
- 1780 g
- Model
- B850M AORUS ELITE WIFI6E (rev. 1.x)
- Units per Shipping Box
- 8
- Unit Calculated Volume
- 0.006549 cubm
- Unit Calculated Weight
- 1.96 kg
B850M A ELT WF6E 1.1
3 Items
Data sheet
- Batteries included
- yes
- Bluetooth
- Yes
- RAID levels
- 0/1/10
- Windows operating systems supported
- Windows 10 x64/Windows 11 x64
- Battery technology
- Lithium-Manganese Dioxide (LiMnO2)
- USB 2.0 ports quantity
- 4
- Audio output channels
- 7.1 channels
- Headphone outputs
- 1
- Number of storage drives supported
- 6
- Supported storage drive interfaces
- M.2,PCI Express 4.0,PCI Express 5.0,SATA III
- Power source type
- ATX
- Ethernet LAN (RJ-45) ports
- 1
- Wi-Fi standards
- 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
- Bundled software
- Norton® Internet Security (OEM version)
LAN bandwidth management software - Battery type
- CR2032
- Cooling type
- Passive
- Component for
- PC
- Maximum resolution
- 3840 x 2160 pixels
- Ethernet LAN
- Yes
- Ethernet interface type
- 2.5 Gigabit Ethernet
- DirectX version
- 12.0
- HDMI ports quantity
- 1
- RAID support
- Yes
- Wi-Fi
- Yes
- DisplayPorts quantity
- 1
- Bluetooth version
- 5.3
- Compatible processor series
- AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
- Motherboard form factor
- Micro ATX
- Supported memory types
- DDR5-SDRAM
- Processor socket
- Socket AM5
- EPS power connector (8-pin)
- Yes
- Supported processor sockets
- Socket AM5
- Number of battery cells
- 1
- Maximum internal memory
- 256 GB
- Supported storage drive types
- HDD & SSD
- HDMI version
- 1.4
- Category Code
- MBA
- CnCode
- 84733020
- Units per Shipping Box
- 8
- Product colour
- Black
- Warranty period
- 3 year(s)
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 5
- DisplayPort version
- 1.4
- Screws included
- Yes
- Top Wi-Fi standard
- Wi-Fi 6E (802.11ax)
- LAN controller
- Realtek RTL8125
- Line-in
- Yes
- Battery weight
- 3 g
- Products per shipping (inner) case
- 1 pc(s)
- Memory channels
- Dual-channel
- Processor manufacturer
- AMD
- Antenna included
- Yes
- Motherboard chipset
- AMD B850
- Motherboard chipset family
- AMD
- ECC сompatibility
- Non-ECC
- Memory slots type
- DIMM
- Number of memory slots
- 4
- Unbuffered memory
- Yes
- Number of HDDs supported
- 4
- Parallel processing technology support
- Not supported
- 12V power connector
- Yes
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- Number of chassis fan connectors
- 4
- Number of SATA III connectors
- 4
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- S/PDIF out port
- Yes
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 2
- WiFi-AP antenna jack
- 2
- 1st M.2 highest PCI Express generation
- 5.0
- 1st M.2 largest key size
- 25110
- 2nd M.2 highest PCI Express generation
- 4.0
- 2nd M.2 largest key size
- 22110
- Number of M.2 (M) slots
- 2
- PCI Express x16 (Gen 5.x) slots
- 1
- BIOS memory size
- 256 Mbit
- BIOS type
- UEFI AMI
- Audio chip
- Realtek ALC1220-VB
- Supported memory clock speed (max)
- 8200 MHz
- RGB LED pin header
- Yes
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- Digital audio optical out
- 1
- PC health monitoring
- Fan/Temperature/Voltage/Water cooling
- Number of CPU fan connectors
- 2
- Number of EPS power connectors (8-pin)
- 1
- TPM connector
- Yes
- Clear CMOS jumper
- Yes
- Supported memory clock speeds
- 4400/4800/5200/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200 MHz
- PCI Express x16 (Gen 3.x) slots
- 1
- ACPI version
- 5.0
- Desktop Management Interface (DMI) version
- 2.7
- System Management BIOS (SMBIOS) version
- 2.7
- Lithium weight per battery
- 0.07 g
- Maximum internal memory per slot
- 64 GB
- Number of RGB LED pin headers
- 4
- WLAN controller model
- Realtek RTL8852CE
- Number of water pump connectors
- 2
- USB 3.2 Gen 2x2 connectors
- 1
Specific References
- EAN13
- 4719331871123
- MPN
- B850M A ELT WF6E 1.1
