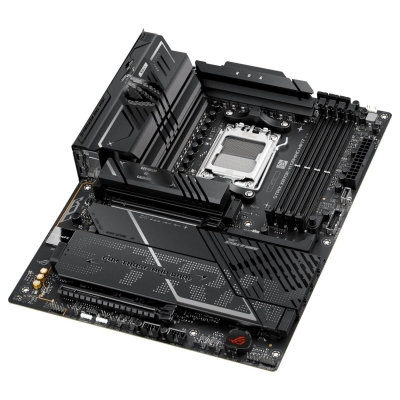

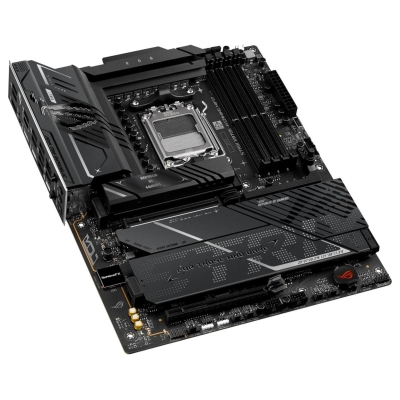

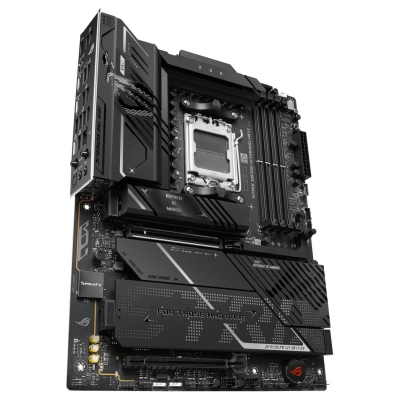

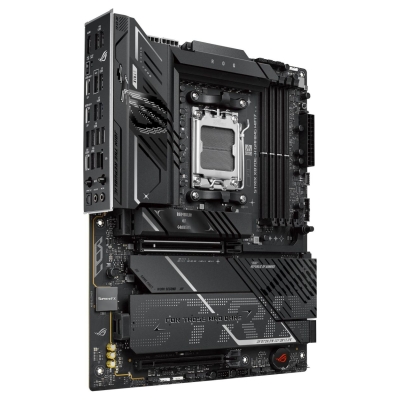

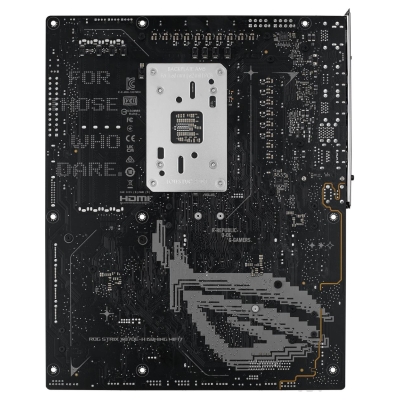

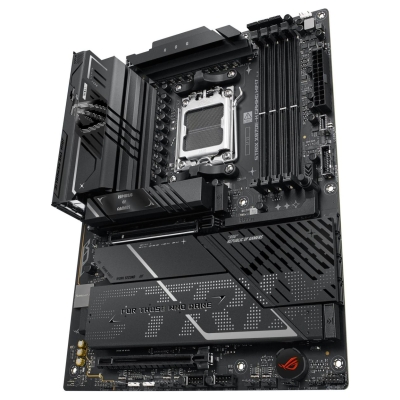

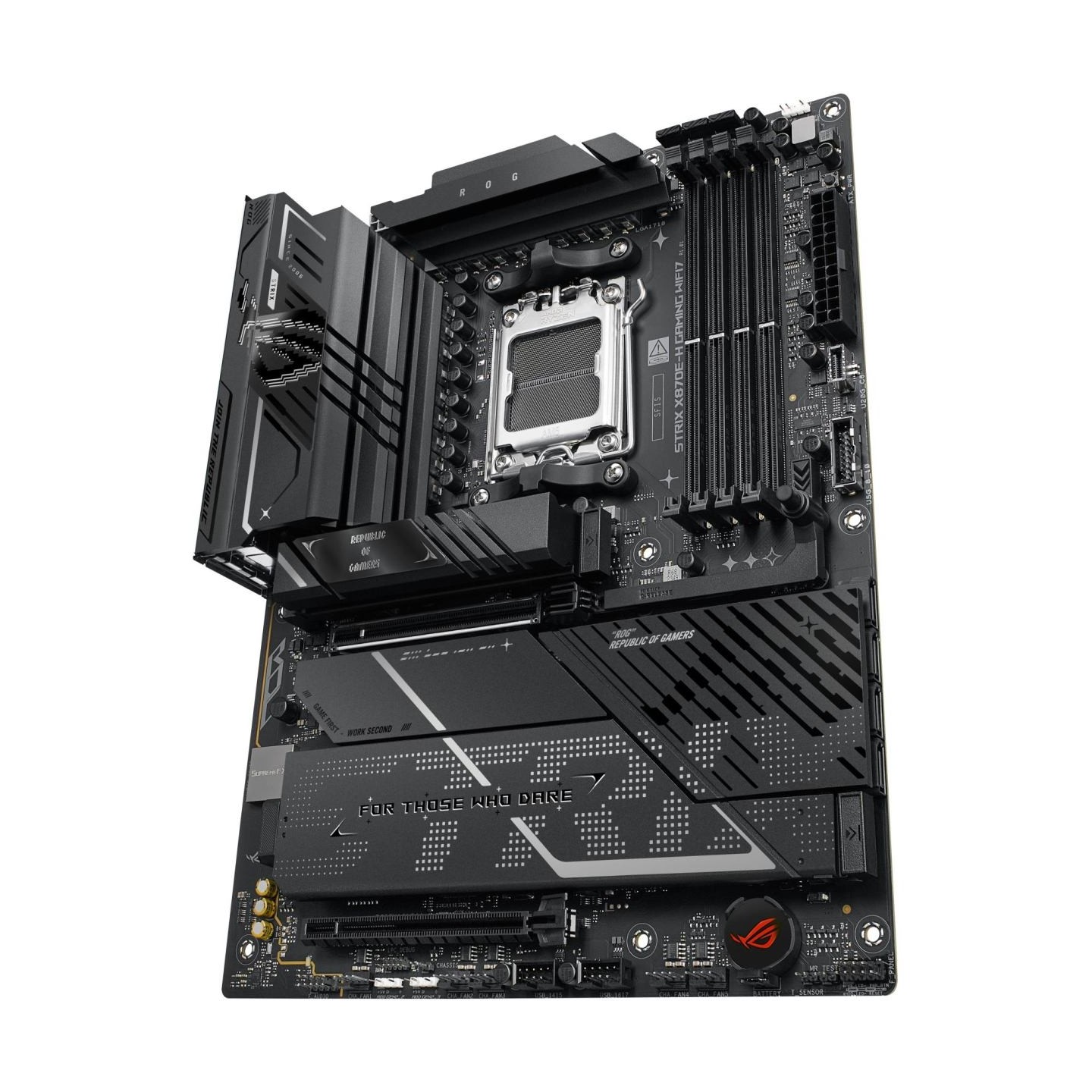

Asus Mainboard|ASUS|AMD X870E|SAM5|ATX|Memory DDR5|Memory slots 4|STRIXX870E-HGAMWIFI7
- Write a review
€441.46
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout

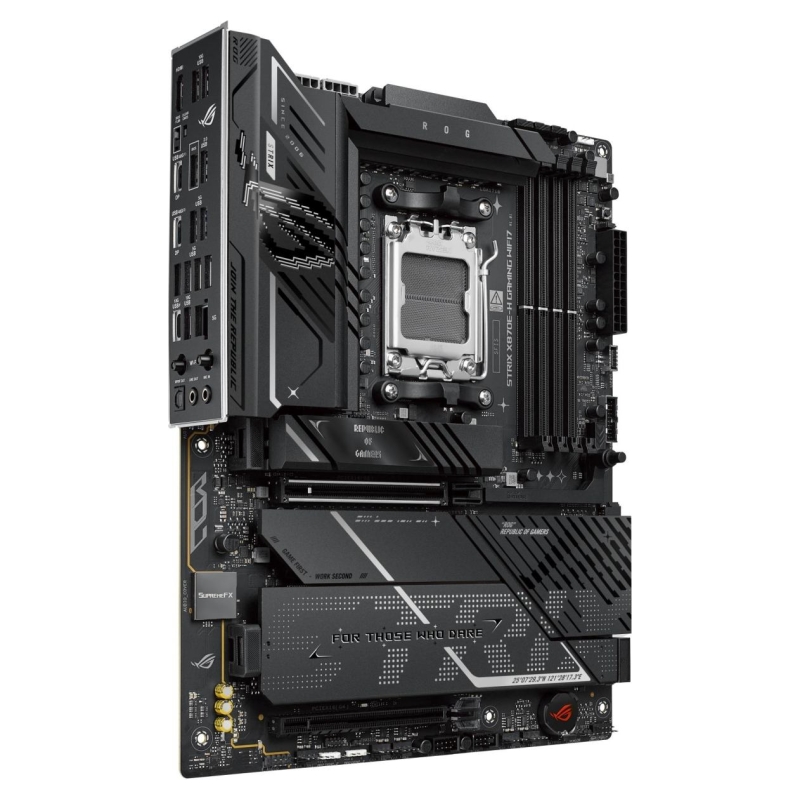

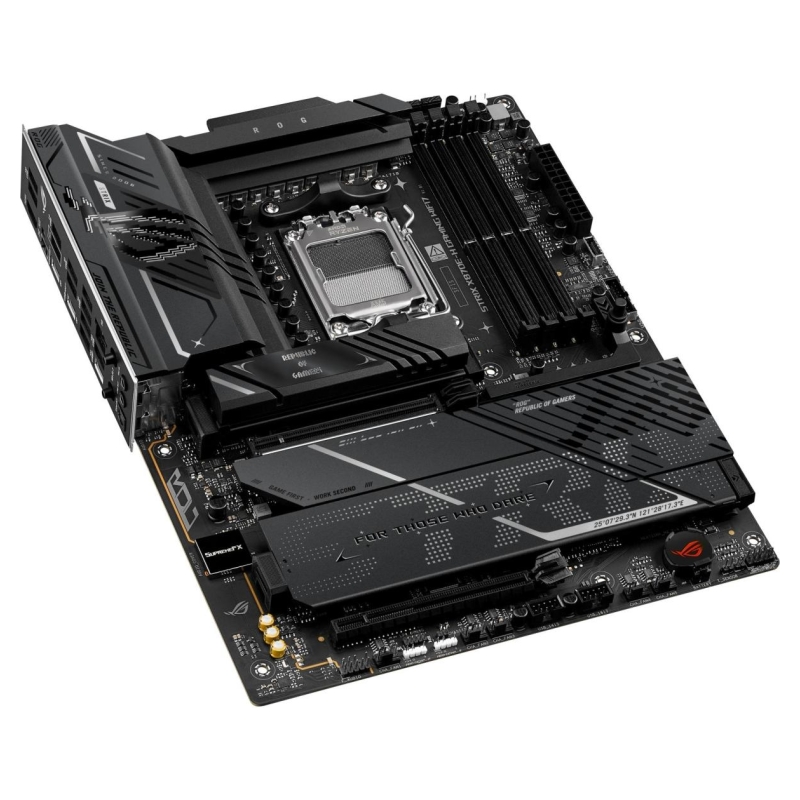

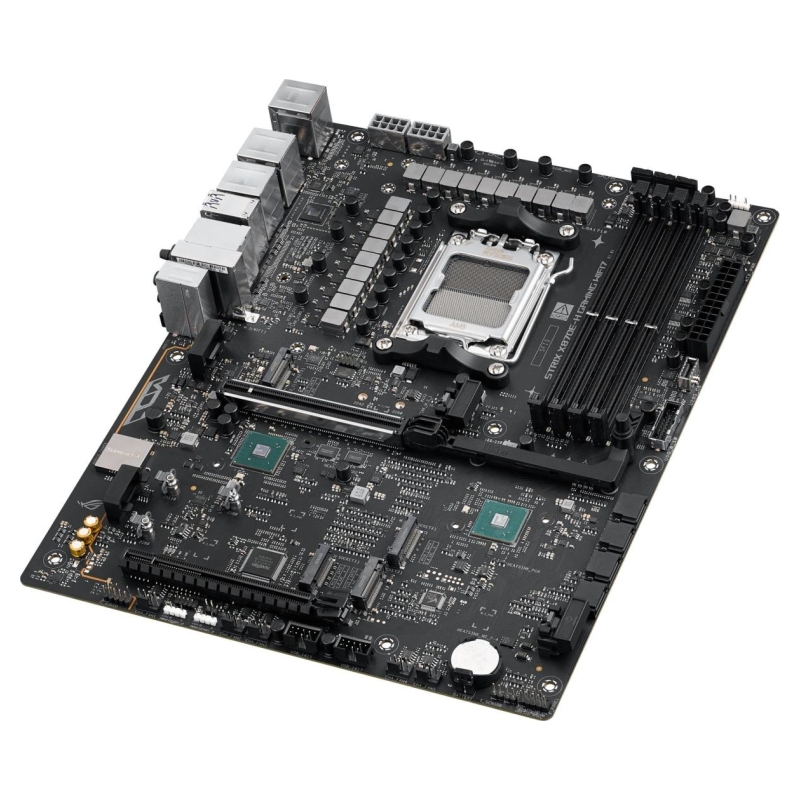

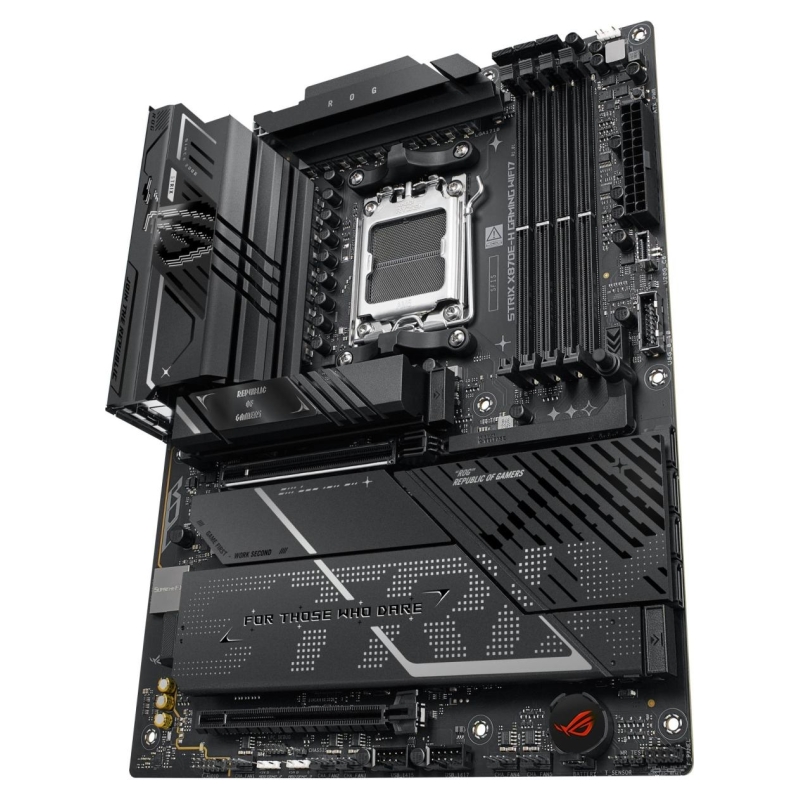

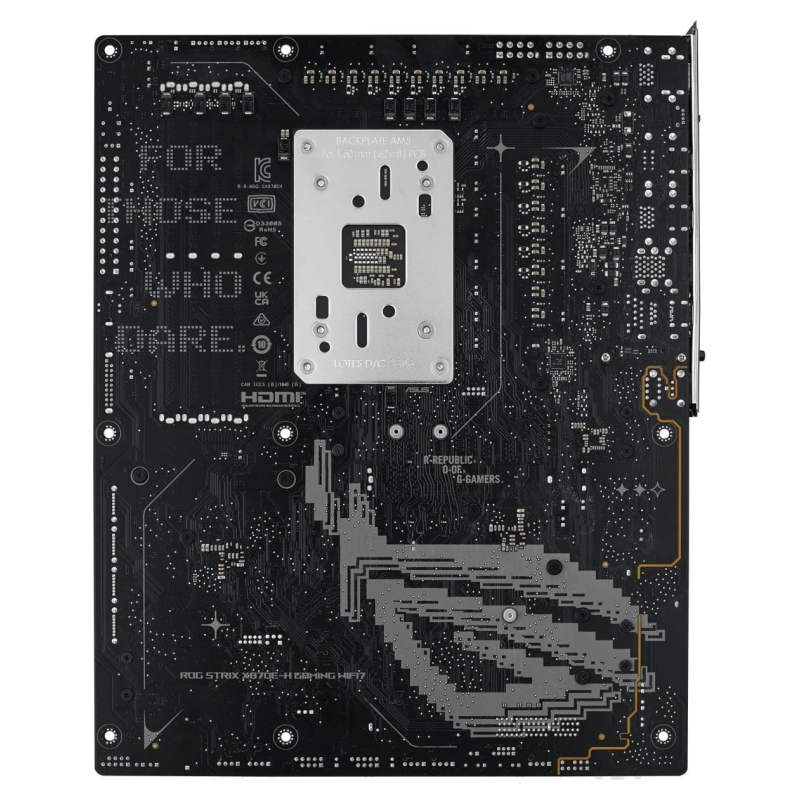

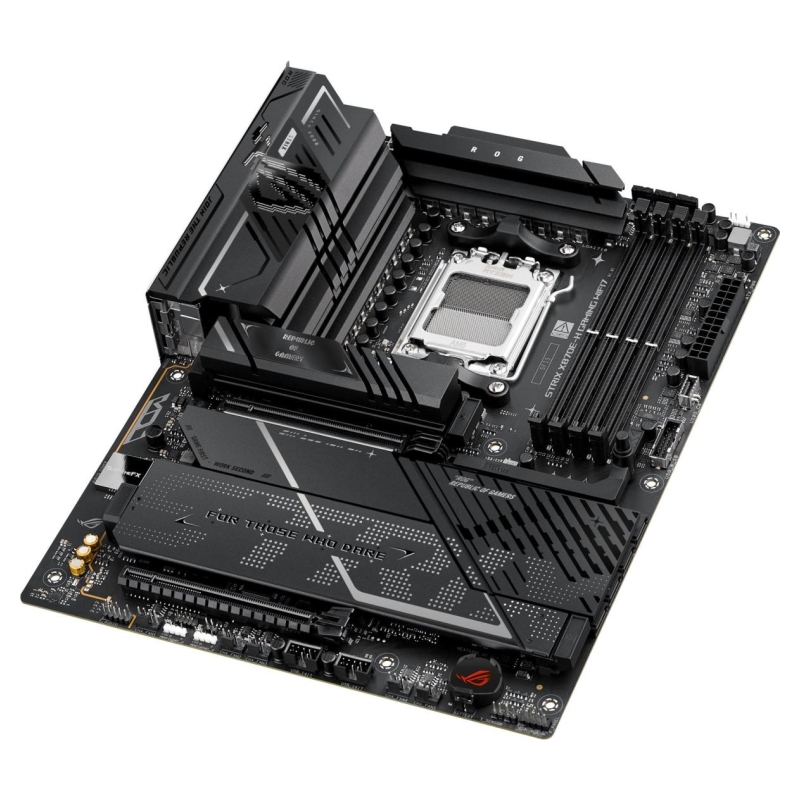

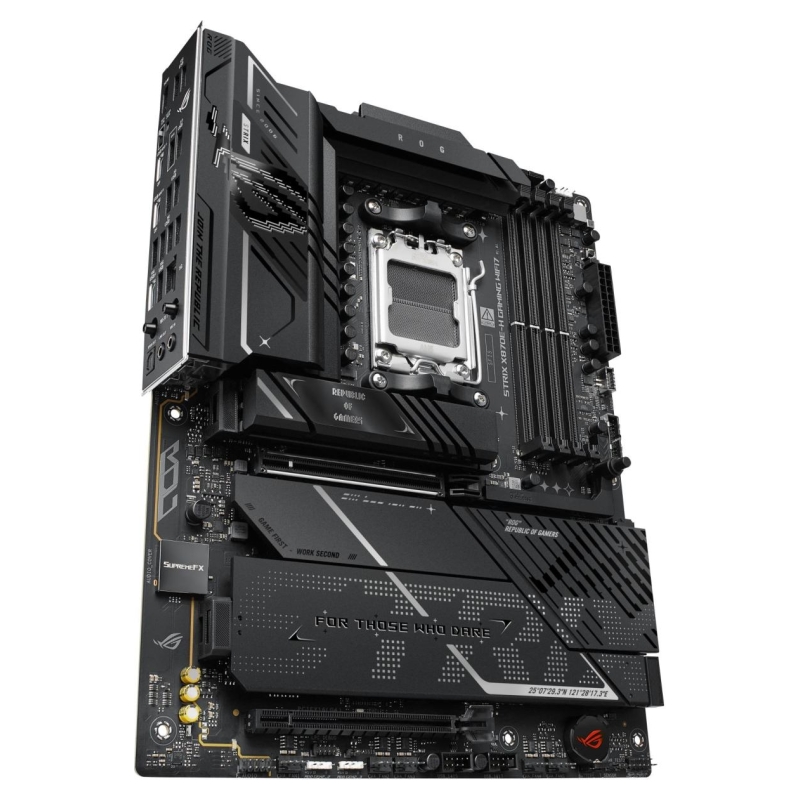

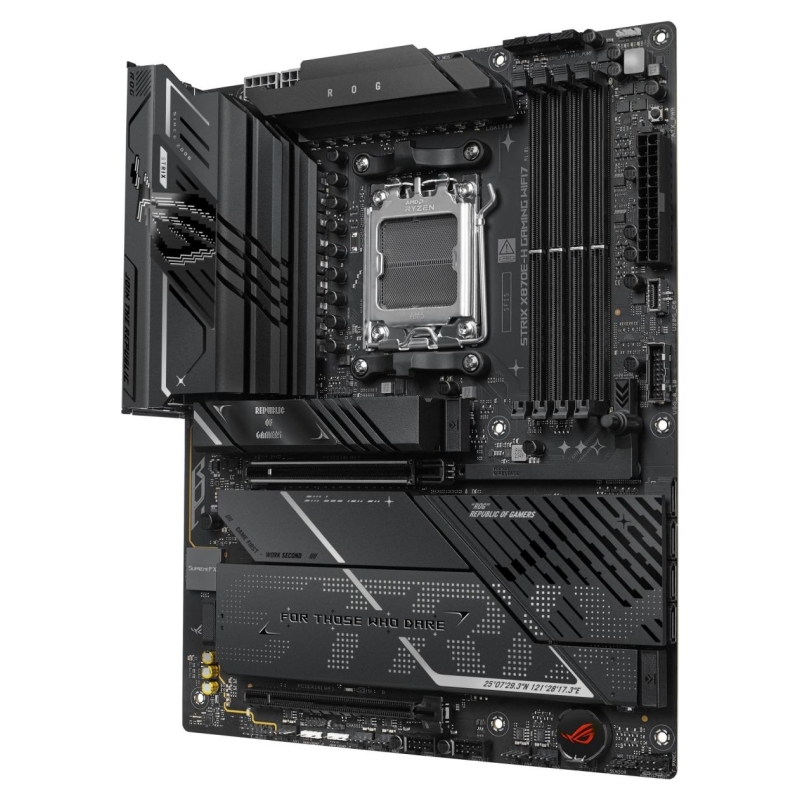

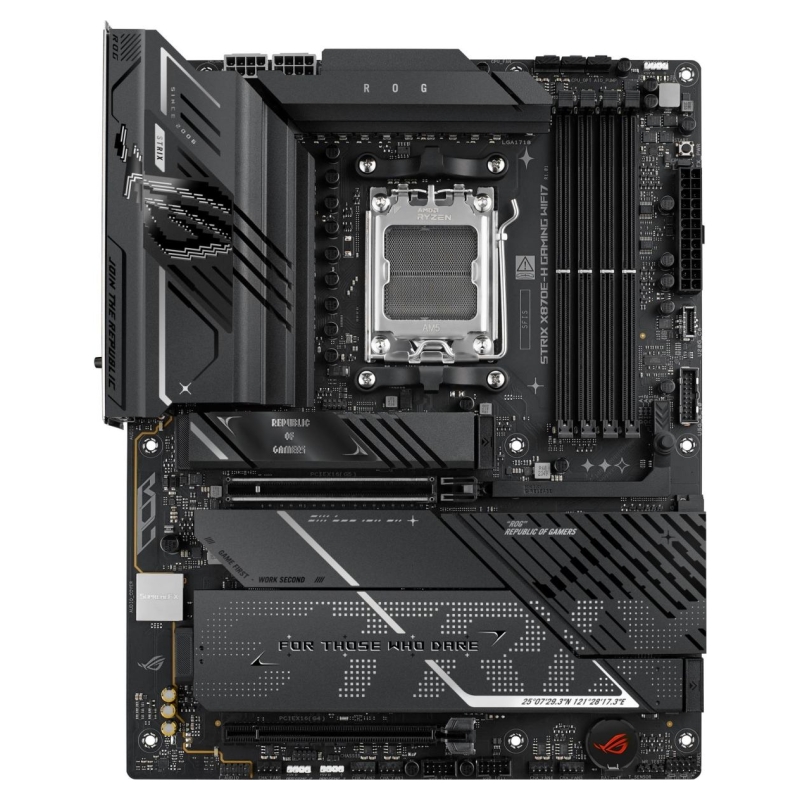

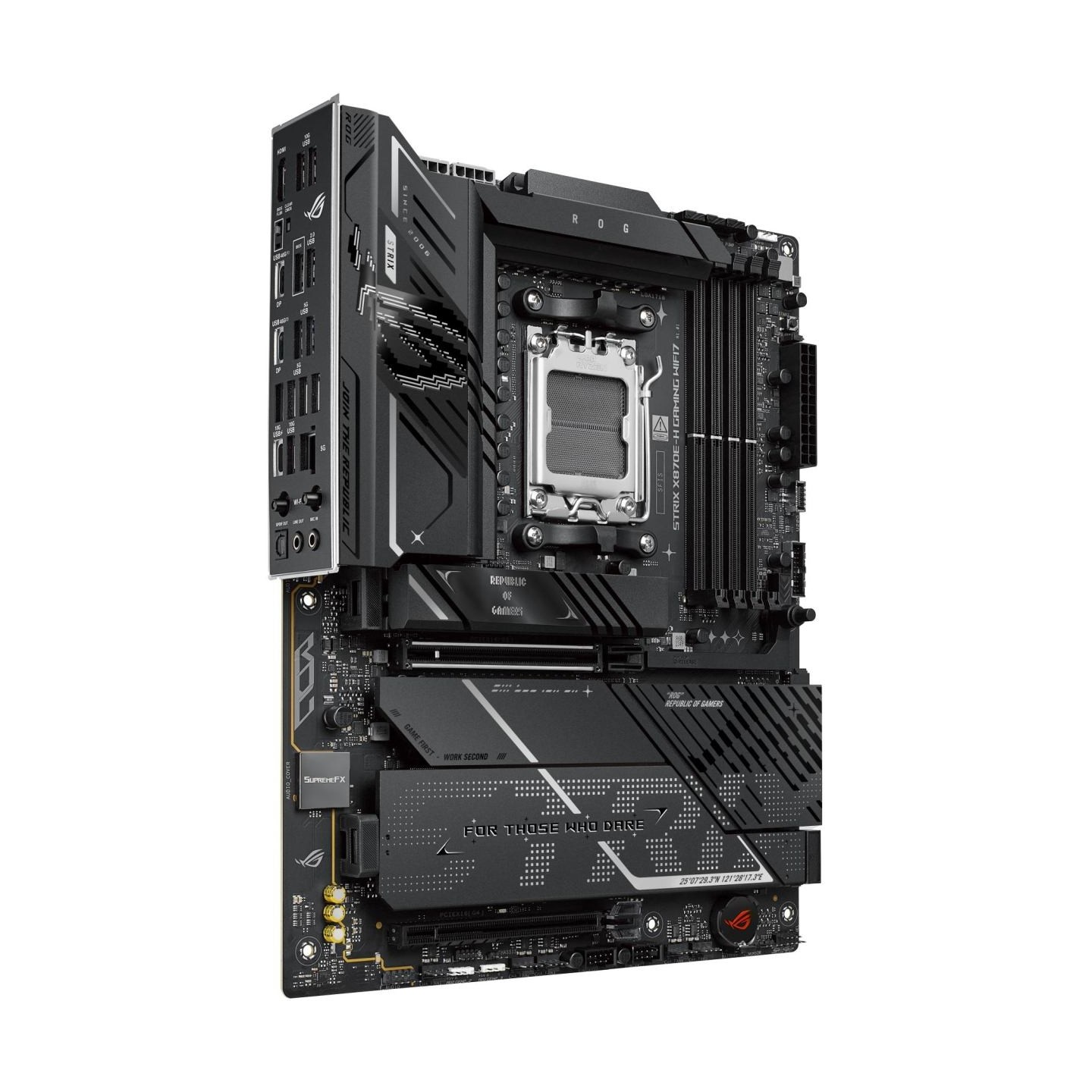

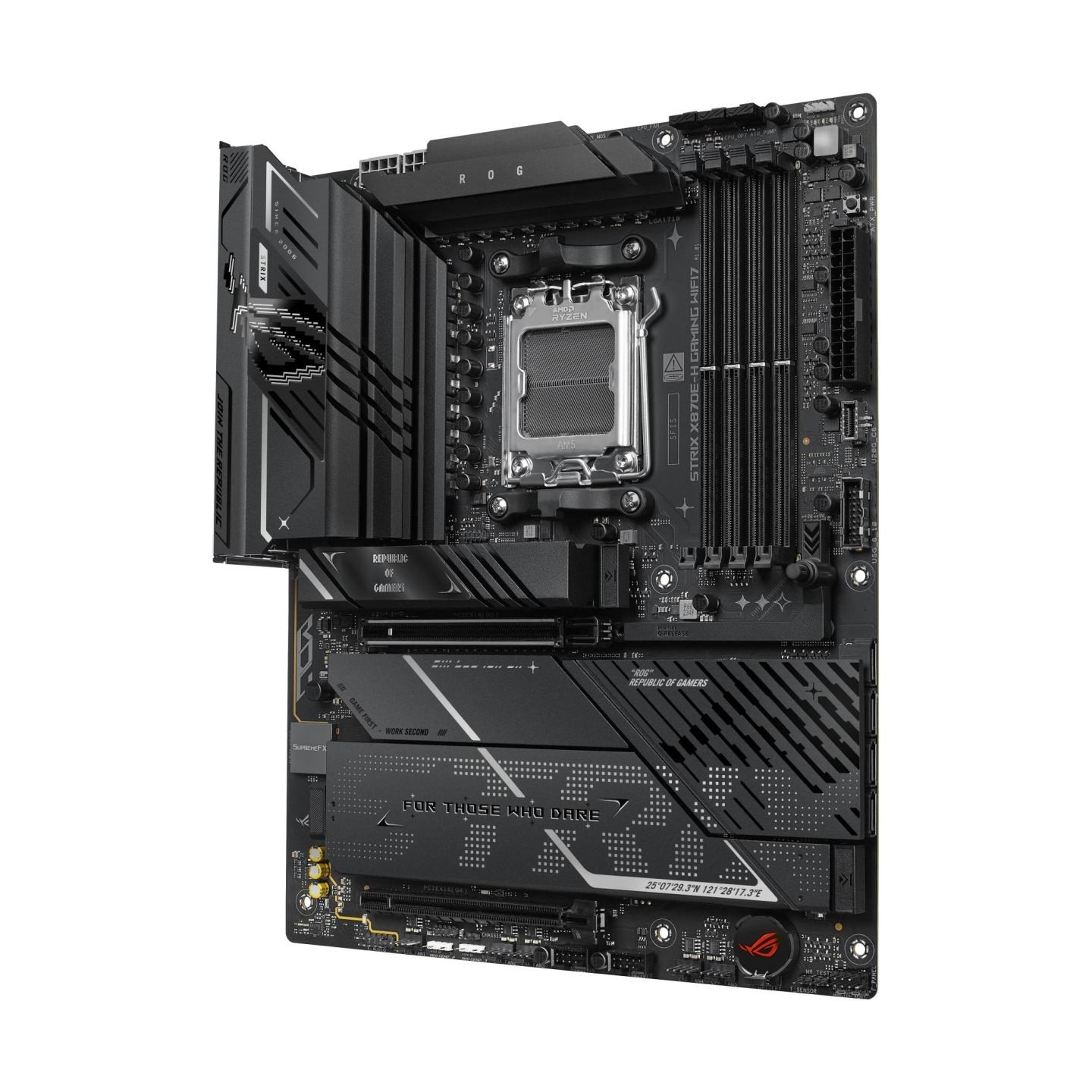

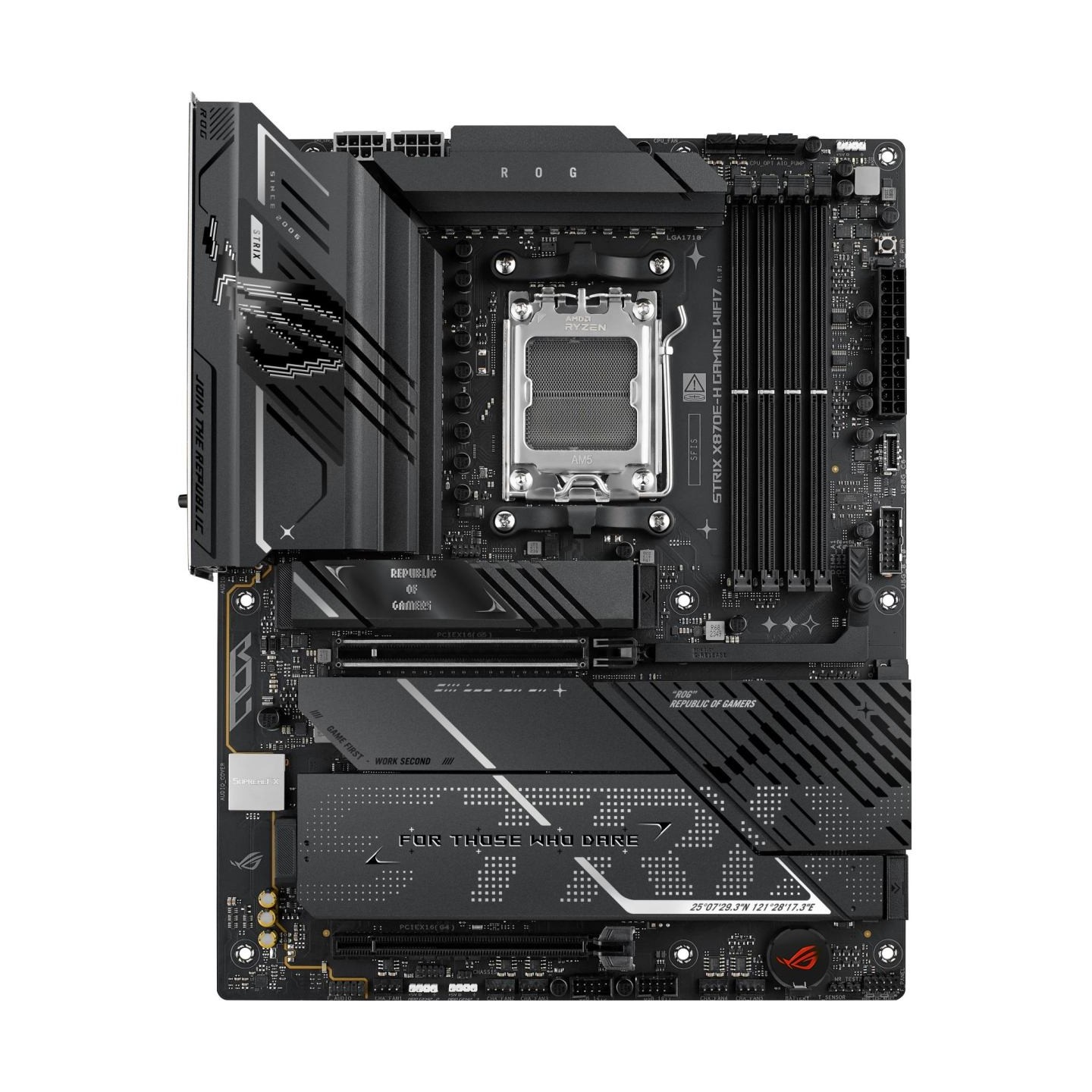

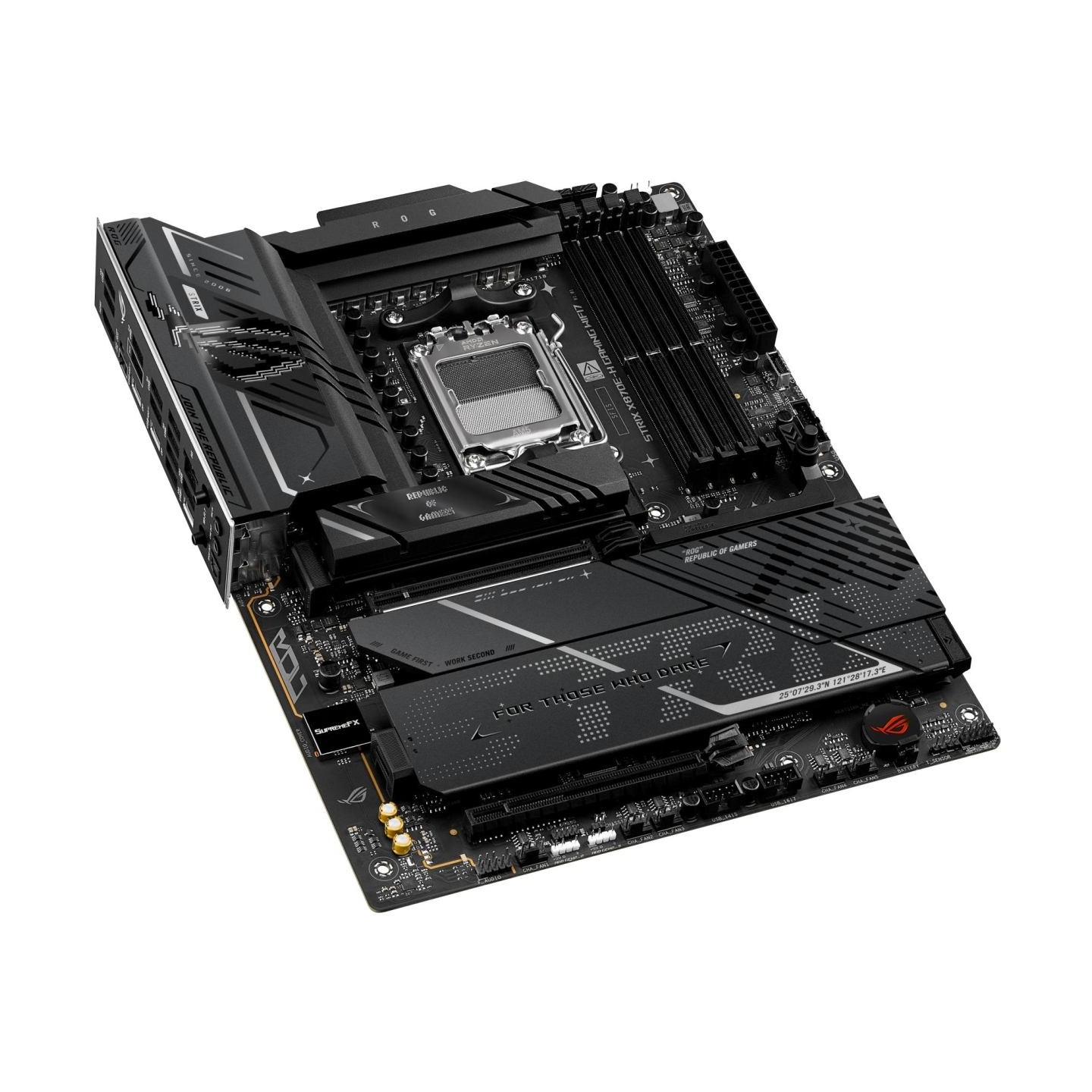

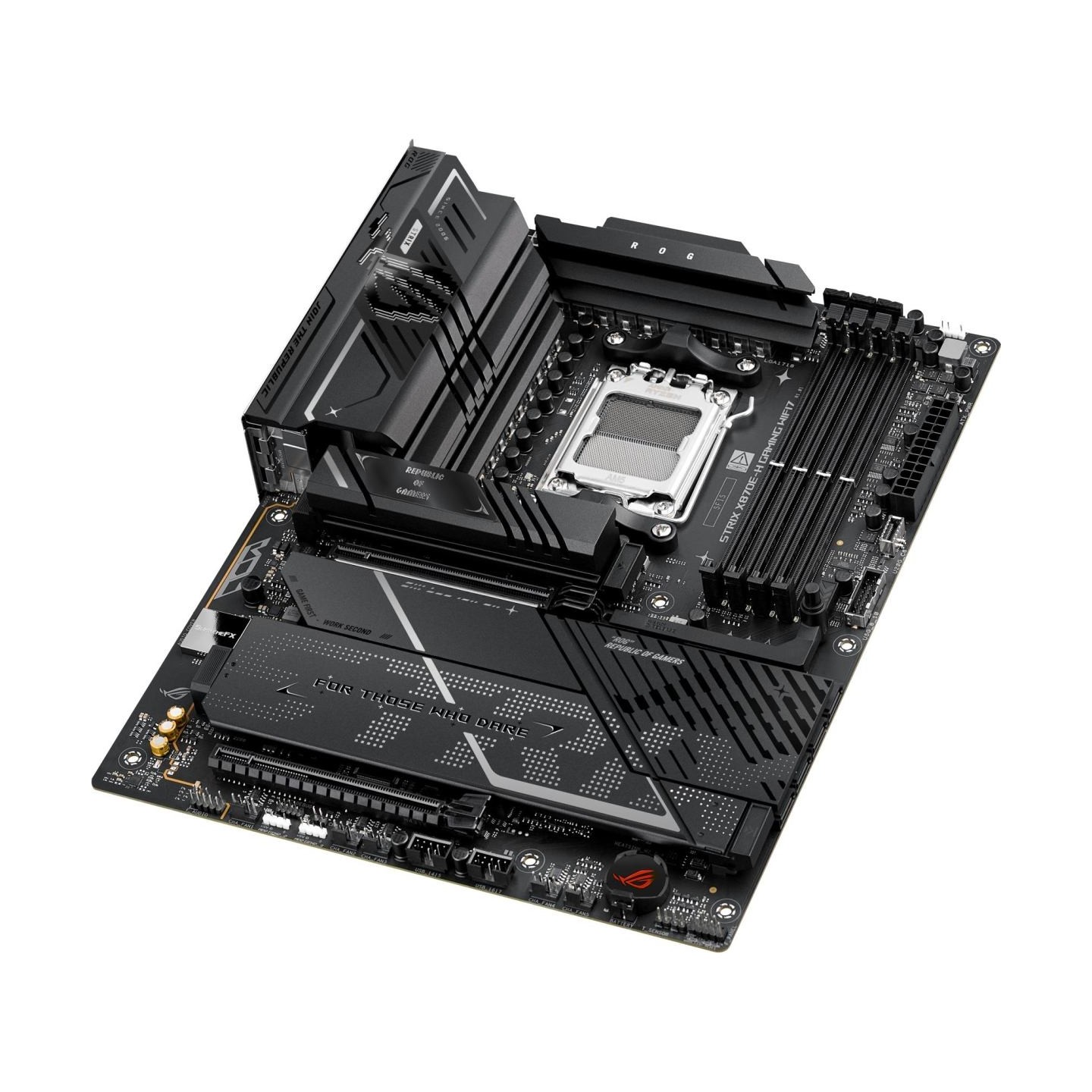

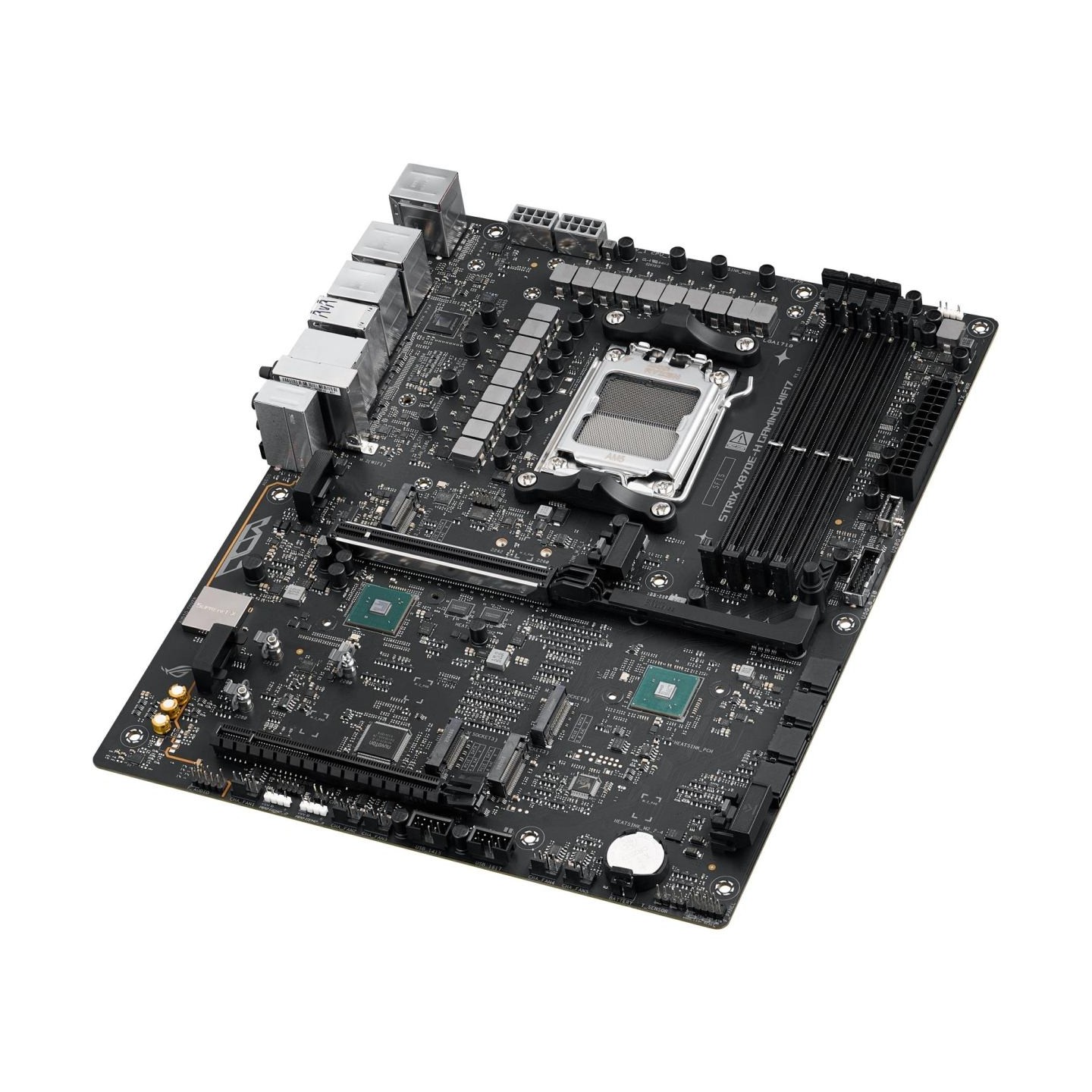

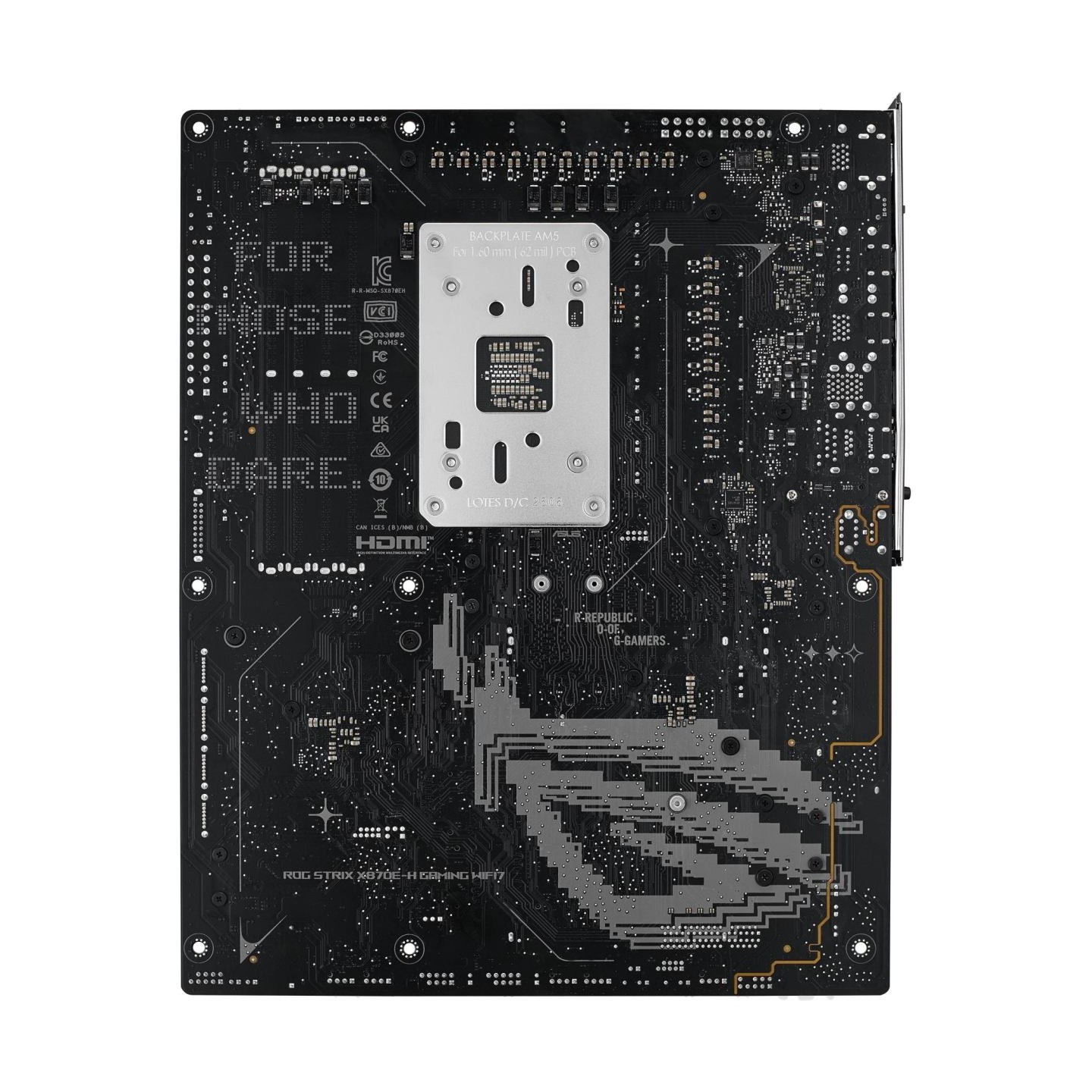

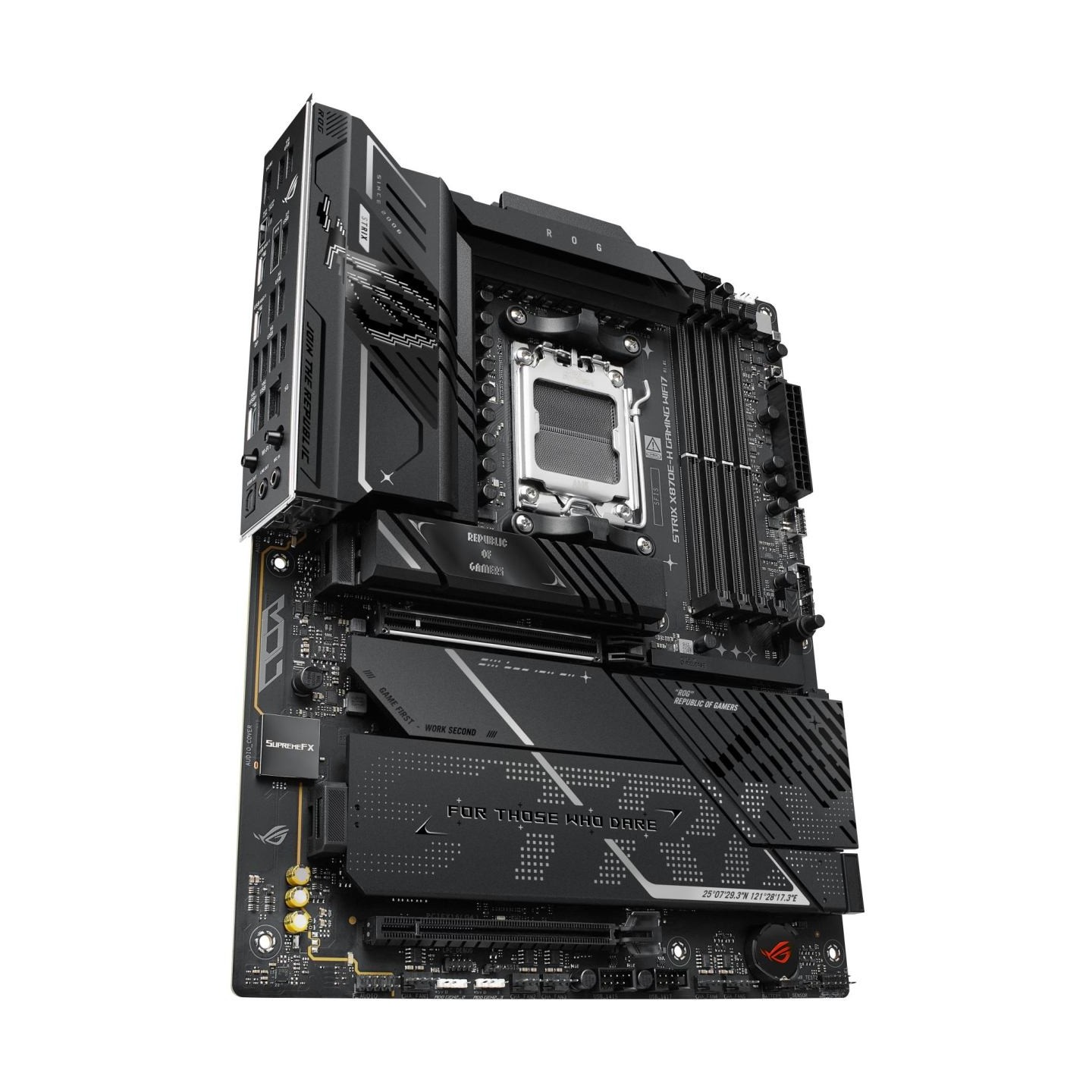

ROG STRIX X870E-H GAMING WIFI7
Transform your gaming experience with the ROG STRIX X870E-H GAMING WIFI7 motherboard. Engineered to dominate with AMD Ryzen™ 9000 Series Desktop Processors, this ATX powerhouse features cutting-edge power design and AI-enhanced solutions. With PCIe 5.0 x16 slots, dual USB4® Type-C ports, and WiFi 7, it delivers advanced connectivity. DIY-friendly features like M.2 Q-Release on all four M.2 slots and PCIe Slot Q-Release make building and upgrades effortless. Unleash your system's full potential with the ROG STRIX X870E-H GAMING WIFI7.
Manufacturer Website:
https://rog.asus.com/motherboards/rog-strix/rog-strix-x870e-h-gaming-wifi7/
- Category Code
- MBA
- CnCode
- 84733020
- Unit Box Height
- 0.07
- Unit Box Length
- 0.275
- Unit Box Width
- 0.36
- Audio chip
- Realtek ALC1220P
- Audio output channels
- 7.1 channels
- Component for
- PC
- Motherboard chipset
- AMD X870E
- Motherboard chipset family
- AMD
- Motherboard form factor
- ATX
- Product colour
- Black
- Windows operating systems supported
- Windows 11
- Compatible processor series
- AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
- Processor manufacturer
- AMD
- Processor socket
- Socket AM5
- Supported processor sockets
- Socket AM5
- ECC сompatibility
- Non-ECC
- Maximum internal memory
- 256 GB
- Memory channels
- Dual-channel
- Memory slots type
- DIMM
- Number of memory slots
- 4
- Supported memory types
- DDR5-SDRAM
- Unbuffered memory
- Yes
- Number of HDDs supported
- 4
- Number of storage drives supported
- 8
- RAID levels
- 0/1/10/5
- RAID support
- Yes
- Supported storage drive interfaces
- M.2,SATA III
- Supported storage drive types
- HDD & SSD
- On-board graphics card
- No
- Parallel processing technology support
- Not supported
- 12V power connector
- Yes
- ATX Power connector (24-pin)
- Yes
- Chassis intrusion connector
- Yes
- CPU fan connector
- Yes
- EPS power connector (8-pin)
- Yes
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- Number of chassis fan connectors
- 5
- Number of RGB LED pin headers
- 3
- Number of SATA III connectors
- 4
- Number of temperature sensor headers
- 1
- RGB LED pin header
- Yes
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- USB 3.2 Gen 2x2 connectors
- 1
- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 1
- Microphone in
- Yes
- S/PDIF out port
- Yes
- USB 2.0 ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 6
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 3
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- USB4 Gen 3x2 ports quantity
- 2
- WiFi-AP antenna jack
- 1
- Bluetooth
- Yes
- Bluetooth version
- 5.4
- Ethernet interface type
- 5 Gigabit Ethernet
- Ethernet LAN
- Yes
- Top Wi-Fi standard
- Wi-Fi 7 (802.11be)
- Wi-Fi
- Yes
- Wi-Fi standards
- Wi-Fi 7 (802.11be)
- 1st M.2 highest PCI Express generation
- 5.0
- 1st M.2 largest key size
- 2280
- 2nd M.2 highest PCI Express generation
- 5.0
- 2nd M.2 largest key size
- 22110
- 3rd M.2 highest PCI Express generation
- 4.0
- 3rd M.2 largest key size
- 2280
- 4th M.2 highest PCI Express generation
- 4.0
- 4th M.2 largest key size
- 2280
- Number of M.2 (M) slots
- 4
- PCI Express x16 (Gen 4.x) slots
- 1
- PCI Express x16 (Gen 5.x) slots
- 1
- BIOS memory size
- 256 Mbit
- BIOS type
- UEFI AMI
- Package depth
- 273 mm
- Package height
- 68 mm
- Package weight
- 2071 g
- Package width
- 353 mm
- Depth
- 244 mm
- Width
- 305 mm
- Antenna included
- Yes
- Cables included
- SATA
- Model
- ROG STRIX X870E-H GAMING WIFI7
- Units per Shipping Box
- 4
- Unit Calculated Volume
- 0.008186 cubm
- Unit Calculated Weight
- 2.56 kg
ROG STRIX X870E-H GAMING WIFI7
12 Items
Data sheet
- Bluetooth
- Yes
- RAID levels
- 0/1/10/5
- Windows operating systems supported
- Windows 11
- USB 2.0 ports quantity
- 2
- Audio output channels
- 7.1 channels
- Microphone in
- Yes
- Number of storage drives supported
- 8
- Supported storage drive interfaces
- M.2,SATA III
- Ethernet LAN (RJ-45) ports
- 1
- Wi-Fi standards
- Wi-Fi 7 (802.11be)
- Cables included
- SATA
- Component for
- PC
- Ethernet LAN
- Yes
- Ethernet interface type
- 5 Gigabit Ethernet
- HDMI ports quantity
- 1
- RAID support
- Yes
- Wi-Fi
- Yes
- Bluetooth version
- 5.4
- Compatible processor series
- AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
- Motherboard form factor
- ATX
- Supported memory types
- DDR5-SDRAM
- Processor socket
- Socket AM5
- EPS power connector (8-pin)
- Yes
- Supported processor sockets
- Socket AM5
- Maximum internal memory
- 256 GB
- Supported storage drive types
- HDD & SSD
- Category Code
- MBA
- CnCode
- 84733020
- Units per Shipping Box
- 4
- Product colour
- Black
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 6
- Top Wi-Fi standard
- Wi-Fi 7 (802.11be)
- Memory channels
- Dual-channel
- Processor manufacturer
- AMD
- Antenna included
- Yes
- On-board graphics card
- No
- Motherboard chipset
- AMD X870E
- Motherboard chipset family
- AMD
- ECC сompatibility
- Non-ECC
- Memory slots type
- DIMM
- Number of memory slots
- 4
- Unbuffered memory
- Yes
- Number of HDDs supported
- 4
- Parallel processing technology support
- Not supported
- 12V power connector
- Yes
- ATX Power connector (24-pin)
- Yes
- Chassis intrusion connector
- Yes
- CPU fan connector
- Yes
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- Number of chassis fan connectors
- 5
- Number of SATA III connectors
- 4
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- S/PDIF out port
- Yes
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 3
- WiFi-AP antenna jack
- 1
- 1st M.2 highest PCI Express generation
- 5.0
- 1st M.2 largest key size
- 2280
- 2nd M.2 highest PCI Express generation
- 5.0
- 2nd M.2 largest key size
- 22110
- 3rd M.2 highest PCI Express generation
- 4.0
- 3rd M.2 largest key size
- 2280
- Number of M.2 (M) slots
- 4
- PCI Express x16 (Gen 4.x) slots
- 1
- PCI Express x16 (Gen 5.x) slots
- 1
- BIOS memory size
- 256 Mbit
- BIOS type
- UEFI AMI
- Audio chip
- Realtek ALC1220P
- RGB LED pin header
- Yes
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- USB4 Gen 3x2 ports quantity
- 2
- Number of RGB LED pin headers
- 3
- USB 3.2 Gen 2x2 connectors
- 1
- Number of temperature sensor headers
- 1
- 4th M.2 highest PCI Express generation
- 4.0
- 4th M.2 largest key size
- 2280
Specific References
- EAN13
- 4711636167208
- MPN
- ROG STRIX X870E-H GAMING WIFI7
