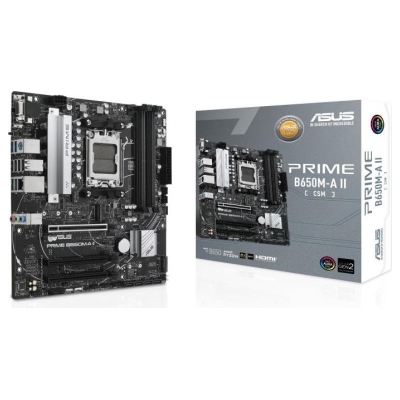

Asus Mainboard|ASUS|AMD B650|SAM5|Micro-ATX|Memory DDR5|Memory slots 4|2xPCI-Express 4.0 16x|2xM.2|1xVGA|1xHDMI|1xDisplayPort|4x
- Write a review
€143.29
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout

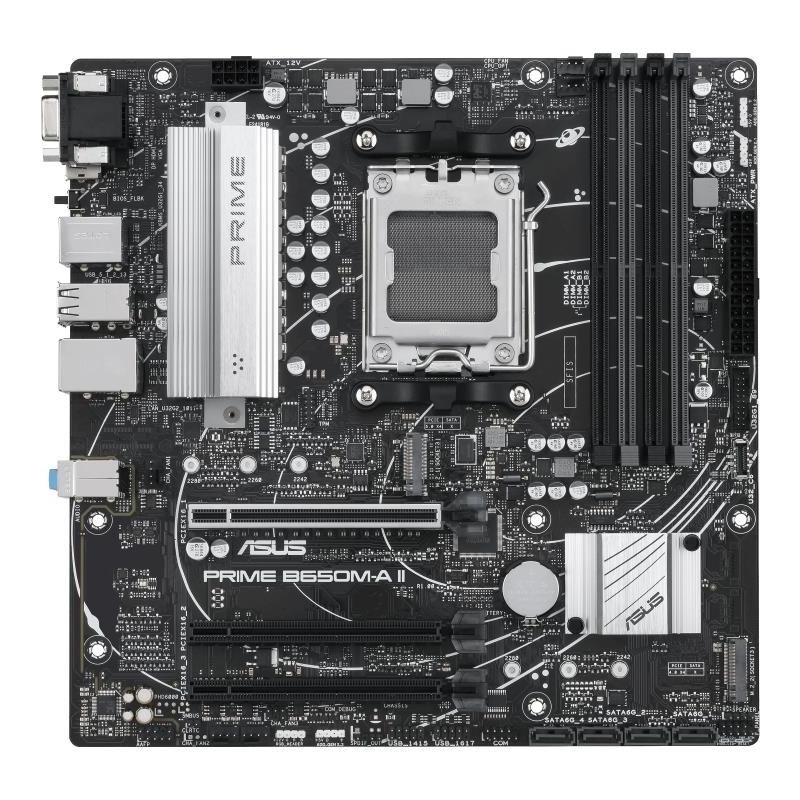

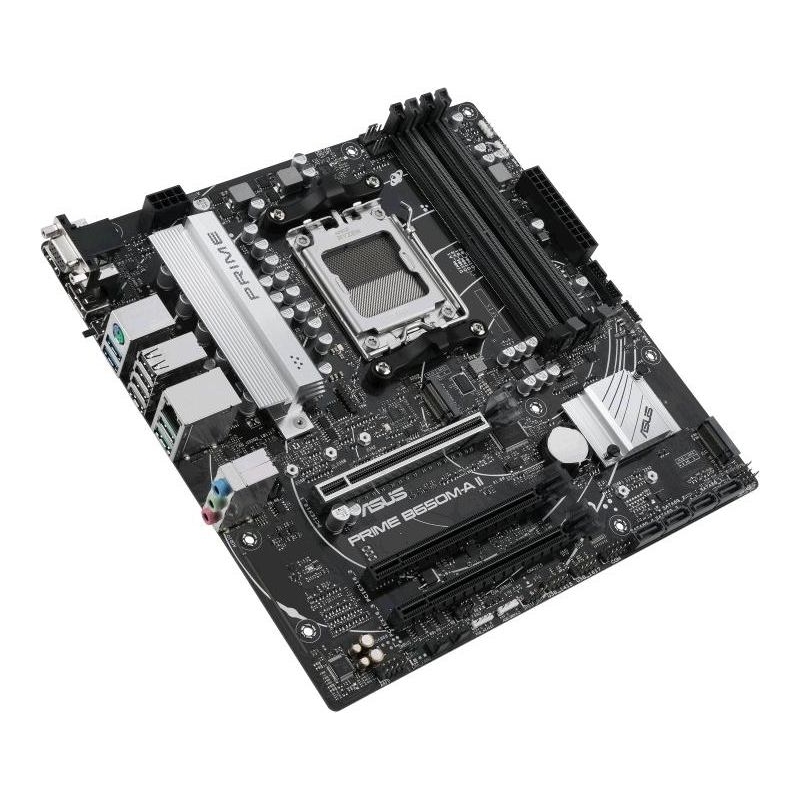

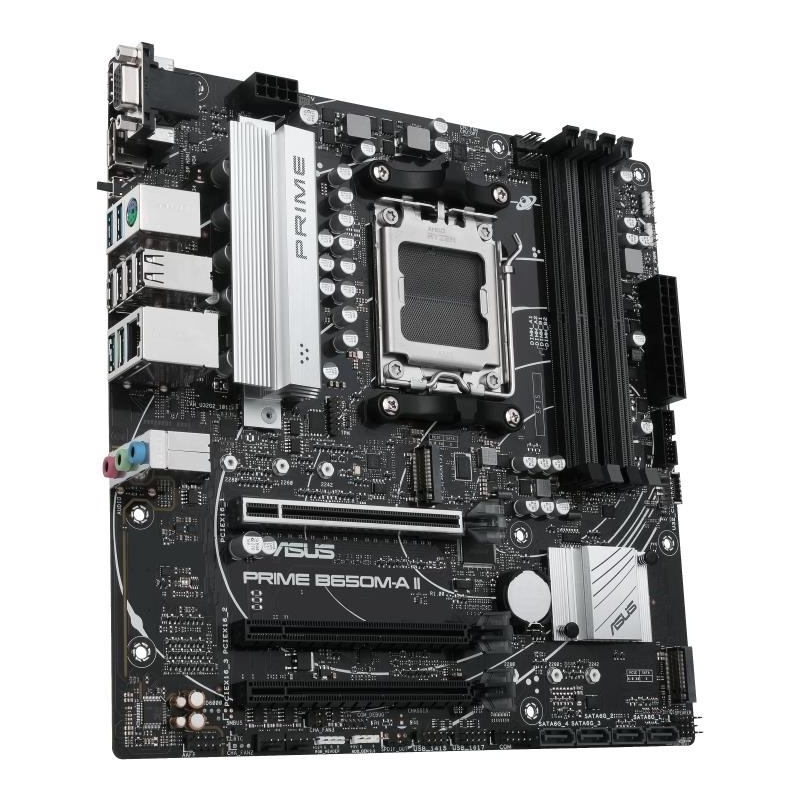

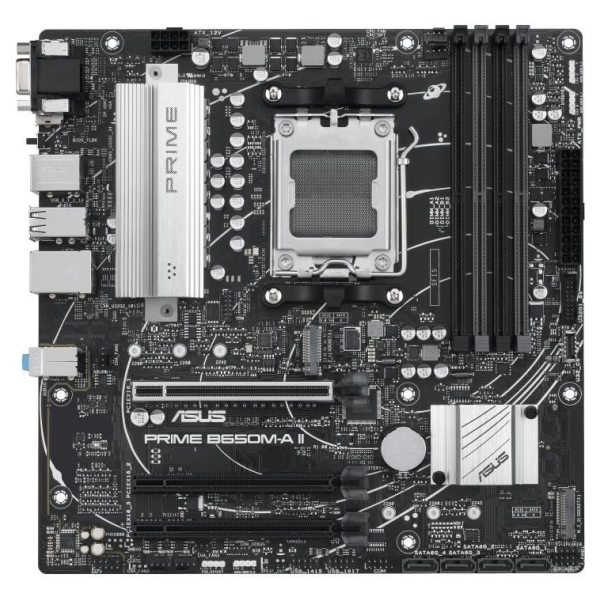

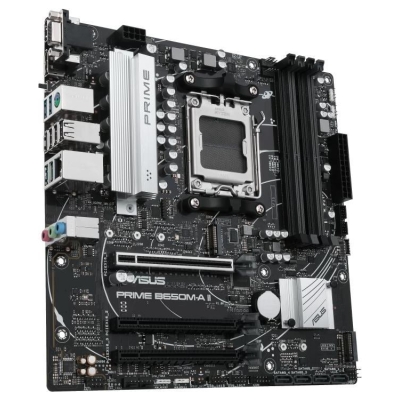

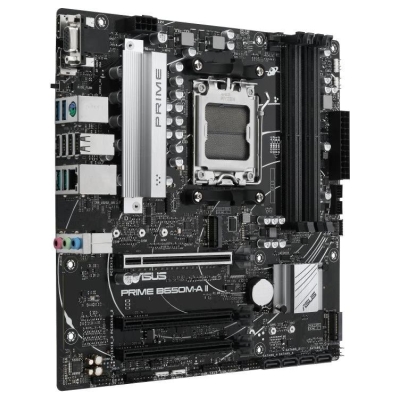

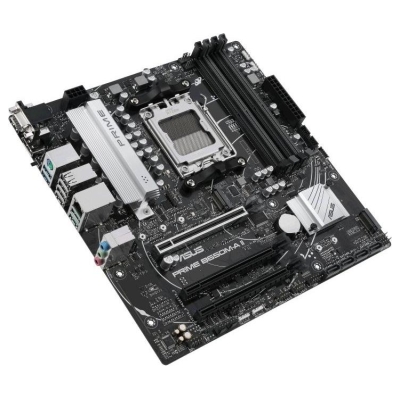

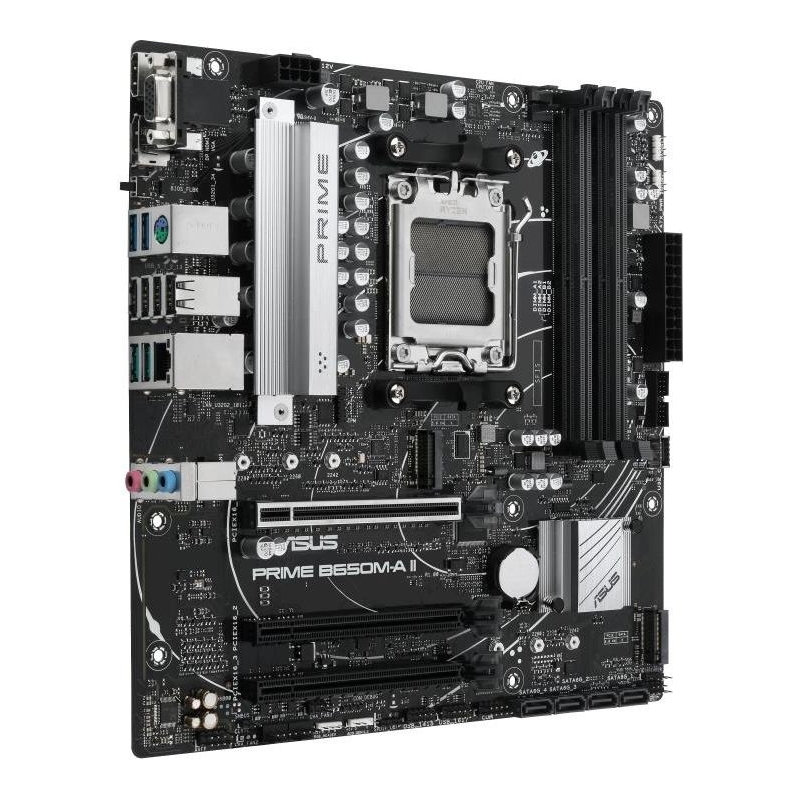

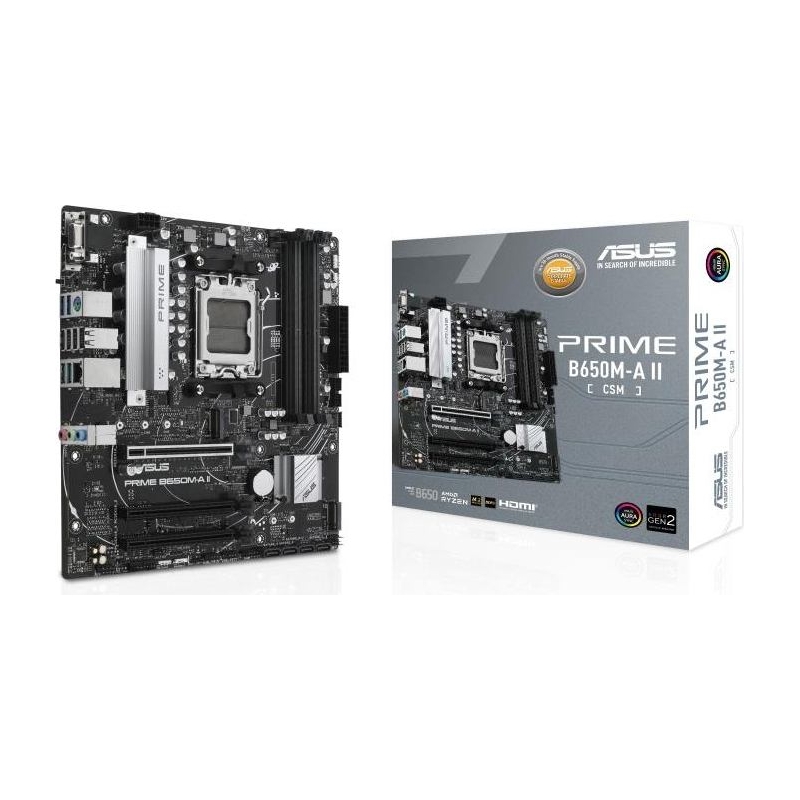

B650M-A II-CSM
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650M-A II-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B650 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
CPU Performance Boost
AMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD‘s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.
COOLING
PRIME B650 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
VRM Heatsink and Thermal Pad
VRM heatsink and thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.
Cooler by Design
Prime B650 series features comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.
Multiple Temperature Sources
Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.
4-Pin PWM/DC Fan
Each onboard header supports auto-detection of PWM or DC fans.
PERFORMANCE
The PRIME B650 series is built to handle the high core counts and bandwidth demands of AMD processors. ASUS B650 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.
DDR5 Performance Enhancement
Comprehensive memory tuning options are the cornerstone of PRIME motherboards. With the PRIME B650M-A AX II, you can extract all of the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.
For those who want to fly past stock DDR5 speeds, the PRIME B650M-A AX II is primed and ready for enthusiast-grade kits courtesy of vast AMD Extended Profiles for Overclocking (EXPO™) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.
Outstanding Audio
Combined onboard features deliver elevated audio
Intelligent design and premium hardware create audio quality unlike anything you’ve ever experienced.
THIS CHANGES EVERYTHING.
FROM THIS NEW PLATFORM, YOU CAN SEE THE FUTURE
Build your next rig with an AMD Ryzen™ 7000 Series processor and PRIME B650M-A AX II to experience advanced performance. With up to 16 “Zen 4” cores and 32 threads, boost clocks of up to 5.7GHz, and 80MB cache, the AMD Ryzen™ 7000 Series keeps you ahead of the game.1
You’ll also gain access to new features for gamers with AMD Socket AM5, from the speed of DDR5 memory to the increased bandwidth of PCIe® 5.0. AMD Ryzen™ 7000 Series processors and AMD socket AM5 motherboards are unlocked for overclocking to personalize your experience. Gain even more performance when you overclock your DDR5 memory with AMD EXPO™ technology.2
- AMD AM5 Socket: Ready for AMD Ryzen™ 7000 Series Desktop Processors

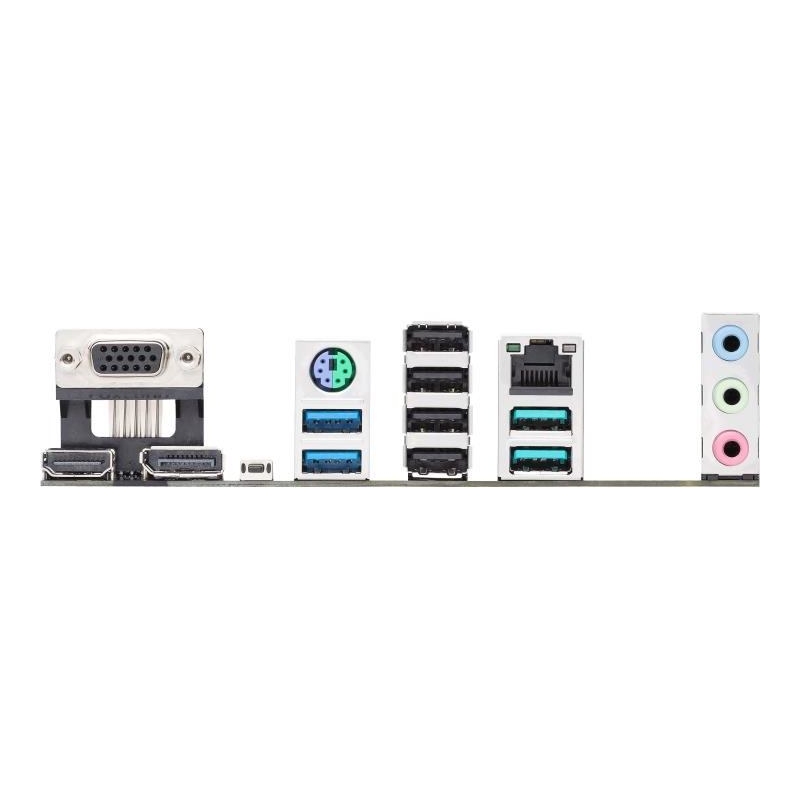

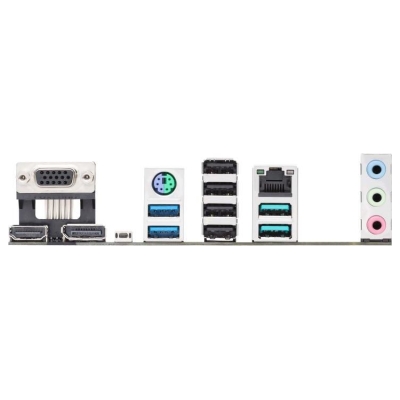

- Ultrafast Connectivity: M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C®
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
- ASUS Control Center Express (ACCE) for easier IT endpoint management
Manufacturer Website:
https://www.asus.com/motherboards-components/motherboards/csm/prime-b650m-a-ii-csm/
- Category Code
- MBA
- CnCode
- 84733020
- Unit Box Height
- 0.07
- Unit Box Length
- 0.28
- Unit Box Width
- 0.275
- Audio output channels
- 7.1 channels
- Component for
- PC
- Motherboard chipset
- AMD B650
- Motherboard chipset family
- AMD
- Motherboard form factor
- micro ATX
- Product colour
- Black
- Windows operating systems supported
- Windows 10 x64/Windows 11
- Compatible processor series
- AMD Ryzen 7000 Series
- Processor manufacturer
- AMD
- Processor socket
- Socket AM5
- Supported processor sockets
- Socket AM5
- ECC сompatibility
- ECC & Non-ECC
- Maximum internal memory
- 128 GB
- Memory channels
- Dual-channel
- Memory slots type
- DIMM
- Number of memory slots
- 4
- Supported memory clock speed (max)
- 6400 MHz
- Supported memory clock speeds
- 4800/5000/5200/5400/5600/5800/6000/6200/6400 MHz
- Supported memory types
- DDR5-SDRAM
- Unbuffered memory
- Yes
- Number of HDDs supported
- 4
- Number of storage drives supported
- 6
- RAID support
- Yes
- Supported storage drive interfaces
- M.2,SATA III
- Supported storage drive types
- HDD & SSD
- On-board graphics card
- No
- Parallel processing technology support
- Not supported
- 12V power connector
- Yes
- ATX Power connector (24-pin)
- Yes
- Audio connector
- Yes
- CPU fan connector
- Yes
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- Number of chassis fan connectors
- 3
- Number of COM connectors
- 1
- Number of SATA III connectors
- 4
- RGB LED pin header
- Yes
- TPM connector
- Yes
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- DisplayPorts quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 1
- Headphone outputs
- 1
- Line-in
- Yes
- Microphone in
- Yes
- PS/2 ports quantity
- 1
- USB 2.0 ports quantity
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 2
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Ethernet LAN
- Yes
- Wi-Fi
- No
- Number of M.2 (M) slots
- 2
- PCI Express x16 (Gen 3.x) slots
- 3
- BIOS memory size
- 256 Mbit
- BIOS type
- UEFI AMI
- Clear CMOS button
- Yes
- Depth
- 244 mm
- Width
- 244 mm
- Cables included
- SATA
- Model
- PRIME B650M-A II-CSM
- Units per Shipping Box
- 10
- Unit Calculated Volume
- 0.006187 cubm
- Unit Calculated Weight
- 1.35 kg
PRIME B650M-A II-CSM
1 Item
Data sheet
- Windows operating systems supported
- Windows 10 x64/Windows 11
- USB 2.0 ports quantity
- 4
- Audio output channels
- 7.1 channels
- Microphone in
- Yes
- Headphone outputs
- 1
- Number of storage drives supported
- 6
- Supported storage drive interfaces
- M.2,SATA III
- Ethernet LAN (RJ-45) ports
- 1
- Cables included
- SATA
- Component for
- PC
- Ethernet LAN
- Yes
- Ethernet interface type
- 2.5 Gigabit Ethernet
- HDMI ports quantity
- 1
- RAID support
- Yes
- Wi-Fi
- No
- DisplayPorts quantity
- 1
- Compatible processor series
- AMD Ryzen 7000 Series
- Motherboard form factor
- Micro ATX
- Supported memory types
- DDR5-SDRAM
- Processor socket
- Socket AM5
- Supported processor sockets
- Socket AM5
- Maximum internal memory
- 128 GB
- Supported storage drive types
- HDD & SSD
- Category Code
- MBA
- CnCode
- 84733020
- Units per Shipping Box
- 10
- Product colour
- Black
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- Line-in
- Yes
- Memory channels
- Dual-channel
- Processor manufacturer
- AMD
- On-board graphics card
- No
- Motherboard chipset
- AMD B650
- Motherboard chipset family
- AMD
- ECC сompatibility
- ECC & Non-ECC
- Memory slots type
- DIMM
- Number of memory slots
- 4
- Unbuffered memory
- Yes
- Number of HDDs supported
- 4
- Parallel processing technology support
- Not supported
- 12V power connector
- Yes
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- Number of chassis fan connectors
- 3
- Number of COM connectors
- 1
- Number of SATA III connectors
- 4
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 2
- Number of M.2 (M) slots
- 2
- BIOS memory size
- 256 Mbit
- BIOS type
- UEFI AMI
- Supported memory clock speed (max)
- 6400 MHz
- RGB LED pin header
- Yes
- Audio connector
- Yes
- TPM connector
- Yes
- PS/2 ports quantity
- 1
- Supported memory clock speeds
- 4800/5000/5200/5400/5600/5800/6000/6200/6400 MHz
- PCI Express x16 (Gen 3.x) slots
- 3
- Clear CMOS button
- Yes
Specific References
- EAN13
- 4711387025543
- MPN
- PRIME B650M-A II-CSM
