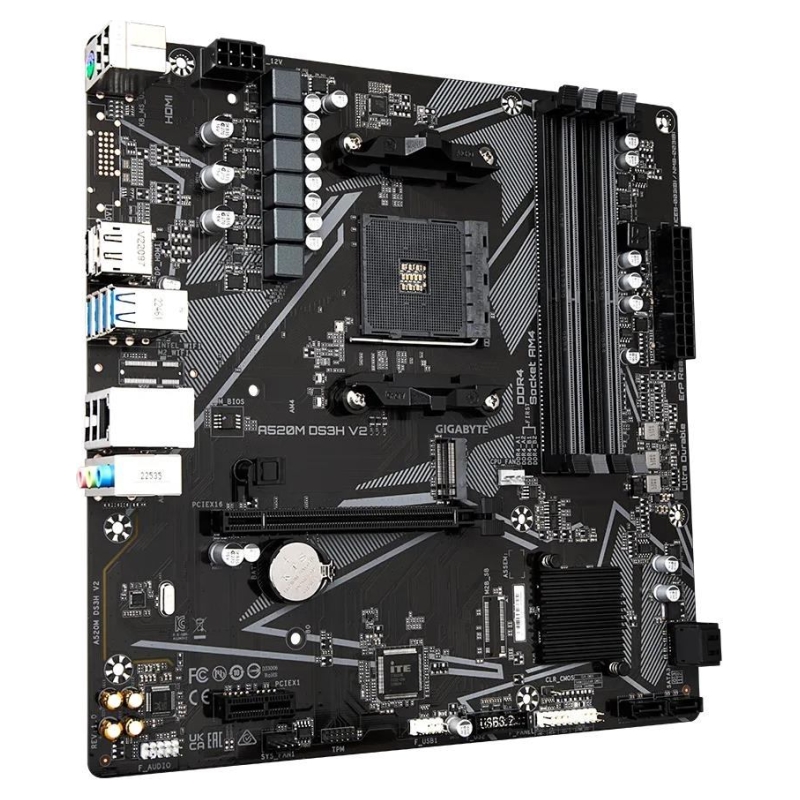

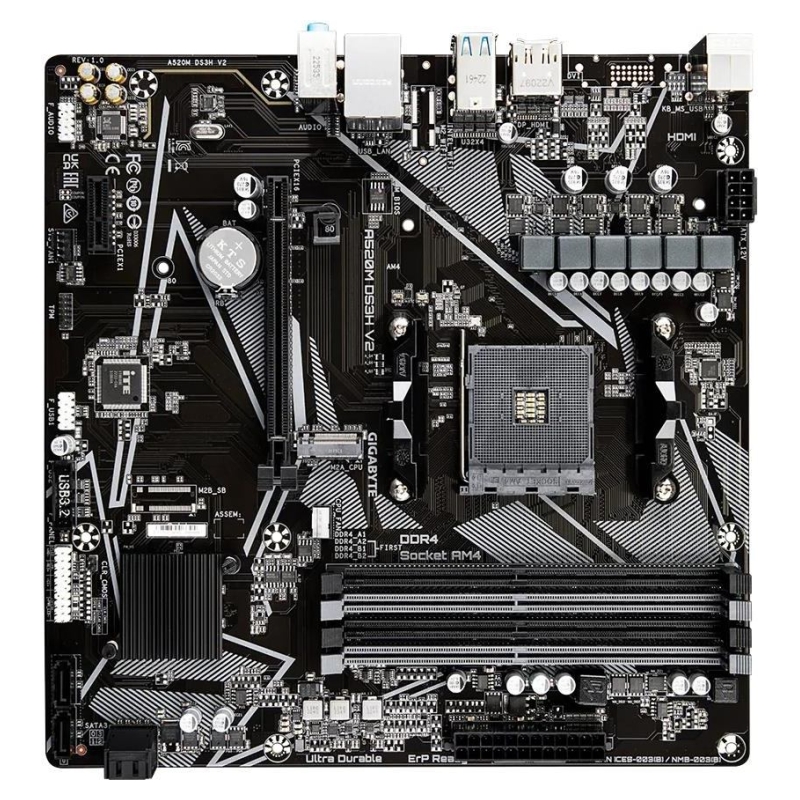

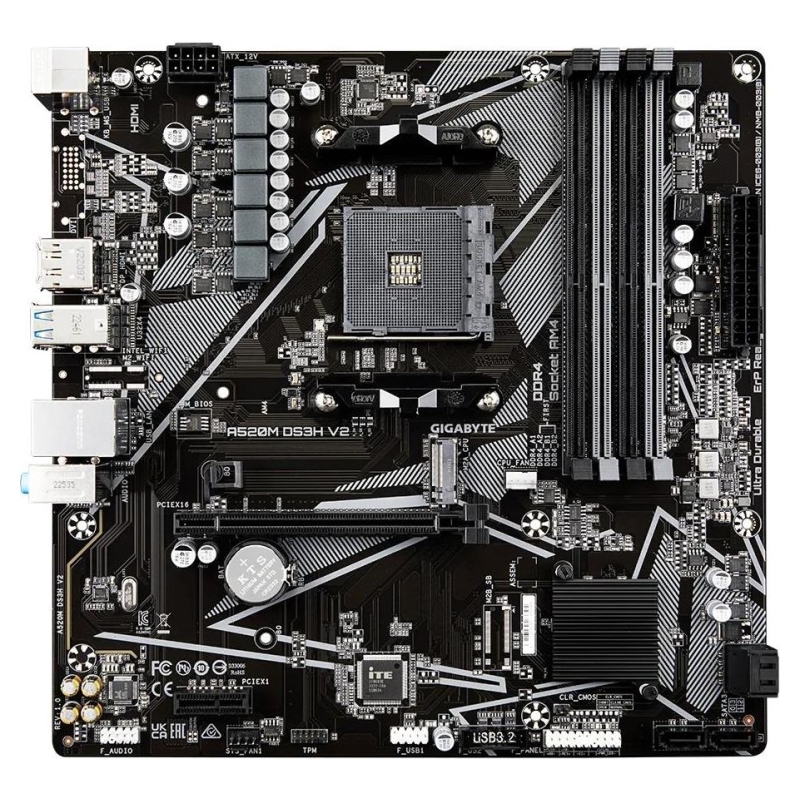

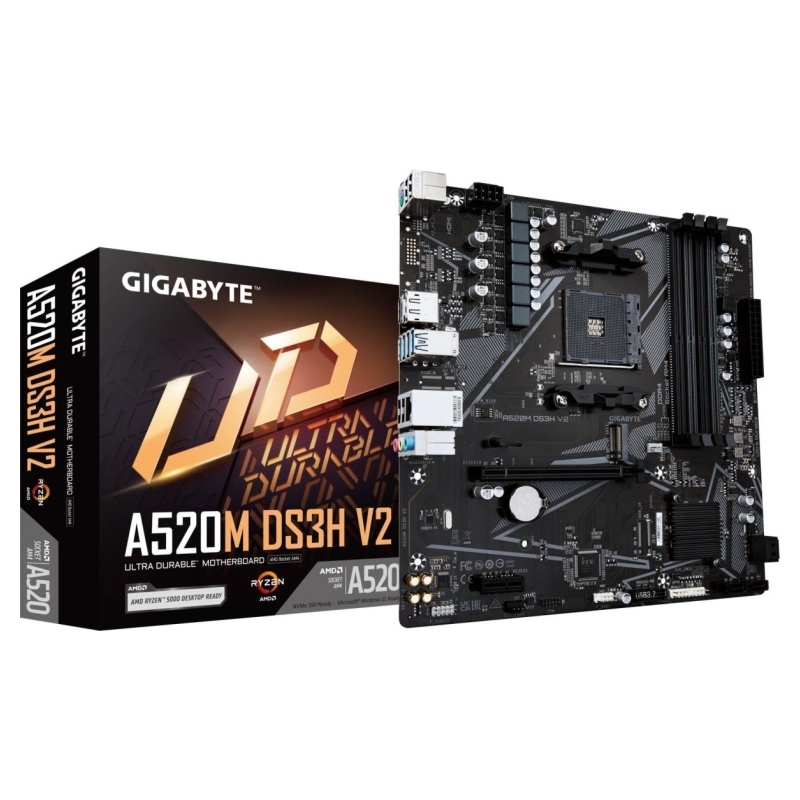

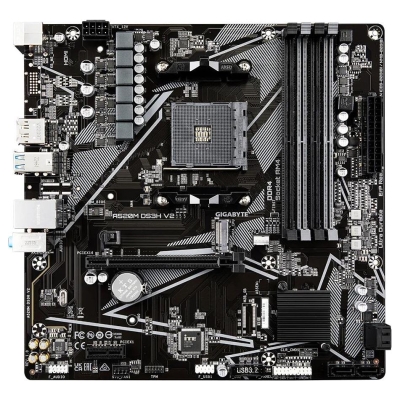

Gigabyte Mainboard|GIGABYTE|AMD A520|SAM4|Micro-ATX|Memory DDR4|Memory slots 4|A520MDS3HV2
- Write a review
€74.37
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- Ultra Durable™ PCIe 3.0 x16 Slot
- NVMe PCIe 3.0 M.2 Connectors
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- GbE LAN with Bandwidth Management

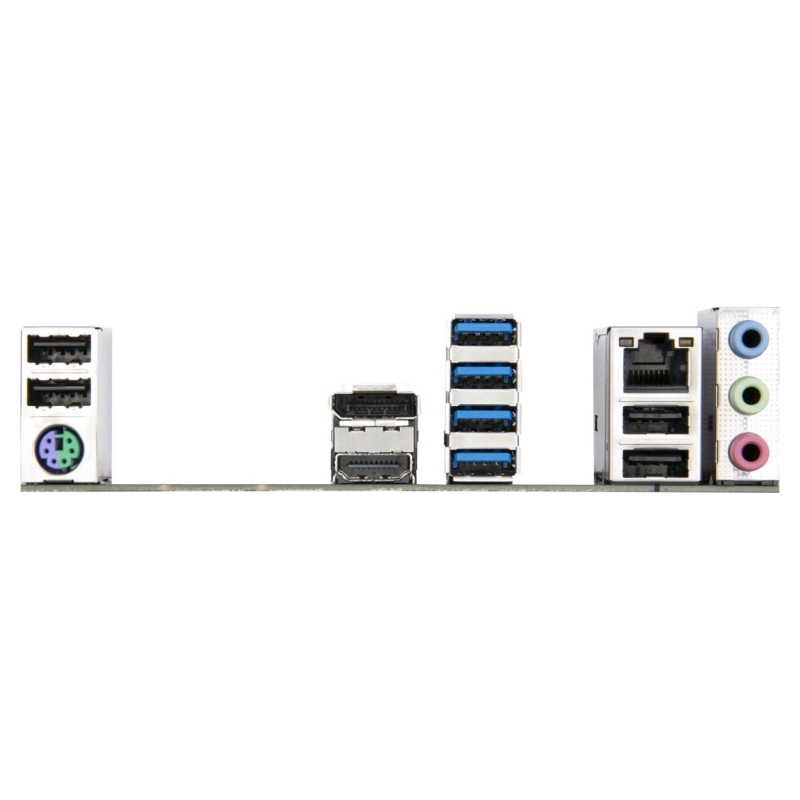

- Rear DisplayPort and HDMI for Multi-display Support
- Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Anti-Sulfur Resistors Design
Manufacturer Website:
https://www.gigabyte.com/Motherboard/A520M-DS3H-V2-rev-10#kf
- Category Code
- MBA
- CnCode
- 84733020
- Unit Box Height
- 0.055
- Unit Box Length
- 0.27
- Unit Box Width
- 0.265
- Audio chip
- Realtek ALC887
- Audio output channels
- 7.1 channels
- Component for
- PC
- Cooling type
- Active
- Motherboard chipset family
- AMD
- Motherboard form factor
- micro ATX
- PC health monitoring
- CPU/LED/Power supply/Temperature/Voltage
- Power source type
- ATX
- Product colour
- Black
- Windows operating systems supported
- Windows 10 x64
- Compatible processor series
- AMD Ryzen 3000 Series/AMD Ryzen Threadripper 3000 Series/AMD Ryzen Threadripper PRO 3000 WX-Series
- Maximum internal memory supported by processor
- 128 GB
- Maximum number of SMP processors
- 1
- Processor manufacturer
- AMD
- Processor socket
- Socket AM4
- Supported processor sockets
- Socket AM4
- ECC сompatibility
- ECC & Non-ECC
- Maximum internal memory
- 128 GB
- Memory channels
- Dual-channel
- Memory slots type
- DIMM
- Number of memory slots
- 4
- Supported memory clock speeds
- 2133/2400/2667/2933/3200/3333/3600/4000/4400/4733 MHz
- Supported memory module capacities
- 16GB/1GB/2GB/32GB/4GB/8GB
- Supported memory types
- DDR4-SDRAM
- Unbuffered memory
- Yes
- Number of HDDs supported
- 4
- Number of storage drives supported
- 5
- RAID levels
- 0/1/10
- RAID support
- Yes
- Supported storage drive interfaces
- M.2,SATA III
- Supported storage drive types
- HDD & SSD
- Discrete graphics support
- Yes
- HDCP
- Yes
- Maximum resolution
- 5120 x 2880 pixels
- Number of displays supported
- 3
- 12V power connector
- Yes
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- Number of EATX power connectors
- 1
- Number of SATA III connectors
- 4
- Power fan connector
- Yes
- Serial port headers
- 1
- Total number of SATA connectors
- 4
- TPM connector
- Yes
- USB 2.0 connectors
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- Digital audio optical out
- 1
- DisplayPort version
- 2.0
- DisplayPorts quantity
- 1
- DVI-D ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 1
- HDMI version
- 2.1
- Headphone outputs
- 1
- Microphone in
- Yes
- PS/2 ports quantity
- 1
- USB 2.0 ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- USB connector type
- USB Type-A
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN
- Yes
- Wi-Fi
- No
- Number of M.2 (M) slots
- 1
- PCI Express x1 (Gen 3.x) slots
- 2
- PCI Express x16 (Gen 3.x) slots
- 1
- ACPI version
- 5.0
- BIOS memory size
- 128 Mbit
- BIOS type
- UEFI AMI
- Clear CMOS button
- Yes
- Clear CMOS jumper
- Yes
- Desktop Management Interface (DMI) version
- 2.7
- System Management BIOS (SMBIOS) version
- 2.7
- Battery technology
- Lithium-Manganese Dioxide (LiMnO2)
- Battery type
- CR2032
- Battery weight
- 3 g
- Country of origin
- China
- Lithium weight per battery
- 0.07 g
- Number of battery cells
- 1
- Package depth
- 265 mm
- Package height
- 54 mm
- Package weight
- 810 g
- Package width
- 265 mm
- Products per shipping (inner) case
- 1 pc(s)
- Depth
- 244 mm
- Height
- 35 mm
- Width
- 244 mm
- Batteries included
- Yes
- Bundled software
- Norton Internet Security (OEM version) Realtek 8118 Gaming LAN Bandwidth Control Utility
- Cables included
- SATA
- Drivers included
- Yes
- Warranty period
- 3 year(s)
- Model
- A520M DS3H V2
- Units per Shipping Box
- 10
- Unit Calculated Volume
- 0.004711 cubm
- Unit Calculated Weight
- 0.89 kg
A520MDS3HV2
100 Items
Data sheet
- Batteries included
- yes
- RAID levels
- 0/1/10
- Windows operating systems supported
- Windows 10 x64
- Battery technology
- Lithium-Manganese Dioxide (LiMnO2)
- USB 2.0 ports quantity
- 2
- Audio output channels
- 7.1 channels
- Microphone in
- Yes
- Headphone outputs
- 1
- Number of storage drives supported
- 5
- Supported storage drive interfaces
- M.2,SATA III
- Power source type
- ATX
- Ethernet LAN (RJ-45) ports
- 1
- Bundled software
- Norton Internet Security (OEM version)
Realtek 8118 Gaming LAN Bandwidth Control Utility - Battery type
- CR2032
- Cooling type
- Active
- Country of origin
- China
- Cables included
- SATA
- Component for
- PC
- Maximum resolution
- 5120 x 2880 pixels
- Ethernet LAN
- Yes
- Ethernet interface type
- Gigabit Ethernet
- DVI-D ports quantity
- 1
- HDMI ports quantity
- 1
- RAID support
- Yes
- Wi-Fi
- No
- Drivers included
- Yes
- DisplayPorts quantity
- 1
- HDCP
- Yes
- USB connector type
- USB Type-A
- Compatible processor series
- AMD Ryzen 3000 Series/AMD Ryzen Threadripper 3000 Series/AMD Ryzen Threadripper PRO 3000 WX-Series
- Motherboard form factor
- Micro ATX
- Supported memory types
- DDR4-SDRAM
- Processor socket
- Socket AM4
- Supported processor sockets
- Socket AM4
- Number of battery cells
- 1
- Maximum internal memory
- 128 GB
- Supported storage drive types
- HDD & SSD
- HDMI version
- 2.1
- Category Code
- MBA
- CnCode
- 84733020
- Units per Shipping Box
- 10
- Product colour
- Black
- Warranty period
- 3 year(s)
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- DisplayPort version
- 2.0
- Battery weight
- 3 g
- Number of displays supported
- 3
- Products per shipping (inner) case
- 1 pc(s)
- Memory channels
- Dual-channel
- Processor manufacturer
- AMD
- Motherboard chipset family
- AMD
- ECC сompatibility
- ECC & Non-ECC
- Memory slots type
- DIMM
- Number of memory slots
- 4
- Unbuffered memory
- Yes
- Number of HDDs supported
- 4
- 12V power connector
- Yes
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- Number of SATA III connectors
- 4
- USB 2.0 connectors
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- Number of M.2 (M) slots
- 1
- BIOS memory size
- 128 Mbit
- BIOS type
- UEFI AMI
- Audio chip
- Realtek ALC887
- Maximum internal memory supported by processor
- 128 GB
- Digital audio optical out
- 1
- PC health monitoring
- CPU/LED/Power supply/Temperature/Voltage
- TPM connector
- Yes
- PS/2 ports quantity
- 1
- PCI Express x1 (Gen 3.x) slots
- 2
- Clear CMOS jumper
- Yes
- Supported memory clock speeds
- 2133/2400/2667/2933/3200/3333/3600/4000/4400/4733 MHz
- Supported memory module capacities
- 16GB/1GB/2GB/32GB/4GB/8GB
- Power fan connector
- Yes
- PCI Express x16 (Gen 3.x) slots
- 1
- ACPI version
- 5.0
- Desktop Management Interface (DMI) version
- 2.7
- System Management BIOS (SMBIOS) version
- 2.7
- Lithium weight per battery
- 0.07 g
- Number of EATX power connectors
- 1
- Maximum number of SMP processors
- 1
- Clear CMOS button
- Yes
- Discrete graphics support
- Yes
- Serial port headers
- 1
- Total number of SATA connectors
- 4
Specific References
- EAN13
- 4719331854690
- MPN
- A520MDS3HV2
