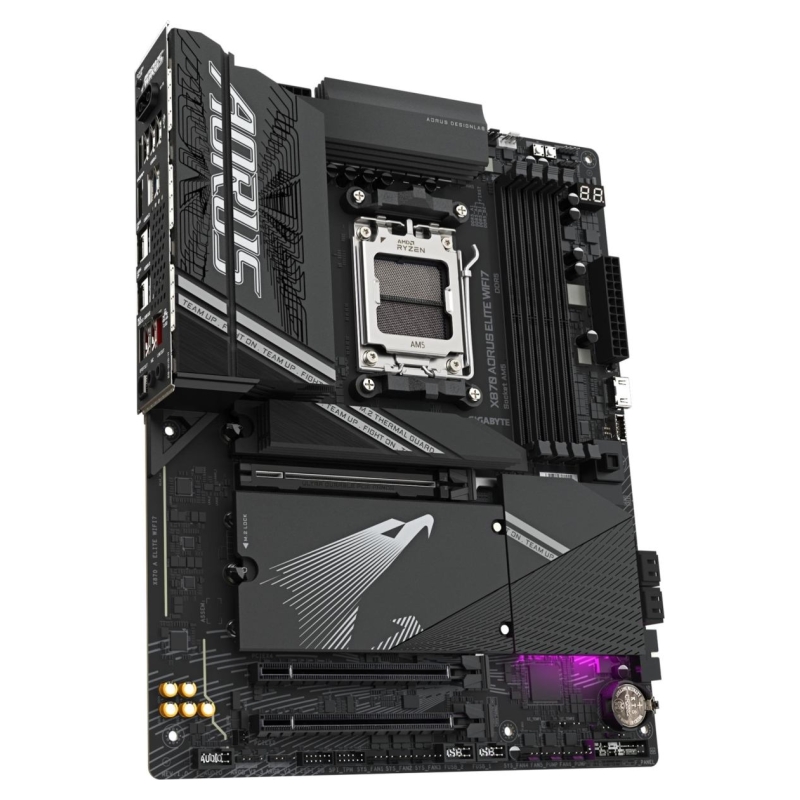

Gigabyte Mainboard|GIGABYTE|AMD X870|SAM5|ATX|Memory DDR5|Memory slots 4|X870AELITEWIFI71.1
- Write a review
€338.69
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- AMD Socket AM5: Supports AMD Ryzen 9000 Series, 8000 Series, 7000 Series Processors
- Twin 16+2+2 Phases Digital VRM with DrMOS
- Dual Channel DDR5：4*DIMMs with AMD EXPO™ Memory Module Support
- PCIe Gen5 x16 with PCIe UD Slot X & EZ-Latch Plus
- Ultra-Fast Storage: 4*M.2 slots, including 3* PCIe 5.0 x4
- Efficient Overall Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard L
- Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI
- Fast Networking: 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
Manufacturer Website:
https://www.gigabyte.com/
- Category Code
- MBA
- CnCode
- 84733020
- Unit Box Height
- 0.27
- Unit Box Length
- 0.34
- Unit Box Width
- 0.08
- Audio chip
- Realtek ALC1220
- Audio output channels
- 7.1 channels
- Component for
- PC
- Motherboard chipset
- AMD X870
- Motherboard chipset family
- AMD
- Motherboard form factor
- ATX
- PC health monitoring
- Fan/Temperature/Voltage
- Product colour
- Black
- Windows operating systems supported
- Windows 11 x64
- Compatible processor series
- AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
- Maximum internal memory supported by processor
- 256 GB
- Processor manufacturer
- AMD
- Processor socket
- Socket AM5
- Supported processor sockets
- Socket AM5
- ECC сompatibility
- Non-ECC
- Maximum internal memory
- 256 GB
- Maximum internal memory per slot
- 64 GB
- Memory channels
- Dual-channel
- Memory slots type
- DIMM
- Number of memory slots
- 4
- Supported memory clock speed (max)
- 8200 MHz
- Supported memory clock speeds
- 4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000/8200 MHz
- Supported memory module capacities
- 16GB/1GB/24GB/2GB/32GB/4GB/8GB
- Supported memory types
- DDR5-SDRAM
- Number of HDDs supported
- 4
- Number of storage drives supported
- 8
- RAID levels
- 0/1/10
- RAID support
- Yes
- Supported storage drive interfaces
- M.2,SATA III
- Supported storage drive types
- HDD & SSD
- DirectX version
- 12.0
- On-board graphics card
- No
- Parallel processing technology support
- Not supported
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- EPS power connector (8-pin)
- Yes
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- Number of chassis fan connectors
- 6
- Number of CPU fan connectors
- 2
- Number of EPS power connectors (8-pin)
- 2
- Number of RGB LED pin headers
- 4
- Number of SATA III connectors
- 4
- Number of water pump connectors
- 3
- RGB LED pin header
- Yes
- TPM connector
- Yes
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- USB 3.2 Gen 2x2 connectors
- 1
- DisplayPort version
- 1.4
- DisplayPorts quantity
- 2
- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 1
- HDMI version
- 2.1
- Headphone outputs
- 1
- Microphone in
- Yes
- S/PDIF out port
- Yes
- USB 2.0 ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 3
- USB4 Gen 2x2 ports quantity
- 2
- WiFi-AP antenna jack
- 2
- Bluetooth
- Yes
- Bluetooth version
- 5.4
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Ethernet LAN
- Yes
- LAN controller
- Realtek RTL8125
- Top Wi-Fi standard
- Wi-Fi 7 (802.11be)
- Wi-Fi
- Yes
- Wi-Fi standards
- Wi-Fi 7 (802.11be)
- WLAN controller model
- MediaTek MT7925
- 1st M.2 highest PCI Express generation
- 5.0
- 1st M.2 largest key size
- 25110
- 2nd M.2 highest PCI Express generation
- 5.0
- 2nd M.2 largest key size
- 22110
- 3rd M.2 highest PCI Express generation
- 5.0
- 3rd M.2 largest key size
- 22110
- 4th M.2 highest PCI Express generation
- 4.0
- 4th M.2 largest key size
- 22110
- Number of M.2 (M) slots
- 4
- PCI Express x16 (Gen 3.x) slots
- 1
- PCI Express x16 (Gen 4.x) slots
- 1
- PCI Express x16 (Gen 5.x) slots
- 1
- PCI Express x4 slots
- 2
- ACPI version
- 5.0
- BIOS memory size
- 256 Mbit
- BIOS type
- UEFI AMI
- Clear CMOS button
- Yes
- Clear CMOS jumper
- Yes
- Desktop Management Interface (DMI) version
- 2.7
- System Management BIOS (SMBIOS) version
- 2.7
- Battery technology
- Lithium-Manganese Dioxide (LiMnO2)
- Battery type
- CR2032
- Battery weight
- 3 g
- Country of origin
- China
- Lithium weight per battery
- 0.07 g
- Number of battery cells
- 1
- Package depth
- 270 mm
- Package height
- 80 mm
- Package weight
- 2740 g
- Package width
- 335 mm
- Products per shipping (inner) case
- 1 pc(s)
- Depth
- 244 mm
- Height
- 35 mm
- Width
- 305 mm
- Antenna included
- Yes
- Batteries included
- Yes
- Bundled software
- Norton® Internet Security (OEM version) LAN bandwidth management software
- Screws included
- Yes
- Warranty period
- 3 year(s)
- Weight
- 2400 g
- Model
- X870 AORUS ELITE WIFI7
- Units per Shipping Box
- 5
- Unit Calculated Volume
- 0.01043 cubm
- Unit Calculated Weight
- 2.3 kg
X870 A ELITE WIFI7 1.1
7 Items
Data sheet
- Batteries included
- yes
- Bluetooth
- Yes
- RAID levels
- 0/1/10
- Windows operating systems supported
- Windows 11 x64
- Battery technology
- Lithium-Manganese Dioxide (LiMnO2)
- USB 2.0 ports quantity
- 2
- Audio output channels
- 7.1 channels
- Microphone in
- Yes
- Headphone outputs
- 1
- Number of storage drives supported
- 8
- Supported storage drive interfaces
- M.2,SATA III
- Ethernet LAN (RJ-45) ports
- 1
- Wi-Fi standards
- Wi-Fi 7 (802.11be)
- Bundled software
- Norton® Internet Security (OEM version)
LAN bandwidth management software - Battery type
- CR2032
- Country of origin
- China
- Component for
- PC
- Ethernet LAN
- Yes
- Ethernet interface type
- 2.5 Gigabit Ethernet
- DirectX version
- 12.0
- HDMI ports quantity
- 1
- RAID support
- Yes
- Wi-Fi
- Yes
- DisplayPorts quantity
- 2
- Bluetooth version
- 5.4
- Compatible processor series
- AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
- Motherboard form factor
- ATX
- Supported memory types
- DDR5-SDRAM
- Processor socket
- Socket AM5
- EPS power connector (8-pin)
- Yes
- Supported processor sockets
- Socket AM5
- Number of battery cells
- 1
- Maximum internal memory
- 256 GB
- Supported storage drive types
- HDD & SSD
- HDMI version
- 2.1
- Category Code
- MBA
- CnCode
- 84733020
- Units per Shipping Box
- 5
- Product colour
- Black
- Warranty period
- 3 year(s)
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- DisplayPort version
- 1.4
- Screws included
- Yes
- Top Wi-Fi standard
- Wi-Fi 7 (802.11be)
- LAN controller
- Realtek RTL8125
- Battery weight
- 3 g
- Products per shipping (inner) case
- 1 pc(s)
- Memory channels
- Dual-channel
- Processor manufacturer
- AMD
- Antenna included
- Yes
- On-board graphics card
- No
- Motherboard chipset
- AMD X870
- Motherboard chipset family
- AMD
- ECC сompatibility
- Non-ECC
- Memory slots type
- DIMM
- Number of memory slots
- 4
- Number of HDDs supported
- 4
- Parallel processing technology support
- Not supported
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- Number of chassis fan connectors
- 6
- Number of SATA III connectors
- 4
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- S/PDIF out port
- Yes
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 3
- WiFi-AP antenna jack
- 2
- 1st M.2 highest PCI Express generation
- 5.0
- 1st M.2 largest key size
- 25110
- 2nd M.2 highest PCI Express generation
- 5.0
- 2nd M.2 largest key size
- 22110
- 3rd M.2 highest PCI Express generation
- 5.0
- 3rd M.2 largest key size
- 22110
- Number of M.2 (M) slots
- 4
- PCI Express x16 (Gen 4.x) slots
- 1
- PCI Express x16 (Gen 5.x) slots
- 1
- BIOS memory size
- 256 Mbit
- BIOS type
- UEFI AMI
- Audio chip
- Realtek ALC1220
- Supported memory clock speed (max)
- 8200 MHz
- RGB LED pin header
- Yes
- Maximum internal memory supported by processor
- 256 GB
- PC health monitoring
- Fan/Temperature/Voltage
- Number of CPU fan connectors
- 2
- Number of EPS power connectors (8-pin)
- 2
- TPM connector
- Yes
- Clear CMOS jumper
- Yes
- Supported memory clock speeds
- 4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000/8200 MHz
- Supported memory module capacities
- 16GB/1GB/24GB/2GB/32GB/4GB/8GB
- PCI Express x16 (Gen 3.x) slots
- 1
- ACPI version
- 5.0
- Desktop Management Interface (DMI) version
- 2.7
- System Management BIOS (SMBIOS) version
- 2.7
- Lithium weight per battery
- 0.07 g
- Clear CMOS button
- Yes
- Maximum internal memory per slot
- 64 GB
- Number of RGB LED pin headers
- 4
- WLAN controller model
- MediaTek MT7925
- Number of water pump connectors
- 3
- PCI Express x4 slots
- 2
- USB 3.2 Gen 2x2 connectors
- 1
- USB4 Gen 2x2 ports quantity
- 2
- 4th M.2 highest PCI Express generation
- 4.0
- 4th M.2 largest key size
- 22110
Specific References
- EAN13
- 4719331864811
- MPN
- X870 A ELITE WIFI7 1.1
