Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

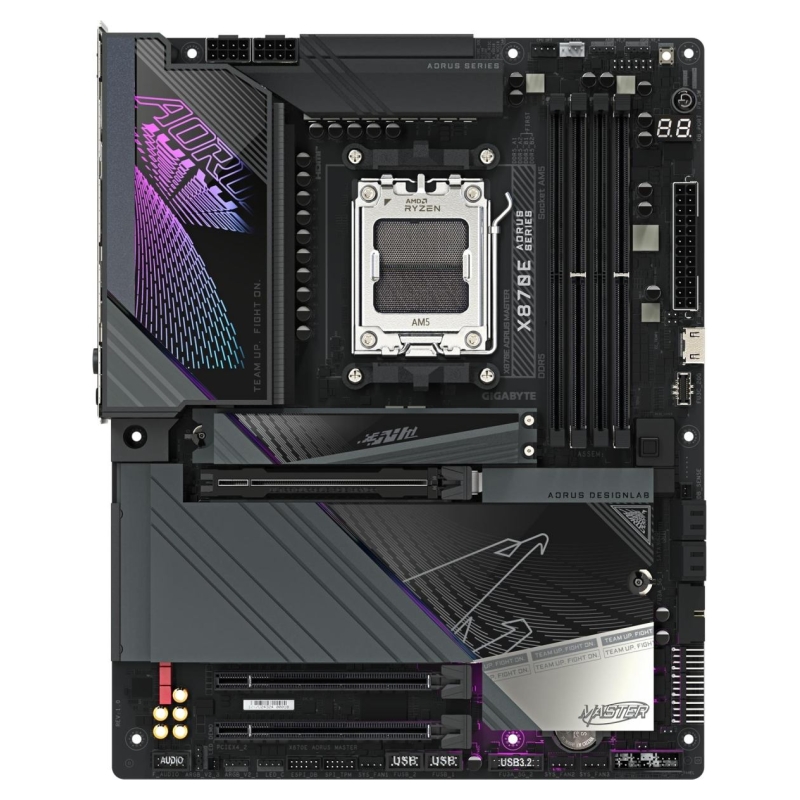

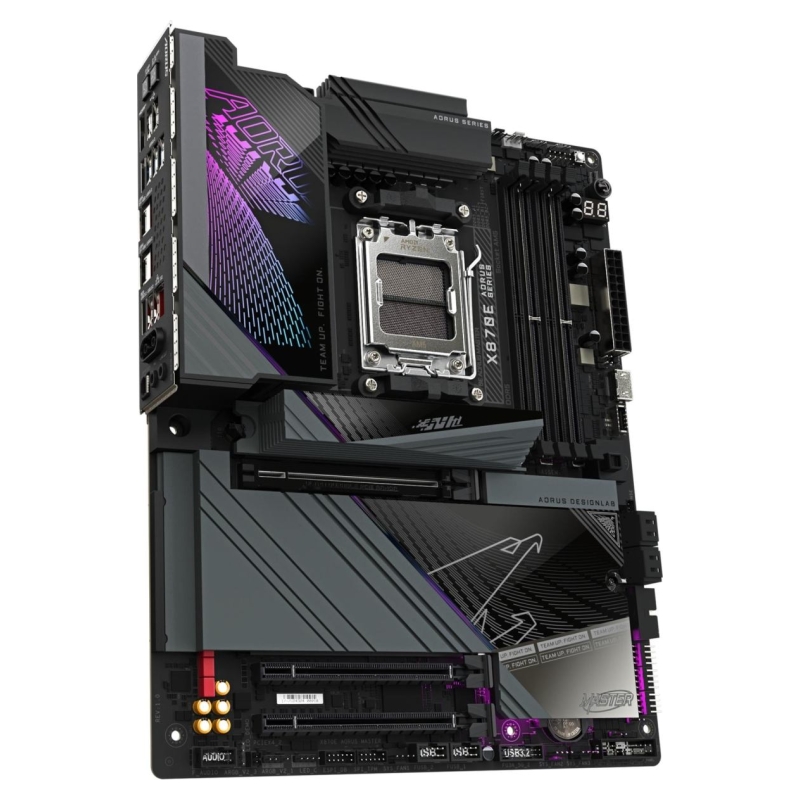

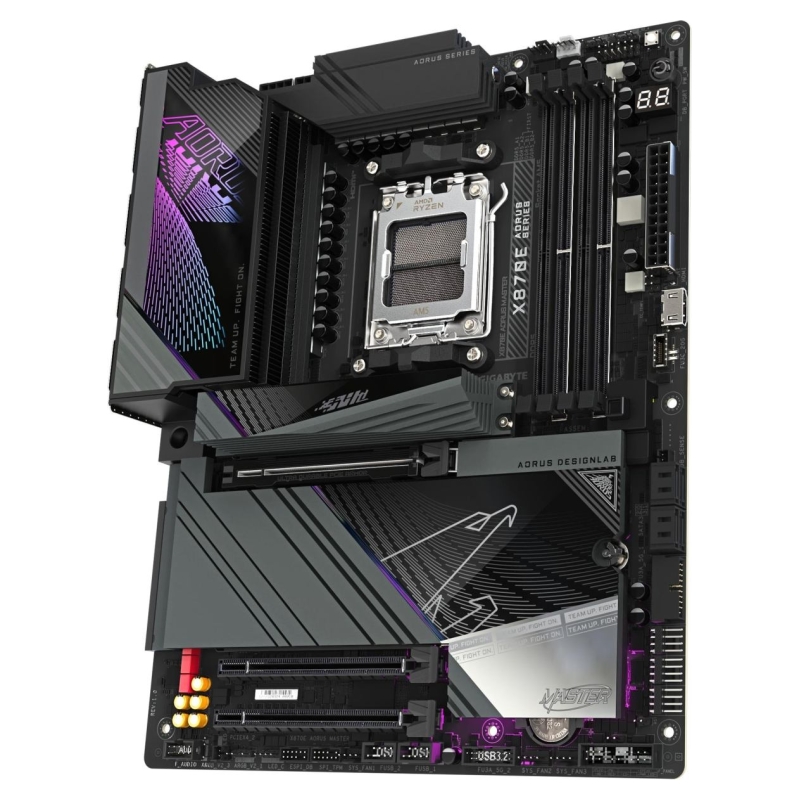

AMD Socket AM5: Supports AMD Ryzen 9000 Series, 8000 Series, 7000 Series Processors Twin 16+2+2 Phases Digital VRM with 110A Smart Power Stage Dual Channel DDR5：4*DIMMs with AMD EXPO & Intel XMP Memory Module Support PCIe Gen5 x16 with PCIe UD Slot X & EZ-Latch Plus M.2 Gen5 with EZ-Latch Plus Efficient Overall Thermal: Fully Covered MOSFET Heatsinks Extended Connectivity: HDMI, Sensor Panel Link ( Front HDMI), 2*USB-C DP Fast Networking: 5GbE LAN & Wi-Fi 7 with WIFI EZ-Plug & Directional Antenna Manufacturer Website: https://www.gigabyte.com/ Category Code MBA CnCode 84733020 Unit Box Height 0.08 Unit Box Length 0.35 Unit Box Width 0.295 Audio chip Realtek ALC1220 Audio output channels 7.1 channels Component for PC Motherboard chipset AMD X870 Motherboard chipset family AMD Motherboard form factor ATX PC health monitoring Fan/Temperature/Voltage Product colour Black Windows operating systems supported Windows 11 x64 Compatible processor series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series Maximum internal memory supported by processor 256 GB Processor manufacturer AMD Processor socket Socket AM5 Supported processor sockets Socket AM5 ECC сompatibility ECC & Non-ECC Maximum internal memory 256 GB Maximum internal memory per slot 64 GB Memory channels Dual-channel Memory slots type DIMM Number of memory slots 4 Supported memory clock speed (max) 8600 MHz Supported memory clock speeds 4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8200/8400/8600 MHz Supported memory module capacities 12GB/1GB/24GB/2GB/32GB/4GB/8GB Supported memory types DDR5-SDRAM Unbuffered memory Yes Number of HDDs supported 4 Number of storage drives supported 8 RAID levels 0/1/10 RAID support Yes Supported storage drive interfaces M.2,SATA III Supported storage drive types HDD & SSD DirectX version 12.0 On-board graphics card No Parallel processing technology support Not supported ATX Power connector (24-pin) Yes CPU fan connector Yes EPS power connector (8-pin) Yes Front panel audio connector Yes Front panel connector Yes Number of chassis fan connectors 6 Number of CPU fan connectors 2 Number of EPS power connectors (8-pin) 2 Number of RGB LED pin headers 5 Number of SATA III connectors 4 Number of water pump connectors 2 RGB LED pin header Yes TPM connector Yes USB 2.0 connectors 2 USB 3.2 Gen 1 (3.1 Gen 1) connectors 2 USB 3.2 Gen 2x2 connectors 1 DisplayPort version 1.4 Ethernet LAN (RJ-45) ports 1 HDMI ports quantity 1 HDMI version 2.1 Headphone outputs 1 Line-in Yes S/PDIF out port Yes USB 2.0 ports quantity 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 4 USB4 Gen 2x2 ports quantity 2 WiFi-AP antenna jack 2 Bluetooth Yes Bluetooth version 5.3 Ethernet interface type 5 Gigabit Ethernet Ethernet LAN Yes LAN controller Realtek RTL8126 Top Wi-Fi standard Wi-Fi 7 (802.11be) Wi-Fi Yes Wi-Fi standards Wi-Fi 7 (802.11be) WLAN controller model Qualcomm QCNCM865 1st M.2 highest PCI Express generation 5.0 1st M.2 largest key size 25110 2nd M.2 highest PCI Express generation 5.0 2nd M.2 largest key size 22110 3rd M.2 highest PCI Express generation 5.0 3rd M.2 largest key size 22110 4th M.2 highest PCI Express generation 4.0 4th M.2 largest key size 22110 Number of M.2 (M) slots 4 PCI Express x16 (Gen 3.x) slots 1 PCI Express x16 (Gen 4.x) slots 1 PCI Express x16 (Gen 5.x) slots 1 PCI Express x4 slots 2 ACPI version 5.0 BIOS memory size 256 Mbit BIOS type UEFI AMI Clear CMOS button Yes Clear CMOS jumper Yes Desktop Management Interface (DMI) version 2.7 System Management BIOS (SMBIOS) version 2.7 Battery technology Lithium-Manganese Dioxide (LiMnO2) Battery type CR2032 Battery weight 3 g Country of origin China Lithium weight per battery 0.07 g Number of battery cells 1 Package depth 294 mm Package height 80 mm Package weight 2970 g Package width 345 mm Products per shipping (inner) case 1 pc(s) Depth 244 mm Height 35 mm Width 305 mm Antenna included Yes Batteries included Yes Screws included Yes Warranty period 3 year(s) Weight 2540 g Model X870E AORUS MASTER Units per Shipping Box 4 Unit Calculated Volume 0.01203 cubm Unit Calculated Weight 3 kg
Reference
X870EAORUSMASTER
In stock
4 Items
Data sheet
Batteries included
yes
Bluetooth
Yes
RAID levels
0/1/10
Windows operating systems supported
Windows 11 x64
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
USB 2.0 ports quantity
2
Audio output channels
7.1 channels
Headphone outputs
1
Number of storage drives supported
8
Supported storage drive interfaces
M.2,SATA III
Ethernet LAN (RJ-45) ports
1
Wi-Fi standards
Wi-Fi 7 (802.11be)
Battery type
CR2032
Country of origin
China
Component for
PC
Ethernet LAN
Yes
Ethernet interface type
5 Gigabit Ethernet
DirectX version
12.0
HDMI ports quantity
1
RAID support
Yes
Wi-Fi
Yes
Bluetooth version
5.3
Compatible processor series
AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Motherboard form factor
ATX
Supported memory types
DDR5-SDRAM
Processor socket
Socket AM5
EPS power connector (8-pin)
Yes
Supported processor sockets
Socket AM5
Number of battery cells
1
Maximum internal memory
256 GB
Supported storage drive types
HDD & SSD
HDMI version
2.1
Category Code
MBA
CnCode
84733020
Units per Shipping Box
4
Product colour
Black
Warranty period
3 year(s)
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
DisplayPort version
1.4
Screws included
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
LAN controller
Realtek RTL8126
Line-in
Yes
Battery weight
3 g
Products per shipping (inner) case
1 pc(s)
Memory channels
Dual-channel
Processor manufacturer
AMD
Antenna included
Yes
On-board graphics card
No
Motherboard chipset
AMD X870
Motherboard chipset family
AMD
ECC сompatibility
ECC & Non-ECC
Memory slots type
DIMM
Number of memory slots
4
Unbuffered memory
Yes
Number of HDDs supported
4
Parallel processing technology support
Not supported
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Front panel audio connector
Yes
Front panel connector
Yes
Number of chassis fan connectors
6
Number of SATA III connectors
4
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
S/PDIF out port
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
WiFi-AP antenna jack
2
1st M.2 highest PCI Express generation
5.0
1st M.2 largest key size
25110
2nd M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
22110
3rd M.2 highest PCI Express generation
5.0
3rd M.2 largest key size
22110
Number of M.2 (M) slots
4
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Audio chip
Realtek ALC1220
Supported memory clock speed (max)
8600 MHz
RGB LED pin header
Yes
Maximum internal memory supported by processor
256 GB
PC health monitoring
Fan/Temperature/Voltage
Number of CPU fan connectors
2
Number of EPS power connectors (8-pin)
2
TPM connector
Yes
Clear CMOS jumper
Yes
Supported memory clock speeds
4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8200/8400/8600 MHz
Supported memory module capacities
12GB/1GB/24GB/2GB/32GB/4GB/8GB
PCI Express x16 (Gen 3.x) slots
1
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
Lithium weight per battery
0.07 g
Clear CMOS button
Yes
Maximum internal memory per slot
64 GB
Number of RGB LED pin headers
5
WLAN controller model
Qualcomm QCNCM865
Number of water pump connectors
2
PCI Express x4 slots
2
USB 3.2 Gen 2x2 connectors
1
USB4 Gen 2x2 ports quantity
2
4th M.2 highest PCI Express generation
4.0
4th M.2 largest key size
22110
Specific References
EAN13
4719331864354
MPN
X870EAORUSMASTER
