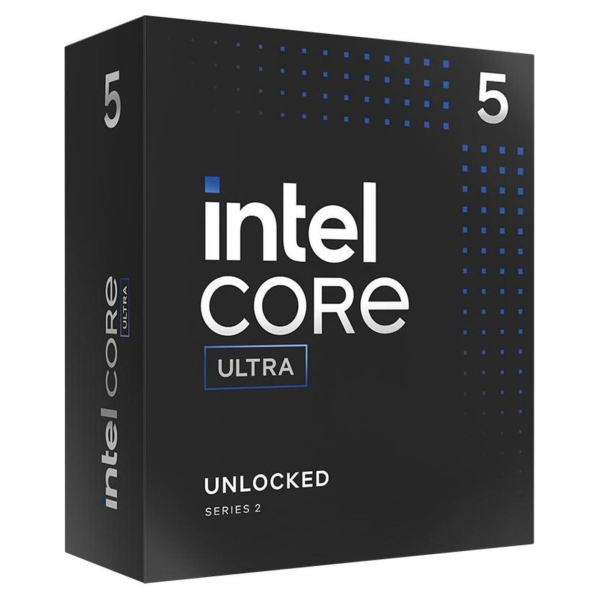

Intel CPU|INTEL|U5-235|Intel Core Ultra|Desktop|Intel Core Ultra 5|235|14xCores|Cache 24 MB|Socket LGA 1851 (Socket V1)|GPU Yes|

Write a review

€320.69

Tax included

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

The latest Intel® Core™ Ultra processors (Series 2) enable you to use the most AI experiences across desktop, mobile and edge—making everything you do easier, faster, and better.

Manufacturer Website:
https://www.intel.com/content/www/us/en/products/sku/241674/intel-core-ultra-5-processor-235-24m-cache-up-to-5-00-ghz/ordering.html

Category Code: CPU
CnCode: 85423190
Unit Box Height: 0.11
Unit Box Length: 0.12
Unit Box Width: 0.08
AI software frameworks supported by CPU: DirectML/ONNX RT/OpenVINO/WebNN/Windows ML
Efficient cores: 8
Efficient-core base frequency: 2.9 GHz
Efficient-core boost frequency: 4.4 GHz
Maximum number of DMI lanes: 8
Maximum turbo power: 121 W
Package type: Box
Performance cores: 6
Performance-core base frequency: 3.4 GHz
Performance-core boost frequency: 5 GHz
Processor ARK ID: 241674
Processor base power: 65 W
Processor boost frequency: 5 GHz
Processor cache: 24 MB
Processor cache type: Smart Cache
Processor codename: Arrow Lake
Processor cores: 14
Processor family: Intel Core Ultra 5
Processor generation: Intel Core Ultra (Series 2)
Processor manufacturer: Intel
Processor model: 235
Processor operating modes: 64-bit
Processor socket: LGA 1851 (Socket V1)
AI software frameworks supported by NPU: DirectML/ONNX RT/OpenVINO/WebNN/Windows ML
GPU performance up to: 6 TOPs
Neural processor unit (NPU): Intel AI Boost
NPU performance up to: 13 TOPs
Sparsity support: Yes
Total processor performance up to: 27 TOPs
Windows Studio effects support: Yes
ECC: Yes
Maximum internal memory supported by processor: 192 GB
Memory channels: Dual-channel
Memory clock speeds supported by processor: 6400 MHz
Memory types supported by processor: DDR5-SDRAM
Discrete graphics card: No
Discrete graphics card model: Not available
Number of displays supported (on-board graphics): 4
On-board graphics card: Yes
On-board graphics card base frequency: 300 MHz
On-board graphics card DirectX version: 12.0
On-board graphics card dynamic frequency (max): 2000 MHz
On-board graphics card ID: 0x7D67
On-board graphics card model: Intel® Graphics
On-board graphics card OpenGL version: 4.5
On-board graphics card outputs supported: DisplayPort 2.1/Embedded DisplayPort (eDP) 1.4b/HDMI 2.1
On-board graphics card refresh rate at maximum resolution (DisplayPort): 60 Hz
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel): 60 Hz
On-board graphics card refresh rate at maximum resolution (HDMI): 60 Hz
Xe-cores: 3
Direct Media Interface (DMI) Revision: 4.0
Embedded options available: No
Execute Disable Bit: Yes
Idle States: Yes
Market segment: Desktop
Maximum number of PCI Express lanes: 24
PCI Express slots version: 4.0/5.0
Scalability: 1S
Supported instruction sets: AVX 2.0/SSE4.1/SSE4.2
Thermal Monitoring Technologies: Yes
Use conditions: PC/Client/Tablet/Workstation
Enhanced Intel SpeedStep Technology: Yes
Intel 64: Yes
Intel Trusted Execution Technology: Yes
Intel Virtualization Technology (VT-x): Yes
Intel Virtualization Technology for Directed I/O (VT-d): Yes
Intel vPro® Enterprise Platform Eligibility: Yes
Intel VT-x with Extended Page Tables (EPT): Yes
Intel® Active Management Technology (Intel® AMT): Yes
Intel® AES New Instructions (Intel® AES-NI): Yes
Intel® Boot Guard: Yes
Intel® Control-flow Enforcement Technology (CET): Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
Intel® Deep Learning Boost (Intel® DL Boost) on GPU: Yes
Intel® Hardware Shield Eligibility: Yes
Intel® One-Click Recovery: Yes
Intel® OS Guard: Yes
Intel® Quick Sync Video Technology: Yes
Intel® Remote Platform Erase (RPE): Yes
Intel® Secure Key: Yes
Intel® Speed Shift Technology: Yes
Intel® Stable IT Platform Program (SIPP): Yes
Intel® Standard Manageability (ISM): Yes
Intel® Thread Director: Yes
Intel® Threat Detection Technology (TDT): Yes
Intel® Thunderbolt 4: Yes
Intel® Total Memory Encryption - Multi Key: Yes
Intel® Turbo Boost Technology: 2.0
Intel® Virtualization Technology with Redirect Protection (VT-rp): Yes
Intel® Volume Management Device (VMD): Yes
Mode-based Execute Control (MBE): Yes
Maximum operating temperature: 105 °C
Launch date: Q1'25
OpenCL version: 3.0
Status: Launched
Graphics output: DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b
L2 cache: 26624 KB
Maximum internal memory: 192 GB
Model: Intel Core Ultra 5 235 (BX80768235)
CPU Family name: Intel Core Ultra
Model number: U5-235
Units per Shipping Box: 5
Unit Calculated Volume: 0.001248 cubm
Unit Calculated Weight: 0.492 kg

Reference BX80768235 S RQAS

In stock 22 Items

Data sheet

Processor family: Intel Core Ultra 5
L2 cache: 26624 KB
Package type: Box
ECC: Yes
Processor cores: 14
Processor model: 235
Processor socket: LGA 1851 (Socket V1)
Processor boost frequency: 5 GHz
Maximum internal memory: 192 GB
Category Code: CPU
CnCode: 85423190
Units per Shipping Box: 5
Market segment: Desktop
Memory channels: Dual-channel
Processor manufacturer: Intel
Model number: U5-235
Status: Launched
Processor cache: 24 MB
Processor cache type: Smart Cache
Processor generation: Intel Core Ultra (Series 2)
Processor operating modes: 64-bit
Memory clock speeds supported by processor: 6400 MHz
Memory types supported by processor: DDR5-SDRAM
Discrete graphics card: No
Discrete graphics card model: Not available
On-board graphics card: Yes
On-board graphics card model: Intel® Graphics
CPU Family name: Intel Core Ultra
Neural processor unit (NPU): Intel AI Boost
Efficient cores: 8
Efficient-core base frequency: 2.9 GHz
Efficient-core boost frequency: 4.4 GHz
Maximum number of DMI lanes: 8
Maximum turbo power: 121 W
Performance cores: 6
Performance-core base frequency: 3.4 GHz
Performance-core boost frequency: 5 GHz
Processor ARK ID: 241674
Processor base power: 65 W
Processor codename: Arrow Lake
Maximum internal memory supported by processor: 192 GB
Direct Media Interface (DMI) Revision: 4.0
Embedded options available: No
Execute Disable Bit: Yes
Idle States: Yes
Maximum number of PCI Express lanes: 24
PCI Express slots version: 4.0/5.0
Scalability: 1S
Supported instruction sets: AVX 2.0/SSE4.1/SSE4.2
Thermal Monitoring Technologies: Yes
Use conditions: PC/Client/Tablet/Workstation
Enhanced Intel SpeedStep Technology: Yes
Intel 64: Yes
Intel Virtualization Technology (VT-x): Yes
Intel Virtualization Technology for Directed I/O (VT-d): Yes
Intel VT-x with Extended Page Tables (EPT): Yes
Intel® AES New Instructions (Intel® AES-NI): Yes
Intel® Boot Guard: Yes
Intel® Control-flow Enforcement Technology (CET): Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
Intel® OS Guard: Yes
Intel® Secure Key: Yes
Intel® Speed Shift Technology: Yes
Intel® Standard Manageability (ISM): Yes
Intel® Thread Director: Yes
Intel® Turbo Boost Technology: 2.0
Intel® Volume Management Device (VMD): Yes
Mode-based Execute Control (MBE): Yes
Launch date: Q1'25
NPU performance up to: 13 TOPs
Total processor performance up to: 27 TOPs
Maximum operating temperature: 105 °C
Graphics output: DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b
OpenCL version: 3.0
Xe-cores: 3
On-board graphics card base frequency: 300 MHz
On-board graphics card dynamic frequency (max): 2000 MHz
AI software frameworks supported by CPU: DirectML/ONNX RT/OpenVINO/WebNN/Windows ML
AI software frameworks supported by NPU: DirectML/ONNX RT/OpenVINO/WebNN/Windows ML
Sparsity support: Yes
Windows Studio effects support: Yes
Intel Trusted Execution Technology: Yes
Intel® Thunderbolt 4: Yes
GPU performance up to: 6 TOPs
Number of displays supported (on-board graphics): 4
On-board graphics card DirectX version: 12.0
On-board graphics card ID: 0x7D67
On-board graphics card OpenGL version: 4.5
On-board graphics card outputs supported: DisplayPort 2.1/Embedded DisplayPort (eDP) 1.4b/HDMI 2.1
On-board graphics card refresh rate at maximum resolution (DisplayPort): 60 Hz
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel): 60 Hz
On-board graphics card refresh rate at maximum resolution (HDMI): 60 Hz
Intel vPro® Enterprise Platform Eligibility: Yes
Intel® Active Management Technology (Intel® AMT): Yes
Intel® Deep Learning Boost (Intel® DL Boost) on GPU: Yes
Intel® Hardware Shield Eligibility: Yes
Intel® One-Click Recovery: Yes
Intel® Quick Sync Video Technology: Yes
Intel® Remote Platform Erase (RPE): Yes
Intel® Stable IT Platform Program (SIPP): Yes
Intel® Threat Detection Technology (TDT): Yes
Intel® Total Memory Encryption - Multi Key: Yes
Intel® Virtualization Technology with Redirect Protection (VT-rp): Yes
