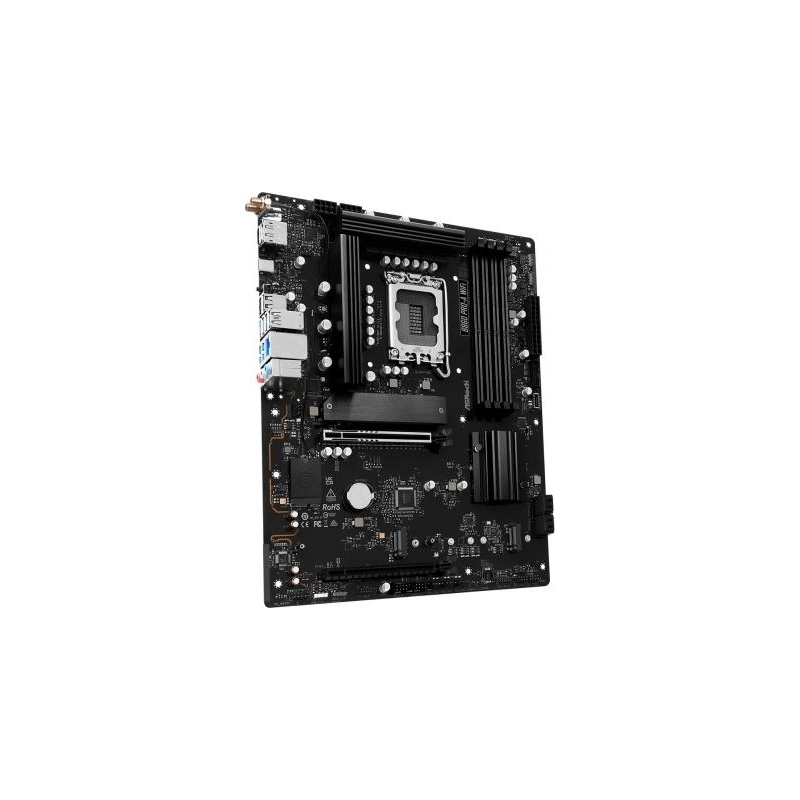

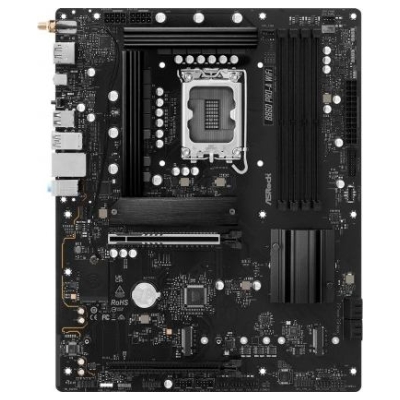

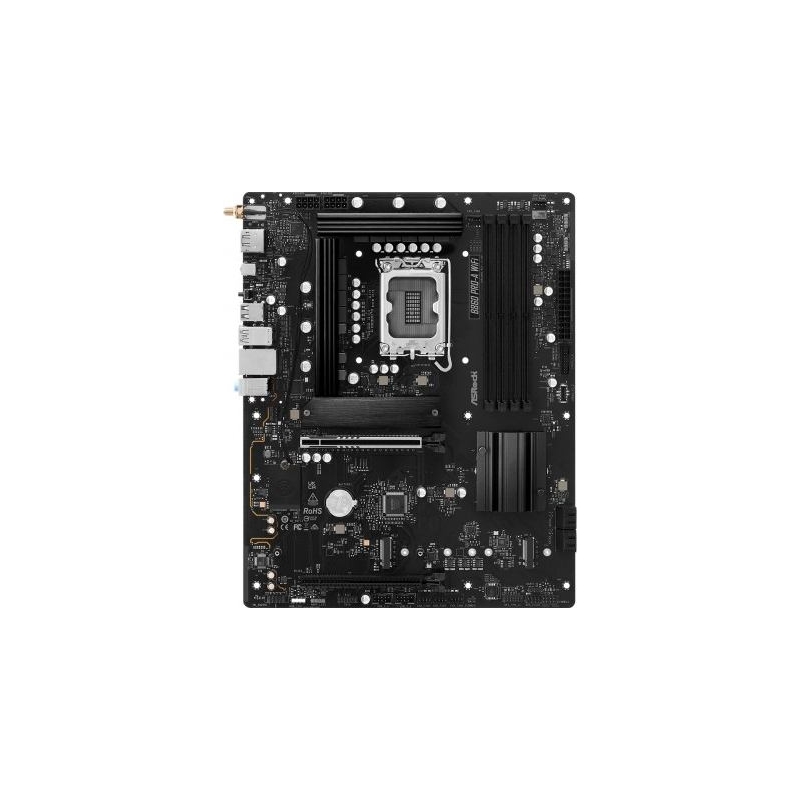

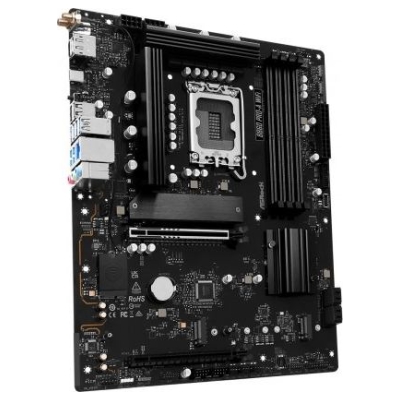

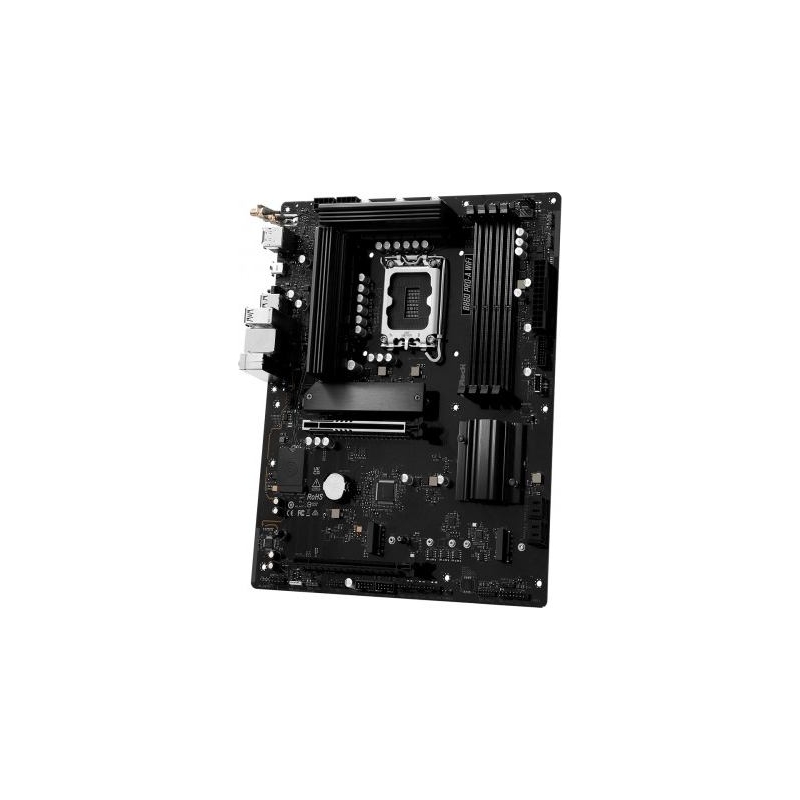

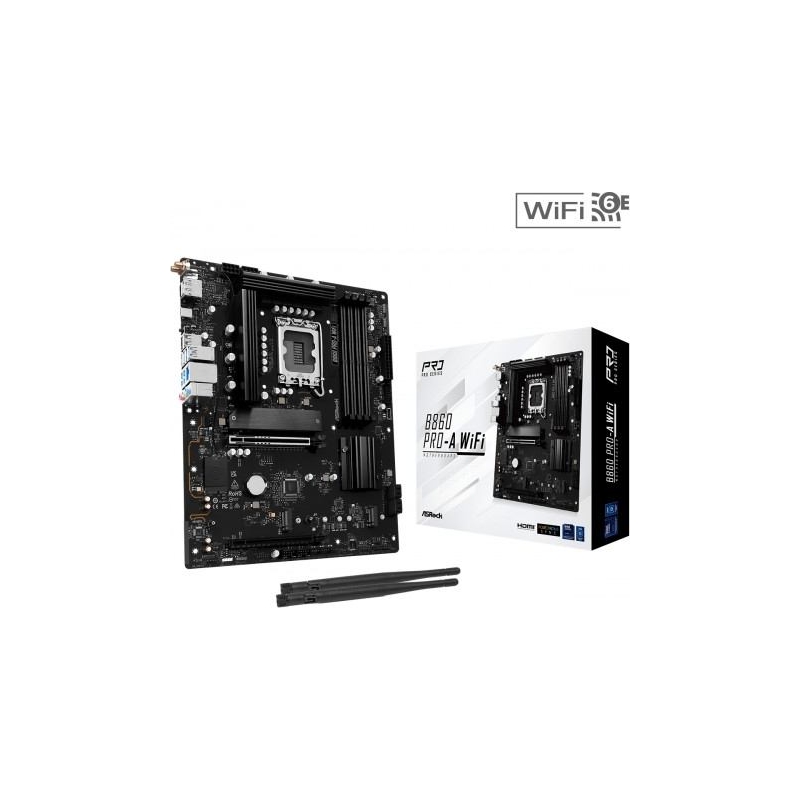

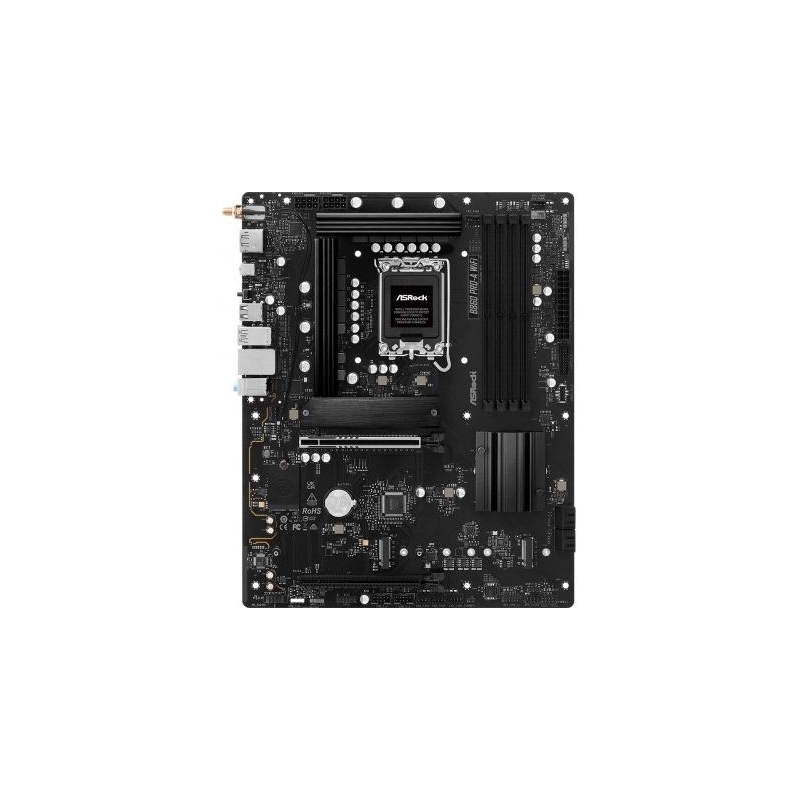

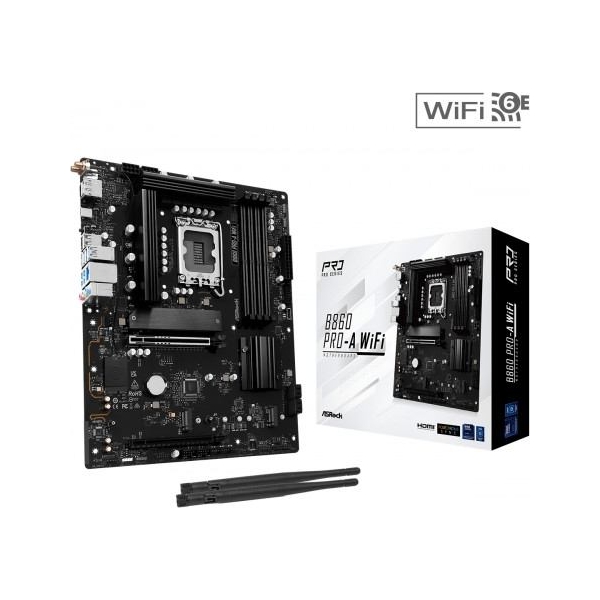

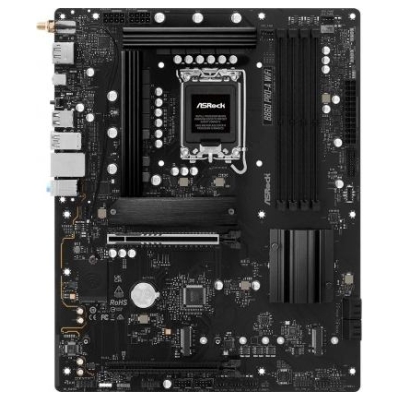

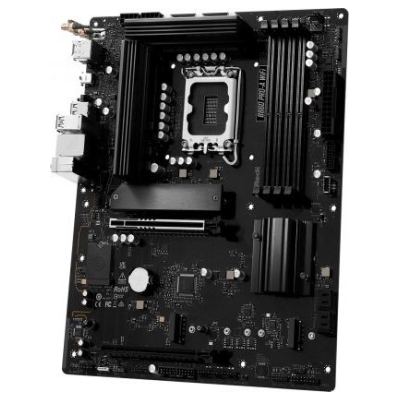

Asrock Motherboard B860 PRO-A WIFI s1851 4DDR5 ATX

Data sheet

Designation

CE+WEEE

Processor family

Intel Core Ultra

CPU socket

LGA1851

Memory type

DDR5

Memory bus frequency

8666 MHz

Integrated CPU

No

Chipset manufacturer

Intel

Max memory size

256

Expansion slots

1 x M.2
1 x PCIe 4.0 x 16
1 x PCIe 5.0 x 16

Max. number of SATA devices

4

RAID

Yes

Network interface

1 x 10/100/1000/2500 Mbit/s
Bluetooth
Wi-Fi 802.11a/b/g/n/ac/ax/axe

USB ports at back panel

9

USB ports on motherboard

7

Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports

9

FireWire (IEEE 1394)

No

COM connector / port

No

LPT connector / port

No

External connectors

1 x DisplayPort
1 x HDMI
1 x Line In
1 x Line Out
1 x MIC
1 x RJ-45
1 x USB 3.2 Gen 2x2 Type-C
1 x USB BIOS Flashback button
2 x SMA
2 x USB 2.0
6 x USB 3.2 Gen 1 Type-A

Onboard connectors

1 x 24pin ATX zasilanie
1 x 4-pin water-pump-fan
1 x Front panel audio header
1 x Power LED and Speaker Header
1 x RGB LED strip header
1 x TPM header
1 x USB 3.2 Gen 1 Type-A
1 x USB 3.2 Gen 1 Type-C
2 x 4pin wentylator CPU
2 x 8pin 12V
2 x USB 2.0/1.1 header
3 x Addressable LED
4 x 4pin Chassis fan

Form factor

ATX

Supported operating systems

Windows 11

Number of DDR5 slots

4

Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports

1

Specific References

EAN13

4711581490253

MPN

B860 PRO-A WIFI
