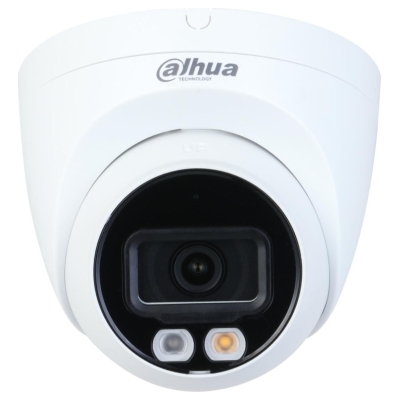

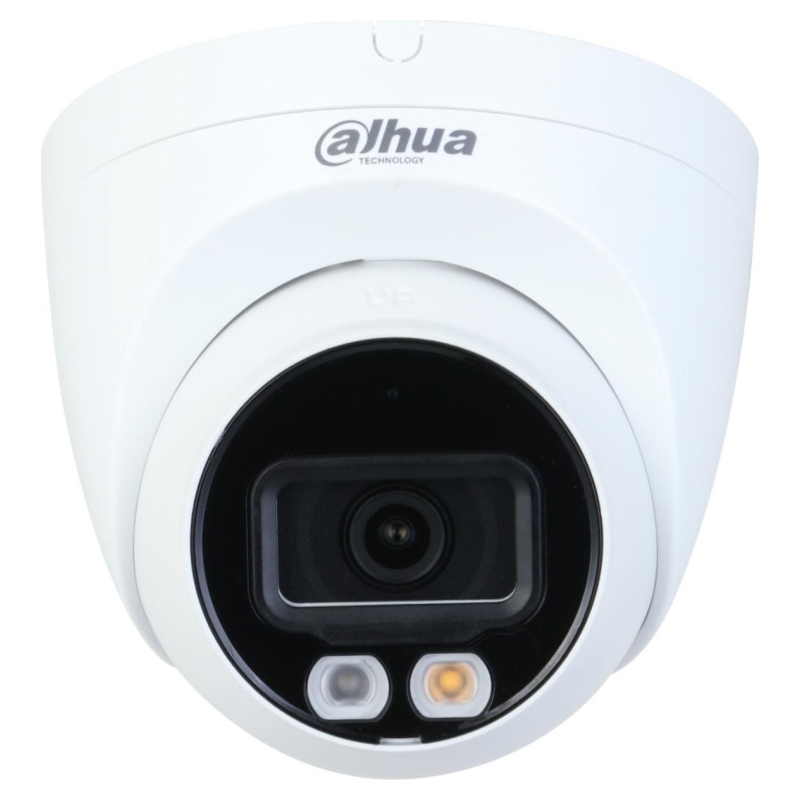

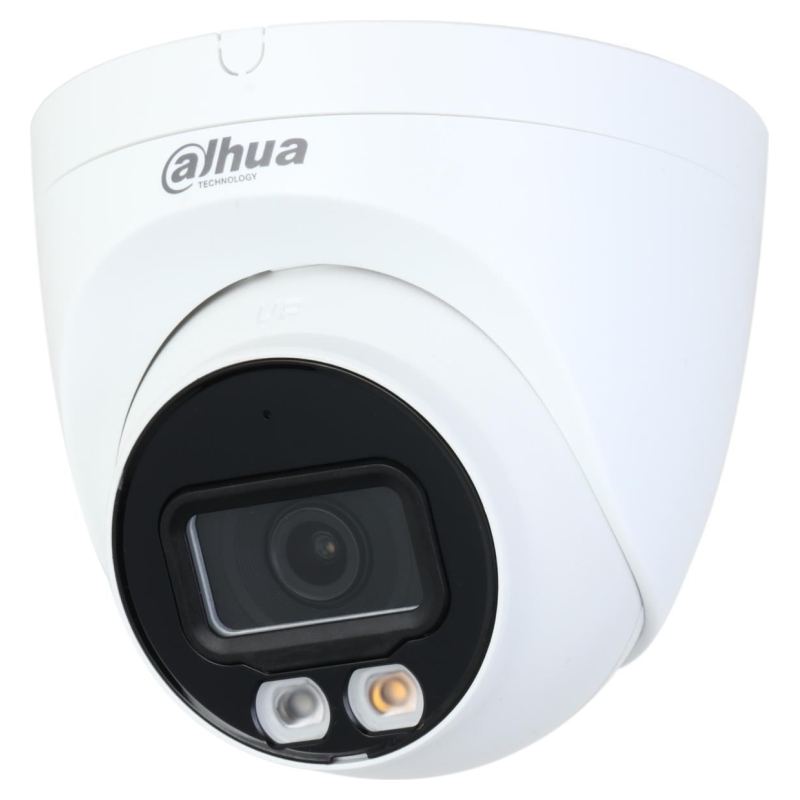

Dahua NET CAMERA 4MP EYEBALL/IPC-HDW2449T-S-IL-0280B DAHUA

Dahua NET CAMERA 4MP EYEBALL/IPC-HDW2449T-S-IL-0280B DAHUA

Write a review

€199.55

Tax included

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

4-MP 1/2.9" CMOS image sensor, low luminance, and high definition image
Outputs max. 4 MP (2688 × 1520)@20 fps, and supports 2560 × 1440 @25/30 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in warm light/IR LED, the max. illumination distance is 30 m and the max. warm light distance is 30 m
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
Supports max. 256 G Micro SD card; built in MIC
12 VDC/PoE power supply, easy for installation
IP67 protection
SMD Plus

Manufacturer Website:
https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Illuminators/IPC-HDW2449T-S-IL

Category Code: FNC
CnCode: 85258900
Unit Box Height: 0.11
Unit Box Length: 0.12
Unit Box Width: 0.12
Form factor: Turret
International Protection (IP) code: IP67
Mounting type: Ceiling
Product colour: White
Certification: CE-LVD: EN 62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B
Connectivity technology: Wired
Dynamic range: 120 dB
Placement supported: Indoor & outdoor
Type: IP security camera
Wide Dynamic Range (WDR): Yes
Adjustment shutter speed: Auto/Manual
Angle of rotation: 360 °
Camera shutter speed: 1/3 - 1/100000 s
Camera shutter type: Electronic
Lens viewing angle, diagonal: 114 °
Lens viewing angle, horizontal: 95 °
Lens viewing angle, vertical: 52 °
Minimum illumination: 0.008 lx
Pan range: 0 - 360 °
Tilt angle range: 0 - 78 °
Number of Privacy masking areas (panoramic camera): 4
Number of sensors: 1
Optical sensor size: 1/2.9 "
Progressive scan: Yes
Sensor type: CMOS
Closest focusing distance: 0.9 m
Detect distance: 63.6 m
Detect distance (tele): 85.4 m
Detect distance (wide): 63.6 m
Identify distance: 6.4 m
Identify distance (tele): 8.5 m
Identify distance (wide): 6.4 m
Maximum aperture number: 1.6
Normal focusing range: 0.9 - 1.6 m
Number of lenses: 1
Observe distance: 25.4 m
Observe distance (tele): 34.2 m
Observe distance (wide): 25.4 m
Recognize distance: 12.7 m
Recognize distance (tele): 17.1 m
Recognize distance (wide): 12.7 m
LED type: IR
Night vision: No
Night vision distance: 30 m
Number of illumination LEDs: 2
Back Light Compensation (BLC): Yes
Bit rate: H.264: 32 kbps-6144 kbps; H.265: 12 kbps-6144 kbps
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Frame rate: 30 fps
Gain control type: Auto/Manual
Highlight Compensation (HLC): Yes
Maximum resolution: 2688 x 1520 pixels
Noise reduction: Yes
Noise reduction technology: 3D noise reduction
Privacy masking: Yes
Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2520 x 1520/2560 x 1440/640 x 480 (VGA)
Supported video modes: 1080p
Total megapixels: 4 MP
Video compression formats: H.264/H.264B/H.264H/H.265/M-JPEG
Video formats supported: H.264/H.264+/H.265/H.265+
Video streaming: Yes
Bit rate range: 12 - 6144 Kbit/s
Built-in microphone: Yes
Signal-to-Noise Ratio (SNR): 56 dB
Voice codecs: G.711a/G.711Mu/G.726/PCM
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Number of users: 6 user(s)
Streaming method: Multicast
Supported network protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP
Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
Internal memory: 128 MB
Maximum memory card size: 256 GB
ROM capacity: 128 MB
DC-in jack: Yes
Ethernet LAN (RJ-45) ports: 1
Intelligent Video Surveillance (IVS) system features: Human detection/Intrusion/Tripwire/Vehicle detection
Mirror: Yes
Privacy protection: Yes
Video motion detection: Yes
Management software: DSS; DMSS
Web browser: Yes
DC output voltage: 12
Power consumption: 2.1 mA
Power consumption (max): 5.2 W
Power consumption (Power over Ethernet (PoE)): 2.5 W
Power source type: DC,PoE
Operating relative humidity (H-H): 0 - 95 %
Operating temperature (T-T): -40 - 60 °C
Storage temperature (T-T): -40 - 60 °C
Mobile operating systems supported: Android/iOS
Depth: 109.9 mm
Diameter: 109.9 mm
Height: 100.9 mm
Weight: 370 g
Width: 109.9 mm
Package weight: 510 g
Number of cameras: 1
Units per Shipping Box: 30
Unit Calculated Volume: 0.00196 cubm
Unit Calculated Weight: 0.545 kg
