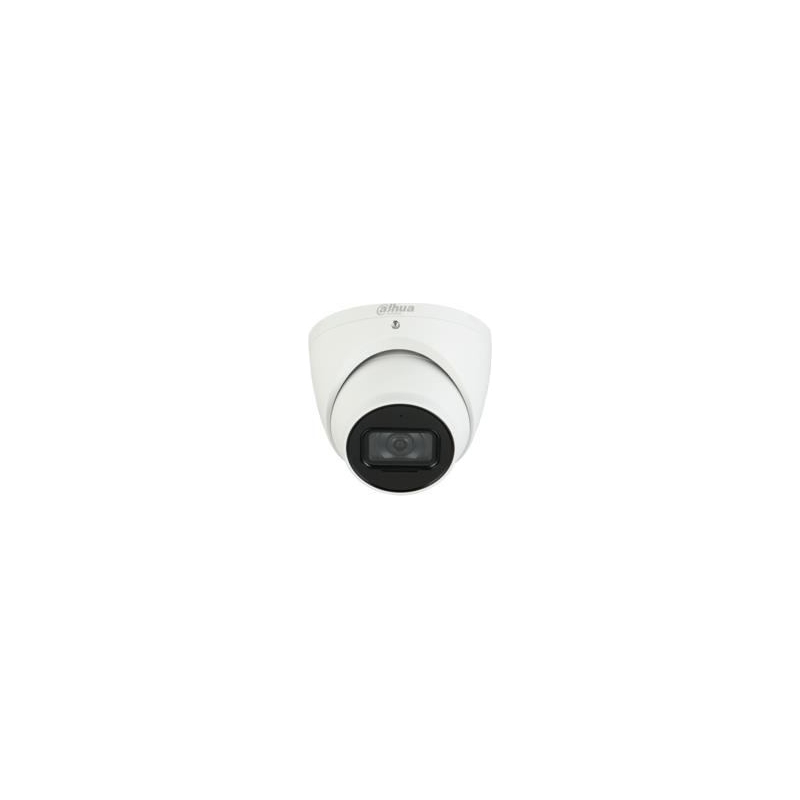

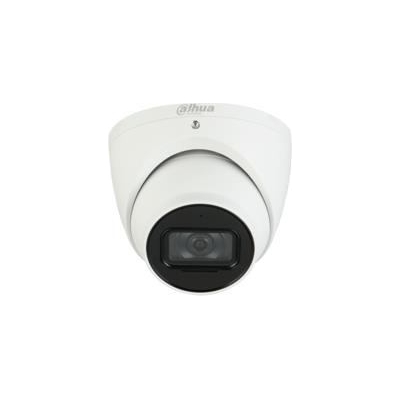

Dahua NET CAMERA 5MP IR EYEBALL/HDW5541TM-ASE-0280B-S3 DAHUA

Write a review

€318.64

Tax included

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

1/2.7” 5Megapixel progressive scan CMOS
H.265 & H.264 triple-stream encoding
20 fps@2592 × 1944, 50/60 fps@1080P (1920 × 1080)
WDR (120 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC
Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS
2.8 mm fixed lens (3.6 mm, 6.0 mm optional)
Built-in MIC · Max. IR LEDs Length 50 m
Micro SD memory, IP67

Manufacturer Website:
https://www.dahuasecurity.com/products/productDetail/32947

Category Code: FNC
CnCode: 85258900
Unit Box Height: 0.13
Unit Box Length: 0.14
Unit Box Width: 0.15
Form factor: Dome
Housing material: Metal
International Protection (IP) code: IP67
Mounting type: Ceiling
Product colour: White
Certification: CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Connectivity technology: Wired
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Placement supported: Indoor & outdoor
Type: IP security camera
Wide Dynamic Range (WDR): Yes
Adjustment shutter speed: Auto/Manual
Angle of rotation: 360 °
Camera shutter speed: 1/3 s-1/100000 s s
Camera shutter type: Electronic
Lens viewing angle, horizontal: 102 °
Lens viewing angle, vertical: 71 °
Minimum illumination: 0.005 lx
Pan range: 0 - 360 °
Tilt angle range: 0 - 78 °
White balance: Auto/Lamp/Manual/Natural/Outdoor
Number of effective pixels (H x V): 2592 x 1944 pixels
Number of sensors: 1
Optical sensor size: 1/2.7 "
Progressive scan: Yes
Sensor type: CMOS
Fixed focal length: 2.8 mm
Maximum aperture number: 1.6
Number of lenses: 1
LED type: IR
Night vision: Yes
Night vision distance: 50 m
Number of illumination LEDs: 2
Back Light Compensation (BLC): Yes
Bit rate: 32 Kbps-8192 Kbps
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Flip & mirror: Yes
Frame rate: 60 fps
Gain control type: Auto/Manual
Highlight Compensation (HLC): Yes
Maximum resolution: 2592 x 1944 pixels
Noise reduction: Yes
Noise reduction technology: 3D noise reduction
Privacy masking: Yes
Region of Interest (ROI) encoding: Yes
Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440/2592 x 1520/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576
Total megapixels: 5 MP
Video compression formats: H.264
Video streaming: Yes
Built-in microphone: Yes
Voice codecs: AAC/G.711a/G.711Mu/G.723/G.726
Bluetooth: No
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Networking standards: IEEE 802.3af
Number of users: 20 user(s)
Quality of Service (QoS) support: Yes
Streaming method: Multicast/Unicast
Supported network protocols: IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP
Wi-Fi: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
Internal memory: 512 MB
ROM capacity: 128 MB
Ethernet LAN (RJ-45) ports: 1
Intelligent Video Surveillance (IVS) system features: Crossing line/Heat map/Intrusion/People counting/Tripwire
Video motion detection: Yes
Web browser: Yes
DC output voltage: 12
Power consumption (typical): 7.2 W
Power source type: DC,PoE
Operating relative humidity (H-H): 0 - 95 %
Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -30 - 60 °C
Mobile operating systems supported: Android/iOS
Diameter: 106 mm
Height: 93.6 mm
Weight: 550 g
Package weight: 710 g
Number of cameras: 1
Model: IPC-HDW5541TM-ASE-0280B-S3
Units per Shipping Box: 24
Unit Calculated Volume: 0.00348 cubm
Unit Calculated Weight: 0.8 kg
