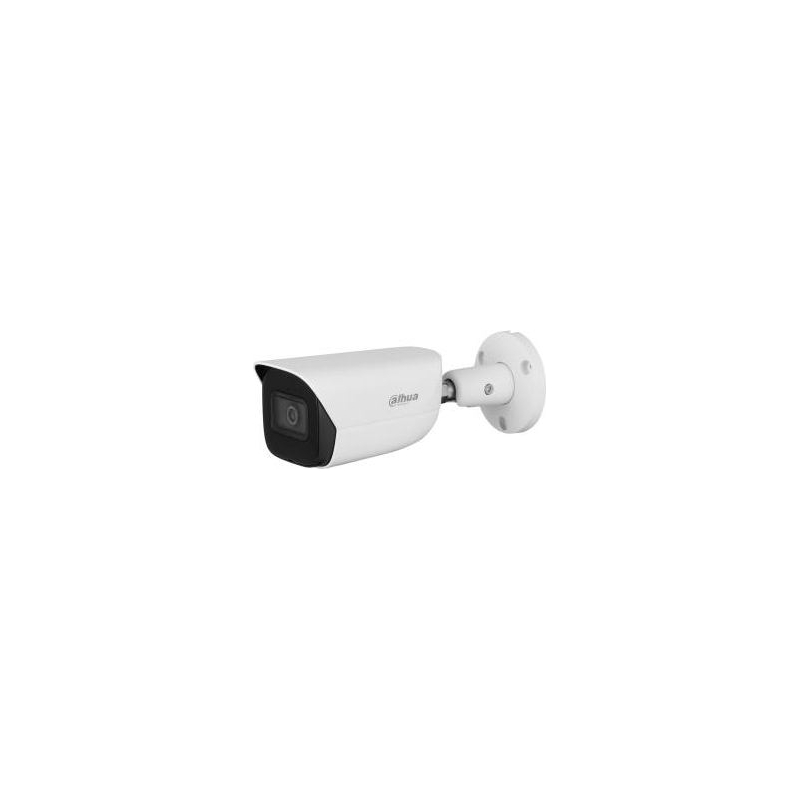

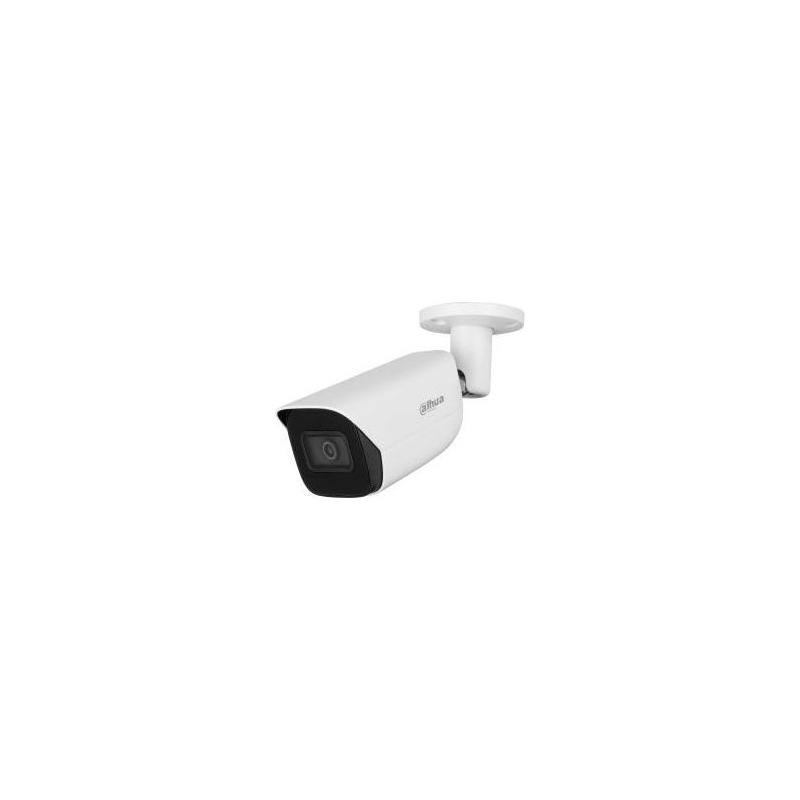

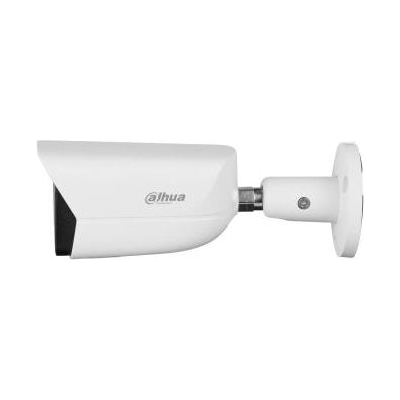

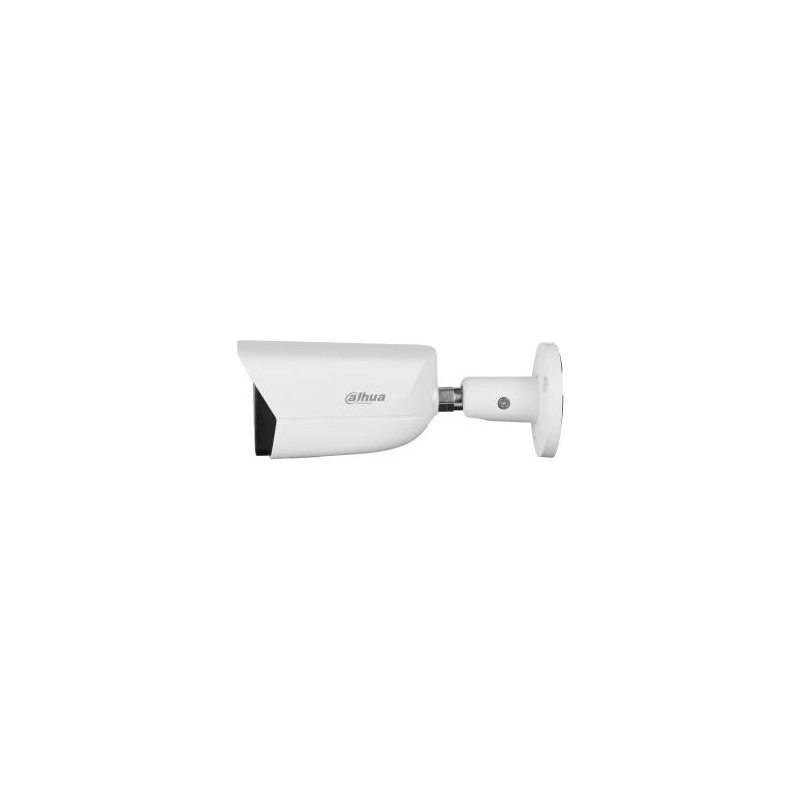

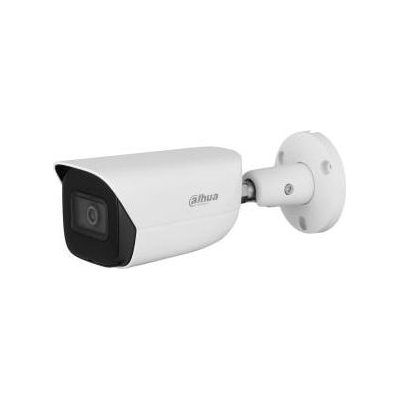

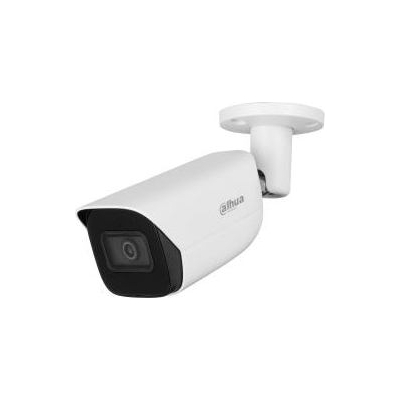

Dahua NET CAMERA 5MP IR BULLET/HFW5541E-ASE-0280B-S3 DAHUA

Dahua NET CAMERA 5MP IR BULLET/HFW5541E-ASE-0280B-S3 DAHUA

Write a review

€318.64

Tax included

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image
Outputs max. 5 MP (2960×1668) @25/30fps
Built-in IR LED, and the max. illumination distance is 50 m
ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 GB Micro SD card, built-in MIC
12 VDC/PoE power supply; ePoE
IP67 protection
SMD 3.0

Manufacturer Website:
https://www.dahuasecurity.com/es/products/All-Products/Network-Cameras/WizMind-S-Series/5MP/IPC-HFW5541E-ASE=S3

Category Code: FNC
CnCode: 85258900
Unit Box Height: 0.1
Unit Box Length: 0.22
Unit Box Width: 0.115
Form factor: Bullet
Housing material: Metal
International Protection (IP) code: IP67
Mounting type: Wall
Product colour: White
Alarm input/output: Yes
Connectivity technology: Wired
Day/night mode: Yes
People counting function: Yes
Placement supported: Indoor & outdoor
Type: IP security camera
Wide Dynamic Range (WDR): Yes
Angle of rotation: 360 °
Camera shutter speed: 1/3 - 1/100000 s
Camera shutter type: Electronic
Lens viewing angle, diagonal: 132 °
Lens viewing angle, horizontal: 111 °
Lens viewing angle, vertical: 58 °
Minimum illumination: 0 lx
Pan range: 0 - 360 °
Tilt angle range: 0 - 90 °
White balance: Auto/Manual/Natural/Outdoor/Regional custom/Street lamp
Optical sensor size: 1/2.7 "
Progressive scan: Yes
Sensor type: CMOS
Closest focusing distance: 1.1 m
Detect distance: 63.6 m
Fixed focal length: 2.8 mm
Identify distance: 6.4 m
Minimum aperture number: 1.6
Observe distance: 25.4 m
Recognize distance: 12.7 m
Night vision: Yes
Night vision distance: 50 m
Number of illumination LEDs: 1
Back Light Compensation (BLC): Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Gain control type: Auto
Highlight Compensation (HLC): Yes
Maximum resolution: 2960 x 1668 pixels
Noise reduction: Yes
Privacy masking: Yes
Region of Interest (ROI) encoding: Yes
Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/2304 x 1296/2560 x 1440/2688 x 1520/2880 x 1620/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576
Total megapixels: 5 MP
Video compression formats: H.264/H.264B/H.264H/H.265/M-JPEG
Video streaming: Yes
Audio input channels: 1.0 channels
Audio output channels: 1.0 channels
Built-in microphone: Yes
Signal-to-Noise Ratio (SNR): 56 dB
Bluetooth: No
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Number of users: 20 user(s)
Supported network protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
Wi-Fi: No
Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
Internal memory: 1024 MB
Maximum memory card size: 512 GB
ROM capacity: 4096 MB
Ethernet LAN (RJ-45) ports: 1
Alarm input channels: 1
Alarm output channels: 1
Mirror: Yes
Video motion detection: Yes
Management software: SmartPSS Lite; DSS; DMSS
Web browser: Yes
DC output voltage: 12
Power consumption (Power over Ethernet (PoE)): 5.8 W
Power consumption (typical): 4 W
Power source type: DC,PoE
Operating temperature (T-T): -40 - 60 °C
Storage relative humidity (H-H): 10 - 95 %
Storage temperature (T-T): -40 - 60 °C
Mobile operating systems supported: Android/iOS
Depth: 192.7 mm
Height: 66.4 mm
Weight: 590 g
Width: 70.5 mm
Package weight: 780 g
Number of cameras: 1
Model: IPC-HFW5541E-ASE-0280B-S3
Units per Shipping Box: 1
Unit Calculated Volume: 0.00253 cubm
Unit Calculated Weight: 0.783 kg
