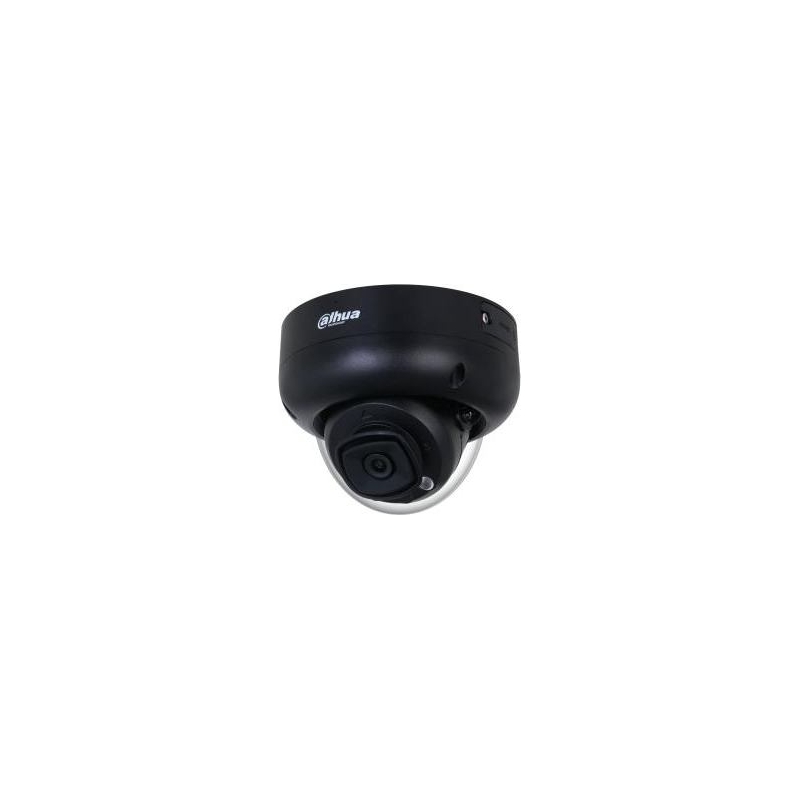

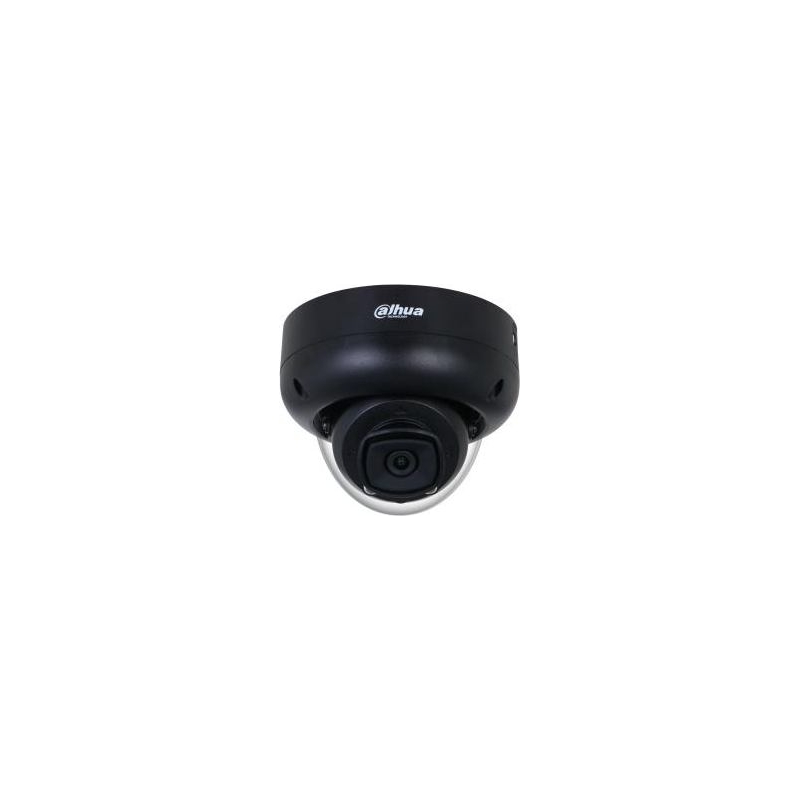

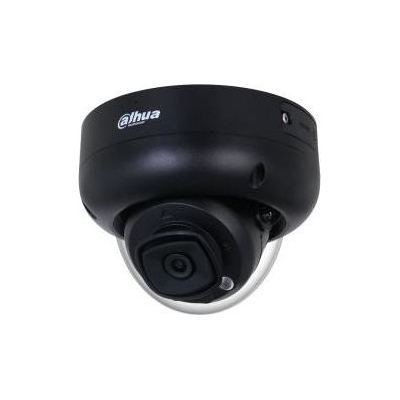

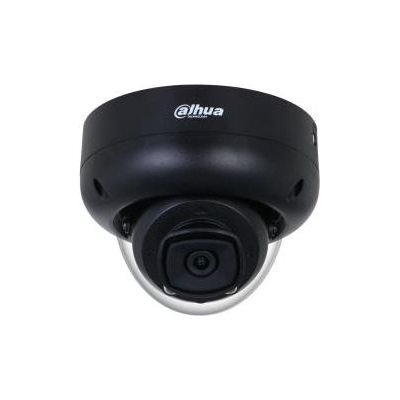

Dahua NET CAMERA 5MP IR DOME/IPC-HDBW5541RASE0280BS3B DAHUA

Dahua NET CAMERA 5MP IR DOME/IPC-HDBW5541RASE0280BS3B DAHUA

Write a review

€318.64

Tax included

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

The parameters and datasheets below can only be applied to 5541-ASE-S3 series
5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image
Outputs max. 5 MP (2960×1668) @25/30 fps
Built-in IR LED, and the max. illumination distance is 50 m
ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD card, built-in MIC
12 VDC/PoE power supply; ePoE
IP67 and IK10 protection
SMD 3.0

Manufacturer Website:
https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-5-Series/S-Series/5MP/IPC-HDBW5541R-ASE=S3

Category Code: FNC
CnCode: 85258900
Unit Box Height: 0.135
Unit Box Length: 0.146
Unit Box Width: 0.137
Form factor: Dome
IK code: IK10
International Protection (IP) code: IP67
Mounting type: Ceiling
Product colour: Black
Certification: CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Connectivity technology: Wired
Day/night mode: Yes
Placement supported: Indoor & outdoor
Type: IP security camera
Wide Dynamic Range (WDR): Yes
Camera pan control: Yes
Camera shutter speed: 1/3 - 1/100000 s
Camera shutter type: Electronic
Camera tilt control: Yes
Minimum illumination: 0.0005 lx
Number of Privacy masking areas: 8
Pan range: 0 - 355 °
Tilt angle range: 0 - 80 °
White balance: Auto/Manual/Natural/Outdoor/Regional custom/Street lamp
Optical sensor size: 1/2.7 "
Sensor type: CMOS
Fixed focus: Yes
Maximum aperture number: 1.6
Night vision: Yes
Back Light Compensation (BLC): Yes
Bit rate control: Constant Bit Rate (CBR),Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Frame rate: 30 fps
Gain control type: Auto
Highlight Compensation (HLC): Yes
Maximum resolution: 2960 x 1668 pixels
Noise reduction: Yes
Noise reduction technology: 3D noise reduction
Region of Interest (ROI) encoding: Yes
Smart IR: Yes
Total megapixels: 5 MP
Video compression formats: H.264/H.264B/H.264H/H.265
Video streaming: Yes
Audio codecs: G.711a; G.711Mu; PCM; G.726; G.723
Audio input channels: 1.0 channels
Audio output channels: 1.0 channels
Built-in microphone: Yes
Signal-to-Noise Ratio (SNR): 56 dB
Bluetooth: No
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Number of users: 20 user(s)
Supported network protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Register
Wi-Fi: No
Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 1024 GB
RAM capacity: 1024 MB
ROM capacity: 4096 MB
Alarm input channels: 1
Alarm output channels: 1
Mirror: Yes
Video motion detection: Yes
Cloud-managed: Yes
Power consumption (max): 8.8 W
Power consumption (Power over Ethernet (PoE)): 5.2 W
Power consumption (typical): 4.1 W
Power source type: DC,PoE
Operating relative humidity (H-H): 0 - 95 %
Operating temperature (T-T): -40 - 60 °C
Storage relative humidity (H-H): 10 - 95 %
Storage temperature (T-T): -40 - 60 °C
Depth: 122 mm
Height: 94 mm
Weight: 712.9 g
Width: 122 mm
Package weight: 986 g
Number of cameras: 1
Model: IPC-HDBW5541R-ASE0280BS3-B
Units per Shipping Box: 1
Unit Calculated Volume: 0.0027 cubm
Unit Calculated Weight: 0.7 kg
