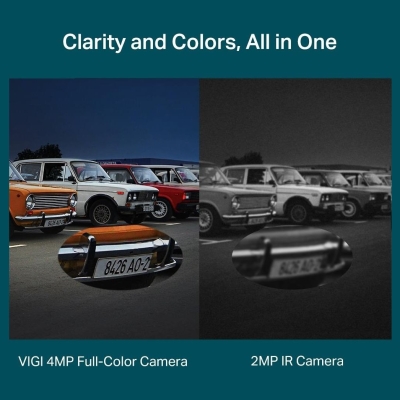

Clarity and Colors, All in One
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.

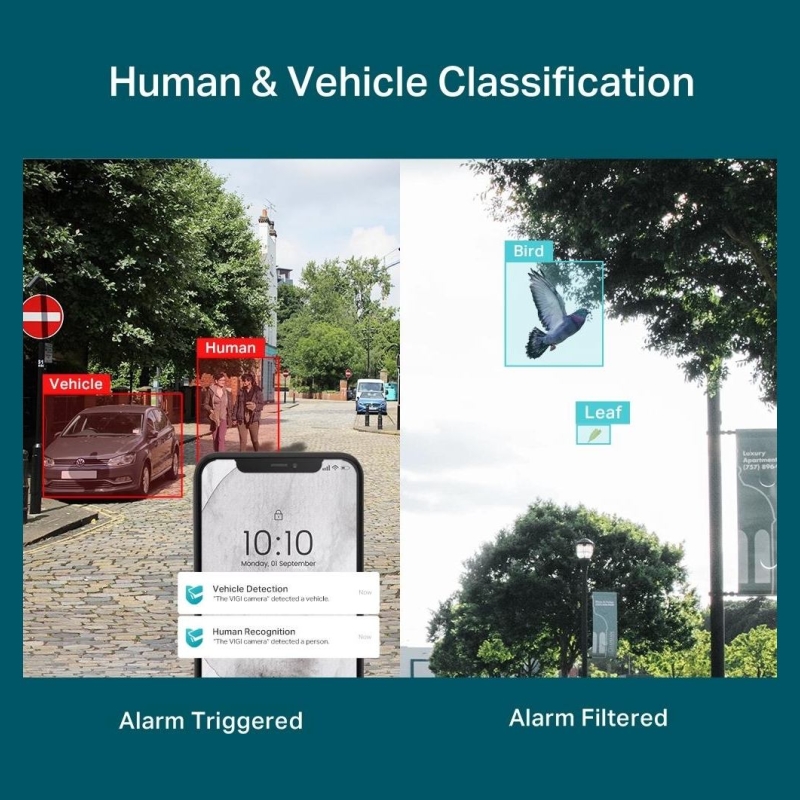

Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.
We keep an eye on your business.

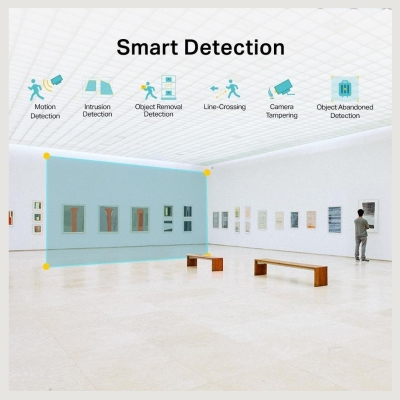

Smart Detection
Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
No more silent surveillance.

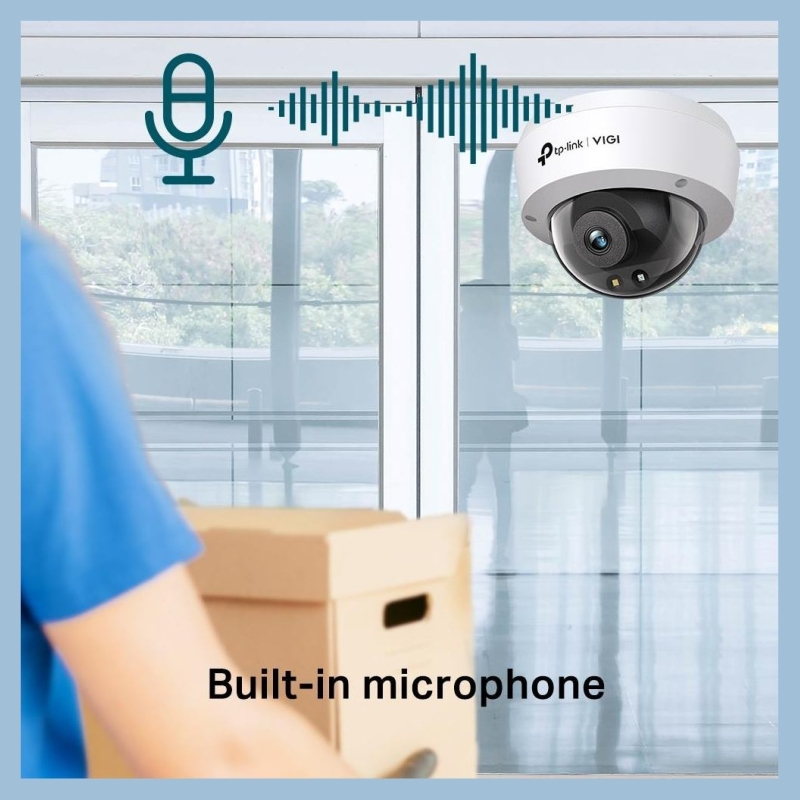

Built-In Microphone
The VIGI camera features a built-in microphone to record anything going on within a 15-ft radius of the camera. This gives you more detailed monitoring for greater peace of mind.

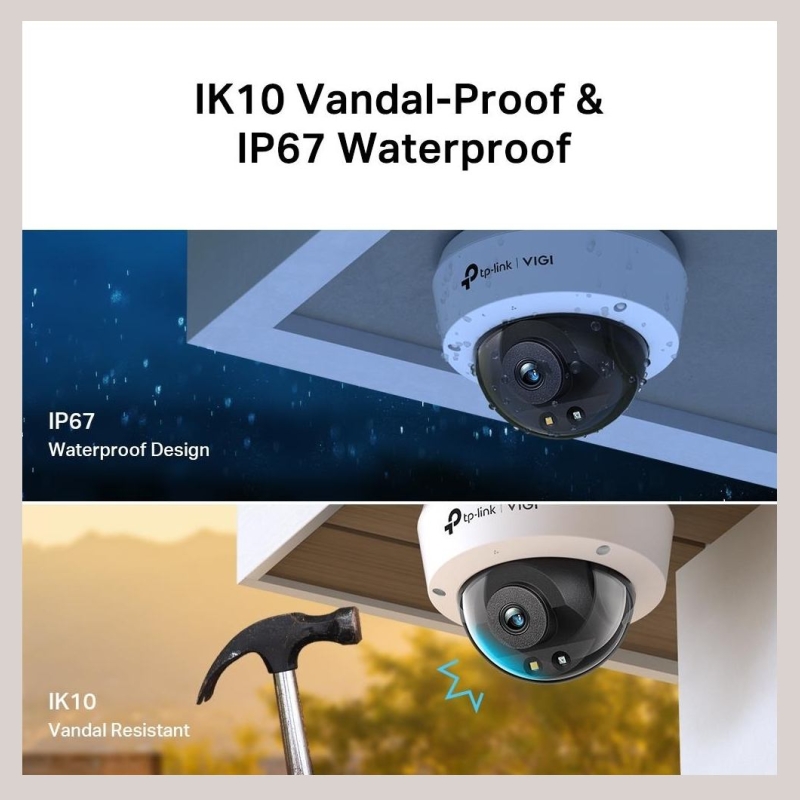

IK10 Vandal-Proof & IP67 Waterproof
With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.

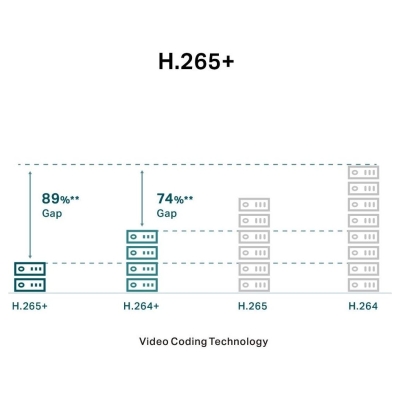

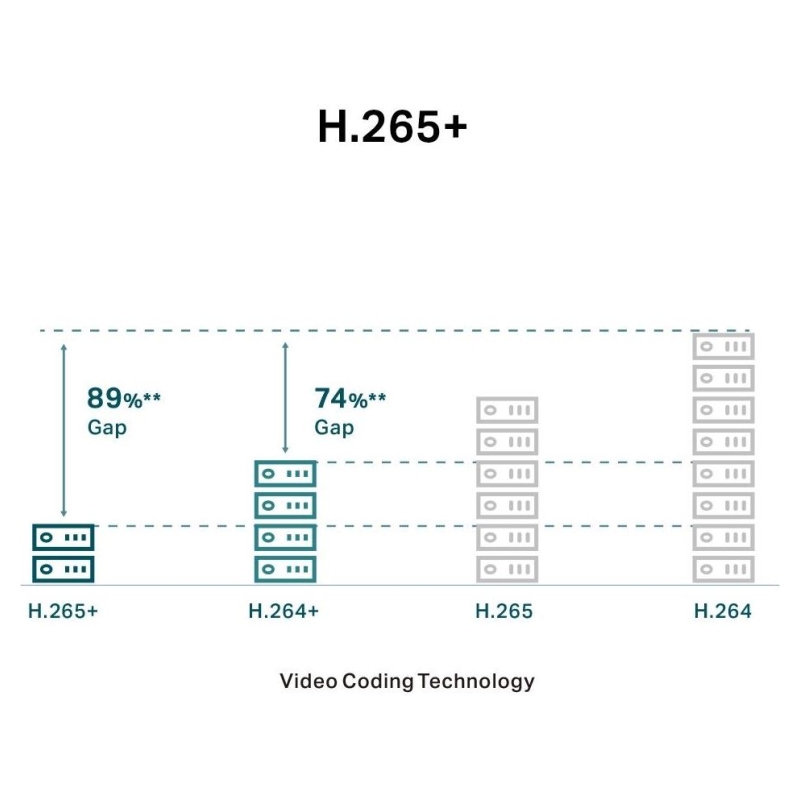

More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Never miss a detail.
SmartVid-Smart Video Enhancement
VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
Discover the best way to power your camera.
PoE/12V DC
Two power supply ways not only give you more convenience but also make your wiring remarkably easy.
Flexible Management and Storage
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each methods, as well as onboard storage with SD card slot.
One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

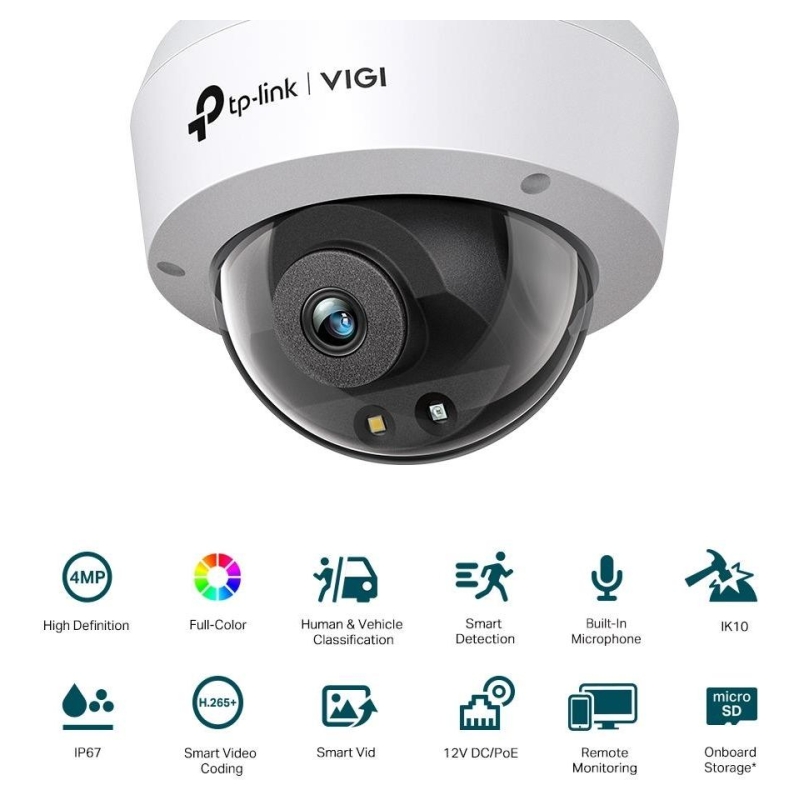

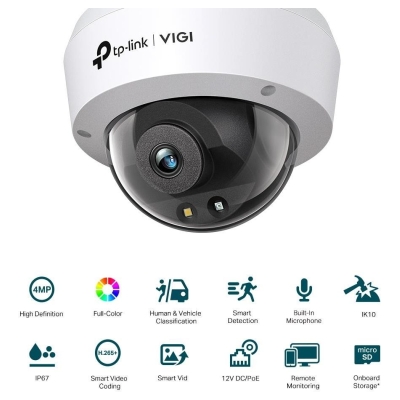

- 4MP Super-High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details
- 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights
- Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications
- Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects
- Built-In Microphone: Features a built-in microphone to record anything going on within a 15-ft radius of the camera
- IK10 Vandal-Proof & IP67 Waterproof: With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime
- H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality
- Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision
- PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy
- Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot (up to 256 GB)
Manufacturer Website:https://www.tp-link.com/en/business-networking/vigi-network-camera/vigi-c240/#overview- Category Code
- FNC
- CnCode
- 85258900
- Unit Box Height
- 0.12
- Unit Box Length
- 0.19
- Unit Box Width
- 0.15
- Form factor
- Dome
- Housing material
- Plastic
- IK code
- IK10
- International Protection (IP) code
- IP67
- Mounting type
- Ceiling/wall
- Product colour
- Black/White
- Certification
- CE, BSMI, VCCI, ONVIF
- Connectivity technology
- Wired
- Day/night mode
- Yes
- Placement supported
- Indoor & outdoor
- Type
- IP security camera
- Angle of rotation
- 360 °
- Camera pan control
- Yes
- Camera tilt control
- Yes
- Lens viewing angle, diagonal
- 93.9 °
- Lens viewing angle, horizontal
- 79.7 °
- Lens viewing angle, vertical
- 42.9 °
- Minimum illumination
- 0.005 lx
- Pan range
- 0 - 360 °
- Tilt angle range
- 0 - 85 °
- Optical sensor size
- 1/3 "
- Sensor type
- CMOS
- Lens diameter
- 4 mm
- Number of lenses
- 1
- Infra-red wavelength
- 850 nm
- LED type
- IR
- Night vision
- Yes
- Night vision distance
- 30 m
- Number of illumination LEDs
- 1
- Back Light Compensation (BLC)
- Yes
- Bit rate
- 64 Kbps - 4 Mbps
- Digital Wide Dynamic Range (DWDR)
- Yes
- Frame rate
- 30 fps
- Highlight Compensation (HLC)
- Yes
- Image quality adjustment
- Brightness/Contrast/Mirror/Saturation/Sharpness
- Maximum resolution
- 2560 x 1440 pixels
- Noise reduction technology
- 3D noise reduction
- Privacy masking
- Yes
- Supported graphics resolutions
- 1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2048 x 1280/2304 x 1296/2560 x 1440/320 x 240/352 x 288/640 x 480 (VGA)
- Total megapixels
- 4 MP
- Video compression formats
- H.264/H.264+/H.265/H.265+
- Video streaming
- Yes
- Built-in microphone
- Yes
- Bluetooth
- No
- Ethernet interface type
- Fast Ethernet
- Ethernet LAN
- Yes
- Number of simultaneous live view channels
- 3 channels
- Supported network protocols
- TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
- Wi-Fi
- No
- Built-in HDD
- No
- Card reader integrated
- Yes
- Compatible memory cards
- MicroSD (TransFlash)
- Maximum memory card size
- 256 GB
- Ethernet LAN (RJ-45) ports
- 1
- Active tampering alarm
- Yes
- Digest authentication
- Yes
- HTTPS encryption
- Yes
- Intelligent Video Surveillance (IVS) system features
- Abandoned object/Crossing line/Human detection/Intrusion/Region entrance detection/Region exiting detection/Vehicle detection
- IP address filtering
- Yes
- Mirror
- Yes
- Password protection
- Yes
- Video motion detection
- Yes
- Management software
- VIGI App, VIGI Security Manager, VIGI NVR
- Reset button
- Yes
- Web-based management
- Yes
- Power consumption (max)
- 5.4 W
- Power source type
- DC,PoE
- Operating temperature (T-T)
- -30 - 60 °C
- Depth
- 115 mm
- Height
- 86 mm
- Width
- 115 mm
- Basic event
- Motion Detection, Camera Tampering Detection, Exception
- Compliance certificates
- CE
- Package depth
- 193 mm
- Package height
- 120 mm
- Package weight
- 470 g
- Package width
- 153 mm
- Mounting kit
- Yes
- Number of cameras
- 1
- Model
- VIGI C240 2.8 mm
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.00342 cubm
- Unit Calculated Weight
- 0.47 kg
