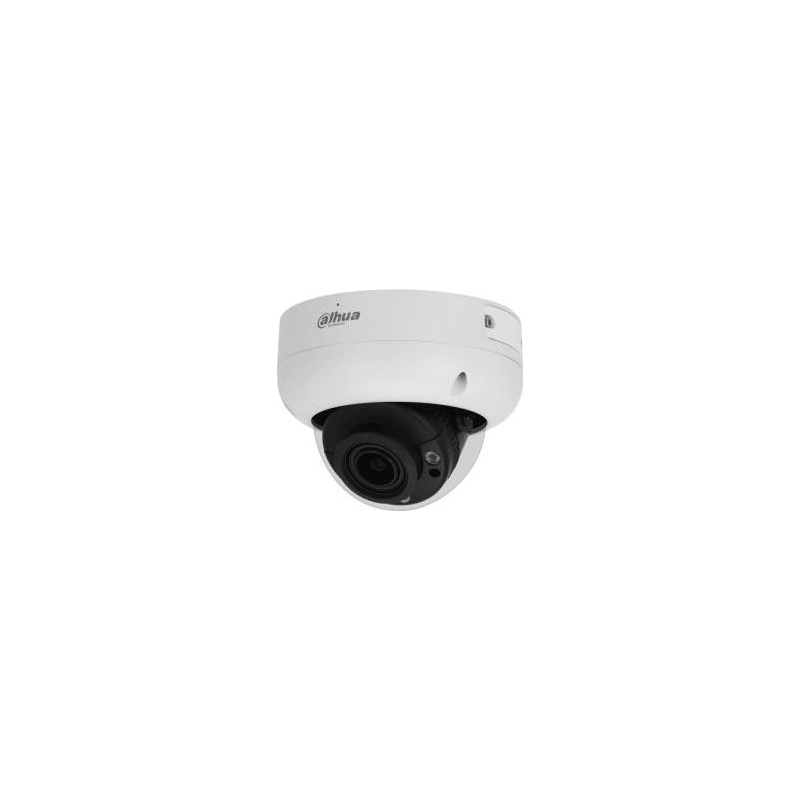

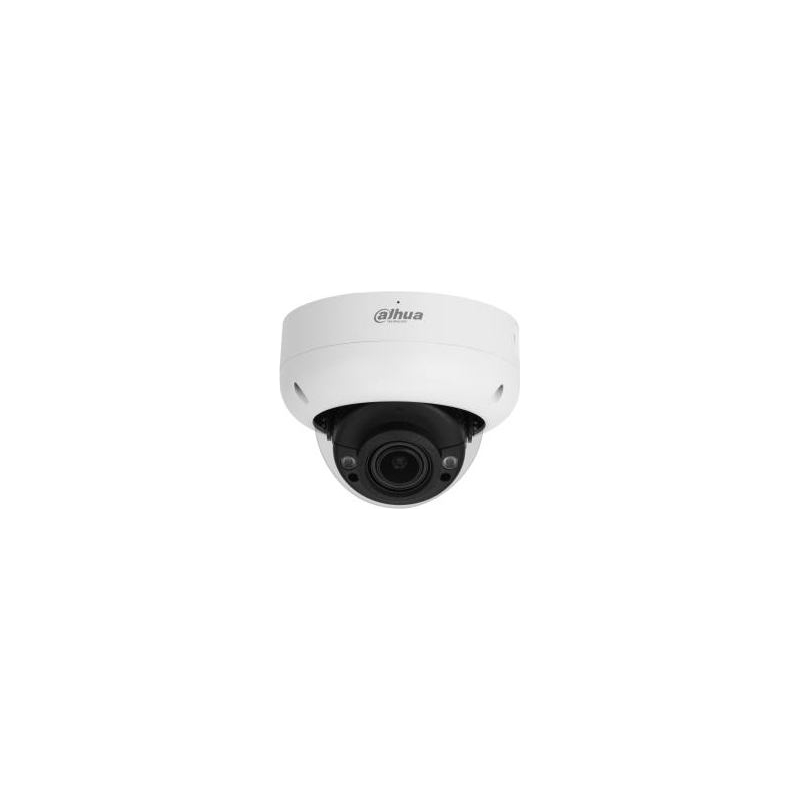

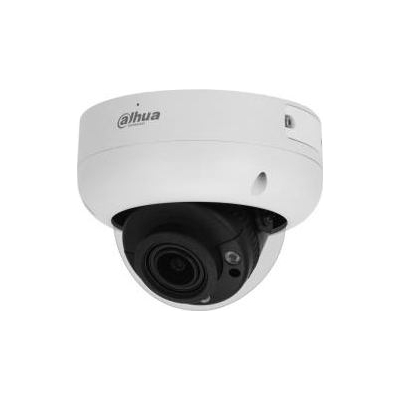

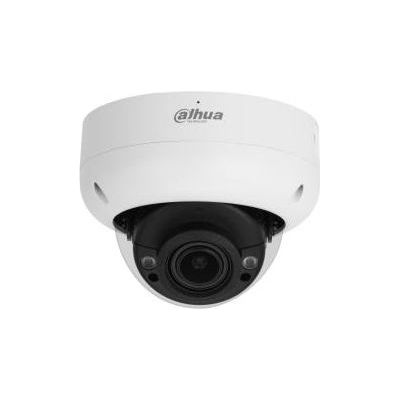

Dahua NET CAMERA 5MP IR DOME/HDBW3541R-ZAS-27135-S2 DAHUA

Dahua NET CAMERA 5MP IR DOME/HDBW3541R-ZAS-27135-S2 DAHUA

Write a review

€531.07

Tax included

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

5MP 1/2.7" CMOS image sensor, excellent low luminance performance and high definition of images
Outputs max. 5 MP (2960 × 1668) @20 fps and supports 4MP (2688 × 1520) @25/30 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in IR LED, max. IR distance: 40 m
ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
Alarm: 1 in, 1 out (Only - ZAS supports); audio: 1 in, 1 out (Only - ZAS supports); max. 256 G Micro SD card; built-in Mic
12 VDC/PoE power supply, easy for installation
IP67, IK10 protection
SMD 4.0, AI SSA

Manufacturer Website:
https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/5MP/IPC-HDBW3541R-ZAS-S2=S2

Category Code: FNC
CnCode: 85258900
Unit Box Height: 0.165
Unit Box Length: 0.19
Unit Box Width: 0.19
Fog proof: Yes
Form factor: Dome
Housing material: Metal
IK code: IK10
International Protection (IP) code: IP67
Mounting type: Ceiling/wall
Product colour: Black/White
Connectivity technology: Wired
Dynamic range: 120 dB
Placement supported: Outdoor
Type: IP security camera
Adjustment shutter speed: Auto/Manual
Angle of rotation: 355 °
Camera shutter speed: 1/3 - 1/100000 s
Camera shutter type: Electronic
Lens viewing angle, diagonal: 138 - 36 °
Lens viewing angle, horizontal: 114 - 32 °
Lens viewing angle, vertical: 58 - 17 °
Minimum illumination: 0 lx
Number of Privacy masking areas: 4
Pan range: 0 - 355 °
Tilt angle range: 0 - 80 °
White balance: Auto/Manual/Natural/Outdoor/Regional custom/Street lamp
Number of sensors: 1
Optical sensor size: 1/2.7 "
Progressive scan: Yes
Sensor type: CMOS
Closest focusing distance: 0.8 m
Detect distance (tele): 210 m
Detect distance (wide): 64 m
Focal length range: 2.7 - 13.5 mm
Focus: Motorized
Identify distance (tele): 21 m
Identify distance (wide): 6.4 m
Minimum aperture number: 1.5
Number of lenses: 1
Observe distance (tele): 84 m
Observe distance (wide): 25.6 m
Recognize distance (tele): 42 m
Recognize distance (wide): 12.8 m
LED type: IR
Night vision: Yes
Night vision distance: 40 m
Number of illumination LEDs: 3
Back Light Compensation (BLC): Yes
Bit rate: H.264: 3 kbps-8192 kbps H.265: 3 kbps-8192 kbps
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Frame rate: 30 fps
Gain control type: Auto
Highlight Compensation (HLC): Yes
Image stabilizer: Yes
Maximum resolution: 2960 x 1668 pixels
Noise reduction: Yes
Noise reduction technology: 3D noise reduction
Privacy masking: Yes
Region of Interest (ROI) encoding: Yes
Smart IR: Yes
Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/2304 x 1296/2560 x 1440/2688 x 1520/2880 x 1620/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576
Total megapixels: 5 MP
Video compression formats: H.264/H.264B/H.264H/H.265/M-JPEG
Audio input channels: 1.0 channels
Audio output channels: 1.0 channels
Built-in microphone: Yes
Signal-to-Noise Ratio (SNR): 56 dB
Voice codecs: G.711a/G.711Mu/G.723/G.726/PCM
Bluetooth: No
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Networking standards: IEEE 802.3af
Number of users: 20 user(s)
Quality of Service (QoS) support: Yes
Streaming method: Multicast
Supported network protocols: IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP;
Wi-Fi: No
Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
Internal memory: 512 MB
Maximum memory card size: 256 GB
ROM capacity: 128 MB
Ethernet LAN (RJ-45) ports: 1
Alarm input channels: 1
Alarm output channels: 1
Mirror: Yes
Behavior analysis: Intrusion detection
Web browser: Yes
Web-based management: Yes
DC output voltage: 12
Power consumption (max): 9.2 W
Power consumption (Power over Ethernet (PoE)): 4.9 W
Power consumption (typical): 4 W
Power source type: DC,PoE
Operating relative humidity (H-H): 0 - 95 %
Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -40 - 60 °C
Mobile operating systems supported: Android/iOS
Diameter: 94 mm
Height: 122 mm
Weight: 713 g
Package weight: 986 g
Number of cameras: 1
Model: IPC-HDBW3541R-ZAS-27135-S2
Units per Shipping Box: 30
Unit Calculated Volume: 0.006868 cubm
Unit Calculated Weight: 0.867 kg
