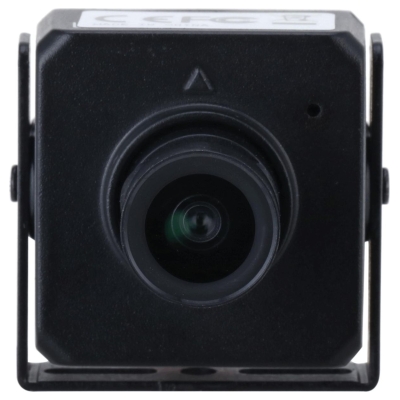

Dahua NET CAMERA 4MP PINHOLE/IPC-HUM4431S-L5-0360B DAHUA
- Write a review
€321.86
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
Dahua Pinhole series network camera includes one-in-all camera and separated camera. Separated camera can work with different lens to meet the requirements in different installation scenes. Pinhole Series camera is widely applied in hidden or small scenes such as banks and advertising screen.
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
IVS
With advanced video algorithm, Dahua IVS technology supports intelligent functions, such as tripwire and intrusion.
WDR
With advanced Wide Dynamic Range (WDR) technology, Dahua network camera provides clear details in the environment of strong brightness contrast. The bright and dark area can get clear video even in high brightness environment or with backlight shadow.
Starlight
With advanced image processing technology and optical technology, Dahua Starlight technology can provide clear colorful video in the environment of low illuminance. It widely applies to various environments of low illuminance.
Protection (Wide Voltage)
Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
Cyber Security
Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malicious programs from comprising the device.
- 4-MP 1/3" CMOS image sensor, low luminance, and high definition image
- Outputs max. 4 MP (2688 × 1520) @20 fps, and supports 3.6 MP (2560 × 1440) @25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent monitoring: Intrusion and tripwire
- Abnormality detection: Motion detection, video tampering, scene changing, audio detection, network disconnection, IP conflict, illegal access, and voltage detection
- Audio: 1 in, 1 out; built in MIC
- 12 VDC power supply
Manufacturer Website:
https://www.dahuasecurity.com/au/products/All-Products/Network-Cameras/Special-Series/Pinhole-Series/IPC-HUM4431S-L5=S3
- Category Code
- FNC
- CnCode
- 85258900
- Unit Box Height
- 0.08
- Unit Box Length
- 0.09
- Unit Box Width
- 0.08
- Form factor
- Cube
- Housing material
- Metal
- Mounting type
- Ceiling/Desk
- Product colour
- Black
- Certification
- CE-LVD:EN62368-1; CE-EMC:Electromagnetic Compatibility Directive 2014/30/EU; 2.8 mm/3.6 mm: FCC:47 CFR FCC Part 15, Subpart B
- Connectivity technology
- Wired
- Day/night mode
- Yes
- Placement supported
- Indoor
- Type
- IP security camera
- Wide Dynamic Range (WDR)
- Yes
- Angle of rotation
- 270 °
- Camera shutter speed
- 1/3 - 1/100000 s
- Lens viewing angle, diagonal
- 154 °
- Lens viewing angle, horizontal
- 129 °
- Lens viewing angle, vertical
- 69 °
- Minimum illumination
- 0.001 lx
- Number of Privacy masking areas
- 4
- White balance
- Auto/Custom modes/Manual/Natural/Outdoor/Street lamp
- Optical sensor size
- 1/3 "
- Progressive scan
- Yes
- Sensor type
- CMOS
- Closest focusing distance
- 0.8 m
- Detect distance
- 50.6 m
- Fixed focus
- Yes
- Focal length range
- 2 - 2.8 - 3.6 - 8 mm
- Identify distance
- 5.1 m
- Maximum aperture number
- 1.6
- Observe distance
- 20.2 m
- Recognize distance
- 10.1 m
- Night vision
- Yes
- Back Light Compensation (BLC)
- Yes
- Bit rate
- 3 kbps-6144 kbps
- Bit rate control
- Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
- Gain control type
- Auto/Manual
- Highlight Compensation (HLC)
- Yes
- Maximum resolution
- 2688 x 1520 pixels
- Noise reduction
- Yes
- Noise reduction technology
- 3D noise reduction
- Privacy masking
- Yes
- Total megapixels
- 4 MP
- Video compression formats
- H.264/H.264+/H.264B/H.265/H.265+/M-JPEG
- Video streaming
- Yes
- Audio detection
- Yes
- Built-in microphone
- Yes
- Signal-to-Noise Ratio (SNR)
- 56 dB
- Voice codecs
- G.711a/G.711Mu/G.726/PCM
- Bluetooth
- No
- Ethernet interface type
- Fast Ethernet
- Ethernet LAN
- Yes
- Supported network protocols
- IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour
- Wi-Fi
- No
- RAM capacity
- 128 MB
- ROM capacity
- 128 MB
- Interface
- RJ-45
- Intelligent Video Surveillance (IVS) system features
- Intrusion/Tripwire
- Mirror
- Yes
- Video motion detection
- Yes
- Management software
- SmartPSS Lite; DSS; DMSS
- Web browser
- Yes
- DC output voltage
- 12
- Power consumption (max)
- 1.8 W
- Power consumption (typical)
- 1.4 W
- Power source type
- DC
- Operating relative humidity (H-H)
- 0 - 95 %
- Operating temperature (T-T)
- -40 - 60 °C
- Storage temperature (T-T)
- -40 - 60 °C
- Mobile operating systems supported
- Android/iOS
- Depth
- 31 mm
- Height
- 37.1 mm
- Weight
- 81 g
- Width
- 31 mm
- Package weight
- 138 g
- Number of cameras
- 1
- Audio input
- 1x RCA
- Audio output
- 1x RCA
- Data transfer rate
- 100 Mbit/s
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.000576 cubm
- Unit Calculated Weight
- 0.14 kg
DH-IPC-HUM4431S-L5-0360B
Specific References
- EAN13
- 6923172536549
- MPN
- DH-IPC-HUM4431S-L5-0360B
