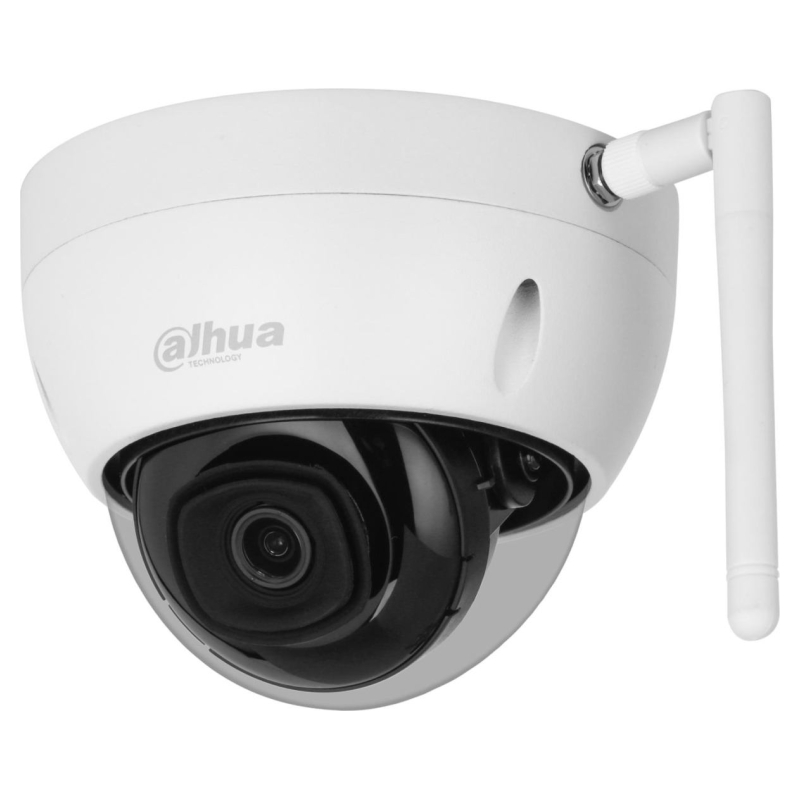

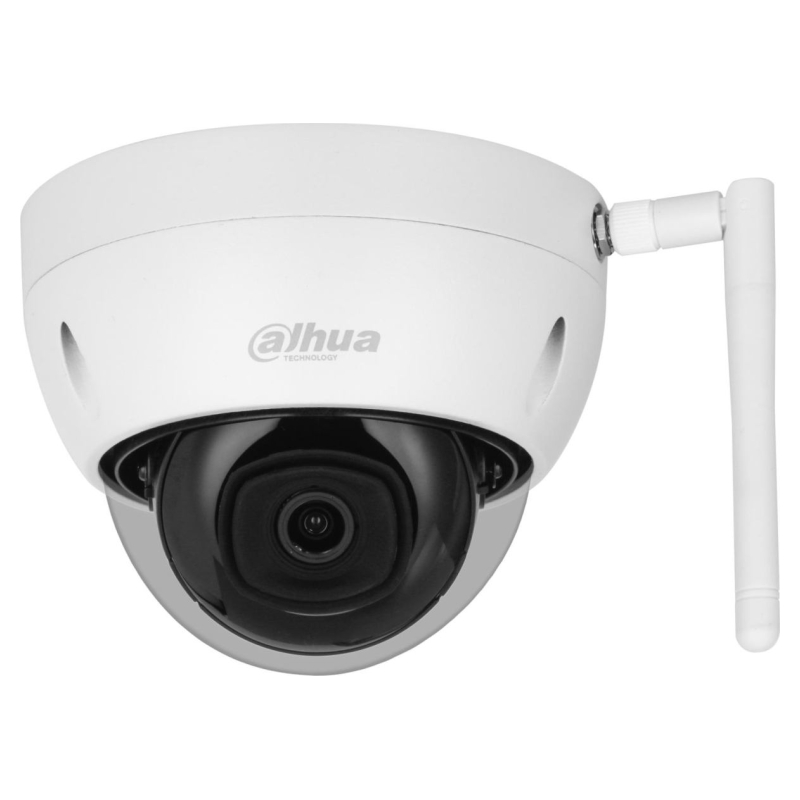

Dahua NET CAMERA 2MP IR DOME WIFI/IPC-HDBW1230DE-SW-0280B DAHUA

Dahua NET CAMERA 2MP IR DOME WIFI/IPC-HDBW1230DE-SW-0280B DAHUA

Write a review

€156.10

Tax included

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

> 2-MP 1/3" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 2 MP (1920 × 1080)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED.
> SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> DWDR, 3D NR, BLC, digital watermarking, applicable to various monitoring scenes.
> Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, SMD (human).
> Supports single antenna 2.4G Wi-Fi that covers a range of up to 80 m in an open area.
> Supports max. 256 G Micro SD card.
> 12 VDC power supply.
> IP67, IK10 protection.

Manufacturer Website:
https://www.dahuasecurity.com/products/All-Products/Network-Cameras/Wireless-Series/Wi-Fi-Series/2MP/IPC-HDBW1230DE-SW

Category Code: FNC
CnCode: 85258900
Unit Box Height: 0.145
Unit Box Length: 0.15
Unit Box Width: 0.125
Form factor: Dome
Housing material: Metal
IK code: IK10
International Protection (IP) code: IP67
Mounting type: Ceiling
Product colour: White
Antenna type: External
Antennas quantity: 1
Connectivity technology: Wired & Wireless
Dynamic range: 56 dB
Luminous flux: 0.0025 lm
Placement supported: Outdoor
Type: IP security camera
Wide Dynamic Range (WDR): Yes
Adjustment shutter speed: Auto/Manual
Angle of rotation: 355 °
Camera pan control: Yes
Camera shutter speed: 1/3 s-1/100,000 s s
Camera shutter type: Electronic
Camera tilt control: Yes
Field of view (FOV) angle: 120 °
Lens viewing angle, diagonal: 120 °
Lens viewing angle, horizontal: 100 °
Lens viewing angle, vertical: 53 °
Minimum illumination: 0.0025 lx
Pan range: 0 - 355 °
Tilt angle range: 0 - 75 °
White balance: Custom modes/Manual/Natural/Outdoor/Street lamp
Number of sensors: 1
Optical sensor size: 1/2.8 "
Progressive scan: Yes
Sensor type: CMOS
Detect distance: 46.9 m
Fixed focus: Yes
Focal length range: 2.8 mm
Identify distance: 4.7 m
Lens diameter: 2.8 mm
Maximum aperture number: 2
Number of lenses: 1
Observe distance: 18.8 m
Recognize distance: 9.4 m
Zoom capability: No
LED type: IR
Night vision: Yes
Number of illumination LEDs: 3
Back Light Compensation (BLC): Yes
Bit rate: 9 - 4096
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR): Yes
Flip & mirror: Yes
Frame rate: 30 fps
Gain control type: Auto
Maximum resolution: 1920 x 1080 pixels
Noise reduction: Yes
Noise reduction technology: 3D noise reduction
Privacy masking: Yes
Region of Interest (ROI) encoding: Yes
Smart IR: Yes
Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)
Supported video modes: 1080p/720p/960p
Total megapixels: 2 MP
Video compression formats: H.264/H.264B/H.264H/H.265
Video formats supported: H.264/H.264B/H.265
Video recording: Yes
Video streaming: Yes
Signal-to-Noise Ratio (SNR): 56 dB
Bluetooth: No
Channel bandwidth: 36 MHz
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Live view: Yes
Number of users: 6 user(s)
Supported network protocols: IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast; RTMP
Wi-Fi: Yes
Wi-Fi data rate (max): 2400 Mbit/s
Wi-Fi standards: 802.11b/802.11g/Wi-Fi 4 (802.11n)
Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
Flash memory: 64 MB
Maximum memory card size: 256 GB
ROM capacity: 16 MB
Ethernet LAN (RJ-45) ports: 1
HTTPS encryption: Yes
Motion sensor: Yes
Security algorithms: HTTPS
Video motion detection: Yes
Firmware upgradeable: Yes
Management software: Smart PSS; DSS; DMSS
Smartphone/tablet remote support: Yes
Web browser: Yes
Web-based management: Yes
DC output voltage: 12
Power consumption (max): 4.9 W
Power consumption (typical): 2 W
Power source type: DC
Operating relative humidity (H-H): 0 - 95 %
Operating temperature (T-T): -40 - 60 °C
Storage temperature (T-T): -30 - 60 °C
Mobile operating systems supported: Android/iOS
Diameter: 110.7 mm
Height: 88.7 mm
Weight: 414 g
Compliance certificates: CE/Federal Communications Commission (FCC)
Package weight: 592 g
Number of cameras: 1
Model: IPC-HDBW1230DE-SW-0280B
Units per Shipping Box: 1
Unit Calculated Volume: 0.002719 cubm
Unit Calculated Weight: 0.646 kg
