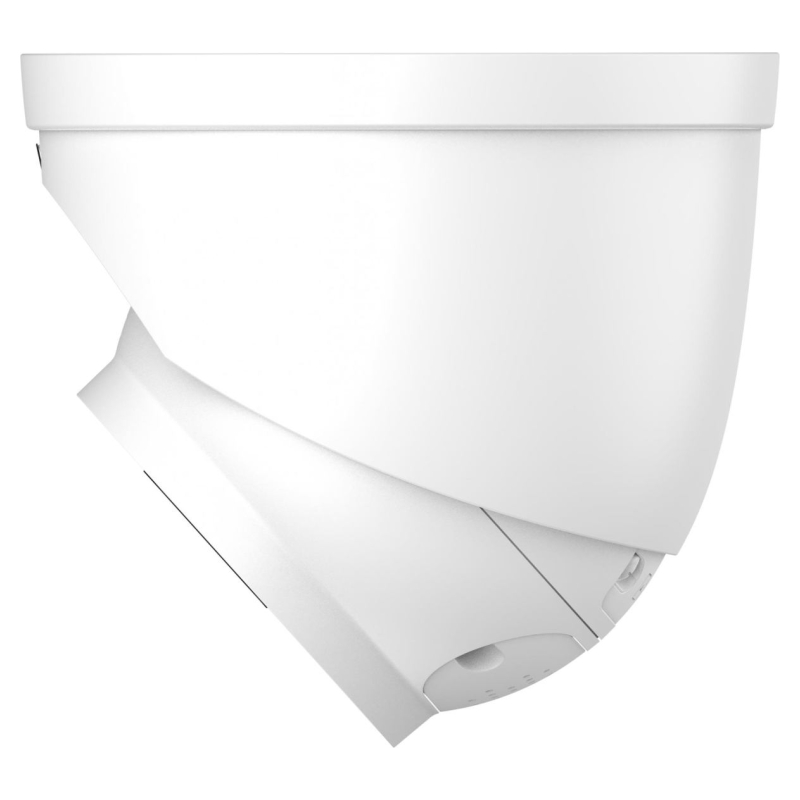

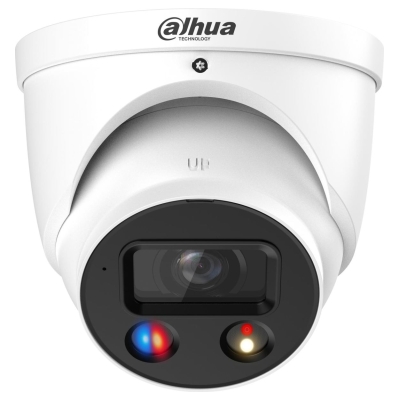

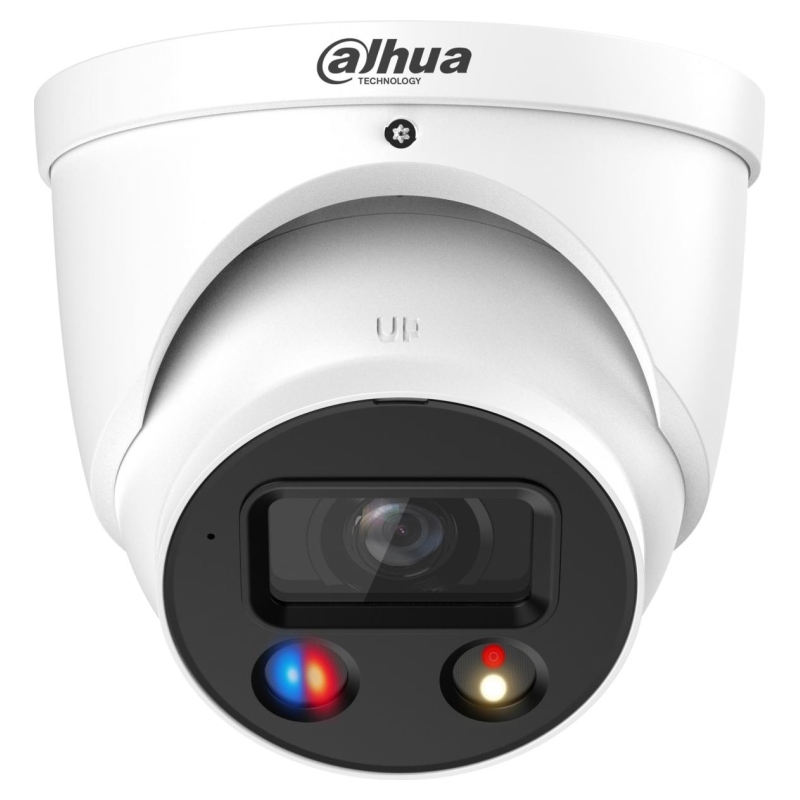

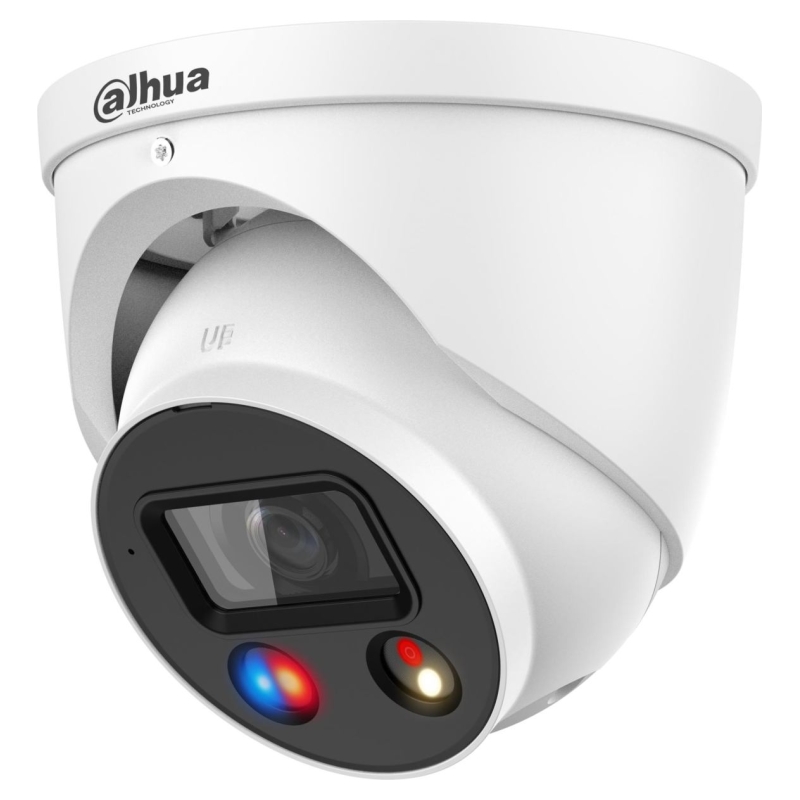

Dahua NET CAMERA 8MP IR EYEBALL/IPC-HDW3849H-ASPV0280BS5 DAHUA

Dahua NET CAMERA 8MP IR EYEBALL/IPC-HDW3849H-ASPV0280BS5 DAHUA

Write a review

€450.60

Tax included

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

8-MP 1/2.7" CMOS image sensor, low luminance, and high definition image
Outputs max. 8 MP (3840 ×2160)@25/30 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m
ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human)
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; buit-in dual Mic; 1-ch speaker; support two-way talk
12 VDC/PoE power supply
IP67 protection
Sound and light alarm (red and blue lights)
SMD 4.0
Supports AI SSA and one-tap arming and disarming
SMD area can be set in warm light areas that support triggering alarms

Manufacturer Website:
https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/TiOC/IPC-HDW3849H-AS-PV=S5

Category Code: FNC
CnCode: 85258900
Unit Box Height: 0.135
Unit Box Length: 0.155
Unit Box Width: 0.155
Form factor: Dome
Housing material: Metal
International Protection (IP) code: IP67
Mounting type: Ceiling
Product colour: White
Alarm input/output: Yes
Certification: CE-LVD: EN62368-1, CE-EMC, FCC
Connectivity technology: Wired
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Placement supported: Indoor & outdoor
Type: IP security camera
Wide Dynamic Range (WDR): Yes
Adjustment shutter speed: Auto/Manual
Angle of rotation: 360 °
Camera pan control: Yes
Camera shutter speed: 1/3 - 1/100000 s
Camera shutter type: Electronic
Camera tilt control: Yes
Lens viewing angle, diagonal: 125 °
Lens viewing angle, horizontal: 106 °
Lens viewing angle, vertical: 55 °
Minimum illumination: 0.0004 lx
Pan range: 0 - 360 °
Tilt angle range: 0 - 78 °
White balance: Auto/Custom modes/Manual/Natural/Outdoor
Number of sensors: 1
Optical sensor size: 1/2.7 "
Progressive scan: Yes
Sensor type: CMOS
Closest focusing distance: 1.5 m
Detect distance (wide): 66 m
Fixed focal length: 2.8 mm
Identify distance (wide): 6.6 m
Maximum aperture number: 1
Number of lenses: 1
Observe distance (wide): 26.4 m
Recognize distance (wide): 13.2 m
LED type: IR
Night vision: Yes
Night vision distance: 30 m
Number of illumination LEDs: 1
Back Light Compensation (BLC): Yes
Bit rate: 3 kbps - 16384 kbps
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Frame rate: 30 fps
Gain control type: Auto/Manual
Highlight Compensation (HLC): Yes
Maximum resolution: 3840 x 2160 pixels
Noise reduction: Yes
Noise reduction technology: 3D noise reduction
Privacy masking: Yes
Region of Interest (ROI) encoding: Yes
Smart IR: Yes
Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/2304 x 1296/2592 x 1944/2688 x 1520/3072 x 1728/3072 x 2048/352 x 240/352 x 288/3840 x 2160/640 x 480 (VGA)/704 x 480/704 x 576
Supported video modes: 1520p/1944p/2160p/240p/480p/576p/720p/960p
Total megapixels: 8 MP
Video compression formats: H.264/H.265/M-JPEG
Video formats supported: H.264+/H.265+
Video streaming: Yes
Audio input channels: 1.0 channels
Audio output channels: 1.0 channels
Built-in microphone: Yes
Signal-to-Noise Ratio (SNR): 56 dB
Voice codecs: G.711a/G.711Mu/G.726/PCM
Bluetooth: No
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Networking standards: IEEE 802.1x/IEEE 802.3af
Number of users: 20 user(s)
Quality of Service (QoS) support: Yes
Streaming method: Multicast
Supported network protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP
Wi-Fi: No
Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 2 GB
ROM capacity: 256 MB
DC-in jack: Yes
Ethernet LAN (RJ-45) ports: 1
Built-in siren: Yes
HTTPS encryption: Yes
Intelligent Video Surveillance (IVS) system features: Tripwire
IP address filtering: Yes
Mirror: Yes
Security algorithms: HTTPS
Video motion detection: Yes
Management software: Smart PSS, DSS, DMSS
Web browser: Yes
DC output voltage: 12
Power consumption (max): 8.6 W
Power consumption (Power over Ethernet (PoE)): 5.8 W
Power consumption (typical): 4.5 W
Power source type: DC,PoE
Operating relative humidity (H-H): 0 - 95 %
Operating temperature (T-T): -40 - 60 °C
Mobile operating systems supported: Android/iOS
Diameter: 122 mm
Height: 110.9 mm
Weight: 750 g
Package weight: 920 g
Manual: Yes
Number of cameras: 1
Model: IPC-HDW3849H-ASPV0280B-S5
Units per Shipping Box: 1
Unit Calculated Volume: 0.003243 cubm
Unit Calculated Weight: 0.936 kg
