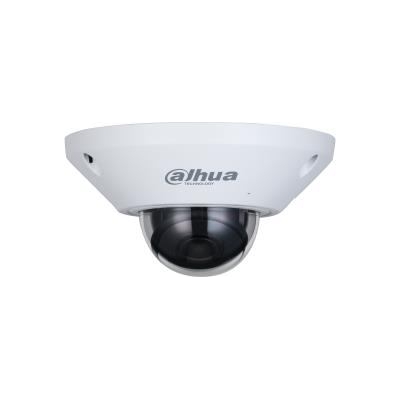

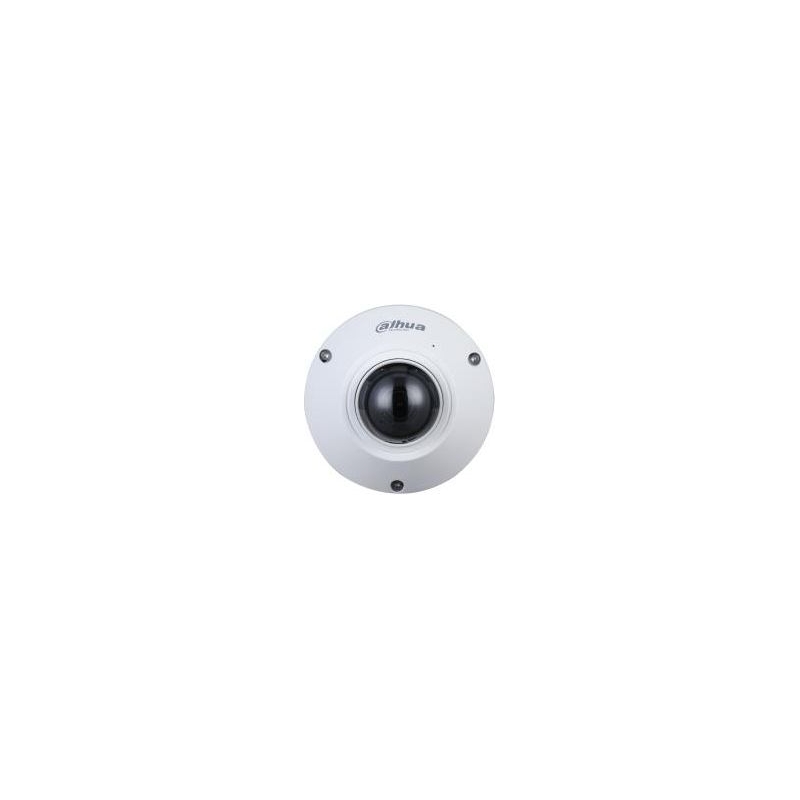

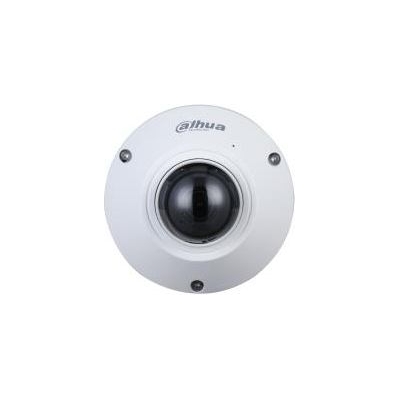

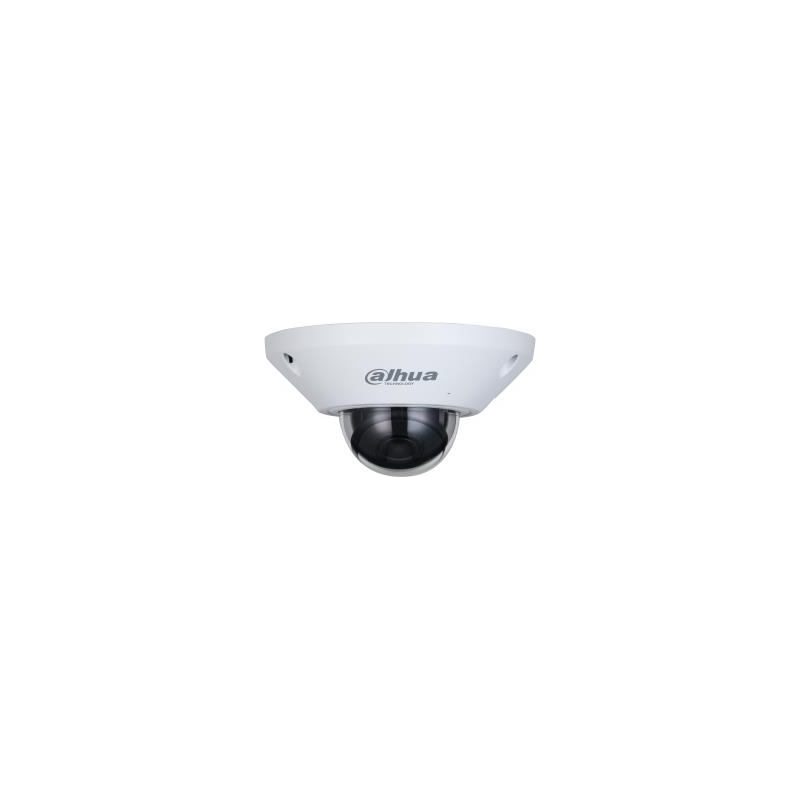

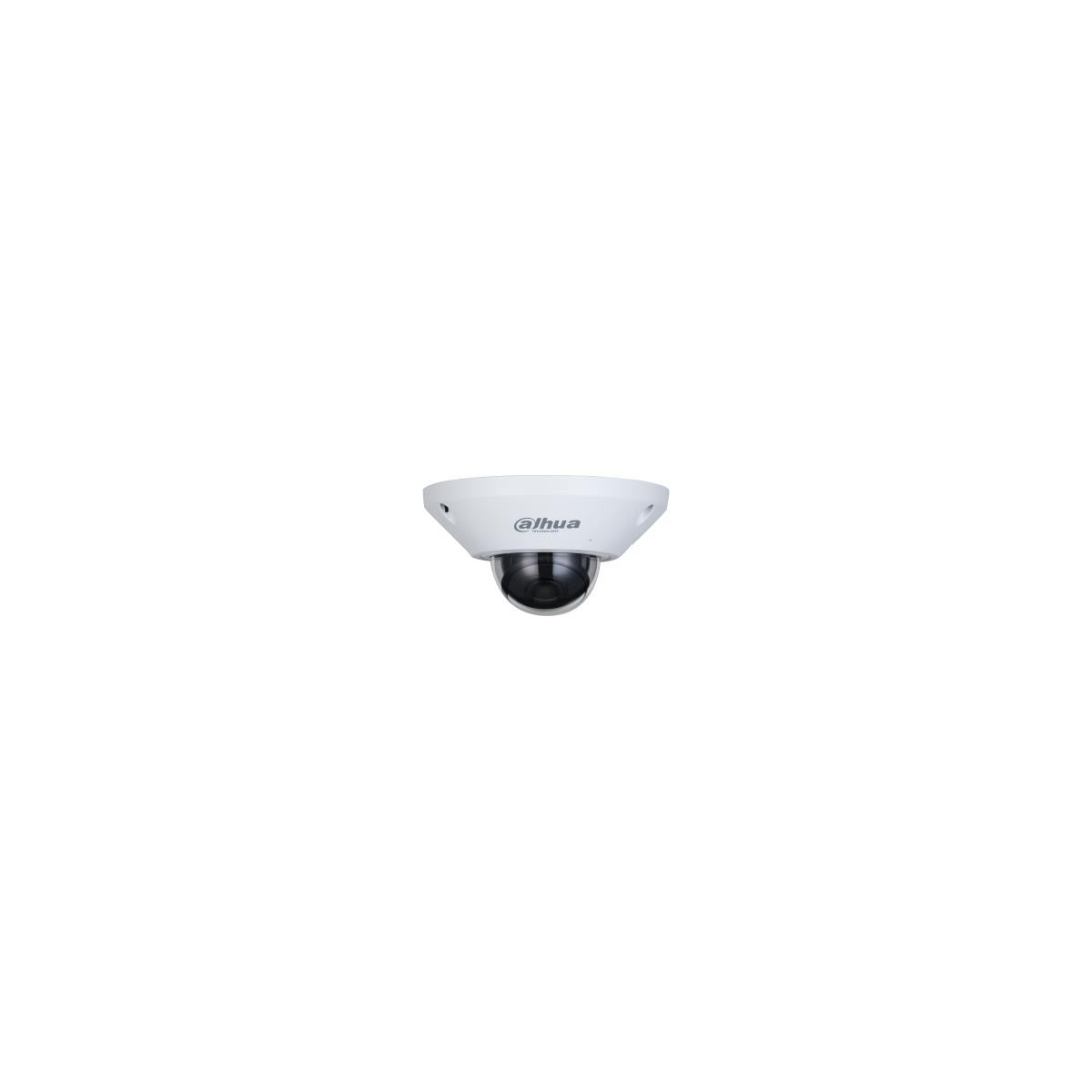

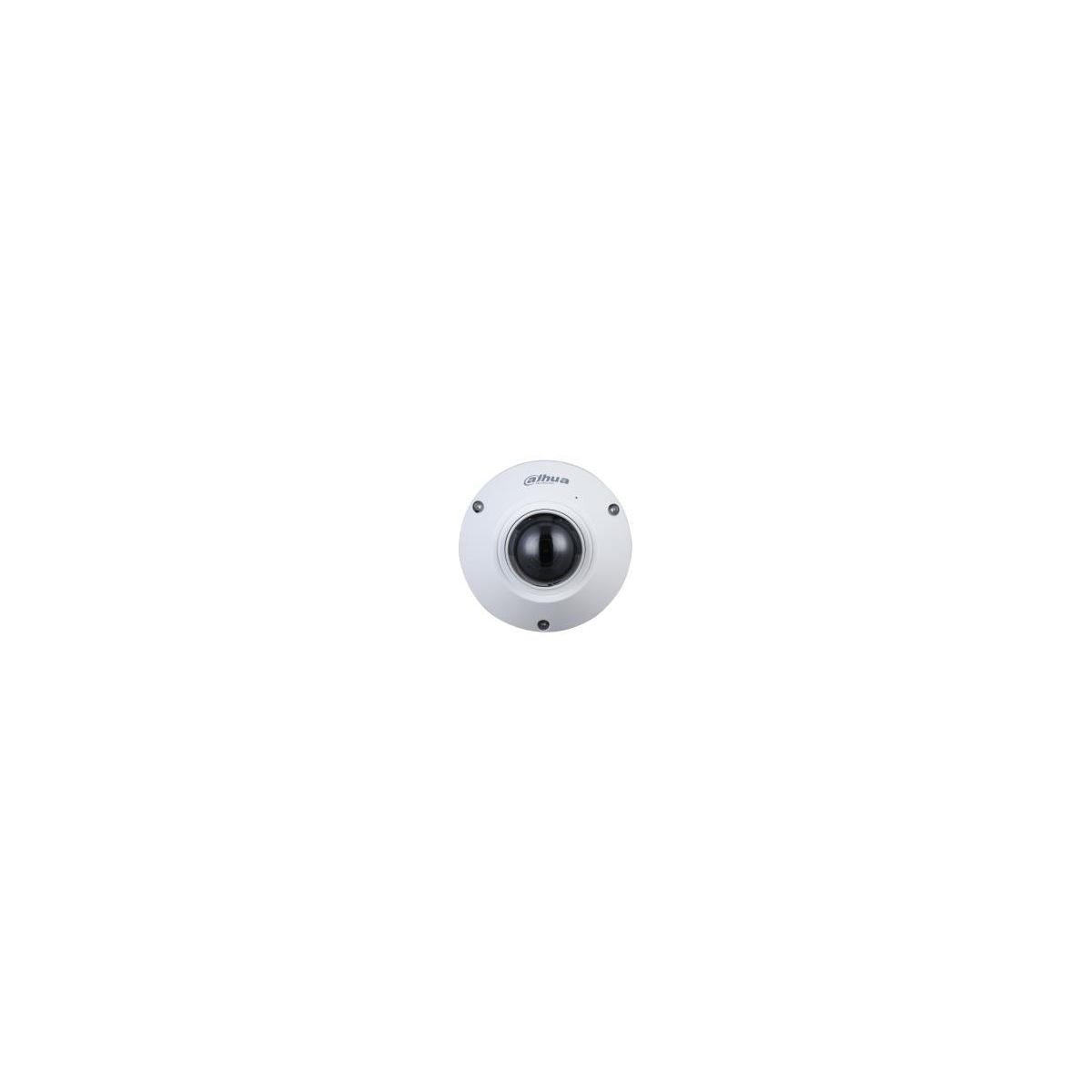

Dahua NET CAMERA 5MP FISHEYE DOME/DH-IPC-EB5541-AS DAHUA

Dahua NET CAMERA 5MP FISHEYE DOME/DH-IPC-EB5541-AS DAHUA

Write a review

€461.87

Tax included

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

5MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
Outputs max. 5MP (2592 × 1944) @25/30 fps
H.265 codec, high compression rate, ultra-low bit rate
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
120dB WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent detection: Intrusion, tripwire, people counting in area
Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic
12V DC/PoE power supply, easy for installation
IP67, IK10 protection
Heat map for people counting. You can adjust the number of people, time threshold to generate a heat map, which can be exported

Manufacturer Website:
https://www.dahuasecurity.com/products/All-Products/Mobile/Mobile/Mobile-IP-Products/Mobile-IP-Cameras/IPC-EB5541-M-AS

Category Code: FNC
CnCode: 85258900
Unit Box Height: 0.114
Unit Box Length: 0.133
Unit Box Width: 0.136
Form factor: Dome
Housing material: Metal
IK code: IK10
International Protection (IP) code: IP67
Mounting type: Ceiling/Wall/Pole
Product colour: White
Certification: CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 EN45545-2 E-MARK: ECE Regulation 10.05
Connectivity technology: Wired
Dynamic range: 120 dB
Placement supported: Indoor & outdoor
Type: IP security camera
Wide Dynamic Range (WDR): Yes
Angle of rotation: 360 °
Camera shutter speed: 1/3 - 1/100000 s
Camera shutter type: Electronic
Lens viewing angle, diagonal: 180 °
Lens viewing angle, horizontal: 180 °
Lens viewing angle, vertical: 180 °
Minimum illumination: 0.006 lx
Number of Privacy masking areas: 4
Pan range: 0 - 355 °
Tilt angle range: 0 - 55 °
White balance: Auto/Natural/Outdoor/Regional custom/Street lamp
Number of sensors: 1
Optical sensor size: 1/2.7 "
Progressive scan: Yes
Sensor type: CMOS
Closest focusing distance: 0.2 m
Detect distance: 28 m
Fixed focal length: 1.4 mm
Identify distance: 2.8 m
Maximum aperture number: 2
Number of lenses: 1
Observe distance: 11.2 m
Recognize distance: 5.6 m
Analog signal format system: PAL
Back Light Compensation (BLC): Yes
Bit rate: H.264: 3 kbps-8192 kbps H.265: 3 kbps-8192 kbps
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Frame rate: 30 fps
Gain control type: Auto/Manual
Highlight Compensation (HLC): Yes
Maximum resolution: 2592 x 1944 pixels
Noise reduction: Yes
Noise reduction technology: 3D noise reduction
Privacy masking: Yes
Region of Interest (ROI) encoding: Yes
Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1600 x 1200/1600 x 1200 (UXGA)/2048 x 1536 (QXGA)/2592 x 1944/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576
Total megapixels: 5 MP
Video compression formats: H.264/H.264B/H.264H/H.265/M-JPEG
Audio input channels: 1.0 channels
Audio output channels: 1.0 channels
Signal-to-Noise Ratio (SNR): 56 dB
Bluetooth: No
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Number of users: 20 user(s)
Supported network protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP
Wi-Fi: No
Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 256 GB
RAM capacity: 512 MB
ROM capacity: 128 MB
Ethernet LAN (RJ-45) ports: 1
Alarm input channels: 1
Alarm output channels: 1
Web browser: Yes
DC output voltage: 12
Power source type: PoE
Operating relative humidity (H-H): 0 - 95 %
Operating temperature (T-T): -30 - 55 °C
Storage temperature (T-T): -40 - 60 °C
Mobile operating systems supported: Android/iOS
Diameter: 110 mm
Height: 62 mm
Weight: 387 g
Package weight: 502 g
Manual: Yes
Number of cameras: 1
Units per Shipping Box: 1
Unit Calculated Volume: 0.002062 cubm
Unit Calculated Weight: 0.536 kg
