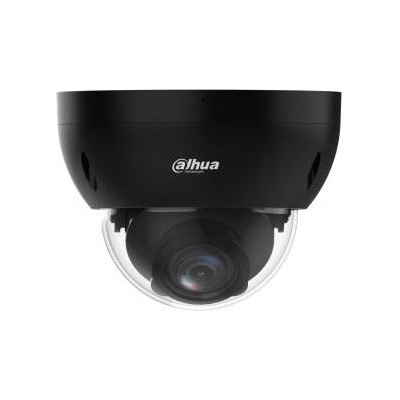

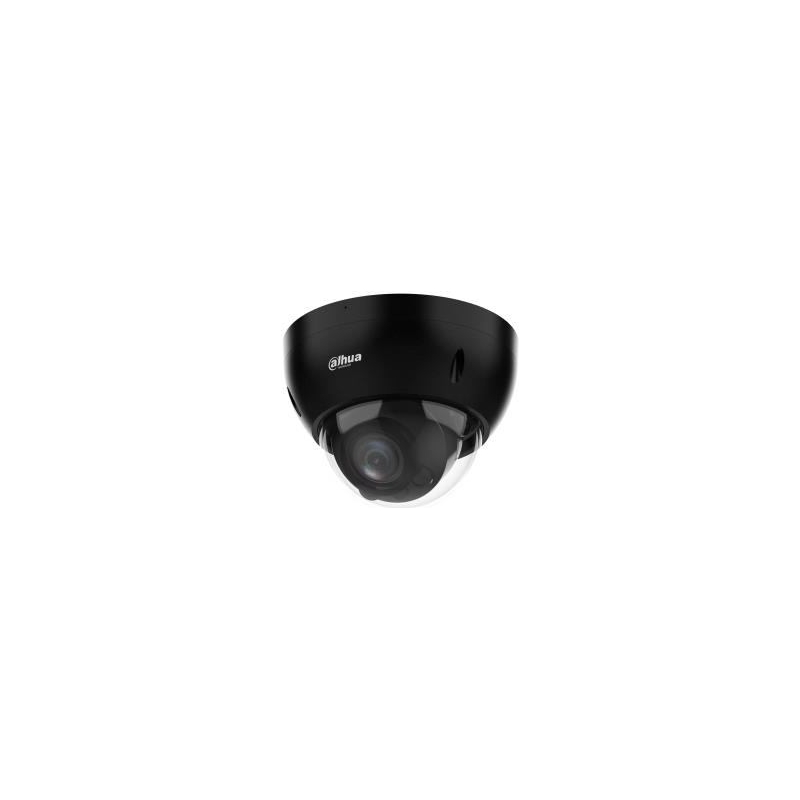

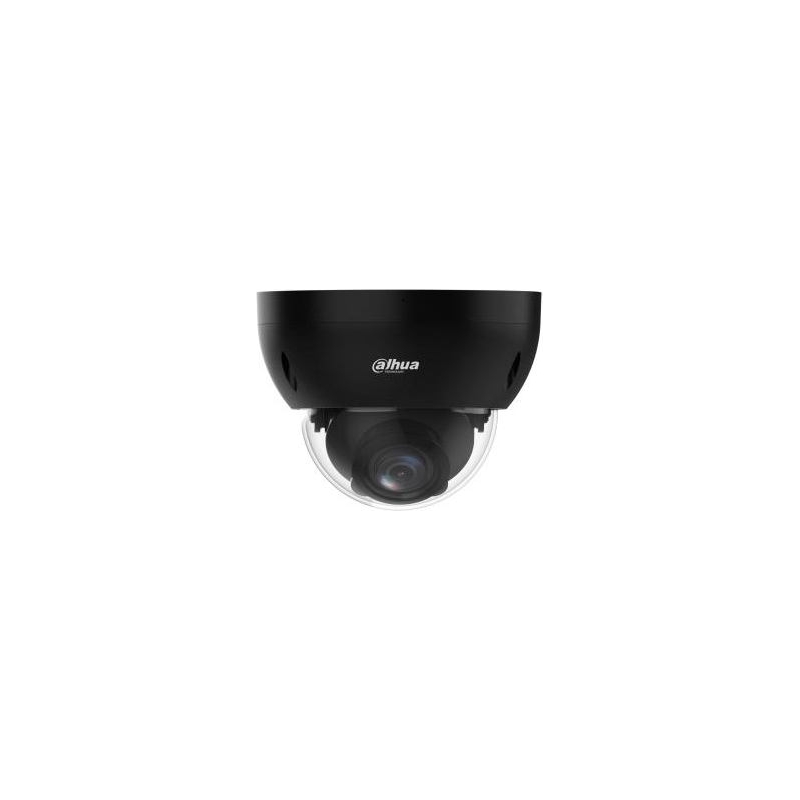

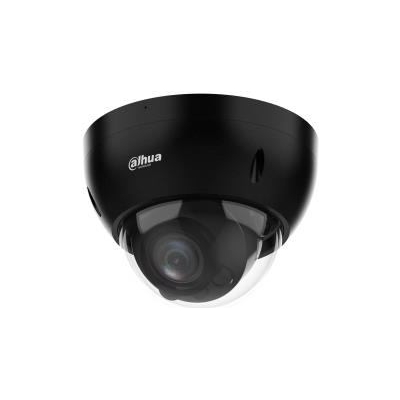

Dahua NET CAMERA 8MP IR DOME/HDBW2841R-ZAS-27135-B DAHUA

Dahua NET CAMERA 8MP IR DOME/HDBW2841R-ZAS-27135-B DAHUA

Write a review

€468.31

Tax included

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

Launched by Dahua Technology, WizSense is a series of wide range AI products and solutions that adopt independent AI chip and deep learning algorithm. It can recognize human and vehicle in an image with high accuracy, enabling users to focus on real targets. WizSense focuses on human and vehicle, benefiting everyone with intelligent functions, simple configuration and inclusive products.

Intelligent: Powered by AI chip and deep learning algorithm, WizSense provides various features that realizes accurate alarms for human and vehicle, and quick target search, maximizing resources to increase overall efficiency.

Simple: WizSense offers simple configuration, especially for SMD and AI Coding enabled by default. It eases your customer's daily job and also empowers them to make better business decisions.

Inclusive: Inclusivity of WizSense is the idea that everyone gets the opportunities and benefits from AI. With affordable prices and easy configuration of Dahua WizSense, AI is no longer confined to an ivory tower, but applied to real scenarios instead.

8-MP 1/2.7" CMOS image sensor, low luminance, and high definition image
Outputs max. 8 MP (3840 × 2160) @20 fps, and supports 2688 ×1520 (2688 × 1520) @25/30 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in IR LED, and the max. illumination distance is 40 m
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
Alarm: 1 in, 1 out (Only - ZAS supports); audio: 1 in, 1 out (Only - ZAS supports); supports max. 256 G Micro SD card; built in MIC
12 VDC/PoE power supply, easy for installation
IP67, IK10 protection
SMD Plus

Manufacturer Website:
https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/2-Series/IR/IPC-HDBW2841R-ZAS

Category Code: FNC
CnCode: 85258900
Unit Box Height: 0.135
Unit Box Length: 0.158
Unit Box Width: 0.156
Form factor: Dome
Housing material: Metal
IK code: IK10
International Protection (IP) code: IP67
Mounting type: Ceiling/wall
Product colour: Black
Protection features: Waterproof
Alarm input/output: Yes
Certification: CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Connectivity technology: Wired
Day/night mode: Yes
Dynamic range: 120 dB
Placement supported: Indoor & outdoor
Type: IP security camera
Wide Dynamic Range (WDR): Yes
Adjustment shutter speed: Auto/Manual
Angle of rotation: 355 °
Camera shutter speed: 1/3 - 1/100000 s
Camera shutter type: Electronic
Lens viewing angle, diagonal: 138 - 36 °
Lens viewing angle, horizontal: 113 - 31 °
Lens viewing angle, vertical: 58 - 18 °
Minimum illumination: 0 lx
Number of Privacy masking areas: 4
Pan range: 0 - 355 °
Tilt angle range: 0 - 75 °
White balance: Auto/Manual/Natural/Outdoor/Street lamp
Number of sensors: 1
Optical sensor size: 1/2.7 "
Progressive scan: Yes
Sensor type: CMOS
Closest focusing distance: 0.8 m
Detect distance (tele): 280 m
Detect distance (wide): 85.3 m
Focal length range: 2.7 - 13.5 mm
Identify distance (tele): 28 m
Identify distance (wide): 8.5 m
Maximum aperture number: 1.5
Number of lenses: 1
Observe distance (tele): 112 m
Observe distance (wide): 34.1 m
Recognize distance (tele): 56 m
Recognize distance (wide): 17.1 m
LED type: IR
Night vision: Yes
Night vision distance: 40 m
Number of illumination LEDs: 2
Back Light Compensation (BLC): Yes
Bit rate: 12 Kbps - 8192 Kbps
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Gain control type: Auto/Manual
Highlight Compensation (HLC): Yes
Maximum resolution: 3840 x 2160 pixels
Noise reduction: Yes
Noise reduction technology: 3D noise reduction
Privacy masking: Yes
Region of Interest (ROI) encoding: Yes
Smart IR: Yes
Supported graphics resolutions: 1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/2304 x 1296/2688 x 1512/2880 x 1620/3072 x 1728/3072 x 2048/352 x 240/352 x 288/3840 x 2160/640 x 480 (VGA)/704 x 480/704 x 576
Total megapixels: 8 MP
Video compression formats: H.264/H.264+/H.264B/H.265/H.265+
Video streaming: Yes
Audio input channels: 1.0 channels
Audio output channels: 1.0 channels
Built-in microphone: Yes
Signal-to-Noise Ratio (SNR): 56 dB
Voice codecs: G.711a/G.711Mu/G.726/PCM
Bluetooth: No
Client interoperability: ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Networking standards: IEEE 802.3af
Number of users: 20 user(s)
Supported network protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour
Wi-Fi: No
Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 256 GB
RAM capacity: 256 MB
ROM capacity: 128 MB
Ethernet LAN (RJ-45) ports: 1
Alarm input channels: 1
Alarm output channels: 1
Intelligent Video Surveillance (IVS) system features: Intrusion/Tripwire
Mirror: Yes
Network access storage (NAS): Yes
Privacy protection: Yes
Video motion detection: Yes
Management software: Smart PSS, DSS, DMSS
Web browser: Yes
DC output voltage: 12
Power consumption (max): 6.4 W
Power consumption (Power over Ethernet (PoE)): 7.3 W
Power consumption (typical): 2.7 W
Power source type: DC,PoE
Operating relative humidity (H-H): 0 - 95 %
Operating temperature (T-T): -30 - 60 °C
Storage relative humidity (H-H): 0 - 95 %
Storage temperature (T-T): -40 - 60 °C
Mobile operating systems supported: Android/iOS
Diameter: 122 mm
Height: 93.4 mm
Weight: 510 g
Package weight: 670 g
Number of cameras: 1
Browser supported: IE: IE8, IE9, IE11 Chrome Firefox, Safari
Number of video streams: 2
Model: IPC-HDBW2841R-ZAS-27135-B
Units per Shipping Box: 1
Unit Calculated Volume: 0.003327 cubm
Unit Calculated Weight: 0.7 kg
