Sharp images

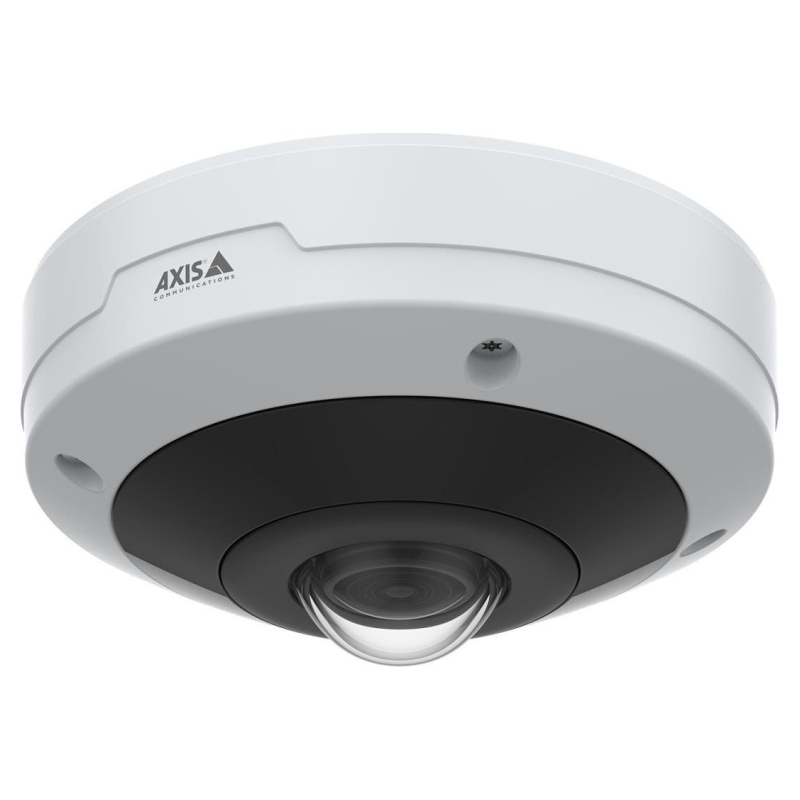

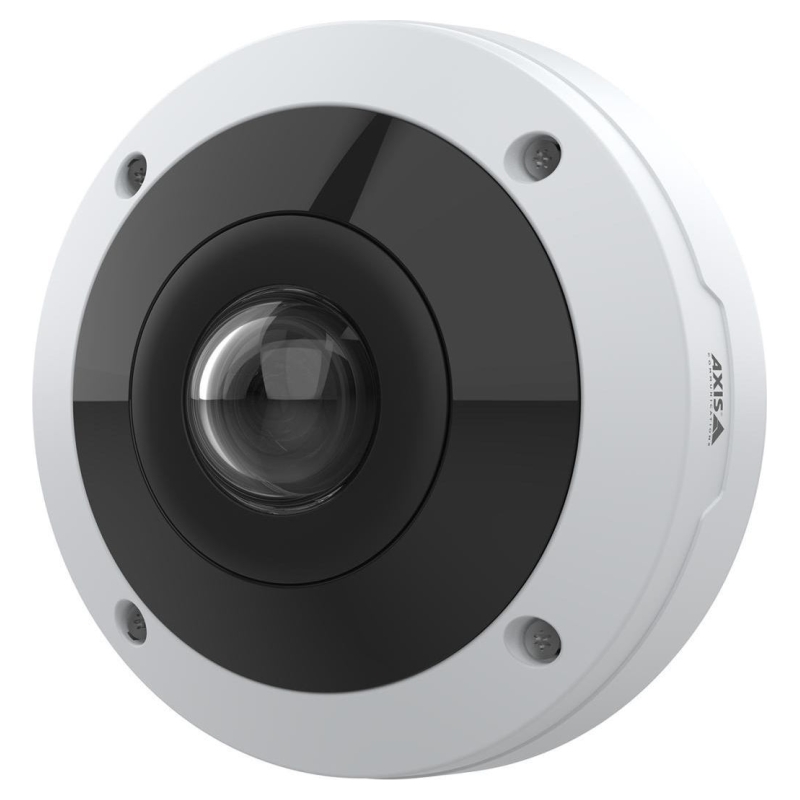

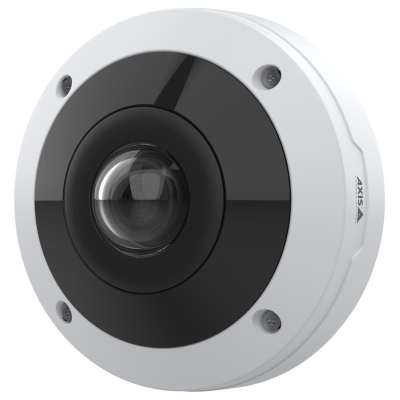

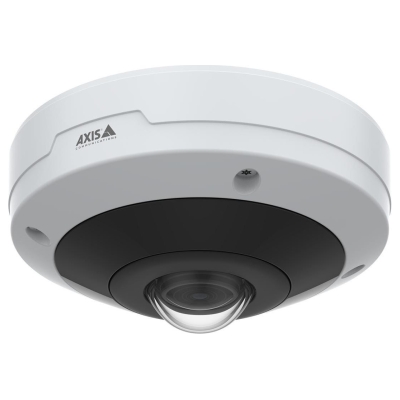

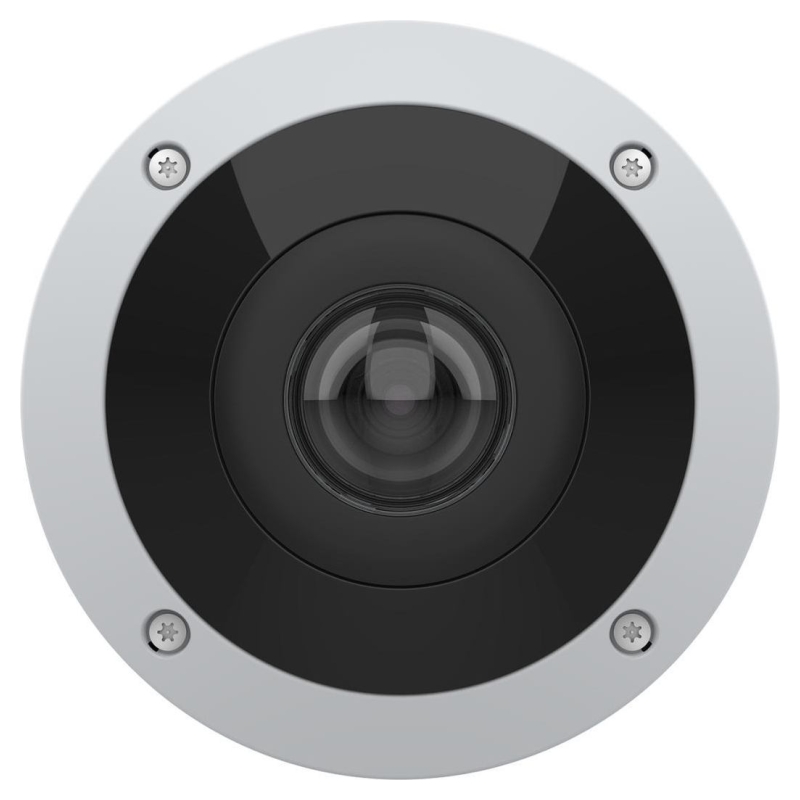

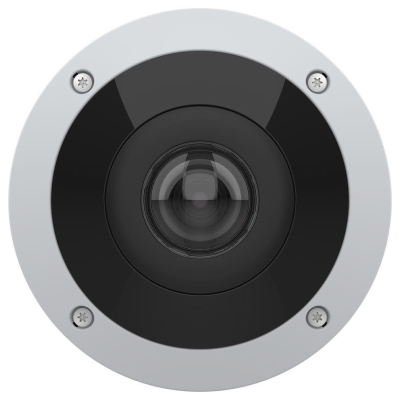

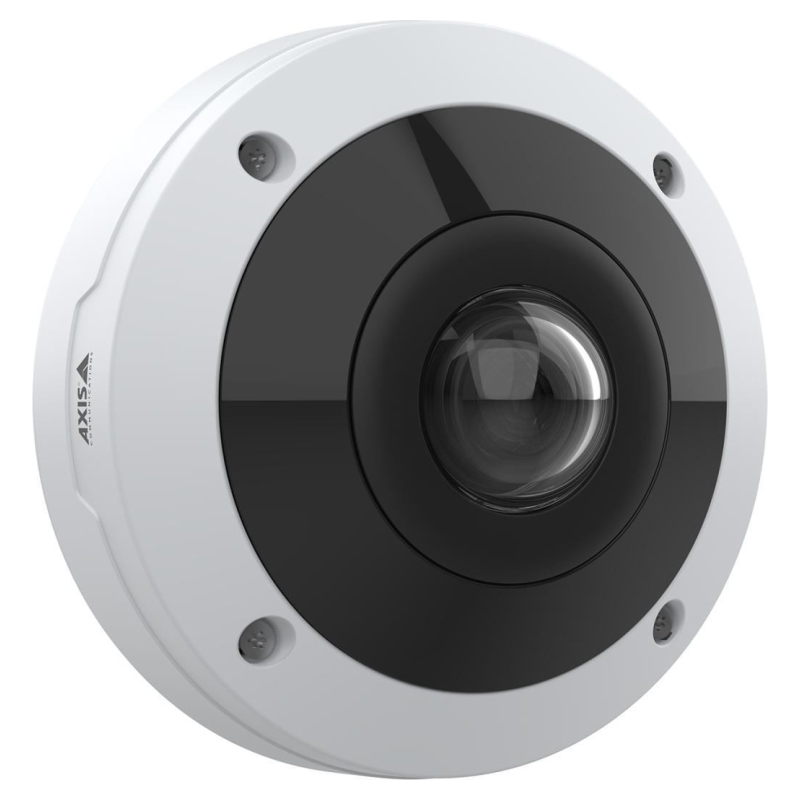

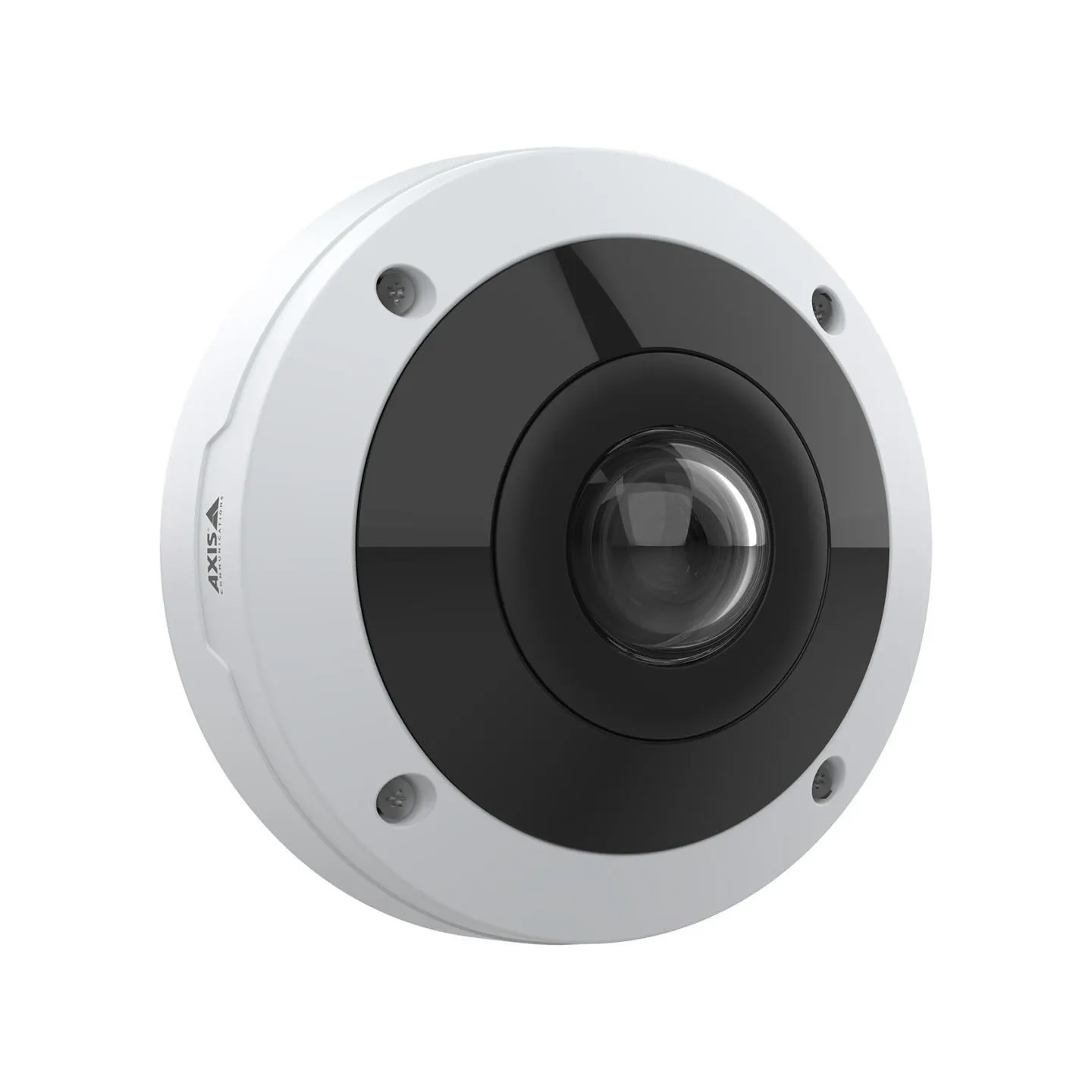

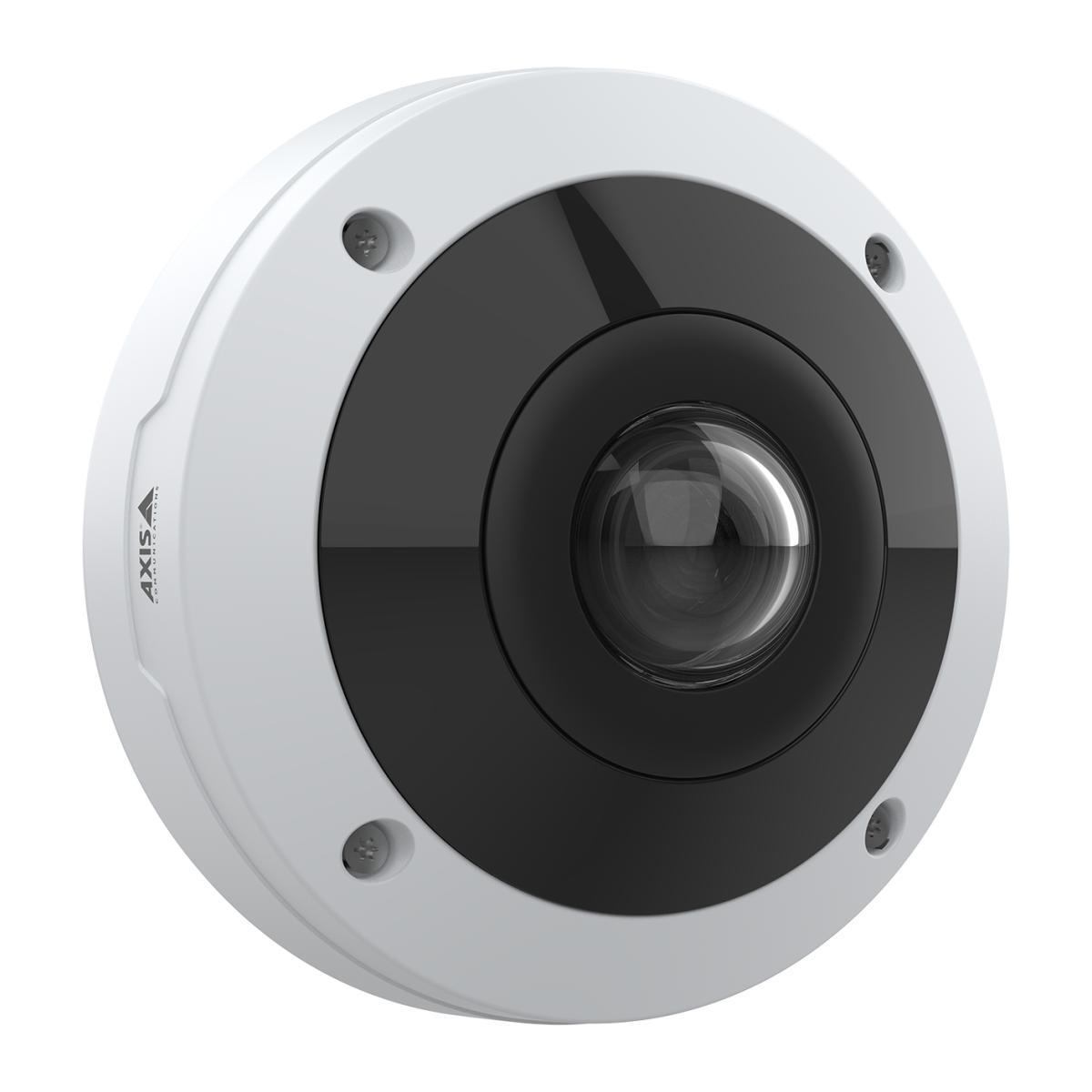

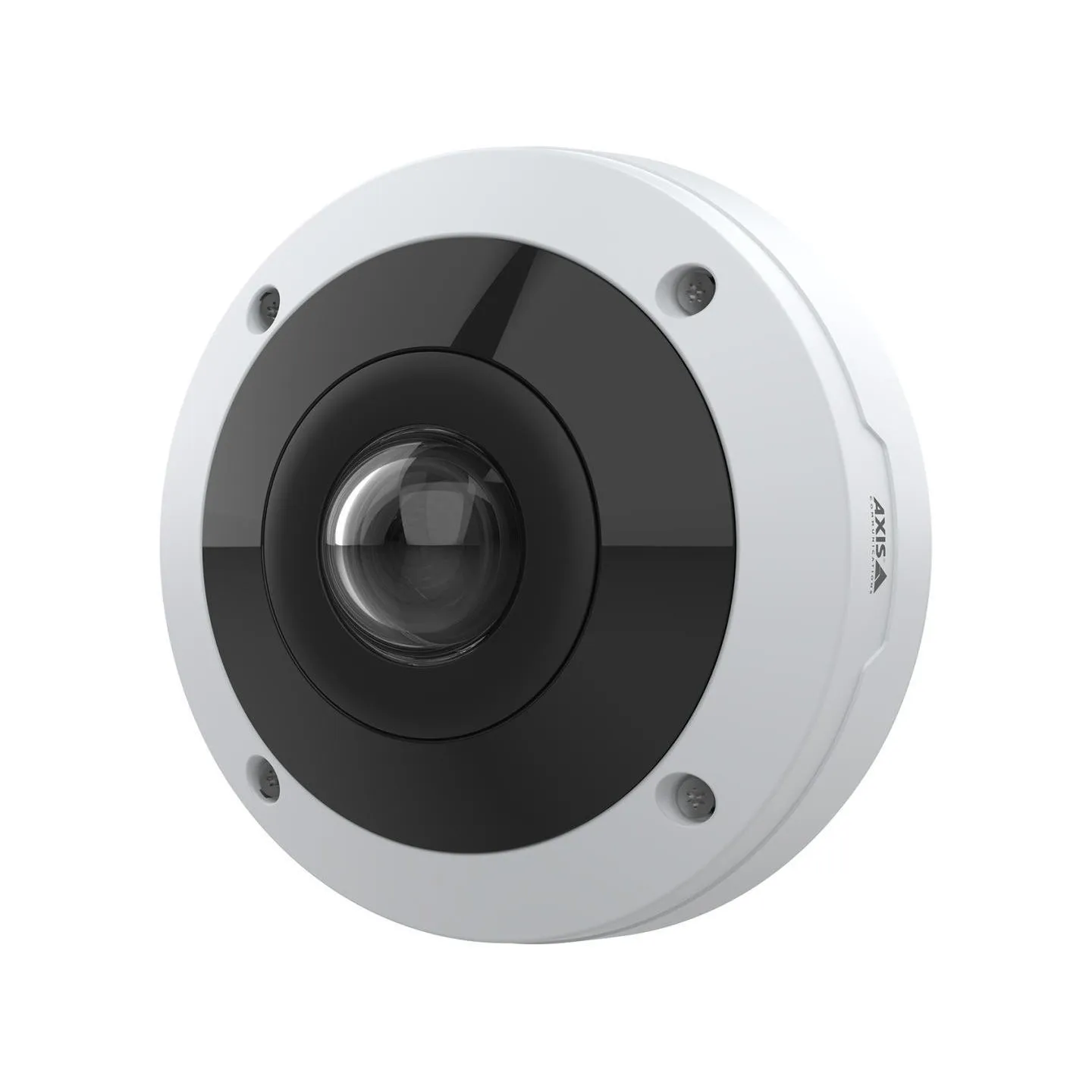

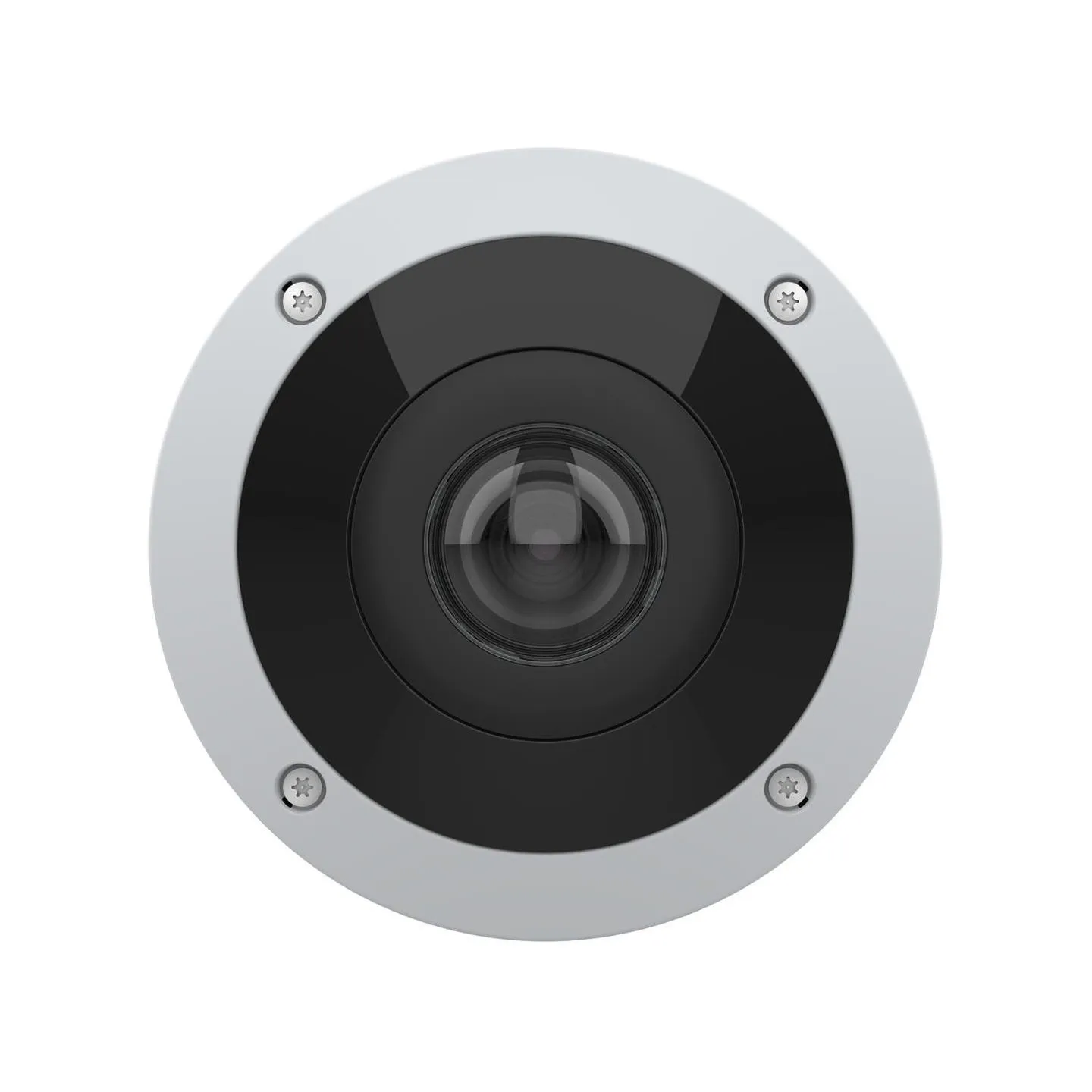

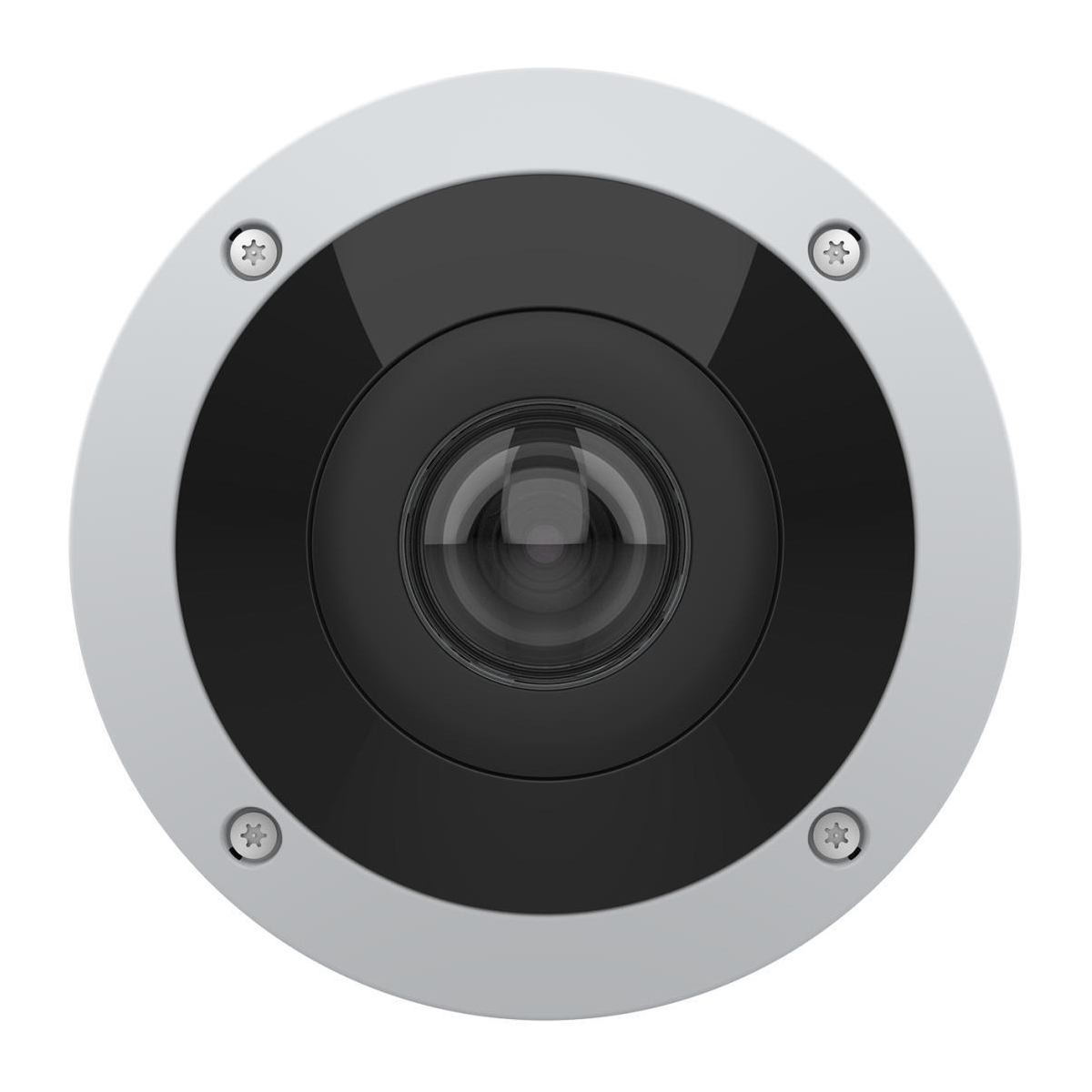

Featuring a stereographic lens and Sharpdome 360, this panoramic camera delivers greater sharpness at the edges of the image. With a 6 MP sensor, it offers excellent image quality and a complete 180° or 360° overview, around the clock regardless of the light conditions. Plus, Lightfinder ensures lifelike colors in low light. With day/night functionality and built-in IR illumination with individually controllable LEDs, it delivers clear, reflection-free footage and excellent image quality even in low light or complete darkness. Furthermore, AXIS M4317-PLVE supports digital PTZ views as well as dewarped views such as panorama, quad, corner, and corridor.
Deep learning on the edge
This high-performance camera includes a deep learning processing unit (DLPU) enabling improved processing and storage capabilities. Plus, you can collect and analyze even more data than before—on the edge. Additionally, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Thanks to AXIS Object Analytics, it’s possible to detect and classify humans, vehicles, and types of vehicles—all tailored to specific needs. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge.
Secure and easy

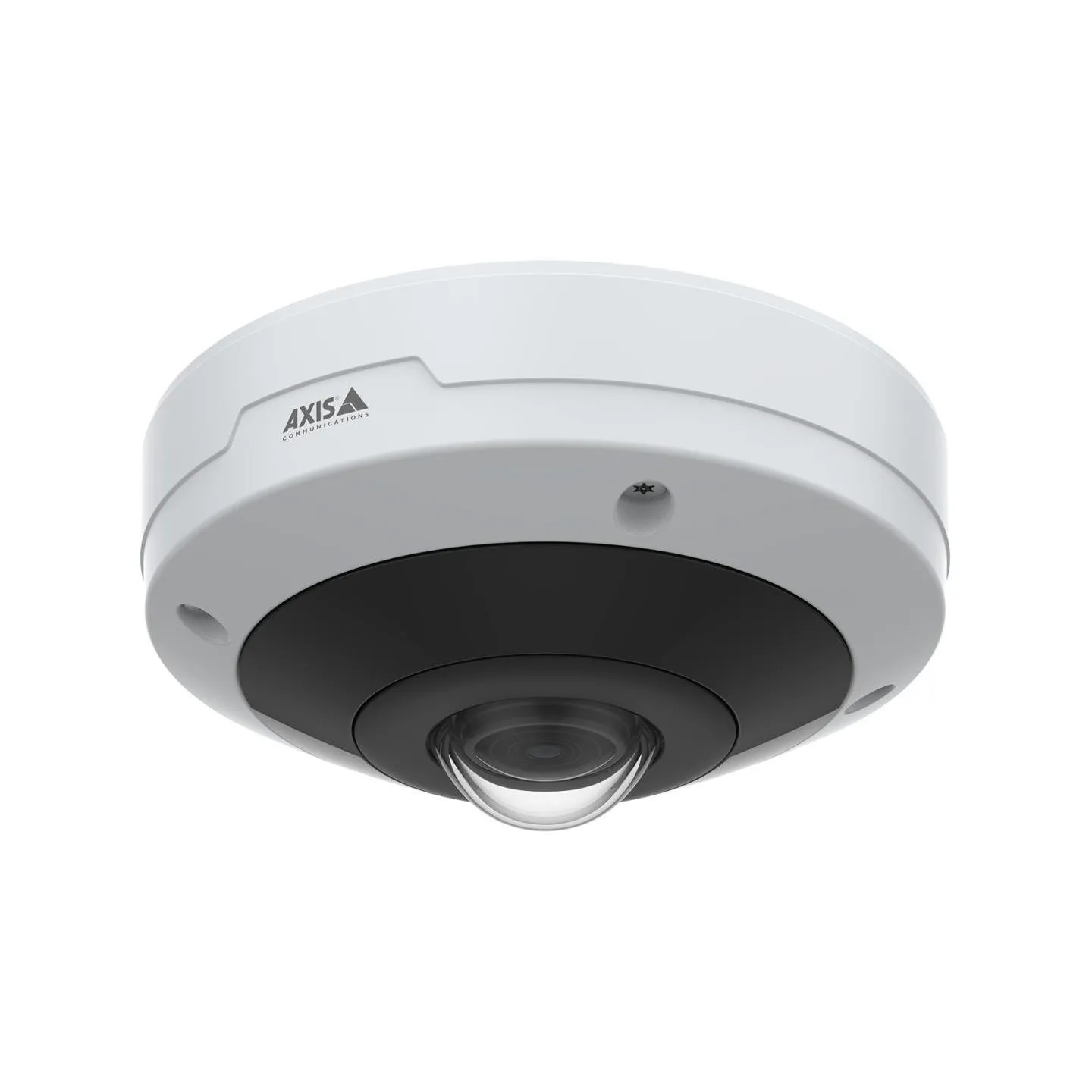

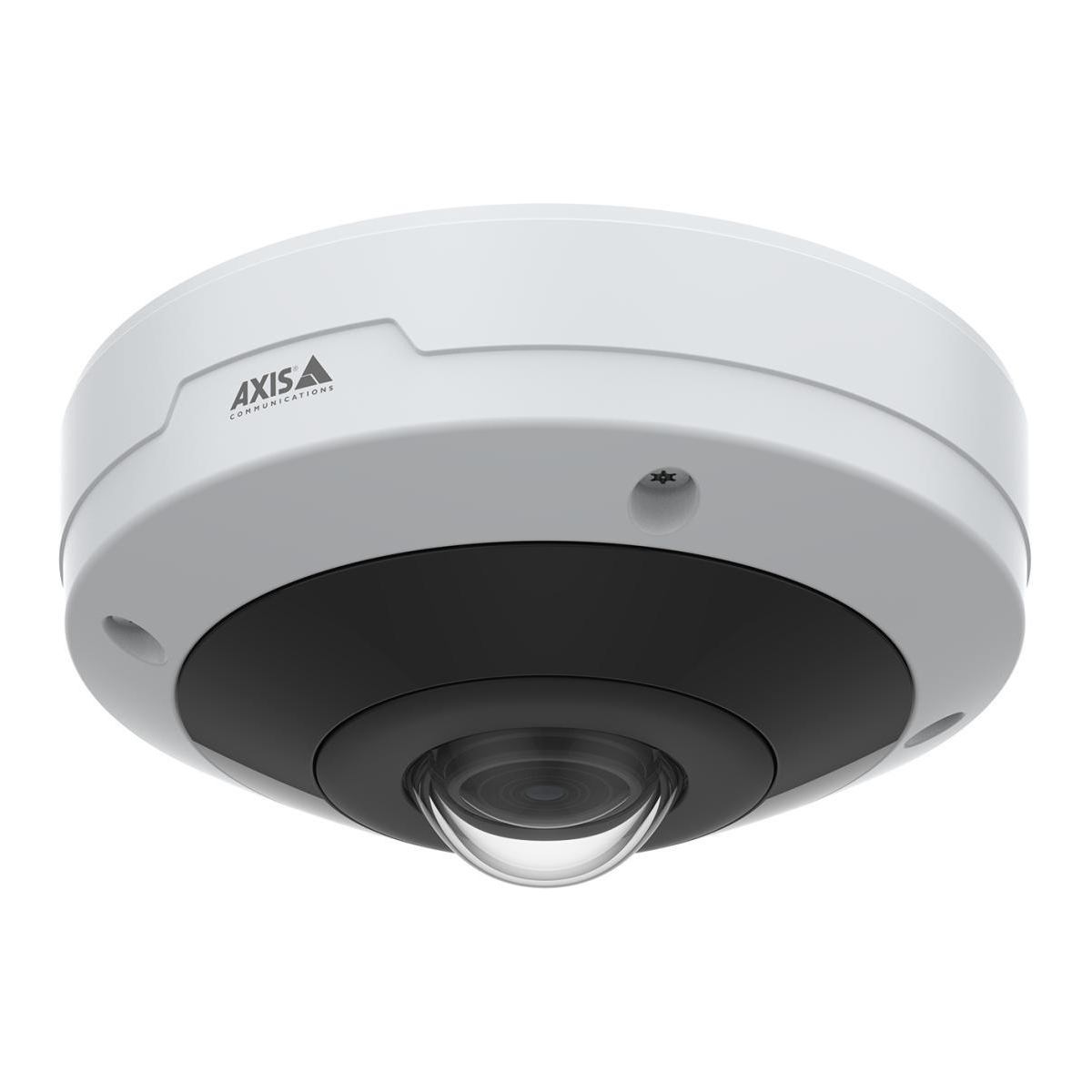

Built on ARTPEC-8, AXIS M4317-PLVE offers built-in cybersecurity features to help prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. This discreet, compact mini dome blends seamlessly into any environment. It’s delivered factory-focused for ease of installation. And, with digital roll functionality you can remotely adjust the rotation of the camera overview– no need to do it manually on each camera. Furthermore, Axis Zipstream with H.264/H.265 significantly reduces bandwidth and storage requirements.
Manufacturer Website:https://www.axis.com/products/axis-m4317-plve- Category Code
- FNC
- CnCode
- 85258900
- Unit Box Height
- 0.1
- Unit Box Length
- 0.175
- Unit Box Width
- 0.165
- Form factor
- Dome
- Housing material
- Aluminium/Polycarbonate (PC)
- IK code
- IK10
- International Protection (IP) code
- IP66
- LED indicators
- Yes
- Mounting type
- Ceiling/wall
- Product colour
- Black/White
- Certification
- CSA, UL/cUL, BIS, UKCA, CE, KC
55035, EN 55032 Class A, EN 50121-4, EN 61000-6-1,
EN 61000-6-2, EN 61547
Australia/New Zealand: RCM AS/NZS CISPR 32 Class A
Canada: ICES-3(A)/NMB-3(A)
Japan: VCCI Class A
Korea: KS C 9835, KS C 9832 Class A
USA: FCC Part 1
- Connectivity technology
- Wired
- Day/night mode
- Yes
- Infrared (IR) cut-off filter
- Yes
- Languages support
- Czech/Dutch/English/Finnish/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Swedish/Thai/Traditional Chinese/Turkish/Vietnamese
- Number of languages
- 20
- Placement supported
- Indoor
- PTZ control
- Yes
- PTZ modes
- Digital PTZ/Preset point
- Type
- IP security camera
- Wide Dynamic Range (WDR)
- Yes
- Camera shutter speed
- 1/33500 - 0.2 s
- Lens viewing angle, horizontal
- 182 °
- Lens viewing angle, vertical
- 182 °
- Minimum illumination
- 0.03 lx
- Number of sensors
- 1
- Optical sensor size
- 1/1.8 "
- Progressive scan
- Yes
- Sensor type
- CMOS
- Fixed focal length
- 2.2 mm
- Fixed focus
- Yes
- Number of lenses
- 1
- Infra-red wavelength
- 850 nm
- LED type
- IR
- Night vision
- Yes
- Night vision distance
- 20 m
- Bit rate control
- Variable Bit Rate (VBR)
- Frame rate
- 60 fps
- Image quality adjustment
- Brightness/Contrast/Saturation/Sharpness
- Maximum resolution
- 2160 x 2160 pixels
- Noise reduction
- Yes
- Noise reduction technology
- 2D noise reduction,3D noise reduction
- Supported graphics resolutions
- 1920 x 1440/256 x 144/2560 x 1440/2560 x 1920/384 x 288
- Text caption overlay
- Yes
- Total megapixels
- 6 MP
- Video streaming
- Yes
- Audio system
- 2-way
- Ethernet interface type
- Fast Ethernet
- Ethernet LAN
- Yes
- Networking standards
- IEEE 802.3af/IEEE 802.3at
- Quality of Service (QoS) support
- Yes
- Streaming method
- Multicast
- Supported network protocols
- IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH, L
- Compatible memory cards
- MicroSD (TransFlash)/MicroSDHC/MicroSDXC
- Flash memory
- 8192 MB
- Internal memory
- 2048 MB
- Active tampering alarm
- Yes
- Alert notification type
- E-mail
- Digest authentication
- Yes
- HTTPS encryption
- Yes
- Human and vehicle targets classification
- Yes
- IP address filtering
- Yes
- Password protection
- Yes
- Pixel counter
- Yes
- Privacy protection
- Yes
- Security algorithms
- 256-bit AES-XTS/EAP-TLS/TLS
- Video motion detection
- Yes
- Behavior analysis
- Line crossing detection
- Power consumption (max)
- 12.95 W
- Power consumption (typical)
- 5.7 W
- Power source type
- PoE
- Operating relative humidity (H-H)
- 10 - 100 %
- Operating temperature (T-T)
- -40 - 50 °C
- Storage relative humidity (H-H)
- 5 - 95 %
- Storage temperature (T-T)
- -40 - 65 °C
- Depth
- 149 mm
- Height
- 70 mm
- Weight
- 860 g
- Width
- 149 mm
- Compliance certificates
- RoHS
- Manual
- Yes
- Number of cameras
- 1
- Doesn't contain
- PVC/BFR
- Model
- M4317-PLVE
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.002887 cubm
- Unit Calculated Weight
- 1.05 kg
