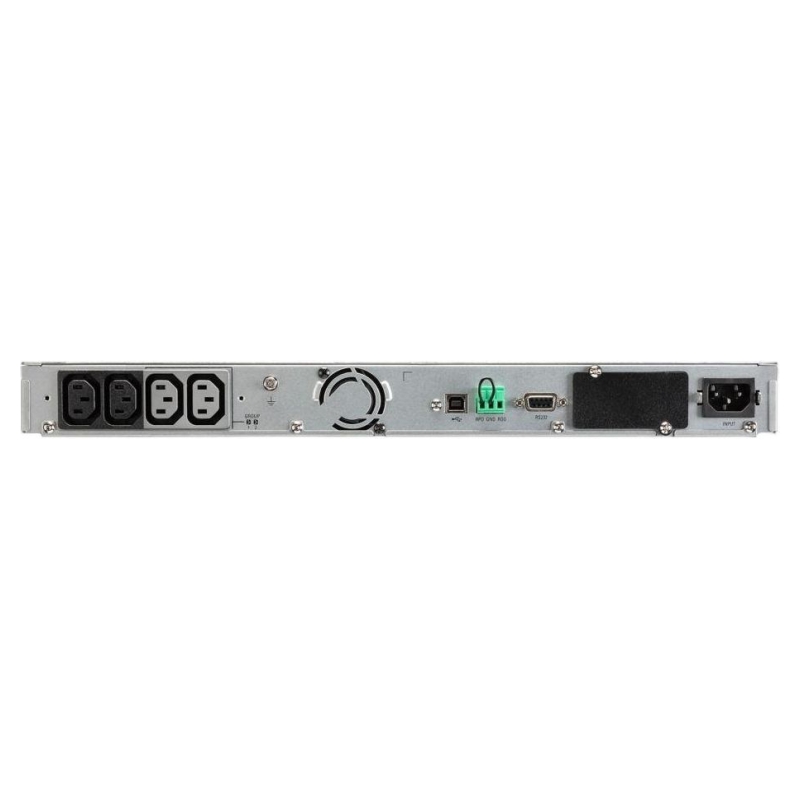

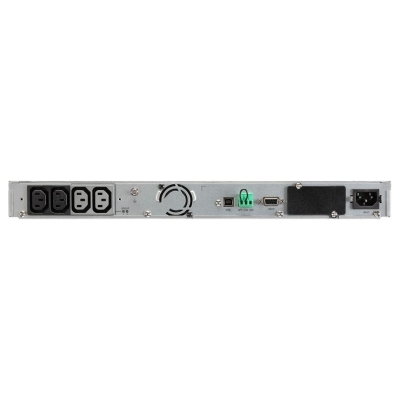

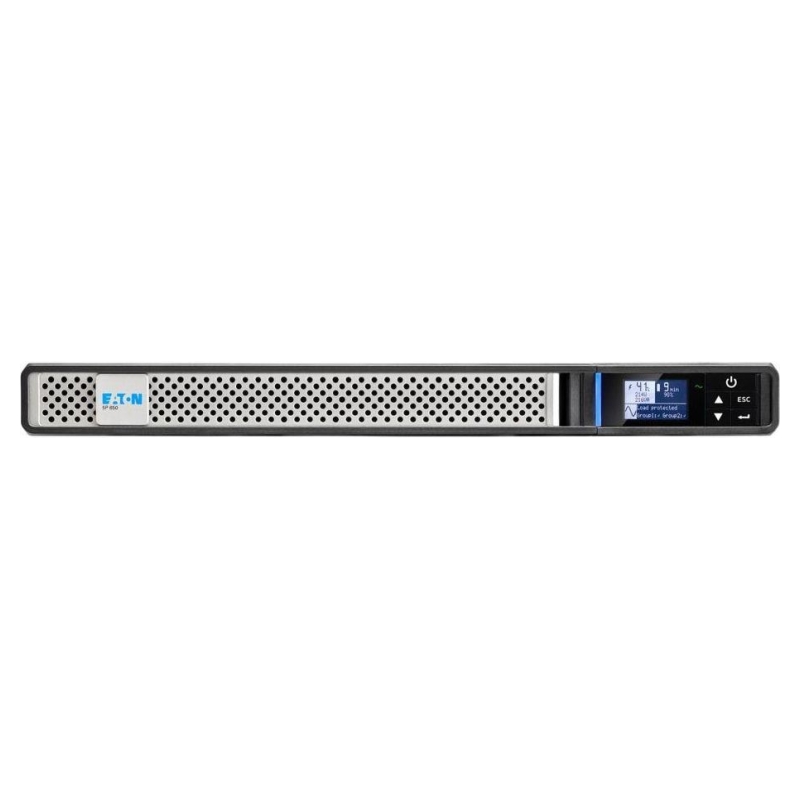

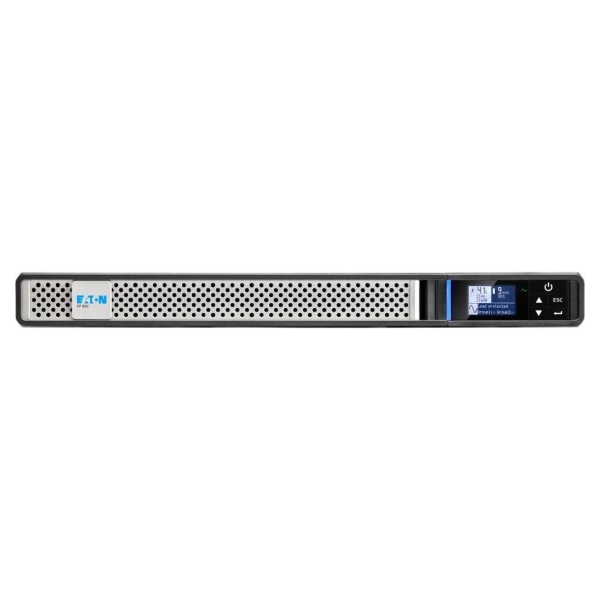

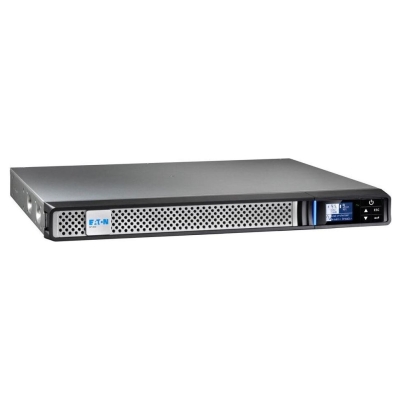

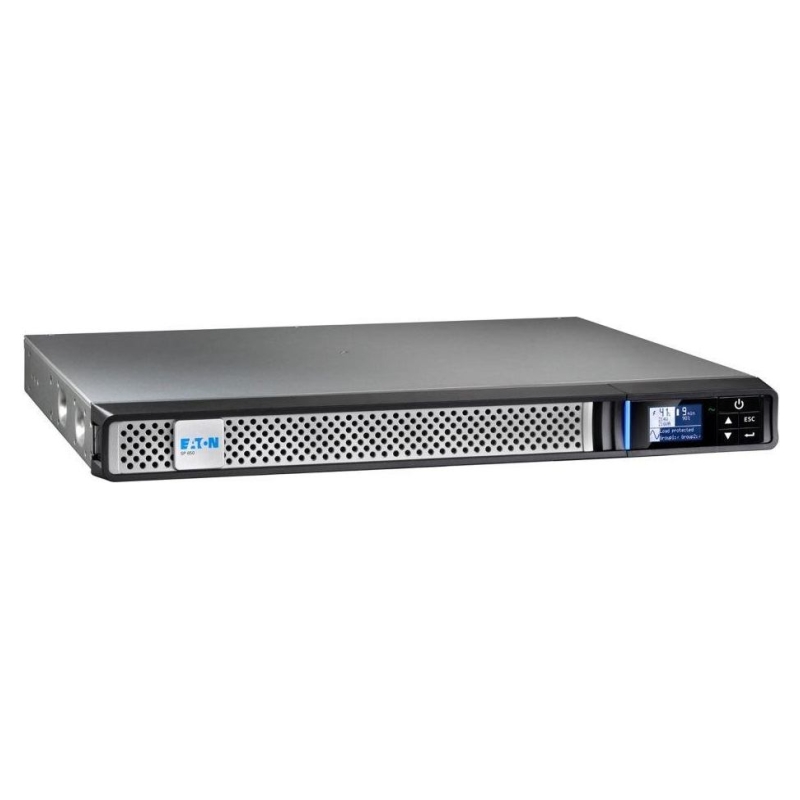

Eaton UPS|EATON|520 Watts|650 VA|Wave form type Sinewave|LineInteractive|Phase 1phase|5P650IRNG2
- Write a review
€973.30
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
UPS topology Line-Interactive
Output power capacity 0.65 kVA
Output power 520 W
Waveform Sine
Input operation voltage (min) 150 V
Input operation voltage (max) 294 V
Input frequency 47/70 Hz
Output frequency 50/60 Hz
Heat dissipation 461 BTU/h
Number of input phases 1
Number of output phases 1
Efficiency 97 %
AC outlet types C13 coupler
Power plug C14 coupler
USB port Yes
Serial interface Yes
Battery technology Sealed Lead Acid (VRLA)
Battery voltage 6 V
Form factor Rackmount
Colour Black,Silver
Display type LCD
Operating temperature (T-T) 0 - 40 °C
Operating altitude 0 - 3000 m
Rack mount kit Yes
Weight 8.68 kg
Manufacturer Website:
https://www.eaton.com/gr/en-gb/skuPage.5P650IRNG2.html
- Category Code
- UPW
- CnCode
- 85044095
- Unit Box Height
- 0.17
- Unit Box Length
- 0.585
- Unit Box Width
- 0.45
- Automatic Voltage Regulation (AVR)
- Yes
- Efficiency
- 97 %
- Heat dissipation
- 461 BTU/h
- Input frequency
- 47/70 Hz
- Input operation voltage (max)
- 294 V
- Input operation voltage (min)
- 150 V
- Noise level
- 35 dB
- Number of input phases
- 1
- Number of output phases
- 1
- Output frequency
- 50/60 Hz
- Output operation voltage (max)
- 240 V
- Output operation voltage (min)
- 200 V
- Output power
- 520 W
- Output power capacity
- 0.65 kVA
- Power factor
- 0.8
- UPS topology
- Line-Interactive
- Waveform
- Sine
- AC outlet types
- C13 coupler
- AC outlets quantity
- 4 AC outlet(s)

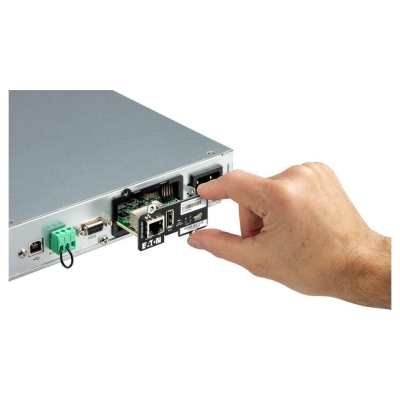

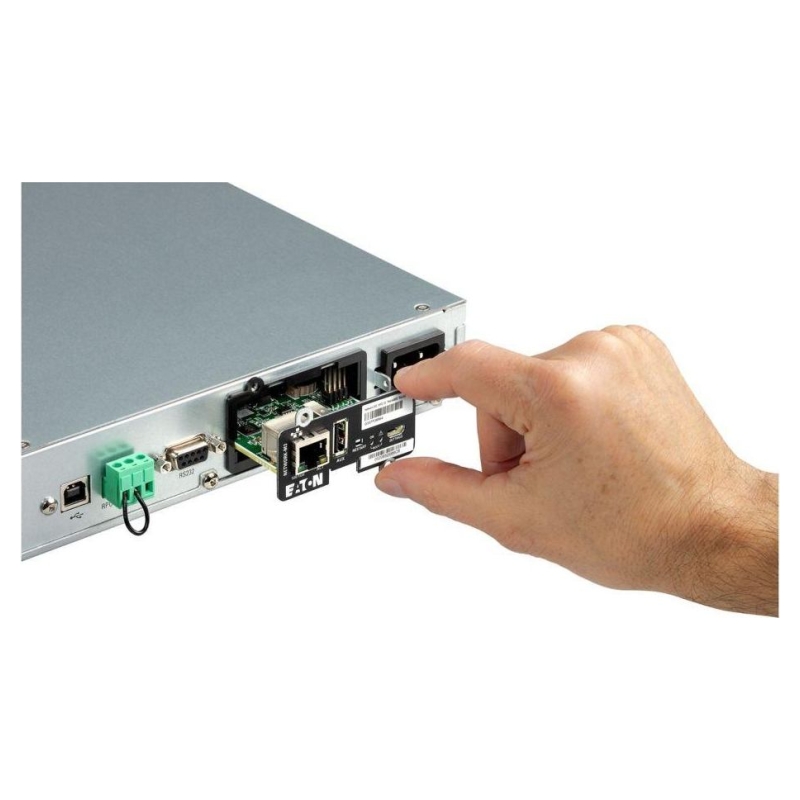

- Network card slot
- Yes
- Power plug
- C14 coupler
- RS-232 ports
- 1
- Serial interface
- Yes
- Serial interface type
- RS-232
- Serial ports quantity
- 1
- USB port
- Yes
- USB port type
- USB Type-B
- Battery capacity
- 9 Ah
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery voltage
- 6 V
- Hot-swap battery
- Yes
- Number of battery cells
- 2
- Typical backup time at half load
- 7 min
- Display type
- LCD
- Form factor
- Rackmount
- Product colour
- Black,Silver
- Operating altitude
- 0 - 3000 m
- Operating relative humidity (H-H)
- 0 - 90 %
- Operating temperature (T-T)
- 0 - 40 °C
- Cables included
- USB cable
- Certification
- IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS
- Compliance certificates
- Electromagnetic Compatibility (EMC)/Low Voltage Directive (LVD)/RoHS
- Quick installation guide
- Yes
- Rack mount kit
- Yes
- Waste Electrical and Electronic Equipment (WEEE) compliance
- Yes
- Depth
- 361 mm
- Height
- 43.2 mm
- Weight
- 8680 g
- Width
- 438 mm
- Model
- 5P650IRNG2
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.04475 cubm
- Unit Calculated Weight
- 11.3 kg
5P650IRNG2
1 Item
Specific References
- EAN13
- 3553340710384
- MPN
- 5P650IRNG2
