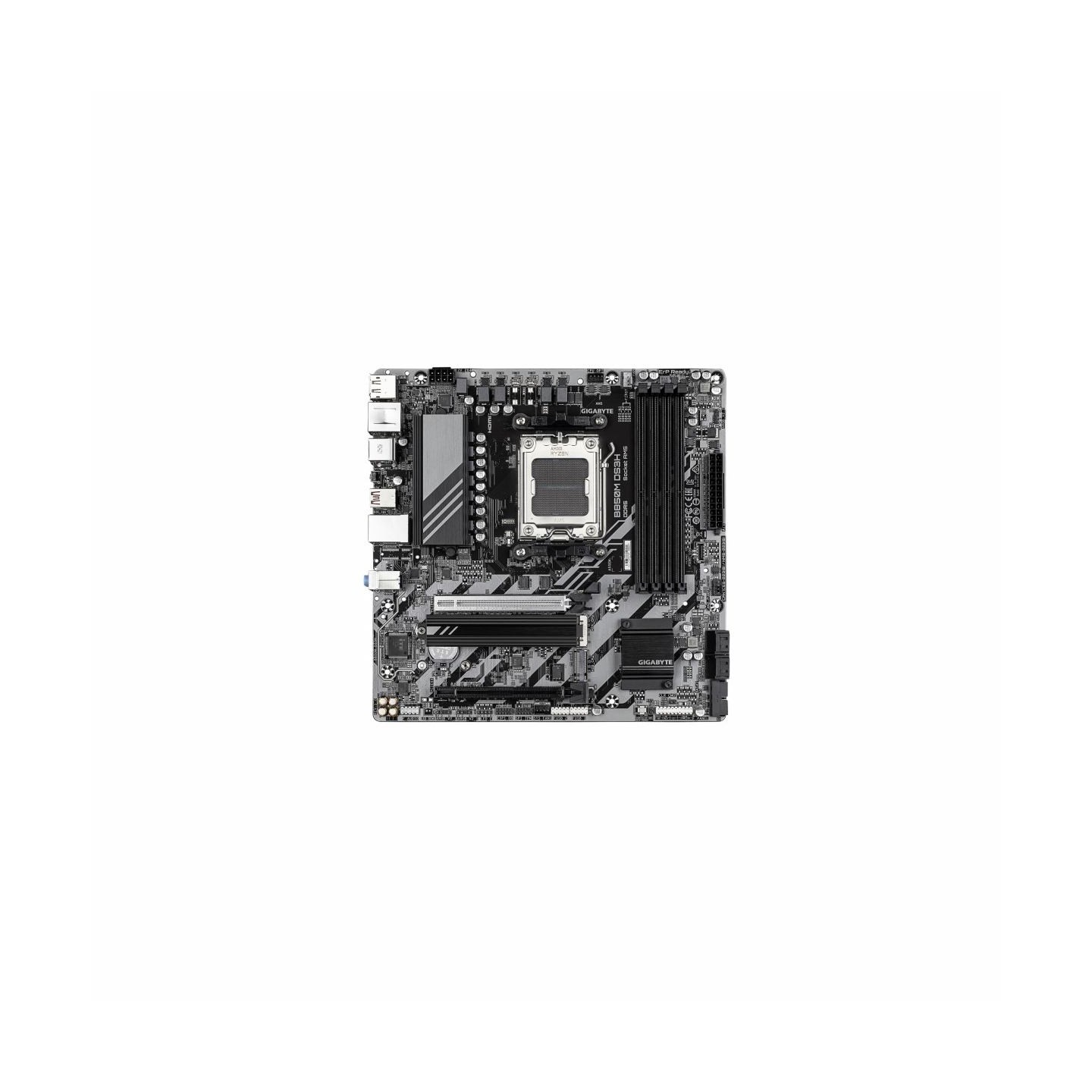

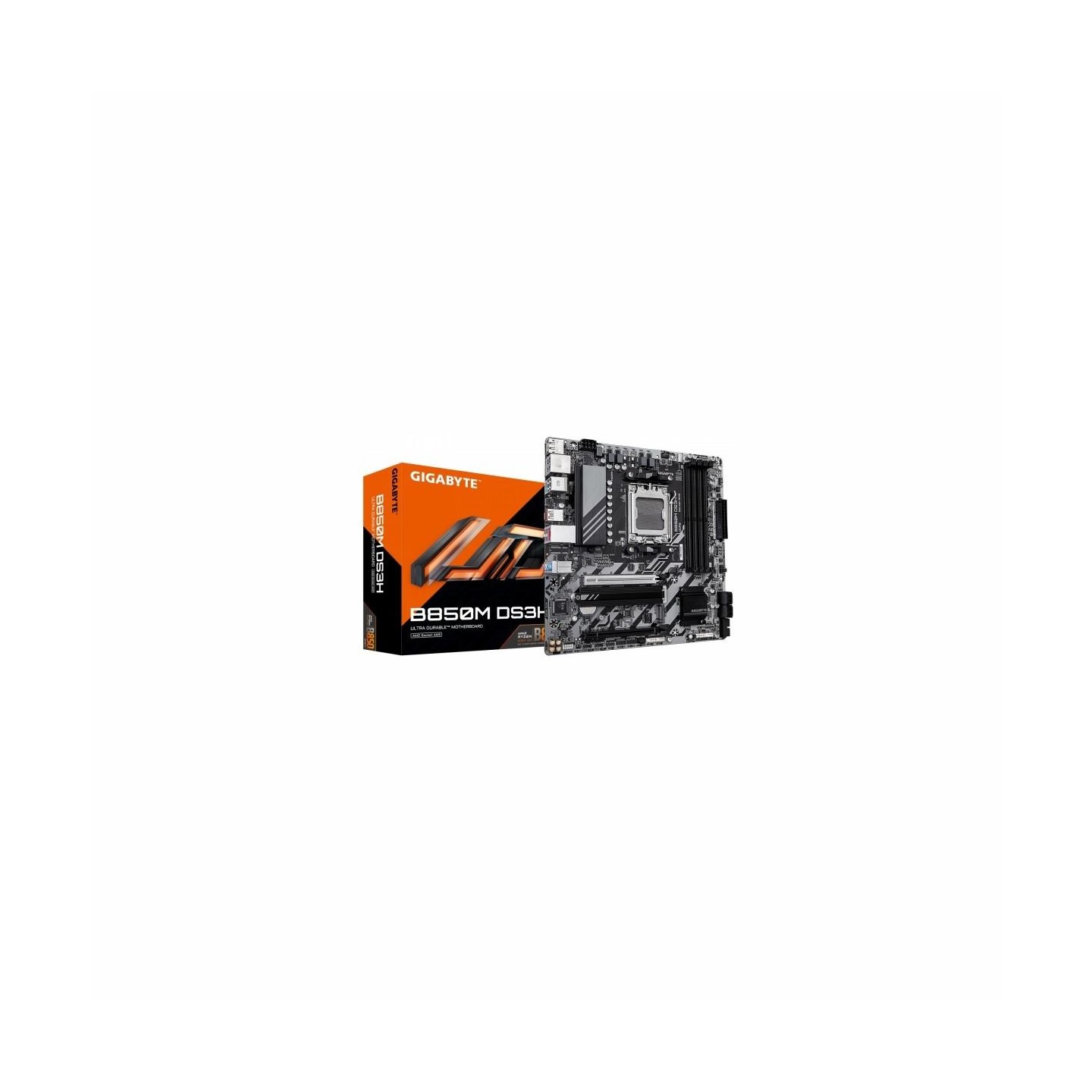

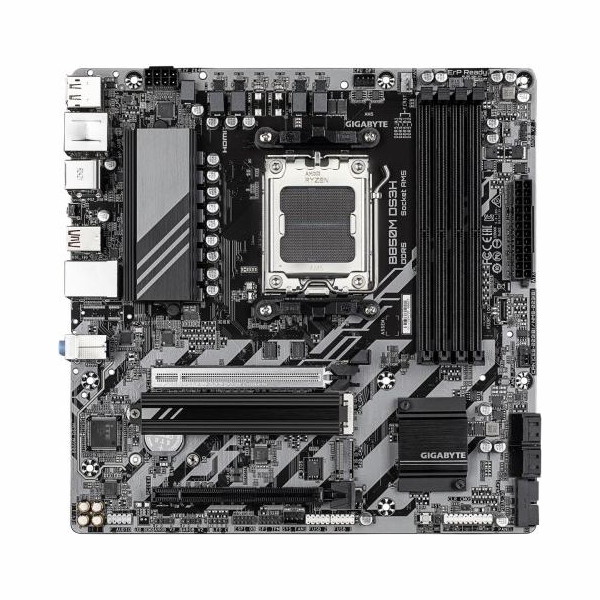

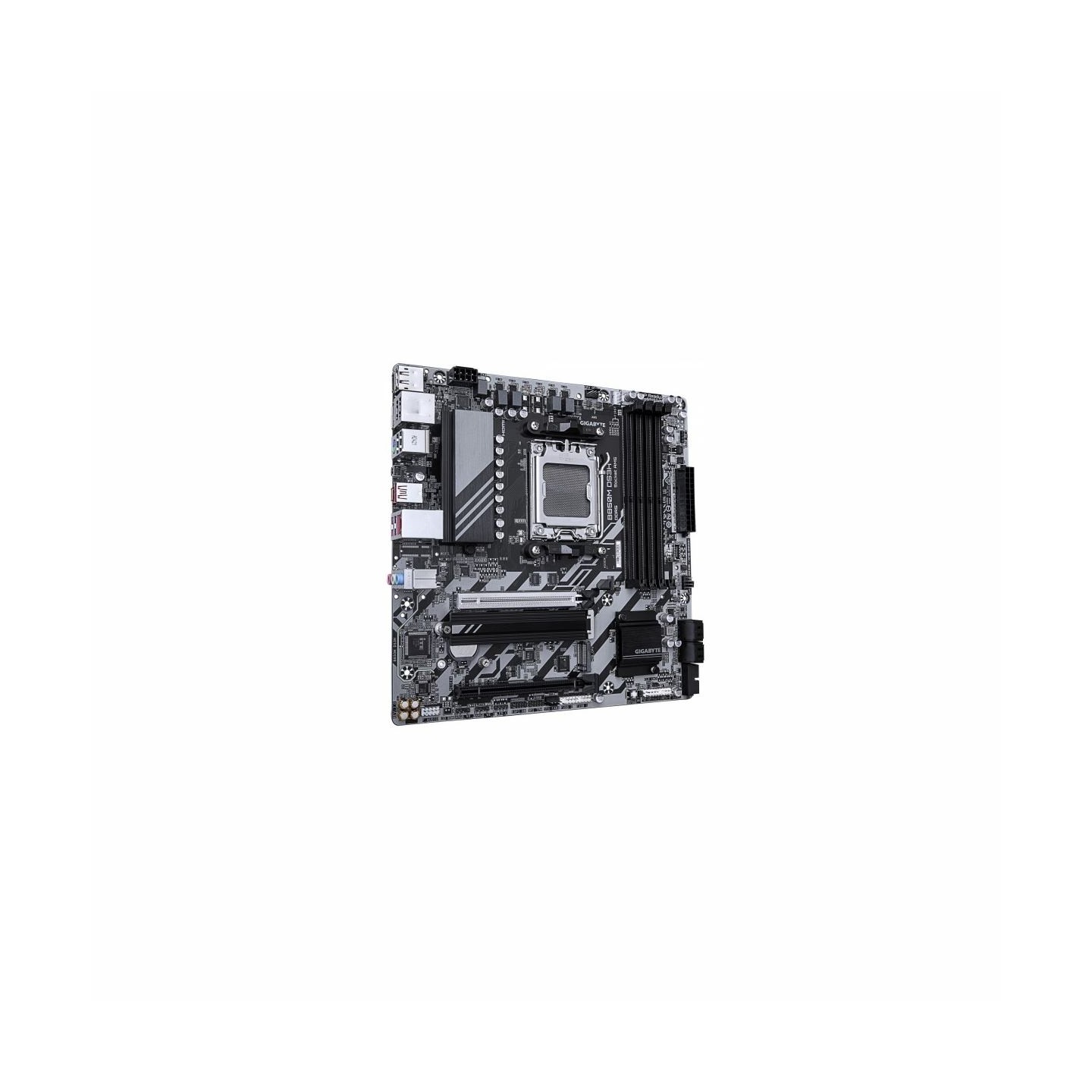

Gigabyte B850M DS3H AM5 MB

Write a review

€177.45

Tax included

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

SKU: KBGBAAA8B850U01
Barcode: 4719331866518
Model: B850M DS3H
CPU socket: Socket AM5
Processor family: AMD Ryzen 9
Processor family: AMD Ryzen 7
Processor family: AMD Ryzen 5
Integrated CPU: No
Chipset manufacturer: AMD
Chipset type: AMD B850
Memory type: DDR5
Number of DDR5 slots: 4
Memory bus frequency: 4400 MHz
Memory bus frequency: 4800 MHz
Memory bus frequency: 5200 MHz
Memory bus frequency: 8200 MHz
Memory bus frequency: 8000 MHz
Memory bus frequency: 7800 MHz
Memory bus frequency: 6200 MHz
Memory bus frequency: 6400 MHz
Memory bus frequency: 6600 MHz
Memory bus frequency: 6666 MHz
Memory bus frequency: 6800 MHz
Memory bus frequency: 7000 MHz
Memory bus frequency: 7200 MHz
Memory bus frequency: 7600 MHz
Memory bus frequency: 5600 MHz
Memory bus frequency: 6000 MHz
Max memory size: 256
Expansion slots: 1 x PCIe 5.0 x 16
Expansion slots: 2 x M.2
Expansion slots: 1 x PCIe 4.0 x 4
Expansion slots: 1 x PCIe 4.0 x 8
Expansion slots: 1 x PCIe 3.0 x 4
Max. number of SATA devices: 4
RAID: Yes
Detailed data on disk/drive interfaces: Expansion connectors 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode *The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) SATA connectors 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Sound card: Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Network interface: 1 x 10/100/1000/2500 Mbit/s
Network interface: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
USB ports at back panel: 8
USB ports on motherboard: 7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports: 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports: 3
FireWire (IEEE 1394): No
COM connector / port: No
LPT connector / port: No

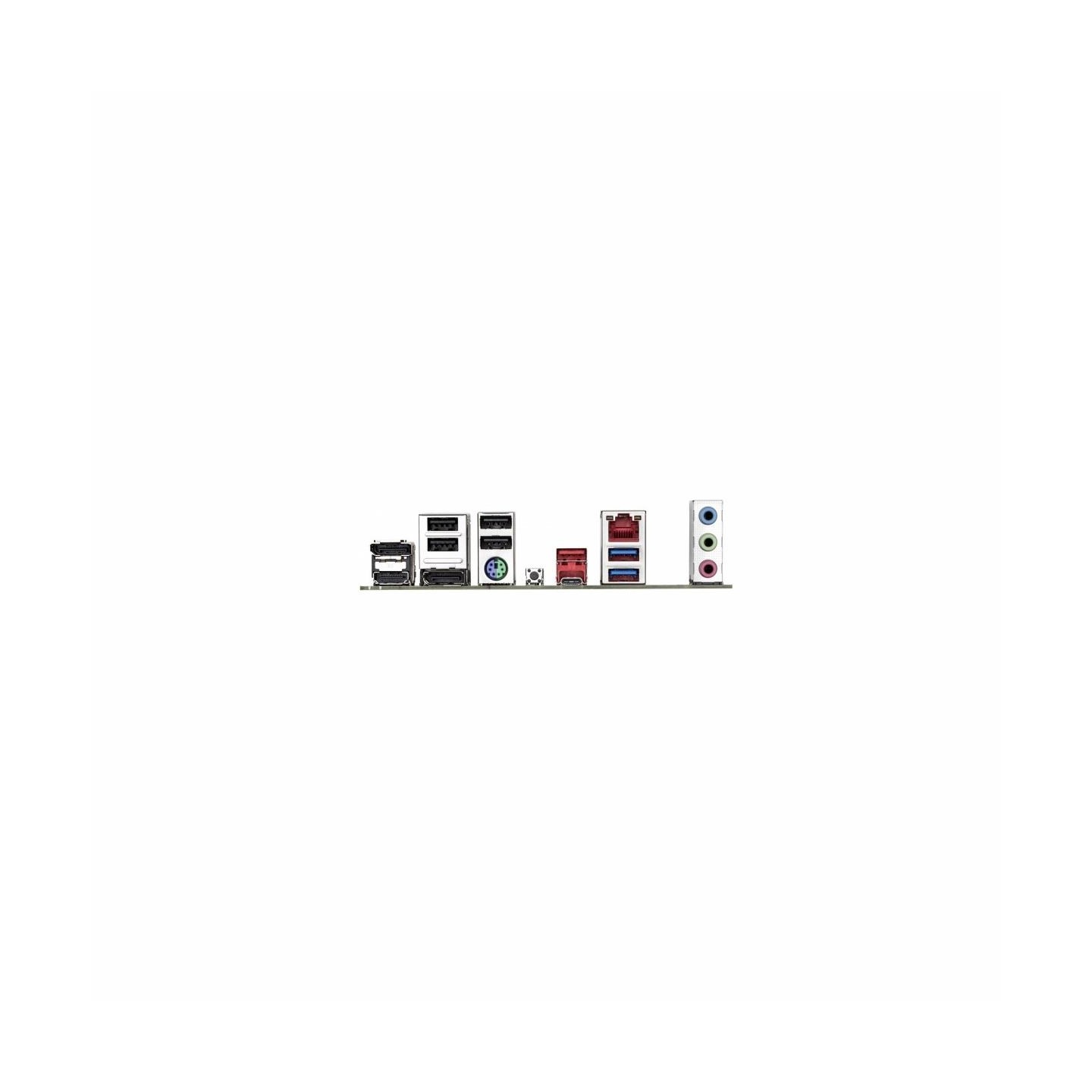

External connectors: 2 x DisplayPort
External connectors: 1 x HDMI
External connectors: 1 x MIC
External connectors: 1 x RJ-45
External connectors: 1 x PS/2 Keyboard/MouseCombo
External connectors: 2 x USB 3.2 Gen 1 Type-A
External connectors: 1 x Q-Flash Plus button
External connectors: 1 x USB 3.2 Gen 2 Type-A
External connectors: 4 x USB 2.0
External connectors: 1 x Line Out
External connectors: 1 x USB 3.2 Gen 2 Type-C
External connectors: 1 x Line In
Onboard connectors: 1 x Reset jumper
Onboard connectors: 1 x System panel header
Onboard connectors: 1 x RGB LED strip header
Onboard connectors: 1 x Reset button
Onboard connectors: 1 x Front panel audio header
Onboard connectors: 1 x Clear CMOS jumper
Onboard connectors: 1 x USB 3.2 Gen 2 Type-C
Onboard connectors: 1 x TPM header
Onboard connectors: 1 x USB 3.2 Gen 1 Type-A
Onboard connectors: 1 x 8pin 12V power
Onboard connectors: 1 x 24pin ATX zasilanie
Onboard connectors: 2 x M.2
Onboard connectors: 4 x SATA III 6Gb/s
Onboard connectors: 2 x USB 2.0/1.1 header
Onboard connectors: 1 x 4-pin water-pump-fan
Onboard connectors: 1 x 4pin CPU fan
Onboard connectors: 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors: 1 x 4pin Chassis fan
Onboard connectors: 3 x Addressable LED
BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor: micro ATX
Supported operating systems: Windows 11
Supported operating systems: Windows 10
Software: Norton Internet Security (OEM version) LAN bandwidth management software
Designation: CE+WEEE

Reference B850M DS3H

In stock 30 Items

Data sheet

Designation: CE+WEEE
Processor family: AMD Ryzen 5
AMD Ryzen 7
AMD Ryzen 9
CPU socket: Socket AM5
Memory type: DDR5
Memory bus frequency: 4400 MHz
4800 MHz
5200 MHz
5600 MHz
6000 MHz
6200 MHz
6400 MHz
6600 MHz
6666 MHz
6800 MHz
7000 MHz
7200 MHz
7600 MHz
7800 MHz
8000 MHz
8200 MHz
Integrated CPU: No
Chipset manufacturer: AMD
Chipset type: AMD B850
Max memory size: 256
Expansion slots: 1 x PCIe 3.0 x 4
1 x PCIe 4.0 x 4
1 x PCIe 4.0 x 8
1 x PCIe 5.0 x 16
2 x M.2
Max. number of SATA devices: 4
RAID: Yes
Detailed data on disk/drive interfaces: Expansion connectors 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Process
Sound card: Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Network interface: 1 x 10/100/1000/2500 Mbit/s
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
USB ports at back panel: 8
USB ports on motherboard: 7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports: 4
FireWire (IEEE 1394): No
COM connector / port: No
LPT connector / port: No
External connectors: 1 x HDMI
1 x Line In
1 x Line Out
1 x MIC
1 x PS/2 Keyboard/MouseCombo
1 x Q-Flash Plus button
1 x RJ-45
1 x USB 3.2 Gen 2 Type-A
1 x USB 3.2 Gen 2 Type-C
2 x DisplayPort
2 x USB 3.2 Gen 1 Type-A
4 x USB 2.0
Onboard connectors: 1 x 24pin ATX zasilanie
1 x 4-pin water-pump-fan
1 x 4pin Chassis fan
1 x 4pin CPU fan
1 x 4pin CPU/Water Pump Fan Connector
1 x 8pin 12V power
1 x Clear CMOS jumper
1 x Front panel audio header
1 x Reset button
1 x Reset jumper
1 x RGB LED strip header
1 x System panel header
1 x TPM header
1 x USB 3.2 Gen 1 Type-A
1 x USB 3.2 Gen 2 Type-C
2 x M.2
2 x USB 2.0/1.1 header
3 x Addressable LED
4 x SATA III 6Gb/s
BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor: micro ATX
Supported operating systems: Windows 10
Windows 11
Software: Norton Internet Security (OEM version) LAN bandwidth management software
Number of DDR5 slots: 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports: 3
