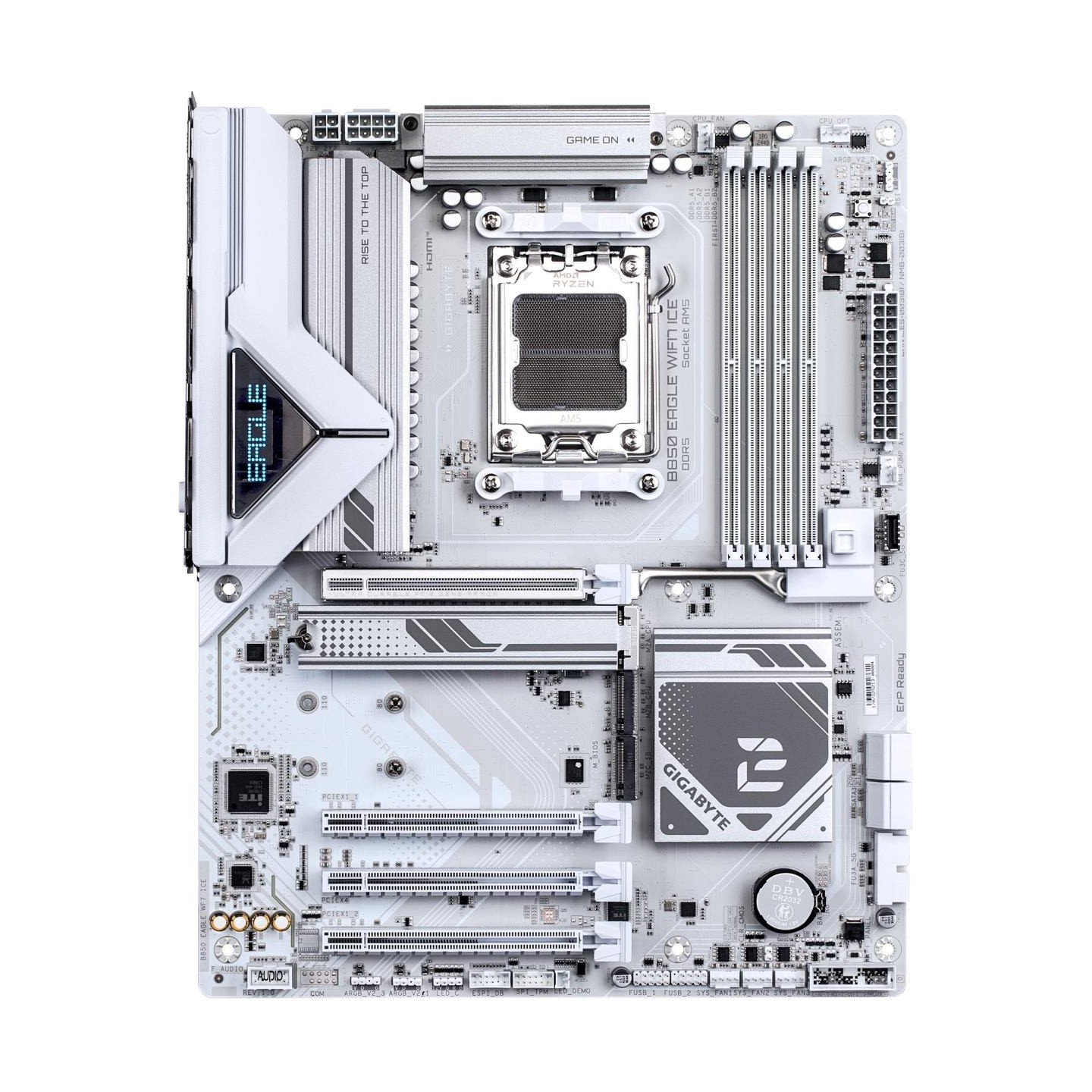

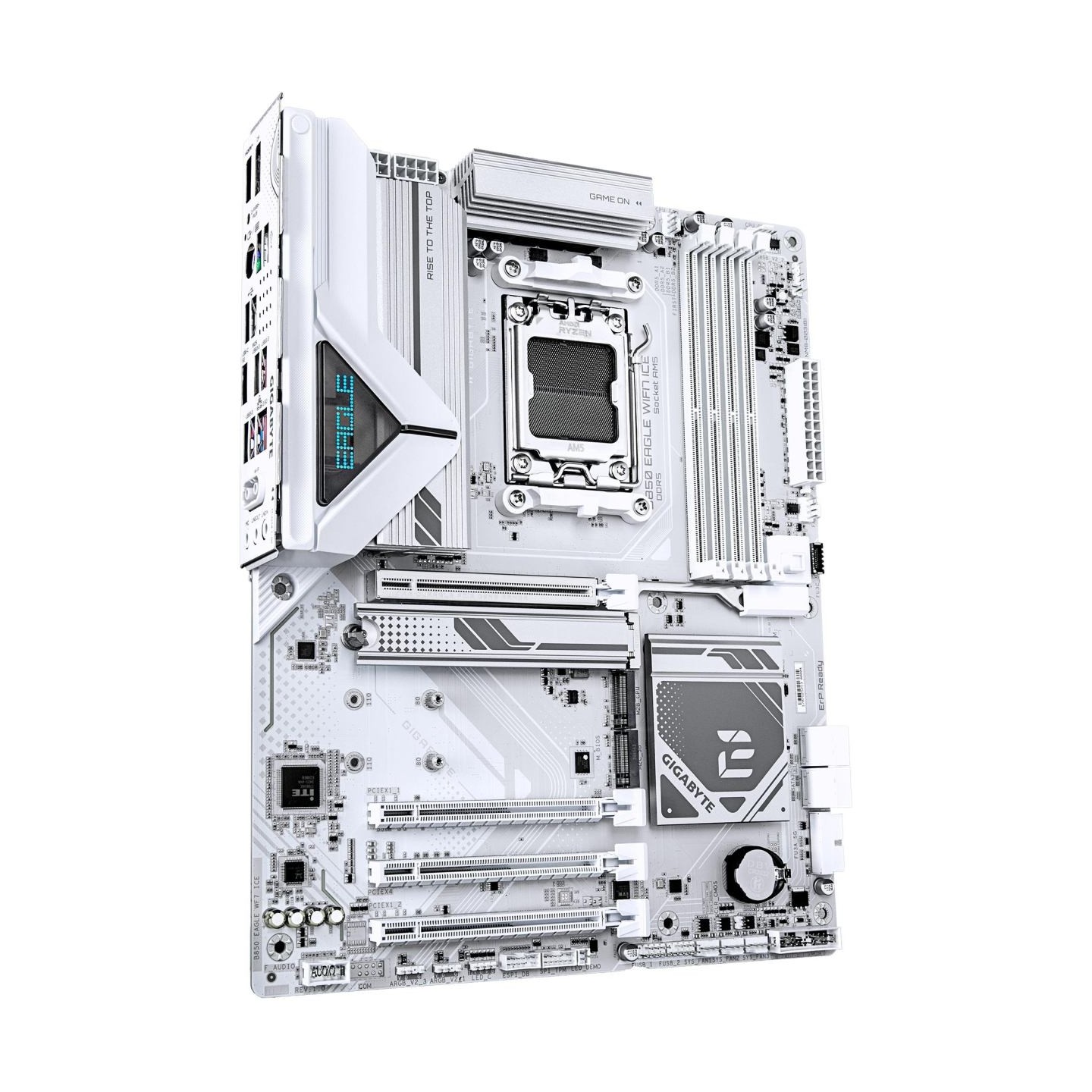

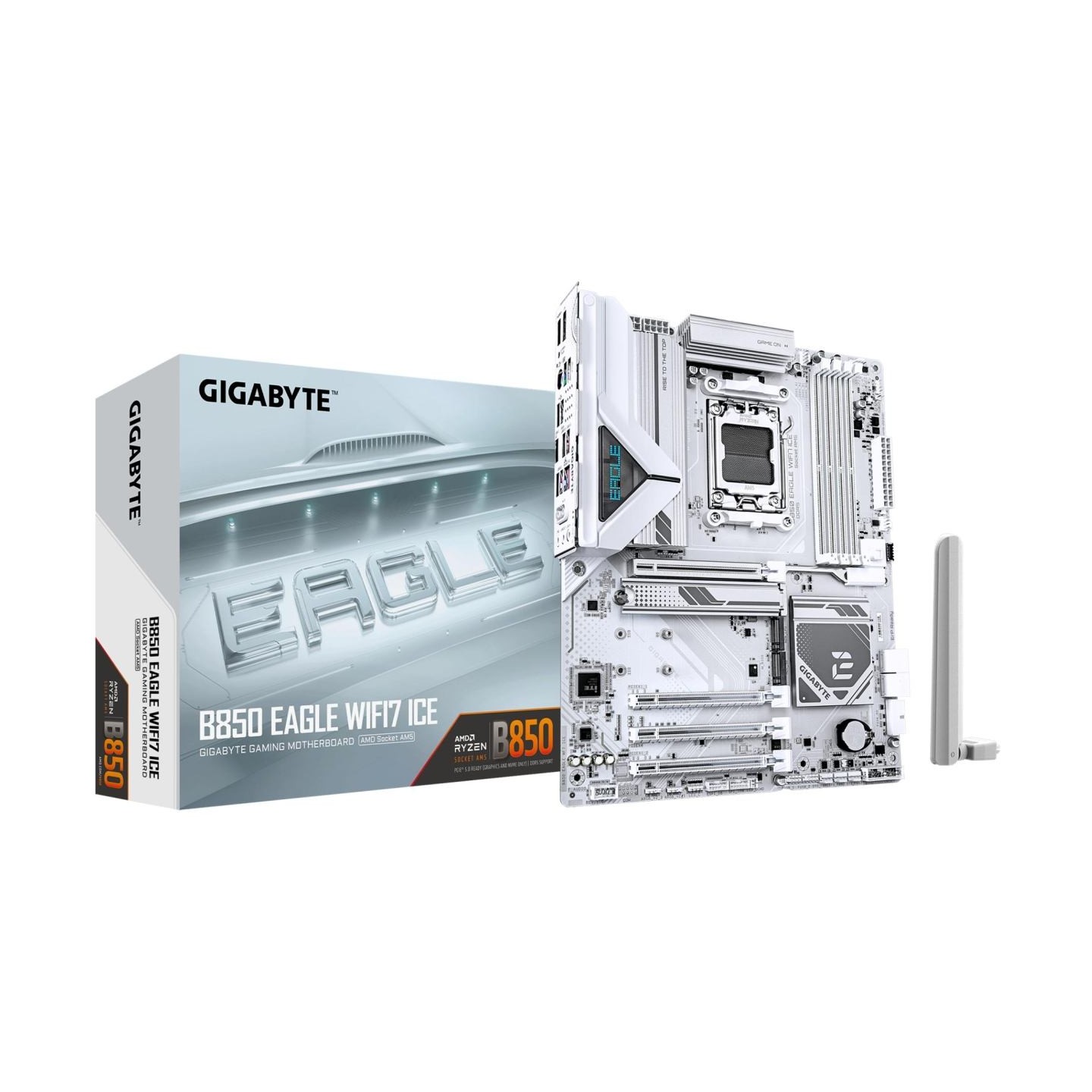

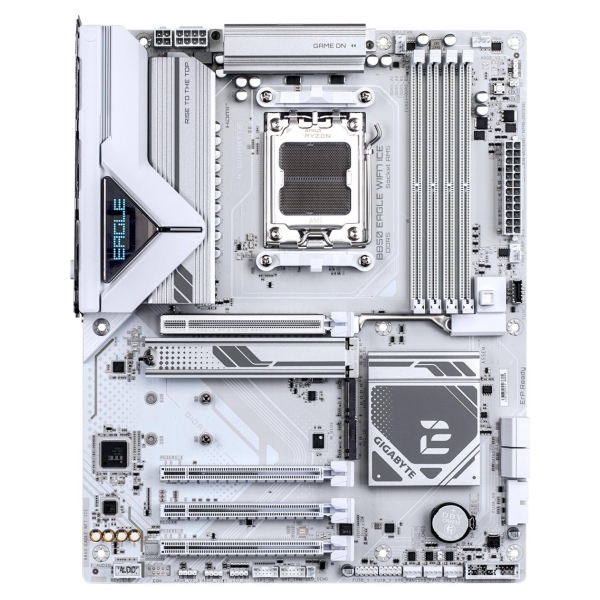

Gigabyte B850 EAGLE WF7 ICE AM5 MB
Gigabyte B850 EAGLE WF7 ICE AM5 MB
Gigabyte B850 EAGLE WF7 ICE AM5 MB
Gigabyte B850 EAGLE WF7 ICE AM5 MB
    Gigabyte B850 EAGLE WF7 ICE AM5 MB
    Gigabyte B850 EAGLE WF7 ICE AM5 MB
    Gigabyte B850 EAGLE WF7 ICE AM5 MB
    Gigabyte B850 EAGLE WF7 ICE AM5 MB

Gigabyte B850 EAGLE WF7 ICE AM5 MB

€236.36
Tax included
Quantity
Add to wishlist

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

  • X3D Turbo Mode : Unleash new era gaming performance
  • DDR5 OC up to 8200MT/s
  • AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
  • Digital 8+2+2 phases VRM solution
  • Dual Channel DDR5: 4*DIMMs with AMD EXPO Memory Module Support
  • WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
  • EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
  • EZ-Latch Click: M.2 heatsinks with screwless design
  • Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
  • Ultra-Fast Storage: 3*M.2 slots, including PCIe 5.0 x4
  • Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
  • Fast Networking: 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
  • Extended Connectivity: HDMI, Displayport
  • PCIe UD Slot: PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect



Manufacturer Website:
https://www.gigabyte.com/

Category Code
MBA
CnCode
84733020
Unit Box Height
0.081
Unit Box Length
0.34
Unit Box Width
0.271
Audio chip
Realtek ALC897
Audio output channels
7.1 channels
Component for
PC
Cooling type
Passive
Motherboard chipset
AMD B850
Motherboard chipset family
AMD
Motherboard form factor
ATX
PC health monitoring
Fan/Temperature/Voltage/Water cooling
Power source type
ATX
Product colour
White
Windows operating systems supported
Windows 11 x64
Compatible processor series
AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor manufacturer
AMD
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
ECC сompatibility
Non-ECC
Maximum internal memory
256 GB
Maximum internal memory per slot
64 GB
Memory channels
Dual-channel
Memory slots type
DIMM
Number of memory slots
4
Supported memory clock speed (max)
8200 MHz
Supported memory clock speeds
4400/4800/5200/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200 MHz
Supported memory types
DDR5-SDRAM
Unbuffered memory
Yes
Number of HDDs supported
4
Number of storage drives supported
7
RAID levels
0/1/10
RAID support
Yes
Supported storage drive interfaces
M.2,PCI Express 4.0,PCI Express 5.0,SATA III
Supported storage drive types
HDD & SSD
DirectX version
12.0
HDCP
Yes
Maximum resolution
4096 x 2160 pixels
On-board graphics card
No
Parallel processing technology support
Not supported
12V power connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Front panel audio connector
Yes
Front panel connector
Yes
Number of chassis fan connectors
4
Number of CPU fan connectors
2
Number of EPS power connectors (8-pin)
1
Number of RGB LED pin headers
4
Number of SATA III connectors
4
Number of water pump connectors
2
Peripheral (Molex) power connectors (4-pin)
1
RGB LED pin header
Yes
TPM connector
Yes
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
DisplayPort version
1.4
DisplayPorts quantity
1

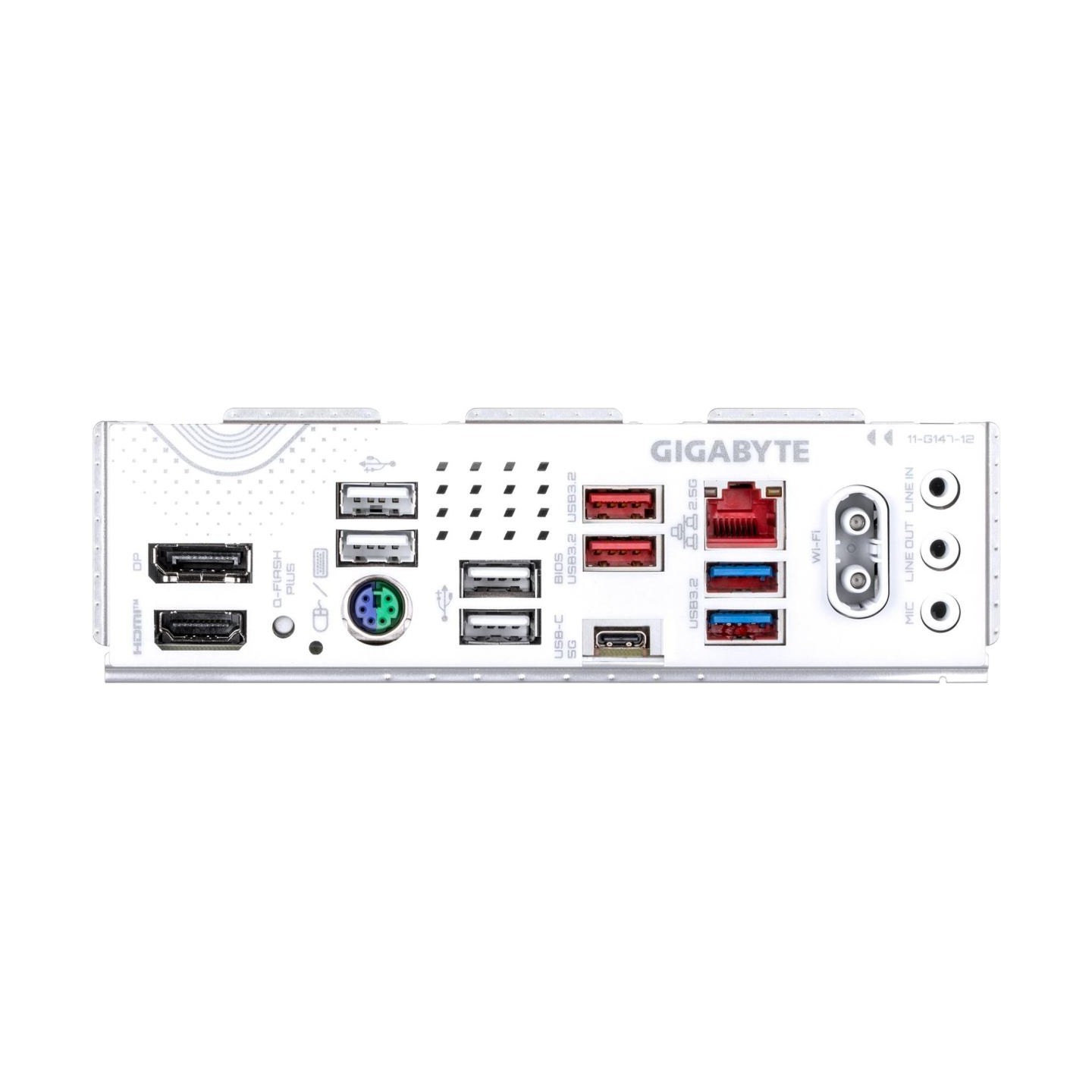

Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
HDMI version
1.4
Headphone outputs
1
Line-in
Yes
Microphone in
Yes
PS/2 ports quantity
1
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
WiFi-AP antenna jack
2
Bluetooth
Yes
Bluetooth version
5.4
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN
Yes
LAN controller
Realtek RTL8125
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi
Yes
Wi-Fi standards
802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
WLAN controller model
Realtek RTL8922AE
1st M.2 highest PCI Express generation
5.0
1st M.2 largest key size
22110
2nd M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
22110
3rd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
22110
Number of M.2 (M) slots
3
PCI Express x16 (Gen 3.x) slots
2
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
ACPI version
5.0
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Package depth
270 mm
Package height
80 mm
Package weight
1892.5 g
Package width
335 mm
Products per shipping (inner) case
1 pc(s)
Depth
244 mm
Height
35 mm
Width
305 mm
Antenna included
Yes
Batteries included
Yes
Bundled software
Norton® Internet Security (OEM version) LAN bandwidth management software
Screws included
Yes
Warranty period
3 year(s)
Weight
1690 g
Model
B850 EAGLE WIFI7 ICE
Units per Shipping Box
8
Unit Calculated Volume
0.01006 cubm
Unit Calculated Weight
1.91 kg
B850 EAGLE WF7 ICE
15 Items

Specific References

EAN13
4719331871239
MPN
B850 EAGLE WF7 ICE
New
