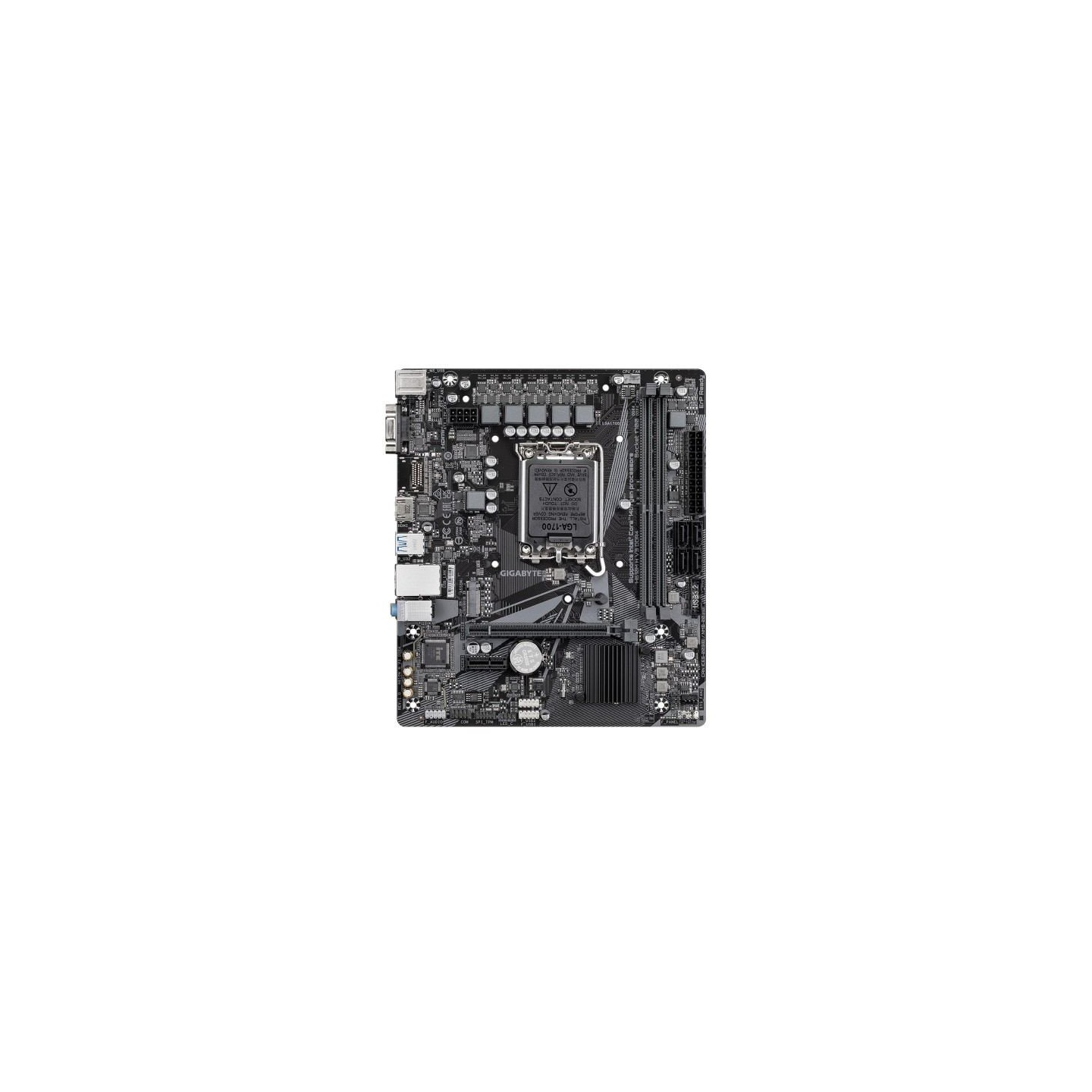

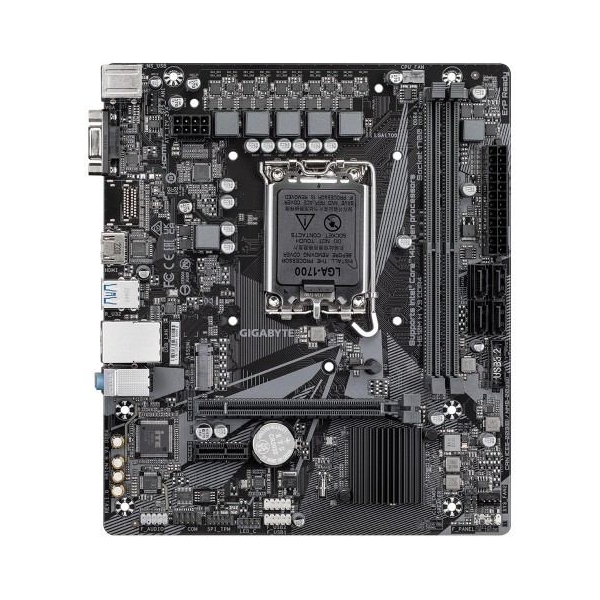

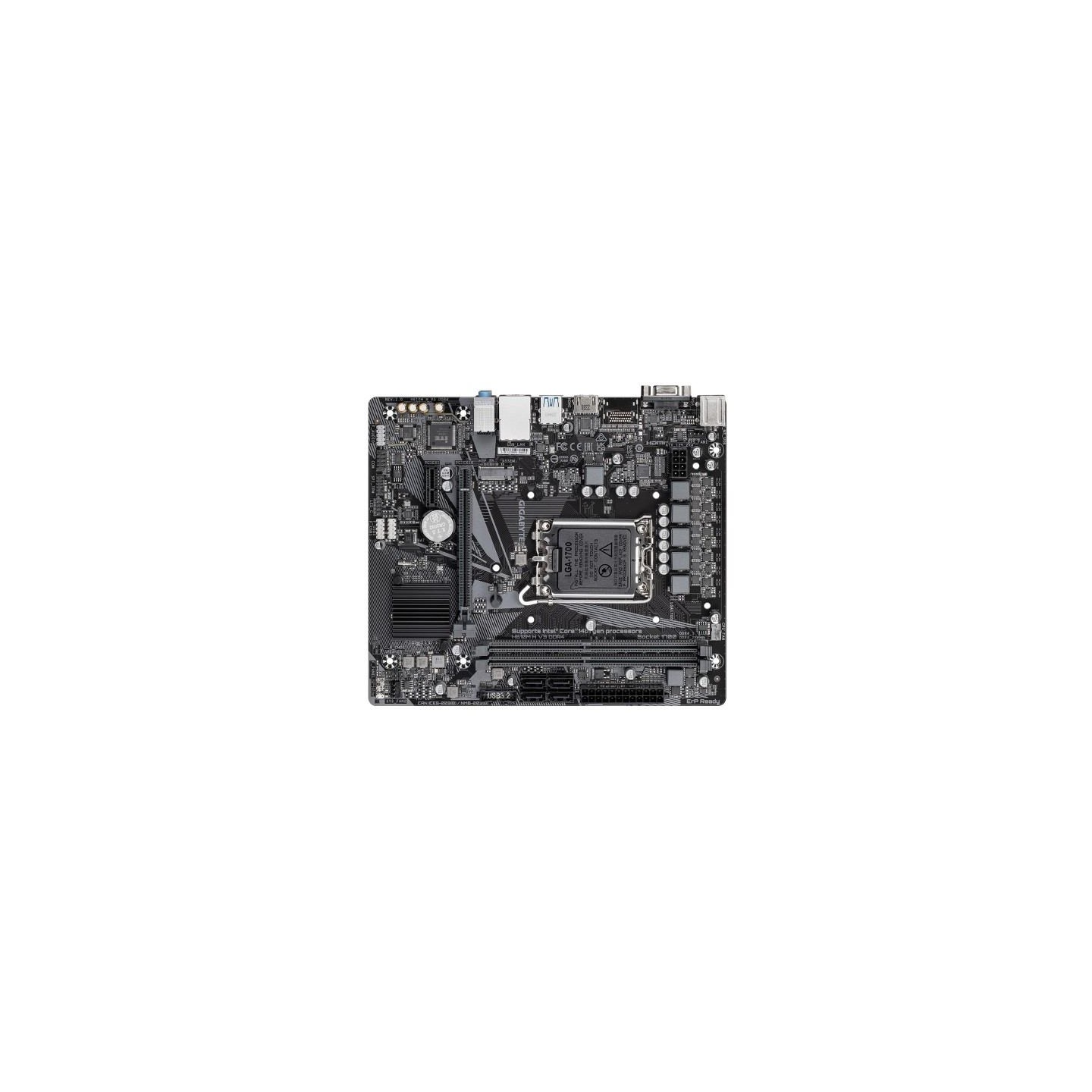

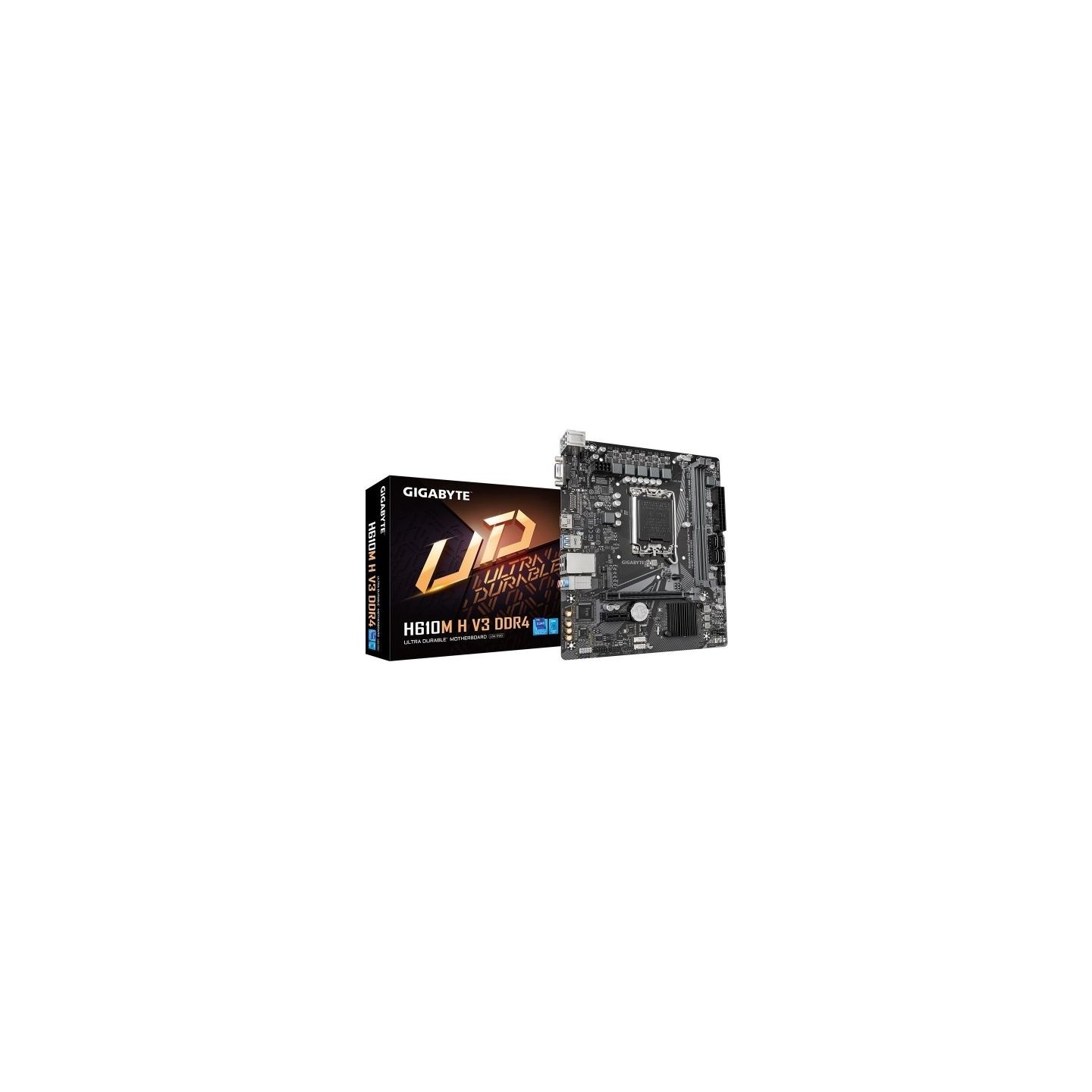

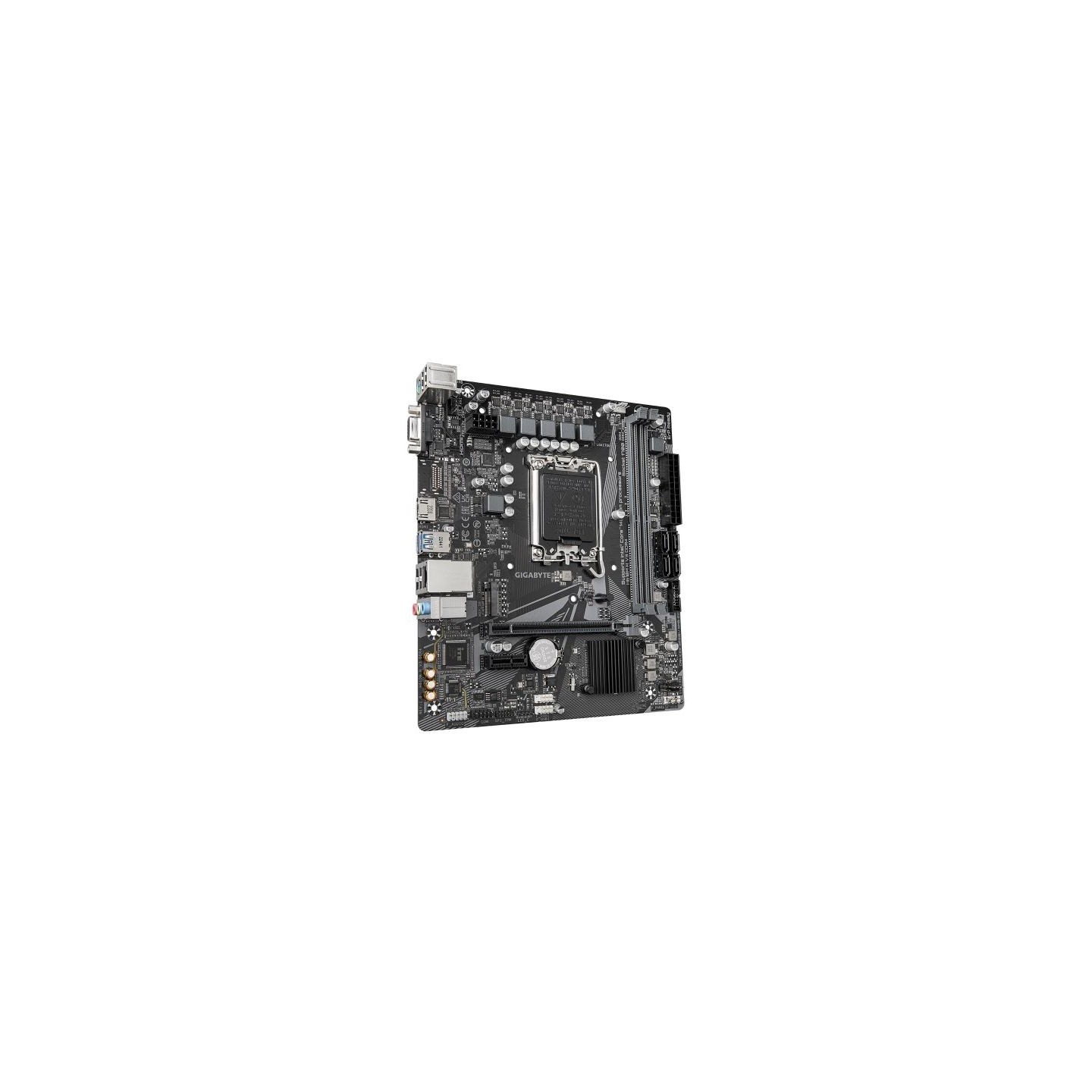

Gigabyte H610M H V3 DDR4 LGA1700

Data sheet

Designation

CE+WEEE

Processor family

Intel Celeron
Intel Core
Intel Pentium

CPU socket

LGA1700

Memory type

DDR4

Memory bus frequency

2133 MHz
2400 MHz
2666 MHz
2933 MHz
3000 MHz
3200 MHz

Integrated CPU

No

Chipset manufacturer

Intel

Number of DDR4 slots

2

Max memory size

64

Expansion slots

1 x PCIe 3.0 x 1
1 x PCIe 4.0 x 16

Max. number of SATA devices

4

RAID

No

Network interface

1 x 10/100/1000 Mbit/s

USB ports at back panel

6

USB ports on motherboard

6

Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports

4

FireWire (IEEE 1394)

No

COM connector / port

Yes

LPT connector / port

No

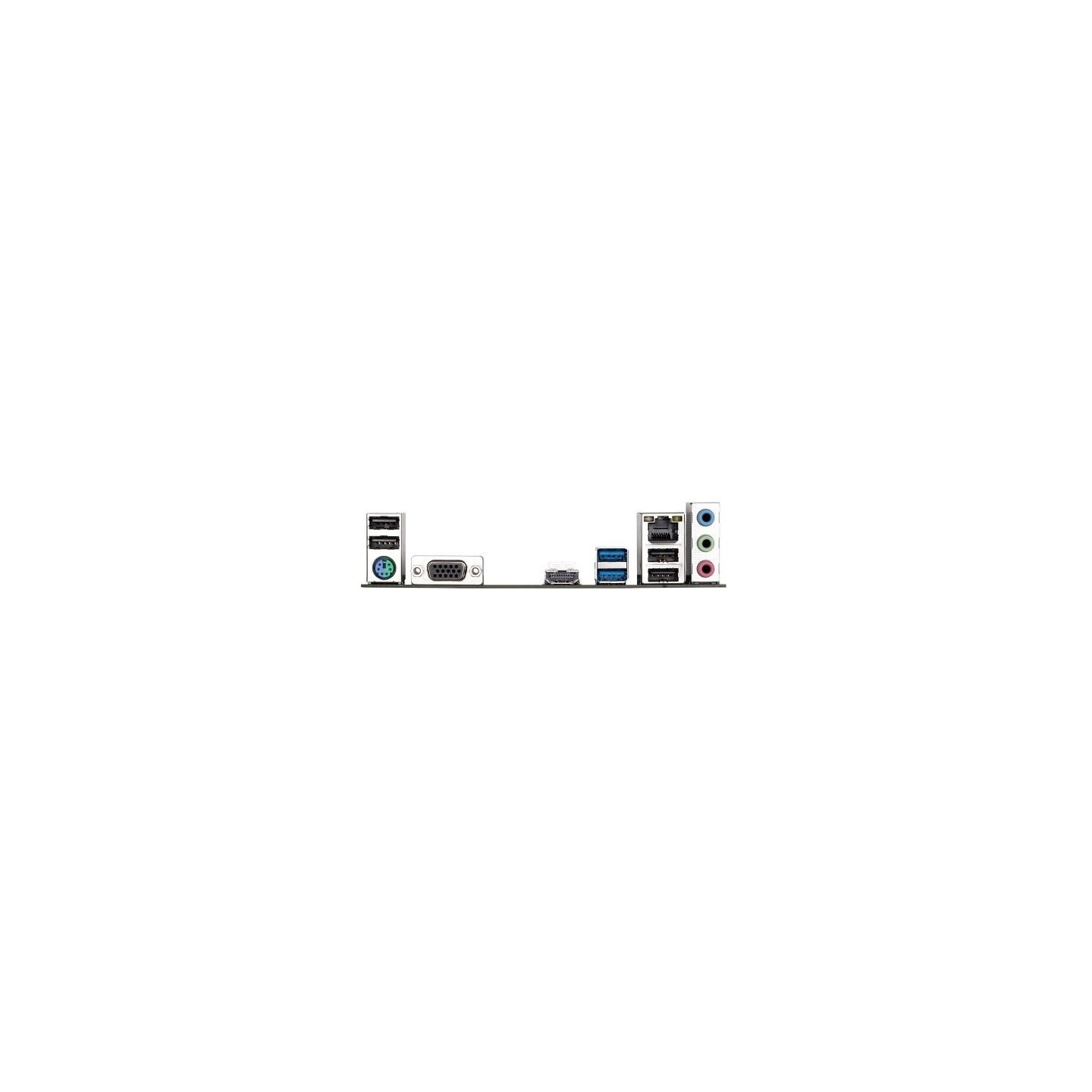

External connectors

1 x D-Sub
1 x HDMI
1 x Line In
1 x Line Out
1 x MIC
1 x PS/2 Keyboard/MouseCombo
1 x RJ-45
2 x USB 3.0
4 x USB 2.0

Onboard connectors

1 x 24pin ATX zasilanie
1 x 4pin CPU fan
1 x 8pin 12V power
1 x Chassis intrusion header
1 x Clear CMOS jumper
1 x Front panel audio header
1 x M.2
1 x Serial port header
1 x System panel header
1 x TPM header
1 x USB 3.0 header
2 x USB 2.0/1.1 header
4 x SATA III 6Gb/s

Form factor

micro ATX

Supported operating systems

Windows 10
Windows 11

Specific References

EAN13

4719331859718

MPN

H610M H V3 DDR4
