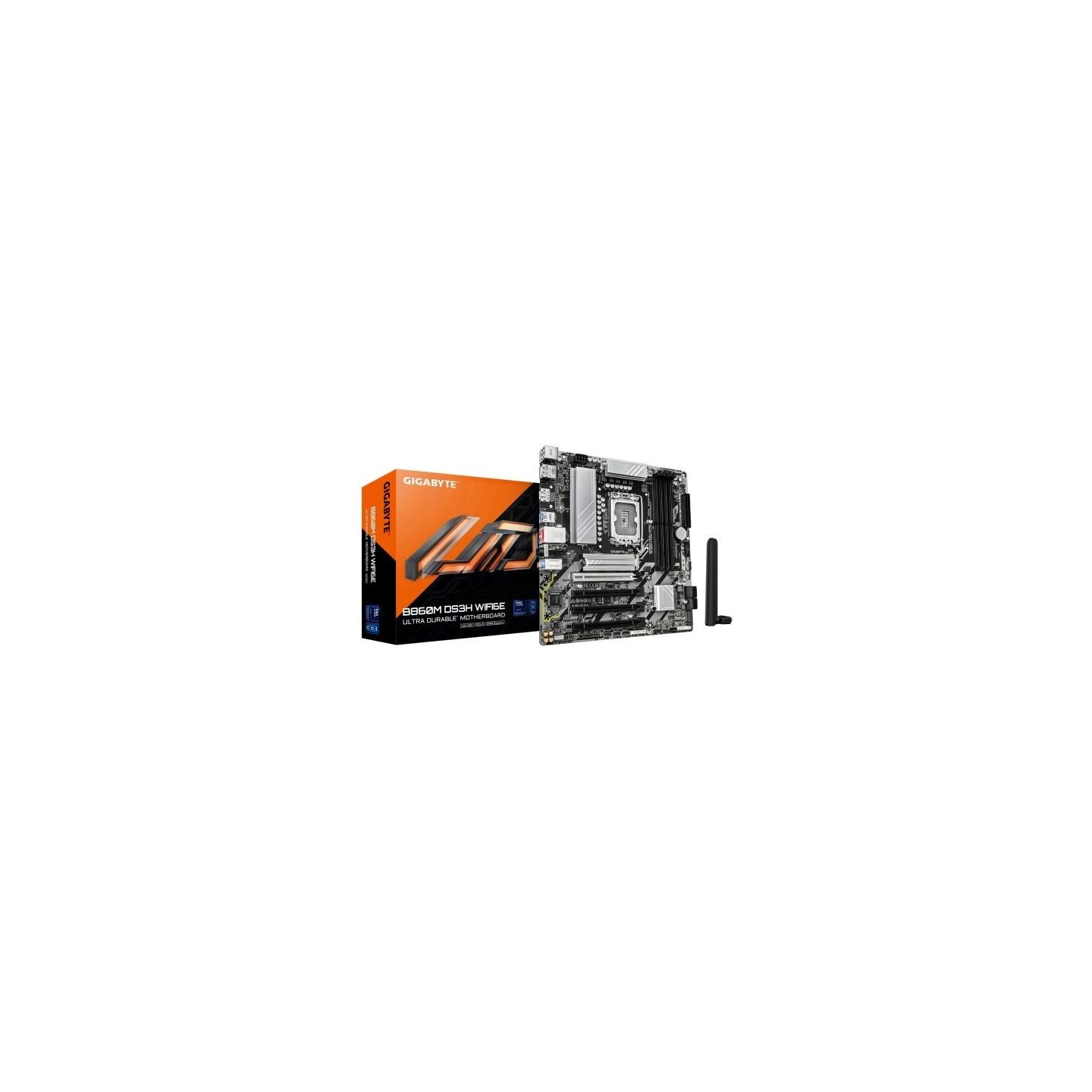

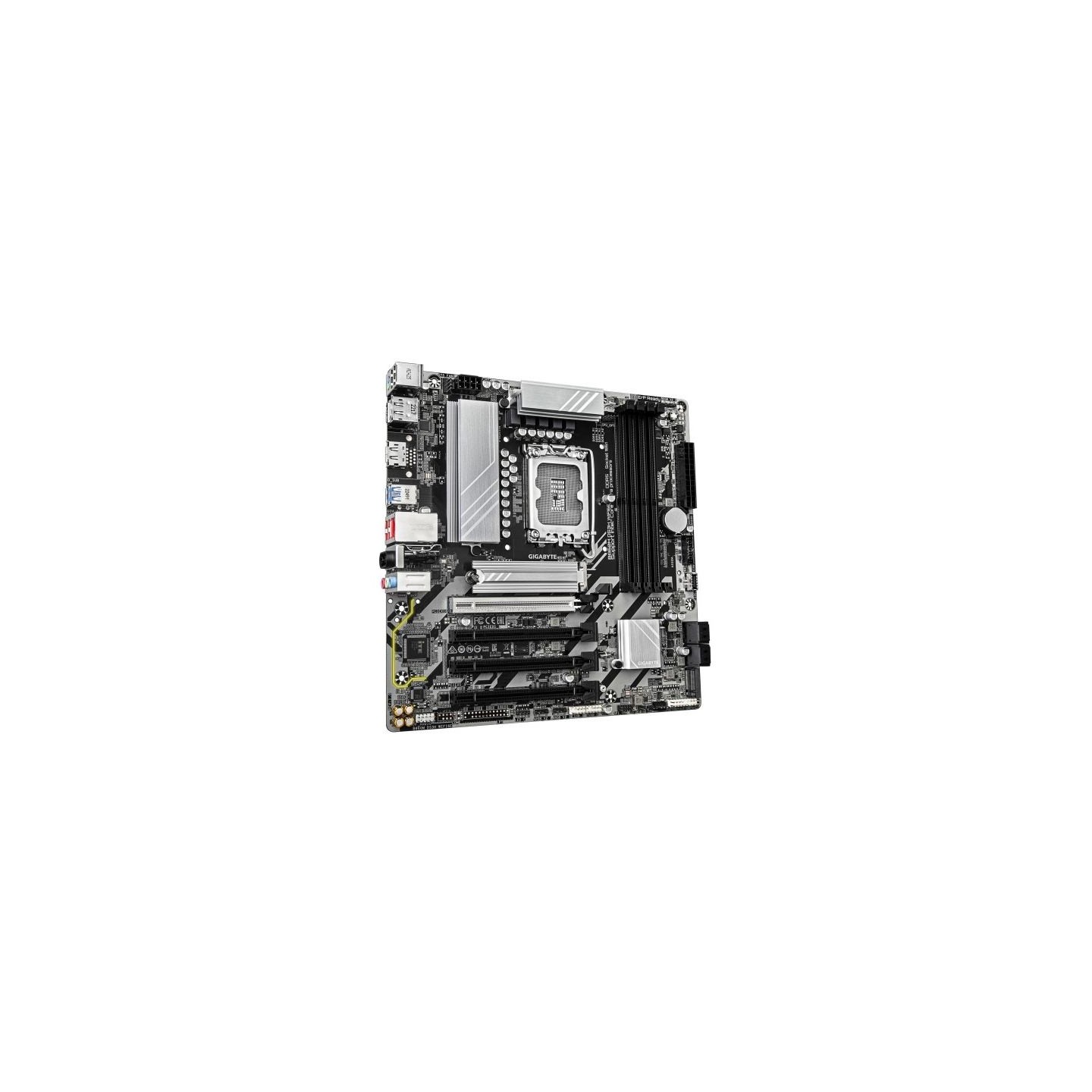

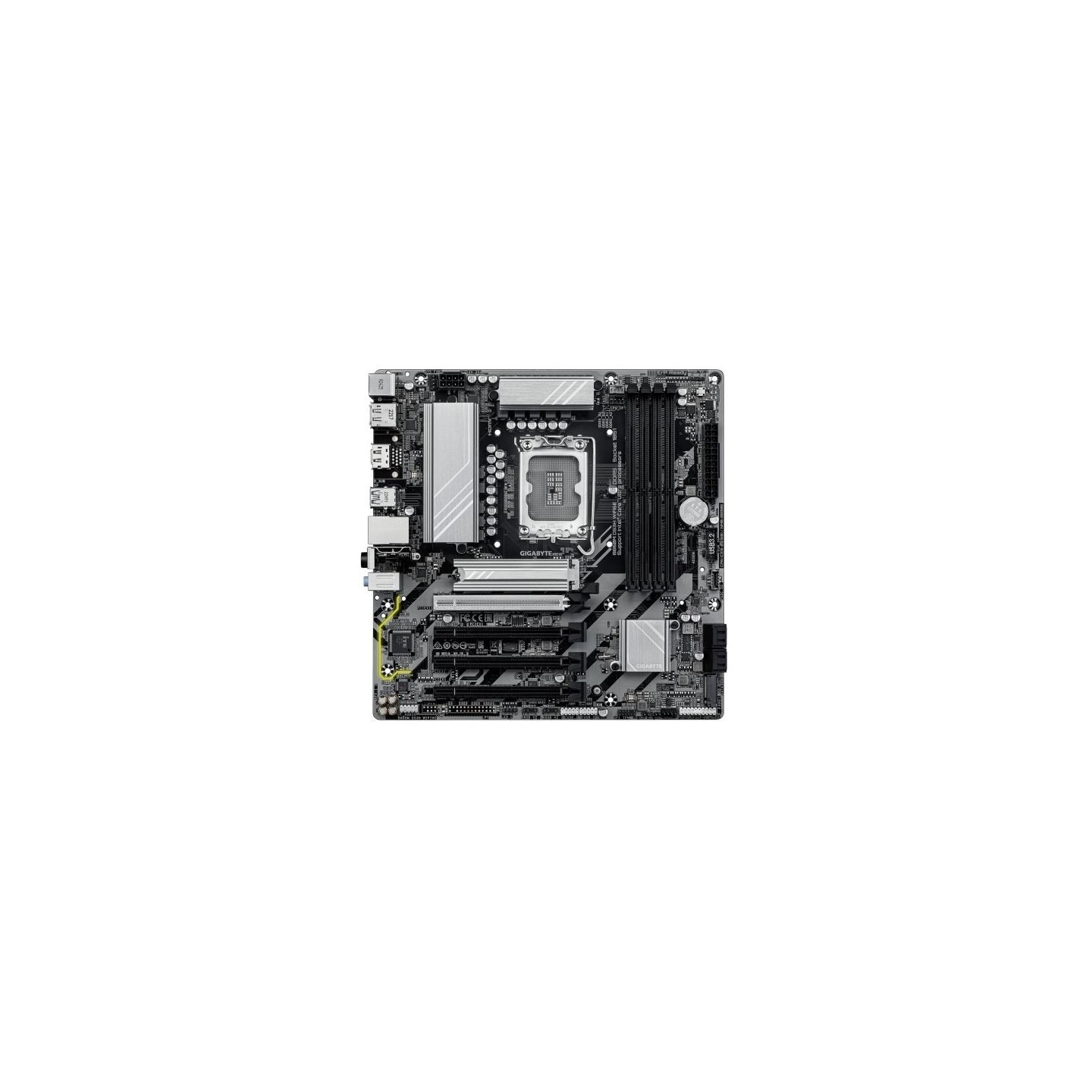

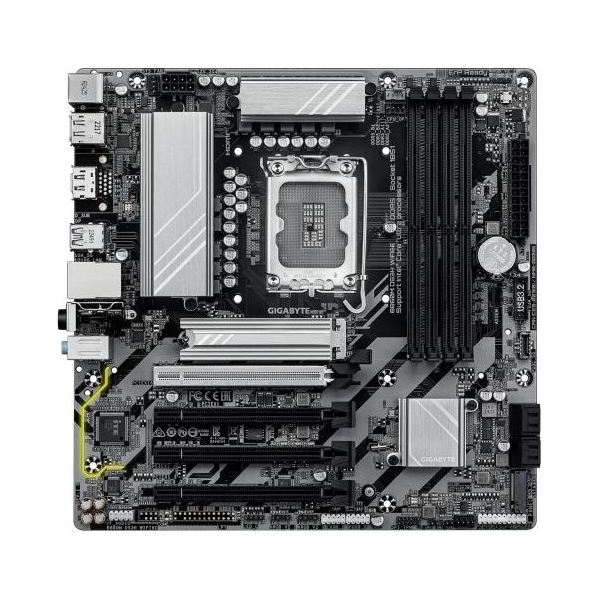

Gigabyte B860M DS3H WIFI6E LGA1851 MB

Write a review

€222.44

Tax included

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

SKU: KBGBAIIFB860U03
Barcode: 4719331866815
Model: B860M DS3H WIFI6E
CPU socket: LGA1851
Processor family: Intel Core Ultra
Integrated CPU: No
Chipset manufacturer: Intel
Chipset type: Intel B860 Express Chipset
Memory type: DDR5
Number of DDR5 slots: 4
Memory bus frequency: 6800 MHz
Memory bus frequency: 6400 MHz
Memory bus frequency: 9066 MHz
Memory bus frequency: 8600 MHz
Memory bus frequency: 8800 MHz
Memory bus frequency: 8400 MHz
Memory bus frequency: 8266 MHz
Memory bus frequency: 8200 MHz
Memory bus frequency: 7950 MHz
Memory bus frequency: 8000 MHz
Memory bus frequency: 7900 MHz
Memory bus frequency: 7800 MHz
Memory bus frequency: 7600 MHz
Memory bus frequency: 7400 MHz
Memory bus frequency: 7200 MHz
Memory bus frequency: 7000 MHz
Memory bus frequency: 6600 MHz
Memory bus frequency: 5600 MHz
Max memory size: 256
Expansion slots: 3 x PCIe 4.0 x 1
Expansion slots: 1 x PCIe 5.0 x 16
Expansion slots: 2 x M.2
Max. number of SATA devices: 4
RAID: Yes
Detailed data on disk/drive interfaces: Expansion connectors CPU 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) *The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset 3 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_1/2/3) SATA connectors CPU 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) Chipset 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2N_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Graphics: Integrated graphics processor - Intel HD Graphics support 1 x HDMI port, supporting a maximum resolution of 4096x2160 @ 60 Hz * Supports HDMI 2.1 and HDCP 2.3. 2 x DisplayPort ports, supporting a maximum resolution of 3840x2160 @ 144 Hz * Supports DisplayPort 2.1. (Graphics specifications may vary depending on processor support.) Supports up to three displays simultaneously
Sound card: Realtek audio codec High Definition Audio Support Audio Channels: 2/4/5.1/7.1
Network interface: 1 x 10/100/1000/2500 Mbit/s
Network interface: Wi-Fi 802.11a/b/g/n/ac/ax
Network interface: Bluetooth
Network interface: LAN Realtek 2.5GbE LAN chip (2.5Gbps/1Gbps/100Mbps) Wireless communication module Intel Wi-Fi 6E AX211 (For PCB rev. 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Realtek Wi-Fi 6E RTL8852CE (For PCB rev. 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
USB ports at back panel: 6
USB ports on motherboard: 7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports: 5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports: 1
FireWire (IEEE 1394): No
COM connector / port: No
LPT connector / port: No

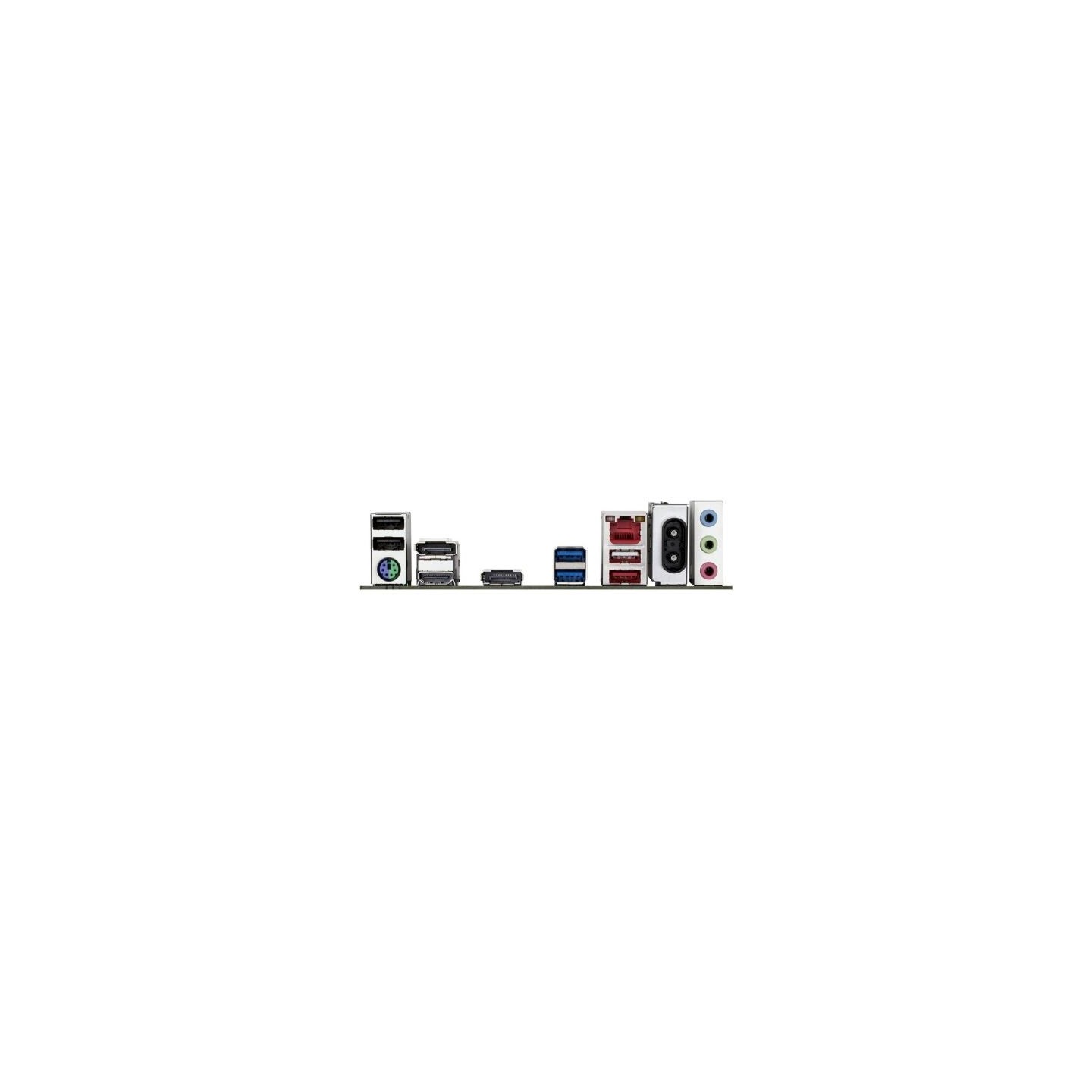

External connectors: 1 x RJ-45
External connectors: 2 x USB 3.2 Gen 1 Type-A
External connectors: 1 x USB 3.2 Gen 2 Type-A
External connectors: 2 x DisplayPort
External connectors: 1 x HDMI
External connectors: 1 x Line In
External connectors: 1 x Line Out
External connectors: 1 x MIC
External connectors: 3 x USB 2.0
External connectors: 1 x PS/2 Keyboard/MouseCombo
Onboard connectors: 1 x Q-Flash Plus button
Onboard connectors: 1 x Front panel audio header
Onboard connectors: 1 x Clear CMOS jumper
Onboard connectors: 1 x Reset jumper
Onboard connectors: 1 x 24pin ATX zasilanie
Onboard connectors: 2 x M.2
Onboard connectors: 4 x SATA III 6Gb/s
Onboard connectors: 2 x USB 2.0/1.1 header
Onboard connectors: 1 x USB 3.2 Gen 1 Type-A
Onboard connectors: 1 x USB 3.2 Gen 1 Type-C
Onboard connectors: 1 x TPM header
Onboard connectors: 1 x System panel header
Onboard connectors: 1 x 4pin CPU fan
Onboard connectors: 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors: 1 x 4pin Chassis fan
Onboard connectors: 3 x Addressable LED
Onboard connectors: 1 x RGB LED strip header
Onboard connectors: 1 x 4-pin water-pump-fan
Onboard connectors: 1 x 8pin 12V power
BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor: micro ATX
Dimensions: 24.4 cm x 17.4 cm
Supported operating systems: Windows 10
Supported operating systems: Windows 11
Software: Norton Internet Security (OEM version) LAN bandwidth management software
Designation: CE+WEEE

Reference B860M DS3H WIFI6E

In stock 7 Items

Data sheet

Designation: CE+WEEE
Processor family: Intel Core Ultra
CPU socket: LGA1851
Memory type: DDR5
Memory bus frequency: 5600 MHz
6400 MHz
6600 MHz
6800 MHz
7000 MHz
7200 MHz
7400 MHz
7600 MHz
7800 MHz
7900 MHz
7950 MHz
8000 MHz
8200 MHz
8266 MHz
8400 MHz
8600 MHz
8800 MHz
9066 MHz
Integrated CPU: No
Chipset manufacturer: Intel
Chipset type: Intel B860 Express Chipset
Max memory size: 256
Expansion slots: 1 x PCIe 5.0 x 16
2 x M.2
3 x PCIe 4.0 x 1
Max. number of SATA devices: 4
RAID: Yes
Detailed data on disk/drive interfaces: Expansion connectors CPU 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) *The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 sl
Graphics: Integrated graphics processor - Intel HD Graphics support 1 x HDMI port, supporting a maximum resolution of 4096x2160 @ 60 Hz * Supports HDMI 2.1 and HDCP 2.3. 2 x DisplayPort ports, supporting a maximum resolution of 3840x2160 @ 144 Hz * Supports Display
Sound card: Realtek audio codec High Definition Audio Support Audio Channels: 2/4/5.1/7.1
Network interface: 1 x 10/100/1000/2500 Mbit/s
Bluetooth
LAN Realtek 2.5GbE LAN chip (2.5Gbps/1Gbps/100Mbps) Wireless communication module Intel Wi-Fi 6E AX211 (For PCB rev. 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard
Wi-Fi 802.11a/b/g/n/ac/ax
USB ports at back panel: 6
USB ports on motherboard: 7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports: 5
FireWire (IEEE 1394): No
COM connector / port: No
LPT connector / port: No
External connectors: 1 x HDMI
1 x Line In
1 x Line Out
1 x MIC
1 x PS/2 Keyboard/MouseCombo
1 x RJ-45
1 x USB 3.2 Gen 2 Type-A
2 x DisplayPort
2 x USB 3.2 Gen 1 Type-A
3 x USB 2.0
Onboard connectors: 1 x 24pin ATX zasilanie
1 x 4-pin water-pump-fan
1 x 4pin Chassis fan
1 x 4pin CPU fan
1 x 4pin CPU/Water Pump Fan Connector
1 x 8pin 12V power
1 x Clear CMOS jumper
1 x Front panel audio header
1 x Q-Flash Plus button
1 x Reset jumper
1 x RGB LED strip header
1 x System panel header
1 x TPM header
1 x USB 3.2 Gen 1 Type-A
1 x USB 3.2 Gen 1 Type-C
2 x M.2
2 x USB 2.0/1.1 header
3 x Addressable LED
4 x SATA III 6Gb/s
BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor: micro ATX
Supported operating systems: Windows 10
Windows 11
Software: Norton Internet Security (OEM version) LAN bandwidth management software
Number of DDR5 slots: 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports: 1
