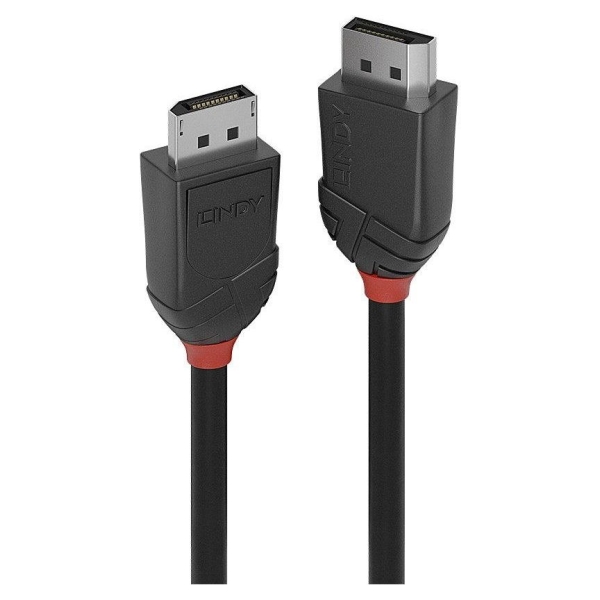

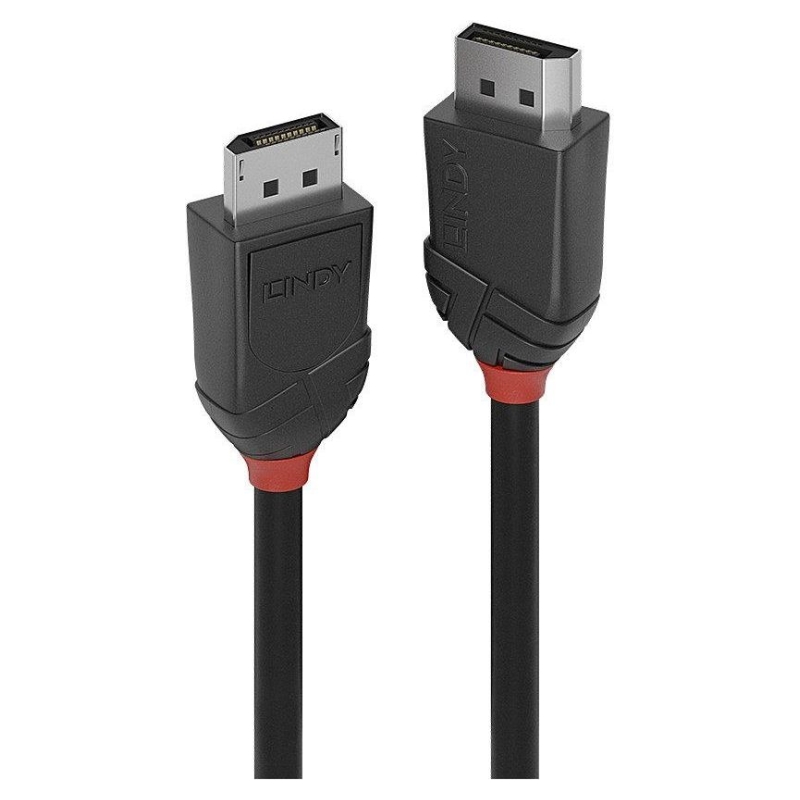

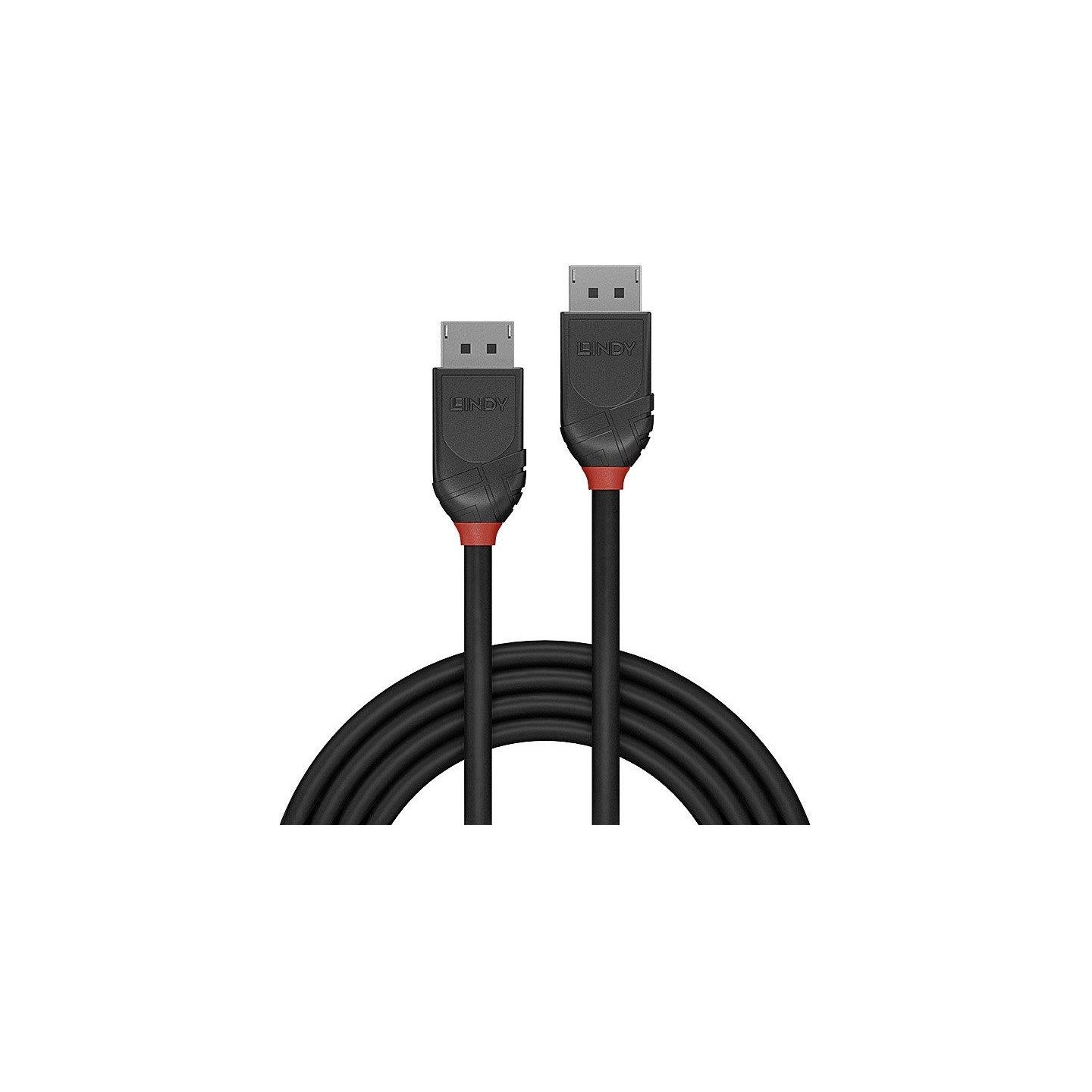

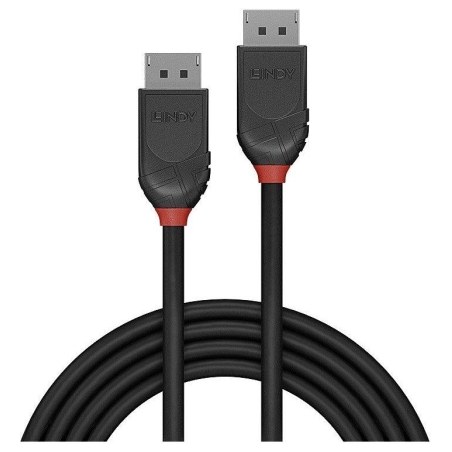

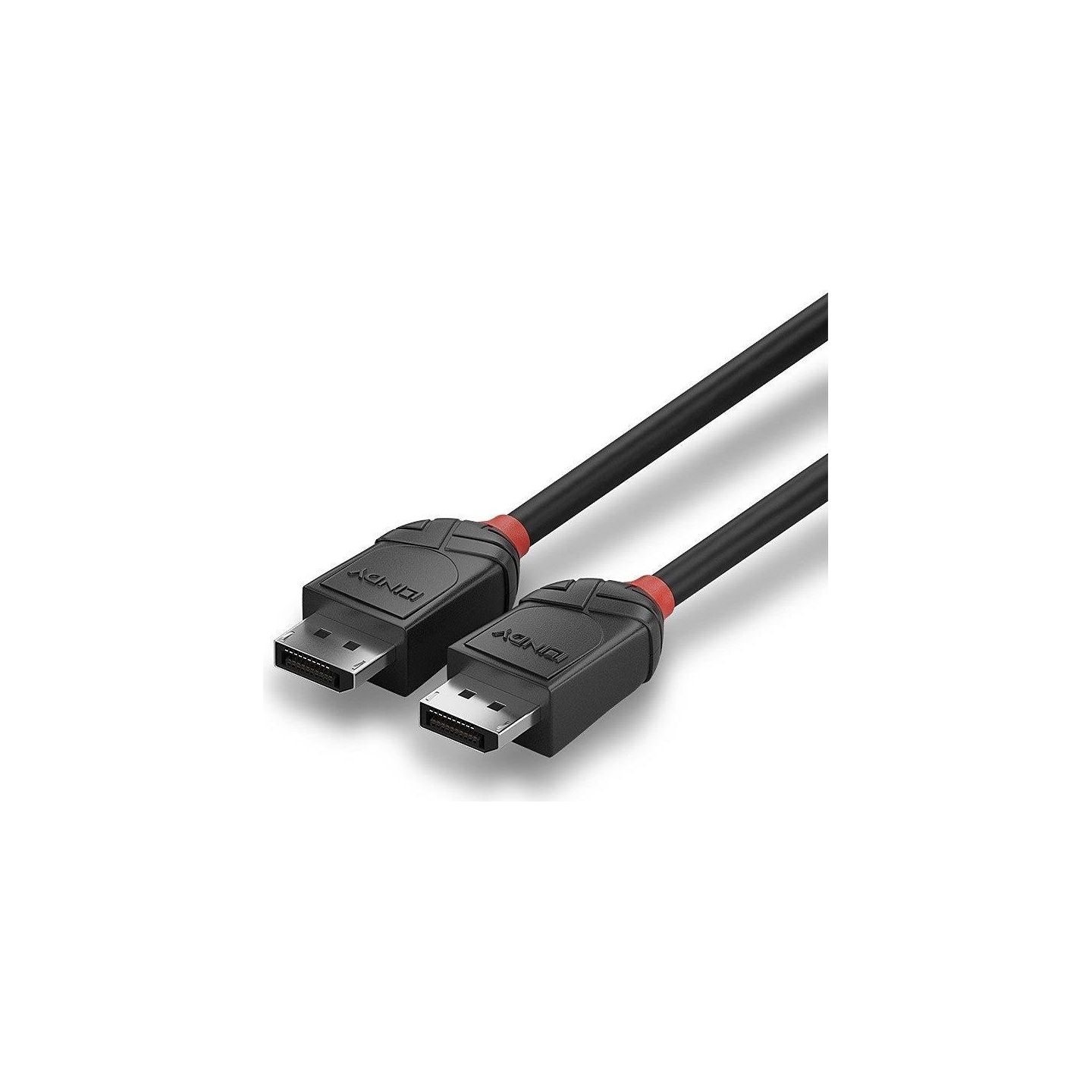

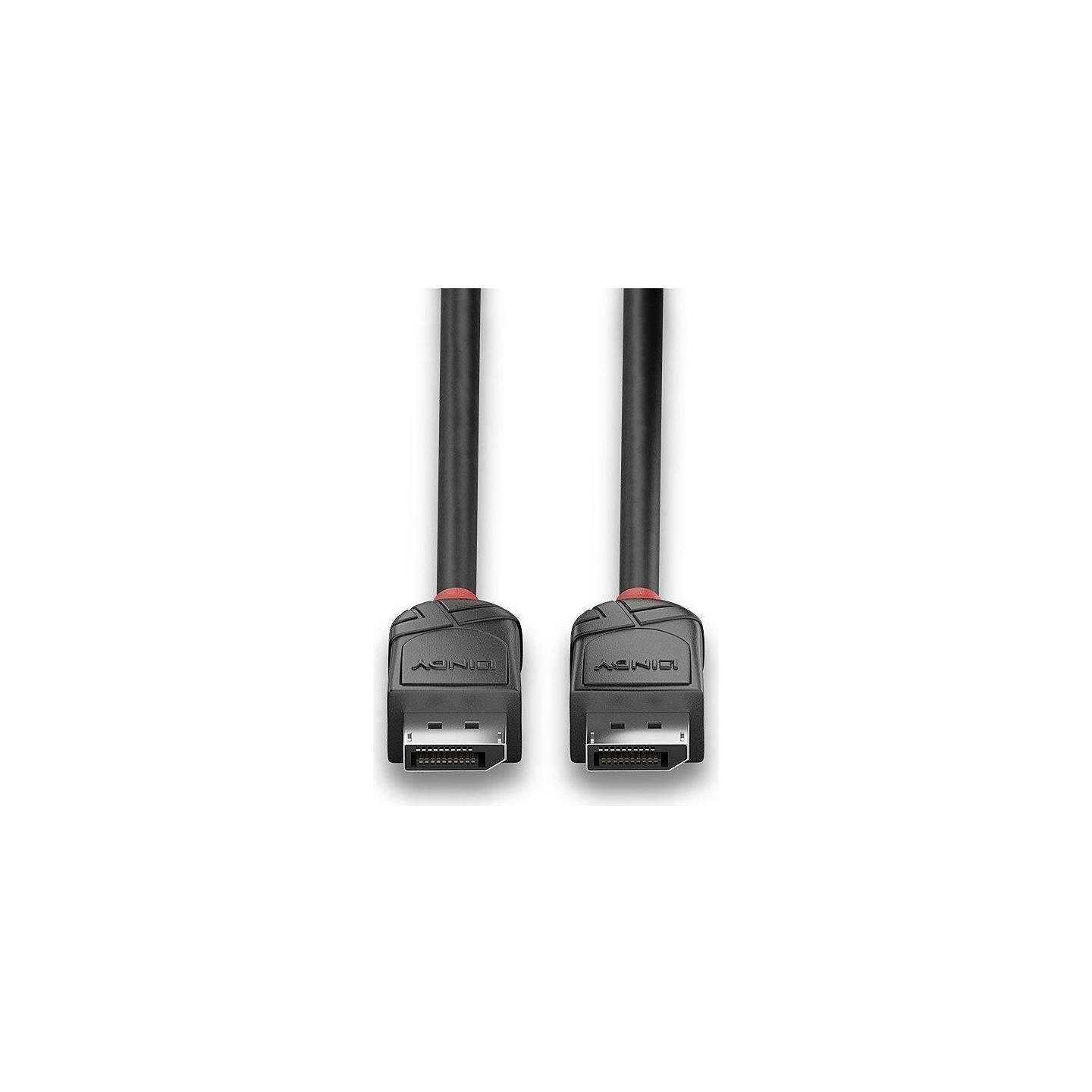

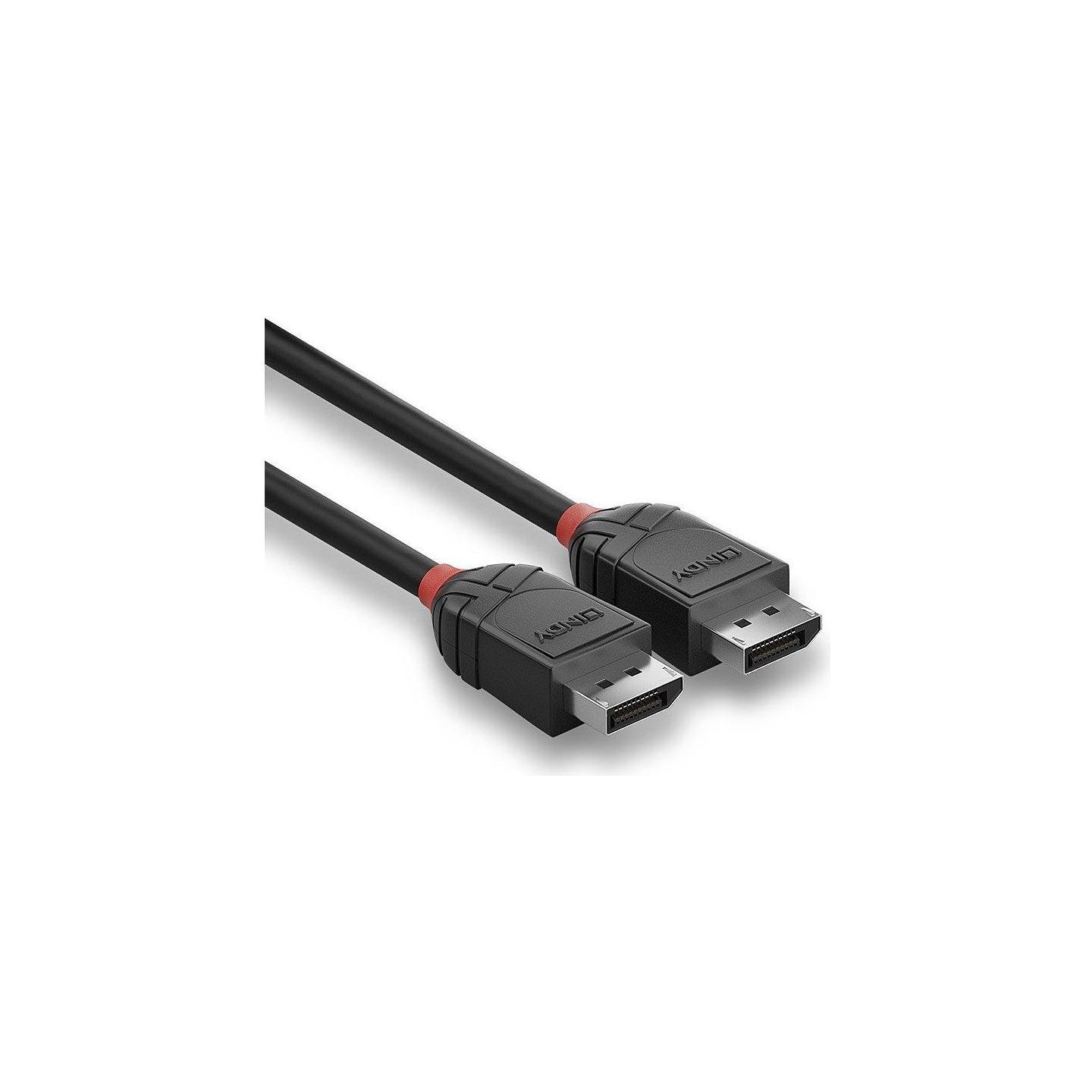

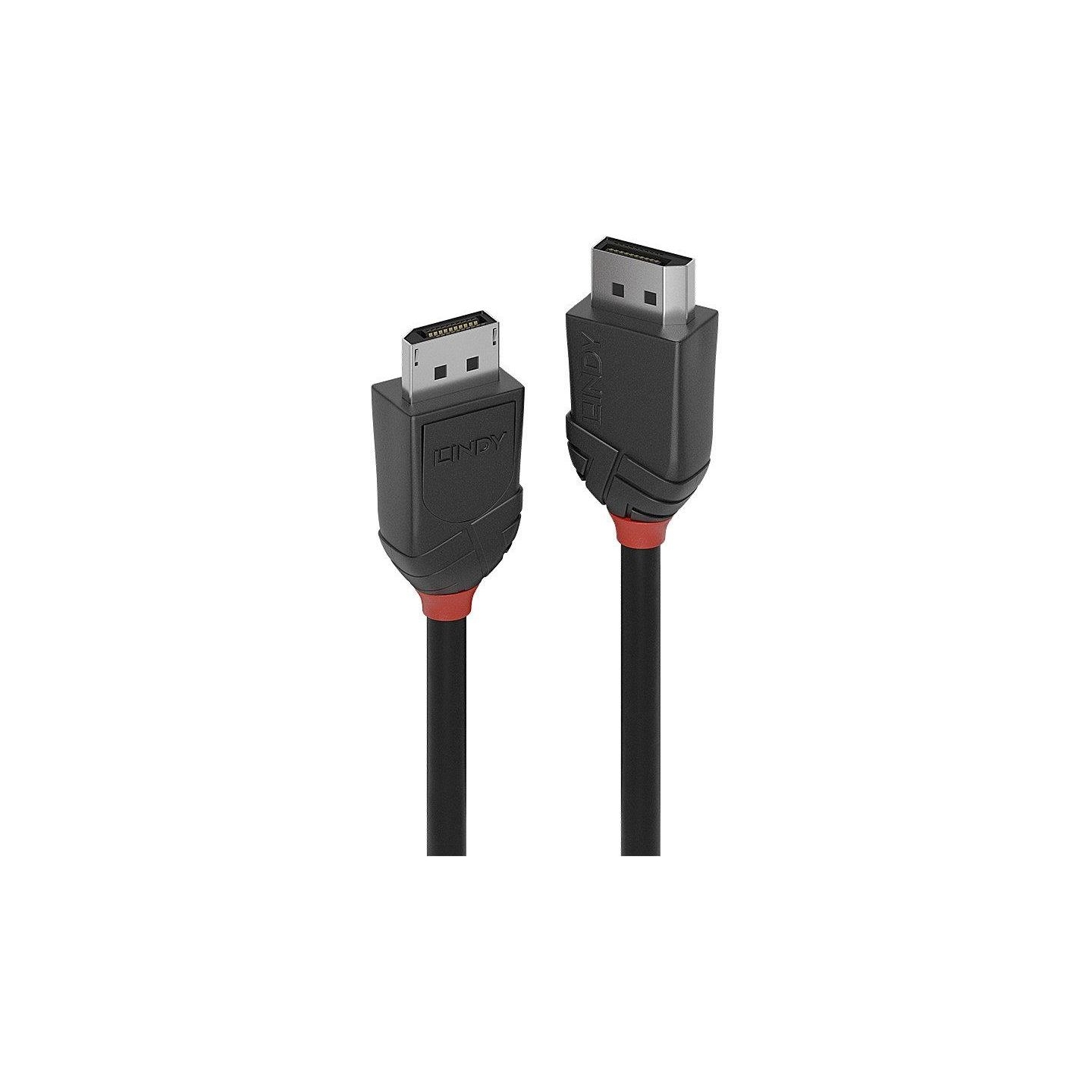

    Lindy CABLE DISPLAY PORT 2M/BLACK 36492 LINDY

Lindy CABLE DISPLAY PORT 2M/BLACK 36492 LINDY

€10.04
Tax included
Quantity
Add to wishlist

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

From the Lines cable connectivity concept developed by Lindy, Black Line DisplayPort cables are fully featured, entry level high resolution connection solutions, perfect for home and small office use.

Black Line DisplayPort cables feature triple shielded construction with 30AWG copper conductors for performance and corrosion resistance. Nickel connectors and 24K gold plated contacts maintain signal integrity and reliability.

UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 10bit are supported. Black Line DisplayPort cables are also capable of transmitting 32 channel audio and Dolby® True HD. Black Line DisplayPort cables are capable of delivering 4:4:4 colour spacing for the most accurate colour representation possible.

Black Line DisplayPort cables are available in lengths from 0.5m to 3m.

  • Entry level DisplayPort cable for home and small office applications
  • Supports UHD resolutions up to 4096x2160@60Hz 4:4:4 10bit
  • Robust PVC housing, nickel connectors, 24K gold plated contacts
  • Triple shielded cable, corrosion resistant copper 30AWG conductors
  • DisplayPort 1.2, 4K, 3D, 21.6Gbps; 10 year warranty



Manufacturer Website:
https://www.lindy.co.uk/cables-adapters-c1/audio-video-c107/2m-displayport-1-2-cable-black-line-p11066

Summary
Lindy 2m DisplayPort 1.2 Cable, Black Line. Cable length: 2 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Certification: RoHS, REACH, UL. Cable diameter: 6 mm, Connector 1 dimensions (WxDxH): 21 x 38.9 x 13.6 mm, Connector 2 dimensions (WxDxH): 21 x 38.9 x 13.6 mm. Package type: Polybag. Quantity per pack: 1 pc(s)
Category Code
CDP
CnCode
85444290
Unit Box Height
0.02
Unit Box Length
0.15
Unit Box Width
0.125
AWG wire size
30
Cable length
2 m
Cable material
Copper
Cable shielding
Copper
Cable type
Round cable
Colour sampling
4:4:4
Connector 1
DisplayPort
Connector 1 form factor
Straight
Connector 1 gender
Male
Connector 2
DisplayPort
Connector 2 form factor
Straight
Connector 2 gender
Male
Connector contacts plating
Gold
Connector housing material
Acrylonitrile butadiene styrene (ABS)
Connector material
Nickel
Contact material
Phosphor bronze
Data transfer rate
21.6 Gbit/s
DisplayPort version
1.2
Jacket material
Polyvinyl chloride (PVC)
Maximum refresh rate
60 Hz
Maximum resolution
4096 x 2160 pixels
Nominal attenuation
300kHz-825MHz - 5dB, 825MHz-2.475GHz - 5dB, 2.475GHz-4.125GHz - 12dB, 4.125GHz-5.1GHz - 20dB
Plug and Play
Yes
Product colour
Black
Supported graphics resolutions
4096 x 2160
Operating temperature (T-T)
-20 - 80 °C
Storage temperature (T-T)
-25 - 85 °C
Certification
RoHS, REACH, UL
Bend radius (min)
48 mm
Cable diameter
6 mm
Connector 1 dimensions (WxDxH)
21 x 38.9 x 13.6 mm
Connector 2 dimensions (WxDxH)
21 x 38.9 x 13.6 mm
Package type
Polybag
Quantity per pack
1 pc(s)
Harmonized System (HS) code
84733080
Units per Shipping Box
1
Unit Calculated Volume
0.000375 cubm
Unit Calculated Weight
0.12 kg
36492
19 Items

Specific References

EAN13
4002888364928
MPN
36492
