Gigabyte B650M GAMING WIFI6E AM5 MB

Write a review

€137.86

Tax included

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

SKU: KBGBAAA8B650U05
Barcode: 4719331867942
Model: B650M GAMING WIFI6E
CPU socket: Socket AM5
Processor family: AMD Ryzen 7
Processor family: AMD Ryzen 9
Processor family: AMD Ryzen 3
Processor family: AMD Ryzen 5
Integrated CPU: No
Chipset manufacturer: AMD
Chipset type: AMD B650
Memory type: DDR5
Number of DDR5 slots: 2
Memory bus frequency: 5600 MHz
Memory bus frequency: 4800 MHz
Memory bus frequency: 6400 MHz
Memory bus frequency: 5200 MHz
Memory bus frequency: 6200 MHz
Memory bus frequency: 6800 MHz
Memory bus frequency: 6000 MHz
Memory bus frequency: 4400 MHz
Memory bus frequency: 7200 MHz
Memory bus frequency: 6600 MHz
Memory bus frequency: 7600 MHz
Max memory size: 128
Expansion slots: 1 x PCIe x 16
Expansion slots: 1 x M.2
Expansion slots: 1 x PCIe 3.0 x 1
Max. number of SATA devices: 4
RAID: Yes
Detailed data on disk/drive interfaces: 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSD: AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 4 złącza SATA 6Gb/sRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, and RAID 10 support for SATA storage devices
Graphics: Integrated Graphics Processor - AMD Radeon Graphics support 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Sound card: Realtek audio codec Obsługa High Definition Audio Ilość kanałów audio 2/4/5.1/7.1
Network interface: Bluetooth
Network interface: Wi-Fi 802.11a/b/g/n/ac/ax
Network interface: 1 x 10/100/1000/2500 Mbit/s
Network interface: LAN Realtek 2.5GbE LAN chip (2.5Gbps/1Gbps/100Mbps) Realtek Wi-Fi 6E RTL8852CE wireless communication module WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless
USB ports at back panel: 6
USB ports on motherboard: 3
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports: 3
FireWire (IEEE 1394): No
COM connector / port: No
LPT connector / port: No

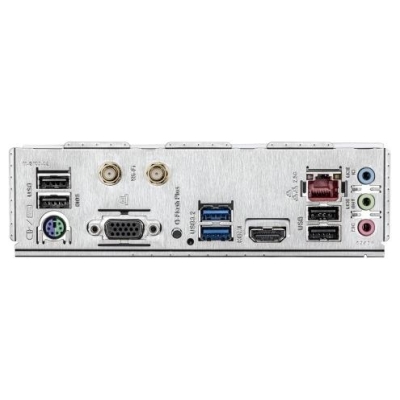

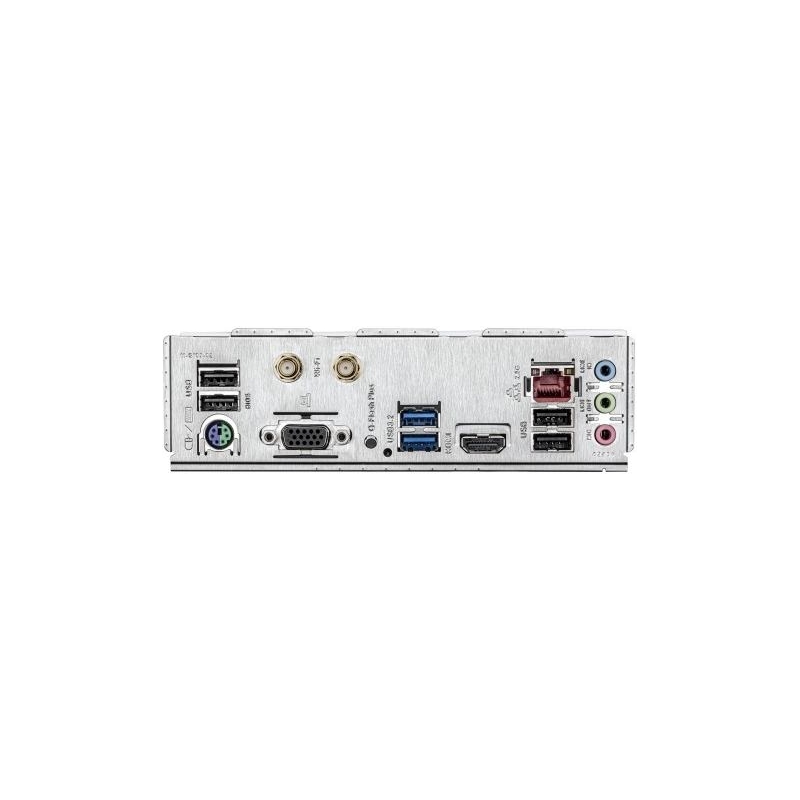

External connectors: 1 x D-Sub
External connectors: 1 x RJ-45
External connectors: 1 x HDMI
External connectors: 1 x Line In
External connectors: 4 x USB 2.0
External connectors: 1 x PS/2 Keyboard/MouseCombo
External connectors: 1 x Line Out
External connectors: 1 x MIC
External connectors: 2 x USB 3.2 Gen 1 Type-A
External connectors: 1 x Q-Flash Plus button
Onboard connectors: 1 x TPM header
Onboard connectors: 1 x Front panel audio header
Onboard connectors: 2 x Addressable LED
Onboard connectors: 1 x M.2
Onboard connectors: 1 x 8pin 12V power
Onboard connectors: 4 x SATA III 6Gb/s
Onboard connectors: 1 x System panel header
Onboard connectors: 1 x RGB LED strip header
Onboard connectors: 1 x USB 3.2 Gen 1 Type-A
Onboard connectors: 2 x USB 2.0/1.1 header
Onboard connectors: 1 x Clear CMOS jumper
Onboard connectors: 2 x 4pin Chassis fan
Onboard connectors: 1 x 24pin ATX zasilanie
Onboard connectors: 1 x 4pin CPU fan
BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor: micro ATX
Dimensions: 24 x 22.5 cm
Supported operating systems: Windows 10
Supported operating systems: Windows 11
Software: Norton Internet Security (wersja OEM) LAN bandwidth management software
Designation: CE+WEEE

Reference B650M GAMING WIFI6E

In stock 18 Items

Data sheet

Designation: CE+WEEE
Processor family: AMD Ryzen 3
AMD Ryzen 5
AMD Ryzen 7
AMD Ryzen 9
CPU socket: Socket AM5
Memory type: DDR5
Memory bus frequency: 4400 MHz
4800 MHz
5200 MHz
5600 MHz
6000 MHz
6200 MHz
6400 MHz
6600 MHz
6800 MHz
7200 MHz
7600 MHz
Integrated CPU: No
Chipset manufacturer: AMD
Chipset type: AMD B650
Max memory size: 128
Expansion slots: 1 x M.2
1 x PCIe 3.0 x 1
1 x PCIe x 16
Max. number of SATA devices: 4
RAID: Yes
Detailed data on disk/drive interfaces: 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSD: AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Seri
Graphics: Integrated Graphics Processor - AMD Radeon Graphics support 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Sound card: Realtek audio codec Obsługa High Definition Audio Ilość kanałów audio 2/4/5.1/7.1
Network interface: 1 x 10/100/1000/2500 Mbit/s
Bluetooth
LAN Realtek 2.5GbE LAN chip (2.5Gbps/1Gbps/100Mbps) Realtek Wi-Fi 6E RTL8852CE wireless communication module WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless
Wi-Fi 802.11a/b/g/n/ac/ax
USB ports at back panel: 6
USB ports on motherboard: 3
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports: 3
FireWire (IEEE 1394): No
COM connector / port: No
LPT connector / port: No
External connectors: 1 x D-Sub
1 x HDMI
1 x Line In
1 x Line Out
1 x MIC
1 x PS/2 Keyboard/MouseCombo
1 x Q-Flash Plus button
1 x RJ-45
2 x USB 3.2 Gen 1 Type-A
4 x USB 2.0
Onboard connectors: 1 x 24pin ATX zasilanie
1 x 4pin CPU fan
1 x 8pin 12V power
1 x Clear CMOS jumper
1 x Front panel audio header
1 x M.2
1 x RGB LED strip header
1 x System panel header
1 x TPM header
1 x USB 3.2 Gen 1 Type-A
2 x 4pin Chassis fan
2 x Addressable LED
2 x USB 2.0/1.1 header
4 x SATA III 6Gb/s
BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor: micro ATX
Supported operating systems: Windows 10
Windows 11
Software: Norton Internet Security (wersja OEM) LAN bandwidth management software
Number of DDR5 slots: 2
