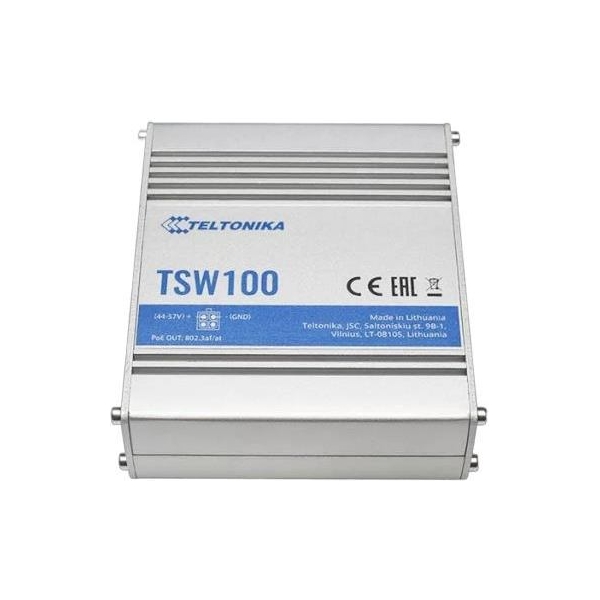

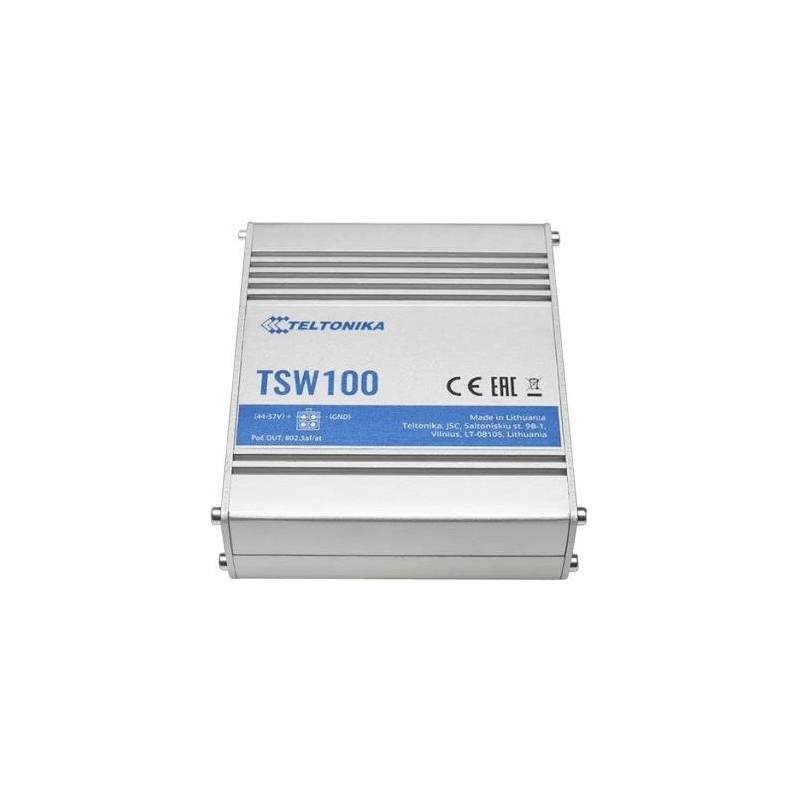

Teltonika Switch|TELTONIKA|TSW100000000|PoE+ ports 4|120 Watts|TSW100
- Write a review
€91.25
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
TSW100 – 5-port, unmanaged full Gigabit Ethernet switch supporting Power-over-Ethernet (802.3af and 802.3at standards). This device is classified as power source equipment (PSE), and when used in this way, TSW100 switch enables centralization of the power supply, providing up to 30 watts of power per port and reducing the effort for installing power. It has 10/100/1000 Mbps Ethernet ports to provide an economical high-bandwidth solution for your industrial Ethernet network.
Manufacturer Website:
https://teltonika-networks.com/product/tsw100/#features
- Category Code
- SWI
- CnCode
- 85176200
- Unit Box Height
- 0.145
- Unit Box Length
- 0.17
- Unit Box Width
- 0.07
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Auto MDI/MDI-X
- Yes
- Networking standards
- IEEE 802.3af/IEEE 802.3at/IEEE 802.3az
- Jumbo frames
- 9216
- MAC address table
- 2000 entries
- Packet buffer memory
- 0.128 MB
- Housing material
- Aluminium
- LED indicators
- Power/Status
- Product colour
- Blue/Metallic
- DC input voltage
- 7 - 58 V
- Power consumption (max)
- 129 W
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet (PoE) ports quantity
- 4
- Power over Ethernet (PoE) power per port
- 30 W
- Total Power over Ethernet (PoE) budget
- 120 W
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- -40 - 75 °C
- Depth
- 95 mm
- Height
- 32 mm
- Width
- 115 mm
- Certification
- CE/RED, EAC, RoHS, WEEE Draft ETSI EN 301 489-1 V2.2.0, Draft EN 301 489-19 V2.1.0, Draft ETSI EN 301 489-52 V1.1.0 EN 61000-4-2:2009 EN 300 511 V12.5.1, ETSI EN 301 908-1 V11.1.1, ETSI EN 301 908-2 V11.1.2, ETSI EN 301 908-13 V11.1.2 EN 61000-4-3:2006 +
- Harmonized System (HS) code
- 85176990
- Model
- TSW100
- Model name
- TSW100000000
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.001726 cubm
- Unit Calculated Weight
- 0.74 kg
TSW100
8 Items
Specific References
- EAN13
- 4779027312828
- MPN
- TSW100
